上海光阑科技有限公司

上海光阑科技有限公司

上海青浦淀山湖大道万达茂五号楼1120室
Click to show company phone
中国大陆 China.png

员工信息

员工数
500
有用联系人
Contact Face
Dina

公司描述

Shanghai Solar Flare Manufacturing Co., Ltd. is a high-tech enterprise focusing on R & D, production and sales of photovoltaic products. The main products are: shock absorber connecting rod, bearing, photovoltaic damper, etc. The company is located in Xinhu Industrial Park, Pinglu County, Yuncheng City, Shanxi Province, 6km away from Sanmenxia high-speed railway station and 35km away from Yuncheng airport, with convenient transportation.

业务详情

产品

About Us


Shanghai solar flare Manufacturing Co., Ltd. is a high-tech enterprise focusing on R & D, production and sales of photovoltaic products. The main products are: shock absorber connecting rod, bearing, photovoltaic damper, etc.

The main products are photovoltaic dampers, with 7 specifications and an annual capacity of about 1.5 million pieces. Products are sold to the United States, Mexico, Australia, Brazil, Dubai and other countries. In 2017, it invested more than 90 million yuan to implement the relocation and technical transformation project, and built a new R & D centre building, rubber and plastic, powder plant, photovoltaic damper, laboratory and storage plant, covering an area of 34000 square meters. In June 2018, the new plant has been fully put into use.


Main features


(1) For two consecutive days, the power generation increased by 2.6% on sunny days.

(2) For two consecutive days, sunny to cloudy, power generation increased by 2% on average.

(3) The tracking system has been applied in foreign markets, and its operation over 30000 MW is reliable;

(4) Less than 15% of the operation and maintenance costs, easy to maintain.

(5) Fast installation in terrain environment with up to 40 degree difference.

(6) Compared with the system of other manufacturers, the number of installation and commissioning personnel decreased by 20% year on year; Unique single bolt quick installation components, error proof installation design, 2 staff can install at least 12 MW per day.

(7) Flexible connection structure, less input, 1MW only need one motor, lubrication seal maintenance free, multi-directional rotation of flexible connecting rod, convenient and rapid disassembly, 40% East-West rotation, north-south 15 degree N-S adjustable range  。 ( 8) More effective cleaning design. Optimize the module cleaning scheme to reduce 6  % It is suitable for robot cleaning.

(9) Reliability. 7% lower levelized substation cost, 300 times smaller possibility of catastrophic failure, no collapse, can provide up to 25 years of system guarantee.

(10) It can resist wind and avoid torsional resonance. The system can guarantee the effective wind resistance under various angles by mechanical means, and the minimum wind resistance is 60 meters per second. Each row of tracking system has independent and relative ability to resist wind and snow.

Products

Projects




产品

晶体硅

  • ¥1.20 / Wp *

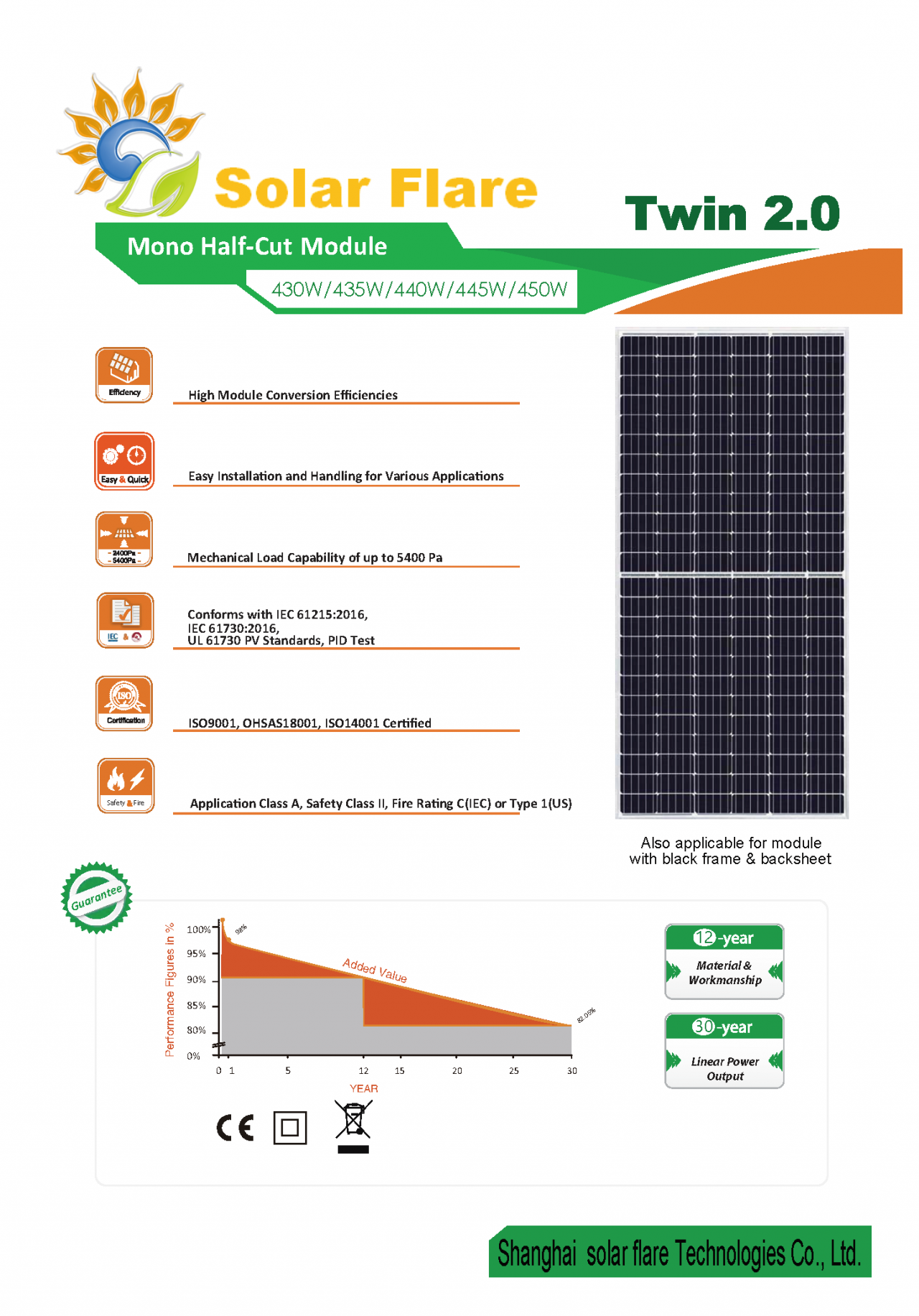

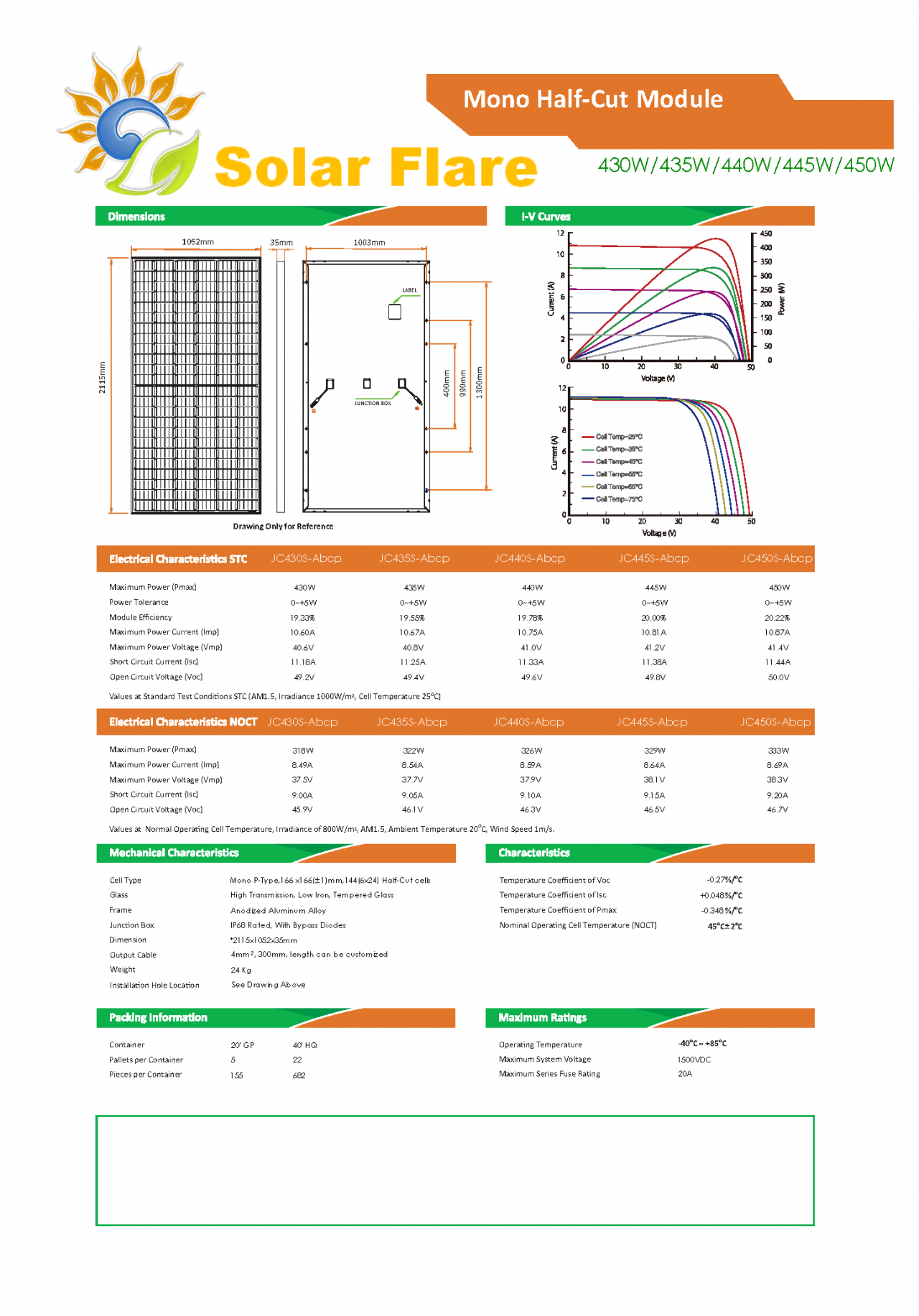

    JC430-450S-Abcp
    430 ~ 450 Wp 单晶硅
  • ¥1.20 / Wp *

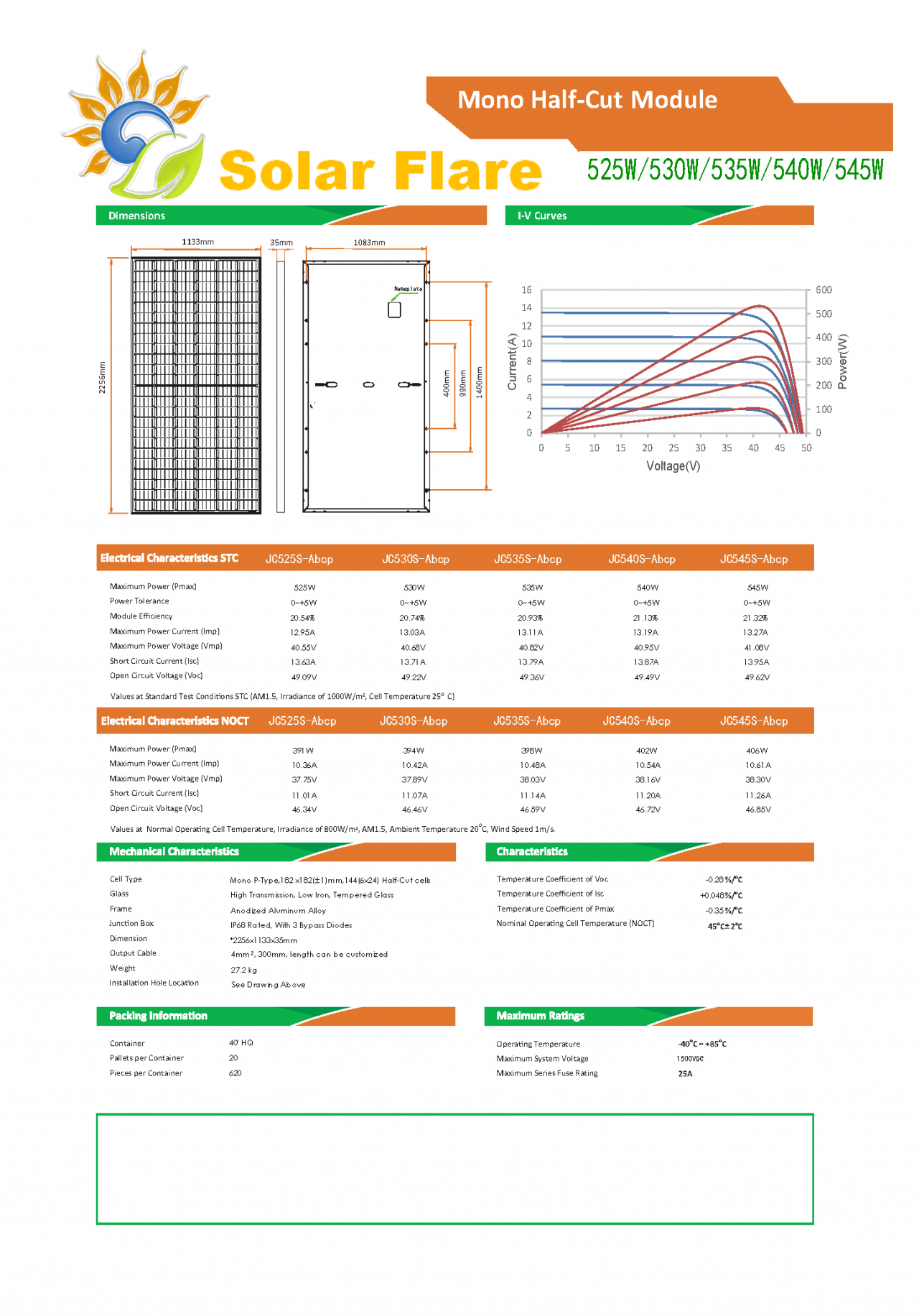

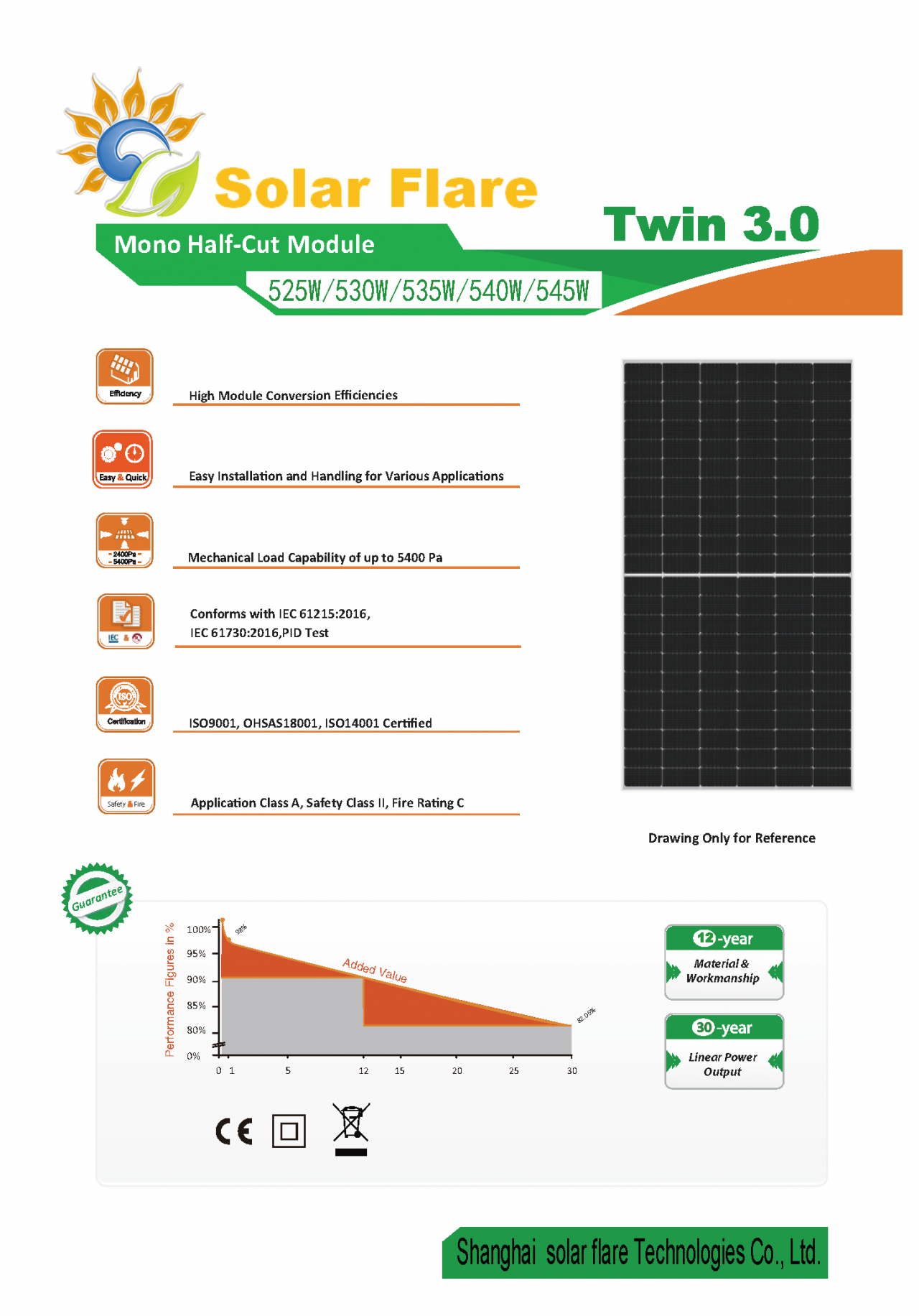

    JC525-545S-Abcp
    525 ~ 545 Wp 单晶硅

业务详情

零 部 件 类 型
支架系统,跟踪器
支架系统
地面支架

产品

光伏支架样板功能介绍--固定式


工作原理:

       光伏阵列不随太阳入射角的变化而转动,以太阳辐射量最大时的倾角固定不动,做到固定模式光伏阵列累计接受辐射量最大,发电量最大。


主要特点:

1、标准化、系列化的光伏支架,货源广泛,成本较低;

2、双排水泥墩柱,结构合理、稳定性好,抗风能力强;

3、标准化组合,安装精度高,施工简单;

4、无需在项目地现场焊接;

5、根据地区不同,倾角有充分的可调性


光伏支架样板功能介绍--固定可调



工作原理:

       光伏阵列根据四季太阳辐射角度变化,定期调整倾角,提高各季节的太阳辐射量。


主要特点:

1、支撑与构成:

    水泥立柱+H型钢支撑;20块光伏组件,两侧对称布置,横梁长度11m;

2、调节方式:

    边桩扳动手柄,边桩调节装置可替换,能实现更大调节角度,同时实现自动调节;

3、优势:

(1)支架调节角度分四节气三档位调节,夏至向南倾角10°;春、秋分时节向南倾角20°;冬至向南倾角30°。支架根据季节变化调整相应位置,实现光伏组件最大限度接受太阳光照射,实现发电量最大化;

(2)轴承座按滚动型式设计,减轻调节难度,减轻劳动强度;

(3)预应力管桩基础,回收利用率高,结构短,地形适应性好;

(4)角度调节固定后,相当于固定支架结构,稳定可靠、故障率底;

(5)在年度日照时间短的区域,与全智能支架相比较,成本更低,性价比更高。


光伏支架样板功能介绍--全智能单排




工作原理:

       安装有自主研发的跟踪控制器,利用天文算法+角度传感控制光伏组件追日旋转,捕捉阳光,最大程度的提高系统发电量。


主要特点:

1、支撑与构成:

      水泥基础、美标型钢,结构合理稳定;单排22m,5根立柱,布置20块光伏组件,与固定式支架、手动可调支架所用的组件相同;

2、工作环境:

      回转减速机工作温度-40°—70°,适应各种工作环境;两端安装减震器,有效减缓极端天气对系统产生的振动;

3、优势:

(1)追踪范围±60°,捕捉每一丝阳光;

(2)跟踪系统控制器采用“时控+角度传感器+传感器闭环控制”,实现高精度可靠跟踪;


光伏支架样板功能介绍--全智能双排



工作原理:

        通过提升支架高度,减小立柱跨距,由单排光伏组件增加至双排光伏组件,更好的利用土地,提升发电量。


主要特点:

1、支撑与构成:

      地桩可选钢制立柱/水泥基锤入,无建筑垃圾产出,有效保护环境;单排最长有60m,仅需9根立柱,承载4个1500V组串的组件,合理高效使用土地,降低支架成本;双倍面板,发电效率更高;

2、工作环境:

      减速器工作温度-40°至70°,适应各种工作环境;地形坡度适应性强,南北可达11°;

3、优势:

(1)独特的零部件设计,节约型材,合理降低成本;

(2)追踪范围±60°,捕捉每一丝阳光;

(3)电子、机械双重限位保护,安全多一份保障;

(4)自主研发跟踪系统控制器,采用“时控+角度传感器+传感器闭环控制”,实现高精度可靠跟踪;

(5)跟踪系统模块化设计,便于现场故障排查与维护;

(6)跟踪控制器可实现多种保护模式:大风保护、大雪保护、限位保护、过流保护、欠压保护,无忧使用;


产品

支架系统

  • ¥0.333 / Wp *
    Tracker
    地面型
  • ¥0.272 / Wp *
    Fixed Adjustab...
    地面型
  • ¥0.295 / Wp *
    Multi-Drive In...
    地面型
最后更新
2021年8月20日 更新以上信息
