LW-M6-5BB-PERC

光为能源科技有限公司
价 格:
起价 ¥1.22 / Wp *
电池片类型: 背钝化
功率范围: 5.033~5.41 Wp
地区: 中国大陆 中国大陆
注意: 您的询盘将直接发送至光为能源科技有限公司

描述:

1.无PID
2. 金刚线-PERC技术
3.转换效率高,平均电池片效率(正面)为21.4%,最高效率为22.1%
4.长期效率稳定性和卓越的可靠性
5.低破损率和低LID率
6.色彩均匀性好

产品特点

产品型号
LW-M6-5BB-5.033W LW-M6-5BB-5.057W LW-M6-5BB-5.082W LW-M6-5BB-5.106W LW-M6-5BB-5.131W LW-M6-5BB-5.155W LW-M6-5BB-5.180W LW-M6-5BB-5.204W LW-M6-5BB-5.23W LW-M6-5BB-5.25W LW-M6-5BB-5.28W LW-M6-5BB-5.30W LW-M6-5BB-5.33W LW-M6-5BB-5.35W LW-M6-5BB-5.38W LW-M6-5BB-5.41W
产品特点
电池片技术 背钝化
尺寸 156.75×156.75 mm
对角线 210±0.25 mm
电池片厚度 200 ± 20 µm
正面 (-)
栅线数 5
栅线宽度 0.7±0.1 mm
栅线材料
减反射膜 氮化硅
背面 (+)
焊垫数 4
焊垫宽 1.6 mm
焊垫材料
背面电场 (BSF)
电性能参数(STC)
峰值功率 (Pmax)
5.033 W 5.057 W 5.082 W 5.106 W 5.131 W 5.155 W 5.18 W 5.204 W 5.23 W 5.25 W 5.28 W 5.3 W 5.33 W 5.35 W 5.38 W 5.41 W
峰值工作电压 (Vmpp)
0.552 V 0.554 V 0.556 V 0.558 V 0.56 V 0.562 V 0.564 V 0.565 V 0.563 V 0.565 V 0.567 V 0.568 V 0.57 V 0.571 V 0.573 V 0.574 V
峰值工作电流 (Impp)
9.12 A 9.135 A 9.149 A 9.16 A 9.17 A 9.181 A 9.191 A 9.201 A 9.295 A 9.297 A 9.305 A 9.325 A 9.35 A 9.367 A 9.393 A 9.401 A
开路电压 (Voc)
0.655 V 0.656 V 0.657 V 0.658 V 0.659 V 0.66 V 0.66 V 0.661 V 0.661 V 0.663 V 0.665 V 0.666 V 0.667 V 0.668 V 0.67 V 0.672 V
短路电流 (Isc)
9.723 A 9.729 A 9.735 A 9.741 A 9.746 A 9.752 A 9.758 A 9.764 A 9.777 A 9.79 A 9.792 A 9.817 A 9.84 A 9.849 A 9.861 A 9.87 A
电池片效率
20.5-20.6 % 20.6-20.7 % 20.7-20.8 % 20.8-20.9 % 20.9-21.0 % 21.0-21.1 % 21.1-21.2 % 21.2-21.3 % 21.4-21.5 % 21.5-21.6 % 21.6-21.7 % 21.7-21.8 % 21.8-21.9 % 21.9-22.0 % 22.0-22.1 % 22.1-22.2 %
填充因子 (FF)
79.05 % 79.3 % 79.53 % 79.74 % 79.95 % 80.17 % 80.49 % 80.55 % 80.97 % 80.93 % 81.02 % 81.01 % 81.2 % 81.3 % 81.46 % 81.36 %
温度特性
温度系数(Pmax) -0.38 %/˚C
温度系数(Voc) -0.31 %/˚C
温度系数(Isc) 0.043 %/˚C

-------------------------------------------------------------<<About Lightway>>------------------------------------------------------------------

Lightway was established in 2006,set up four companies in China mainland and owns two operating/sales companies in HongKong,with manufacturing factilities in Jiangsu/Jiangxi/Guangdong for solar cells,solar modules and solar applications etc and global marketing/sales company in Shenzhen,our current annual production capacity is 300MW for solar cells and 360MW for solar modules etc manufactured in CE/ISO/IEC/TUV/UL etc certificates,our production capacity will expand to 400MW for solar cells and 500MW for solar modules etc in 2019 year.Lightway devoted to offering clients a one-stop shop for high quality products and already recognized by many of our clients from all over the world up to 80 countries.

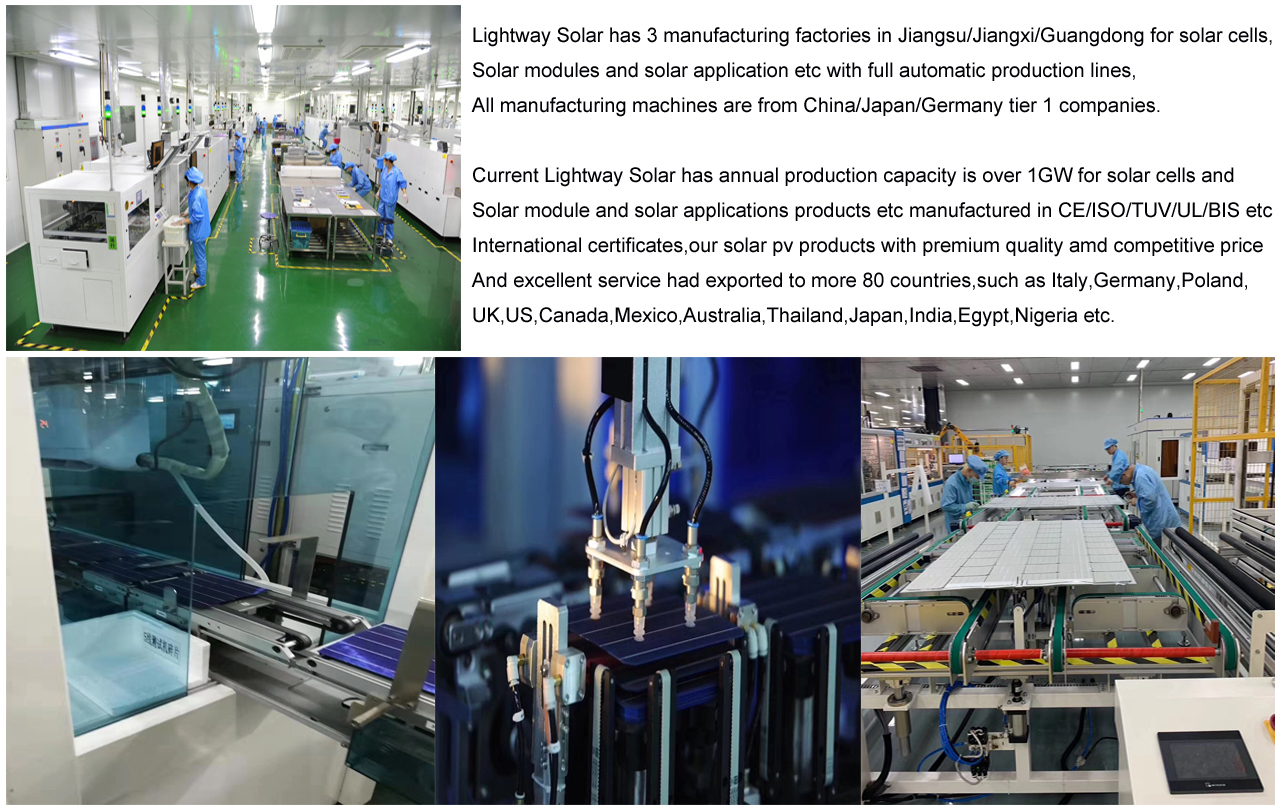

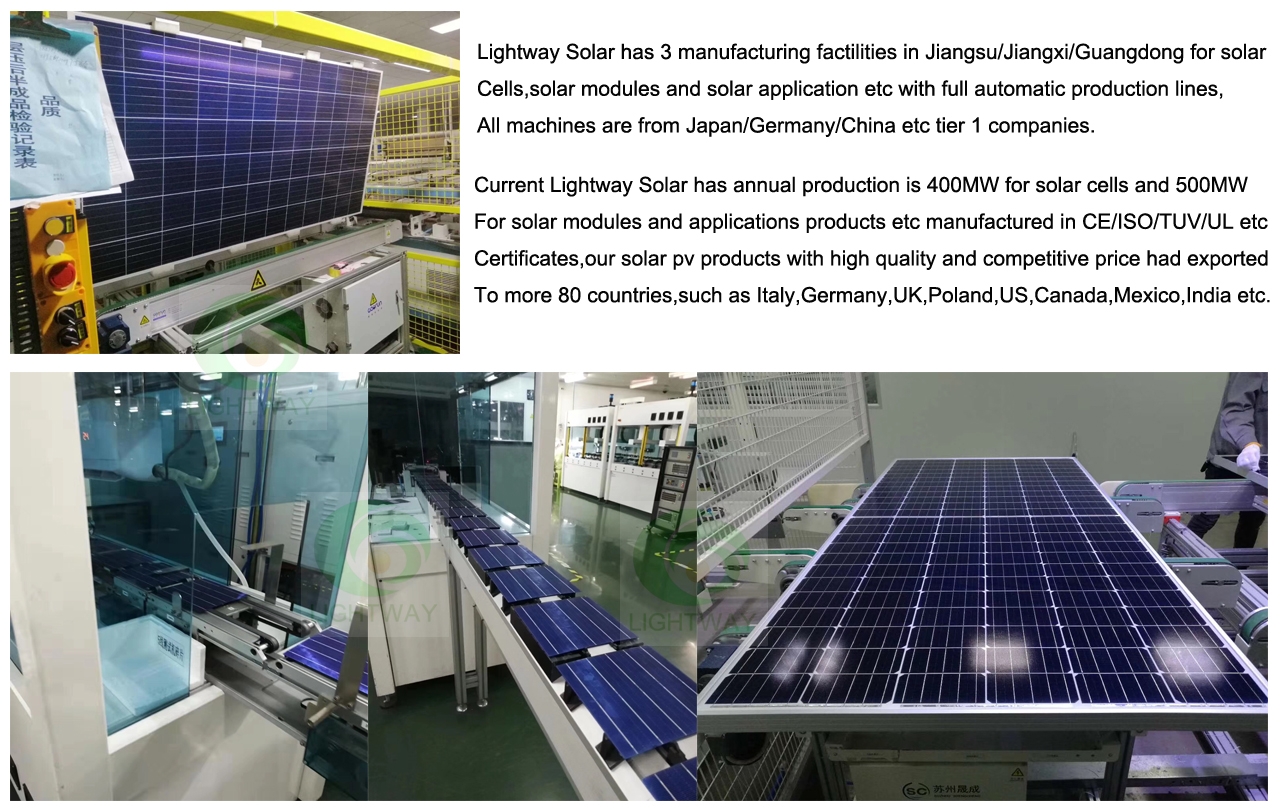

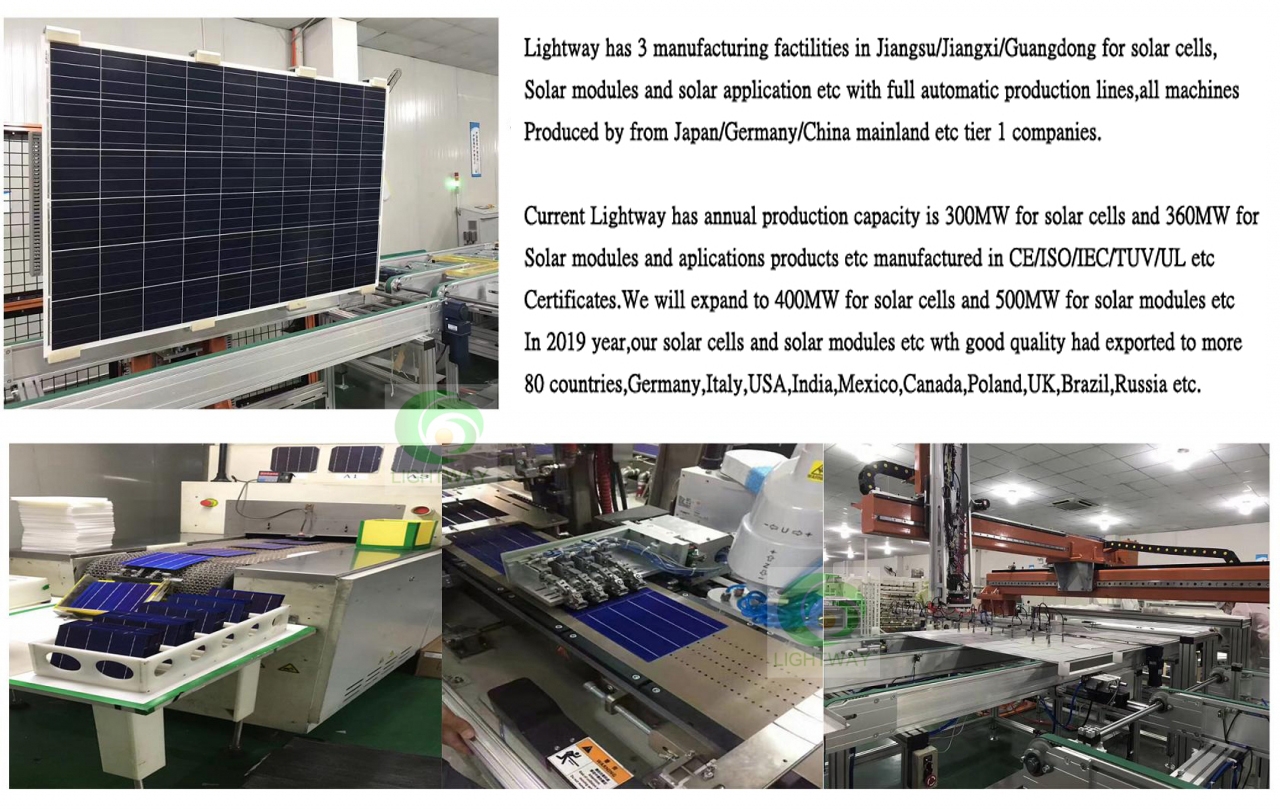

-----------------------------------------------------------<<Our Factory>>---------------------------------------------------------------

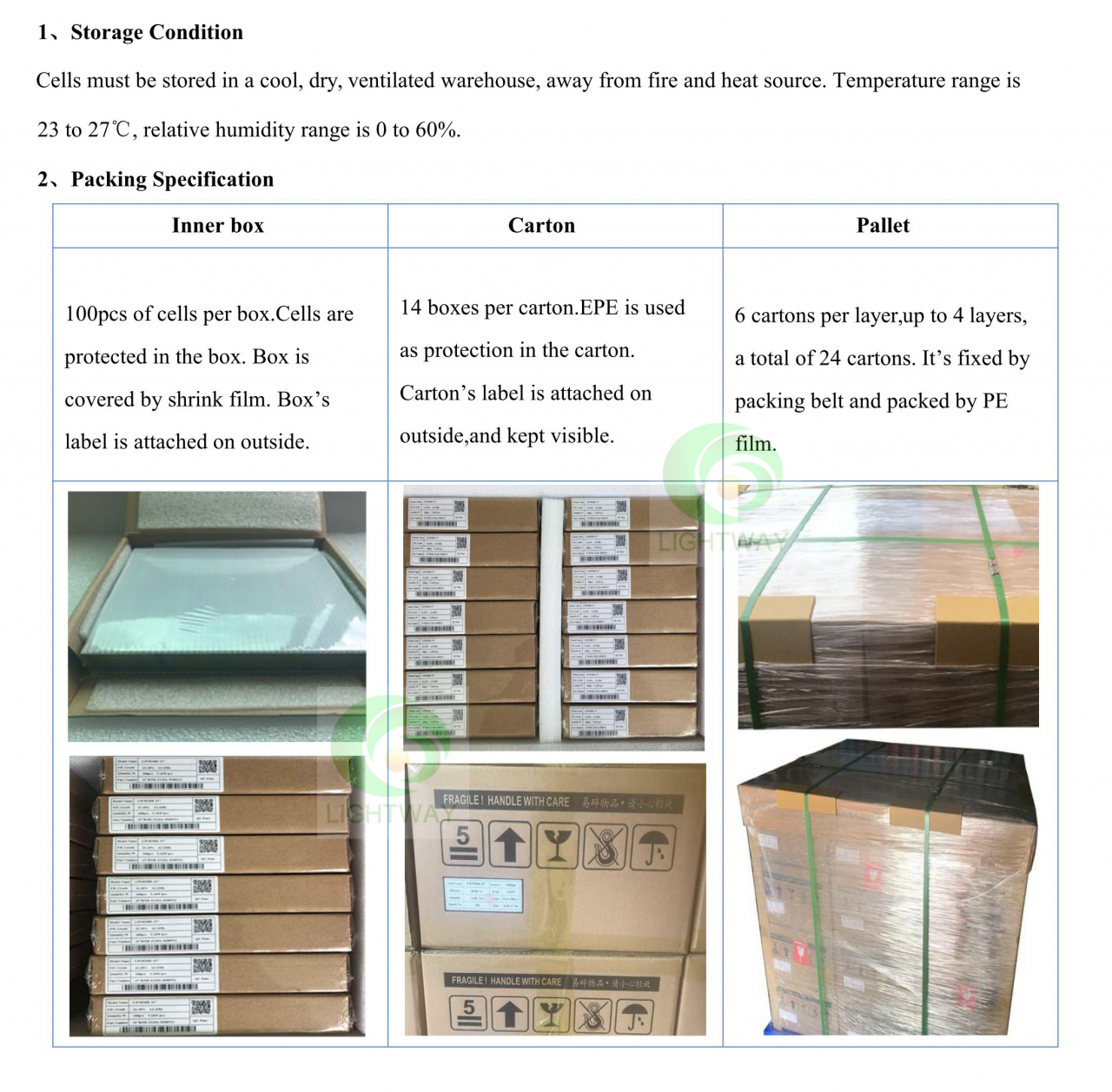

-----------------------------------------------------------<<Packaging>>----------------------------------------------------------------


---------------------------------------------------<<Applications & Projects>>-------------------------------------------------------



---------------------------------------------------------<<Full Certificates>>------------------------------------------------------------


--------------------------------------<<Our Flexible and Various Payment Term>>-------------------------------------------

---------------------------------<<Our Shipping is Fast Delivery and Safy & Accurate>>------------------------------------
