P157B5

P157B5

无锡施莱德新能源有限公司
价 格:
起价 ¥0.398 / Wp *
电池片类型: 多晶硅
功率范围: 4.37~4.67 Wp
地区: 中国大陆 中国大陆
联系生产商
注意: 您的询盘将直接发送至无锡施莱德新能源有限公司

描述:

● High Conversion Efficiencies Resulting in Superior Power Output Performance

● Outstanding Power Output Even in Low Light or High Temperature Conditions

● Optimized Design for Ease of Soldering and Lamination

● Long-term Stability, Reliability and Performance

● Low Breakage Rate

● Uniform Color

产品特点

产品型号
178 180 182 183 184 185 186 188 190
产品特点
电池片技术 多晶硅
尺寸 156.75×156.75 mm
电池片厚度 180/200 ± 20 µm
正面 (-)
栅线数 5
栅线宽度 0.7±0.05 mm
栅线材料
减反射膜 氮化硅
背面 (+)
焊垫数 5
焊垫宽 1.7 mm
焊垫材料 银,铝
背面电场 (BSF)
电性能参数(STC)
峰值功率 (Pmax)
4.37 W 4.42 W 4.47 W 4.5 W 4.52 W 4.55 W 4.57 W 4.62 W 4.67 W
峰值工作电压 (Vmpp)
0.532 V 0.535 V 0.537 V 0.538 V 0.54 V 0.542 V 0.543 V 0.544 V 0.547 V
峰值工作电流 (Impp)
8.22 A 8.27 A 8.33 A 8.36 A 8.38 A 8.4 A 8.42 A 8.49 A 8.54 A
开路电压 (Voc)
0.626 V 0.629 V 0.631 V 0.633 V 0.634 V 0.635 V 0.636 V 0.638 V 0.641 V
短路电流 (Isc)
8.71 A 8.76 A 8.81 A 8.84 A 8.86 A 8.89 A 8.91 A 8.97 A 9.02 A
电池片效率
17.8 % 18 % 18.2 % 18.3 % 18.4 % 18.5 % 18.6 % 18.8 % 19 %
填充因子 (FF)
80.2 % 80.3 % 80.47 % 80.38 % 80.56 % 80.65 % 80.68 % 80.7 % 80.79 %
温度特性
温度系数(Pmax) -0.39 %/˚C
温度系数(Voc) -0.31 %/˚C
温度系数(Isc) 0.04 %/˚C
PDF
下载公司产品详情

About Us

Sunlike Solar Co., Ltd established at 2010, which is specialized in researching, developing, designing and producing new energy products,With the advanced technology and equipments, we can supply various high efficiency monocrystalline and polycrystalline solar cells (156.75mm,158.75mm,166mm,182mm), solar modules from 10W to 600W.
Due to standard clean production workshops, precise design, strict quality control system and perfect manufacturing technology, product quality completely meets international standards. Our production capacity has expanded to 2000MW for solar cell and modules per year. We were exported to Europe, Southeast of Asia, Africa, and America and so on, which are widely applied to power generation and lighting system, favored by customers.

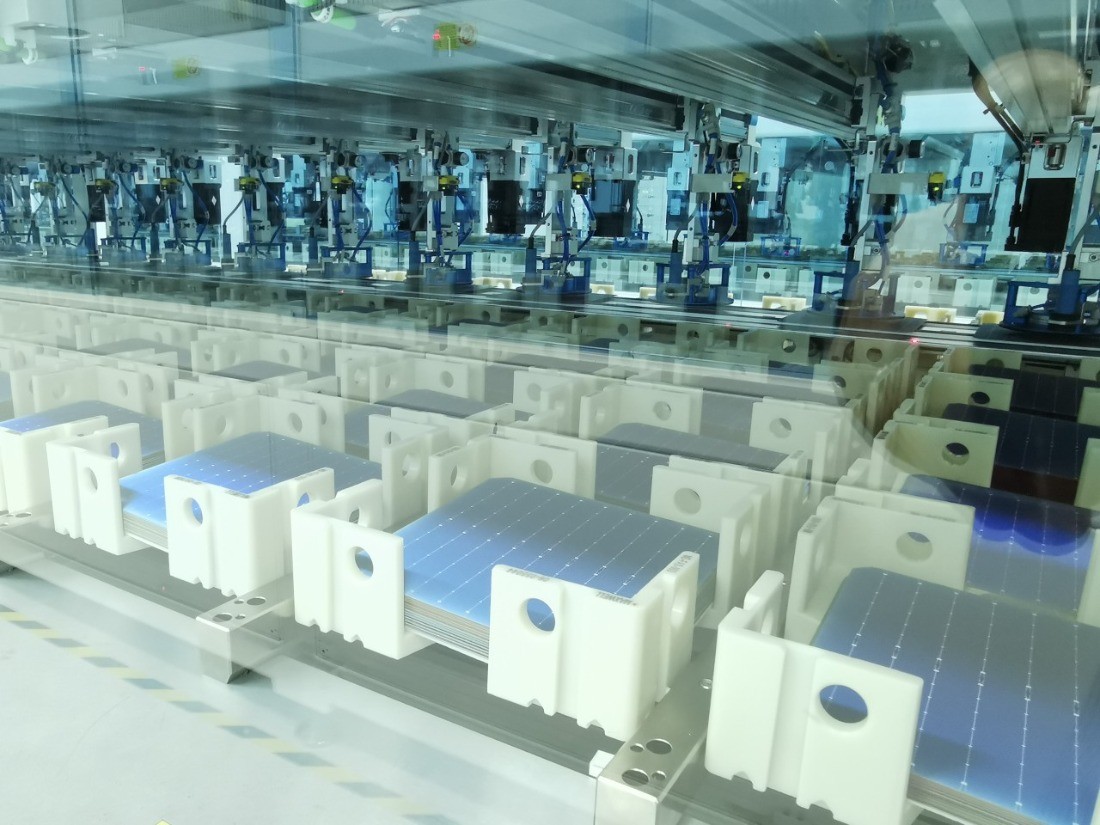

Our Factory

Projects

无锡施莱德新能源有限公司

Click to show company phone
www.sunlikesolar.com
中国大陆
江苏省无锡市大通路509号
员工数: 300
注意: 您的询盘将直接发送至无锡施莱德新能源有限公司
公司描述

˃ Precision Cell Efficiency Sorting Procedures

˃ Stringent Criteria For Color Uniformity And Appearance

˃ Reverse Current And Shunt Resistance Screening

˃ ISO9001, ISO14001 And OHSAS 18001 Certificated

˃ Calibrated Against Fraunhofer ISE

产品

About Us

Sunlike Solar Co., Ltd. established in 2010, which is specialized in researching, developing, designing and producing new energy products. With the advanced technology and equipment, we can supply various high-efficiency monocrystalline and polycrystalline solar cells (156.75mm, 158.75mm, 166mm, 182mm), and solar modules from 10W to 600W.

Due to standard clean production workshops, precise design, strict quality control system and perfect manufacturing technology, product quality completely meets international standards. Our production capacity has expanded to 2000MW for solar cells and modules per year. We export to Europe, Southeast Asia, Africa, America and so on, where our products are widely applied to power generation and lighting systems, favoured by customers.
