STD-TM1016 (182*182mm)

Standard Energy Co., Ltd
价 格:
起价 ¥0.364 / Wp *
电池片类型: TOPCon
功率范围: 8.09~8.45 Wp
地区: 泰国 泰国
联系生产商
注意: 您的询盘将直接发送至Standard Energy Co., Ltd

描述:

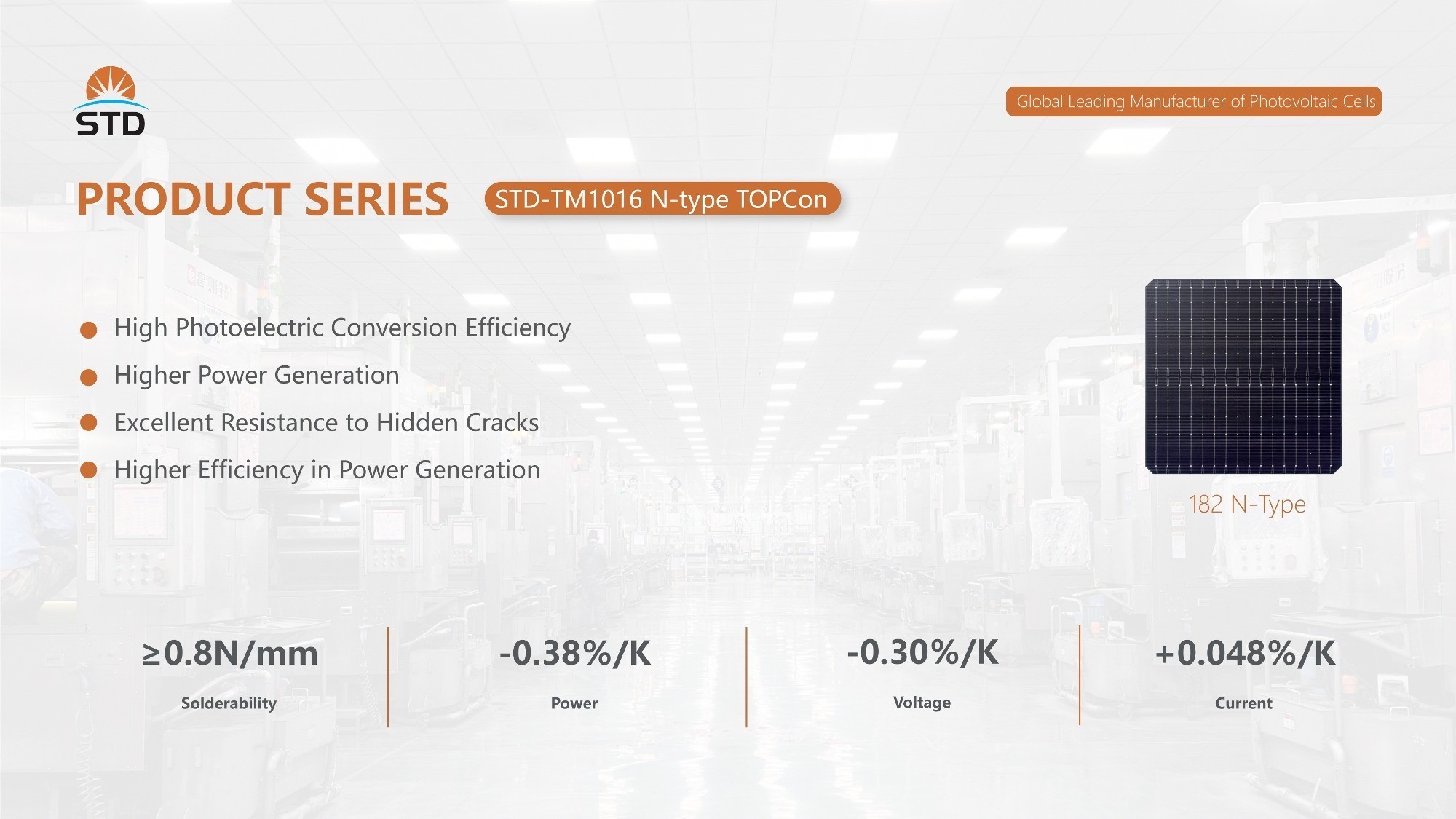

  • High Photoelectric, Conversion Efficiency

  • Excellent Resistance to Hidden Cracks

  • Higher Power Generation

  • Higher Efficiency in Power Generation

产品特点

产品型号
8.09W 8.12W 8.15W 8.19W 8.22W 8.25W 8.29W 8.32W 8.35W 8.39W 8.42W 8.45W

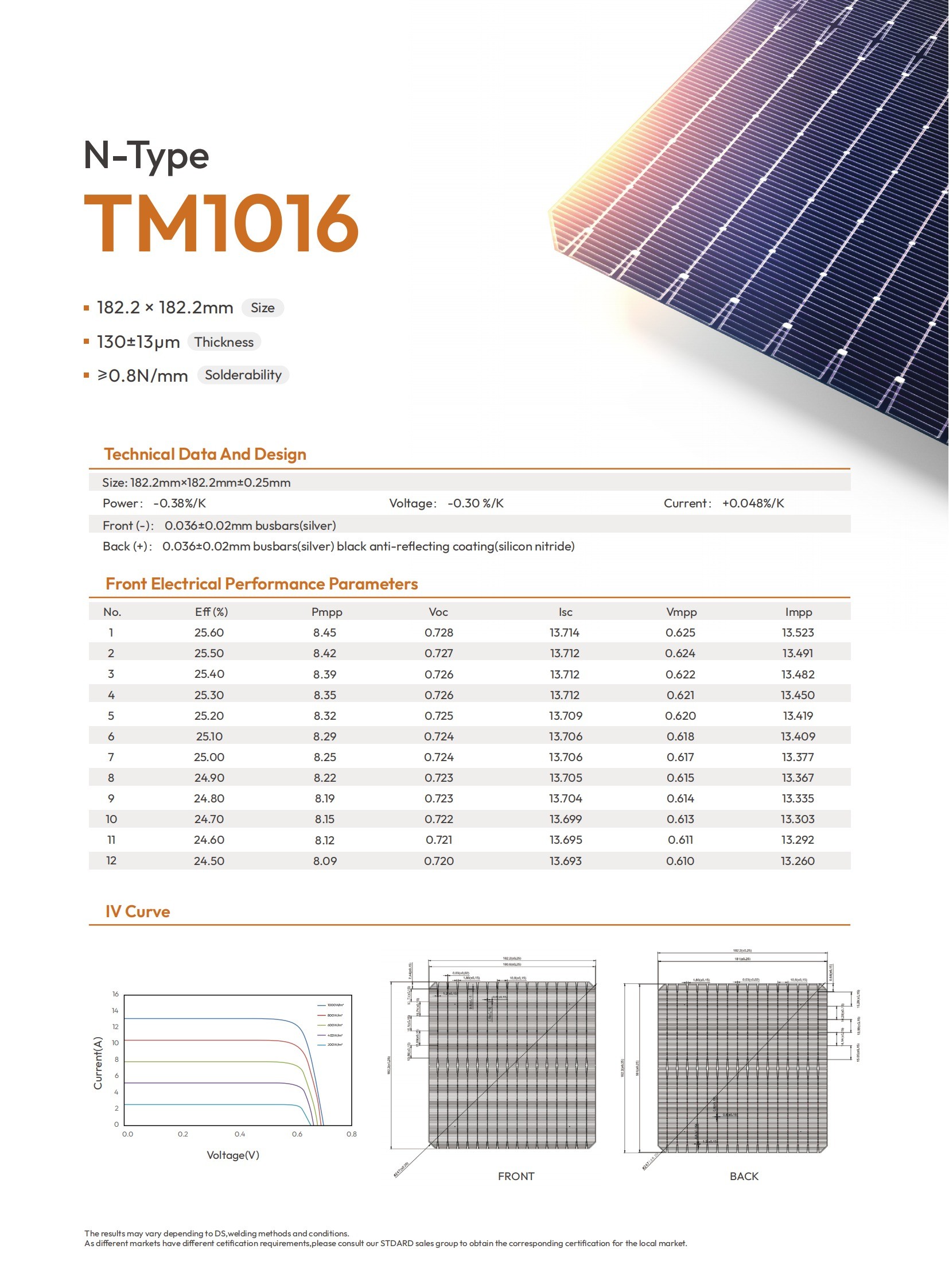

产品特点
电池片技术 TOPCon
尺寸 182x182 mm
电池片厚度 130 ± 13 µm
正面 (-)
栅线宽度 0.036±0.02 mm
栅线材料
减反射膜 氮化硅
背面 (+)
焊垫宽 0.036±0.02 mm
焊垫材料
电性能参数(STC)
峰值功率 (Pmax)
8.09 W 8.12 W 8.15 W 8.19 W 8.22 W 8.25 W 8.29 W 8.32 W 8.35 W 8.39 W 8.42 W 8.45 W
峰值工作电压 (Vmpp)
0.61 V 0.611 V 0.613 V 0.614 V 0.615 V 0.617 V 0.618 V 0.62 V 0.621 V 0.622 V 0.624 V 0.625 V
峰值工作电流 (Impp)
13.26 A 13.292 A 13.303 A 13.335 A 13.367 A 13.377 A 13.409 A 13.419 A 13.45 A 13.482 A 13.491 A 13.523 A
开路电压 (Voc)
0.72 V 0.721 V 0.722 V 0.723 V 0.723 V 0.724 V 0.724 V 0.725 V 0.726 V 0.726 V 0.727 V 0.728 V
短路电流 (Isc)
13.693 A 13.695 A 13.699 A 13.704 A 13.705 A 13.706 A 13.706 A 13.709 A 13.712 A 13.712 A 13.712 A 13.714 A
电池片效率
24.50 % 24.60 % 24.70 % 24.80 % 24.90 % 25.00 % 25.10 % 25.20 % 25.30 % 25.40 % 25.50 % 25.60 %
填充因子 (FF)
82.04 % 82.25 % 82.45 % 82.64 % 82.96 % 83.18 % 83.51 % 83.71 % 83.9 % 84.24 % 84.45 % 84.66 %
温度特性
温度系数(Pmax) -0.38 %/˚C
温度系数(Voc) -0.3 %/˚C
温度系数(Isc) 0.048 %/˚C
PDF
下载公司产品详情

Company Description

Standard Energy Limited is a subsidiary of Singapore's GSTAR Group and was established in Thailand on April 21, 2023. The company is a leading manufacturer of solar panels in the industry. The company closely follows global new energy development opportunities and focuses on researching and producing high-efficiency solar cells.

The company adopts internationally advanced solar cell production processes and equipment, and its main products are large-sized P-type PERC batteries and N-type TOPCon batteries. Adhering to the mission of "technology changes life, photovoltaic changes the environment" and relying on the values of "standards, safety, stability, and practicality", we are committed to creating a safe and stable clean energy vision for society.

Our Advantages
Our Products

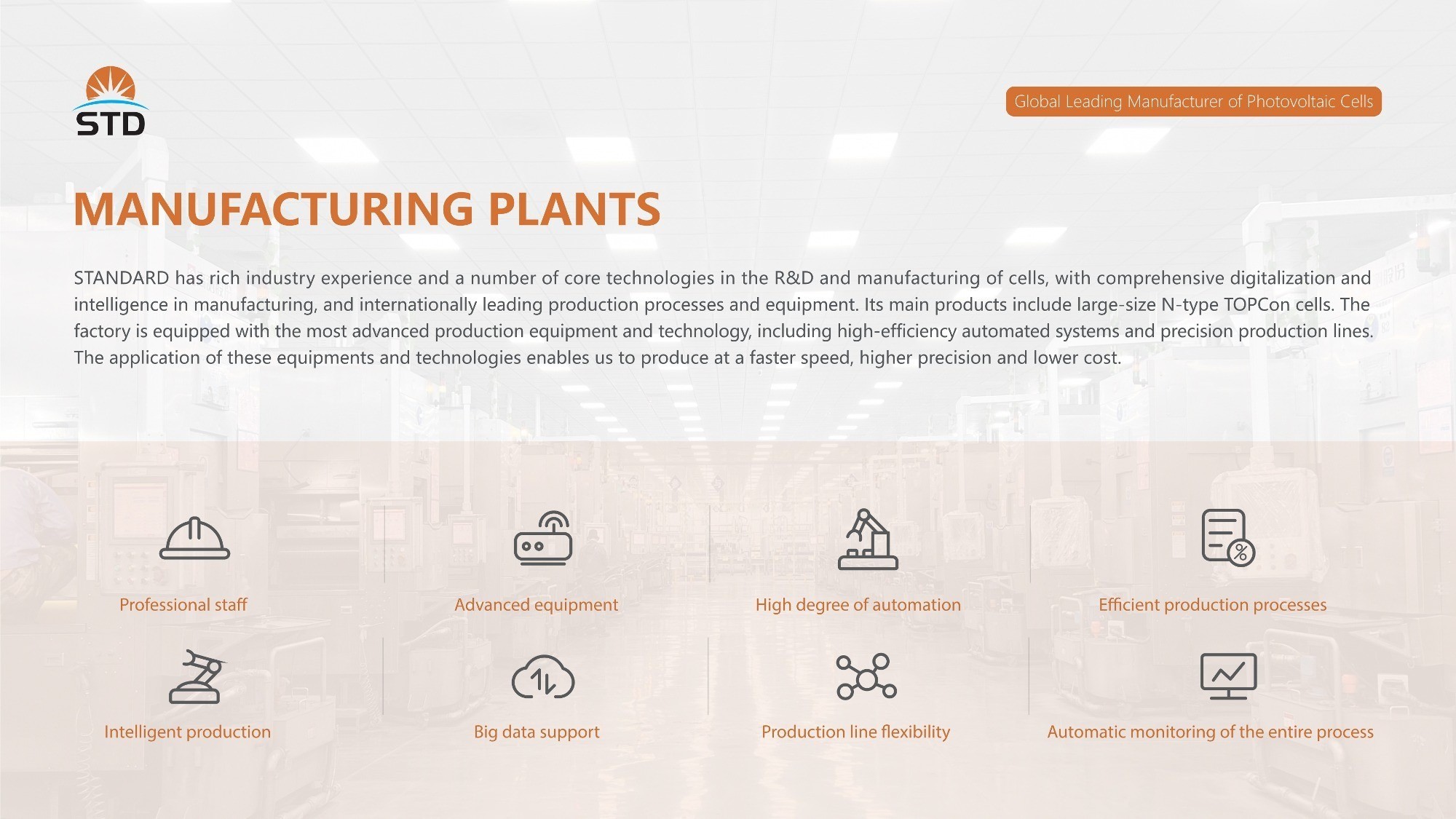

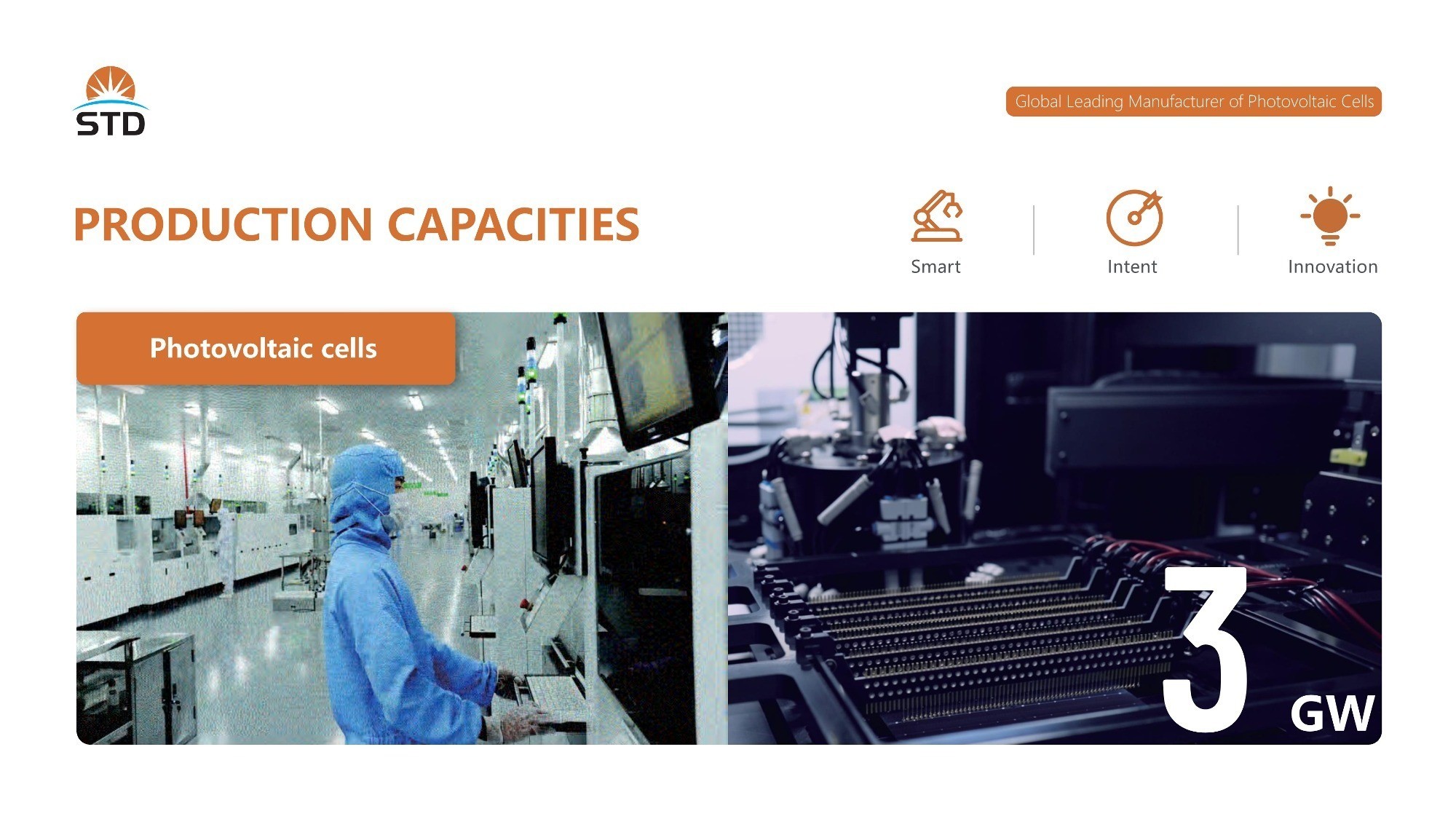

Manufacturing and Production

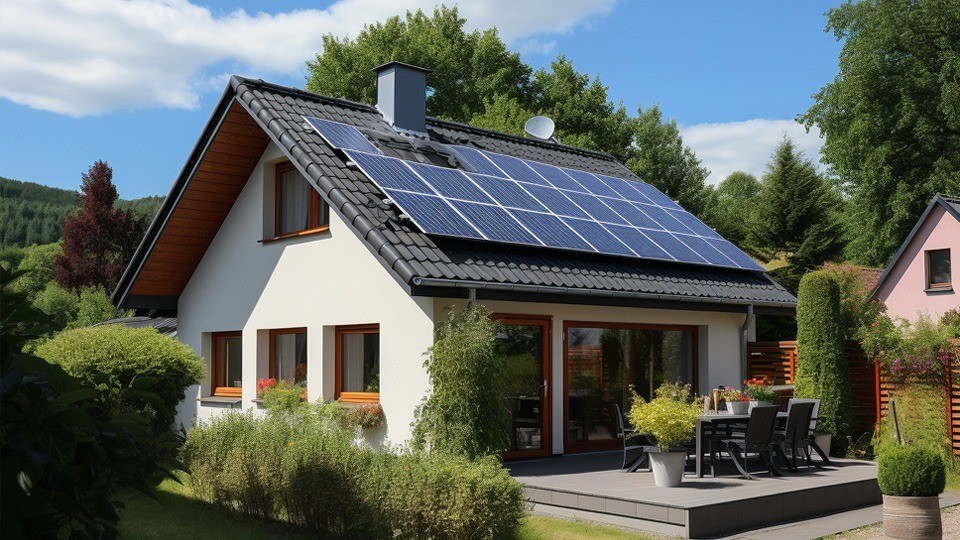

Application

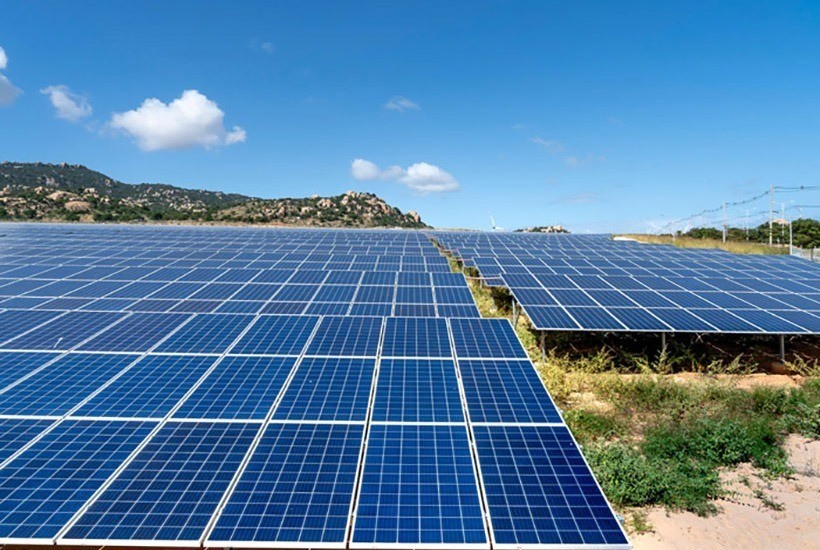

Projects-5.08MW Ho Chi Minh City, Vietnam

Standard Energy Co., Ltd

Click to show company phone
www.stdard-energy.com
泰国
888 Village No.2, Samnak Thong, Muang Rayong, Rayong, 21100
母公司: G-STAR PTE. LTD.
注意: 您的询盘将直接发送至Standard Energy Co., Ltd
公司描述

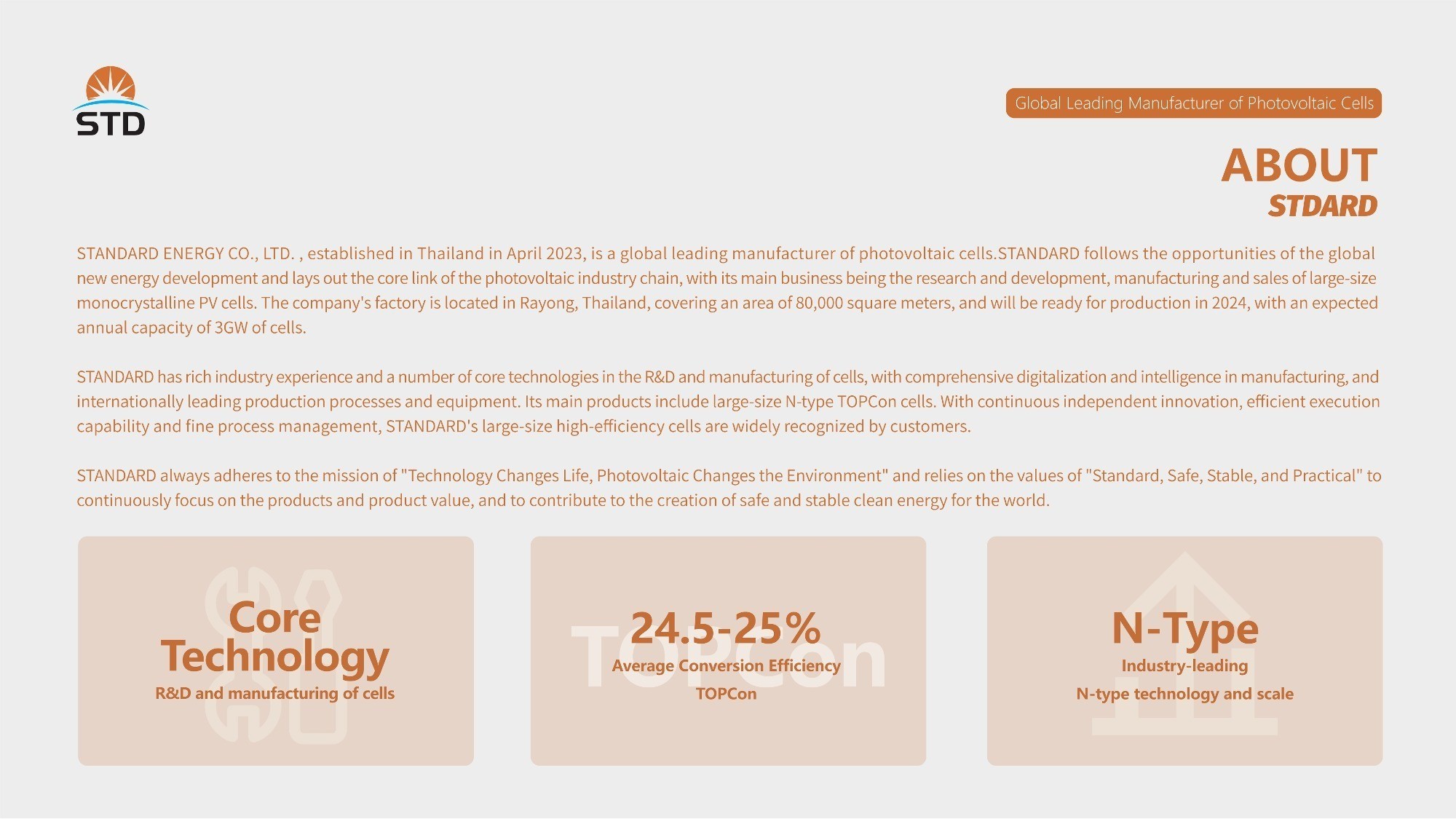

STANDARD ENERGY established in Thailand in April 2023, is a global leading manufacturer of photovoltaic cells. STANDARD follows the opportunities of the global new energy development and lays out the core link of the photovoltaic industry chain, with its main business being the research and development, manufacturing and sales of large-size monocrystalline N-type PV cells from 182mm to 210mm. The company's factory is located in Rayong, Thailand, covering an area of 120,000 square meters, with an annual capacity of 3GW of cells. STANDARD has introduced world-leading automated production equipment and intelligent management systems, aiming to establish an efficient photovoltaic cell R&D and manufacturing base that integrates scale, digitization, and automation, setting a benchmark for "smart manufacturing" in Southeast Asia. The factory fully implements a quality control system with cell-level traceability to ensure the high efficiency, stability, and reliability of each cell. The average efficiency of each solar cell can reach 25.2%.

STANDARD always adheres to the mission of "Technology Changes Life, Photovoltaic Changes the Environment" and relies on the values of "Standard, Safe, Stable, and Practical" to continuously focus on the products and product value, and to contribute to the creation of safe and stable clean energy for the world.

产品视频
产品
Manufacturing and Production
Our Products
Application
Projects-5.08MW Ho Chi Minh City, Vietnam

公司新闻

来自Standard Energy Co., Ltd的其他5个系列产品‎

  • ¥0.401 / Wp *

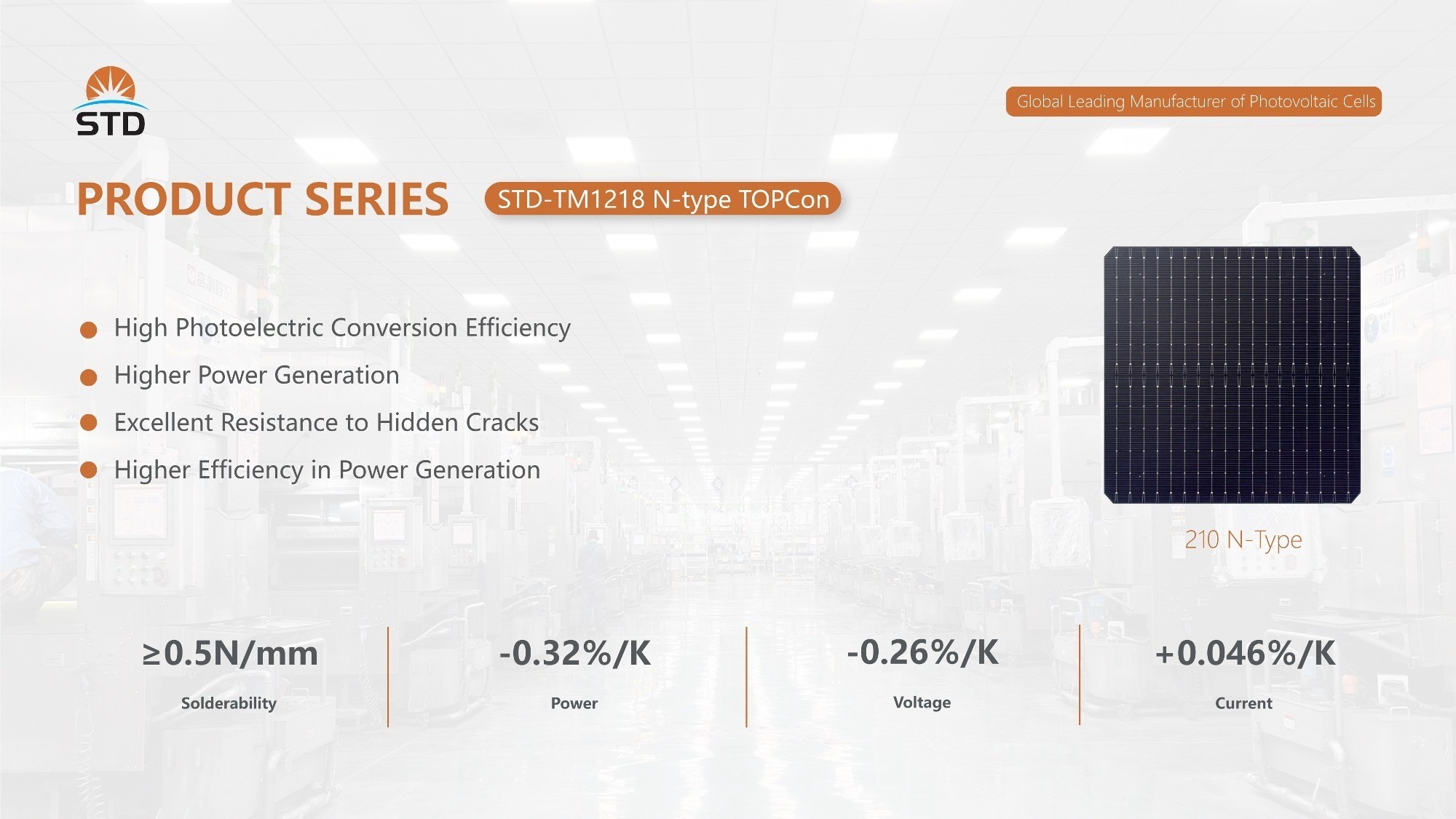

    STD-TM1218 (2...
    10.67~11.24 Wp TOPCon
  • ¥0.437 / Wp *
    STD-TM1216 (1...
    9.13~9.62 Wp TOPCon
  • ¥0.401 / Wp *

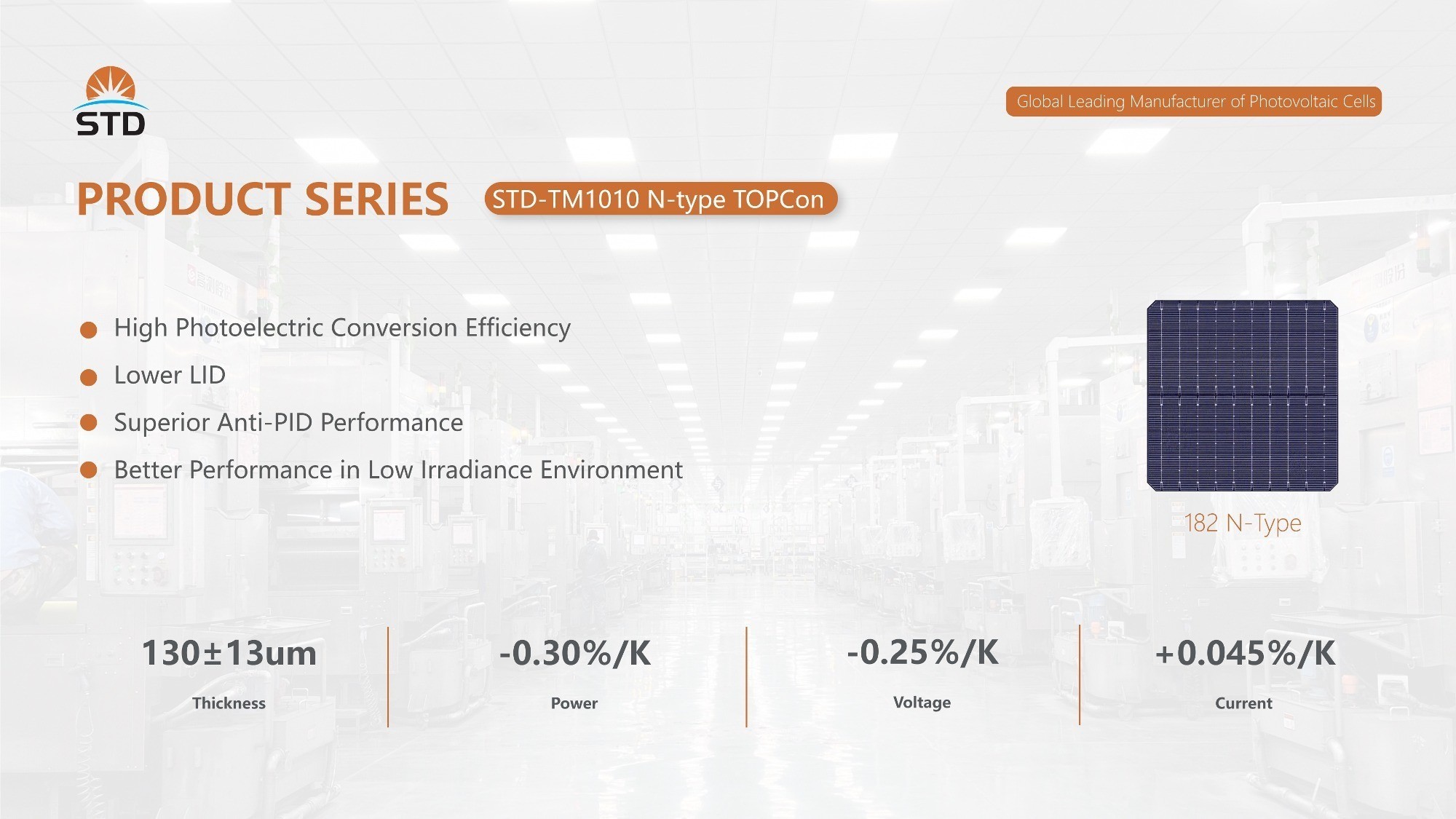

    STD-TM1010 (1...
