HY-1000/2000-Plus

Huayu New Energy Technologies Co., Ltd.
价 格:
起价 ¥0.798 / Wp *
起价 ¥1,000 / 台 *
类型: 微型逆变器
功率范围: 0.88~1.98 kW
地区: 中国大陆 中国大陆
注意: 您的询盘将直接发送至Huayu New Energy Technologies Co., Ltd.

描述:

● Featured with module-level MPPT and module-level monitoring
● Max.60V DC input voltage makes no risk of electric shock for installers and fire on rooftops
● Integrated AC cable&built-in WiFi monitoring device, lower hardware cost
● AC cable "plug & play" installation, possible to add on existing solar system flexibly
● 25-year warranty for trouble free service in lifetime of solar system

产品特点

产品型号
HYH-1000-Plus HYH-2000-Plus
产品规格
功率
0.88 KW 1.98 KW
价格
¥1,000 / 台 * ¥1,580 / 台 *
质量保证
产品质量保证
25 年 25 年
输入参数(直流)
最大输入功率
1 kW 2 kW
最小输入功率
0.21 KW 0.21 KW
最大输入电压
60 V 60 V
标称输入电压
22 V 22 V
最小输入电压
22 V 22 V
最大输入电流
48 A 24 A
MPP(T)电压范围
25~55 V 25~55 V
MPPT数量
2 4
输出参数(交流)
最大输出功率
0.88 kW 1.98 kW
交流电压范围
185~265 V 185~265 V
最大输出电流
3.82 A 8.6 A
频率范围
45-65 Hz 45-65 Hz
频率
50, 60 Hz 50, 60 Hz
功率因数 (cosθ)
0.95 0.95
总谐波失真 (THDi)
< 0.03 % < 0.03 %
最大效率
96.4 % 96.4 %
AC输出连接
Plug Plug
一般参数
尺寸(高/宽/厚)
185x161x29 mm 287x298.5x36 mm
重量
2.4 kg 6.3 kg
夜间损耗
< 3 W < 3 W
环境温度范围 -40 ~ +65 ℃
防护等级 IP67
散热方式 自然冷却
防护性能
防护性能 反孤岛保护(ENS),短路保护,过载保护,过流保护,过热保护,浪涌保护,绝缘监测,电网监测
PDF
下载公司产品详情

Huayu (Zhejiang) New Energy Technologies Co., Ltd



Overview

Huayu MLPE(Module-level Power Electronics) is designed with a much safer & smarter module-level solution(by microinverter) mainly for our home energy.

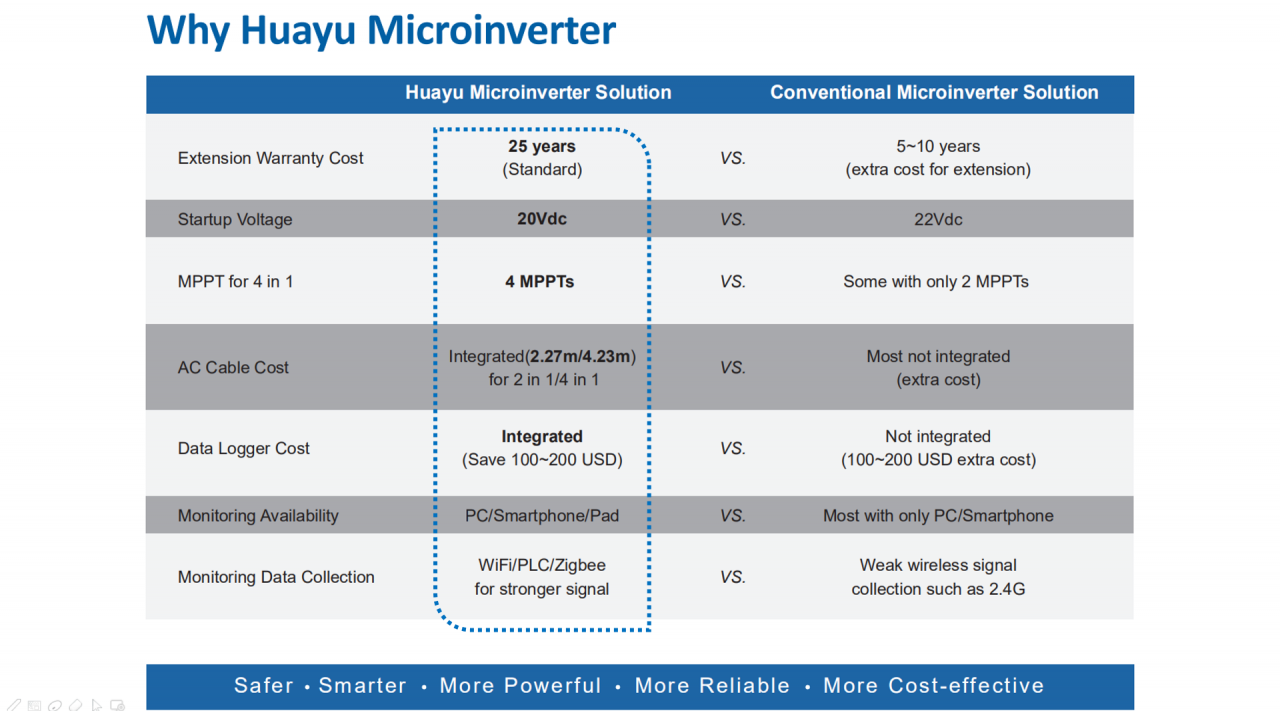

Why Huayu MLPE Solution




Huayu New Energy Technologies Co., Ltd.

浙江省宁波市兴宁路456号
员工数: 760
给该供应商发送信息
Huayu New Energy is a world leading solar inverter manufacturer which owns a dream of “Make our home energy self-sufficient” since the beginning of its founding.

Focusing on highly safe & efficient rooftop solar solutions, Huayu New Energy creates a one-stop shopping platform for global solar investors, distributors & installers with full range of Huayu microinverter (500-1600W), Huayu hybrid inverter (3-10kW) & Huayu string inverter (1-80kW).

-Huayu Microinverter (25-year Warranty)
Starting with professional MLPE(module level power electronics)solution, 100% of Huayu microinverter models are featured with module-level MPPT and module-level monitoring,
Meanwhile, integrated AC cable plus connectors make installation just by “Plug & Play”.

In 2020, the new released Huayu “2 in 1” & “4 in 1” microinverters set the new record for solar industry again:

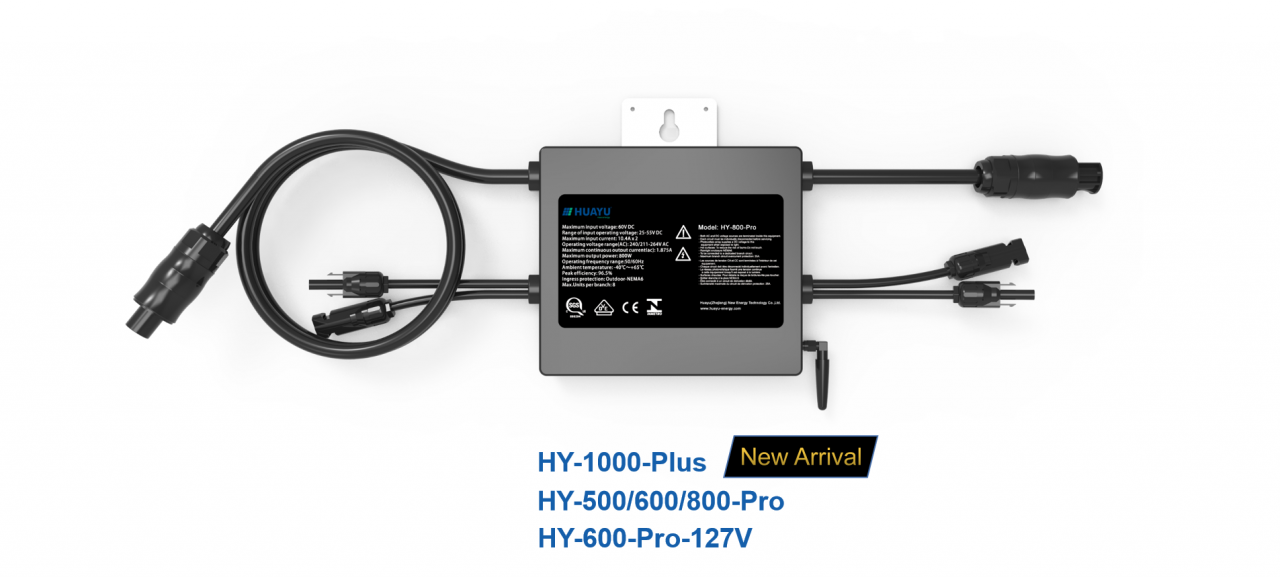

HY-1000-Plus (2 MPPT) - the best power density EVER for “2 in 1” microinverter.

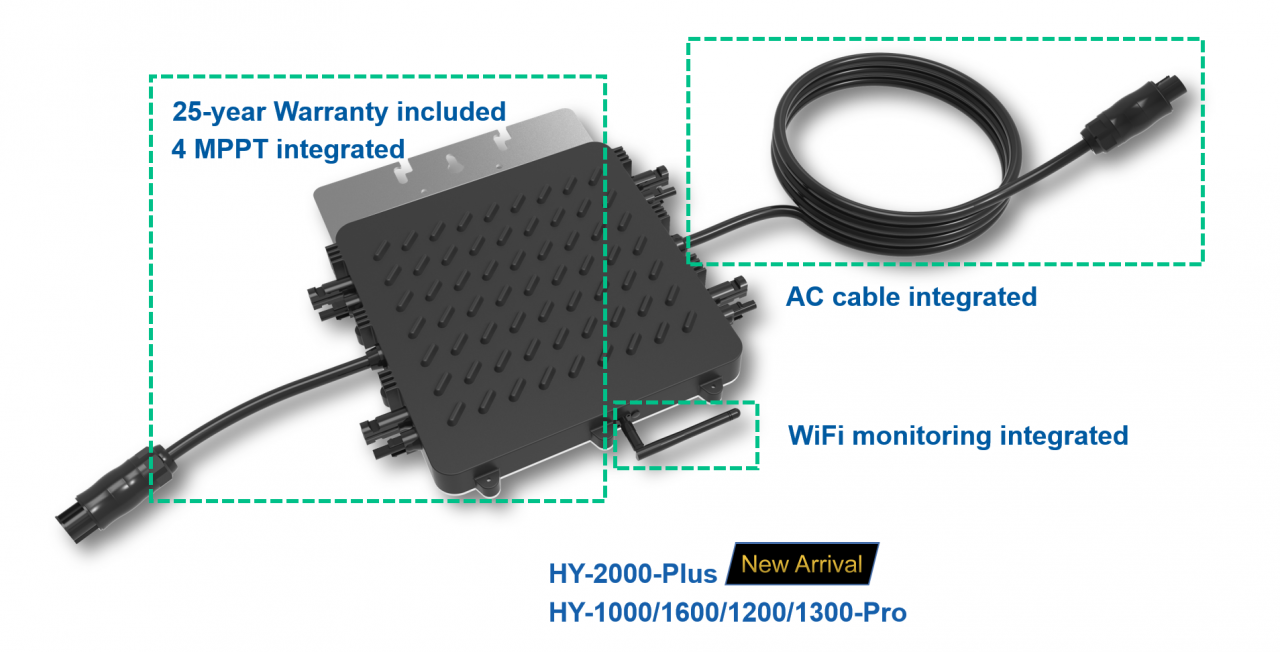

HY-2000-Plus (4 MPPT) - the most powerful microinverter EVER in the world.

Furthermore, Huayu microinverter is also the world’s first data logger built-in microinverter, less extra device not only saves its hardware cost & installation time, but also lowers its failure rate.

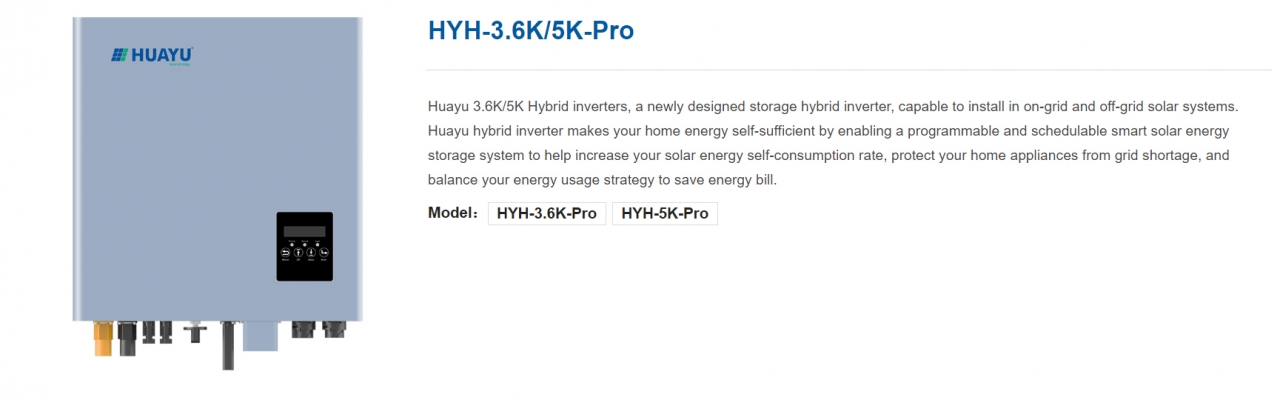

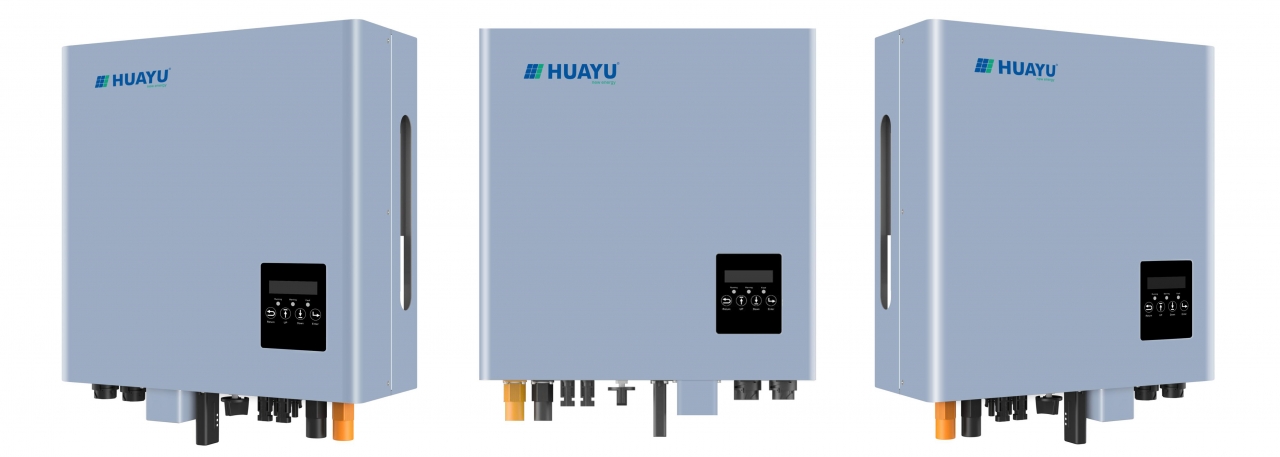

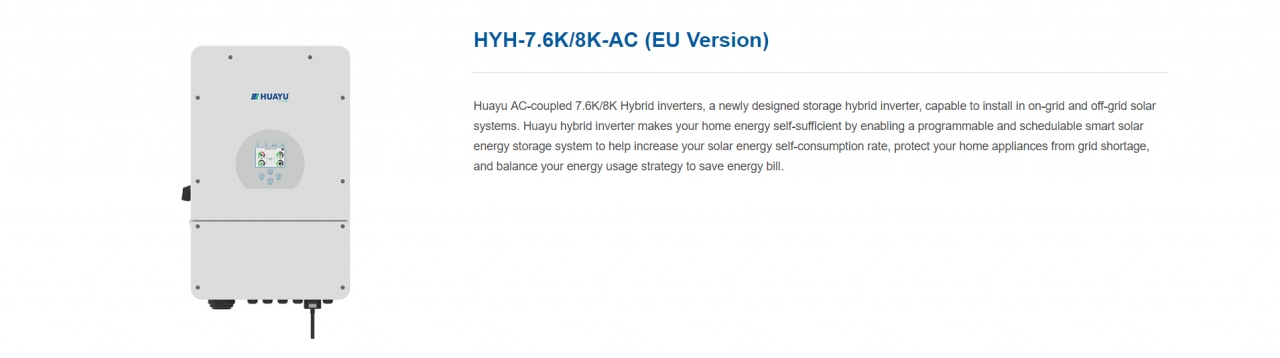

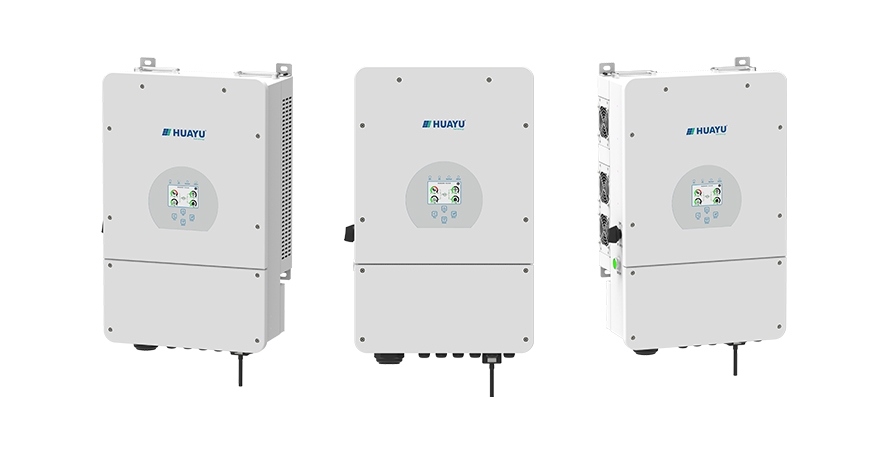

-Huayu Hybrid Inverter (10-year warranty)
Huayu hybrid inverter mainly designed for self-consumption use, covers a range of 3-10kW for single-inverter system and paralleling extension energy storage system. Smart paralleling algorithm enables multiple working modes for on-grid, off-grid or micro-grid application based on Huayu hybrid inverter and AC-coupled energy storage inverter.

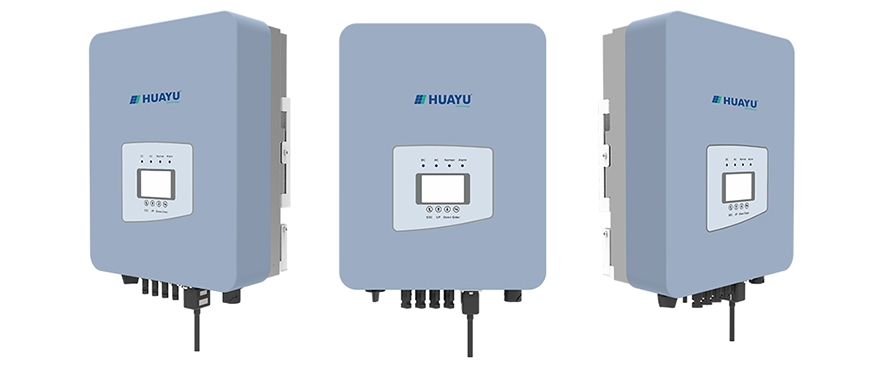

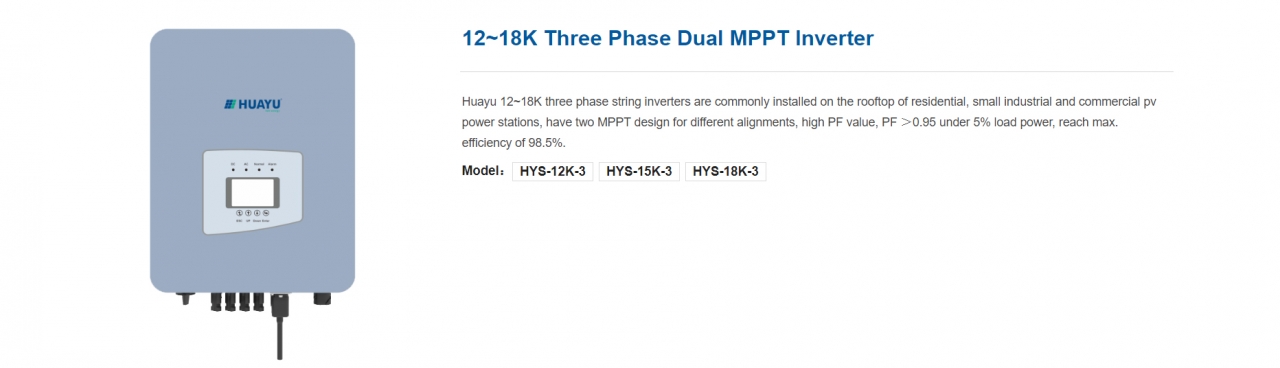

-Huayu String Inverter (5/10-year Warranty)
Huayu string inverter may satisfy the common use of on-grid solar system, the range of 1-25kW Huayu string inverters is the best choice for home owners and small business owners; to lower the LCOE, 30-50kW & 60-80kW Huayu string inverters are especially designed for commercial applications and industrial applications. For all Huayu string inverter models, WiFi monitoring data loggers are integrated without any extra costs.
