Teca Lithium Series

Teca Lithium Series

Inti Photovoltaics S.L.
价 格:
起价 ¥0.277 / Wp *
起价 ¥1,310 / 台 *
类型: 并网,离网
功率范围: 3~15 kW
地区: 西班牙 西班牙
注意: 您的询盘将直接发送至Inti Photovoltaics S.L.

描述:

• AC input protection for over voltage and under voltage
• DC input protection for over voltage and under voltage
• AC outputs short-circuit protection
• Over temperature protection, overload protection, inverse current protection
• Inverter disconnection in case of out-of-range operation
• Compatible with Inti lithium batteries through CANbus and RS485 communication
• IP20 protection
• Total Harmonic Distortion (THD) < 3%

产品特点

产品型号
IIP-241000BFL IIP-242000BFL IIP-243000BFL IIP-484000BFL IIP-485000BFL
产品规格
功率
3 KW 6 KW 9 KW 12 KW 15 KW
价格
¥1,310 / 台 * ¥1,850 / 台 * ¥2,810 / 台 * ¥3,640 / 台 * ¥4,150 / 台 *
输入参数(直流)
最大输入电压
32 V 32 V 32 V 64 V 64 V
额定直流电压
24 V 24 V 24 V 48 V 48 V
最小输入电压
20 V 20 V 20 V 40 V 40 V
输出参数(交流)
最大输出功率
3 kW 6 kW 9 kW 12 kW 15 kW
标称输出功率
1 kW 2 kW 3 kW 4 kW 5 kW
额定交流电压
120 V 120 V 120 V 120 V 120 V
最大输出电流
30 A 35 A 50 A 35 A 45 A
频率范围
40-70 Hz 40-70 Hz 40-70 Hz 40-70 Hz 40-70 Hz
频率
50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz
功率因数 (cosθ)
1 1 1 1 1
总谐波失真 (THDi)
< 3 % < 3 % < 3 % < 3 % < 3 %
最大效率
95 % 95 % 95 % 95 % 95 %
一般参数
尺寸(高/宽/厚)
222x399x178 mm 222x399x178 mm 222x422x210 mm 222x422x210 mm 345x574x197 mm
重量
14.7 kg 17.5 kg 19 kg 30 kg 32 kg
夜间损耗
< 5 W < 5 W < 5 W < 5 W < 5 W
噪音干扰级别
< 50 dB(A) < 50 dB(A) < 50 dB(A) < 50 dB(A) < 50 dB(A)
环境温度范围 -20 ~ +60 ℃
防护等级 IP20
相对湿度 20-90 %
散热方式 风扇冷却
通讯接口 RS 485
显示屏 LCD, LED
防护性能
防护性能 短路保护,过载保护,过压保护,过热保护
PDF
下载公司产品详情


Inti Photovoltaics S.L.

Click to show company phone
www.intipv.com
西班牙
Calle Provenza 275, Barcelona, 08037
注意: 您的询盘将直接发送至Inti Photovoltaics S.L.

有用联系人

Contact Face
Maite Torres
Contact Face
Daniela Lopez
公司描述
We are a company specialized in the development of photovoltaic energy equipment for isolated and self-consumption systems, with particular and special emphasis on after-sales service for our products.

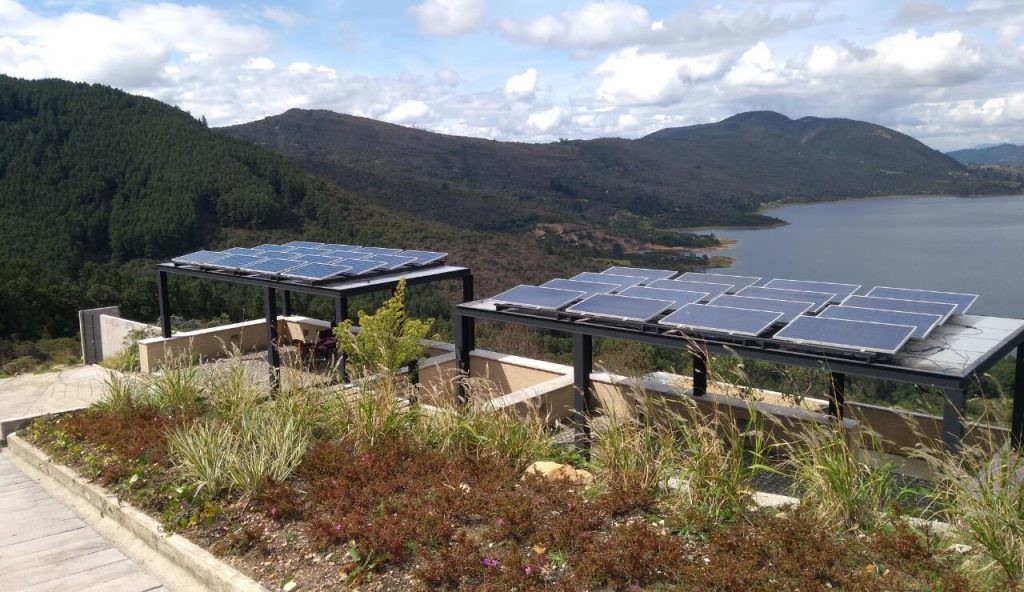

Inti is known for developing solar projects and providing equipment in far flung areas with no access to conventional modes of electricity. In Colombia alone, we were involved in the delivery and installation of more than 8,000 lithium generation kits in remote areas.

For any off-grid and isolated systems, Inti will serve as your partner offering unmatched customer and after sales service.
业务详情
零 部 件 类 型
逆变器,储能系统,充电控制器
储能系统
类别: 独立型
电 池 技 术: 磷酸铁锂
充电控制器
技术类型: MPPT
逆变器
类型: 离网
功率范围(kWp): 0.3-6.5
已知销售商数量
逆变器 4 销售商, 储能系统 4 销售商, 充电控制器 4 销售商
产品

OUR PROFILE




Inti Photovoltaics: changes that occur in emerging and developed markets.
The needs and technical alternatives join together into similar solutions on the emergent and developed markets requiring local storage and units that are capable to interact with smart grids.




Inti Photovoltaics is committed to the supply and development of electronic devices for photovoltaic systems, including charge controllers and inverters for off grid applications. Our charge controllers are MPPT and can be configured for various applications including use in residences or luminaries. Output of inverters is always a pure sine wave form so they can be used with motors or any appliance sensible to the wave form. We can offer high or low frequency technologies which can be selected according to our customer needs. They can be at 230 VAC or 120 VAC.


We offer multifunctional units which consist of an inverter with built in MPPT charge controller. This equipment can lower installation costs and increase reliability of the system. It uses a user-friendly display to verify the status of the system at any time.


Our equipment is designed for reliable operation for many years. Our standard warranty is 5 years.


EVENTS


Inti Photovoltaics is also dedicated to the promotion of solar energy products and keeping up with the latest trends in the solar power industry by attending events like the "ExpoSolar Colombia 2021", a fair for photovoltaic systems and other renewable energy technologies, that aims to promote sustainable development in Colombia.




CONTACT US

Headquarters:



Calle Provenza 275, Barcelona, España, 08037

+(34) 930234422
