SOFAR 3.3-12KTLX-G3

深圳市首航新能源股份有限公司 SOFAR 3.3-12KTLX-G3

Slovak Solar s.r.o.
每件价格
最低订购量 1+ 件
SOFAR 3.3KTLX-G3 ¥4,710
SOFAR 4.4KTLX-G3 ¥4,820
SOFAR 5.5KTLX-G3 ¥5,110
SOFAR 6.6KTLX-G3 ¥5,320
SOFAR 8.8KTLX-G3 ¥5,460
SOFAR 11KTLX-G3 ¥6,150
SOFAR 12KTLX-G3 ¥6,140
类型： 并网
功率范围： --
地区： 斯洛伐克 斯洛伐克
联系销售商
注意： 您的询盘将直接发送至Slovak Solar s.r.o.。

描述：

  • Maximum Efficiency Of Up To 98.5% For Superior Energy Yield

  • Low Start-up Voltage And Wide MPPT Range Enhance Energy Generation

  • Up To 1100 V Dc Input For Greater Flexibility

  • Intelligent String-Level Monitoring Enables Proactive System Management

  • Remote Firmware Upgrades For Continuous Performance Improvements

产品特点

产品型号
SOFAR 3.3KTLX-G3 SOFAR 4.4KTLX-G3 SOFAR 5.5KTLX-G3 SOFAR 6.6KTLX-G3 SOFAR 8.8KTLX-G3 SOFAR 11KTLX-G3 SOFAR 12KTLX-G3
输入参数（直流）
最大输入电压
1100 V 1100 V 1100 V 1100 V 1100 V 1100 V 1100 V
额定直流电压
650 V 650 V 650 V 650 V 650 V 650 V 650 V
最小输入电压
160 V 160 V 160 V 160 V 160 V 160 V 160 V
最大输入电流
30 A 30 A 30 A 30 A 45 A 45 A 45 A
MPP(T)电压范围
140~1000 V 140~1000 V 140~1000 V 140~1000 V 140~1000 V 140~1000 V 140~1000 V
MPPT数量
2 2 2 2 2 2 2
直流输入连接端数
2 2 2 2 2 2 3
输出参数（交流）
标称输出功率
3 kW 4 kW 5 kW 6 kW 8 kW 10 kW 12 kW
交流电压范围
310~480 V 310~480 V 310~480 V 310~480 V 310~480 V 310~480 V 310~480 V
最大输出电流
5 A 6.7 A 8.3 A 10 A 13.3 A 16.7 A 20 A
频率范围
45-65 Hz 45-65 Hz 45-65 Hz 45-65 Hz 45-65 Hz 45-65 Hz 45-65 Hz
频率
50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz
功率因数 (cosθ)
1 1 1 1 1 1 1
总谐波失真 （THDi）
< 3 % < 3 % < 3 % < 3 % < 3 % < 3 % < 3 %
相数
3 3 3 3 3 3 3
最大效率
98.4 % 98.4 % 98.4 % 98.4 % 98.5 % 98.5 % 98.5 %
欧洲效率
97.5 % 97.5 % 97.5 % 97.5 % 98 % 98 % 98 %
一般参数
尺寸（高/宽/厚）
385x430x182 mm 385x430x182 mm 385x430x182 mm 385x430x182 mm 385x430x182 mm 385x430x182 mm 385x430x182 mm
重量
17 kg 17 kg 17 kg 17 kg 17 kg 18 kg 18 kg
夜间损耗
< 1 W < 1 W < 1 W < 1 W < 1 W < 1 W < 1 W
工作温度范围 -30 ~ +60 ℃
变压器 无变压器
防护等级 IP65
相对湿度 0-100 %
散热方式 自然冷却
最高运行海拔 4000 m
通讯接口 RS 485, Bluetooth, WLAN
显示屏 LCD
防护性能
防护性能 反孤岛保护（ENS），极性反接保护，接地故障监测
PDF
下载公司产品详情
数据表

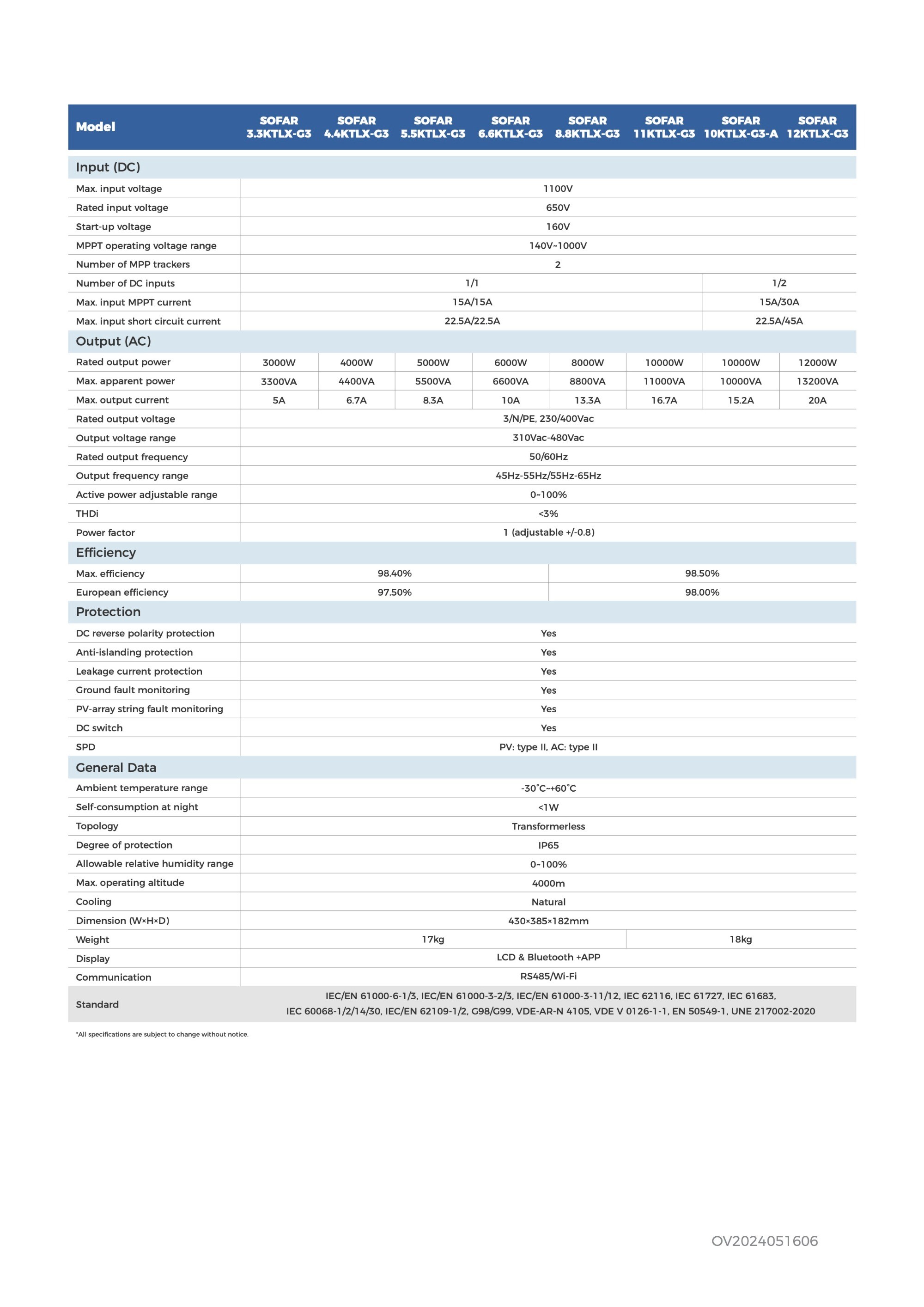

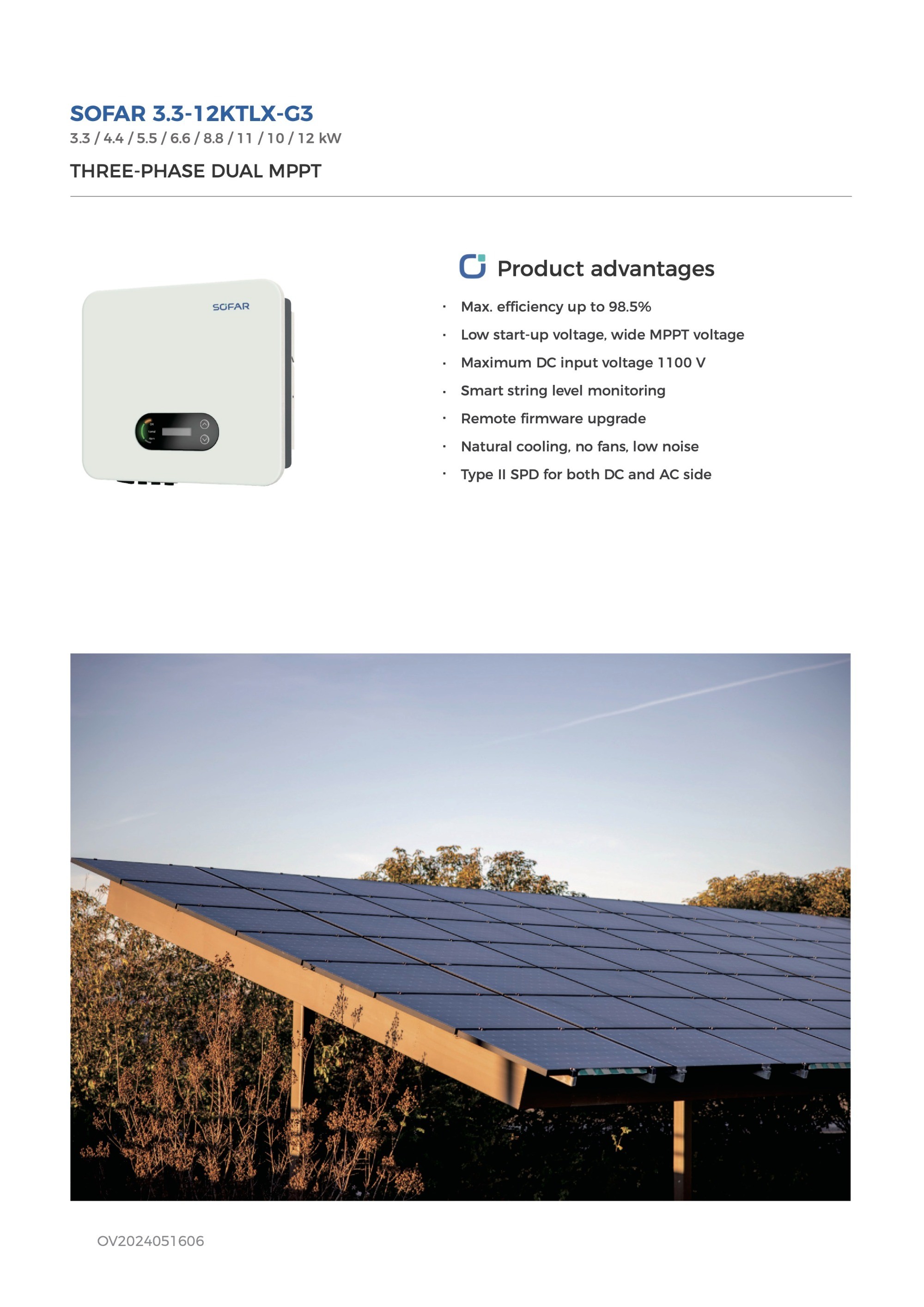

Product Datasheet

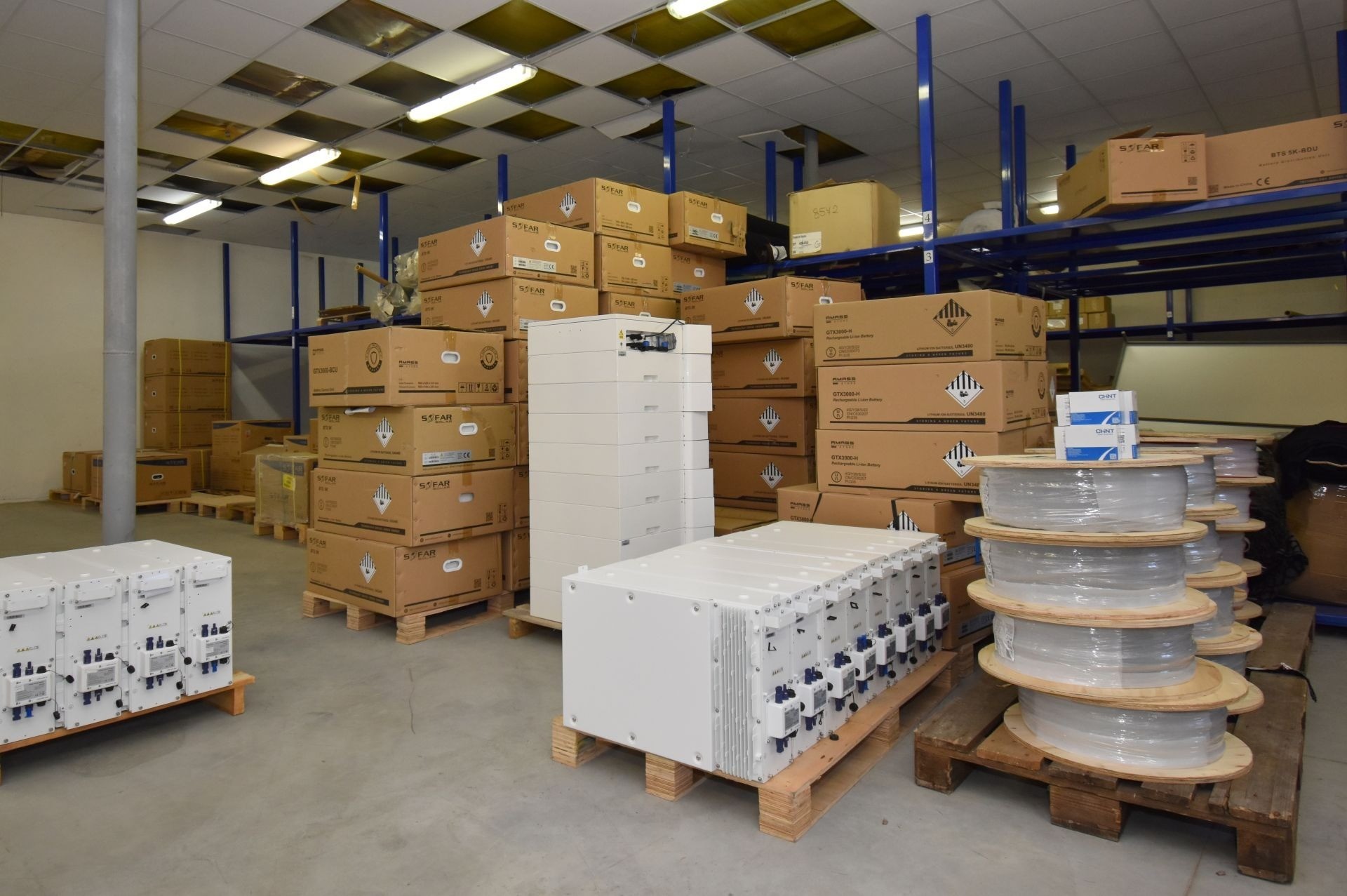

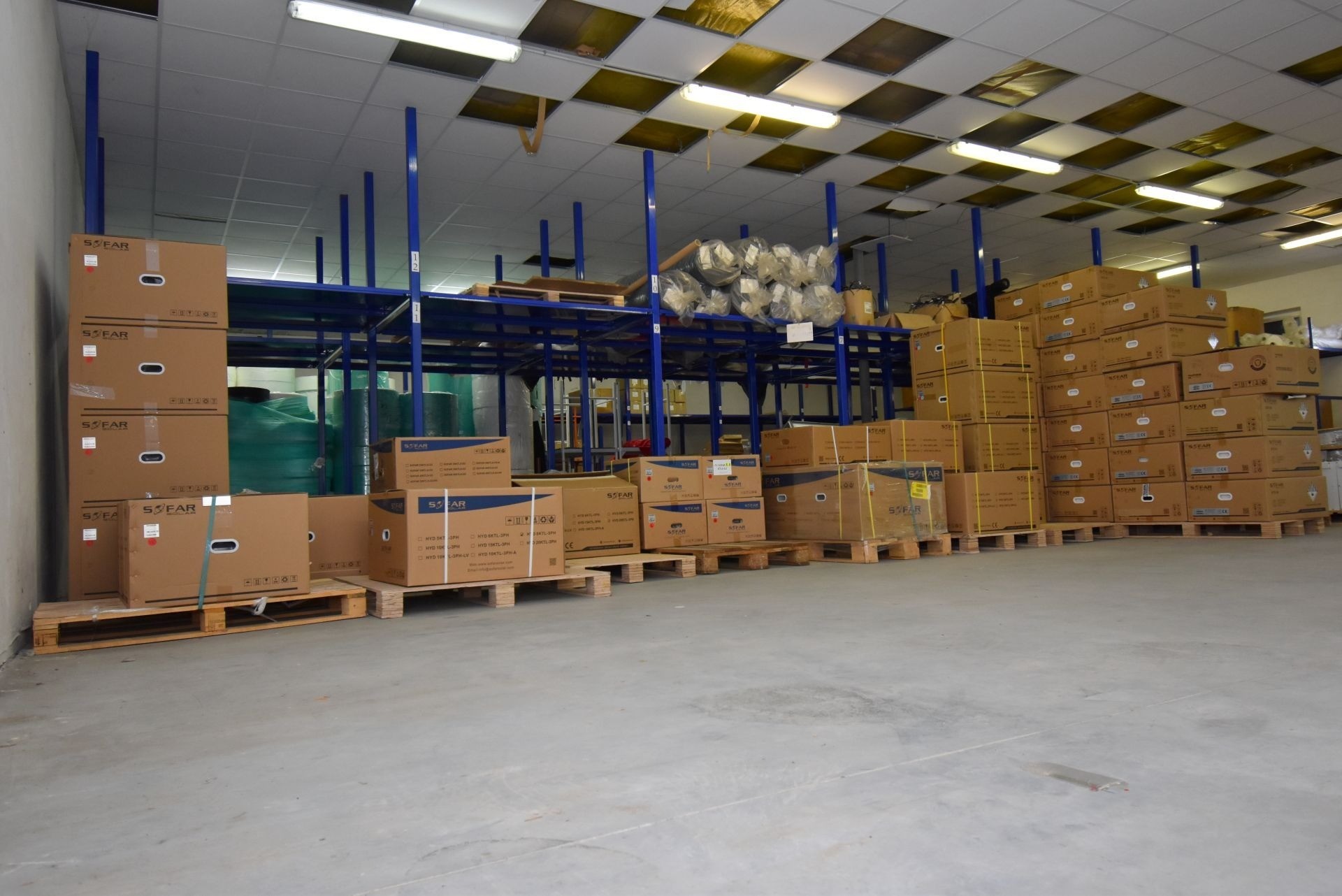

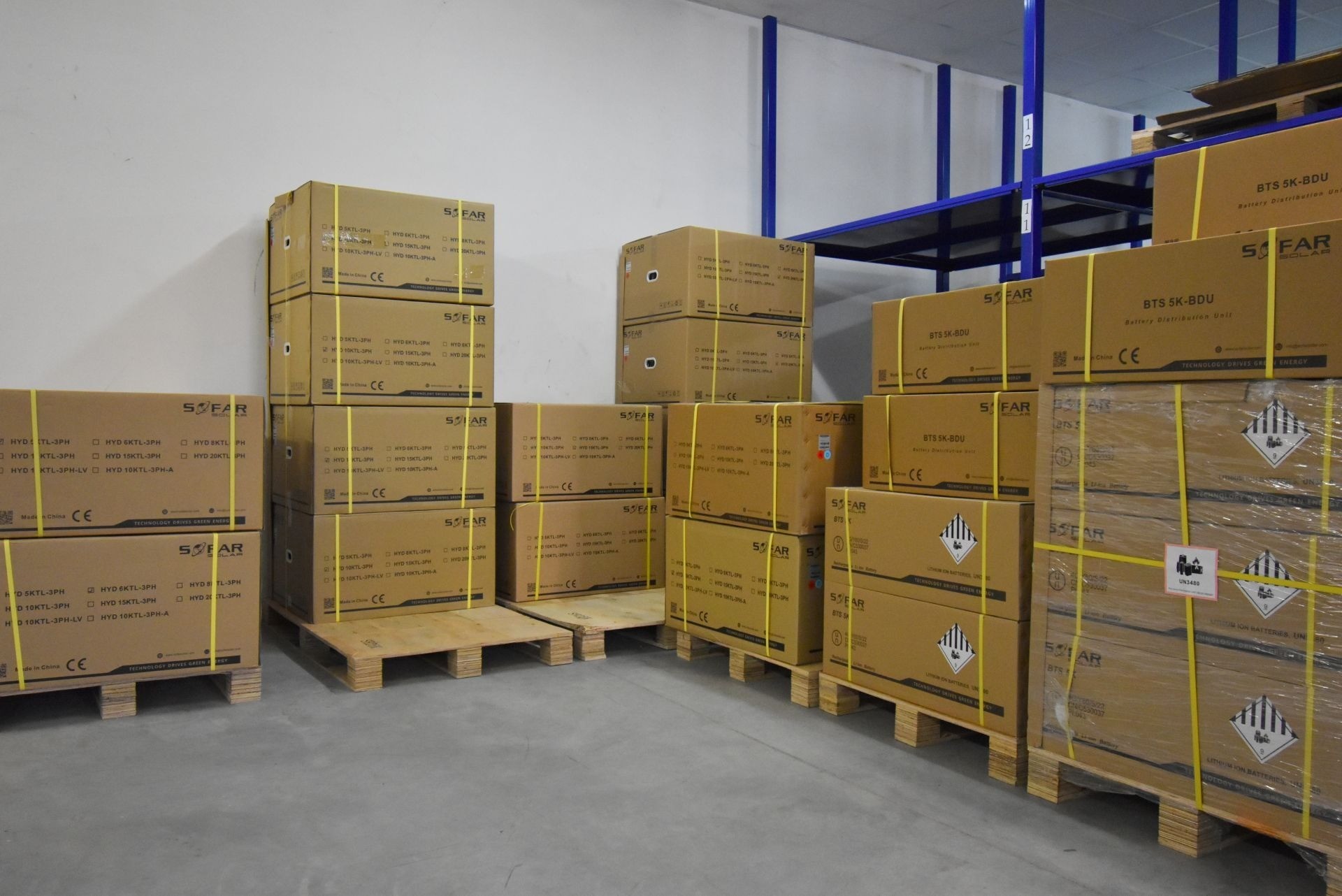

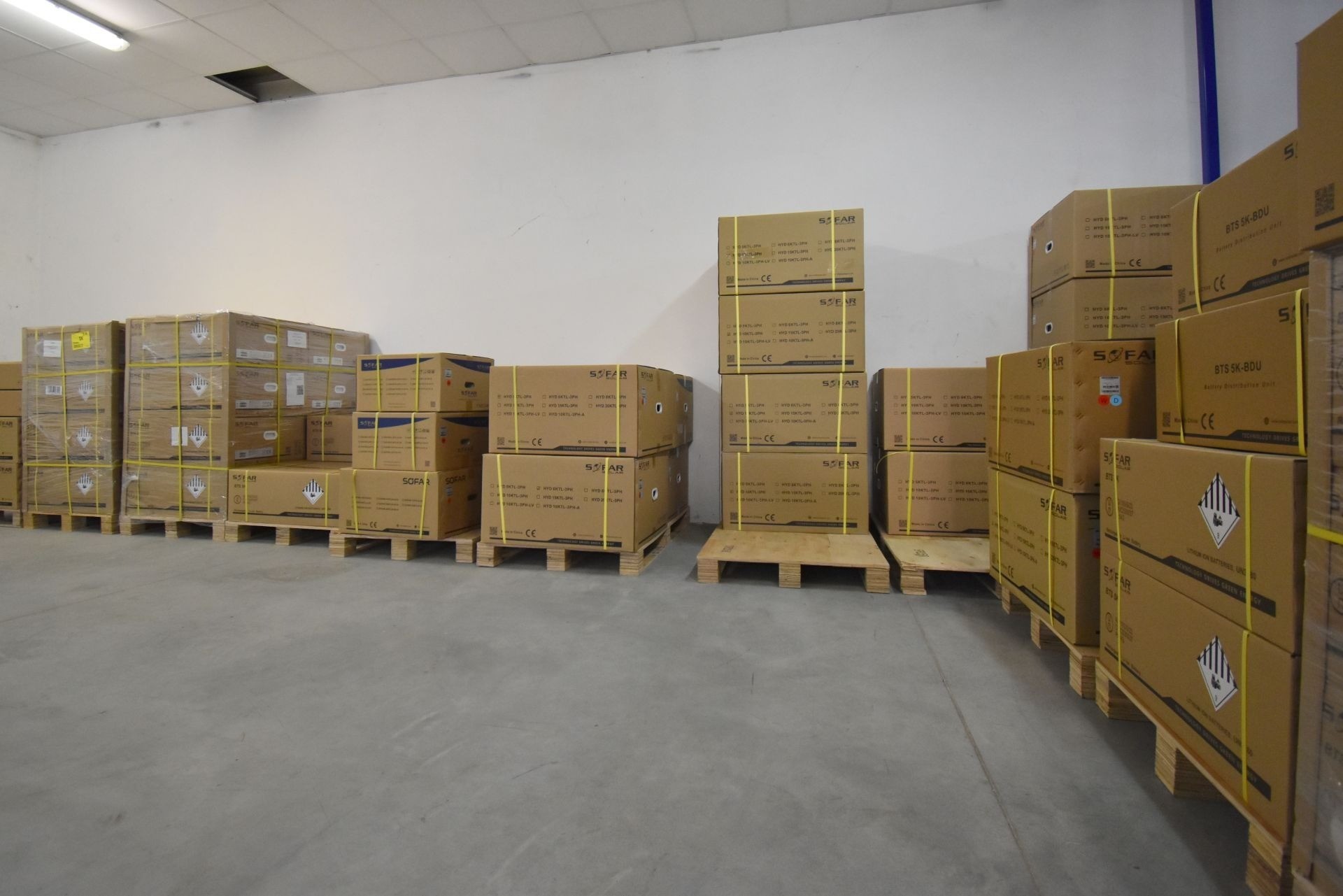

Our Warehouse
Trainings

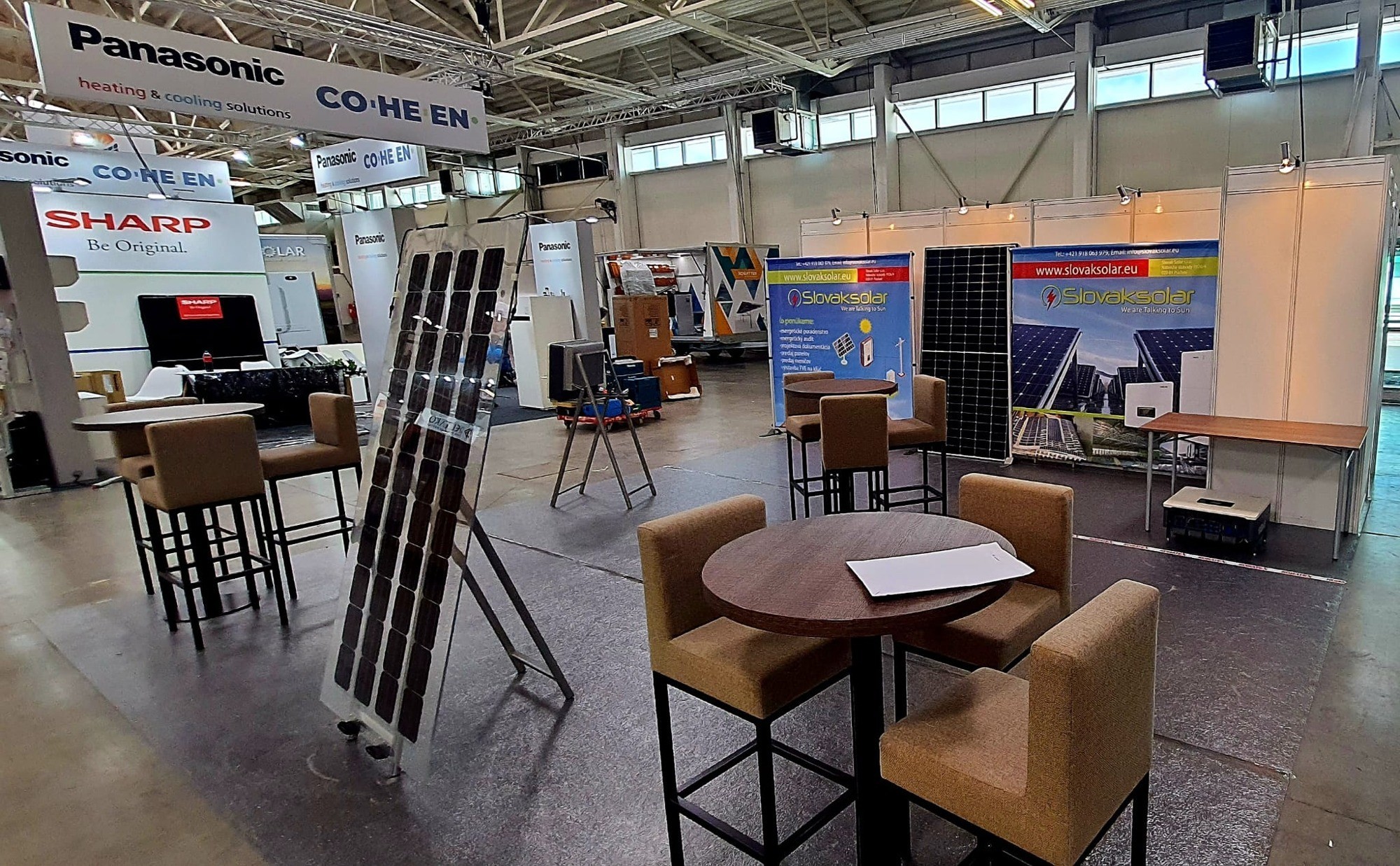

Exhibitions

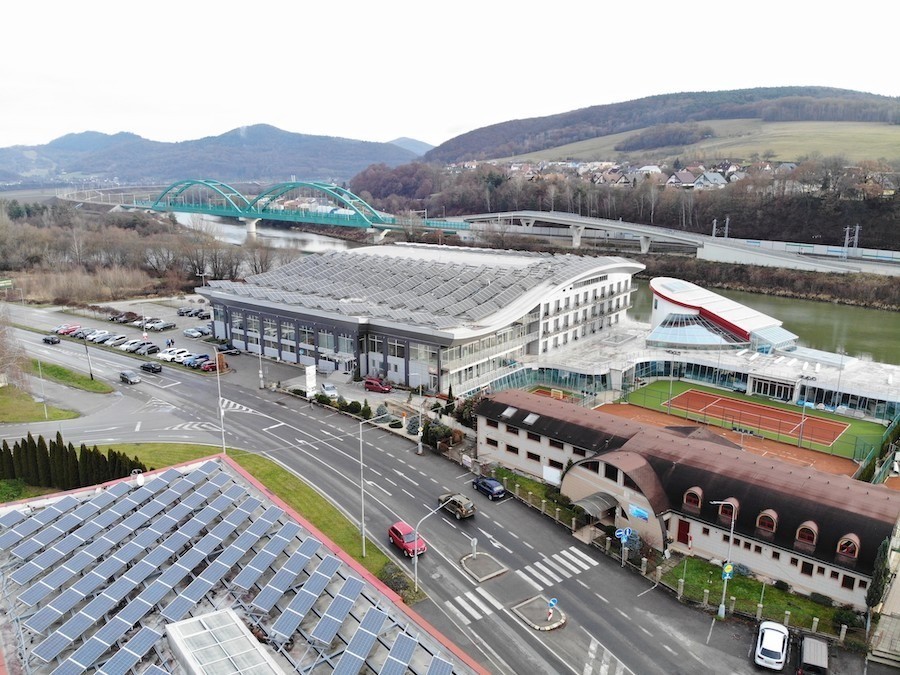

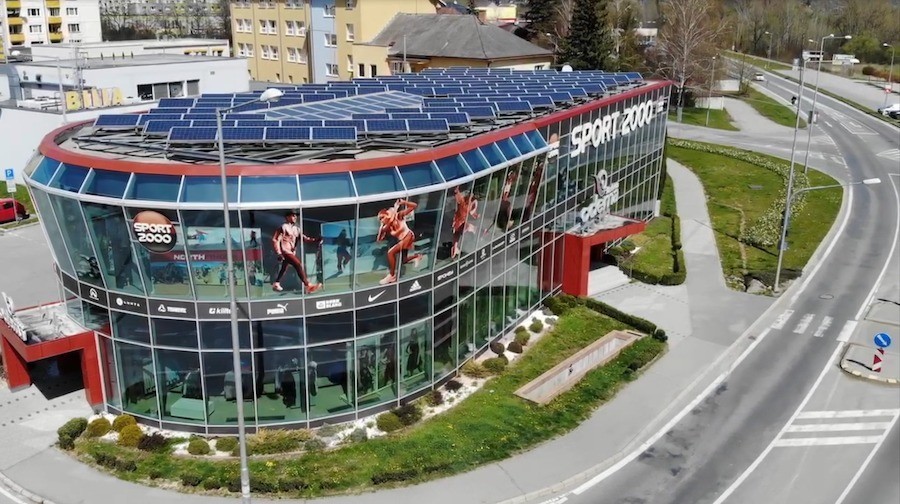

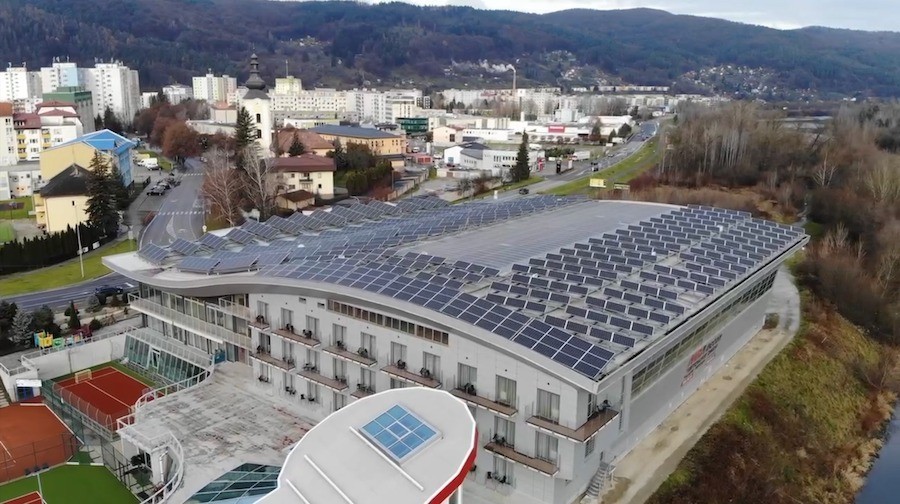

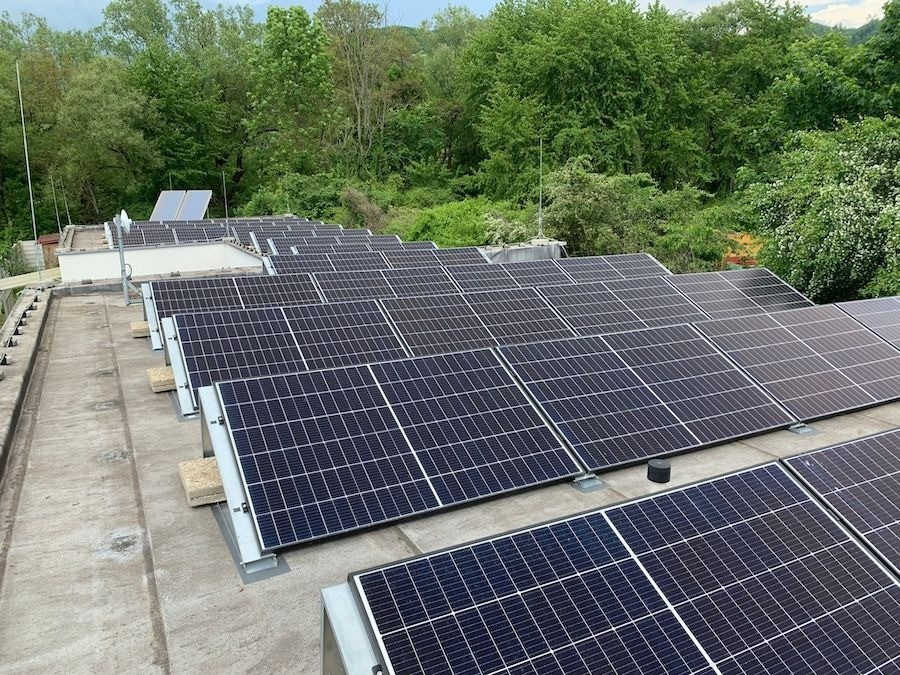

References

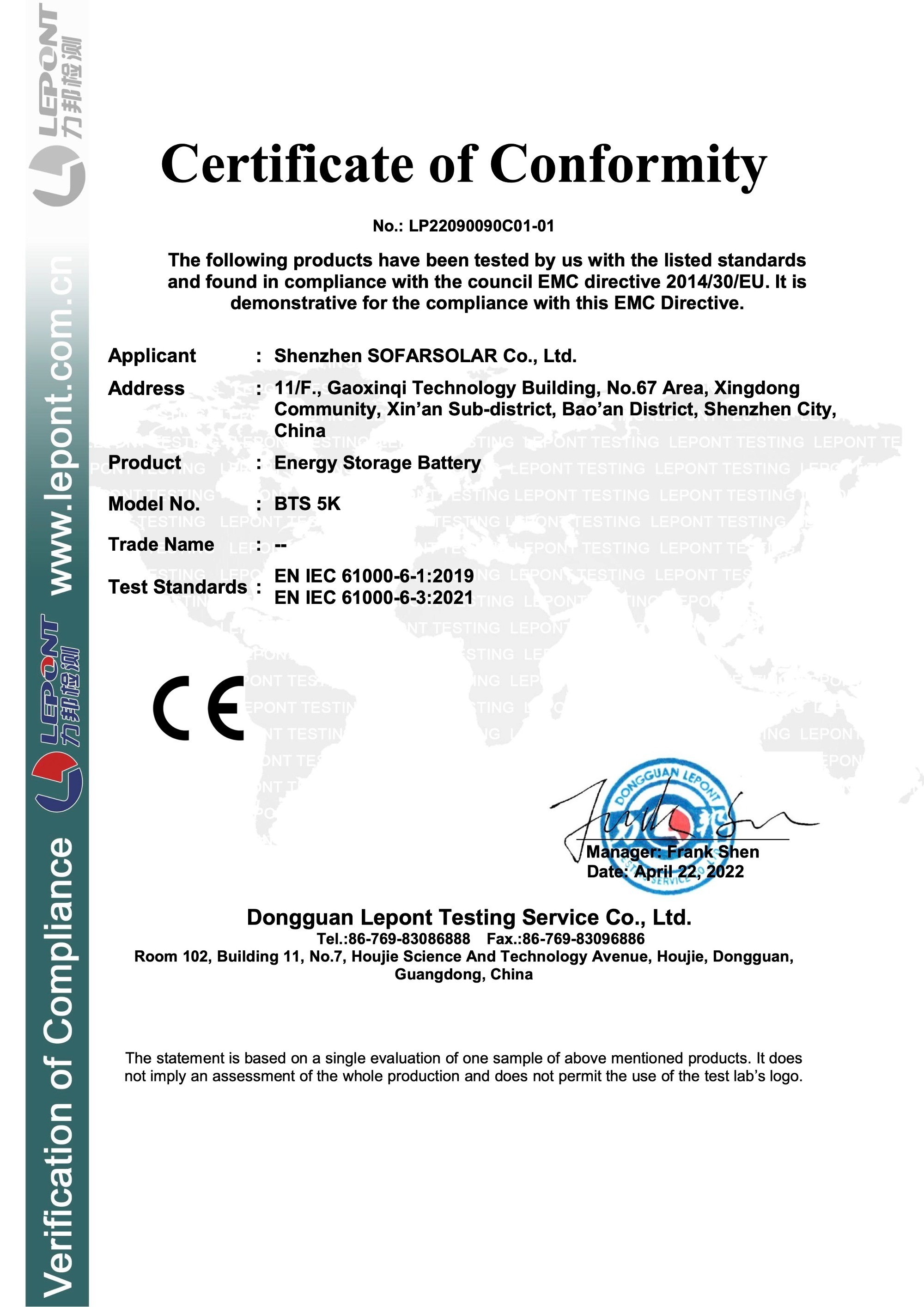

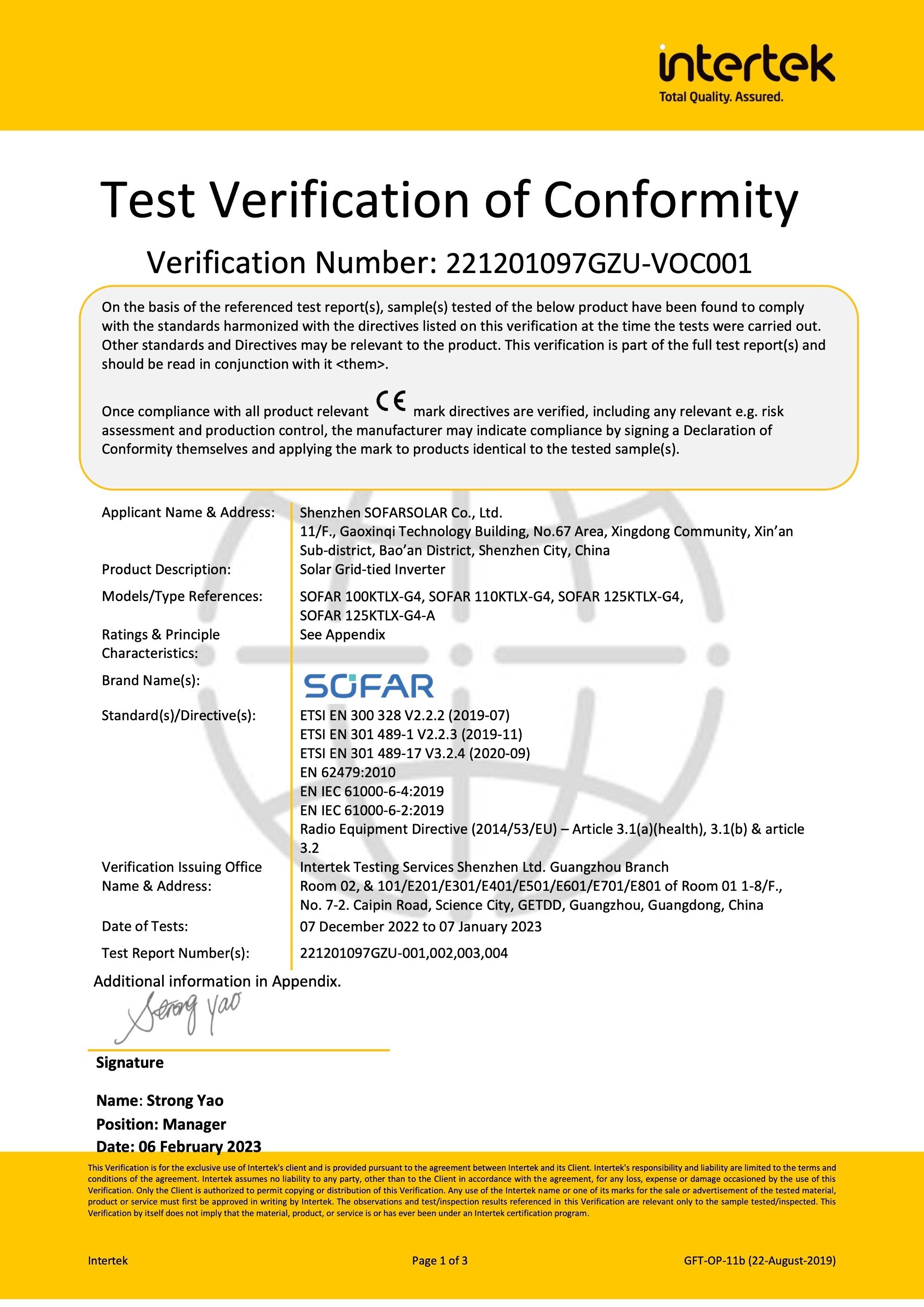

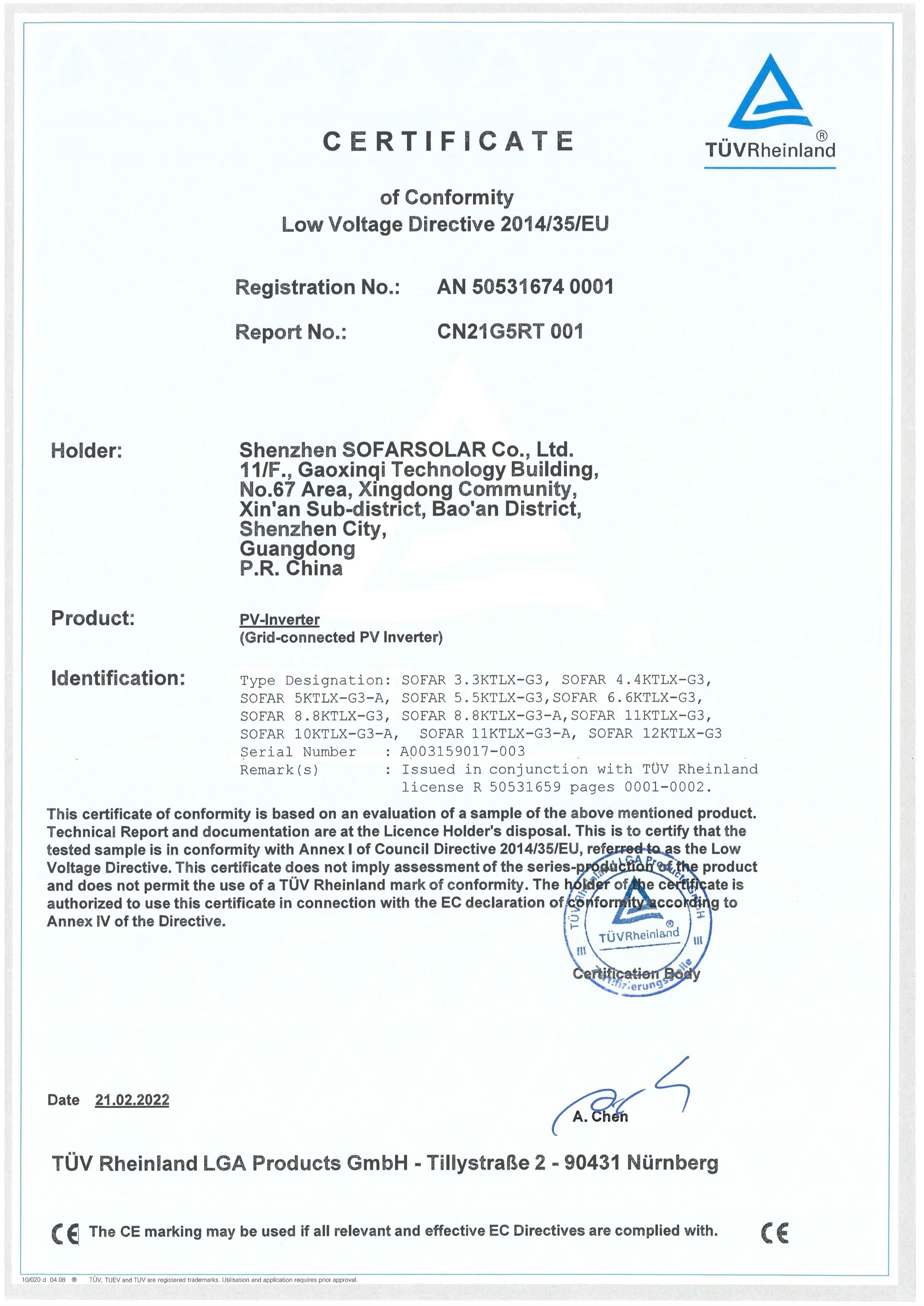

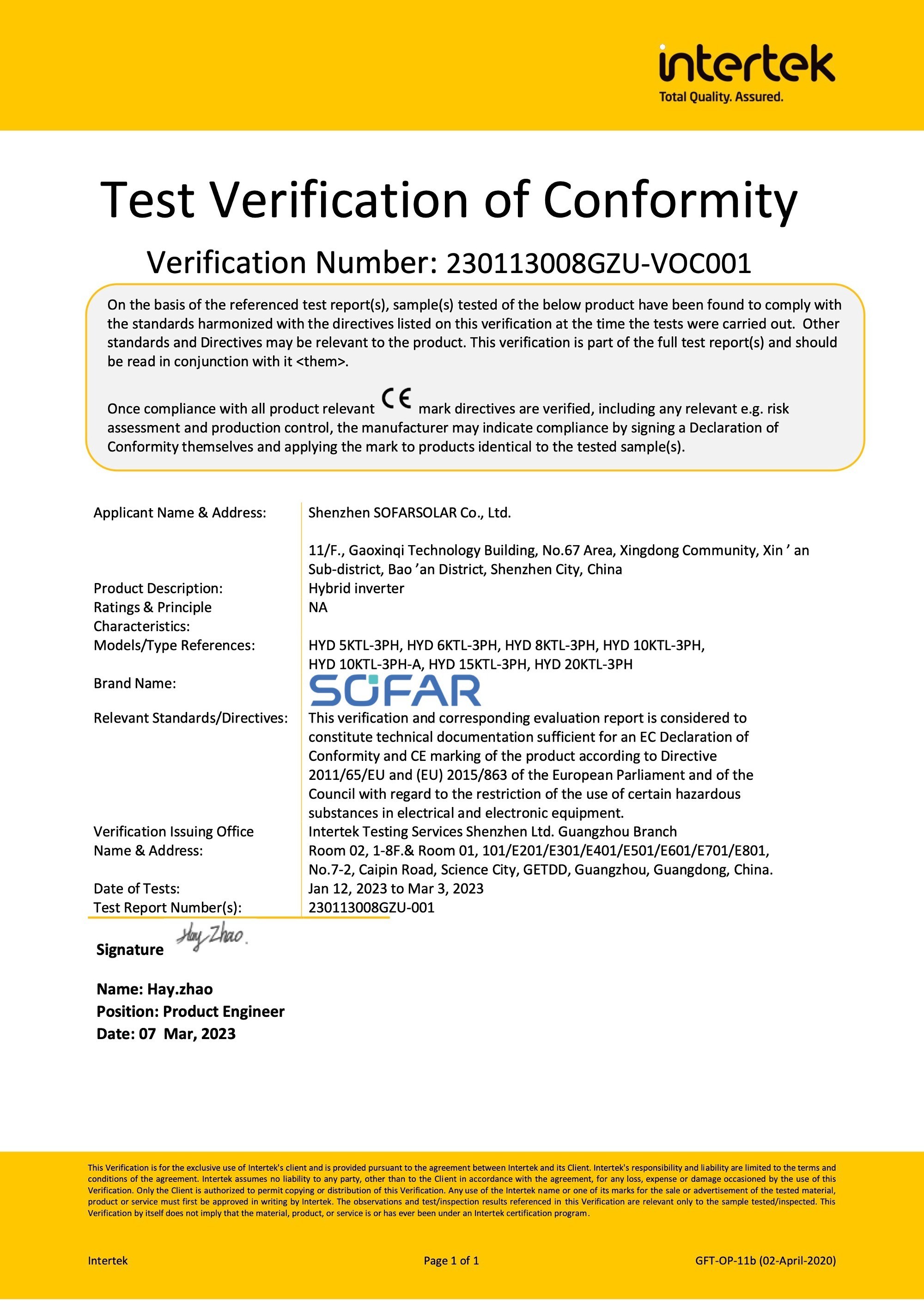

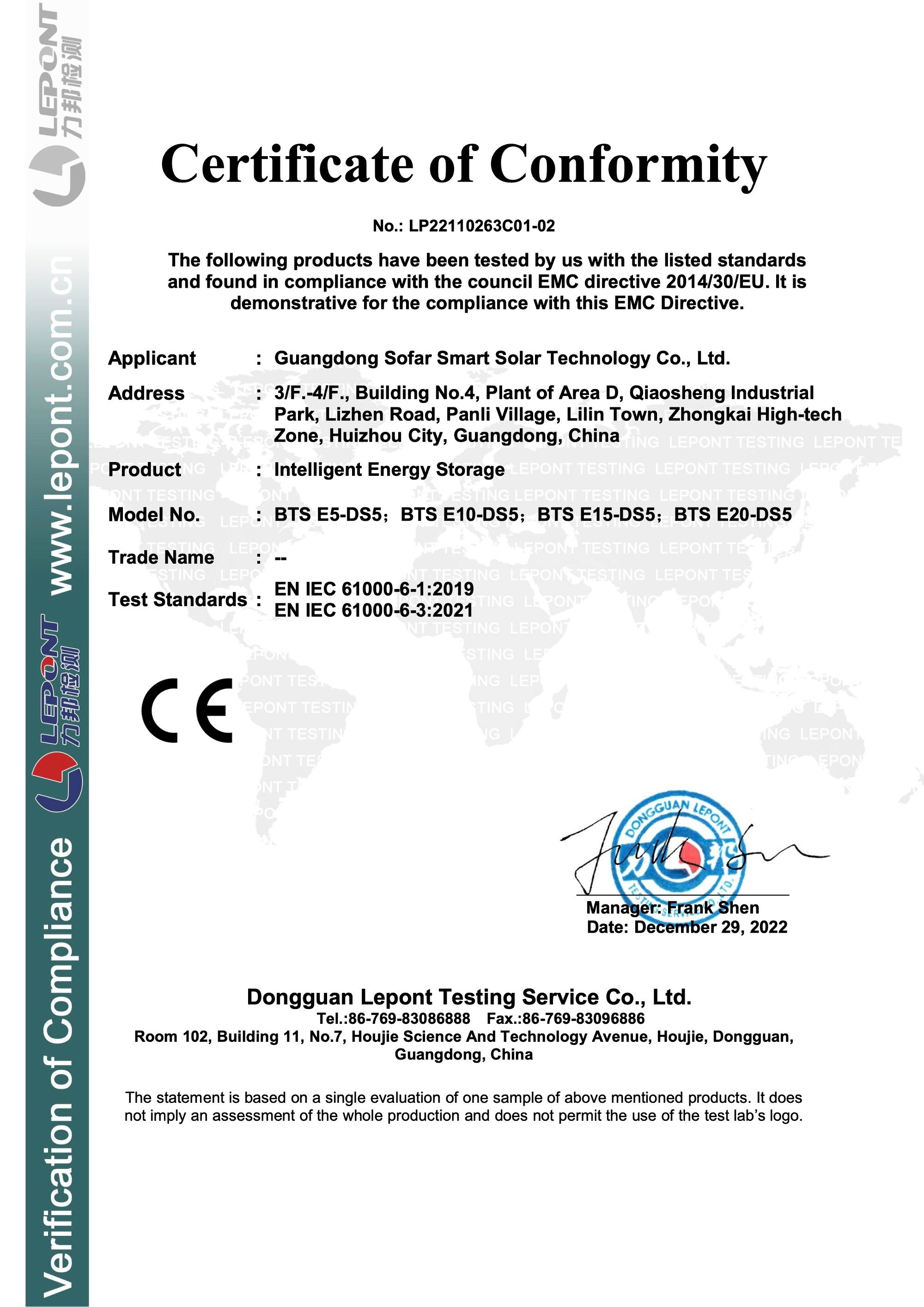

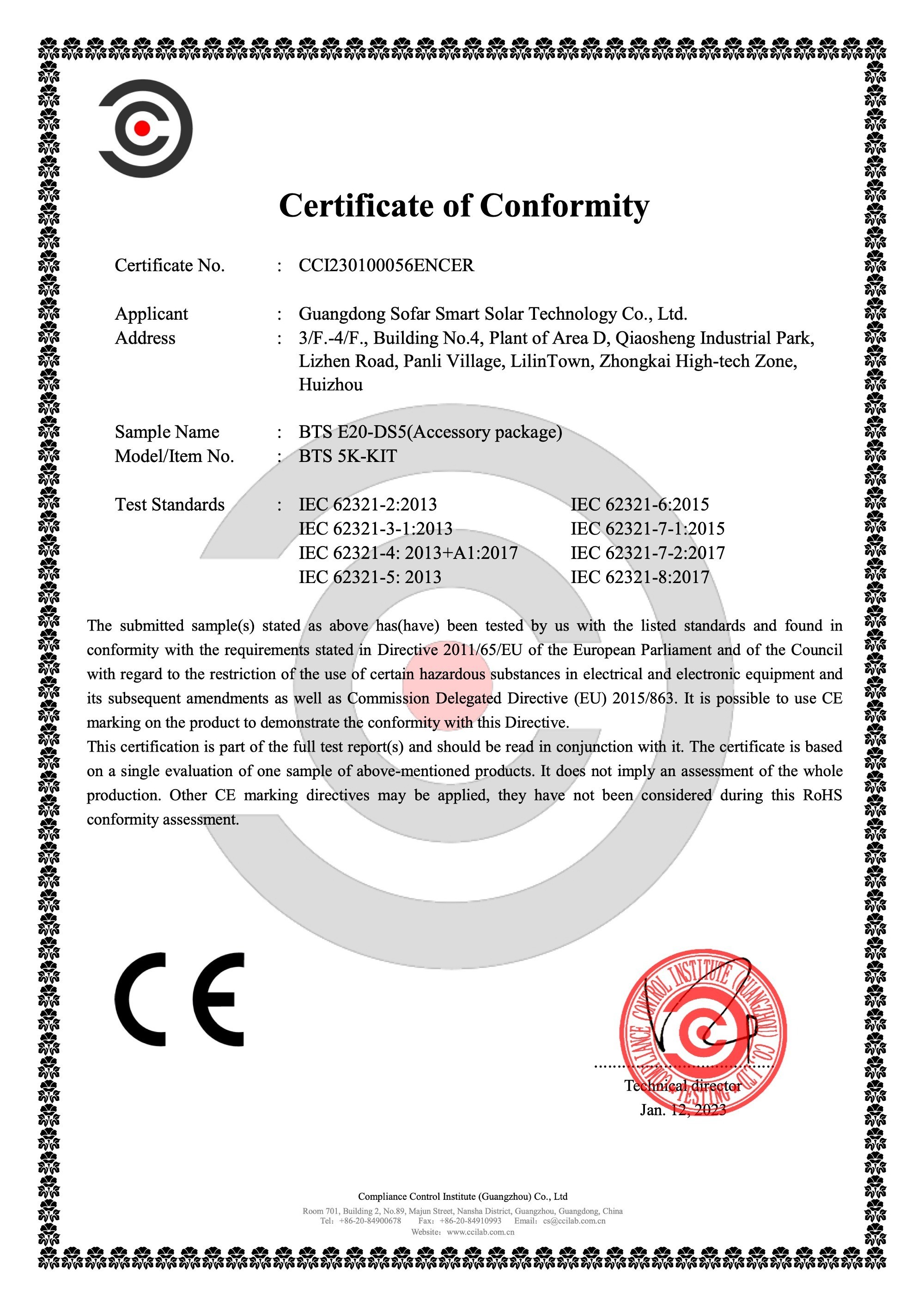

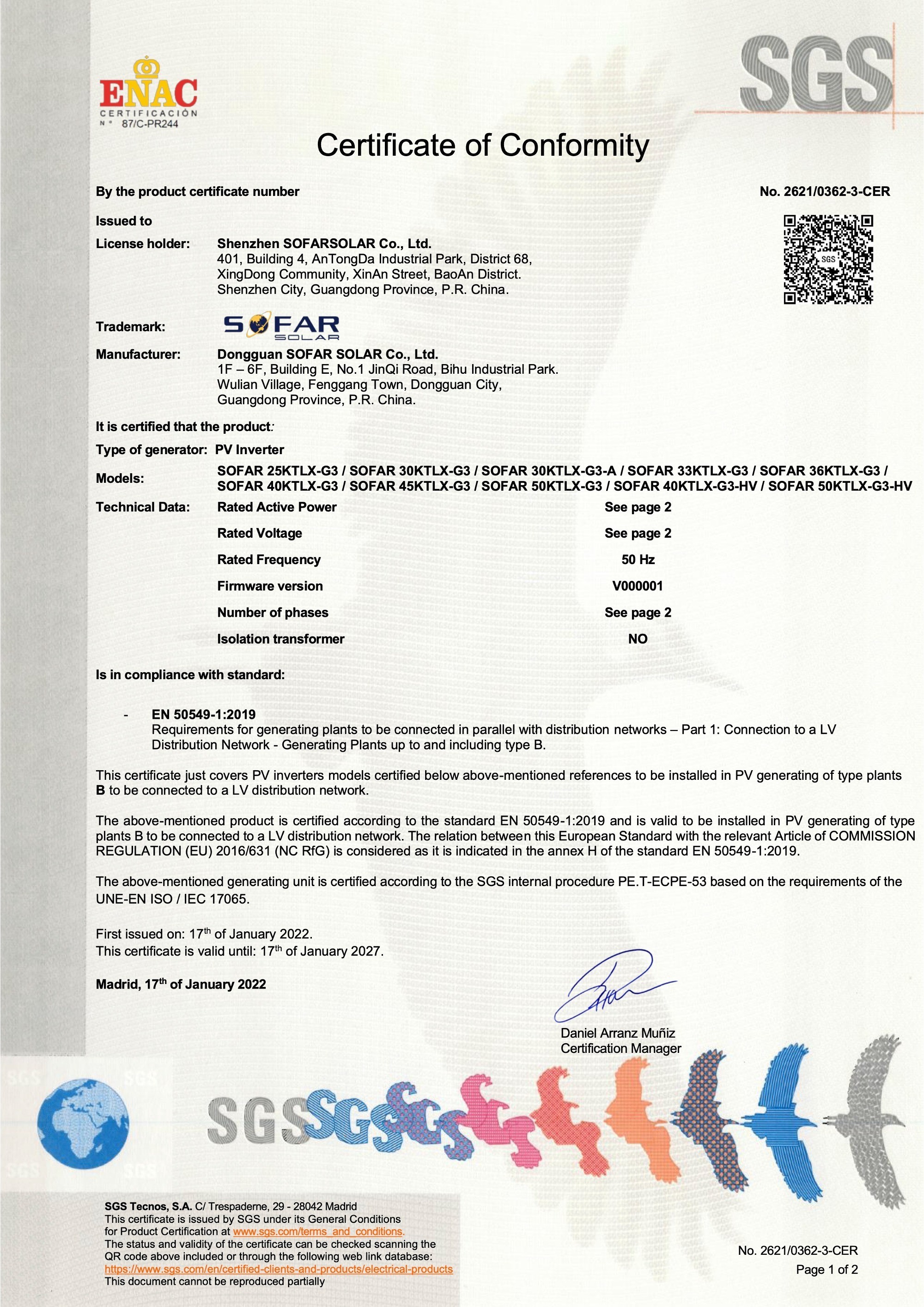

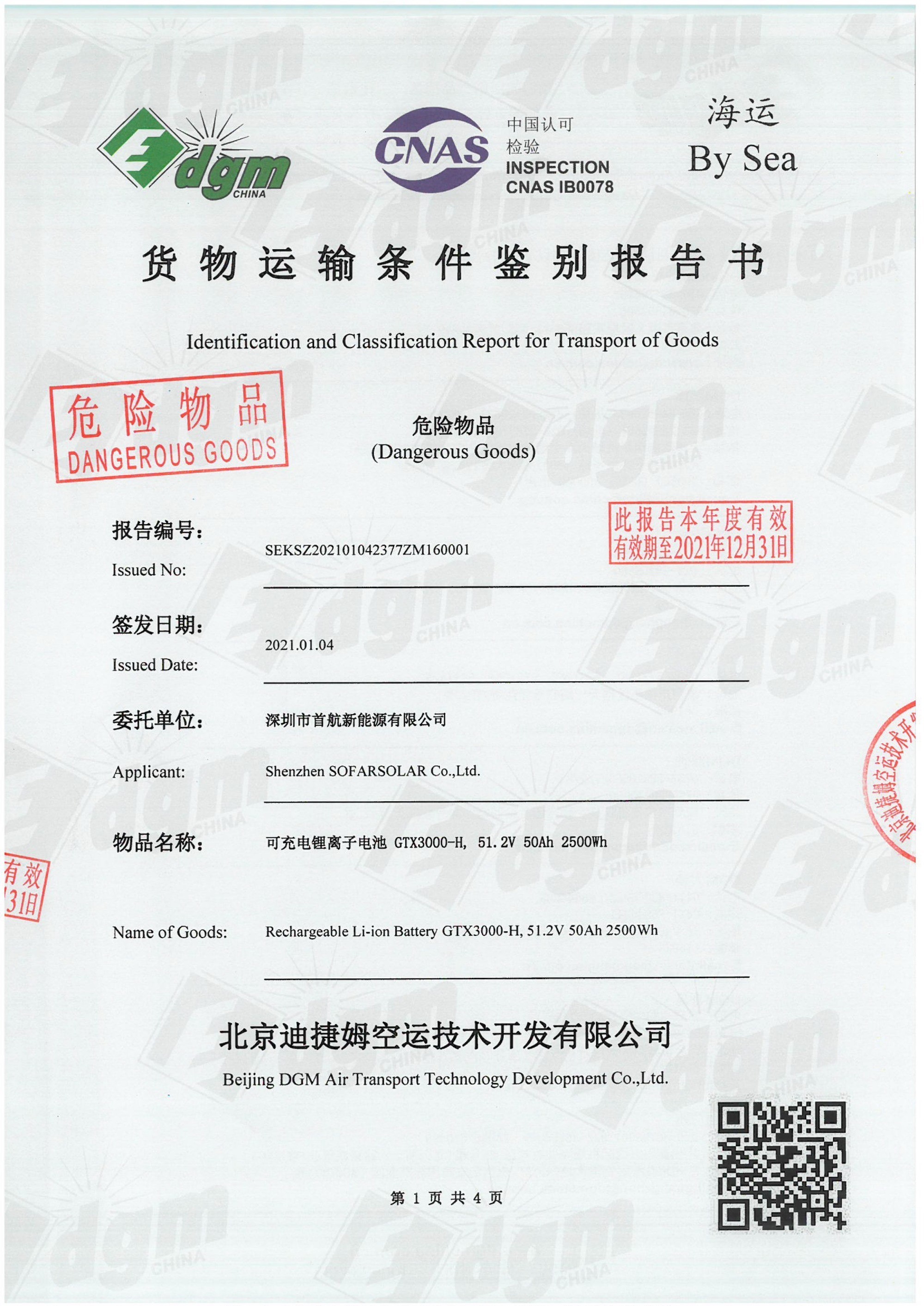

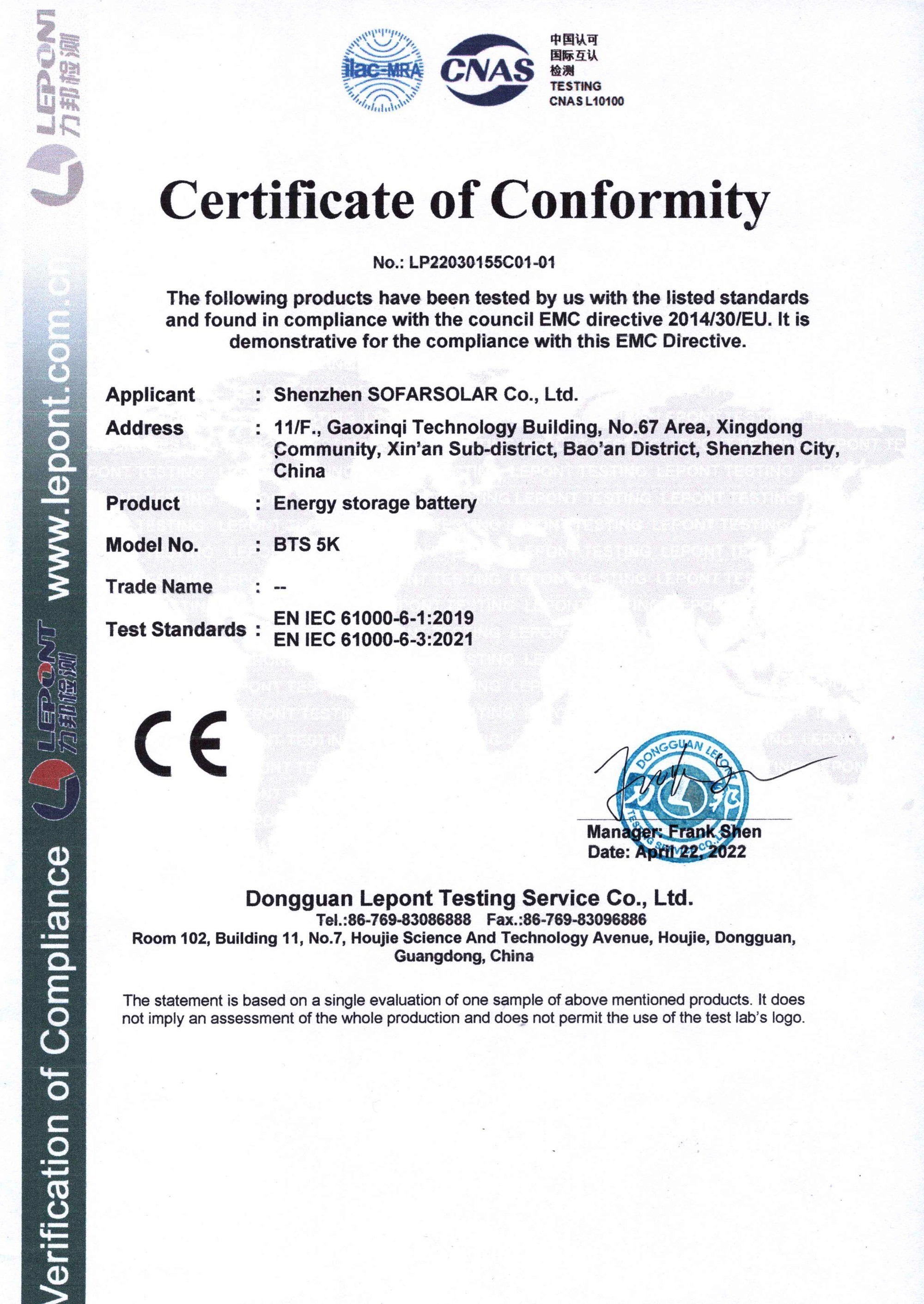

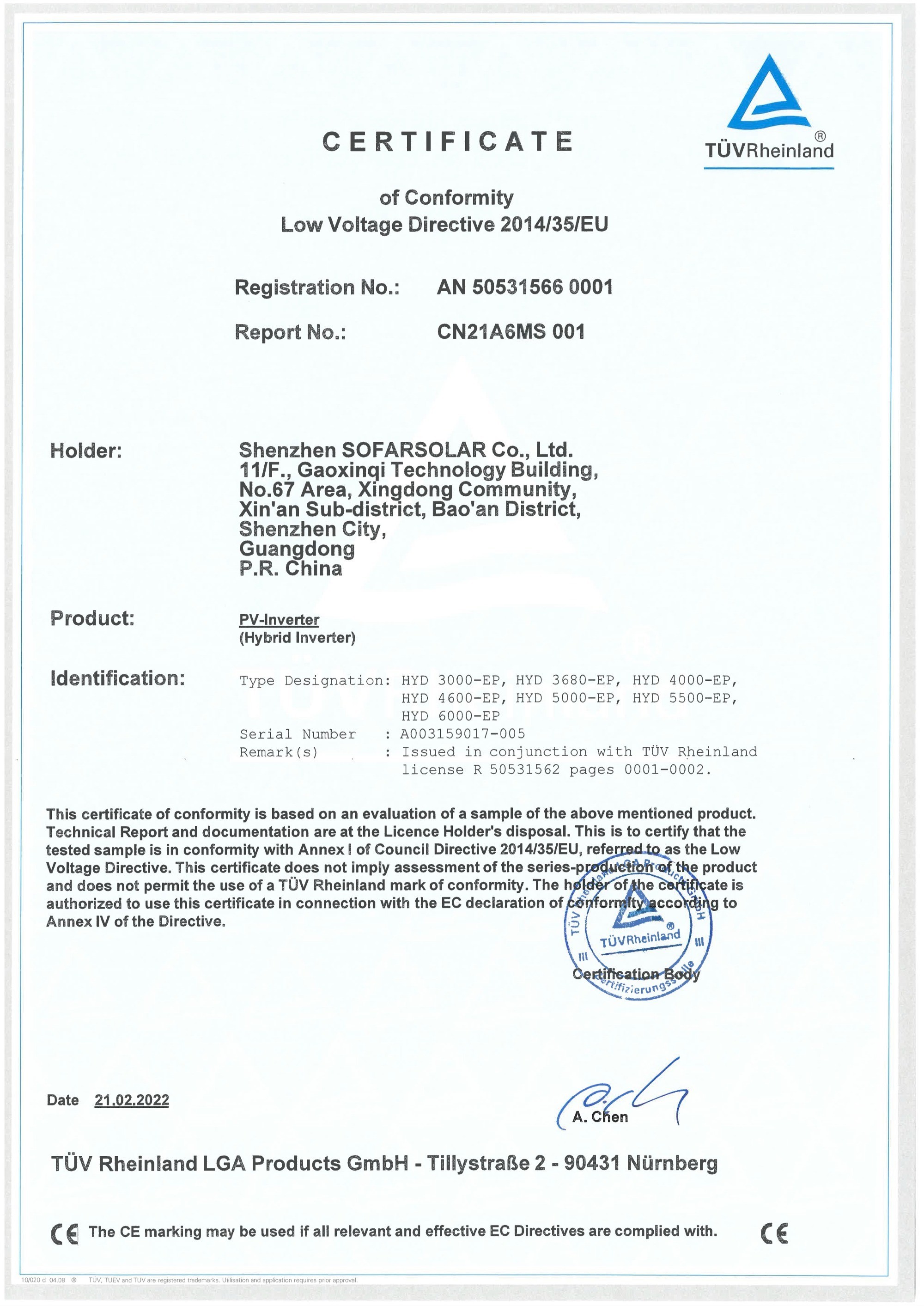

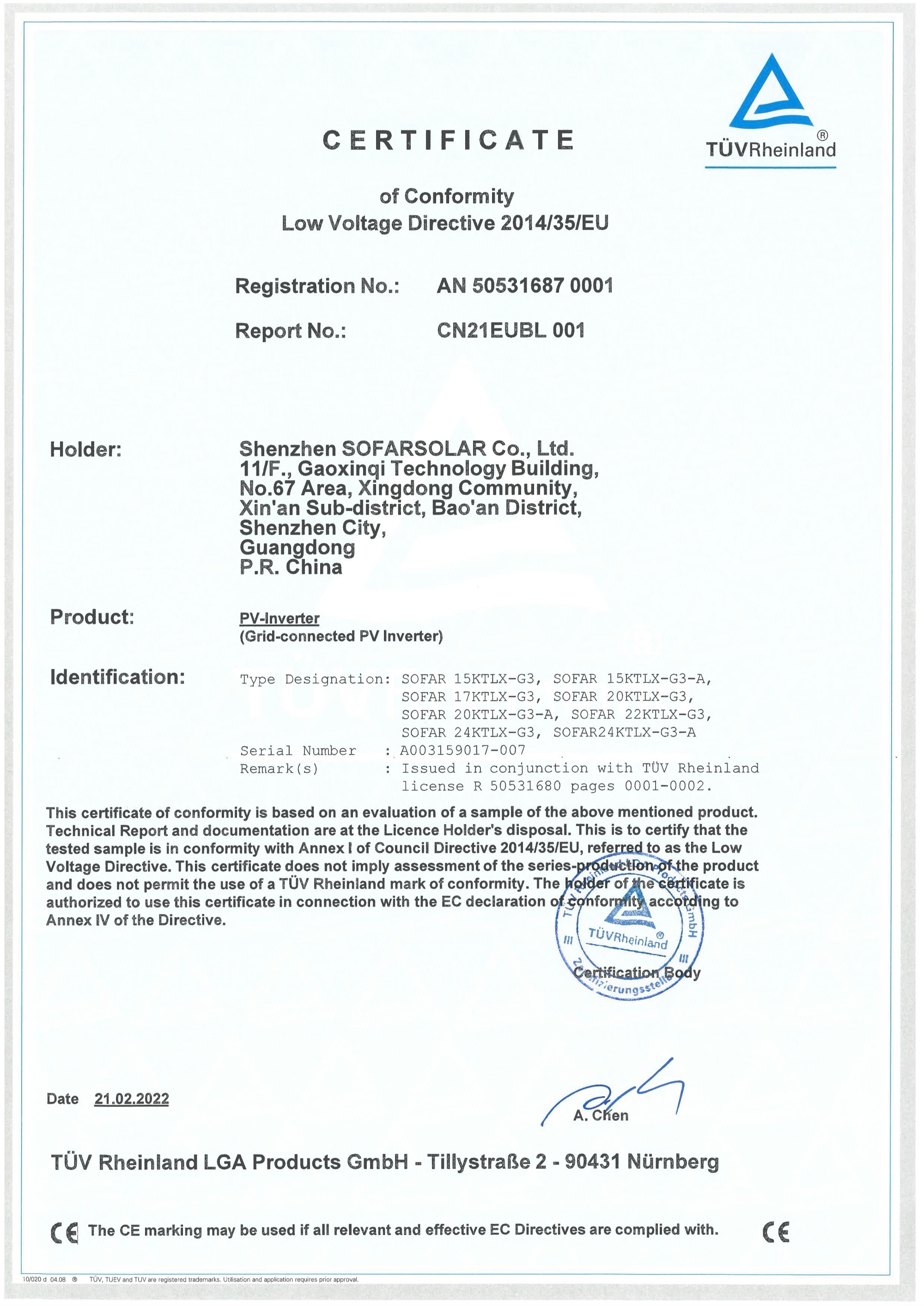

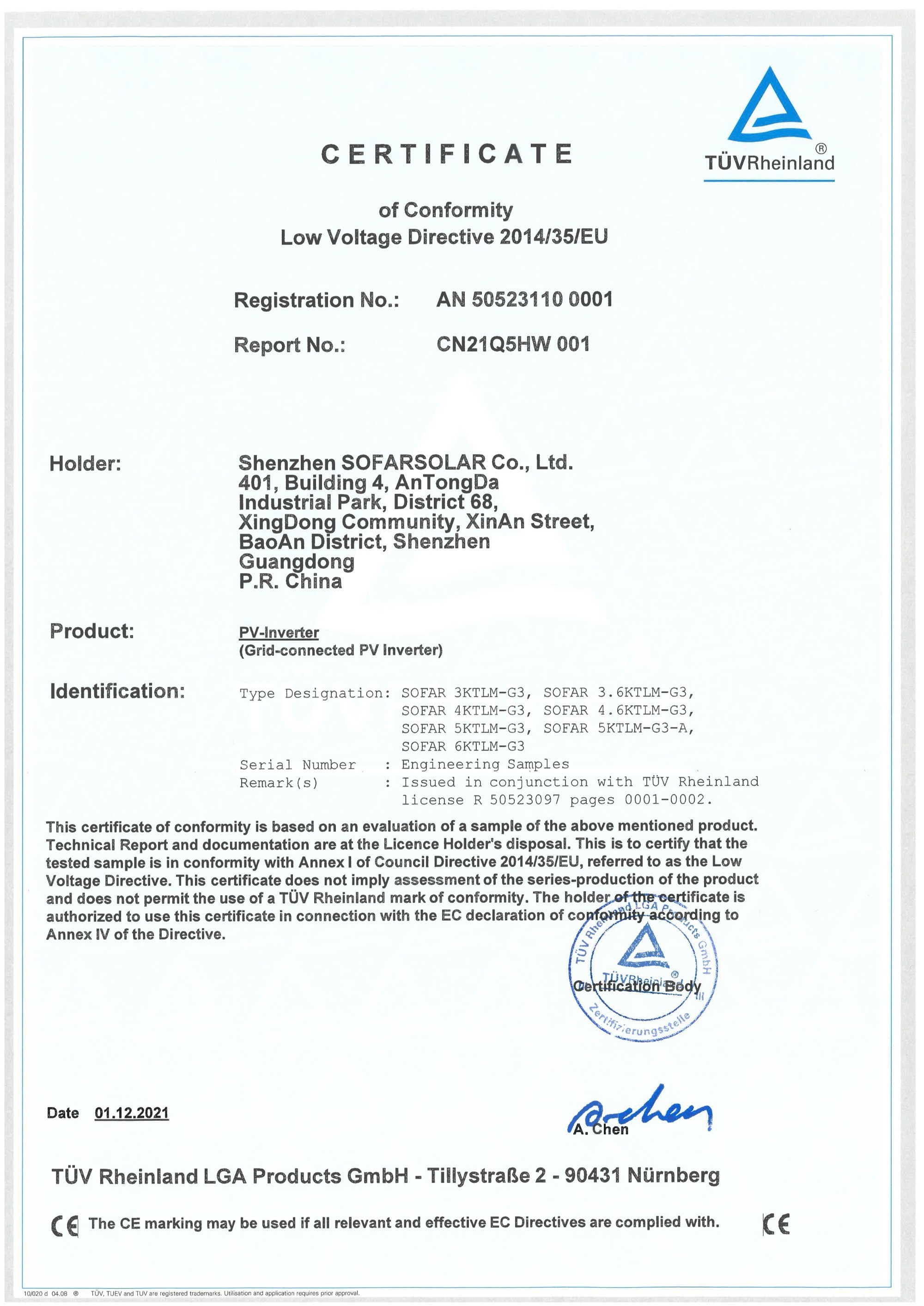

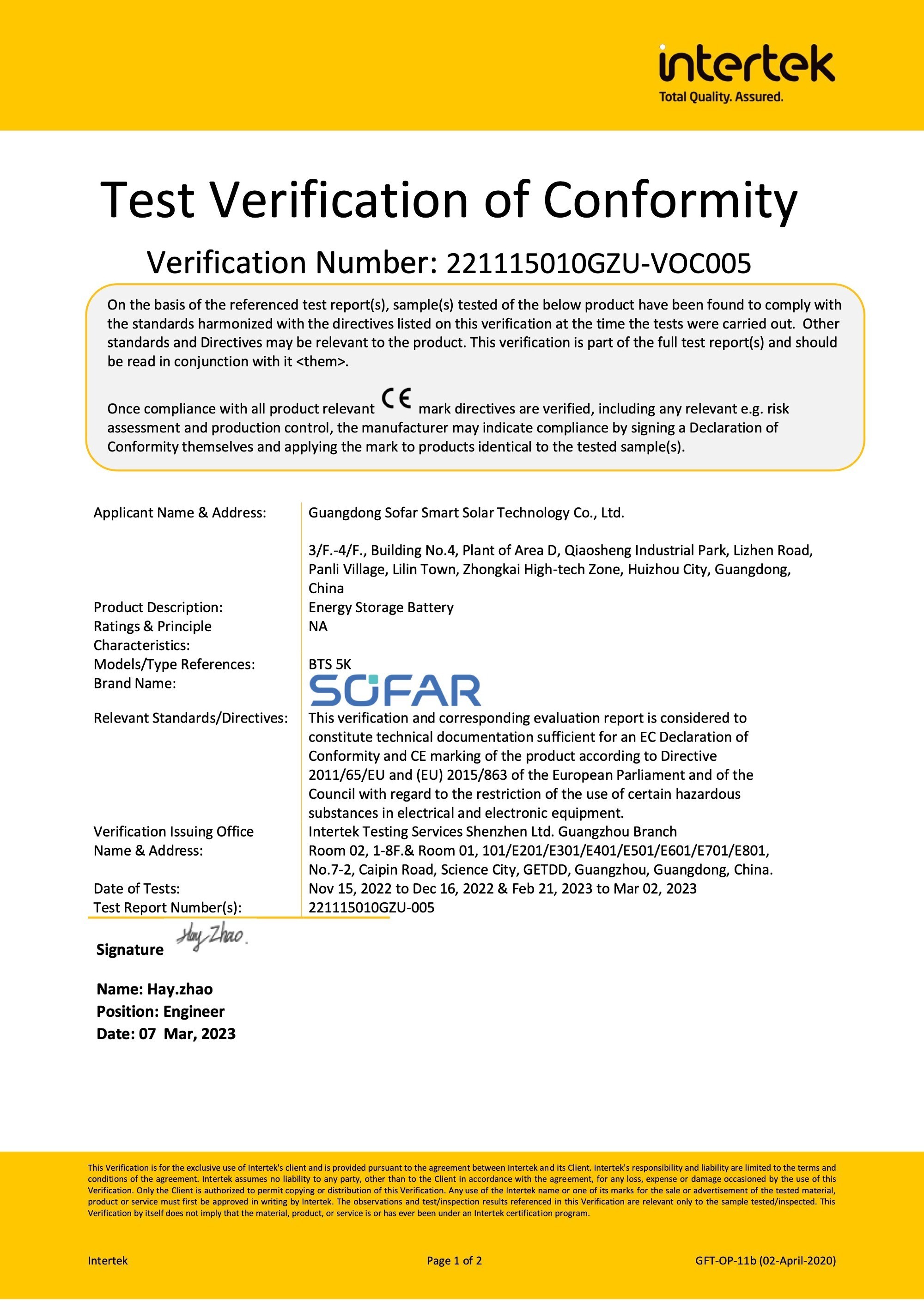

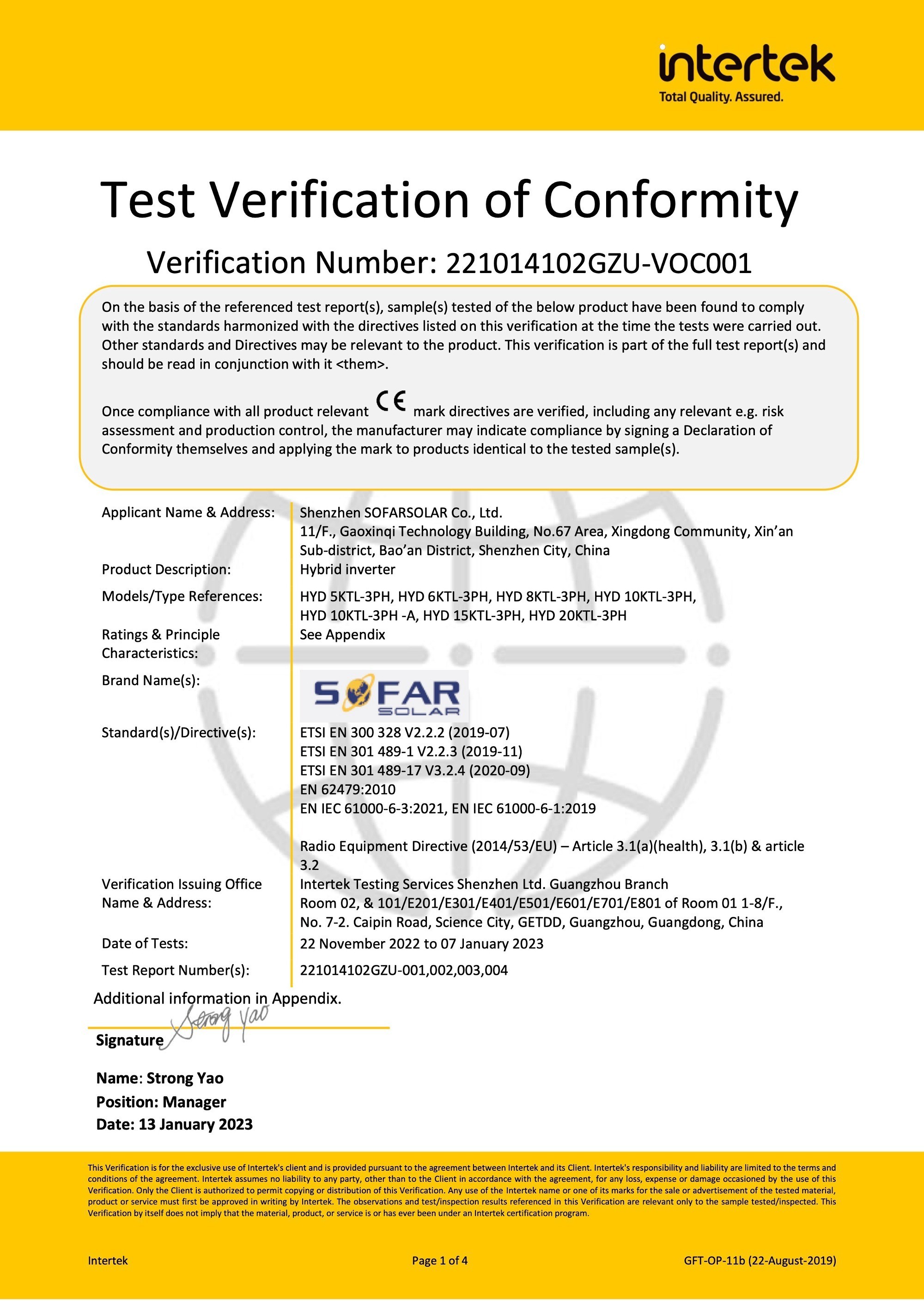

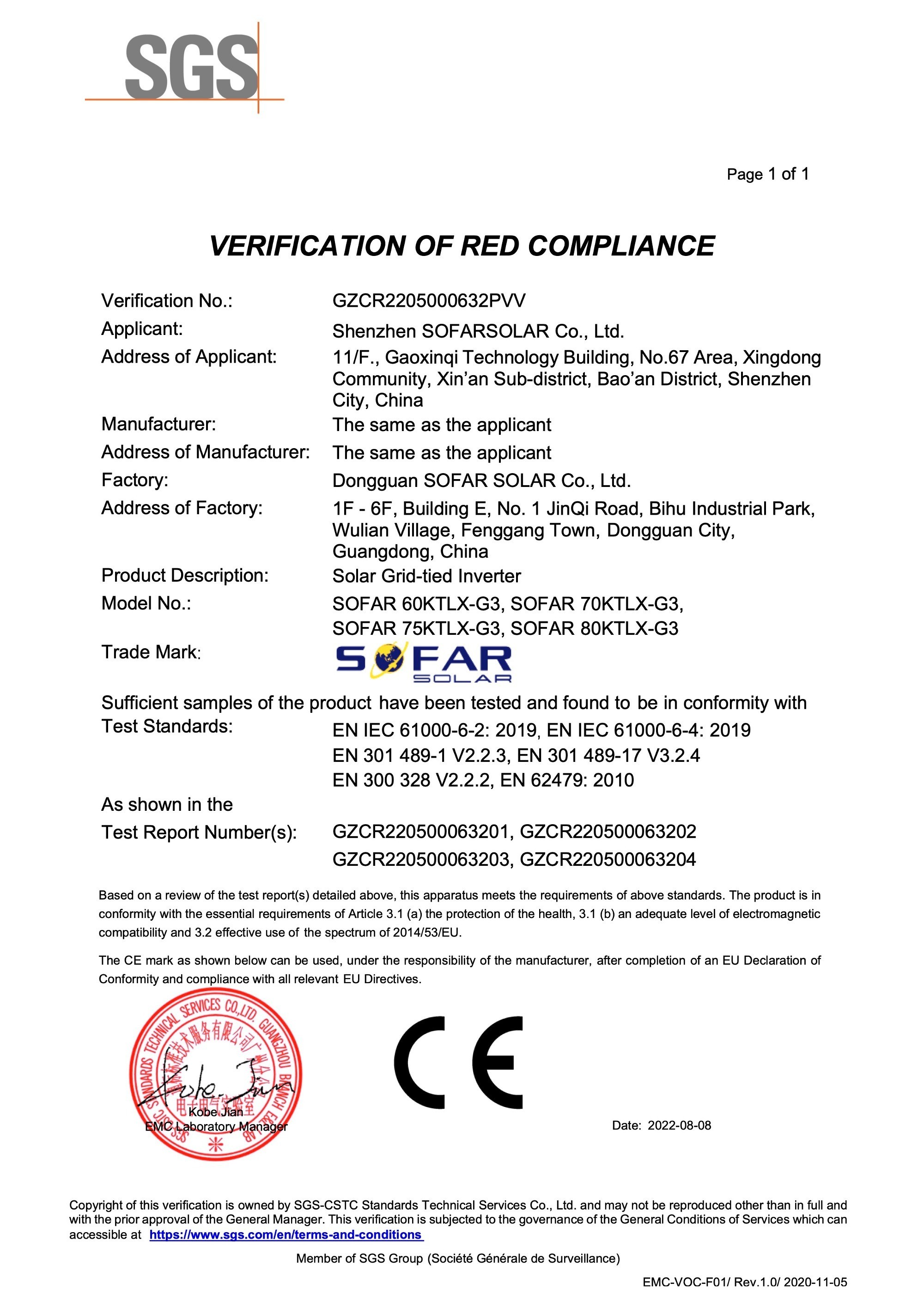

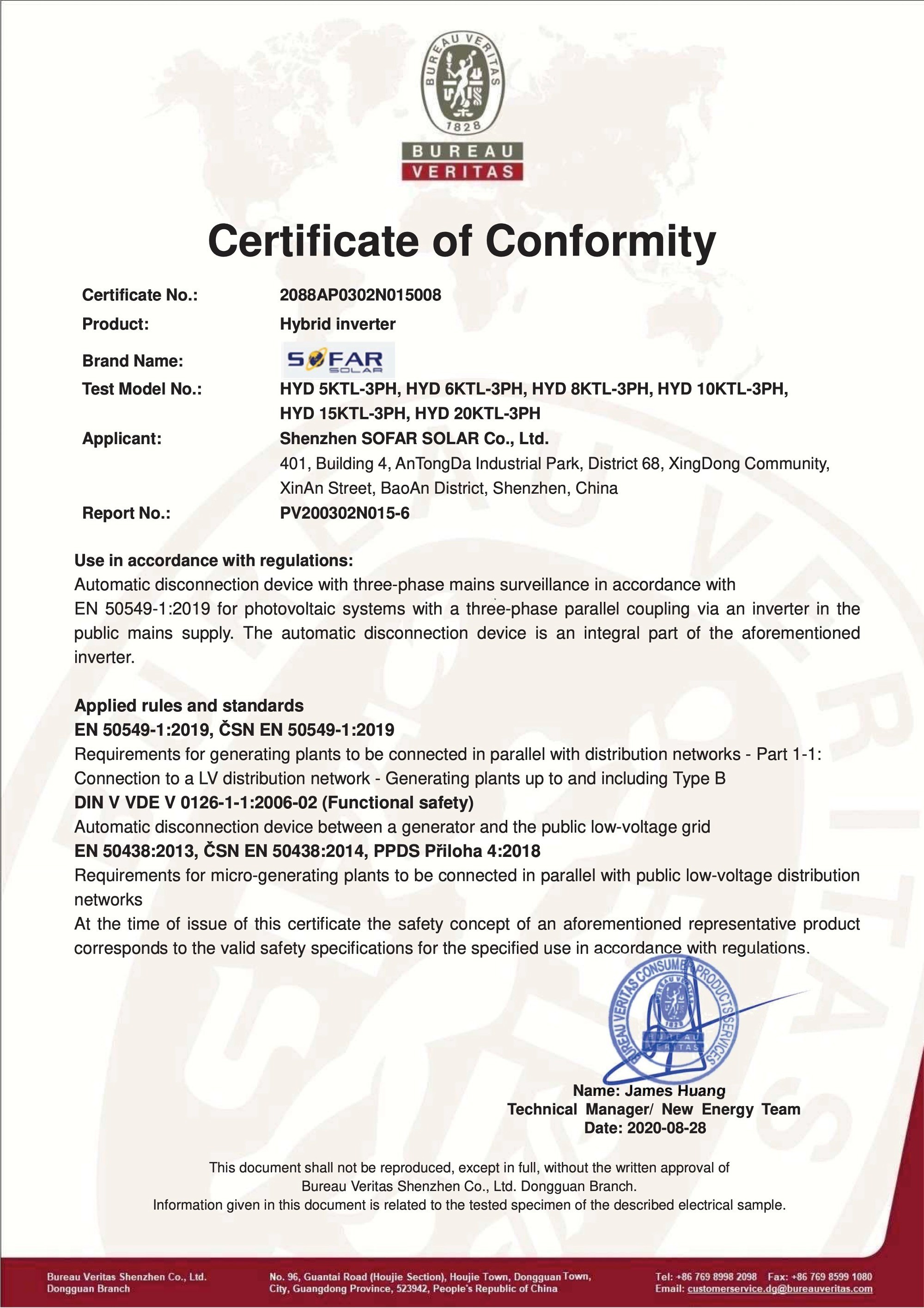

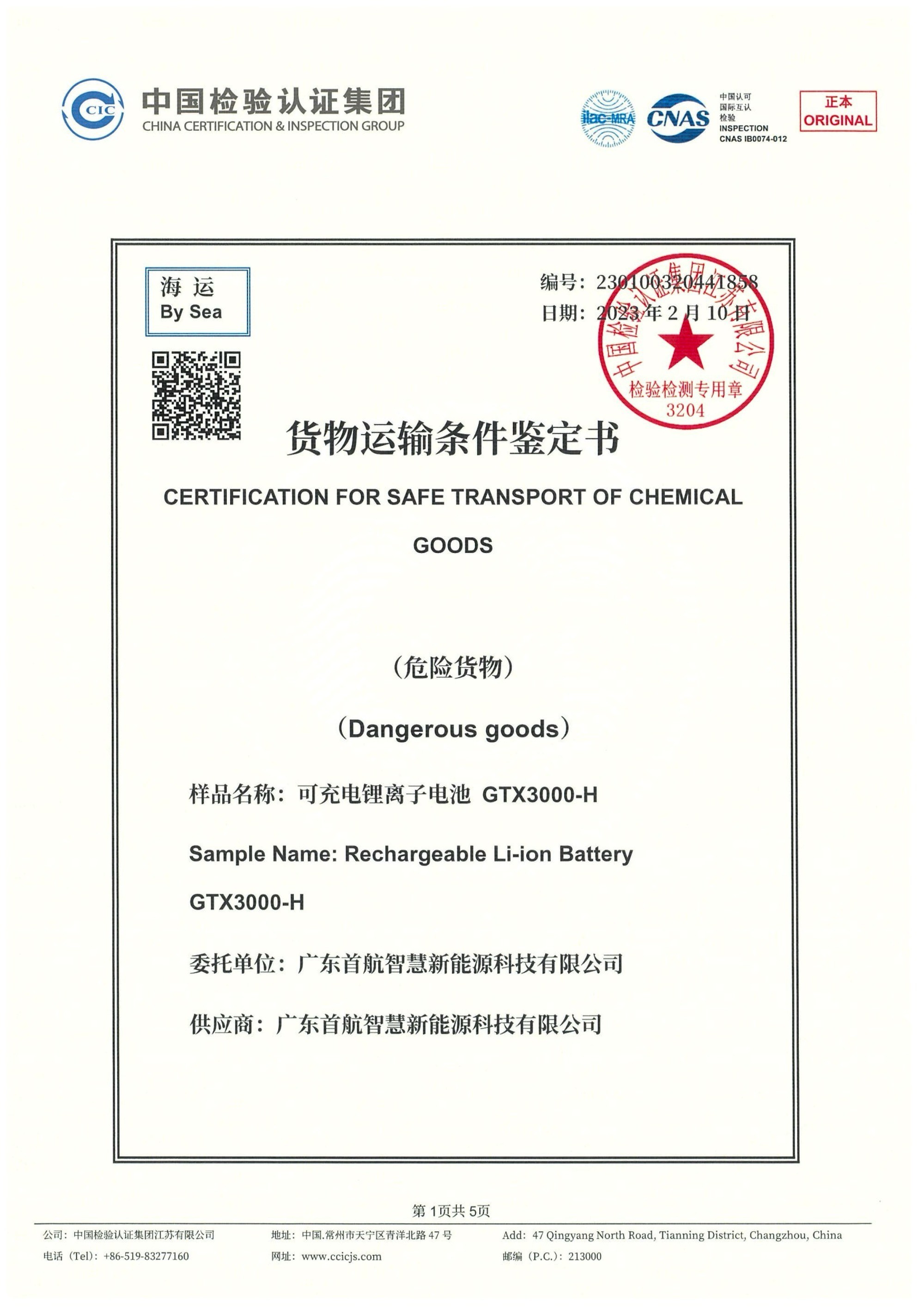

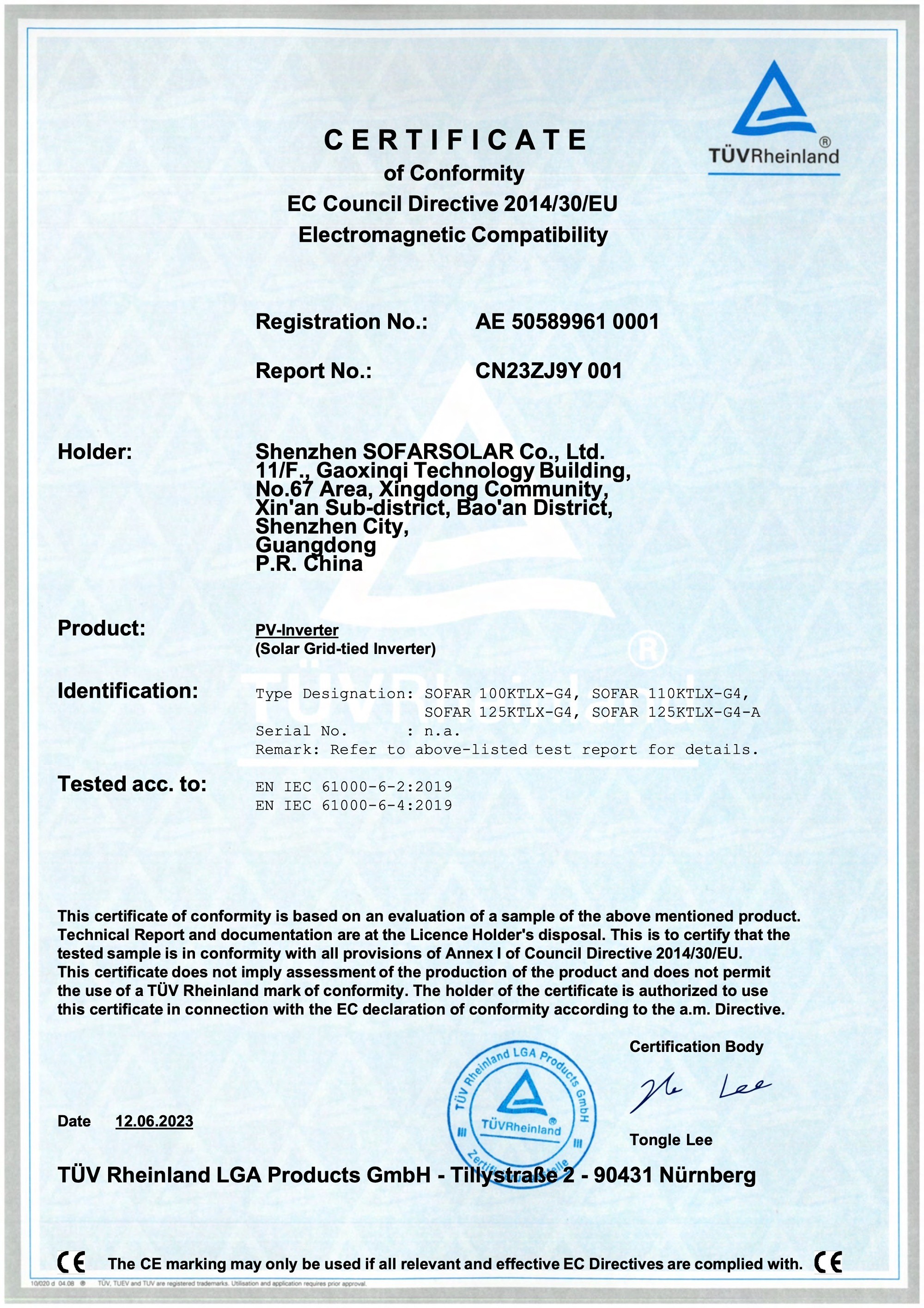

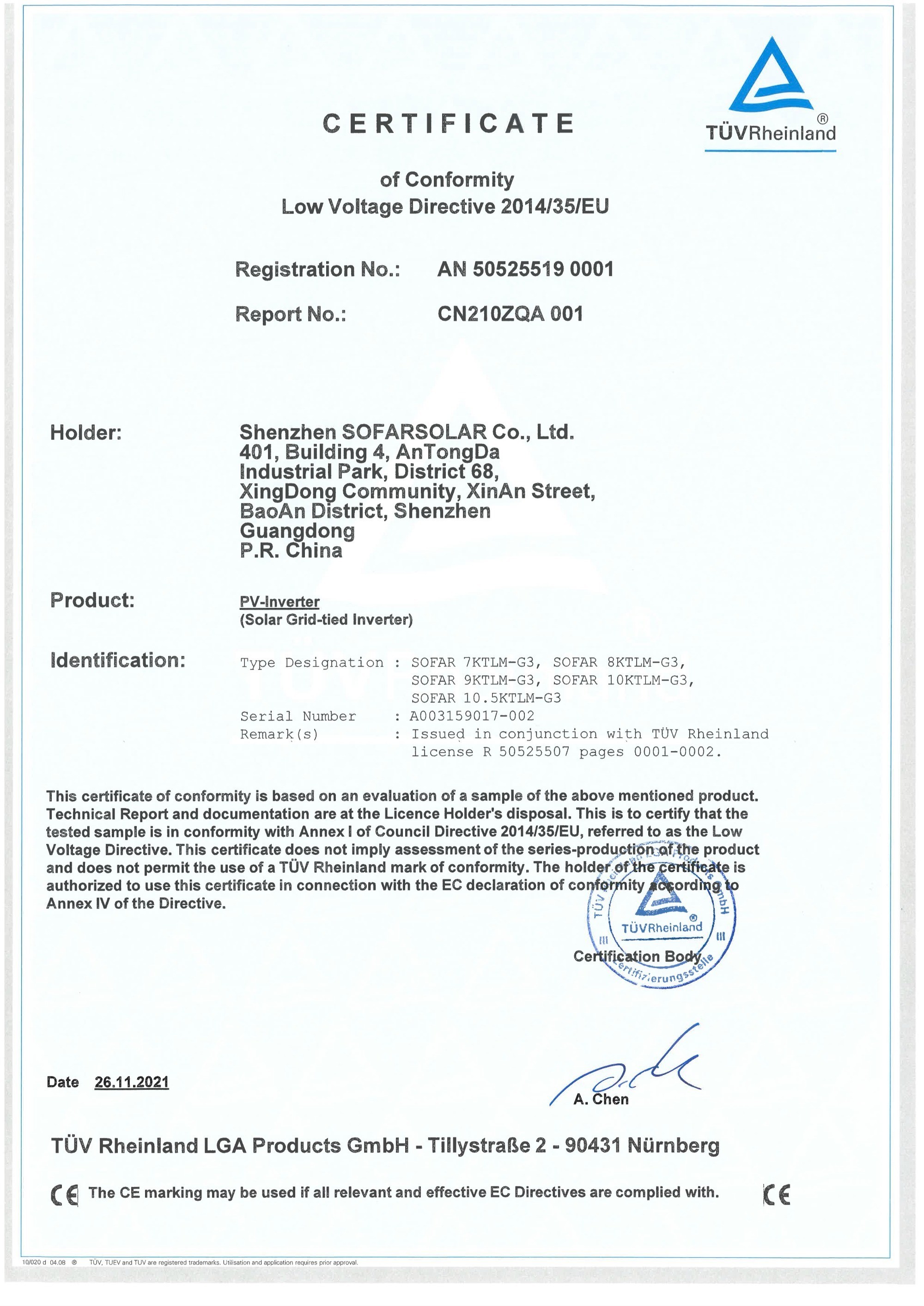

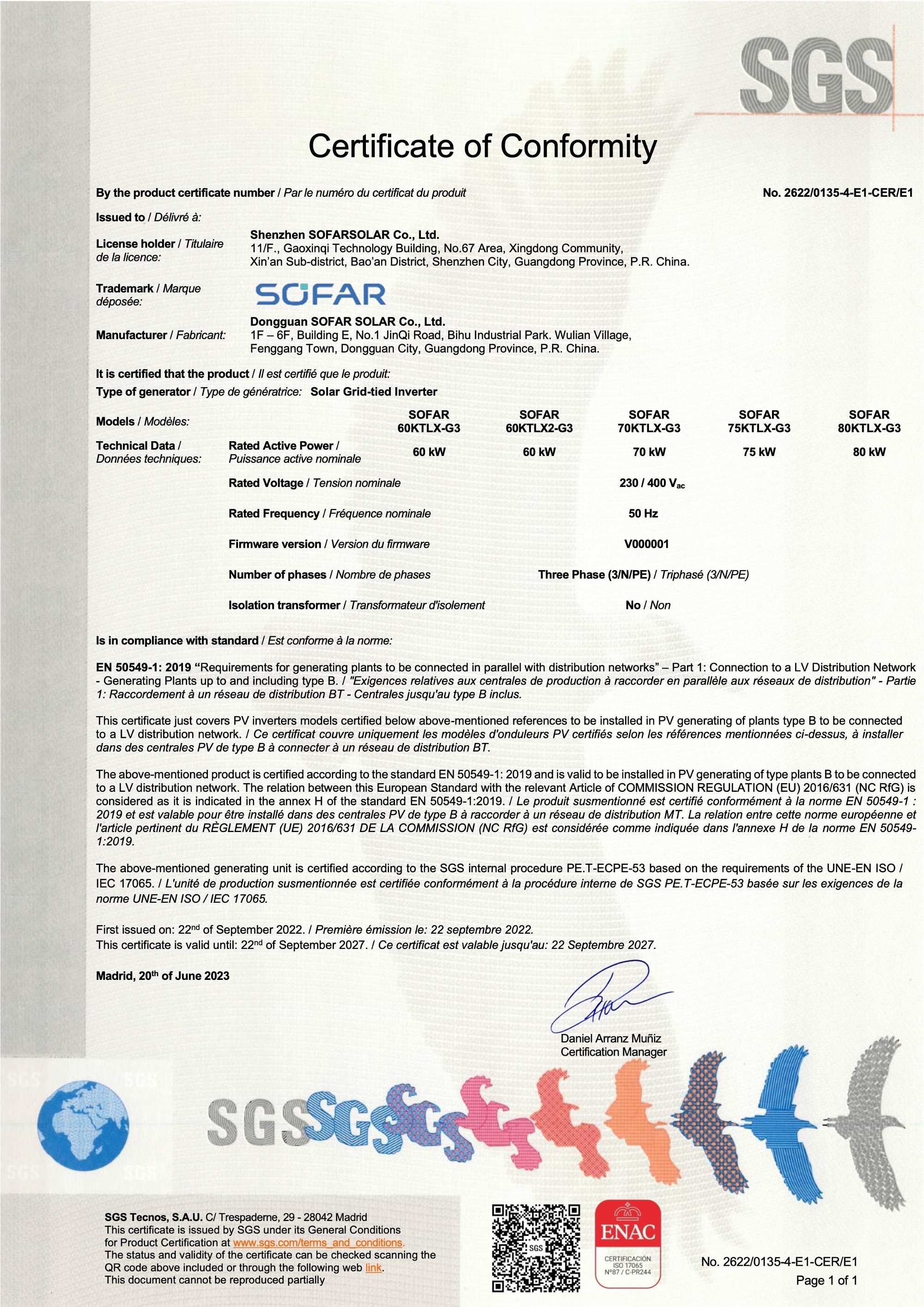

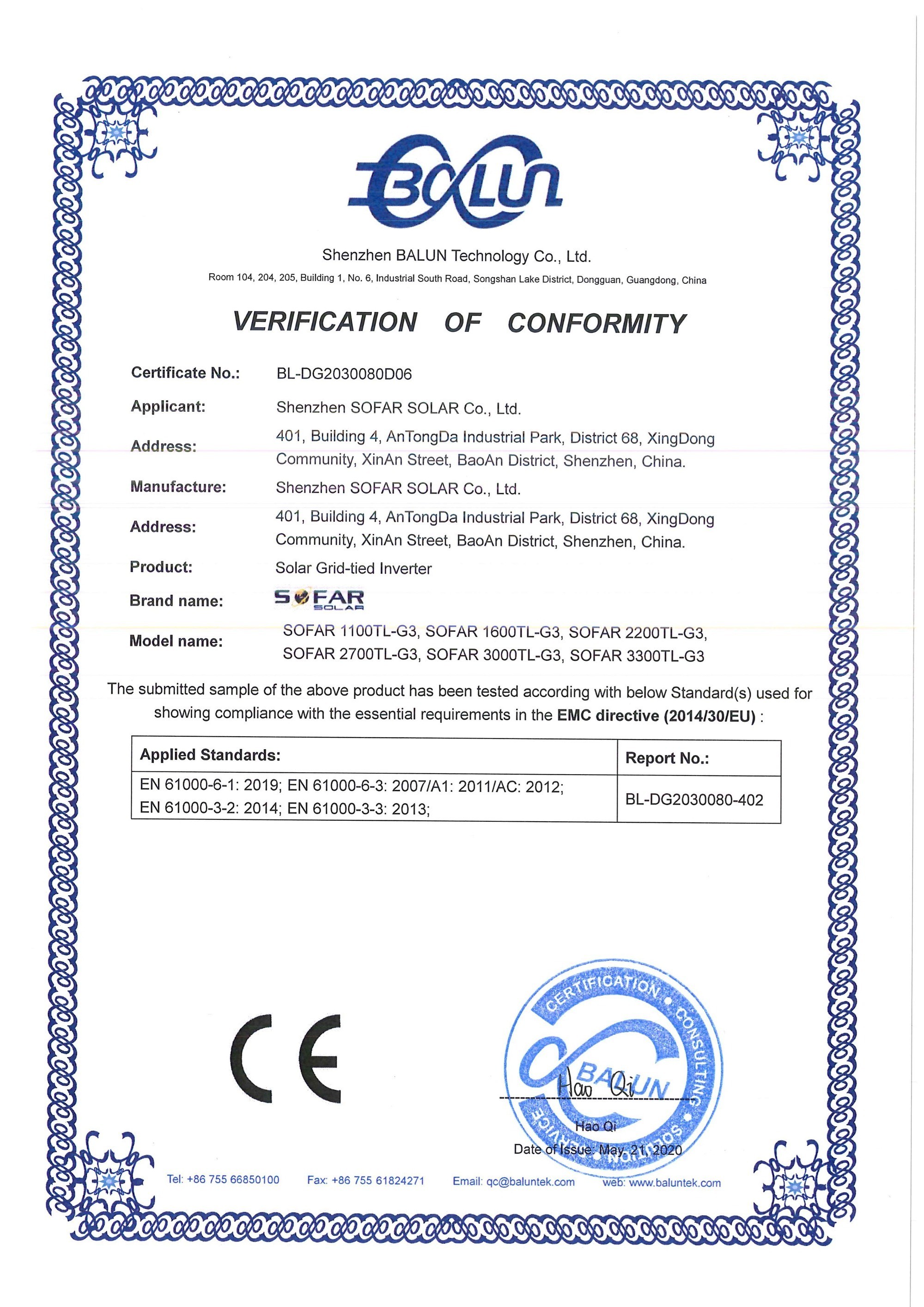

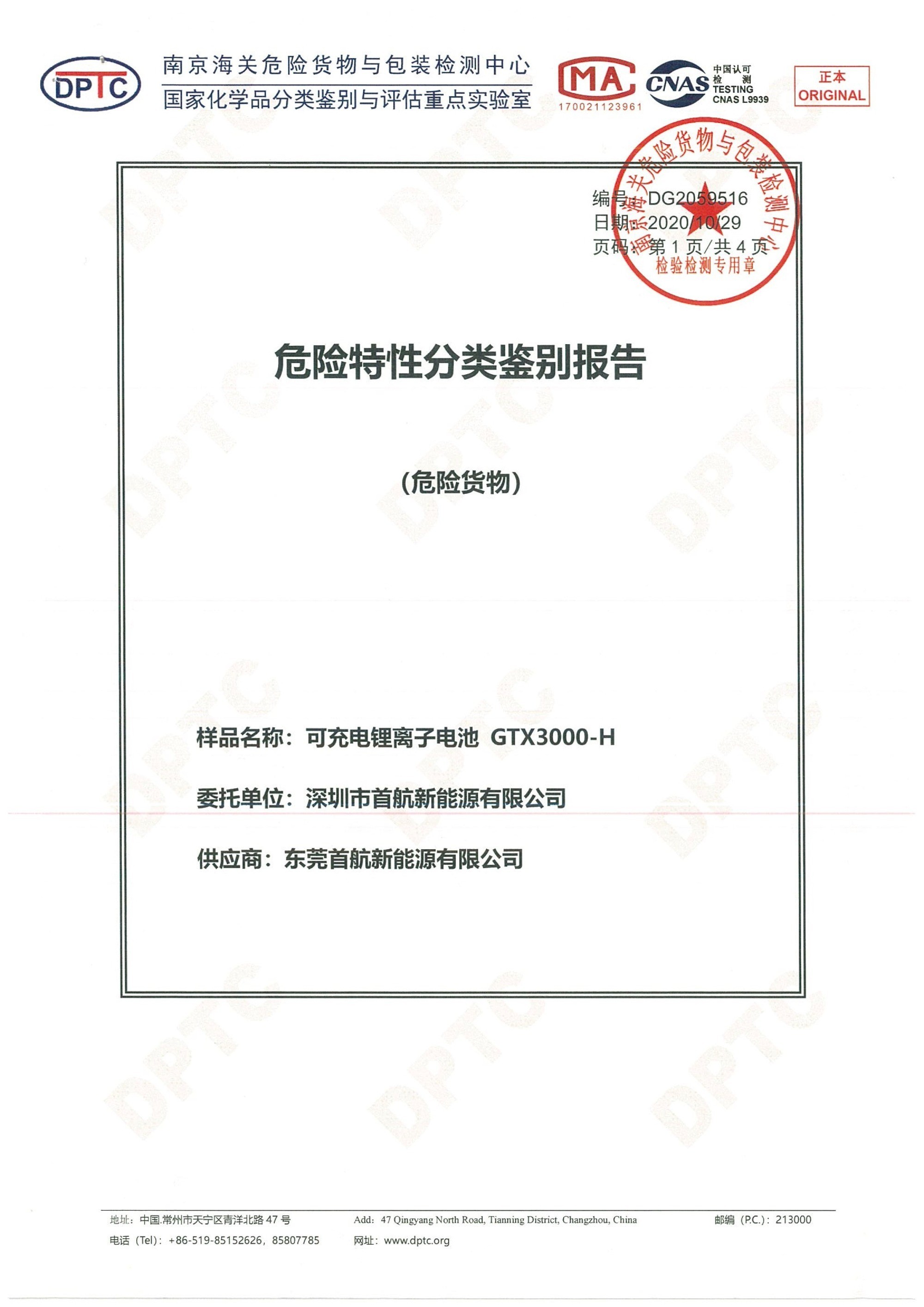

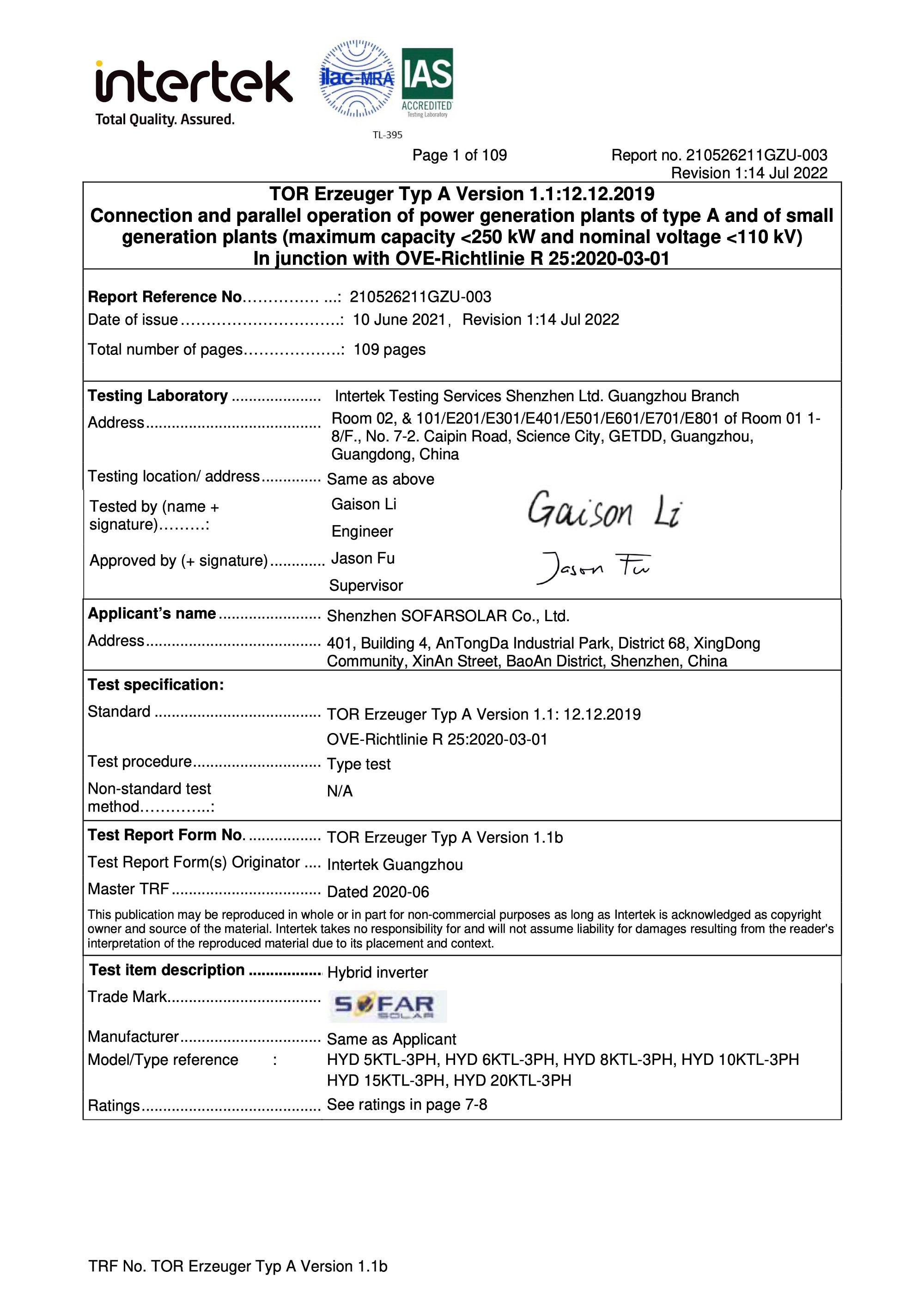

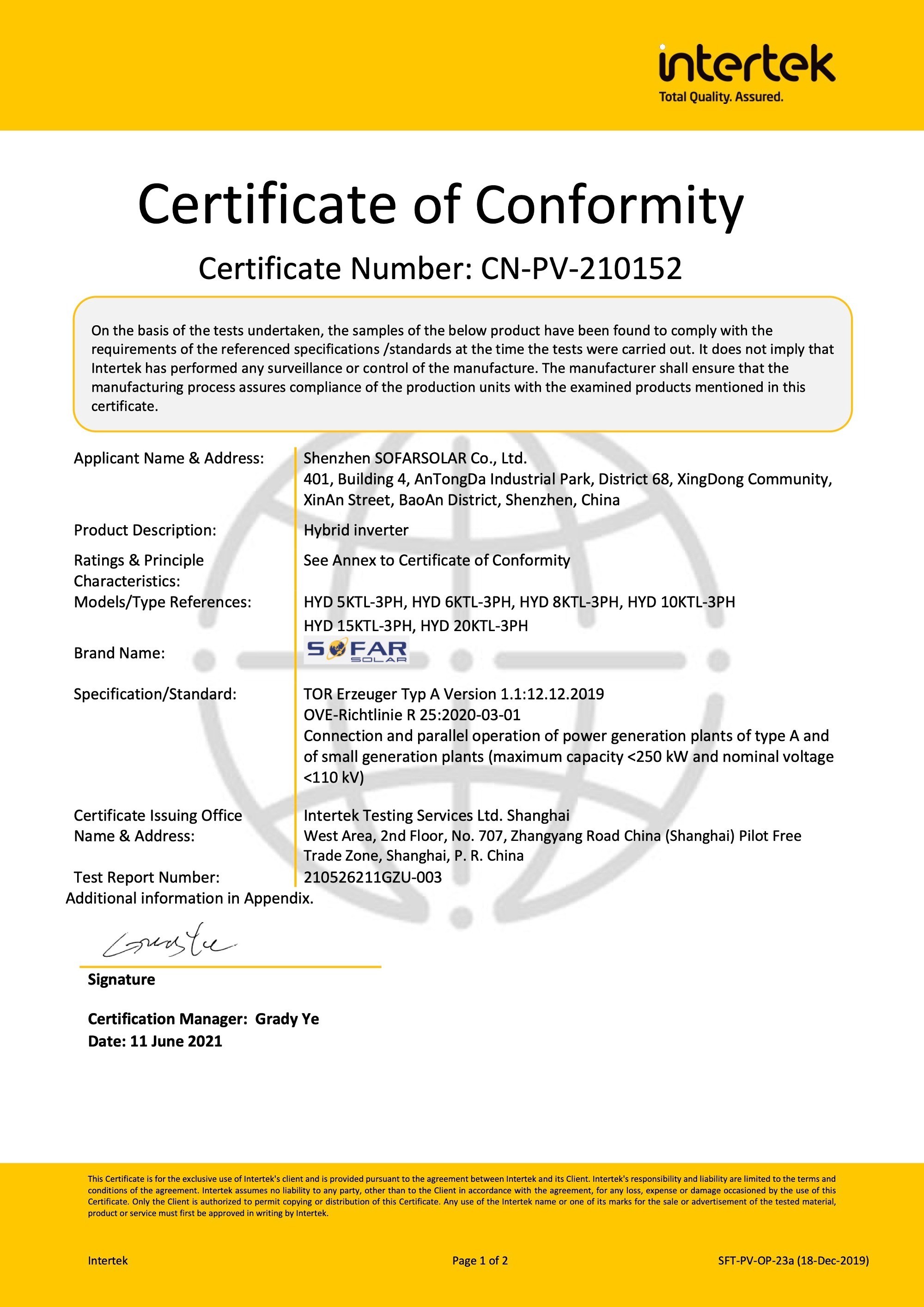

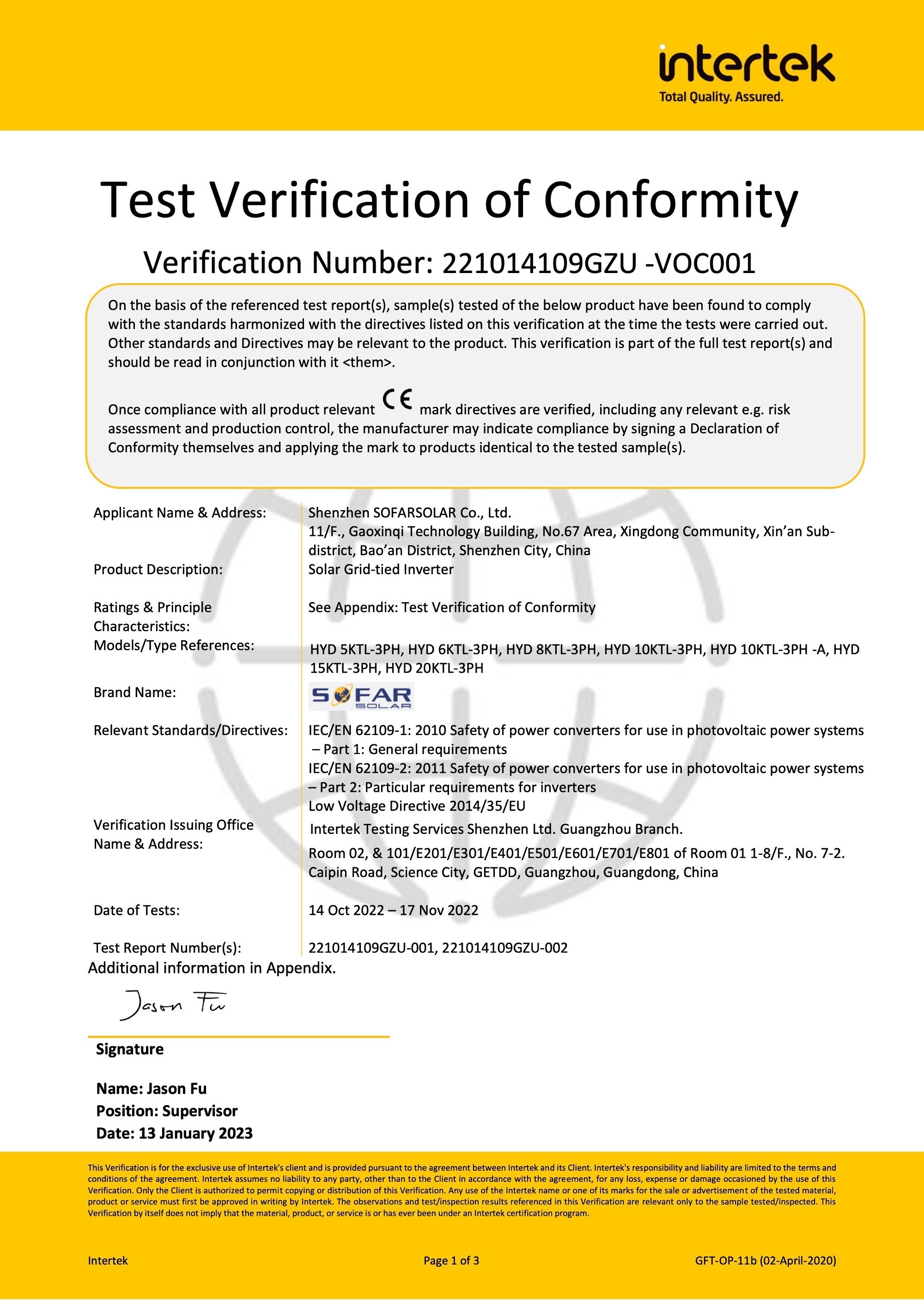

Certifications

Slovak Solar s.r.o.

Click to show company phone
https://www.slovaksolar.com
斯洛伐克
Nábrežie slobody 795/2, 020 01, Púchov
员工数： 3
联系销售商
注意： 您的询盘将直接发送至Slovak Solar s.r.o.。

有用联系人

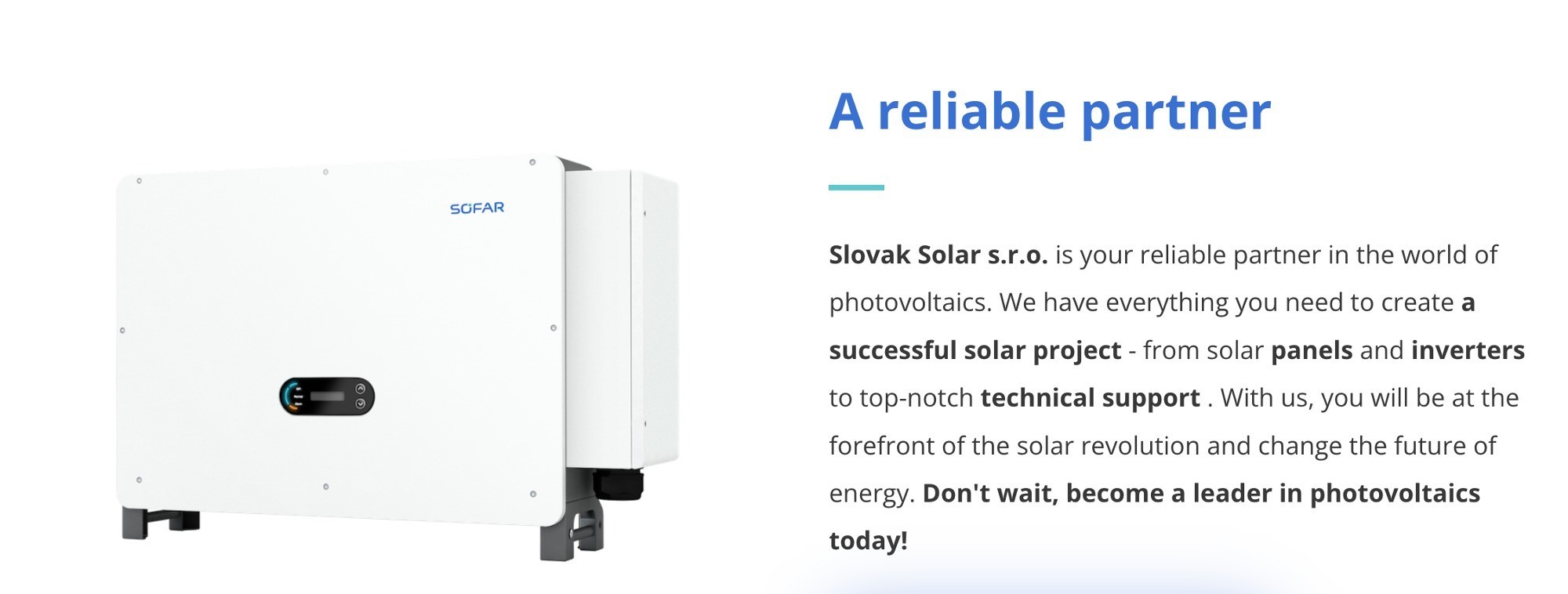

公司描述
