CNS 1-6KW Inverter

深圳创能恒电科技有限公司
价 格:
起价 ¥0.496 / Wp *
类型:
功率范围: 1~6 kW
地区: 中国大陆 中国大陆
注意: 您的询盘将直接发送至深圳创能恒电科技有限公司

描述:

CNS112 series Pure Sine Wave Inverter Charger 500W-6000W, LED/LCD digital display, 3times peak power, low frequency type with transformer, UPS function. It widely applied in wind generator, Solar power system, house, vehicle, ship, navigation and places where lack of city power, mobile electricity work and telecommunications device, launch Station.

产品特点

产品型号
CNS-1000 CNS-1500 CNS-2000 CNS-3000 CNS-4000 CNS-5000 CNS-6000
产品规格
功率
1 KW 1.5 KW 2 KW 3 KW 4 KW 5 KW 6 KW
价格
¥1030 / 台 * ¥1910 / 台 * ¥1680 / 台 * ¥1880 / 台 * ¥2420 / 台 * ¥2720 / 台 * ¥2970 / 台 *
输出参数(交流)
最大输出功率
1 kW 1.5 kW 2 kW 3 kW 4 kW 5 kW 6 kW
交流电压范围
99~264 V 99~264 V 99~264 V 99~264 V 99~264 V 99~264 V 99~264 V
额定交流电压
110, 220, 240 V 110, 220, 240 V 110, 220, 240 V 110, 220, 240 V 110, 220, 240 V 110, 220, 240 V 110, 220, 240 V
频率范围
49.7-60.3 Hz 49.7-60.3 Hz 49.7-60.3 Hz 49.7-60.3 Hz 49.7-60.3 Hz 49.7-60.3 Hz 49.7-60.3 Hz
频率
50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz
功率因数 (cosθ)
0.9 0.9 0.9 0.9 0.9 0.9 0.9
相数
1 1 1 1 1 1 1
一般参数
尺寸(高/宽/厚)
470x223x185 mm 470x223x185 mm 470x223x185 mm 470x223x185 mm 650x223x185 mm 650x223x185 mm 650x223x185 mm
重量
16 kg 18 kg 20 kg 25 kg 39 kg 42 kg 49 kg
噪音干扰级别
< 60 dB(A) < 60 dB(A) < 60 dB(A) < 60 dB(A) < 60 dB(A) < 60 dB(A) < 60 dB(A)
环境温度范围 -0 ~ +40 ℃
相对湿度 0-90 %
通讯接口 RS 232, USB
显示屏 LCD
防护性能
防护性能 过载保护, 过热保护
下载公司产品详情
CNS 0.5-6KW Inverter

CNS series Pure Sine Wave Inverter Charger 500W-6000W, LED/LCD digital display, 3times peak power, low frequency type with transformer, UPS function. It widely applied in wind generator, Solar power system, house, vehicle, ship, navigation and places where lack of city power, mobile electricity work and telecommunications device, launch Station.



Main Features:

1.LED/LCD digital display show voltage, load and battery info in real time.
2.Peak power is three times of rated power.
3.Can work with inductive load such as air conditioner, motor door and so on.
4.Pure sine wave output, available for sensitive load.
5.4-step progressive charging, 7 battery type selector.
6.Fast and powerful charger with 20A and 35A.
7.Accept generator’s energy output.
8.High power factor 0.9, low power consumption.
9.Automatically transfer between battery and line modes.
10.Microprocessor control guarantees high reliability.
11.Bypass without battery connected.
12.Remote control function.
13.Protection against: Over load, over temperature, over charging, low battery
14.Reverse connection (optional by hard connector), Blackouts






About Constant:

Shenzhen CONSNANT Technology Co., Ltd. (simple name: CONSNANT) is a high-tech enterprise which specialized in the field of electric power product R&D, manufacture and marketing. Our main products include various kinds of UPS (Uninterruptible Power Supply) such as Modular UPS, Outdoor Telecom UPS, Industrial special UPS; Solar Power System both home use and telecom use; DC Power Supply System (Rectifier Module, Monitoring Module, Battery Inspection Module) etc.

We have the ability to customize the products as the requirements of customer. And would like to working together with the global partner on OEM or ODM form.

Over the years we adhere to the "quality first, credit first, customer first, integrity-based" operating principles of market development. And our products are widely using in the field of army, bank, bank, insurance, telecom, power plant and manufacturing industry etc. and win the good reputation from partner and user after our hard work.

Production capacity
CONSNANT has the advanced SMT automatic placement machine ( YAMAHA), AI automatic component inserter, automatic crest welder, automatic assembly line etc. Meanwhile, the company has actively adopted new technology and new process continually.
CONSNANT increase the investment in the production management and equipment every year. According to the international standards of production "Customer demand as the center, production management as the base, product quality as the system", we supply products on time with efficient, energy-saving.
CONSNANT will become an international renowned modern enterprise and have a more brilliant future.

Enterprise culture
Values: gratitude, integrity, responsibility, inclusive, love
Business idea: treat customers, treat employees, benefits the community
Employment ideality: good morals firstly, exceptional talent secondly
Management concept: Military discipline + rich study atmosphere like school + Familial warmth
Action idea: serious, efficient, refuse any excuse
Staff spirit:passion, enthusiasm, sincere, persistent

深圳创能恒电科技有限公司

广东省深圳市宝安区福永街道骏丰工业园B6栋
员工数: 200
给该供应商发送信息
深圳创能恒电科技有限公司是专门从事电源领域产品研发,生产与销售的综合性 厂商,主要产品有UPS不间断电源,模块化UPS,工业级UPS, 电力专用电源,通信电源,太阳能光伏逆变器,逆变器,高低压供配电,铅酸蓄电池等产品,同时还承接客户定制电源产品,目前公司拥有全国领先的技术团队,拥有高级工程师20多人,大部分从事电源行业10年以上,同时公司还拥有先进的研发,测试,生产仪器设备,从产品的来料,加工,组装到测试等重要环节进行严格的品质管控,为用户提供高可靠、性能价格极高的电源产品。

公司自成立以来,一直秉承"诚信为本,客户至上,科技创新"的经营理念,创能恒 电人一直把产品质量和服务当成企业的生命,结合公司强大的技术及研发实力以及客户至上的服务精神,为广大客户提供优质产品质量和服务,公司产品畅销全国各大城市,业务涉及国内和海外,创能恒电立志为振兴民族工业而不懈奋斗,我们的目标是:创品牌企业,树一流形象,使公司成为技术领先,管理科学,设备先进,服务优良的全球高端电源制造商。

我们一贯遵循顾客满意是我们最高服务宗旨,秉承至诚至信、互惠互利、共同发展的原则,以及互利共赢的理念,以一流的技术、一流的产品、一流的服务与大家携手共创美好未来。

公司的产品应用于军队,银行、金融证券、保险、邮电、通讯、电力,制造业等重要行业,深受广大用户信赖。公司凭借其产品的高质量和最优质的服务,雄厚的经济与技术实力赢得了各界人士的一致好评。

来自深圳创能恒电科技有限公司的其他8个系列产品

  • ¥0.468 / Wp *
    CNS112
    1~6 kW
  • CNS111
    1~2 kW 离网
  • ¥0.447 / Wp *
    CNS110
    1~12 kW 离网
  • ¥0.127 / Wp *

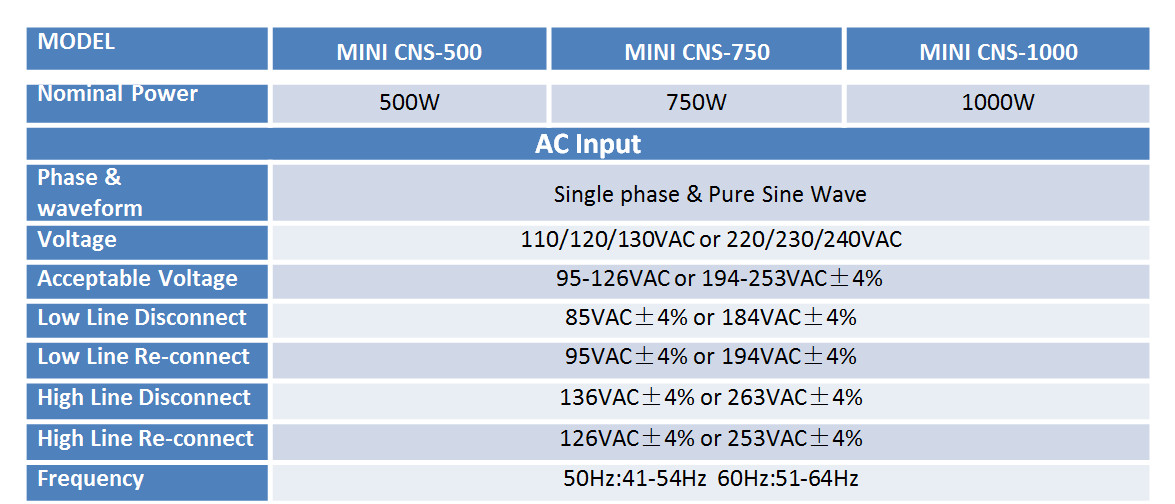

    MINI CNS112
