Tilt Angle Adjustable Roof Mounting System

江阴赛尔斯特能源有限公司
价 格:
起价 ¥0.330 / Wp
起价 ¥825 / 10 块组件
地区: 中国大陆 中国大陆
注意: 您的询盘将直接发送至江阴赛尔斯特能源有限公司

描述:

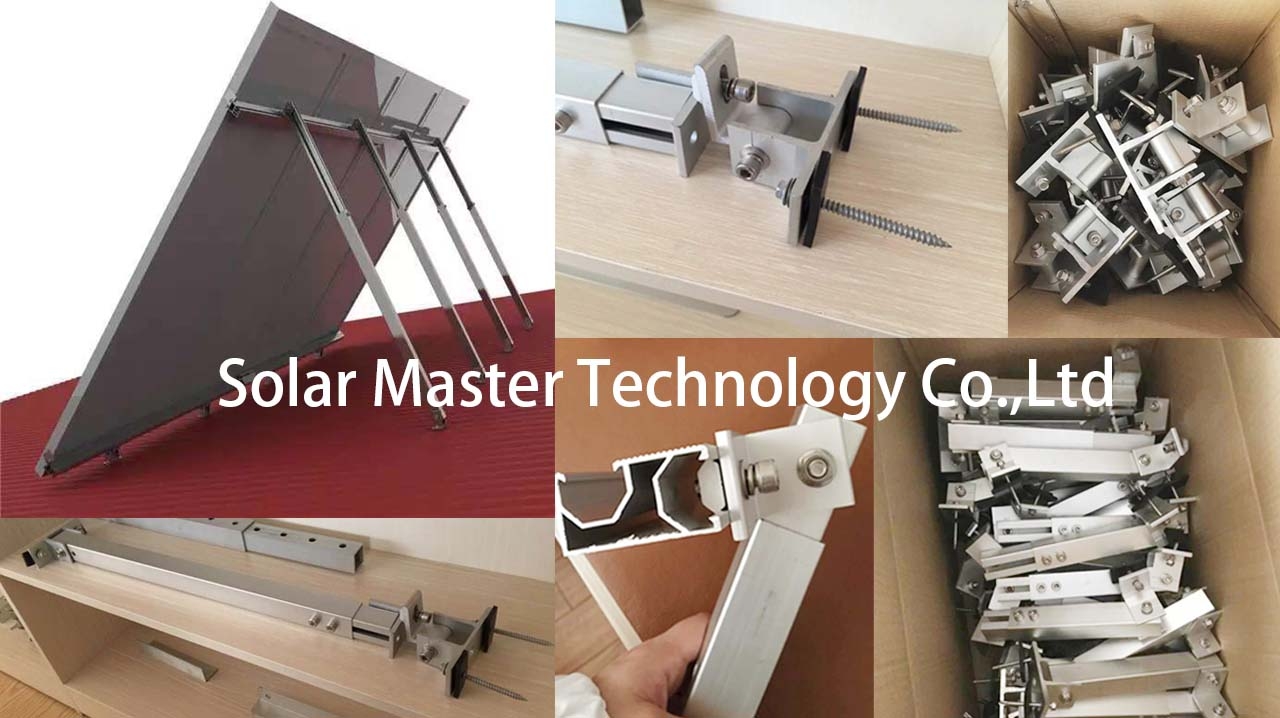

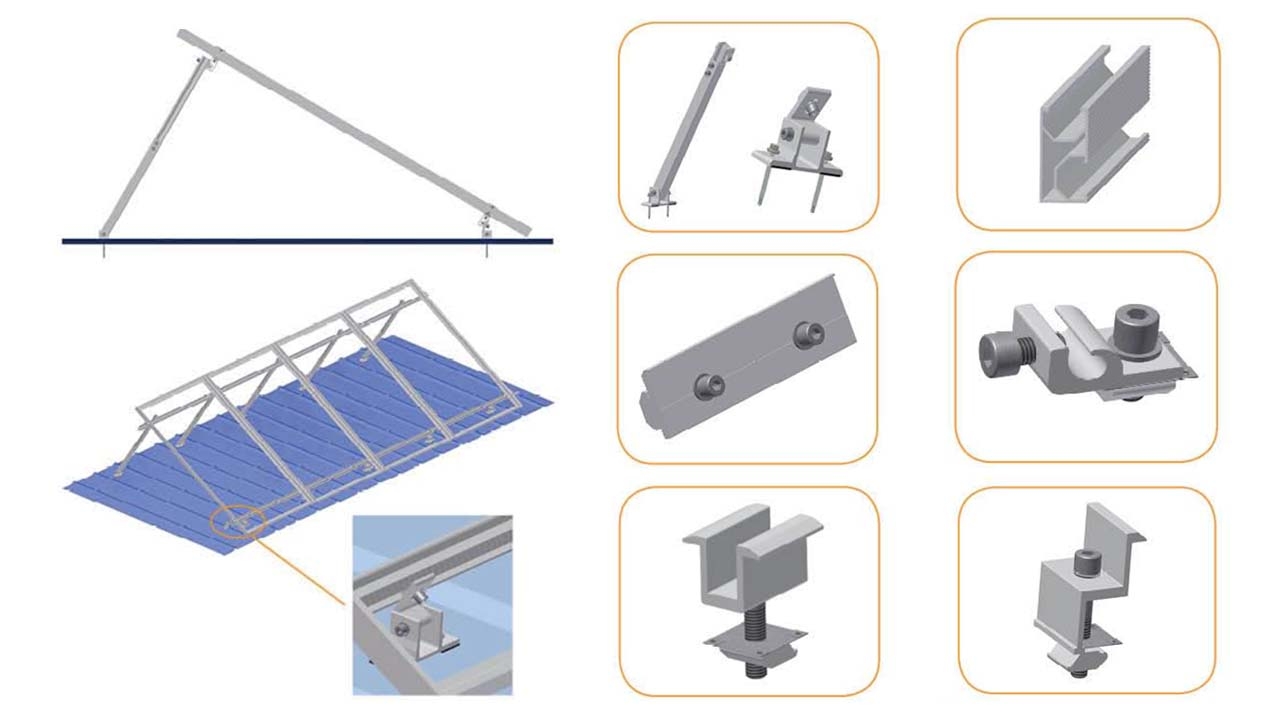

1. Modular design, all the parts are prefabricated in factory. Only 7 components needed to be assembled on site.
2. Highly standardized.Only 3 simple tools needed.
3. Tilt angle can be adjusted, there are 3 series: 0-15°, 15-30°, and >30°. Tilt angle can be adjusted according to project.

产品特点

产品型号
Tilt Angle Adjustable Roof Mounting System
产品质量保证 10 年
系统概述
类型 平面屋顶
支架系统排列方式 按行排,按列排
组件边框 有边框,无边框
组件排列方向 纵向,横向
屋面类型 瓦片,混凝土,木制,焊缝金属,箔,沥青,钢,铝,纤维水泥,瓦顶材质,薄膜
屋顶倾斜角度
0-10 °
倾斜角度
0-60 °
抗风能力
151.2 km/h
雪荷载
120 kg/m2
一般参数
系统尺寸(长*宽*高)
1640x990x40 mm
组件宽度
880-1100 mm
重量
150 kg/m2
轨道材质 铝,不锈钢
零部件材质 铝,不锈钢


Product  Features:

1. Modular design, all the parts are prefabricated in factory. Only 7 components needed to be assembled on site.

2. Highly standardized.Only 3 simple tools needed.

3. Tilt angle can be adjusted, there are 3 series: 0-15°, 15-30°, and >30°. Tilt angle can be adjusted according to project.


Product Specification:

  • Roof Type:                 Corrugated& asphalt shingle roof
  • Material:                     AL6005 &SS304
  • PV Type:                 With or without frame
  • Module Orientation: Horizontal or vertical
  • Surface Roughness:B&C
  • Wind Speed:            <60m/s
  • Snow Load:                <1.4KN/㎡5
  • Tilt Angle:                 0-15° 、  15-30°  、  30-60°
  • Warranty:                  20years
