SGM-FL-120W

深圳市上古光电有限公司
价 格:
起价 ¥7.96 / Wp *
类型: 单晶硅
功率范围: 20 ~ 120 Wp
地区: 中国大陆 中国大陆
注意: 您的询盘将直接发送至深圳市上古光电有限公司

描述:

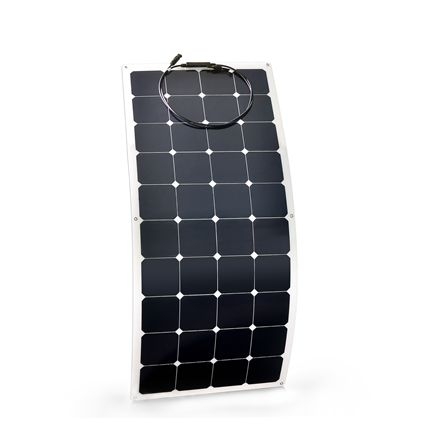

高效率柔性防水120W单晶硅太阳能电池组件永久户外使用是完美的,12V充电电池提供动力,应用广泛,例如房车,大篷车,野营,划船,或为太阳能照明系统提供免费电力,隔离框架加固了太阳能发电系统,以及完整的太阳能家庭电源系统等。

产品特点

产品型号
SGM-FL-20W SGM-FL-50W SGM-FL-100W
电性能参数(STC)
峰值功率 (Pmax)
20 Wp 50 Wp 120 Wp
峰值工作电压(Vmpp)
17.6 V 17.6 V 17.6 V
峰值工作电流(Impp)
1.14 A 2.84 A 6.82 A
开路电压(Voc)
20.8 V 20.8 V 20.8 V
短路电流(Isc)
1.23 A 2.84 A 7.86 A
组件效率
20.41 % 20.41 % 20.41 %
功率偏差(正)
+ 3 % + 3 % + 3 %
功率偏差(负)
- 3 % - 3 % - 3 %
  标准测试条件(STC):太阳能辐射通量1000W/m2,大气参数1.5,组件温度25℃。
电性能参数(NOCT)
最大耐久温度
45±2 °C 45±2 °C 45±2 °C
  电池片标称工作温度(NOCT):太阳能辐射通量800W/m2,大气参数1.5,环境温度20℃,风速1 m/s。
温度特性
工作温度 -40~85 °C
温度系数(Pmax) -0.3 %/°C
温度系数(Voc) -0.33 %/°C
温度系数(Isc) 0.05 %/°C
系统集成参数
最大系统电压 1000 V
保险丝额定电流 15 A
物理参数
组件尺寸(高/宽/厚) 1150x535x8 mm
电池片类型 单晶硅

产品描述


1.其最大弯曲30°半径,厚度仅为4mm;

2.适用于一艘船的甲板或RV的屋顶曲面。

3.正确安装它就可以运行了。

4.装配容易,通过在我们的商店或在面板的角部的4个连接孔中可用的试剂盒来自主实现。

5,我们所有的柔性太阳能电池组件是由A类高效率Sunpower美国太阳能元件提供。这些元件通过金属触点,从前面移动到背面、并通过触点的扩大移动达到他们的高效率,损失功率较少。

6.太阳能延长线0.9米和MC4连接器。

- Combined by 2pcs individual high-efficient monocrystalline silicon solar panels;

- Stainless steel telescopic legs ( can freely rotate 180 degrees)

- High-strength low-iron toughened glass

- Anodized aluminum frame

- With a charge controller with LED charge status display and electronic circuit protection

- Long life time: >=25 years, small attenuation (Resistance to humidity and salt fog corrosion)

- Supporting leg & a hand bag are also available for easy location & portable consideration;

- Accessories: controller , cable (5m), alligator clip, supporting leg,carry bag, junction box,corner protection, lock and handle

- Suitable for home (lighting, TV,small pumps and other household electrical appliances)
- Combined by 2pcs individual high-efficient monocrystalline silicon solar panels;

- Stainless steel telescopic legs ( can freely rotate 180 degrees)

- High-strength low-iron toughened glass

- Anodized aluminum frame

- With a charge controller with LED charge status display and electronic circuit protection

- Long life time: >=25 years, small attenuation (Resistance to humidity and salt fog corrosion)

- Supporting leg & a hand bag are also available for easy location & portable consideration;

- Accessories: controller , cable (5m), alligator clip, supporting leg,carry bag, junction box,corner protection, lock and handle

- Suitable for home (lighting, TV,small pumps and other household electrical appliances)
- Combined by 2pcs individual high-efficient monocrystalline silicon solar panels;

- Stainless steel telescopic legs ( can freely rotate 180 degrees)

- High-strength low-iron toughened glass

- Anodized aluminum frame

- With a charge controller with LED charge status display and electronic circuit protection

- Long life time: >=25 years, small attenuation (Resistance to humidity and salt fog corrosion)

- Supporting leg & a hand bag are also available for easy location & portable consideration;

- Accessories: controller , cable (5m), alligator clip, supporting leg,carry bag, junction box,corner protection, lock and handle

- Suitable for home (lighting, TV,small pumps and other household electrical appliances)
- Combined by 2pcs individual high-efficient monocrystalline silicon solar panels;

- Stainless steel telescopic legs ( can freely rotate 180 degrees)

- High-strength low-iron toughened glass

- Anodized aluminum frame

- With a charge controller with LED charge status display and electronic circuit protection

- Long life time: >=25 years, small attenuation (Resistance to humidity and salt fog corrosion)

- Supporting leg & a hand bag are also available for easy location & portable consideration;

- Accessories: controller , cable (5m), alligator clip, supporting leg,carry bag, junction box,corner protection, lock and handle

- Suitable for home (lighting, TV,small pumps and other household electrical appliances)
- Combined by 2pcs individual high-efficient monocrystalline silicon solar panels;

- Stainless steel telescopic legs ( can freely rotate 180 degrees)

- High-strength low-iron toughened glass

- Anodized aluminum frame

- With a charge controller with LED charge status display and electronic circuit protection

- Long life time: >=25 years, small attenuation (Resistance to humidity and salt fog corrosion)

- Supporting leg & a hand bag are also available for easy location & portable consideration;

- Accessories: controller , cable (5m), alligator clip, supporting leg,carry bag, junction box,corner protection, lock and handle

- Suitable for home (lighting, TV,small pumps and other household electrical appliances)


公司介绍

深圳市上古光电有限公司的光伏组件产品深受全球客户的亲睐,源于一贯的高品质和卓越性能表现,凭借一流的团队和持续的研发创新,成为全球领先的高性能的光伏组件生产商,其产品广泛应用于RV、野营市场。

公司成立于2008年5月,并在2011年以来,确立了全球光伏组件供应商的地位,特别在北美市场和欧洲市场获得良好的信誉口碑。目前公司专业从事研发,制造及销售3w-340w单晶、3w-320w多晶太阳能组件、太阳能折叠充电包和led太阳能灯。产品远销欧洲,美洲和亚洲其他国家,并通过了IEC61215和61730,ISO9001,CE,ROHS等国内国际标准,“秉承同一个地球,同一个家园,太阳能改变未来的理念”,我们追求务实,负责的态度使我们整个团队工作更高效,更具竞争力。更重要的是我们一直致力于提供卓越的高转化效率,高发电效率和可靠性的光伏组件,使得客户在光伏项目上的效益最大化。

 我们的使命是与员工一起成长,保护我们的绿色家园!


工厂风采



获得认证





深圳市上古光电有限公司

广东省深圳市石岩镇应人石社区文韬工业园H栋3-5楼
员工数: 150
给该供应商发送信息
Shenzhen Sungold solar Co., Ltd is located in Bao’an District, Shenzhen City close to Hong Kong, providing a well-developed and convenient transportation. We are specialized in R&D, manufacturing and sale of 3w-340w mono-crystalline and 3w-320w polycrystalline solar modules.

Our products are exported to Europe, Americas and other Asian countries with TUV, IEC61215 & 61730, ISO and CE international standard. Also we have flexible and timely after-sales services. We offer high quality products and sustainable service to our customers, establishing long-term cooperative relationship with them.

Through the continuous technological innovation and expanding of the production scale, our company is continuing to lower manufacturing costs of solar panels to make the inexhaustible and green solar energy to step in thousands of households, and create a better tomorrow for human development.

We carry out enterprise culture of “integrity, innovation, universities, pioneering”, and the spirit of” one earth, one home solar change the future” is our permanent pursuit, our practical attitude and accountability make our team working more efficient and more competitive, what’s more our experience in doing this products and quality will entitle us to win your confidence, also make you win good reputation.

晶体硅

产量 (MW)/2016: 48 MWp
单晶硅,多晶硅
功 率 范 围(Wp): 5-340
