Mono 160

深圳市上古光电有限公司
价 格:
起价 ¥4.73 / Wp *
类型: 单晶硅
功率范围: 160 Wp
地区: 中国大陆 中国大陆
注意: 您的询盘将直接发送至深圳市上古光电有限公司

描述:

1. 优秀的模块效率高达19.58%
2. 灰尘覆盖减少功率损失(脏污效应)
3. 出色的暗光
4. IP67接线盒保证长期耐力
5. 大雪负荷可达5400pa
6. 抵抗大雾,氨和扬沙,适用于海边农场和沙漠环境

产品特点

产品型号
Mono 160

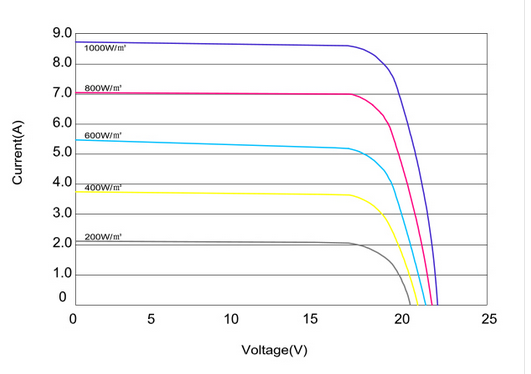

电性能参数(STC)
峰值功率 (Pmax)
160 Wp
峰值工作电压(Vmpp)
17.8 V
峰值工作电流(Impp)
8.99 A
开路电压(Voc)
22.3 V
短路电流(Isc)
9.71 A
组件效率
18.3 %
功率偏差(正)
+ 3 %
功率偏差(负)
- 3 %
  标准测试条件(STC):太阳能辐射通量1000W/m2,大气参数1.5,组件温度25℃。
电性能参数(NOCT)
最大耐久温度
45±2 °C
  电池片标称工作温度(NOCT):太阳能辐射通量800W/m2,大气参数1.5,环境温度20℃,风速1 m/s。
温度特性
工作温度 -40~85 °C
温度系数(Pmax) -0.48 %/°C
温度系数(Voc) -0.34 %/°C
温度系数(Isc) 0.015 %/°C
系统集成参数
最大系统电压 1000 V
物理参数
组件尺寸(高/宽/厚) 1475x670x35 mm
重量 5.5 kg
电池片类型 单晶硅
电池片规格 156×156 mm
玻璃类型 钢化,高透明,低铁
玻璃厚度 3.2 mm
边框类型 阳极氧化铝合金
接线盒防护等级 IP 65
连接器类型 MC4
电缆长度 900 mm

Product Feature

Excellent module efficiency up to 19.58%

Dust reducing power loss caused by covering (dirty effect)

Excellent low-light

IP67 junction box available long-term weather endurance

Heavy snow load up to 5400pa

Sale mist, ammonia and blowing sand resistance,apply to seasidefarm and desert environment
