HW-M6/144H 440-460

HW-M6/144H 440-460

Hiwatt Solar Limited
价 格:
起价 ¥0.386 / Wp *
电 池 技 术:
功率范围: 440 ~ 460 Wp
地区: 中国大陆 中国大陆
联系生产商
注意: 您的询盘将直接发送至Hiwatt Solar Limited

描述:

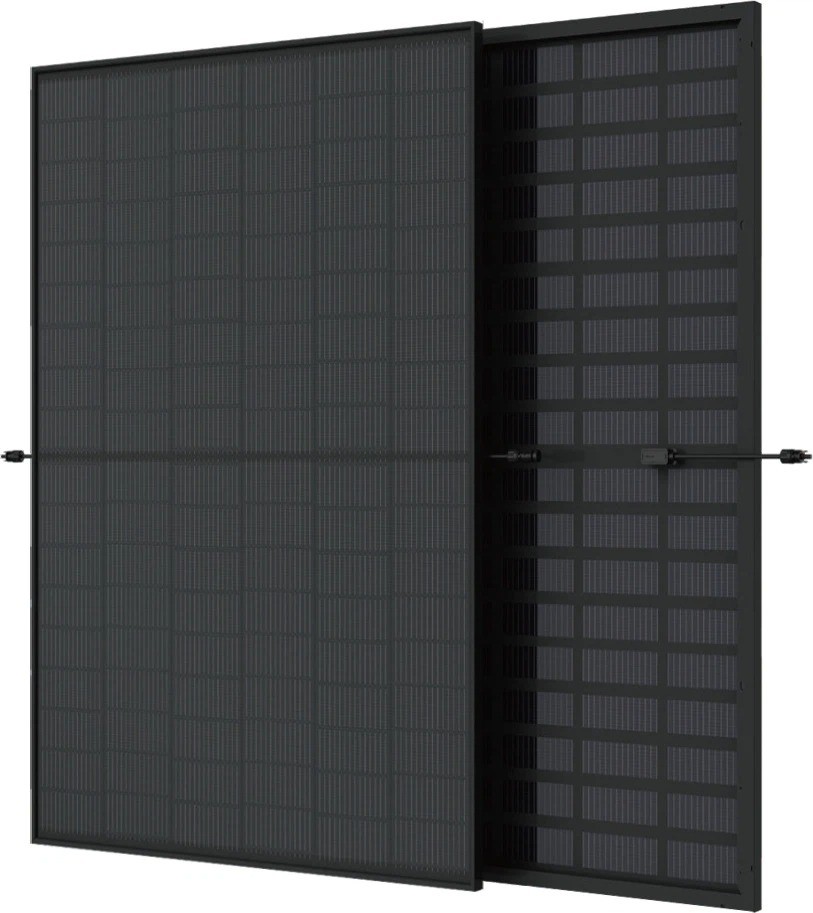

N-Type Half-Cell Module

PID Resistance Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.

Reduced Hot Spot Loss Optimized electrical design and lower operating current for reduced hot spot loss and better temperature coefficient

High energy generation, low LCOE

Low Pmax temp coefficient increases energy production

产品特点

类型 单晶硅
产品型号
440 445 450 455 460
质量保证
产品质量保证 12 年
功率输出保证 25年期84.8%输出功率保证
电性能参数(STC)
峰值功率 (Pmax)
440 Wp 445 Wp 450 Wp 455 Wp 460 Wp
峰值工作电压(Vmpp)
40.7 V 40.8 V 41 V 41.2 V 41.3 V
峰值工作电流(Impp)
10.82 A 10.9 A 10.98 A 11.06 A 11.13 A
开路电压(Voc)
49.2 V 49.4 V 49.6 V 49.8 V 50 V
短路电流(Isc)
11.39 A 11.46 A 11.53 A 11.61 A 11.68 A
组件效率
20.1 % 20.4 % 20.6 % 20.8 % 21 %
功率偏差(正)
+ 1 % + 1 % + 1 % + 1 % + 1 %
  标准测试条件(STC):太阳能辐射通量1000W/m2,大气参数1.5,组件温度25℃。
电性能参数(NOCT)
峰值功率 (Pmax)
332 Wp 336 Wp 340 Wp 344 Wp 347 Wp
峰值工作电压(Vmpp)
38.4 V 38.5 V 38.7 V 38.9 V 39.1 V
峰值工作电流(Impp)
8.66 A 8.71 A 8.77 A 8.84 A 8.89 A
开路电压(Voc)
46.3 V 46.5 V 46.6 V 46.8 V 47 V
短路电流(Isc)
9.18 A 9.24 A 9.29 A 9.36 A 9.41 A
最大耐久温度 43±2 °C
  电池片标称工作温度(NOCT):太阳能辐射通量800W/m2,大气参数1.5,环境温度20℃,风速1 m/s。
温度特性
工作温度 -40~85 °C
温度系数(Pmax) -0.34 %/°C
温度系数(Voc) -0.25 %/°C
温度系数(Isc) 0.04 %/°C
系统集成参数
最大系统电压 1500 V
保险丝额定电流 30 A
物理参数
组件尺寸(高/宽/厚) 2094x1038x35 mm
重量 24 kg
电池片数量 144
旁路二极管数 3
接线盒防护等级 IP 68
电缆截面 4 mm2
PDF
下载公司产品详情

N-Type Half-Cell Module

N-Type Half-Cell Module

PID Resistance

Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.

Reduced Hot Spot Loss

Optimized electrical design and lower operating current for reduced hot spot loss and better temperature coefficient

High energy generation, low LCOE

Low Pmax temp coefficient increases energy production

Hiwatt Solar Limited

Click to show company phone
www.hiwattsolar.com
中国大陆
Longxi Road, Changzhou City, Jiangsu
员工数: 200
注意: 您的询盘将直接发送至Hiwatt Solar Limited

晶体硅

产量 (MW)/: MWp
单晶硅,多晶硅,晶体硅
功 率 范 围(Wp): 275-670
公司描述

Hiwatt Solar is a technology company specializing in the research , development, production and sales of solar photovoltaic modules. Hiwatt Solar is a world leading solar module manufacturer and comprehensive solar solution provider.Our solar modules production capacity reaches 2.2GW . We have our own fully automated production line which ensures the quality is strict and stable.we can produce market mainstream solar modules ,including large size 210mm cell solar module power up to 750W plus, MBB, high efficient single glass and double glass bifacial modules, both mono and poly, full cells and half cut cells solar modules.
