  1. 光伏组件产品目录
  2. MS-M854H 395-415W
MS-M854H 395-415W

MS-M854H 395-415W

浙江美尚光伏有限公司
价 格：
起价 ¥1.02 / Wp *
类型： 单晶硅
功率范围： 395 ~ 415 Wp
地区： 中国大陆 中国大陆
注意： 您的询盘将直接发送至浙江美尚光伏有限公司。

描述：

A sleek and modern all-black frame packed with advanced technologies

Power range from 395 to 415 watts and an efficiency of up to 21.26%

Advanced half-cut technology and a multi-busbar design

Series-parallel wiring reduces shading loss

Excellent temperature performance

产品特点

产品型号
MS-M854H 395W MS-M854H 400W MS-M854H 405W MS-M854H 410W MS-M854H 415W
质量保证
产品质量保证 12 年
功率输出保证 12年期90%输出功率保证，25年期85%输出功率保证
电性能参数（STC）
峰值功率 （Pmax）
395 Wp 400 Wp 405 Wp 410 Wp 415 Wp
峰值工作电压（Vmpp）
31.25 V 31.36 V 31.47 V 31.59 V 31.71 V
峰值工作电流（Impp）
12.64 A 12.76 A 12.87 A 12.98 A 13.09 A
开路电压（Voc）
37.02 V 37.11 V 37.2 V 37.29 V 37.38 V
短路电流（Isc）
13.51 A 13.63 A 13.74 A 13.85 A 13.96 A
组件效率
20.23 % 20.48 % 20.74 % 21 % 21.26 %
功率偏差（正）
+ 3 % + 3 % + 3 % + 3 % + 3 %
功率偏差（负）
- 3 % - 3 % - 3 % - 3 % - 3 %
  标准测试条件（STC）：太阳能辐射通量1000W/m2，大气参数1.5，组件温度25℃。
电性能参数（NOCT）
峰值功率 （Pmax）
292 Wp 295 Wp 299 Wp 305 Wp 309 Wp
峰值工作电压（Vmpp）
28.43 V 28.53 V 28.64 V 28.81 V 28.92 V
峰值工作电流（Impp）
10.26 A 10.35 A 10.43 A 10.59 A 10.68 A
开路电压（Voc）
34.2 V 34.27 V 34.35 V 34.67 V 34.76 V
短路电流（Isc）
10.91 A 11 A 11.1 A 11.19 A 11.27 A
最大耐久温度 45±2 °C
  电池片标称工作温度（NOCT）：太阳能辐射通量800W/m2，大气参数1.5，环境温度20℃，风速1 m/s。
温度特性
工作温度 -40~+85 °C
温度系数（Pmax） -0.36 %/°C
温度系数（Voc） -0.29 %/°C
温度系数（Isc） +0.048 %/°C
系统集成参数
最大系统电压 1500 V
保险丝额定电流 25 A
物理参数
组件尺寸（高/宽/厚） 1722x1134x30 mm
重量 21.5 kg
电池片类型 单晶硅
电池片规格 182x182 mm
电池片数量 108
玻璃类型 防反射镀膜，钢化
玻璃厚度 3.2 mm
密封材料类型 EVA
背板类型 TPT
边框类型 阳极氧化铝合金
旁路二极管数 3
接线盒防护等级 IP 68
连接器类型 MC4
电缆截面 4 mm2
电缆长度 300 mm
PDF
下载公司产品详情

MS-M854H 395-415W

1722 * 1134 * 30mm;

108 cells, Module efficiency: 21.26%, Mono 10BB Half-cut Module;

TUV, CE, CB, ISO9001, CQC certified;

12 years product warranty;

25 years linear power output warranty;

Package: 36 Pcs/Pallet, 936 pcs/40' Hq;

The half-cut technique leads to increased power output. When the cells are cut into halves, the current is also halved, which enables less internal loss;

Series-parallel wiring mode results in reduced shading loss;

The temperature of HC module is 1.6 °C lower than that of the conventional module under the same working condition, which results to less power loss.

About the Company

Maysun Solar Co., Ltd. is a high-tech enterprise specializing in the production of solar cell modules. At present, it has developed into a comprehensive energy management company integrating R & D and production of photovoltaic module products, development, installation, and maintenance of solar power stations, striving to create high-quality products and services for clean and renewable energy.

Since its establishment, to expand production capacity and improve production technology, the company has introduced first-class modern production equipment, improved the conversion efficiency and quality of products, and reduced production costs. Continuously committed to the development of new technology, it has successfully applied for more than 10 invention patents, with products passing ISO9001, TUV, CQC, and CE certifications.

Maysun Solar has two main brands: “Maysun Solar” mainly promotes overseas markets. Its products are exported to Germany, Italy, France, Spain, Belgium, Portugal, Netherlands, Pakistan, and other counties, and are widely praised by customers. At the same time, to actively respond to the national call for "carbon peak, carbon neutral”, Maysun Solar launched the high-end component brand “Rachida”, which mainly serves the distributed power station and centralized ground power station pursuing high power generation and high-cost performance. Maysun Solar will do its best to protect the green Earth so that more families can always enjoy renewable solar energy and build a clean living environment. Maysun Solar is also committed to becoming a leading photovoltaic manufacturer in the industry and making its contribution to global energy conservation and environmental protection.

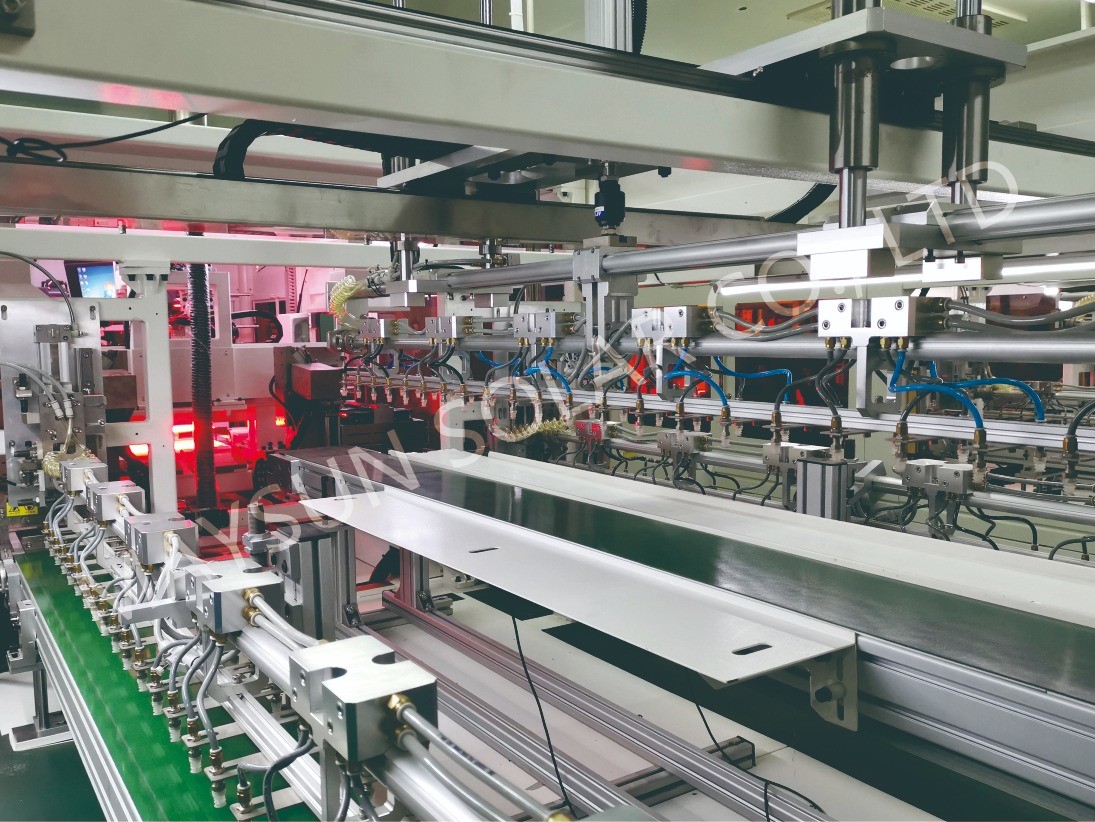

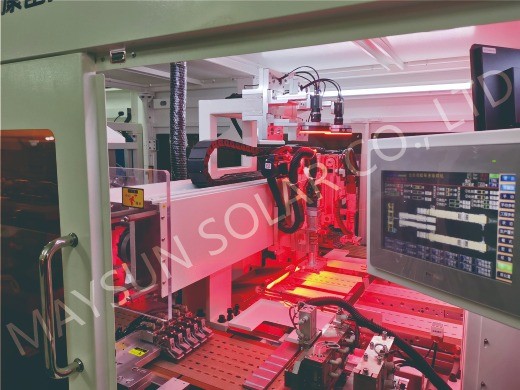

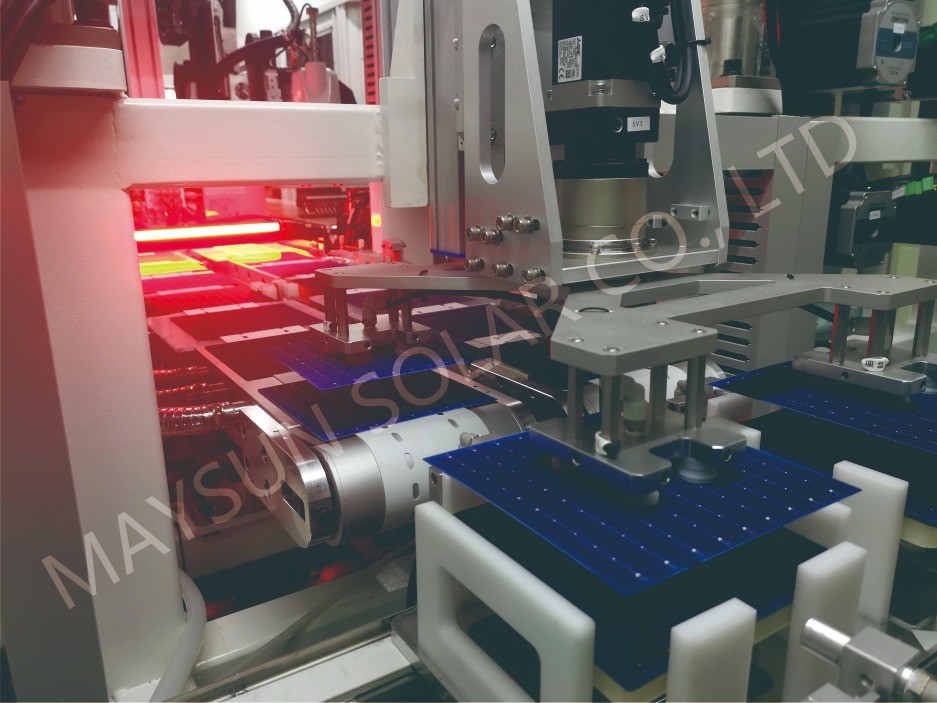

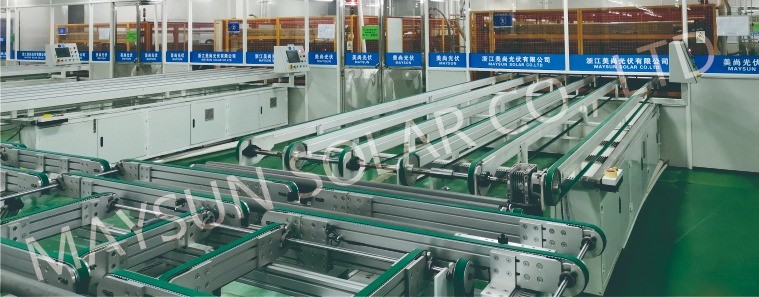

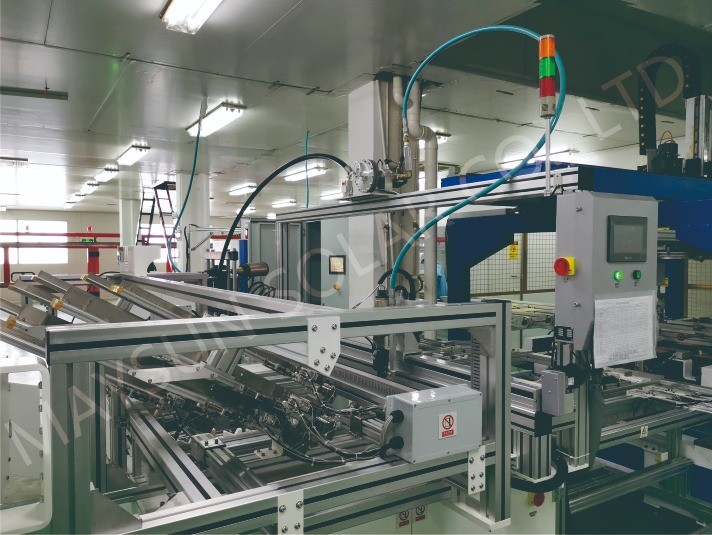

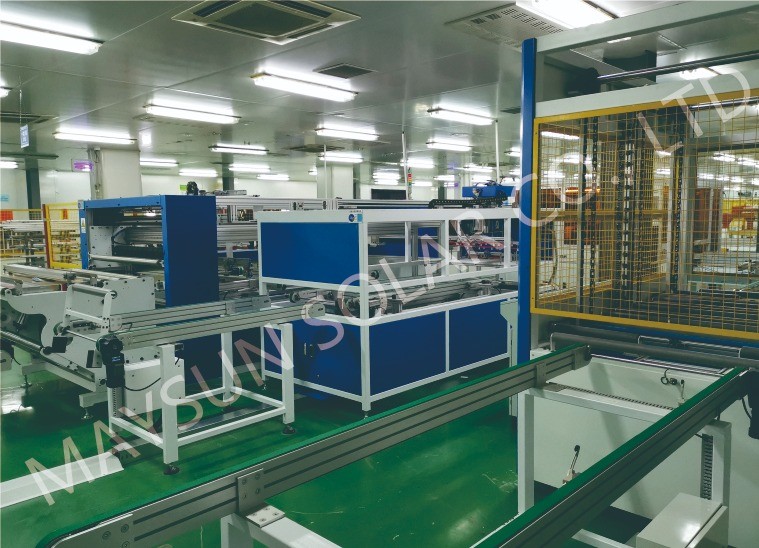

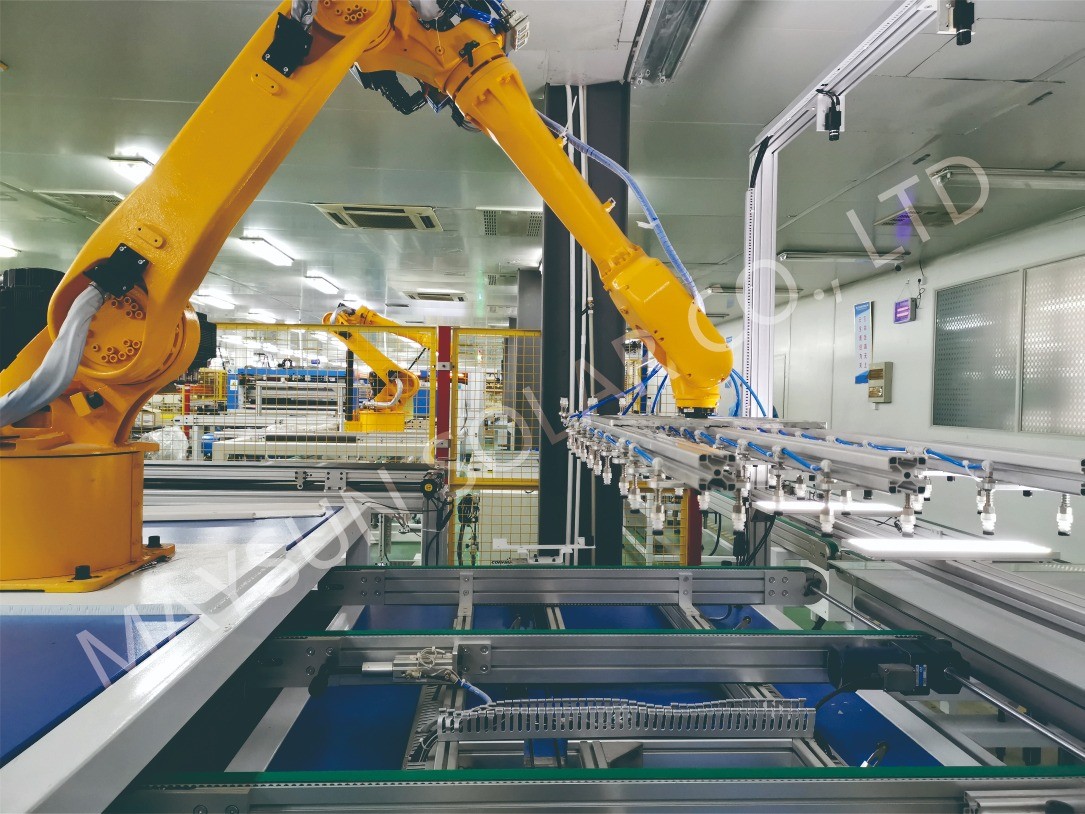

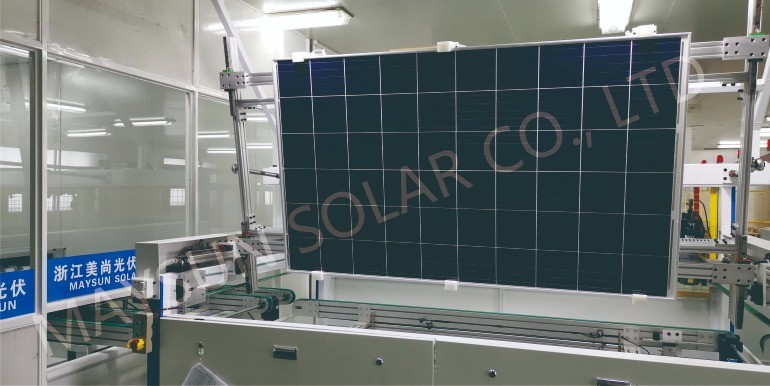

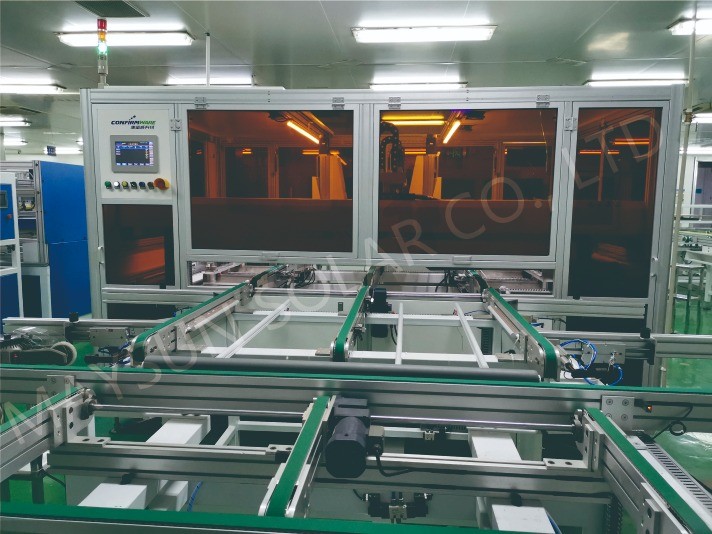

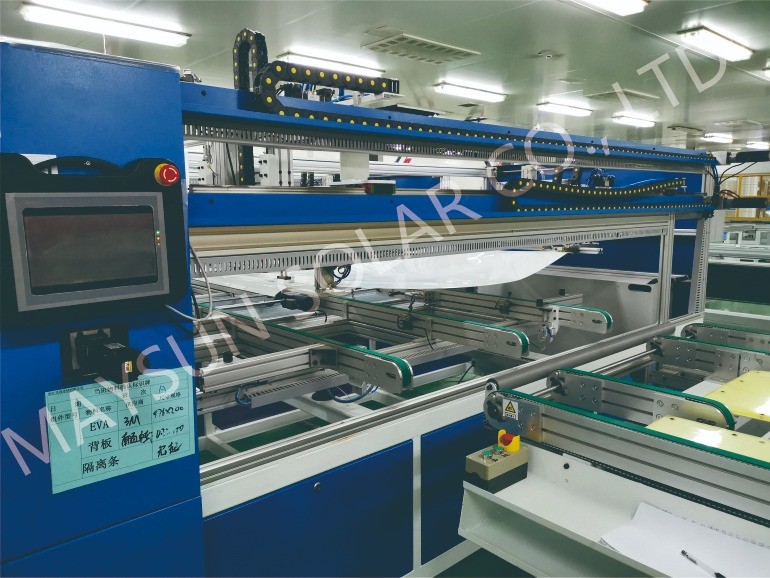

Factory
Warehouse
Projects
Clients
Exhibition
Certifications

浙江美尚光伏有限公司

Click to show company phone
www.maysunpv.com
中国大陆
No. 118, Huyan West Road, Lianshi Town, Nanxun District, Huzhou City, Zhejiang Province
注意： 您的询盘将直接发送至浙江美尚光伏有限公司。

晶体硅

产量 (MW)/： MWp
单晶硅，多晶硅
功 率 范 围(Wp)： 160-660

有用联系人

Contact Face
Nadia
Contact Face
Kevin
Contact Face
Joyce
公司描述

浙江美尚光伏有限公司, 是一家专业生产太阳能电池组件的高新技术企业。目前已发展成为集光伏组件产品的研发、生产和太阳能电站的开发、安装维护等业务于一体的综合能源管理公司，力求为清洁可再生能源创造优质的产品和服务。

自成立以来，为扩大产能和提高生产工艺，公司引进行业一流的现代化生产设备，提高了产品的转换效率与质量，降低了生产成本。公司不断致力于新技术的开发，已成功申请10余项发明专利，产品已经通过ISO9001、TUV、CQC、CE等认证。

美尚光伏组件已经出口巴西、土耳其、巴基斯坦、意大利、西班牙、南非、迪拜等国家，并且受到客户广泛的赞誉。同时为积极响应国家“碳达峰、碳中和”号召，美尚光伏特推出高效高端组件品牌“瑞奇达”, 主要服务于追求高发电量、高性价比的分布式电站、集中式地面电站等。我们将尽全力保护绿色的地球，使更多的家庭都能永远享受可再生太阳能源，共建洁净的居住环境。我们致力于成为行业领先的光伏制造商，为全球的节能环保事业做出自己的贡献。
