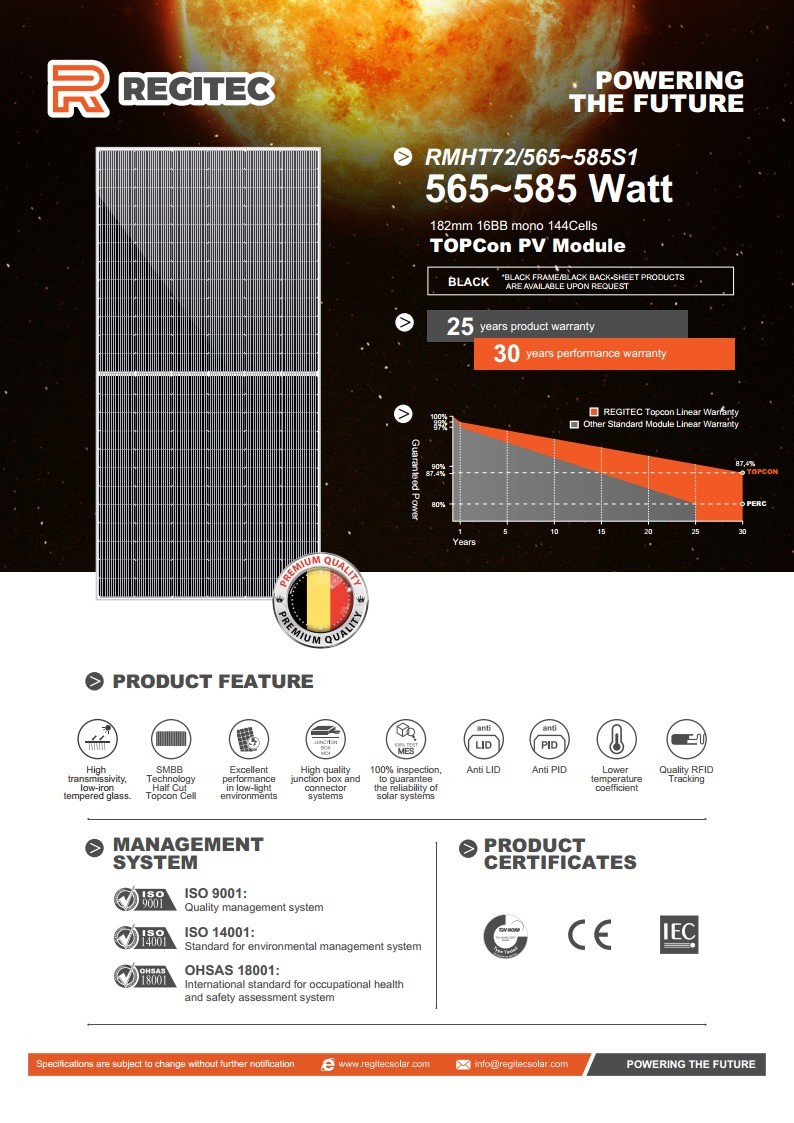

RMHT72/565~585S1

RMHT72/565~585S1

REGITEC Solar
价 格:
起价 ¥0.712 / Wp *
电 池 技 术: TOPCon
功率范围: 565 ~ 585 Wp
地区: 比利时 比利时
联系生产商
注意: 您的询盘将直接发送至REGITEC Solar

描述:

Using high efficiency TOPCon solar cells.

high module efficiency.

25 years product warranty

lower temp. coefficiënt.

more output at lower light conditions compared to PERC.

100% inspection, to guarantee the reliability of solar systems.

Anti LID & Anti PID.

Quality RFID Tracking.

产品特点

类型 单晶硅
产品型号
RMHT72/565S1 RMHT72/570S1 RMHT72/575S1 RMHT72/580S1 RMHT72/585S1
质量保证
产品质量保证 25 年
功率输出保证 30年期87.4%输出功率保证

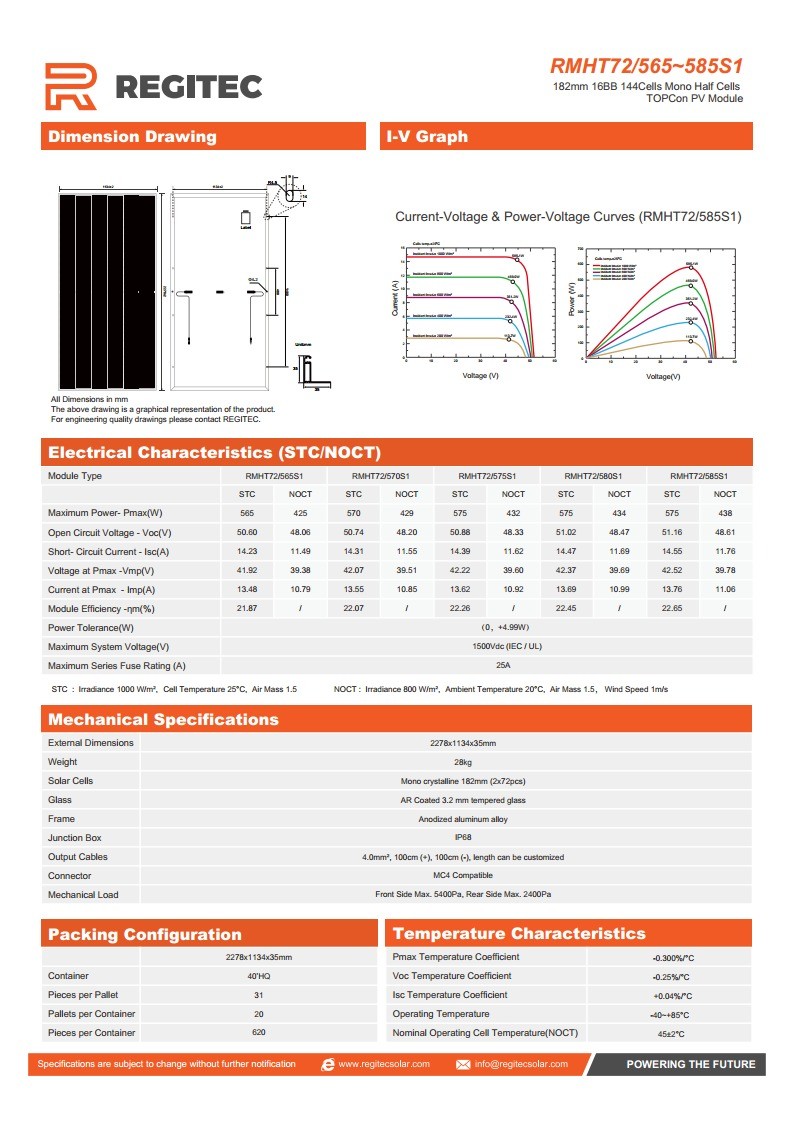

电性能参数(STC)
峰值功率 (Pmax)
565 Wp 570 Wp 575 Wp 580 Wp 585 Wp
峰值工作电压(Vmpp)
41.92 V 42.07 V 42.22 V 42.37 V 42.52 V
峰值工作电流(Impp)
13.48 A 13.55 A 13.62 A 13.69 A 13.76 A
开路电压(Voc)
50.6 V 50.74 V 50.88 V 51.02 V 51.16 V
短路电流(Isc)
14.23 A 14.31 A 14.39 A 14.47 A 14.55 A
组件效率
21.87 % 22.07 % 22.26 % 22.445 % 22.65 %
功率偏差(正)
+ 1 % + 1 % + 1 % + 1 % + 1 %
  标准测试条件(STC):太阳能辐射通量1000W/m2,大气参数1.5,组件温度25℃。
电性能参数(NOCT)
峰值功率 (Pmax)
425 Wp 429 Wp 432 Wp 434 Wp 438 Wp
峰值工作电压(Vmpp)
39.38 V 39.51 V 39.6 V 39.69 V 39.78 V
峰值工作电流(Impp)
10.79 A 10.85 A 10.92 A 10.99 A 11.06 A
开路电压(Voc)
48.06 V 48.2 V 48.33 V 48.47 V 48.61 V
短路电流(Isc)
11.49 A 11.55 A 11.62 A 11.69 A 11.76 A
最大耐久温度 45±2 °C
  电池片标称工作温度(NOCT):太阳能辐射通量800W/m2,大气参数1.5,环境温度20℃,风速1 m/s。
温度特性
工作温度 -40~85 °C
温度系数(Pmax) -0.35 %/°C
温度系数(Voc) -0.275 %/°C
温度系数(Isc) 0.045 %/°C
系统集成参数
最大系统电压 1500 V
保险丝额定电流 25 A
物理参数
组件尺寸(高/宽/厚) 2278x1134x35 mm
重量 28 kg
电池片数量 144
玻璃类型 防反射镀膜,钢化
玻璃厚度 3.2 mm
边框类型 阳极氧化铝
接线盒防护等级 IP 68
连接器类型 MC4
电缆截面 4 mm2
电缆长度 1000 mm
PDF
下载公司产品详情

REGITEC Solar

+32 495 523 035
https://www.regitecsolar.com
比利时
Veldekensstraat 5A, 8810 Lichtervelde
注意: 您的询盘将直接发送至REGITEC Solar

晶体硅

产量 (MW)/: MWp
单晶硅,多晶硅
功 率 范 围(Wp): 310-705
公司描述

REGITEC is a Belgian company that's on the market since 2010

We have warehouses in Lichtervelde and Torhout Belgium, Örebro Sweden and New Jersey USA

REGITEC uses the latest advanced fully automatic production equipment and precise testing instruments to create reliable, high-quality solar products.

We can produce TOPCon, HJT and PERC cells solar modules with an output till 730W!

Our newest TOPCon All black double glass bifacial solar modules reaches 460Wp with 108cells and has 23% efficiency!

Also our latest Terracotta orange 405W glass glass bifacial with TOPCon has become really attractive in the market

REGITEC also has:

an own inverter range of hybrid and string inverters from 2-110Kw

several LFP battery energy storage ranges of LV and HV:

- Stackable HV version with 2,88kWh batteries with a range of 8,64-28,8kWh

- Wall version LV version of 5 and 10kWh.

- Rack version LV/HV version of 2.4kWh and 5.1kWh.

- CI version of 50/100kWh

- CI version of 100/215kWh, can be extended to 20pcs in parallel to 4.3MWh

Mounting materials:

- Roofhooks

- hanger bolts

- rails

- bolt, nuts, screws

- carport systems

- freefield construction

- ....

Solar cable from 2,5-35mm² with fireclass Cca.

We can offer OEM solutions if needed.
