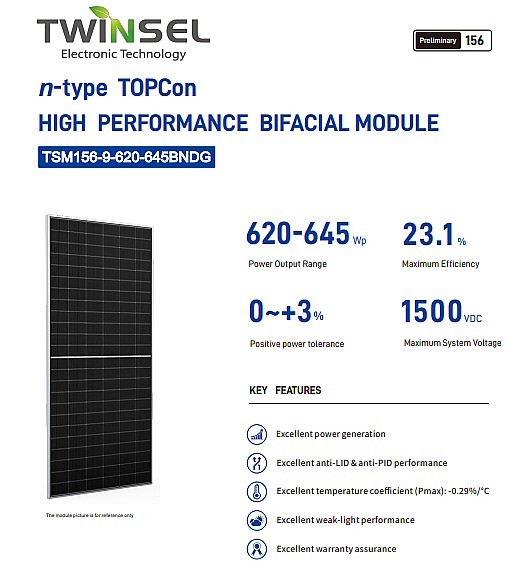

TSM156-9-620-645BNDG

浙江双宇电子有限公司

电池技术：	双面, TOPCon
功率范围：	620 ~ 645 Wp
地区：	中国大陆

注意： 您的询盘将直接发送至浙江双宇电子有限公司。

描述：

Excellent anti-LID & anti-PID performance.
Excellent temperature coefficient.
Excellent weak-light performance.
Excellent warranty assurance.

产品信息
公司档案页

产品特点

类型

单晶硅

产品型号

TSM156-9-620BNDG

TSM156-9-625BNDG

TSM156-9-630BNDG

TSM156-9-635BNDG

TSM156-9-640BNDG

TSM156-9-645BNDG

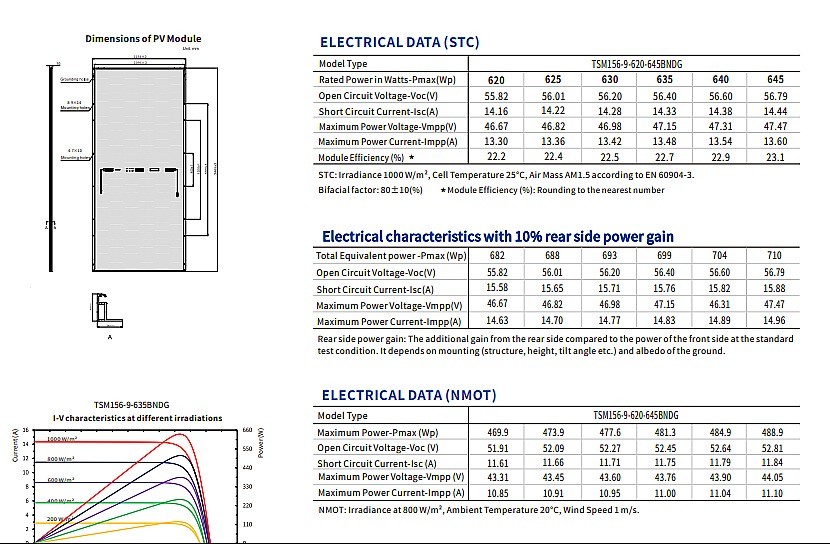

电性能参数（STC）

峰值功率（Pmax）

620 Wp

625 Wp

630 Wp

635 Wp

640 Wp

645 Wp

峰值工作电压（Vmpp）

46.67 V

46.82 V

46.98 V

47.15 V

47.31 V

47.47 V

峰值工作电流（Impp）

13.3 A

13.36 A

13.42 A

13.48 A

13.54 A

13.6 A

开路电压（Voc）

55.82 V

56.01 V

56.2 V

56.4 V

56.6 V

56.79 V

短路电流（Isc）

14.16 A

14.22 A

14.28 A

14.33 A

14.38 A

14.44 A

组件效率

22.2 %

22.4 %

22.5 %

22.7 %

22.9 %

23.1 %

标准测试条件（STC）：太阳能辐射通量1000W/m²，大气参数1.5，组件温度25℃。

电性能参数（NOCT）

峰值功率（Pmax）

469.9 Wp

473.9 Wp

477.6 Wp

481.3 Wp

484.9 Wp

488.9 Wp

峰值工作电压（Vmpp）

43.31 V

43.45 V

43.6 V

43.76 V

43.9 V

44.05 V

峰值工作电流（Impp）

10.85 A

10.91 A

10.95 A

11 A

11.04 A

11.1 A

开路电压（Voc）

51.91 V

52.09 V

52.27 V

52.45 V

52.64 V

52.81 V

短路电流（Isc）

11.61 A

11.66 A

11.71 A

11.75 A

11.79 A

11.84 A

电池片标称工作温度（NOCT）：太阳能辐射通量800W/m²，大气参数1.5，环境温度20℃，风速1 m/s。

物理参数

组件尺寸（高/宽/厚）

2465x1134x30 mm

重量

33.5 kg
