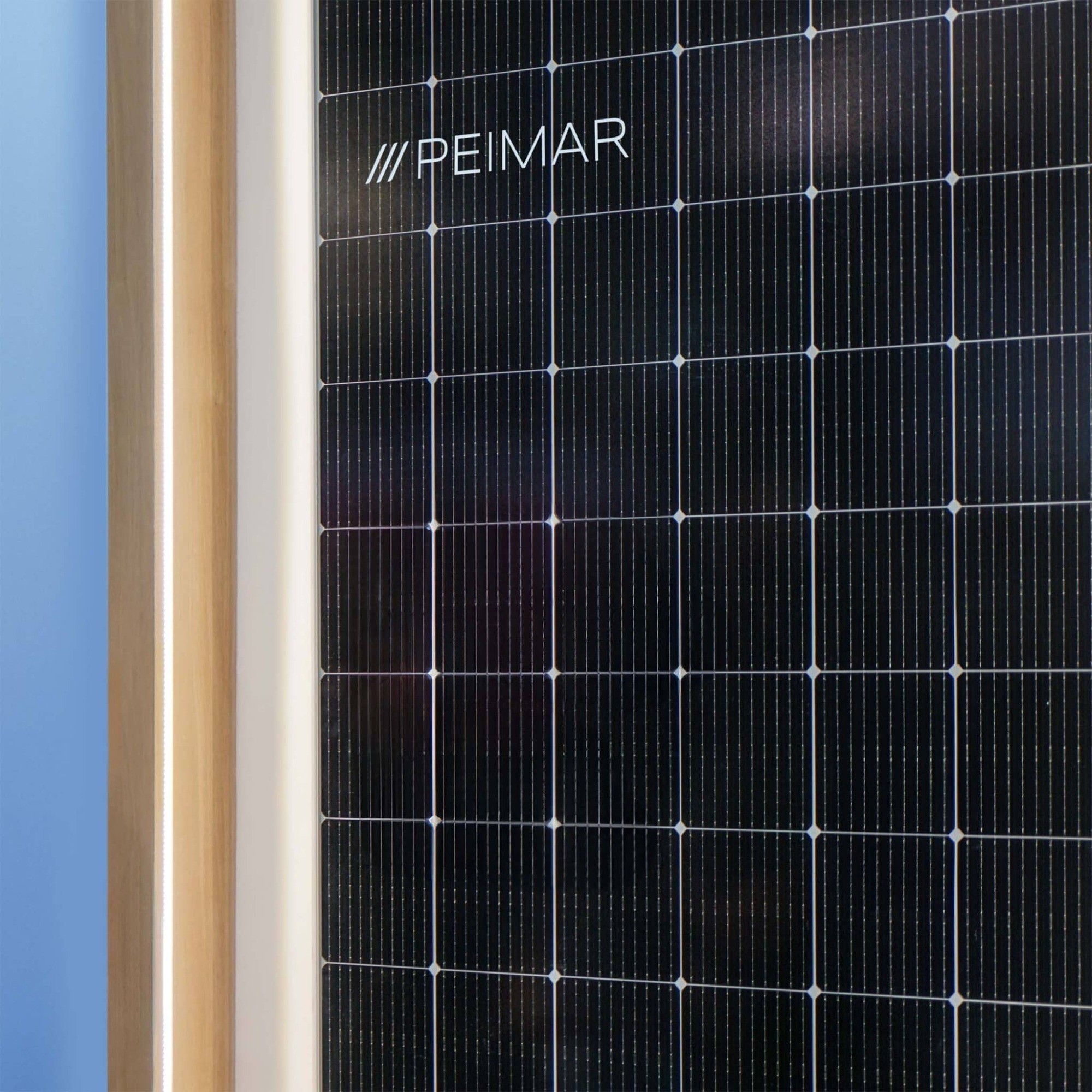

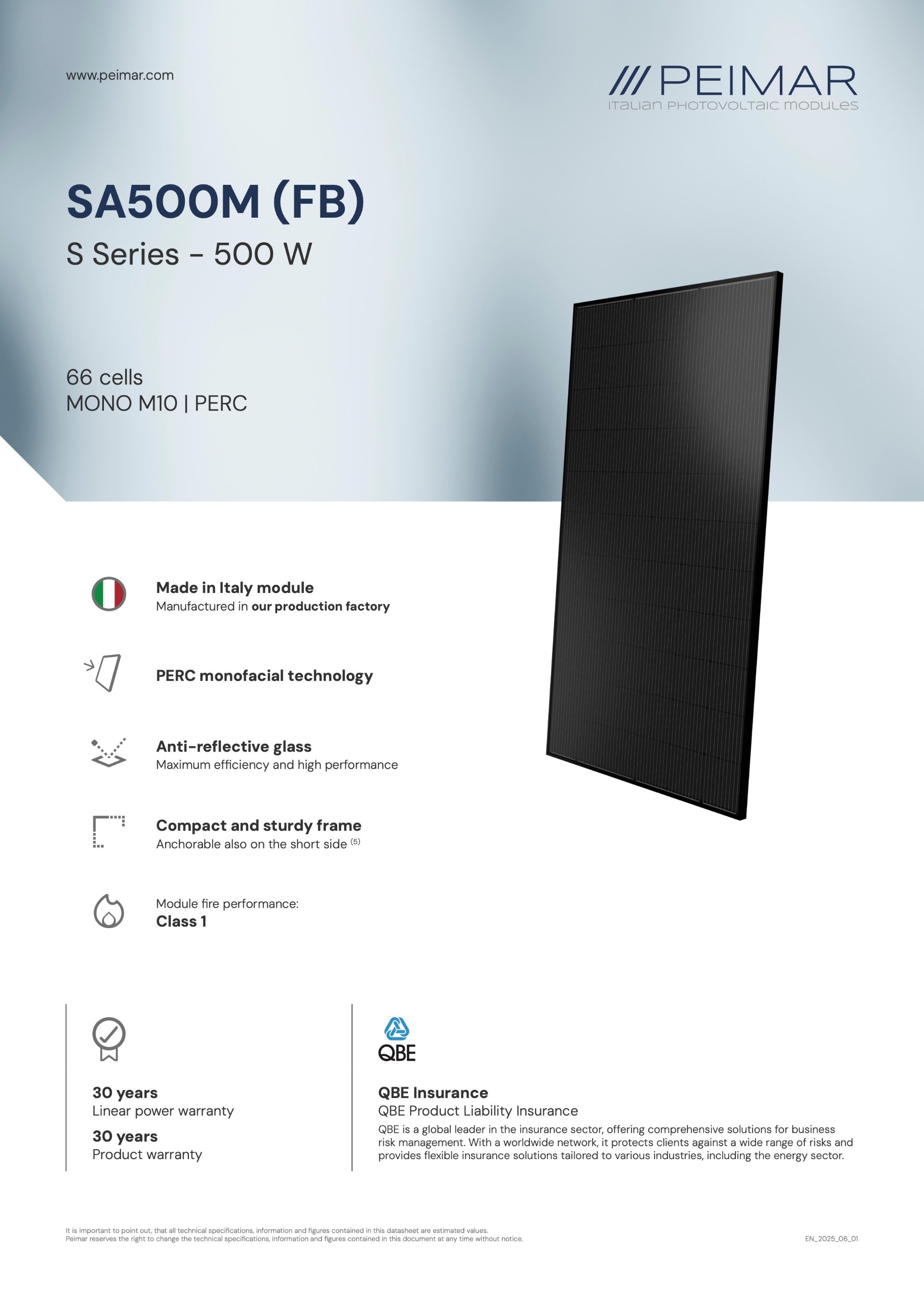

S Series - 500 W - SA500M (FB)
Peimar| 电 池 技 术： | 背钝化 (PERC) |
|---|---|
| 功率范围： | 500 Wp |
| 地区： |
意大利
|
描述：
Made in Italy With Premium Craftsmanship.
Up to 21.33% Efficiency.
PERC Cells for Solid Performance.
All-Black, Sleek Aesthetics.
30-Year Product Warranty.
QBE Insurance Adds Extra Peace of Mind.
High Performance With Reliable Output.
产品特点
| 类型 | 单晶硅 | |
|---|---|---|
| 产品型号 |
|
|
| 质量保证 | ||
| 产品质量保证 | 30 年 | |

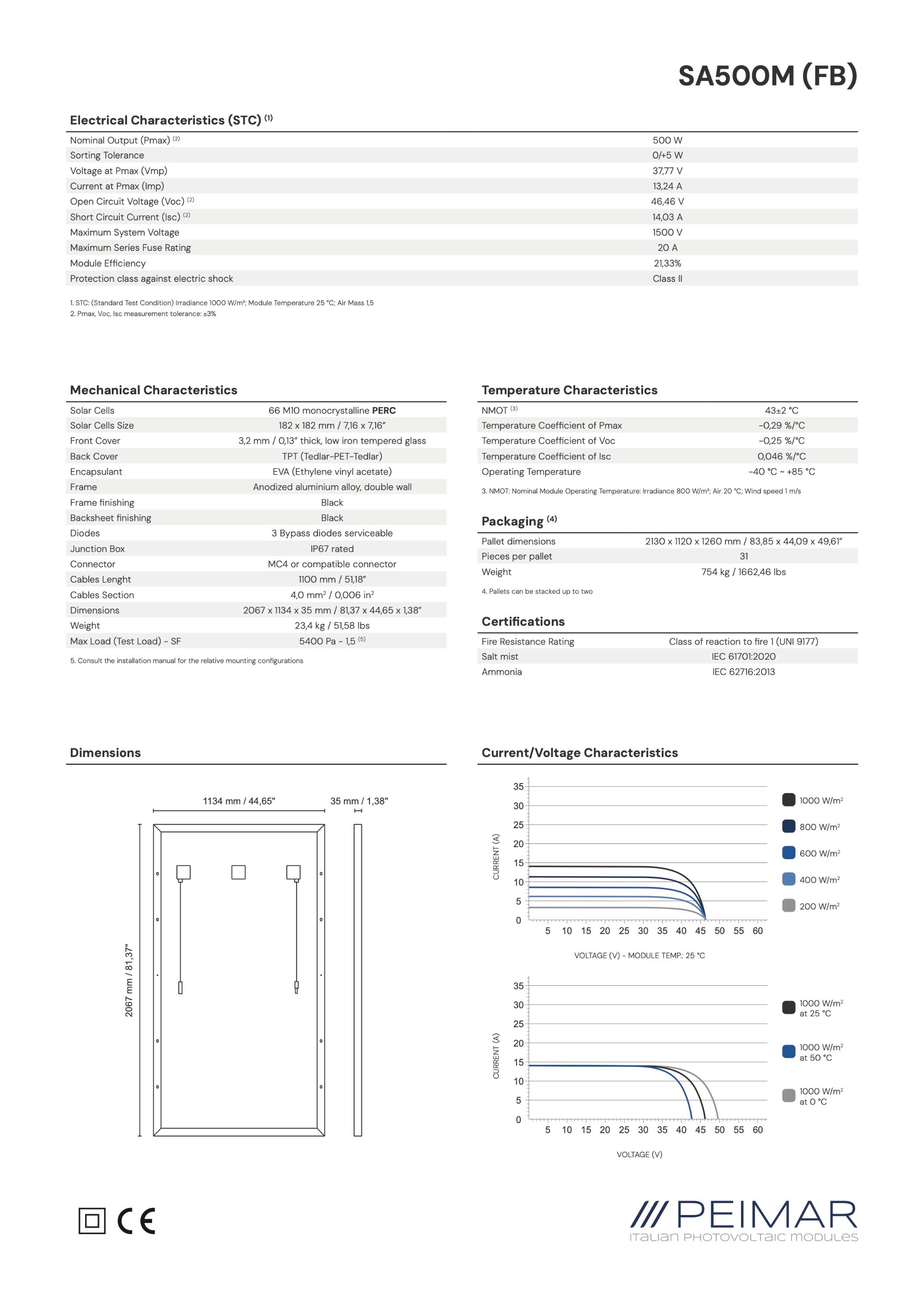

| 电性能参数（STC） | ||
| 峰值功率 （Pmax） |
|
|
| 峰值工作电压（Vmpp） |
|
|
| 峰值工作电流（Impp） |
|
|
| 开路电压（Voc） |
|
|
| 短路电流（Isc） |
|
|
| 组件效率 |
|
|
| 功率偏差（正） |
|
|
| 标准测试条件（STC）：太阳能辐射通量1000W/m2，大气参数1.5，组件温度25℃。 | ||
| 电性能参数（NOCT） | ||
| 最大耐久温度 | 43±2 °C | |
| 电池片标称工作温度（NOCT）：太阳能辐射通量800W/m2，大气参数1.5，环境温度20℃，风速1 m/s。 | ||
| 温度特性 | ||
| 工作温度 | -40~85 °C | |
| 温度系数（Pmax） | -0.29 %/°C | |
| 温度系数（Voc） | -0.25 %/°C | |
| 温度系数（Isc） | 0.046 %/°C | |
| 系统集成参数 | ||
| 最大系统电压 | 1500 V | |
| 保险丝额定电流 | 20 A | |
| 物理参数 | ||
| 组件尺寸（高/宽/厚） | 2067x1134x35 mm | |
| 重量 | 23.4 kg | |
| 电池片规格 | 182×182 mm | |
| 电池片数量 | 66 | |
| 玻璃类型 | 防反射镀膜，钢化 | |
| 玻璃厚度 | 3.2 mm | |
| 密封材料类型 | EVA | |
| 背板类型 | TPT | |
| 边框类型 | 阳极氧化铝，Black | |
| 旁路二极管数 | 3 | |
| 接线盒防护等级 | IP 67 | |
| 连接器类型 | MC4 | |
| 电缆截面 | 4 mm2 | |
| 电缆长度 | 1100 mm | |
| 下载公司产品详情 |
Italian Excellence, Global Solutions

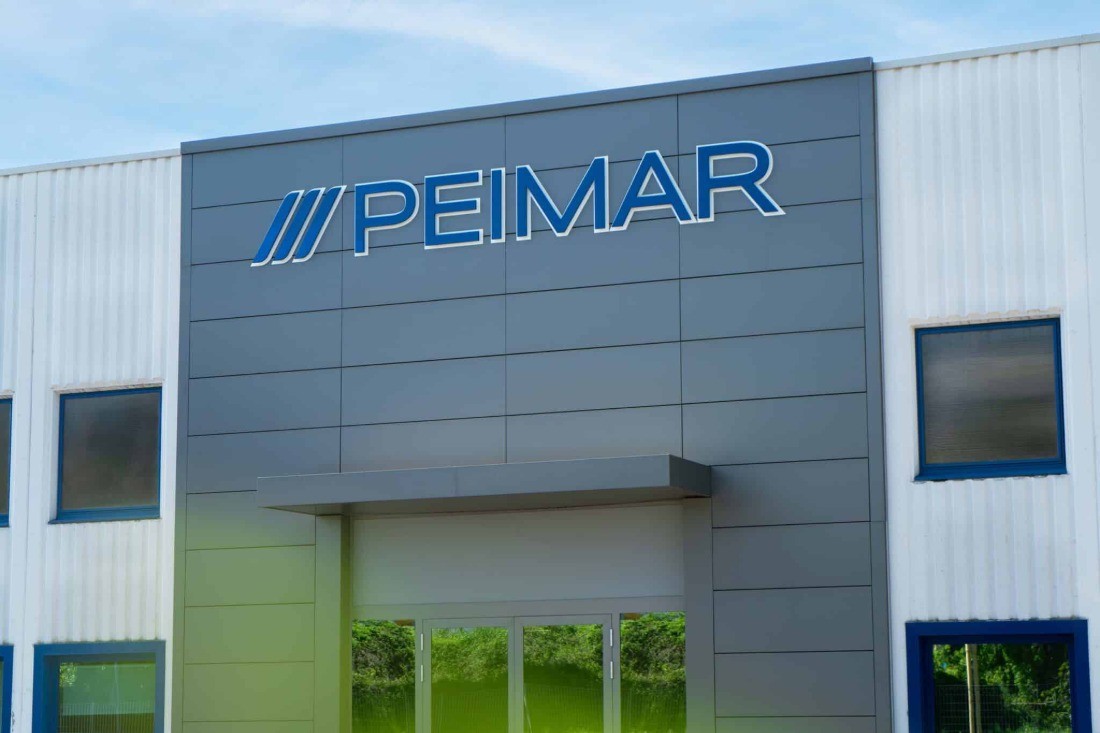

Every stage of the production of our photovoltaic modules is carried out in our advanced factory in Castegnato, in the province of Brescia, where technology and precision come together to ensure the highest quality. With automated processes and strict quality control, we are able to offer high-performance, reliable, and long-lasting products.
Our solutions not only meet the highest standards but are also ready to conquer international markets, bringing the best of Italian tradition around the world.
Our Global Presence
Through our branches in several countries, we have a worldwide presence, ready to respond quickly and effectively to the needs of international markets.
Excellence, Technology, and Quality at Every Stage
Material Inspection
Before production begins, we conduct rigorous quality checks on raw materials, including EVA, cells, and glass, selecting only top-grade components.

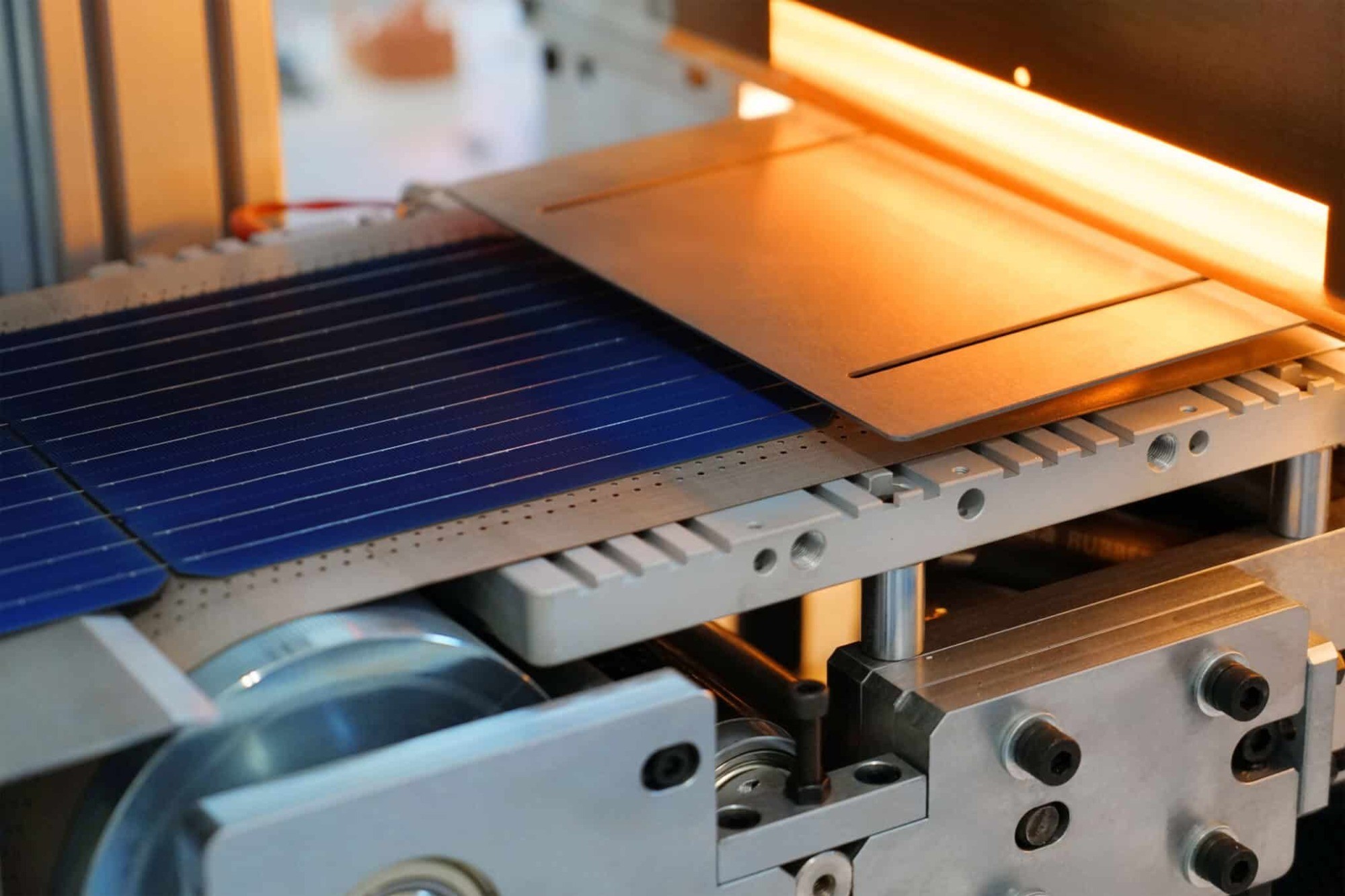

Production Line Testing
Throughout the entire manufacturing process, we perform extensive tests to ensure full compliance and maximum safety for our modules.

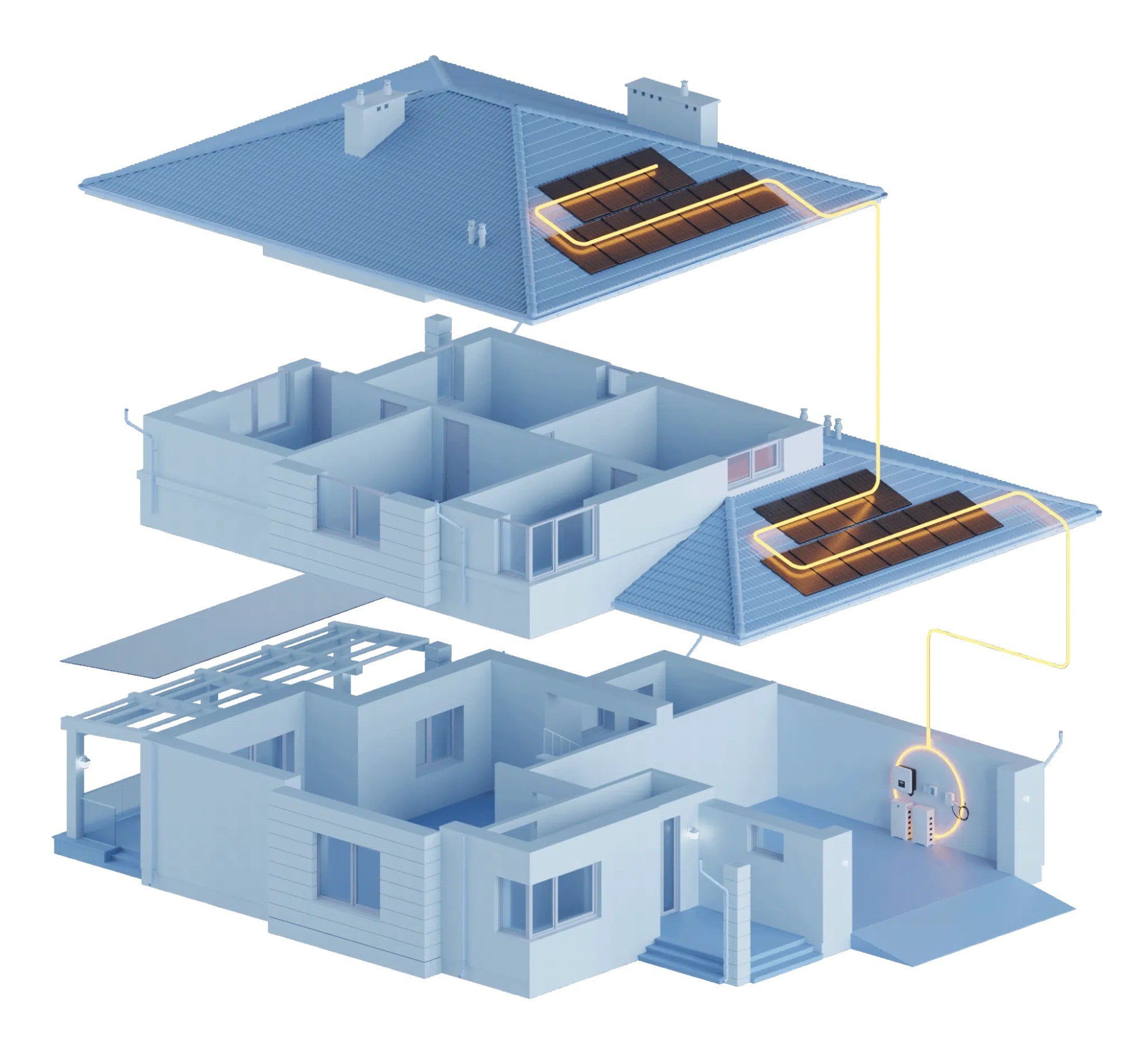

Peimar Unified System
With our product range, we offer a complete system that optimizes energy production and its management in an efficient and sustainable way.
Photovoltaic Modules
Photovoltaic Inverters
Optimizers
Batteries
EV Charger
Accessories
Peimar Products are Covered by QBE Insurance
A comprehensive policy, taken out with QBE Insurance Group, one of the world's leading insurers and reinsurers, protects customers against third-party damage caused by product defects.

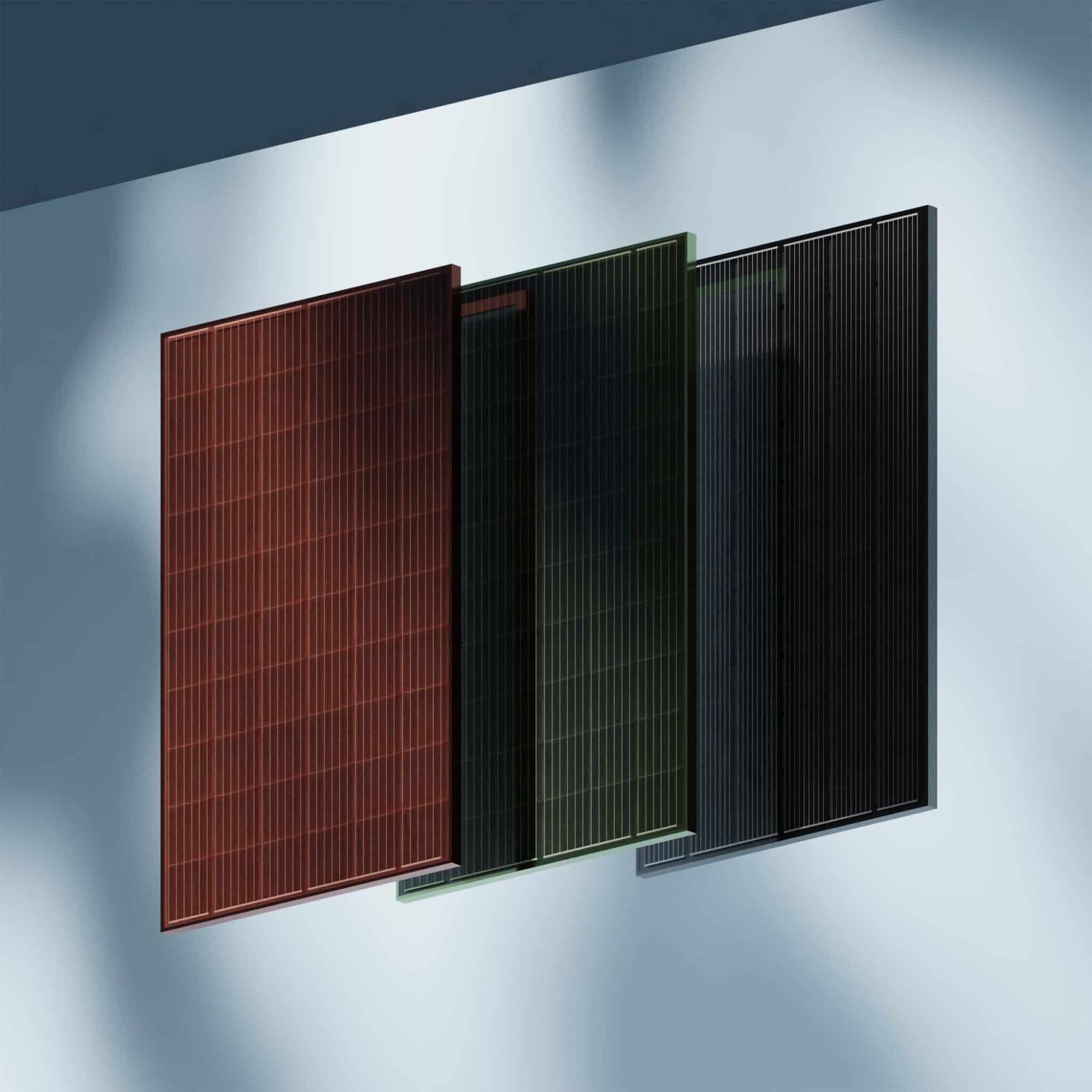

Photovoltaic Modules
S Series
390-545 Watts
PERC Technology
Bifacial Options
30-Year Linear Production Warranty
30-Year Product Warranty
OR & DR Series
375-715 Watts
N-Type TOPCon Technology
PERC Technology
Bifacial Options
30-Year Linear Production Warranty
25-Year Product Warranty

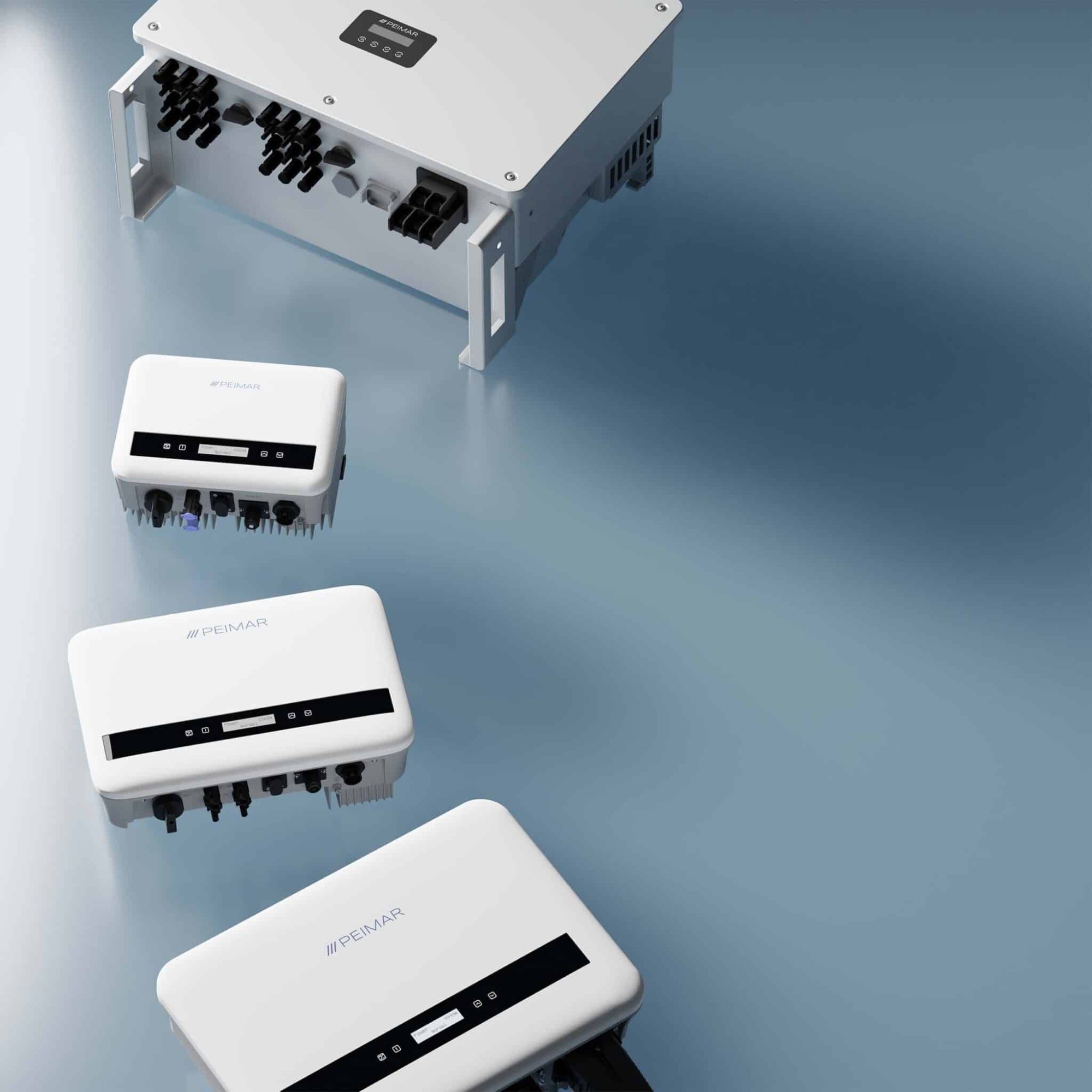

Inverters
On-grid Inverters
Single-phase and three-phase
2.5-100 Kilowatts
Hybrid Inverters
Single-phase and three-phase
3-30 Kilowatts
Microinverters
0.8-1 Kilowatts
Batteries
HV Storage Batteries
Nominal capacity from 5.8 to 431.1 kWh
C&I ESS Cabinet
Nominal capacity of 215 kWh
Peimar is an independent Italian manufacturer of photovoltaic modules, headquartered in Brescia with a fully automated production facility in nearby Castegnato. Founded in 2007, the company combines Italian engineering with continuous research to design and build state-of-the-art PV products, including panels, inverters, and storage systems that deliver consistent performance over time.
Automated lines and rigorous in-process controls help Peimar verify every cell, glass sheet, and encapsulant, supporting long-term reliability for residential, commercial, and utility-scale projects. Beyond modules, the firm offers a complete service platform that integrates products and technical support to optimize energy generation and management for customers worldwide.
A growing international sales network—spanning representative offices all over the world—ensures responsive local assistance and efficient supply to customers across global markets. Peimar’s quality-driven approach is underpinned by comprehensive product warranties and third-party insurance coverage, reflecting a commitment to safe, durable, and sustainable solar solutions for a green future.
