125kw261kWh liquid cooling AC coupled battery e...

深圳市格盛力能源有限公司
价 格:
起价 ¥1,520 / kWh *
每件价格
最低订购量 1-5 6-19 20+
交货时间 14 25 35
GSL-BESS-125K261(AC COUPLE ,WITHOUT PV ) ¥242,000 ¥235,000 ¥229,000
GSL-BESS-100K261(AC COUPLE ,WITHOUT PV ) ¥242,000 ¥235,000 ¥227,000
储能系统技术: LFP(磷酸锂铁)
标称容量: 180 Ah
地区: 中国大陆 中国大陆
联系生产商
注意: 您的询盘将直接发送至深圳市格盛力能源有限公司

描述:

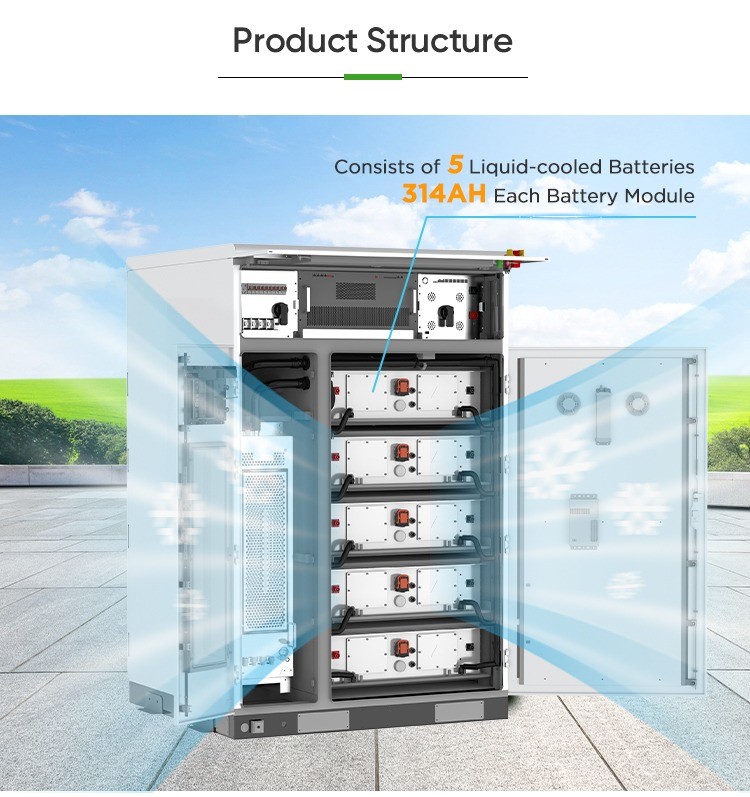

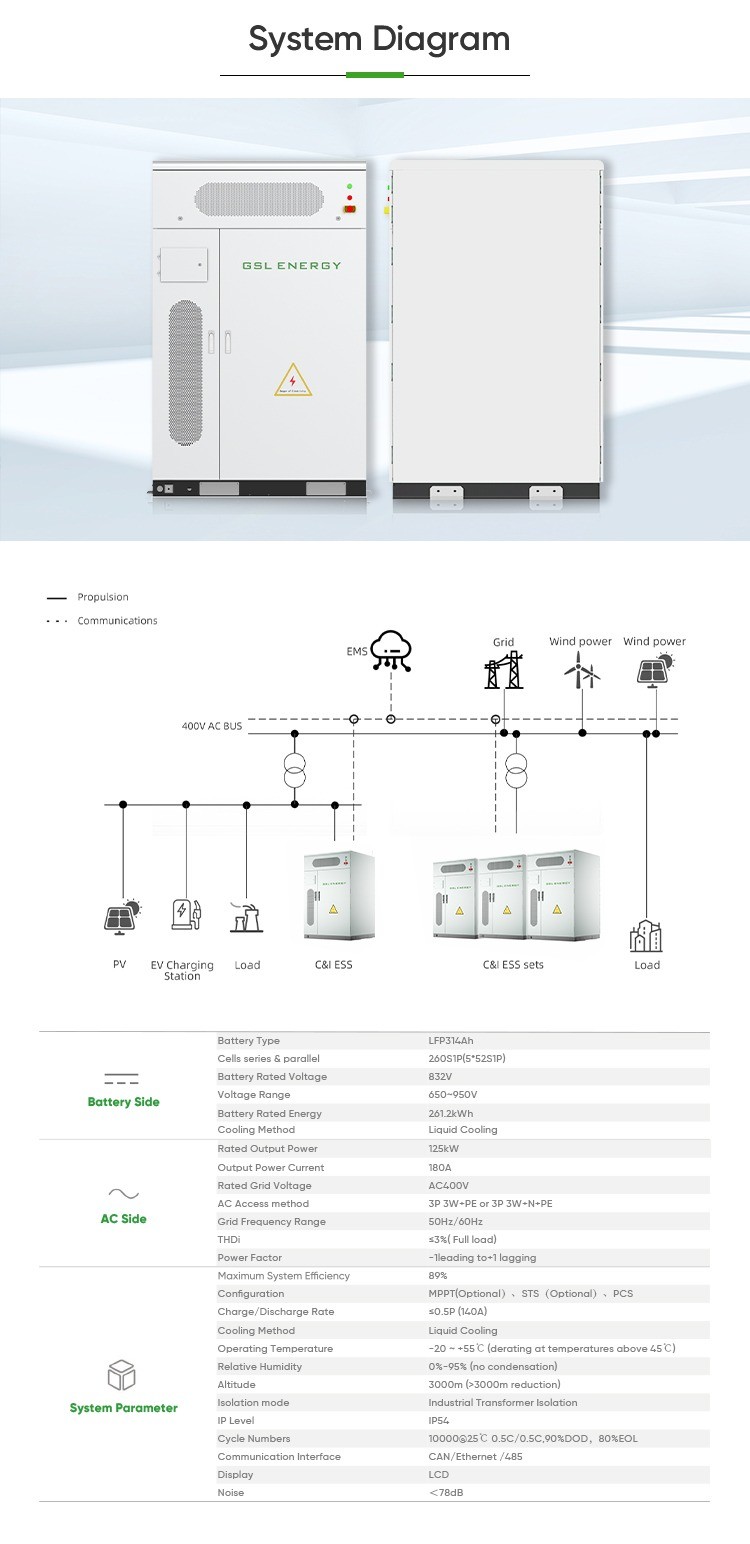

The 125kW 261kWh Liquid-Cooled Battery Energy Storage System by GSL Energy integrates advanced liquid cooling technology with high-performance battery cells, offering an ideal solution for energy-intensive scenarios. It supports plug-and-play installation and can be paralleled with up to 10 cabinets, meeting the diverse power needs of commercial and industrial users.

仓库:
德克萨斯城 美国
库存量:
2 件
仓库地点: 德克萨斯城 美国
型号 库存量(件) 联系生产商
GSL-BESS-125K261(AC COUPLE ,WITHOUT PV ) 1
GSL-BESS-100K261(AC COUPLE ,WITHOUT PV ) 1

产品特点

产品型号
GSL-BESS-125K261(AC COUPLE , WITHOUT PV ) GSL-BESS-100K261(AC COUPLE , WITHOUT PV )
产品规格
价格( kWh)
¥1,530 / kWh * ¥1,520 / kWh *
价格( 台)
¥229,000 / 台 * ¥227,000 / 台 *
产品质量保证 (最低) 15 年
配置 一体机
储能系统技术 LFP(磷酸锂铁)
部件 电池管理系统
安装方式 地板
最大并行单元数 10
蓄电池产品参数表
电性能参数
标称电压
832 V 832 V
工作电压范围 650 - 950 V
标称容量
180Ah@20hr 180Ah@20hr
标称能量
232.9 kWh 232.9 kWh
可用能量
232.9 kWh 232.9 kWh
标称放电电流
180 A 180 A
标称充电电流
180 A 180 A
设计寿命
15 年 15 年
循环寿命 12000@80%DOD
温度参数
工作温度范围 -0 ~ +55 ℃
一般参数
尺寸(长*宽*高)
1376.5x1300x2050 mm 1376.5x1300x2050 mm
重量
3200 Kg 3200 Kg
IP 等级 IP54
最高运行海拔 3000 m
通信 CAN, RS232, RS485, WiFi, 蜂窝网络, 以太网
监控 屏幕, 应用程序
PDF
下载公司产品详情

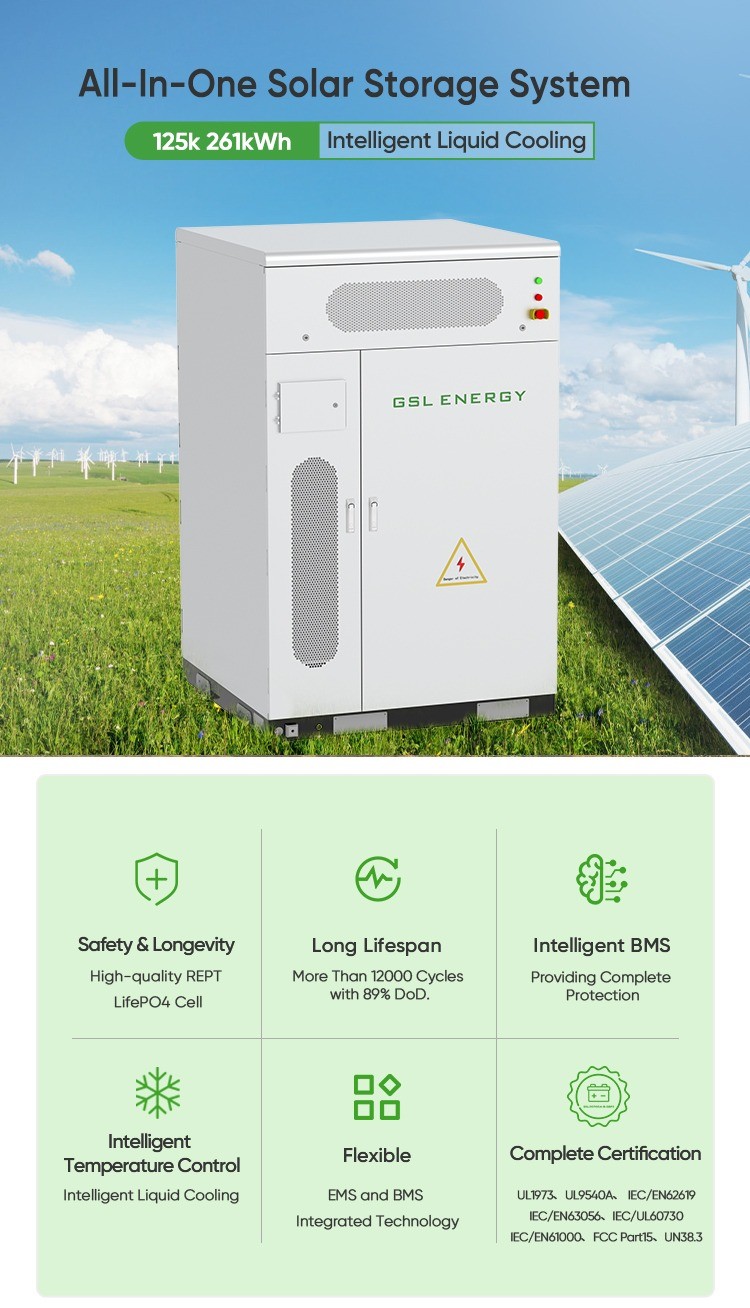

GSL All-in-One Liquid-Cooled Battery Energy Storage Cabinet (125kW/261kWh)

GSL All-in-One Liquid-Cooled Battery Energy Storage Cabinet (125kW/261kWh) – Powering the Future with Intelligence and Efficiency. The GSL All-in-One Liquid-Cooled Battery Energy Storage Cabinet (125kW/261kWh) is a cutting-edge energy storage solution designed for high performance, safety, and reliability. Integrating advanced liquid cooling technology with a compact, modular design, it delivers seamless energy management for commercial, industrial, and utility-scale applications.

Key Applications:

  • ✔ Industrial & Commercial Energy Storage – Optimizes electricity costs through peak shaving and load balancing, reducing demand charges.

  • ✔ Renewable Energy Integration – Stores excess solar/wind power for a stable supply, enhancing self-consumption and grid independence.

  • ✔ Microgrids & Off-Grid Systems – Ensures uninterrupted power in remote areas or during grid outages.

  • ✔ EV Charging Stations – Supports fast-charging infrastructure with high-power energy buffering.

深圳市格盛力能源有限公司

Click to show company phone
www.gsl-energy.com
中国大陆
广东省深圳市龙岗区龙城街道天安数码城1栋A602
注意: 您的询盘将直接发送至深圳市格盛力能源有限公司
公司描述

GSL ENERGY 是一家独特的公司,垂直整合了储能系统(ESS)所需的所有技术,包括正极材料、锂电池、BMS 和系统集成。

凭借我们的专利突破和对 ESS 应用的坚定承诺,到 2022 年,我们已在 138 多个国家成功投产了超过 5.8 GWh 的产品。这一成就证明了我们在重塑发电、输电和用电动态方面所做的贡献。

我们的首要任务仍然是生产高质量的电池,我们坚持使用从 CATL 和 REPT 等中国最重要的电池生产商采购的 A 级磷酸铁锂电池。这些电芯以其卓越的品质而著称,甚至被特斯拉中国工厂和其他全球知名汽车制造商采用。

通过提供卓越的能源解决方案和服务,我们一直奉行 "为世界带来绿色电力 "的使命。客户永远是我们的第一要务,我们注重安全、质量和良好的服务,以促进长期的业务合作。

GSL ENERGY--中国绿色能源供应商的领导者,始于 2006 年

产品视频
产品

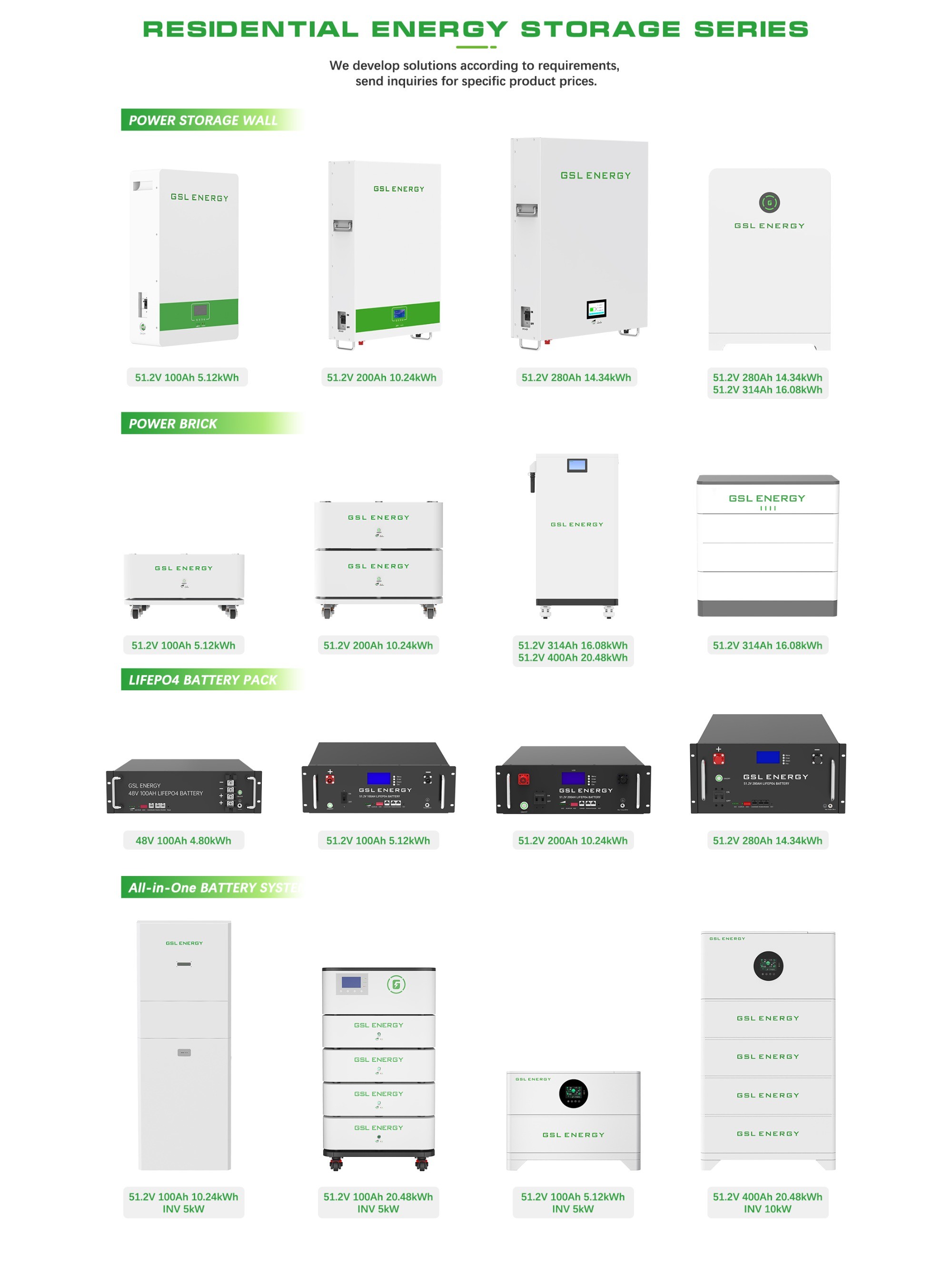

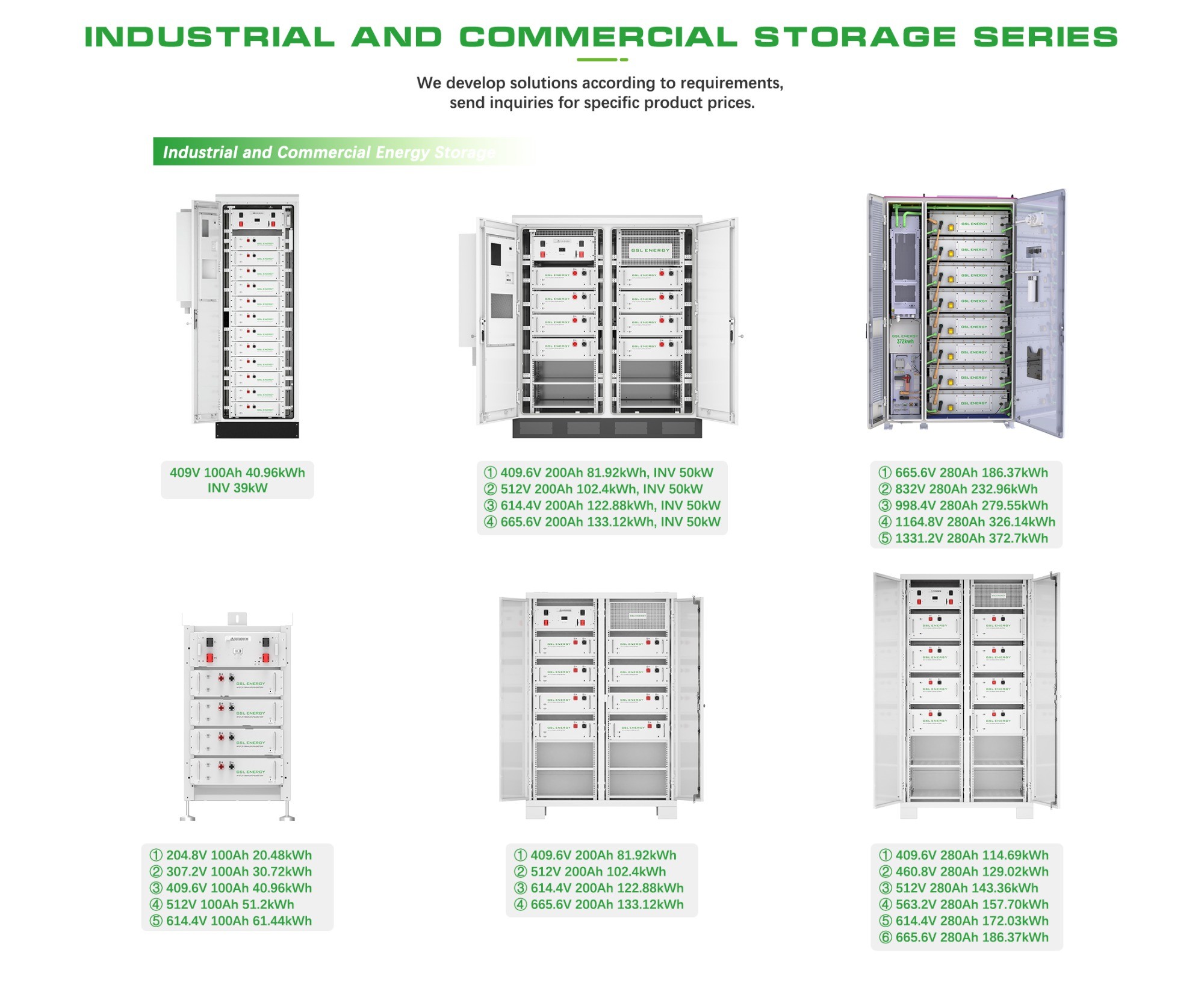

As a factory with 15 years of experience in manufacturing energy storage batteries, GSL ENERGY's products cover industrial, commercial and household energy storage, including Large Storage Batteries, Power Storage Wall, Telecom Batteries, Power Storage Brick, High Voltage LiFePo4 Batter, Hybrid inverter, EV Charger, Portable Power Stations, etc., to meet all customer requirements. If you would like to inquire OEM&ODM or wholesale price, please don't hesitate to contact us for the best solar battery energy storage solution!

About Us

Shenzhen GSL Energy Co., Ltd. (GSL ENERGY), founded in 2011, is a high-tech green energy manufacturer that provides customized global solutions for energy storage batteries and solar systems.

GSL ENERGY's headquarters are located in Longgang District, Shenzhen City, Guangdong Province, covering an area of more than 1,400 square meters. The R&D base is located in Huiyang District, Huizhou City, with 15,000 square meters of automatic factory, including 2 sets of automatic production lines, and 4 sets of semi-automatic production lines, reaching an annual production capacity of 5.8 GWh.

GSL ENERGY's business scope covers the global market. It has formed strategic partnerships with many famous brands worldwide, and has exported to more than 100 countries, including the United States, Canada, the United Kingdom, Germany, Australia, the Philippines, Lebanon, etc. GSL ENERGY is committed to creating high-quality batteries and has passed the global mainstream certification, in line with the North American UL9540, UL1973, European CB/CE, Australian CEC, and Italian CEI-021 standards. GSL ENERGY has always adhered to independent innovation, and has already possessed advanced lithium-ion battery module development and design capabilities, good cost control ability, and reasonable market positioning, which lays the core competitiveness for the customized service of lithium battery enterprises.

GSL ENERGY's business scope covers the global market. It has formed strategic partnerships with many famous brands worldwide, and has exported to more than 100 countries, including the United States, Canada, the United Kingdom, Germany, Australia, the Philippines, Lebanon, etc. GSL ENERGY is committed to creating high-quality batteries and has passed the global mainstream certification, in line with the North American UL9540, UL1973, European CB/CE, Australian CEC, and Italian CEI-021 standards. GSL ENERGY has always adhered to independent innovation, and has already possessed advanced lithium-ion battery module development and design capabilities, good cost control ability, and reasonable market positioning, which lays the core competitiveness for the customized service of lithium battery enterprises.

Empowering the Future with Advanced Lithium Battery Solutions

At GSL ENERGY, we specialize in cutting-edge lithium battery technologies and innovative energy solutions. Our unwavering commitment to independent innovation fuels the development of advanced battery modules and smart system designs. By combining strategic market positioning with efficient cost management, we’ve built strong core competencies that set us apart in the industry. These capabilities enable us to provide fully customized services that meet the diverse and evolving needs of lithium battery companies around the globe.

Since its inception, GSL ENERGY's Power Storage Wall ESS products have achieved remarkable success, with over 500,000 households worldwide adopting our innovative solutions. These systems are trusted across diverse applications, including residential, commercial, grid-tied storage systems, in-vehicle batteries, and as reliable emergency power for iCloud services.

Our dedication to delivering dependable and efficient energy storage solutions has earned the trust of customers globally. From households seeking sustainable energy independence to commercial enterprises optimizing their energy management, GSL's ESS products have become the preferred choice for diverse power needs.

Guided by a commitment to quality and innovation, GSL ENERGY continues to lead the charge in the energy storage sector. Our solutions not only meet the evolving needs of our customers but also drive the transition toward a more sustainable and resilient energy future.

WHY CHOOSE US

  • Experience: With over 15 years of specialization in lithium battery technology, we are proud to be leaders in the field of lithium Lifepo4 batteries.

  • Certifications: Our commitment to quality is reflected in our certifications, including CE, UL, UN38.3, and MSDS from the National Center for Quality Supervision and Inspection of Battery Products.

  • Quality Control: We adhere to a rigorous quality control process consisting of 37 production steps and 7 quality checks. This ensures that our batteries maintain stable quality and provide high reliability for your needs.

  • Best Materials: We prioritize selecting top-quality cells, materials, and accessories for our batteries. This choice results in longer-lasting lithium batteries that offer superior performance.

  • Fresh Batteries: Each battery we produce is fresh from our production line. This means you can be confident in receiving a product that is newly manufactured and ready to meet your energy storage requirements.
