LWM9BB-PERC-166

光为能源科技有限公司

每件价格
最低订购量	50000+ 件
25.0	¥2.00

注意： 您的询盘将直接发送至无锡施莱德新能源有限公司。

82.18 ~ 88.62 %

24.0 ~ 25.5 %

TOPCon

7.92 ~ 8.39 Wp

182x182 mm

130 µm

0.03±0.015 mm

82.02 - 82.5 %

电池片效率

21.70 - 22.60 %

背钝化 (PERC)

5.95 - 6.2 Wp

166×166 mm

电池片厚度

190 ± 20 µm

0.1±0.1 mm

1.9±0.1 mm

联系生产商

注意： 您的询盘将直接发送至光为能源科技有限公司。

产品信息
公司档案页

产品特点

产品型号

LWM9BB-5.95W

LWM9BB-5.98W

LWM9BB-6.00W

LWM9BB-6.03W

LWM9BB-6.06W

LWM9BB-6.09W

LWM9BB-6.11W

LWM9BB-6.14W

LWM9BB-6.17W

LWM9BB-6.20W

电池片技术

背钝化 (PERC)

尺寸

166×166 mm

对角线

223±0.25 mm

电池片厚度

190 ± 20 µm

栅线数

栅线宽度

0.1±0.1 mm

栅线材料

银

减反射膜

氮化硅

焊垫数

焊垫宽

1.9±0.1 mm

焊垫材料

银

背面电场 (BSF)

铝

峰值功率 (Pmax)

5.95 W

5.98 W

6 W

6.03 W

6.06 W

6.09 W

6.11 W

6.14 W

6.17 W

6.2 W

峰值工作电压 (Vmpp)

0.571 V

0.573 V

0.574 V

0.576 V

0.579 V

0.58 V

0.583 V

0.585 V

0.587 V

0.589 V

峰值工作电流 (Impp)

10.412 A

10.438 A

10.452 A

10.465 A

10.473 A

10.486 A

10.49 A

10.502 A

10.516 A

10.53 A

开路电压 (Voc)

0.661 V

0.662 V

0.664 V

0.666 V

0.668 V

0.67 V

0.673 V

0.675 V

0.676 V

0.677 V

短路电流 (Isc)

10.966 A

10.99 A

11.009 A

11.026 A

11.034 A

11.047 A

11.061 A

11.078 A

11.09 A

11.104 A

电池片效率

21.70 %

21.80 %

21.90 %

22.00 %

22.10 %

22.20 %

22.30 %

22.40 %

22.50 %

22.60 %

填充因子 (FF)

82.02 %

82.21 %

82.07 %

82.09 %

82.27 %

82.17 %

82.16 %

82.34 %

82.5 %

温度系数（Pmax）

-0.36 %/˚C

温度系数（Voc）

-0.37 %/˚C

温度系数（Isc）

0.07 %/˚C

---------------------<<About Lightway>>----------------------

Lightway Solar was established in 2006,set up four companies in China mainland and owns two operating/sales companies in HongKong,with manufacturing factilities in Jiangsu/Jiangxi/Guangdong for solar cells,solar modules and solar applications etc and global marketing/sales company in Shenzhen,our current annual production capacity is over 1.0GW up to 2.5GW for solar cells and solar modules etc manufactured in CE/ISO/IEC/TUV/UL etc certificates.Lightway devoted to offering clients a one-stop shop for high quality products and already recognized by many of our clients from all over the world up to 80 countries.

--------------------------<<Our Factory>>--------------------------

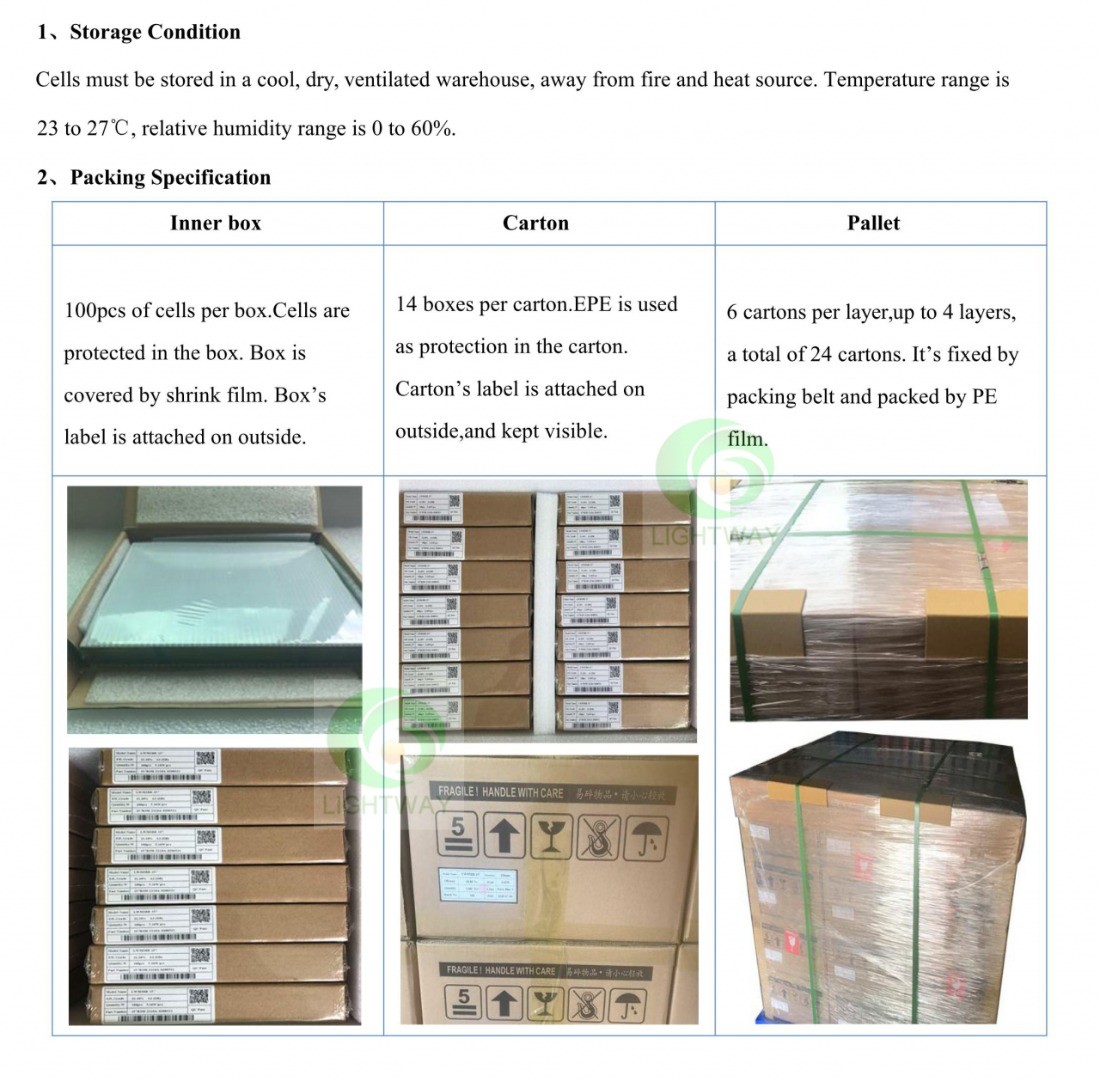

---------------------<<Storage & Package>>---------------------

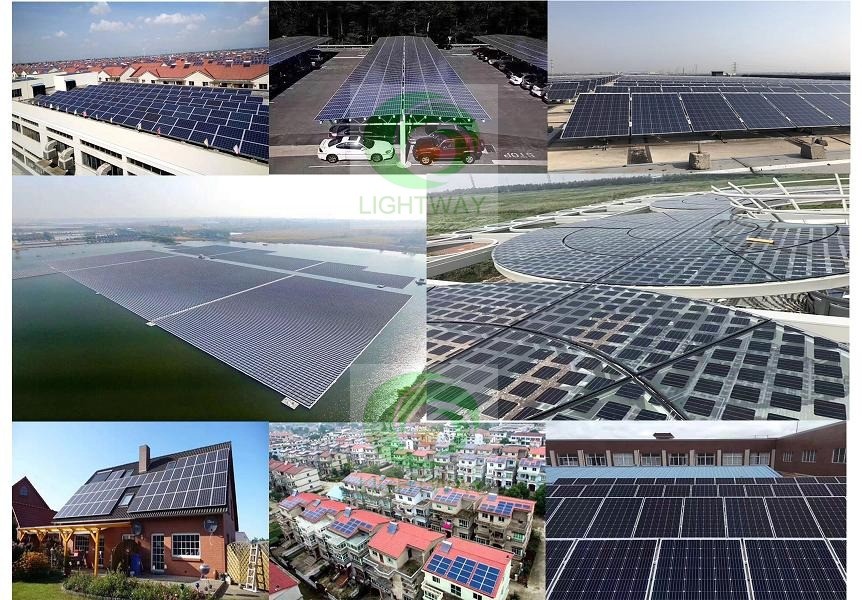

-----------------<<Applications & Projects>>------------------

----------------------<<Full Certificates>>----------------------

----<<Our Flexible and Various Payment Term>>-----

Our Shipping is Fast Delivery and Safy & Accurate

光为能源科技有限公司

: Click to show company phone
: www.lightway-solar.com
: 中国大陆
: 广东省深圳市宝安区西乡镇宝田路西城工业园

员工数： 1,100

母公司： Lightway Energy Technology Co., Limited

联系生产商

注意： 您的询盘将直接发送至光为能源科技有限公司。

有用联系人

Sales Dept

Anna Lee

Lizzy Leung

Zoe Zhang

David Zhu

Administration Dept

公司描述

Lightway Solar was established in 2006, set up four companies on the Chinese mainland, and owns two operating and sales companies in Hong Kong, with manufacturing facilities in Jiangsu, Jiangxi, and Guangdong for solar cells and modules, etc., and a global marketing and sales company in Shenzhen.

Our current annual production capacity is over 6 GW for solar cells and modules, etc., manufactured to CE, ISO, IEC, TUV, and UL certificates, etc.

Lightway Solar is devoted to offering clients a one-stop shop for high-quality products and is already recognised by many of our clients from all over the world, up to 100 countries.
