SPI3000/3600/4000/4600/5000/6000-B2

厦门科华数能科技有限公司
  1. 光伏逆变器产品名录
  2. SPI3000/3600/4000/4600/5000/6000-B2
Ad
MX Mark III Series
Autarco B.V.
每件价格
最低订购量 1-9 件 10-19 件
S2.MX4600-MIII ¥2,960 ¥2,880
MX Mark III Series
联系生产商
注意： 您的询盘将直接发送至Autarco B.V.。
技术
并网
重量
11.5 kg
产品质量保证
5 年
功率范围
2.8 ~ 6 kW
频率
50 Hz, 60 Hz
效率
97.3 ~ 97.7 %
protection_class
IP66
transformer
无变压器
no_of_feedin_phases
单相
mpp_voltage_range
50~450 ~ 90~520 V
技术
类型
并网，混合
工作温度范围
工作温度范围
-40 ~ +60 ℃
地区
地区
中国大陆 中国大陆
重量
重量
12.6 kg
功率范围
功率范围
3.3 ~ 6 kW
频率
频率
50Hz, 60Hz
效率
效率
98.1 ~ 98.3 %
protection_class
防护等级
IP65
transformer
变压器
无变压器
no_of_feedin_phases
相数
单相
mpp_voltage_range
MPP(T)电压范围
100~550 V
联系生产商
注意： 您的询盘将直接发送至厦门科华数能科技有限公司。

1. 3 in 1 Integrated Off-grid System

2. Innovative hybrid system

3. Intelligent Energy Management System

4. Efficient and Flexible

产品特点

产品型号
SPI3000-B2 SPI3600-B2 SPI4000-B2 SPI4600-B2 SPI5000-B2 SPI6000-B2

最大输入电压
600 V 600 V 600 V 600 V 600 V 600 V
额定直流电压
360 V 360 V 360 V 360 V 360 V 360 V
最小输入电压
120 V 120 V 120 V 120 V 120 V 120 V
最大输入电流
22 A 22 A 22 A 22 A 22 A 22 A
MPP(T)电压范围
100~550 V 100~550 V 100~550 V 100~550 V 100~550 V 100~550 V
MPPT数量
2 2 2 2 2 2
直流输入连接端数
2 2 2 2 2 2
连接器
MC4 MC4 MC4 MC4 MC4 MC4

最大输出功率
3.3 kW 3.96 kW 4.4 kW 5.06 kW 5.5 kW 6 kW
额定交流电压
230 V 230 V 230 V 230 V 230 V 230 V
最大输出电流
15 A 18 A 20 A 23 A 25 A 27.3 A
额定交流电流
13.6 A 16.4 A 18.2 A 20.9 A 22.7 A 27.3 A
频率范围
45-65 Hz 45-65 Hz 45-65 Hz 45-65 Hz 45-65 Hz 45-65 Hz
频率
50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz
功率因数 (cosθ)
0.99 0.99 0.99 0.99 0.99 0.99
总谐波失真 （THDi）
< 3 % < 3 % < 3 % < 3 % < 3 % < 3 %
相数
1 1 1 1 1 1
最大效率
98.1 % 98.3 % 98.3 % 98.3 % 98.3 % 98.3 %
欧洲效率
97.7 % 97.9 % 97.9 % 97.9 % 97.9 % 97.9 %

尺寸（高/宽/厚）
420x360x125 mm 420x360x125 mm 420x360x125 mm 420x360x125 mm 420x360x125 mm 420x360x125 mm
重量
12.6 kg 12.6 kg 12.6 kg 12.6 kg 12.6 kg 12.6 kg
夜间损耗
< 1 W < 1 W < 1 W < 1 W < 1 W < 1 W
噪音干扰级别
< 25 dB(A) < 25 dB(A) < 25 dB(A) < 25 dB(A) < 25 dB(A) < 25 dB(A)
工作温度范围 -40 ~ +60 ℃
变压器 无变压器
防护等级 IP65
相对湿度 0-95 %
散热方式 自然冷却
最高运行海拔 4000 m
通讯接口 RS 485, WLAN
显示屏 LCD

防护性能 反孤岛保护（ENS），短路保护，浪涌保护

下载公司产品详情
数据表

Product Feature

About Xiamen Kehua Hengsheng

Kehua is a leading power solution provider in mainland China, founded in 1988 and officially went public in 2010 on Shenzhen Stock Exchange. Specializing in power market for 32 years, Kehua products and solutions have been adopted in 100+ countries and regions, with CE, TUV, UL and other regional certificates. The accumulative PV installation capacity is 13+GW and energy storage installation is 600+MW.

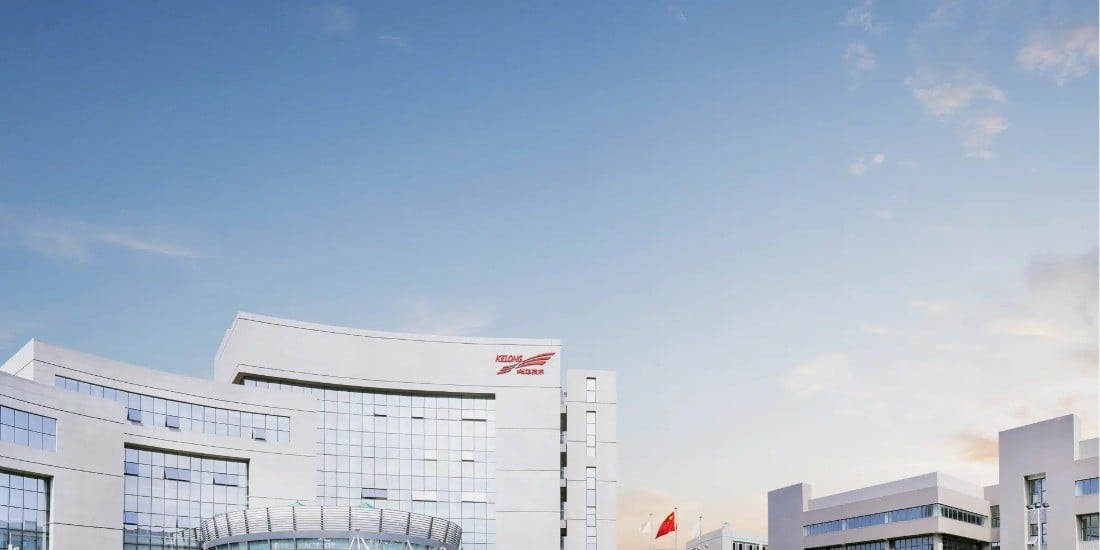

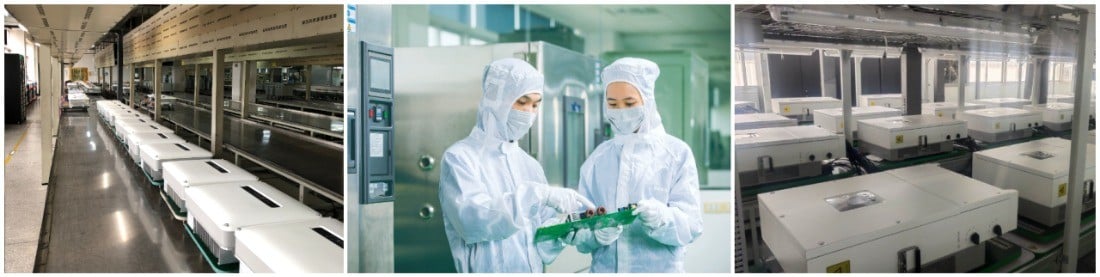

Facilities
World-class facilities entails remarkable manufacture and R&D capabilities. Kehua has 4 production bases. The total manufacturing area of 320,000m2, with 8GW annual solar production capacity. Kehua also owns 3 R&D centers, 1 EMC test center and a UL witness Test Data Program. The R&D team is composed of 1000+ engineers, engaging in 60+ national and industrial standards establishment. Till now Kehua has been authorized 800+ intellectual property rights.
Products & Solutions
KEHUA provides high quality string inverters, central inverters and energy storage system, developed for various application scenarios, including utility PV plant, distributed PV plant, residential/poverty alleviation power plant, micro-grid system and smart PV+ projects. The applications cover harsh conditions such as high altitude, low temperature, high salt-fog, sand desert, and complex terrain.
Achievements
- Global Top 500 New Energy Enterprises for 5 consecutive years (by CIER)
- No.1 BTM (Behind-the-meter) market share in the energy storage market of China (by CCID)
- No.1 domestic share of newly installed PCS for electrochemical energy storage In 2018 (by CNESA)
- Top 5 global annual shipments of PCS (by IHS Markit)
- 2019 Most Influential Inverter Manufacturer (by Solarbe)

Qualifications

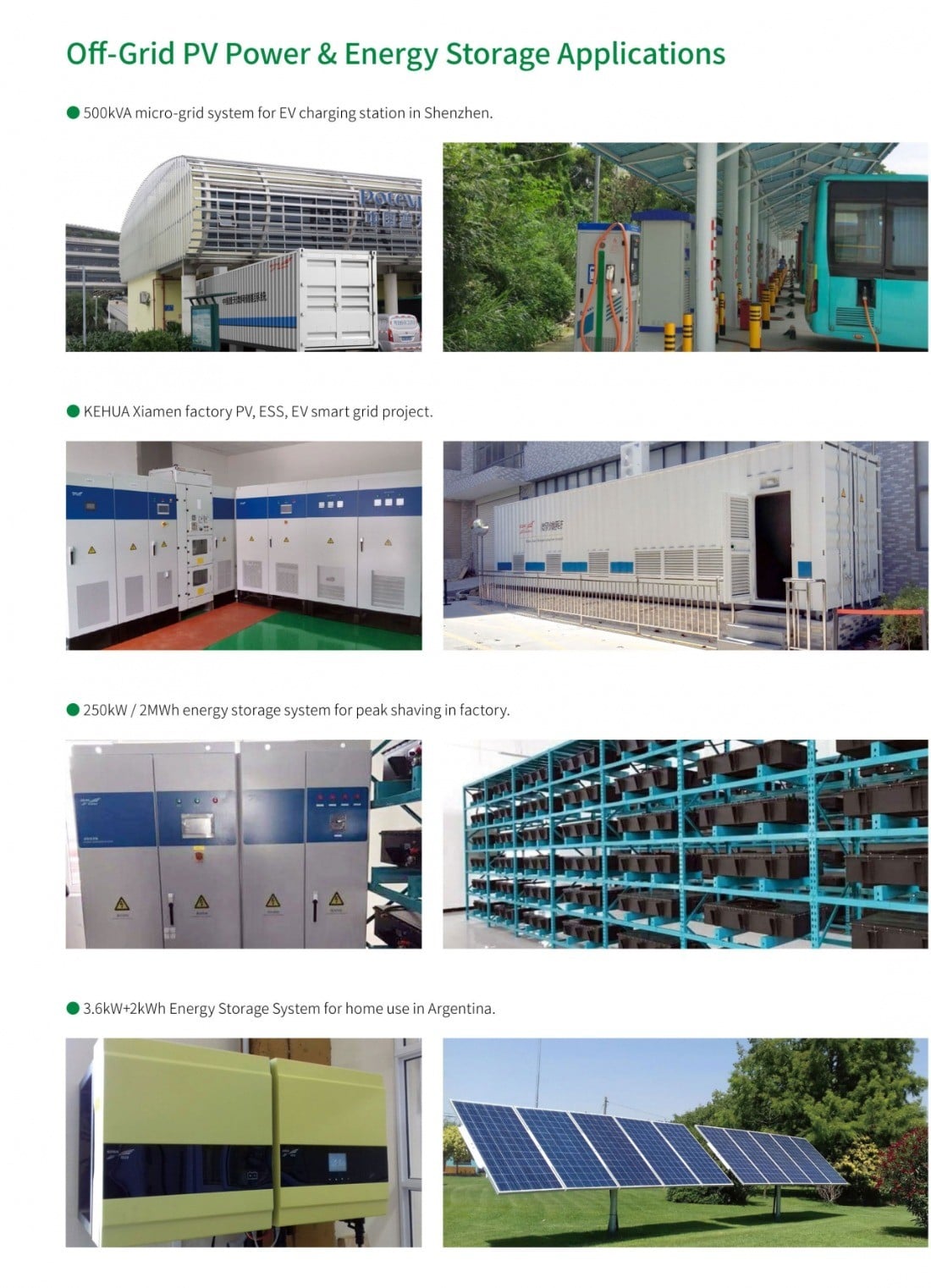

Applications

厦门科华数能科技有限公司

Click to show company phone
https://digitalenergy.kehua.com
中国大陆
厦门火炬高新区火炬园马垄路457号
员工数： 4,000
母公司： 科华数据股份有限公司
联系生产商
注意： 您的询盘将直接发送至厦门科华数能科技有限公司。

有用联系人

公司描述

Kehua, the leading power solution provider in mainland China, was established in 1988. On January 13th, 2010, the company went public on the Shenzhen Stock Exchange, marking a significant milestone.

Currently, Kehua owns over 40 subsidiaries, 5 manufacturing bases, 3 R&D centers, an EMC test center, and participates in a UL Witness Test Data Program. With more than 50 offices nationwide and over 3000 employees, it boasts a robust R&D team of over 600 engineers and 3 national industry experts. Having specialised in the power market for over 29 years, Kehua's products are installed in 104 countries and regions, meeting certifications such as CE, SAA, TUV, and others for various markets.

The company is dedicated to providing reliable and innovative power solutions, including Critical Power, Renewable Energy, Data Center, and Monitoring solutions for diverse industries.

Its offerings include reliable new energy systems like hundreds of MW on-grid solutions, off-grid systems from 500VA to 1.2MW, hybrid systems from 1KW to 1MW, energy storage systems from 2KW to 500KW, string inverters from 1.5KW to 60KW, and central inverters up to 1.26mw.

In 2016, Kehua was recognised as a Global Top 500 Company in the Renewable Energy Industry, with solar system applications surpassing 4.5gw.

Additionally, Kehua possesses strong technical expertise and extensive experience to support various custom manufacturing demands.
