SGPE-Pure Sine Wave Inverter

浙江尚高新能源有限公司
  1. 光伏逆变器产品名录
  2. SGPE-Pure Sine Wave Inverter
SGPE-Pure Sine Wave Inverter
SGPE-Pure Sine Wave Inverter
技术
类型
离网
工作温度范围
工作温度范围
-40 ~ +60 ℃
地区
地区
中国大陆 中国大陆
重量
重量
~ 5.7 kg
产品质量保证
产品质量保证
2 年
功率范围
功率范围
0.31 ~ 8.8 kW
频率
频率
50Hz, 60Hz
效率
效率
94 %
protection_class
防护等级
IP20
transformer
变压器
High Frequency-Transformer
no_of_feedin_phases
相数
单相
价 格：
起价
¥0.267 / Wp*
*
每件价格
每件价格
最低订购量 1+ 件
交货时间 20 days
SGPE 300W ¥177
SGPE 500W ¥304
SGPE 1000W ¥431
SGPE 1500W ¥587
SGPE 2000W ¥622
SGPE 2500W ¥735
SGPE-3000W ¥898
SGPE-4000W ¥1,310
SGPE-5000W ¥1,580
SGPE-6000W ¥2,020
SGPE-8000W ¥2,430
联系生产商
注意： 您的询盘将直接发送至浙江尚高新能源有限公司。

1. Intelligent display / remote control panel display

2. Pure sine wave inverter

3. Customizable Bluetooth and wireless remote control functions

4. Customizable RS485 communication

5. Customized input voltage: 36/60/72/96/110VDC

6. Customizable for various types of sockets

7. Stable voltage output with almost no voltage drop at full load

产品特点

产品型号
SGPE 300W SGPE 500W SGPE 1000W SGPE 1500W SGPE 2000W SGPE 2500W SGPE-3000W SGPE-4000W SGPE-5000W SGPE-6000W SGPE-8000W

功率
0.31 kW 0.55 kW 1.1 kW 1.65 kW 2.2 kW 2.75 kW 3.3 kW 4.4 kW 5.5 kW 6.6 kW 8.8 kW

产品质量保证 （最低）
2 年 2 年 2 年 2 年 2 年 2 年 2 年 2 年 2 年 2 年 2 年

最大输入功率
0.3 kW 0.5 kW 1 kW 1.5 kW 2 kW 2.5 kW 3 kW 4 kW 5 kW 6 kW 8 kW
标称输入电压
12 V 12 V 12 V 12 V 12 V 12 V 12 V 12 V 24 V 24 V 24 V

最大输出功率
0.31 kW 0.55 kW 1.1 kW 1.65 kW 2.2 kW 2.75 kW 3.3 kW 4.4 kW 5.5 kW 6.6 kW 8.8 kW
标称输出功率
0.3 kW 0.5 kW 1 kW 1.5 kW 2 kW 2.5 kW 3 kW 4 kW 5 kW 6 kW 8 kW
交流电压范围
100~230 V 100~230 V 100~230 V 100~230 V 100~230 V 100~230 V 100~230 V 100~230 V 100~230 V 100~230 V 100~230 V
频率
50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz
功率因数 (cosθ)
1 1 1 1 1 1 1 1 1 1 1
总谐波失真 （THDi）
< 3 % < 3 % < 3 % < 3 % < 3 % < 3 % < 3 % < 3 % < 3 % < 3 % < 3 %
相数
1 1 1 1 1 1 1 1 1 1 1
最大效率
94 % 94 % 94 % 94 % 94 % 94 % 94 % 94 % 94 % 94 % 94 %

尺寸（高/宽/厚）
200x112x60 mm 215x150x78 mm 278x170x105 mm 381x170x105 mm 381x170x105 mm 555x470x315 mm
重量
0.82 kg 1.7 kg 2.8 kg 4 kg 4 kg 5.7 kg
工作温度范围 -40 ~ +60 ℃
变压器 High Frequency-Transformer
防护等级 IP20
散热方式 风扇冷却
通讯接口 RS 485, USB, Bluetooth
显示屏 LCD, LED

防护性能 短路保护，过载保护，过压保护，过流保护，过热保护，极性反接保护

下载公司产品详情
数据表

Home

About-SUG New Energy Co.Ltd

SUG New Energy Co., Ltd SUG(shanggao) in Chinese means Graciou & Exploration, which is the spirit we are following since our establish. For years we have been concentrating on offering the integrated power solution to our worldwide customers, and has gained various of certificate worldwide, such as FCC & ETL for North America, CE & ROHS for Europe, PSE for Japan.

Suport OEM/ ODM.

Certified lSO System.

Product Warranty 2 to 5 Years.

Support SUG Brand Overseas Agents.

2 Factories,12000Kwh/Monthly Output.

Acquired CE ROHS for EU,FCC for US,PSE for Japan.

Our Products Line

Lithium Battery

We provide 5 years warranty and support OEM/ ODM.

The battery is with BMS / LCD / RS485 / CAN / parallel and WIFI / bluetooth optional.

Battery voltage and capacity are customized.

We own CE, FCC, ROHS, MSDS, UN38.3.

ESS System

Pure Sine Wave Inverter

Off Grid Hybrid lnverter

SPM SOC Power Manager

Portable Power Station

Solar Charge Controller

DC ChargerDC Charger

About Us

Company Profile

SUG：Professional Inverter And Lithium Battery ManufacturerSUG New Energy Co.,Ltd was established in 2013 and accumulated more than 10 years experience in solar filed. We are a leading manufacturer for power inverter, lithium battery and solar storage system, with R & D, design and production.

We own 2 factories to produce lithium battery, power inverter, solar controller, portable power station and battery charger, etc. Our factories covers 18000㎡ and can produce more than 3000pcs lithium battery and 20000pcs inverters each month.

Currently SUG has passed CE, ROHS certificates for EU, ETL, FCC for USA and PSE for Japan, and we have got UN38.3 and MSDS for more than 10 models of lithium battery. SUG is the brand u can trust, hope to work with you in 2024!

Product Specifications

The SGPE series high-frequency pure sine wave inverter adopts intelligent color display design, visualizes operating data, uses imported chips and independently developed software, and outputs pure sine wave quality better than mains power. It can be used to run most electric tools and inductive loads; At the same time, the design of input and output circuits is completely isolated, ensuring the safety of system operation. The newly upgraded digital remote control and customized Bluetooth APP can perfectly match the outdoor RV application scenarios.

Certificates

SUG pass ISO

We own FCC,CE,ROHS,PSE certificate.

For lithium battery,we own UN38.3/MSDS for transportation

Exhibition

Ever year,we attend SNEC exhibition in Shanghai,and solar exhibition in Guangzhou.

Intersolar in US,Colombia,Brazil,Mexcio,Japan...

浙江尚高新能源有限公司

Click to show company phone
https://www.sugpower.com
中国大陆
#281, Zhongxin Avenue, Industrial Yueqing, Zhejiang
联系生产商
注意： 您的询盘将直接发送至浙江尚高新能源有限公司。

有用联系人

公司描述

SUG New Energy Co., Ltd was established in 2013 and has accumulated more than ten years of experience in the fields of solar energy and energy storage. We are a leading manufacturer that integrates research and development, design, and production of inverter power supplies, lithium batteries, and solar energy storage systems. We have two factories and multiple subsidiaries, mainly producing lithium batteries, inverters, energy storage systems, solar controllers, portable power stations, and battery chargers. We have achieved a monthly production capacity of over 3000 lithium batteries and over 20000 inverters.

At present, the company has passed EU CE and ROHS certification, US ETL and FCC certification, and Japan PSE certification, and more than 10 models of lithium batteries have obtained UN38.3 and MSDS certification. SUG is your trusted brand, and we hope to work together with you in 2025 to create a green future!

产品

About Us

SUG New Energy Co.,Ltd was established in 2013 and has accumulated more than ten years of experience in the fields of solar energy and energy storage. We are a leading manufacturer that integrates research and development, design, and production of inverter power supplies, lithium batteries, and solar energy storage systems. We have two factories and multiple subsidiaries, mainly producing lithium batteries, inverters, energy storage systems, solar controllers, portable power station, and battery chargers. We have achieved a monthly production capacity of over 3000 lithium batteries and over 20000 inverters.

At present, the company has passed EU CE and ROHS certification, US ETL and FCC certification, Japan PSE certification, and more than 10 models of lithium batteries have obtained UN38.3 and MSDS certification. SUG is your trusted brand, and we hope to work together with you in 2025 to create a green future!

Our Products

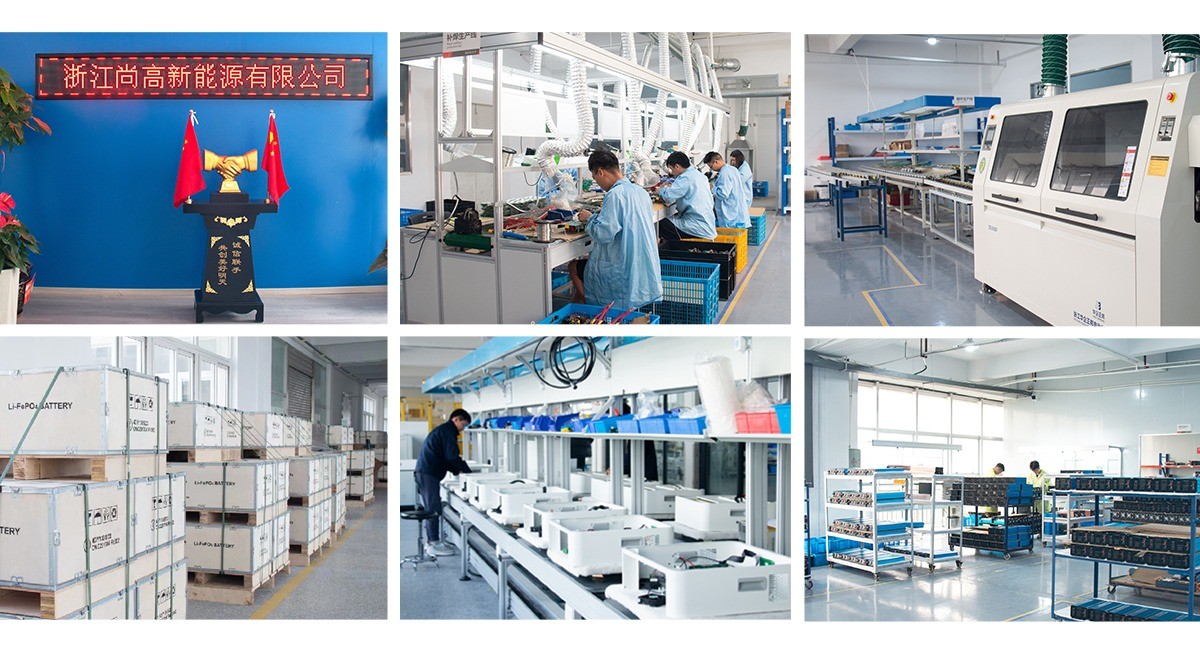

Our Factory
