MX Mark III Series

Autarco B.V.
技术
类型
并网
工作温度范围
工作温度范围
-25 ~ +60 ℃
地区
地区
荷兰 荷兰
重量
重量
11.5 kg
产品质量保证
产品质量保证
5 年
功率范围
功率范围
2.8 ~ 6 kW
频率
频率
50Hz, 60Hz
效率
效率
97.7 %
protection_class
防护等级
IP66
transformer
变压器
无变压器
no_of_feedin_phases
相数
单相
mpp_voltage_range
MPP(T)电压范围
50~450 ~ 90~520 V
价 格:
起价
¥0.558 / Wp*
*
每件价格
每件价格
最低订购量 1-9 10-19 20+
S2.MX4600-MIII ¥2,950 ¥2,870 ¥2,790
联系生产商
注意: 您的询盘将直接发送至Autarco B.V.
  • Eligible for Autarco's Insured kWh Guarantee

  • Reduced Fire Risk Due to Integrated AFCI

  • Extremely Lightweight and Silent

  • Wide MPP Tracker Range

  • Waterproof IP66 Enclosure

产品特点

产品型号
S2.MX2500-MIII S2.MX3000-MIII S2.MX3600-MIII S2.MX4000-MIII S2.MX4600-MIII S2.MX5000-MIII SX.MX6000-MIII

功率
2.8 kW 3.3 kW 4 kW 4.4 kW 5 kW 5 kW 6 kW

产品质量保证 (最低)
5 年 5 年 5 年 5 年 5 年 5 年 5 年

最大输入电压
550 V 600 V 600 V 600 V 600 V 600 V 600 V
最小输入电压
60 V 120 V 120 V 120 V 120 V 120 V 120 V
最大输入电流
28 A 28 A 28 A 28 A 28 A 28 A 38 A
MPP(T)电压范围
50~450 V 90~520 V 90~520 V 90~520 V 90~520 V 90~520 V 90~520 V
MPPT数量
2 2 2 2 2 2 2
直流输入连接端数
2 2 2 2 2 2 2
连接器
MC4 MC4 MC4 MC4 MC4 MC4 MC4

最大输出功率
2.8 kW 3.3 kW 4 kW 4.4 kW 5 kW 5 kW 6 kW
标称输出功率
2.5 kW 3 kW 3.6 kW 4 kW 4.6 kW
额定交流电压
11.4 V 16.6 V 16 V 18.2 V 20.9 V 22.7 V 27.3 V
最大输出电流
13.3 A 15.7 A 16 A 21 A 23.8 A 25 A 27.3 A
频率
50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz
功率因数 (cosθ)
1 1 1 1 1 1 1
总谐波失真 (THDi)
< 3 % < 3 % < 3 % < 3 % < 3 % < 3 % < 3 %
相数
1 1 1 1 1 1 1
最大效率
97.3 % 97.7 %
欧洲效率
96.5 % 97.1 %

尺寸(高/宽/厚)
543x310x160 mm 543x310x160 mm 543x310x160 mm 543x310x160 mm 543x310x160 mm 543x310x160 mm 543x310x160 mm
重量
11.5 kg 11.5 kg 11.5 kg 11.5 kg 11.5 kg 11.5 kg 11.5 kg
夜间损耗
< 1 W < 1 W < 1 W < 1 W < 1 W < 1 W < 1 W
噪音干扰级别
< 20 dB(A) < 20 dB(A) < 20 dB(A) < 20 dB(A) < 20 dB(A) < 20 dB(A) < 20 dB(A)
工作温度范围 -25 ~ +60 ℃
变压器 无变压器
防护等级 IP66
相对湿度 0-100 %
散热方式 自然冷却
最高运行海拔 4000 m
通讯接口 RS 485, Ethernet, WLAN

防护性能 反孤岛保护(ENS),短路保护,过压保护,过热保护,漏电保护设备(RCD),极性反接保护,直流断路设备,电网监测

下载公司产品详情
Datasheet
Ready for the Future of Solar?

Guaranteed Performance

Your investment is as sure as the sun will shine.

Autarco is the only manufacturer in the world that has an insured kWh guarantee for your solar system. If our system yields less than estimated beforehand, you get a cashback for every missed kWh. So you will get what you paid for, as sure as the sun will shine.

Increased Performance

Autarco systems perform 5% better.

Our dealers use intelligent software that not only covers design and offer but also asset management as well. No one does this. It is our way of helping customers reach their full potential.

How? Creating a digital twin in our software: a detailed digital copy of every individual Autarco solar system worldwide. Appropriate action is needed when the digital twin does not match the performance. You have to know what the full potential is at all times to be able to reach it.

Meet Your Moneymakers

Solar Panels

Autarco offers a complete range of Tier 1 quality solar panels. Our extensive quality control and in-house testing facilities guarantee that Autarco panels meet the highest quality standards. That is why we offer premium warranties, including our industry-unique insured kWh guarantee.

Inverters

We offer a complete range of high-efficiency, robust solar inverters that will silently and reliably work for you every day. From small 700W for residential applications up to 110kW units designed for the commercial rooftop and utility-scale segment, each inverter is designed to deliver the highest efficiency and reliability.

Energy Storage

Store solar energy for when the sun isn't shining

Autarco offers everything solar, including batteries to store excess solar energy. Our hybrid inverters support all major battery brands. To serve our customers, we offer our PV installers a selected range of high-quality, powerful, and safe batteries from world-leading battery manufacturers, so they can install your Autarco solar system, including storage capabilities.

Battery Inverters

Our smart hybrid and retrofit inverters are the brains of your home's energy requirements. Make every kWh count by storing excess solar power and using it when needed most, and provide backup against blackouts.

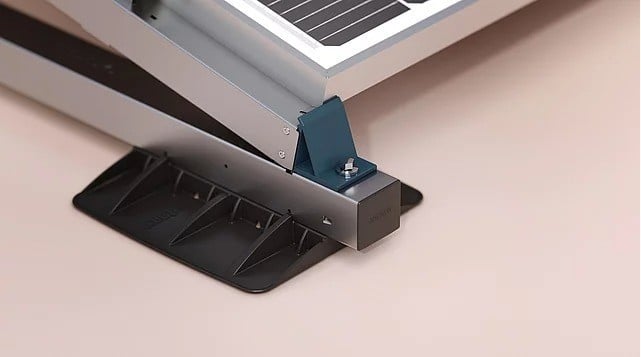

Mounting Systems

We offer a complete range of robust and easy-to-install solar mounting systems at the best price-quality ratio available. All components are made of high-grade aluminum or stainless / magnelis steel, and their high resistance to corrosion guarantees maximum service life and full recyclability.

Monitoring Solutions

We have a full range of monitoring solutions that are fundamental to helping your systems reach their full potential. Check your kWh production wherever you are, on any device, or at any time.

Software

Are you a PV installer and looking for ways to outperform the market? Our software offers a full suite of tools that make design and O&M as easy as possible while guaranteeing optimal performance.

Projects

Agro-Entrepreneur Invests in Sustainability with Help of SDE+

This 294 kWp solar PV system comprises 878 MHE series 335 Wp solar panels. The yield is inverted by 5 Autarco inverters of up to 60 kW. The MHE series is a highly innovative solar panel made from 120 half-cut cells with multi-wire technology. These panels no longer have busbars, resulting in superior reliability and high performance.

Solar Solution of 161 kWp at ebm-papst

The combination of Autarco inverters and solar panels enables ebm-papst to benefit from the unique kWh guarantee. Installer Jeroen Vlemmings used our innovative Helios software to define the system in exact dimensions. The software automatically calculates the expected yield of 139 MWh in the first year. The system is insured by the kWh guarantee foundation, and for every missed kWh, ebm-papst will receive financial compensation. The business case calculated beforehand will surely be met—a very safe and reliable investment.

Dealer Spotlight: Van Hout De Tongelreep Project

In cooperation with Van Hout, we have realized the Tongelreep project, which now has over 3000 Autarco solar panels on the Pieter van den Hoogenband swimming stadium. Our dealers state that they won the project thanks to their ability to give their customers a rock-solid business case.
