  1. 光伏逆变器产品名录
  2. PSA Series
PSA Series

PSA Series

上海普伟思特新能源技术有限公司
价 格：
起价 ¥0.712 / Wp *
起价 ¥5,820 / 台 *
类型： 离网
功率范围： 6~30 kW
地区： 中国大陆 中国大陆
联系生产商
注意： 您的询盘将直接发送至上海普伟思特新能源技术有限公司。

描述：

The photovoltaic control and inverter integrated machine is a new type of photovoltaic power generation device that organically combines a photovoltaic charge controller and an inverter.This series of integrated control and inverter power supplies is the first choice to solve the daily electricity consumption of residents in areas without public power grids or underdeveloped power grids.

产品特点

产品型号
GSA96-6KVA GSA192/220-6KVA GSA96-8KVA GSA192/220-10KVA GSA192/220-15KVA GSA200/220-20KVA GSA200/220-25KVA GSA200/220-30KVA
产品规格
功率
6 kW 6 kW 8 kW 10 kW 15 kW 20 kW 25 kW 30 kW
价格
¥5,820 / 台 * ¥7,830 / 台 * ¥8,190 / 台 * ¥10,700 / 台 *
质量保证
产品质量保证 （最低）
6 年 6 年 6 年 6 年 6 年 6 年 6 年 6 年
输入参数（直流）
最大输入功率
5.7 kW 12.8 kW 5.7 kW 12.8 kW 12.8 kW 25.6 kW 25.6 kW 25.6 kW
最大输入电压
300 V 480 V 300 V 480 V 480 V 480 V 480 V 480 V
额定直流电压
96 V 220 V 96 V 220 V 220 V 220 V 220 V 220 V
最小输入电压
120 V 270 V 120 V 270 V 270 V 270 V 270 V 270 V
最大输入电流
50 A 50 A 50 A 50 A 50 A 100 A 100 A 100 A
MPP(T)电压范围
110~280 V 265~450 V 110~280 V 265~450 V 265~450 V 265~450 V 265~450 V 265~450 V
连接器
MC4 MC4 MC4 MC4 MC4 MC4 MC4 MC4
输出参数（交流）
最大输出功率
6 kW 6 kW 8 kW 10 kW 15 kW 20 kW 25 kW 30 kW
交流电压范围
110~220 V 110~220 V 110~220 V 110~220 V 110~220 V 110~220 V 110~220 V 110~220 V
频率
50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz
总谐波失真 （THDi）
< 2 % < 2 % < 2 % < 2 % < 2 % < 2 % < 2 % < 2 %
最大效率
95 % 95 % 95 % 95 % 95 % 95 % 95 % 85 %
一般参数
尺寸（高/宽/厚）
650x310x770 mm 650x310x770 mm 650x310x770 mm 650x310x770 mm 650x310x770 mm 690x405x980 mm 690x405x980 mm 690x405x980 mm
重量
55 kg 55 kg 55 kg 55 kg 100 kg 135 kg 135 kg 155 kg
噪音干扰级别
< 50 dB(A) < 50 dB(A)
环境温度范围 -10 ~ +50 ℃
防护等级 IP20
相对湿度 0-95 %
散热方式 风扇冷却
最高运行海拔 1000 m
通讯接口 Ethernet, WLAN
显示屏 LCD
防护性能
防护性能 反孤岛保护（ENS），短路保护，过载保护，过压保护，过流保护，过热保护，漏电保护设备（RCD），极性反接保护，浪涌保护，直流断路设备，接地故障监测，绝缘监测，电网监测
PDF
下载公司产品详情

PV INVERTER & CONTROLLER INTEGRATED MACHINE（Single-phase power frequency）

Product introduction:

The photovoltaic control and inverter integrated machine (hereinafter referred to as the inverter control integrated machine) is a new type of photovoltaic power generation device that organically combines a photovoltaic charge controller and an inverter.

It consists of a charge controller, an inverter and a protection circuit, and the output is a pure sine wave voltage. It has the advantages of small total installation space, few connection lines, safety and reliability.

Photovoltaic charge controller is a high-performance step-down device that uses MPPT (Maximum Power Point Tracking) algorithm to make full use of solar photovoltaic energy. The PV input voltage range is wide, which can charge a variety of batteries, and the three-stage charging effectively improves the life of the battery.

This series of integrated control and inverter power supplies is the first choice to solve the daily electricity consumption of residents in areas without public power grids or underdeveloped power grids.

Performance characteristics:

  1. MPPT charge controller (500W and 1000W are PWM controllers), with high utilization of photovoltaic modules

  2. Three-stage charging, effectively prolonging the life of the battery

  3. It has the functions of power generate record, Event recording,Time switch, Auto sleep function

  4. Photovoltaic priority or utility power priority mode can be set by users

  5. Pure sine wave output & completely protection

  6. Low frequency circuit design,good system reliability, low breakdown rates and long life time

  7. Higher ability to anti-attack from the loads

  8. With AC interface/Diesel input interface(Optional)

  9. AC charger function (Optional)

上海普伟思特新能源技术有限公司

Click to show company phone
www.pv-system.net
中国大陆
上海市闵行区颛兴东路1559号101-2A
员工数： 200
联系生产商
注意： 您的询盘将直接发送至上海普伟思特新能源技术有限公司。

有用联系人

公司描述

PVSYS Energy Group Ltd has been the professional manufacturer of solar panels, and solar storage systems in the market for more than 13 years. With our newest technology of Topcon, HJT, and HPBC, our customers can get higher efficiency with the best performance throughout the lifespan of the solar panel. Our solar storage system comes with a built-in solar hybrid inverter, MPPT controller, and LifePO4 battery with BMS (Battery Management System). PVSYS IP54-IP65 outdoor integrated energy storage system can be configured with 80KWH-1MWH LifePO4 battery, it can be used in No-power areas, and it also helps our customers to save their energy bill. We are offering the customization of our solar system based on different needs from our customers. We believe that "a suitable one for you!" We have acquired the certificates of CE, IEC61215-1-1:2021, IEC61730-1:2018, IEC 61730-2:2018, and Fire Safety Class. With high-quality solar products and the best service, we have delivered our solar panels and solar systems to more than 50 countries and areas, such as Italy, Germany, Sweden, Spain, England, Dubai, South Africa, New Zealand, Australia, Japan, Indonesia, Iraq, etc. We always say "Quality is Our Life", but without good quality, we cannot go any further. We believe with our efforts, we can make the world better.

产品视频

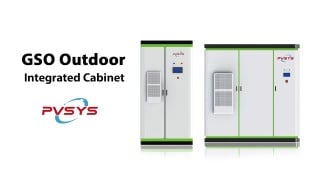

GSO Outdoor Inte...
