1. 光伏逆变器产品名录
  2. STH5-12KTH
STH5-12KTH

STH5-12KTH

Sonnex Energie GmbH
价 格：
起价 ¥1.07 / Wp *
起价 ¥11,900 / 台 *
类型： 混合
功率范围： --
地区： 德国 德国
联系生产商
注意： 您的询盘将直接发送至Sonnex Energie GmbH。

描述：

  • Fast charging/discharging is used to meet the demand for higher consumption.

  • Remote firmware update and customizable settings.

  • Unique plug-in connectors for time-saving installation.

  • Free online monitoring enhances energy management for end users, installers, and retailers.

产品特点

产品型号
STH5KTH STH8KTH STH10KTH STH12KTH STH6KRH
质量保证
产品质量保证 （最低）
10 年 10 年 10 年 10 年 10 年
输入参数（直流）
最大输入功率
7.5 kW 10 kW 15 kW 18 kW 9 kW
最大输入电压
1000 V 1000 V 1000 V 1000 V 1000 V
额定直流电压
600 V 600 V 600 V 600 V 600 V
最小输入电压
135 V 135 V 135 V 135 V 135 V
最大输入电流
16 A 16 A 16 A 16 A 16 A
MPP(T)电压范围
135~900 V 135~900 V 135~900 V 135~900 V 135~900 V
MPPT数量
2 2 2 2 2
直流输入连接端数
1 1 1 2 2
连接器
MC4 MC4 MC4 MC4 MC4
输出参数（交流）
标称输出功率
5 kW 8 kW 10 kW 12 kW 6 kW
交流电压范围
200~240 V 200~240 V 200~240 V 200~240 V 200~240 V
标称交流电压
220, 230 V 220, 230 V 220, 230 V 220, 230 V 220, 230 V
最大输出电流
9.8 A 15.8 A 19.7 A 23.6 A 11.8 A
频率
50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz
功率因数 (cosθ)
0.8 0.8 0.8 0.8 0.8
总谐波失真 （THDi）
< 3 % < 3 % < 3 % < 3 % < 3 %
相数
3 3 3 3
最大效率
97.6 % 97.6 % 97.6 % 97.6 % 97.6 %
欧洲效率
97 % 97 % 97 % 97 % 97 %
一般参数
尺寸（高/宽/厚）
516x442x222 mm 516x442x222 mm 516x442x222 mm 516x442x222 mm 516x442x222 mm
重量
24 kg 24 kg 24 kg 24 kg 24 kg
噪音干扰级别
< 30 dB(A) < 30 dB(A) < 30 dB(A) < 30 dB(A) < 30 dB(A)
工作温度范围 -30 ~ +60 ℃
防护等级 IP65
散热方式 自然冷却
最高运行海拔 4000 m
通讯接口 RS 485, USB, WLAN
显示屏 LED
防护性能
防护性能 反孤岛保护（ENS），短路保护，过载保护，过压保护，过流保护，过热保护，漏电保护设备（RCD），极性反接保护，浪涌保护，直流断路设备，接地故障监测，绝缘监测，电网监测
PDF
下载公司产品详情

About Us

Sonnex is focusing on solar module development and manufacturing with more than 2GW annual capacity, which is equipped with highly automatic production lines. With its headquarters in Germany, Sonnex stands for products that meet the highest quality standards of tomorrow. We only use the most recent cell technologies and go for a sublime finish.

Thanks to this approach, Sonnex offers extremely reliable modules with strong market performance.At Sonnex we have designed our product range in such a way that you will find a solution for every installation or project. We distinguish ourselves from other brands by our focus on quality, aesthetics, and sustainability.

Sonnex product types include PERC half-cell modules (405~605W), higher efficiency N-type TOPCon (420W~630W), IBC modules (390~430W) and smart solar modules with the highest module efficiency above 22%. Bifacial dual-glass modules and all-black solar modules are available for different project applications.

Sonnex Energie offers up to 30 years product warranty and 30 years power warranty.

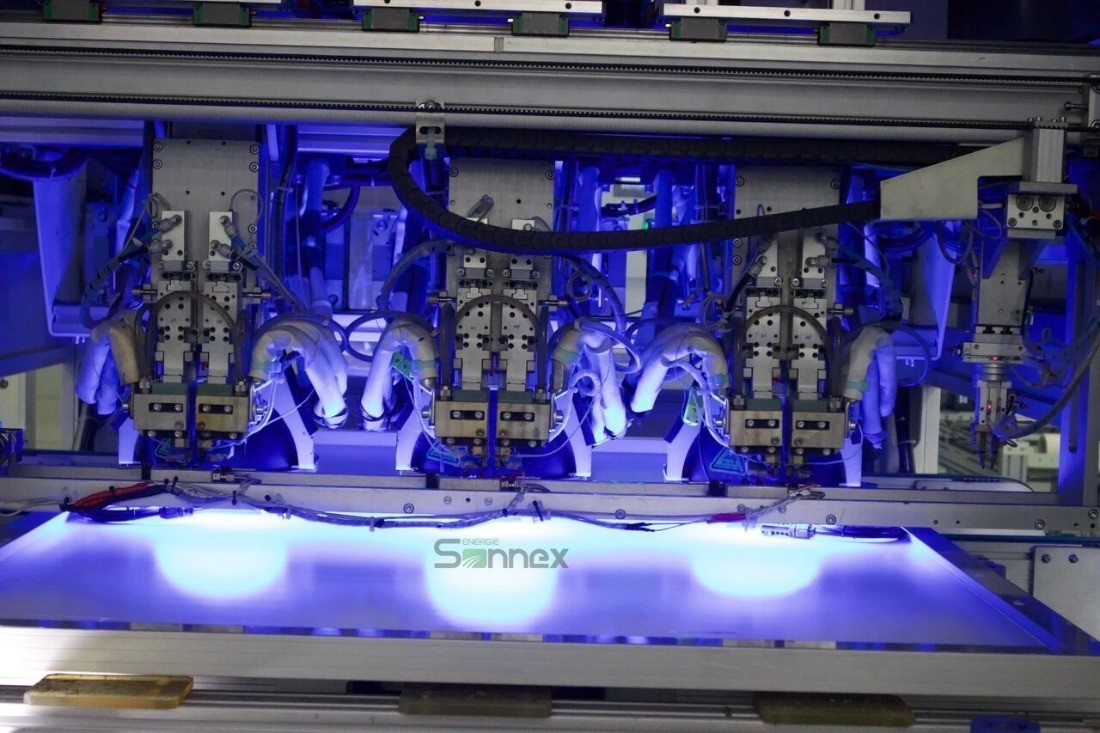

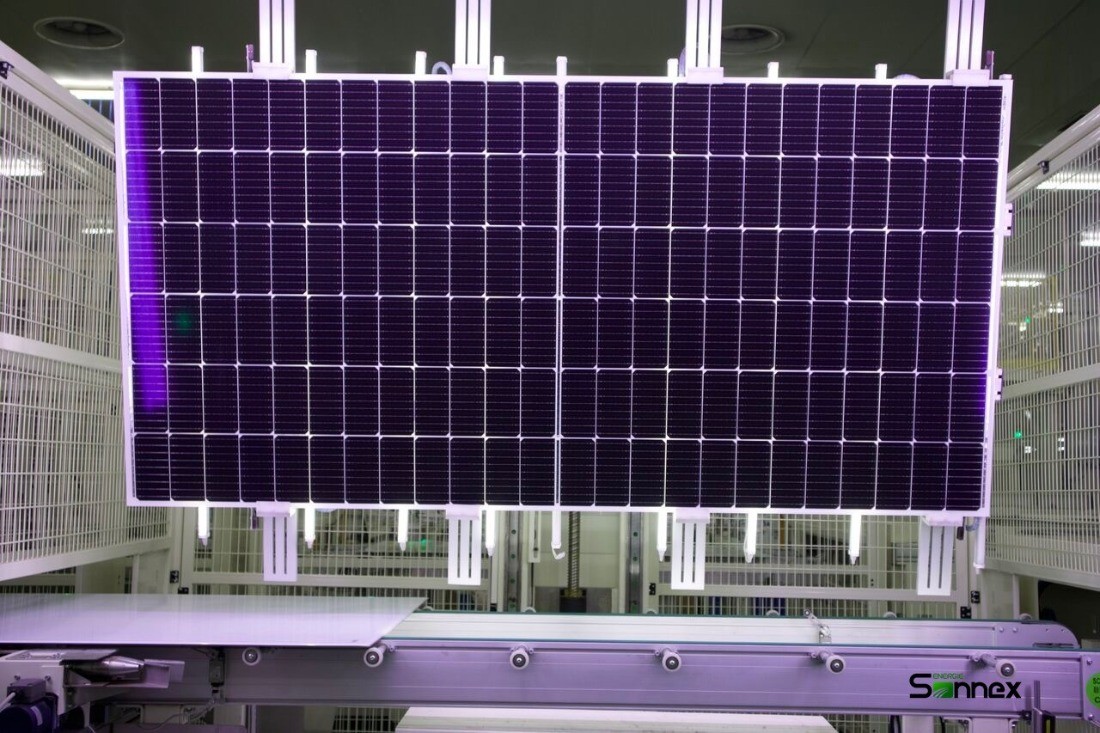

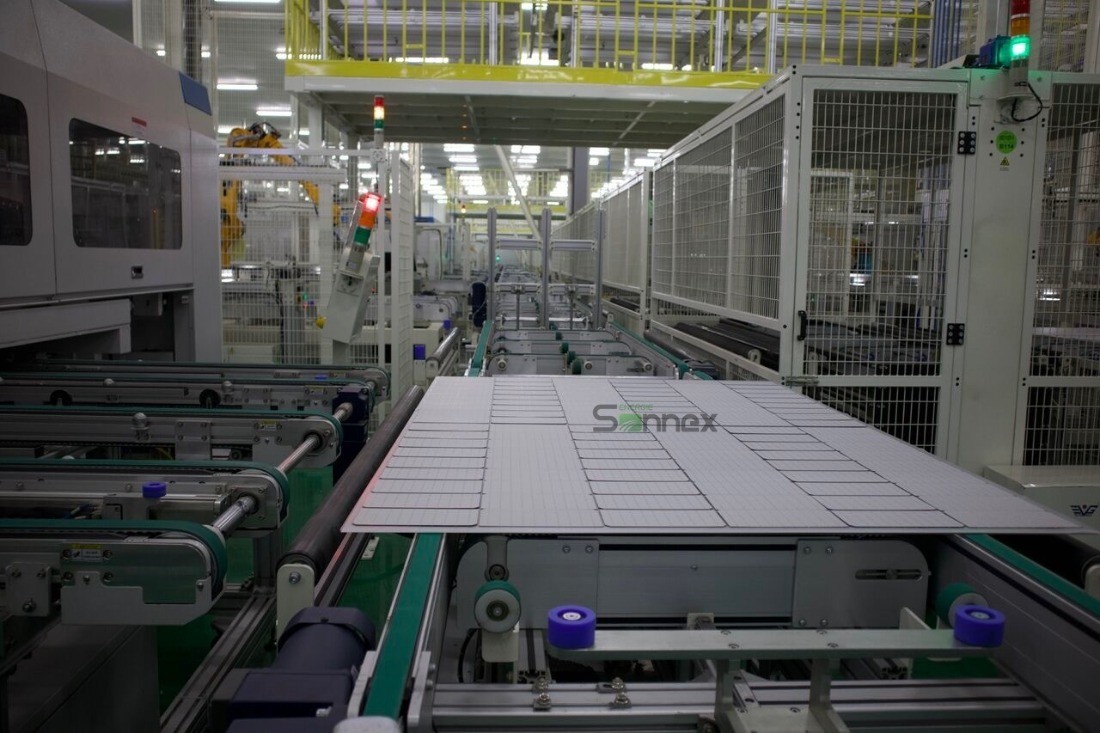

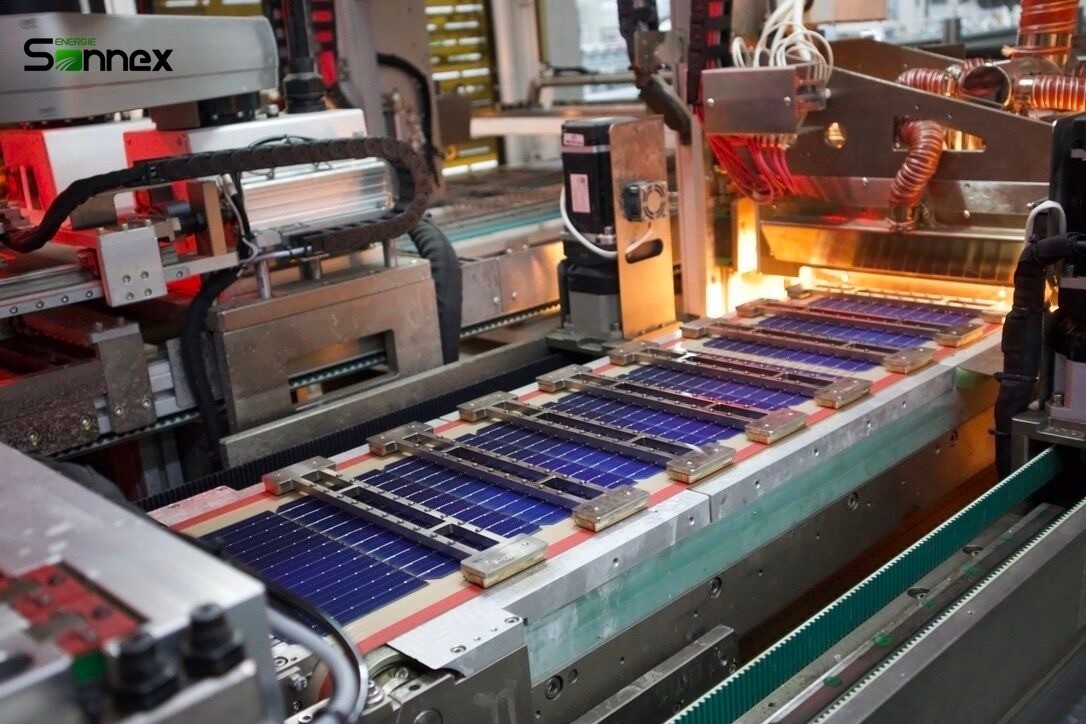

Production

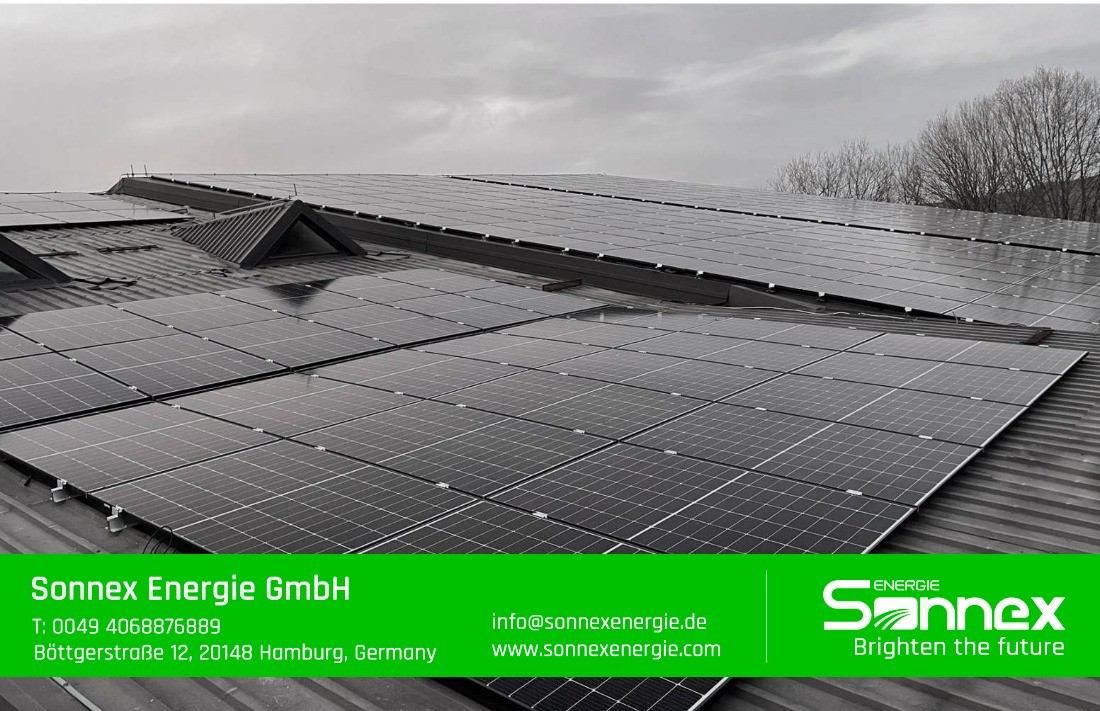

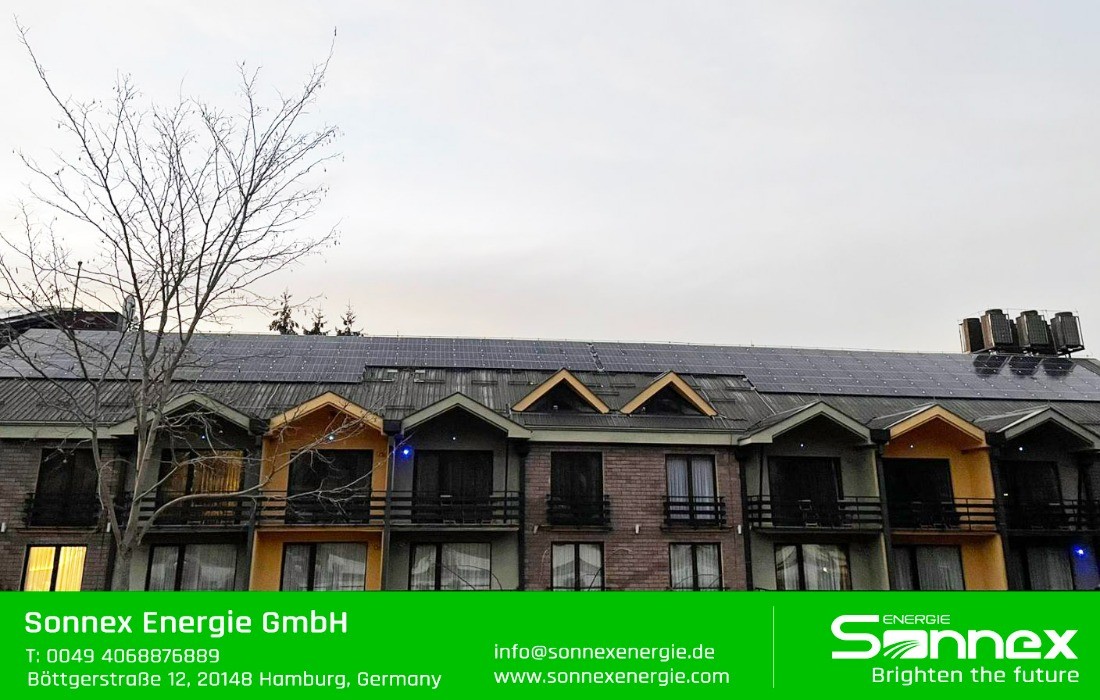

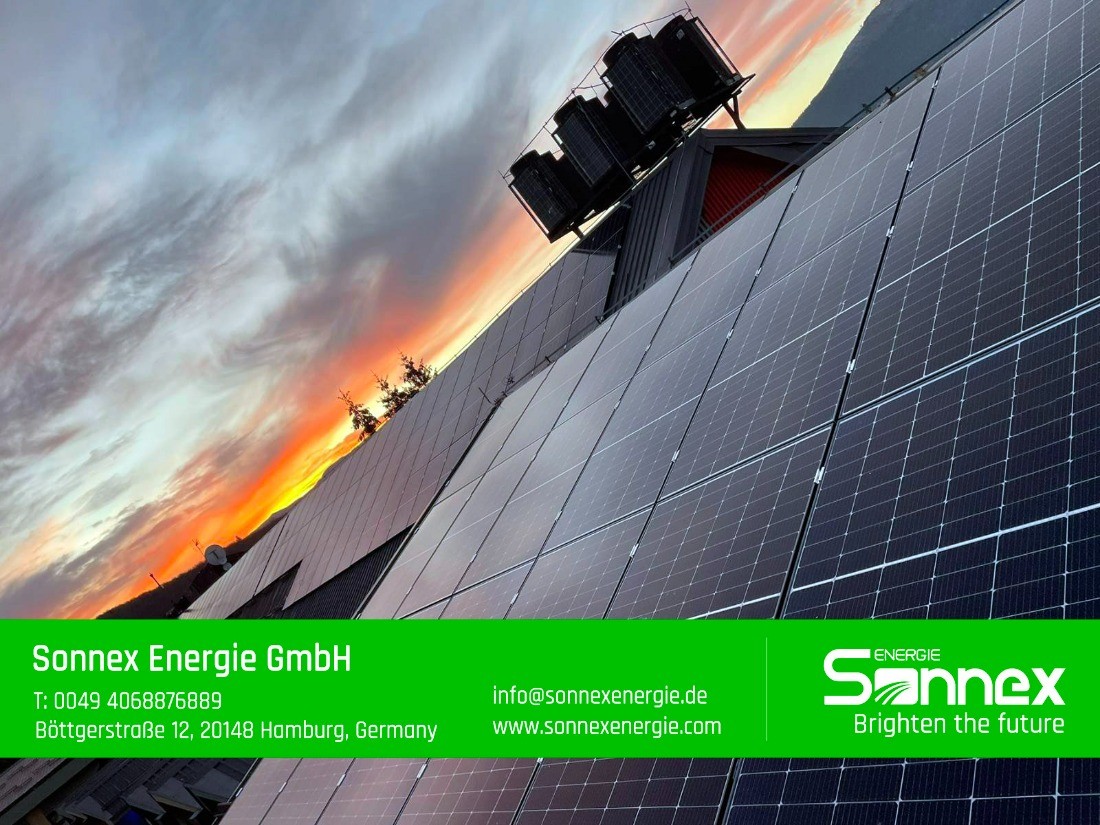

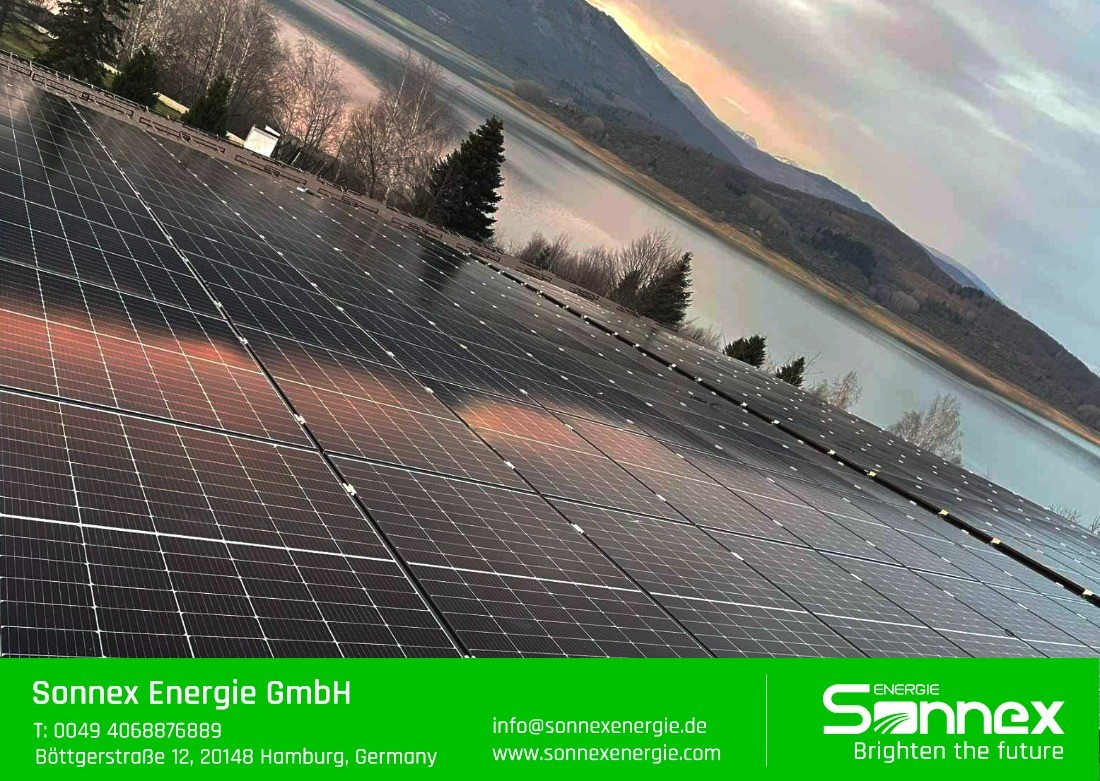

Projects

Sonnex Energie GmbH

Click to show company phone
https://www.sonnexenergie.com
德国
Gebäude 571, Cargo City Süd, 60549 Frankfurt am Main
联系生产商
注意： 您的询盘将直接发送至Sonnex Energie GmbH。

有用联系人

公司描述

Sonnex Energie is a leading German company specializing in cutting-edge solar energy solutions. With a strong foundation in Germany’s renowned engineering excellence, we deliver high-performance photovoltaic (PV) modules, energy storage systems, and inverters that meet the most stringent quality and reliability standards. Our products are designed and manufactured to uphold the exceptional durability and efficiency associated with German craftsmanship, ensuring superior performance in all environments. At Sonnex Energie, we combine innovation with precision, empowering our customers worldwide to achieve sustainable energy solutions with the trust and reliability of a premium quality product.
