V Series Hybrid Inverter

Name: V Series Hybrid Inverter
Brand: 上海派智能源股份有限公司
SKU: 19929
Price: 0.08750 USD
Availability: InStock

上海派智能源股份有限公司

类型

混合

工作温度范围

-25 ~ +60 ℃

地区

中国大陆

重量

50 ~ 78 kg

产品质量保证

10 年

功率范围

8 ~ 15 kW

频率

50Hz, 60Hz

效率

93 ~ 96 %

防护等级

IP65

相数

三相

MPP(T)电压范围

150~850 ~ 350~950 V

每件价格每件价格
最低订购量	1-499 件	500+ 件
V3PL8K	¥8,490	¥6,720
V3PL10K	¥8,490	¥6,720
V3PL12K	¥9,190	¥7,430
V3PL15K	¥11,300	¥9,550

联系生产商

注意： 您的询盘将直接发送至上海派智能源股份有限公司。

仓库:

仓库地点：	斯海恩德尔
型号	功率(kW)	库存量(件)	联系生产商
V3PL8K	8	30
V3PL10K	10	20
V3PL12K	12	30
V3PL15K	15	10

产品信息
公司档案页

产品特点

产品型号

V3PL8K

V3PL10K

V3PL12K

V3PL15K

功率

8 kW

10 kW

12 kW

15 kW

产品质量保证（最低）

10 年

最大输入功率

12 kW

15 kW

18 kW

22.5 kW

最大输入电压

900 V

1000 V

标称输入电压

720 V

最大输入电流

15 A

18 A

27 A

26 A

额定直流电流

15 A

18 A

26 A

MPP(T)电压范围

150~850 V

350~950 V

MPPT数量

最大输出功率

8 kW

10 kW

12 kW

15 kW

交流电压范围

184~265 V

标称交流电压

230, 400 V

最大输出电流

66 A

65.1 A

额定交流电流

66 A

65.1 A

频率范围

47.5-51.5 Hz

频率

50, 60 Hz

相数

最大效率

93 %

96 %

欧洲效率

95 %

尺寸（高/宽/厚）

247x500x650 mm

255x660x750 mm

重量

50 kg

54 kg

78 kg

工作温度范围

-25 ~ +60 ℃

防护等级

IP65

相对湿度

0-100 %

最高运行海拔

1000 m

通讯接口

RS 232, RS 485, USB, Bluetooth

显示屏

LCD

防护性能

反孤岛保护（ENS），短路保护，过载保护，过压保护，过流保护，过热保护，漏电保护设备（RCD），极性反接保护，浪涌保护，直流断路设备，接地故障监测，绝缘监测，电网监测

下载公司产品详情

数据表

Product Summary

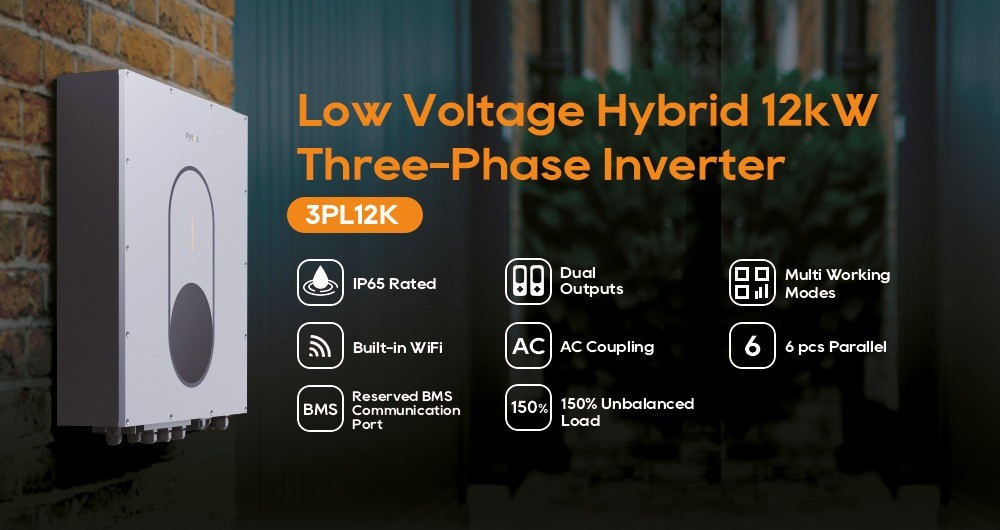

Pytes V3PL(10-15)K (10-15)KW Hybrid Solar Inverter – Smart Energy at Your Fingertips

The Pytes V3PL(10-15)K is a high-performance (10-15)KW hybrid inverter designed to meet the energy storage needs of residential and small commercial systems. Featuring IP65 waterproof protection, dual AC inputs, and intelligent load management, it ensures stable power supply under various conditions. With built-in WiFi monitoring, scalable parallel operation, and customizable charging settings, this inverter offers a flexible, reliable, and future-proof solution for off-grid and hybrid solar applications.

IP65 Water and Dust Resistance

Designed to withstand outdoor environments, ensuring long-term durability and stable performance even in harsh weather conditions.

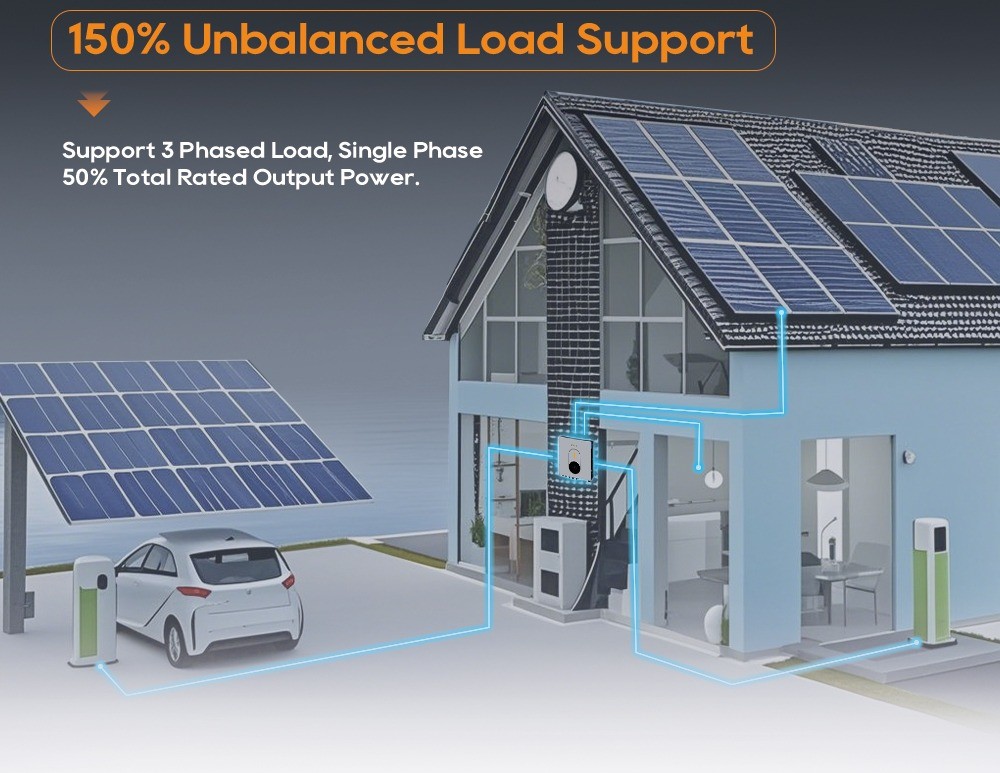

150% Unbalanced Load Support

Easily handles asymmetric household or industrial loads, providing greater system flexibility and power continuity.

Dual AC Input with Automatic Switching

Supports connections to both grid and generator sources; automatically switches for uninterrupted operation.

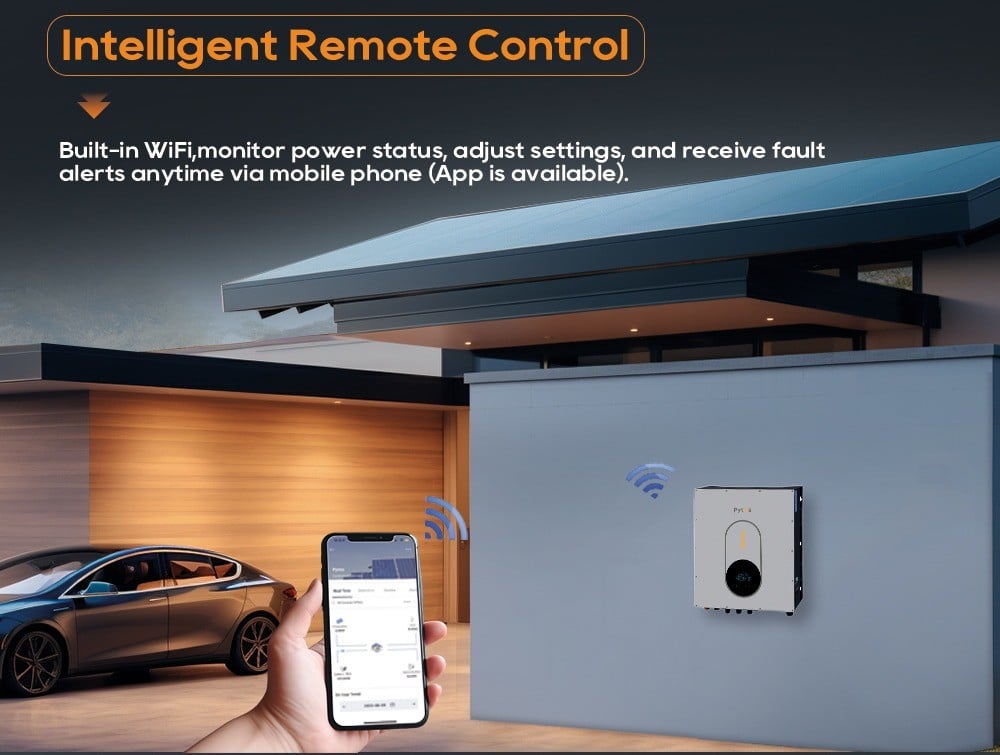

Built-in WiFi Monitoring

Monitor inverter performance in real-time via a dedicated mobile app—no additional devices required.

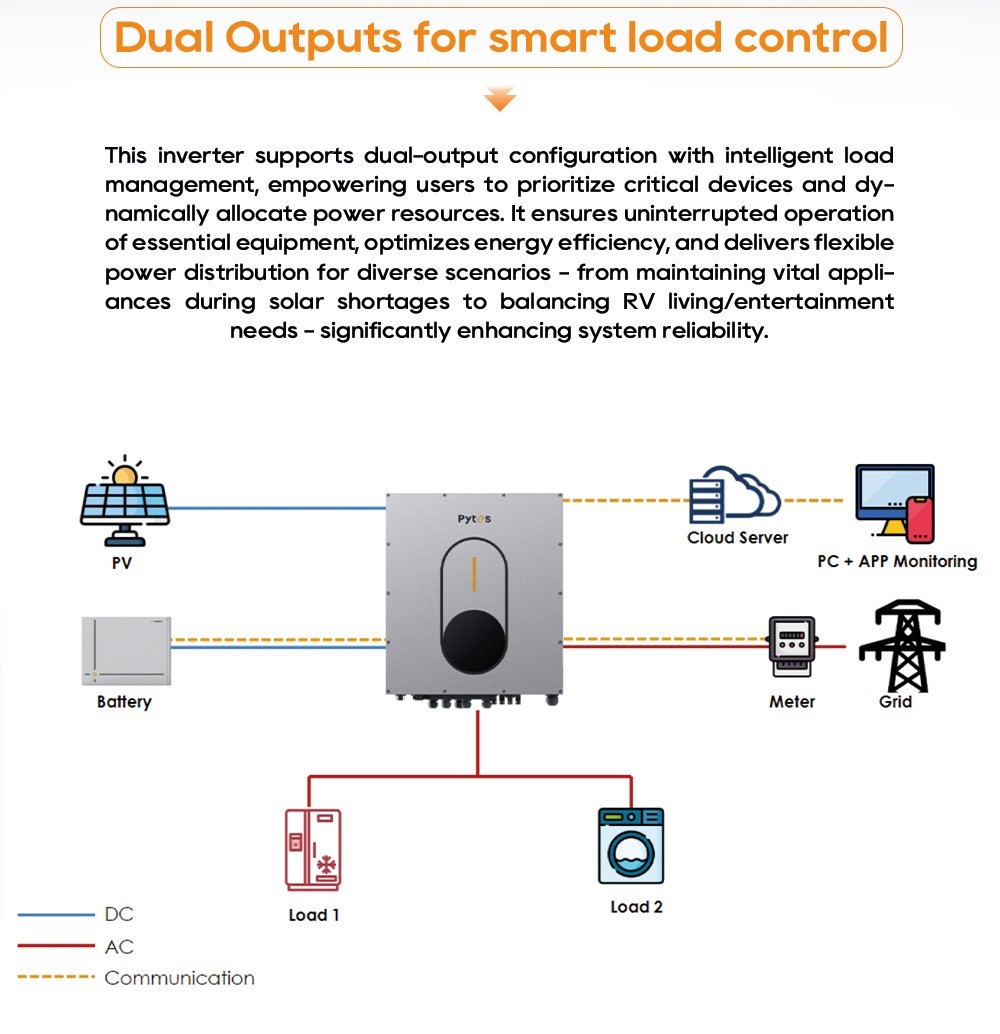

Dual Output for Load Control

Enables smart load separation, prioritizing essential loads and optimizing battery usage.

Adjustable Charging Parameters

Customize charging current and voltage based on battery specifications to maximize battery life and efficiency.

RS485 Communication for BMS

Ensures seamless communication with lithium battery BMS systems for enhanced safety and performance.

Parallel Scalability up to 6 Units

Easily expand system capacity by connecting up to 6 inverters in parallel—ideal for growing power demands.
