Fronius Galvo

Fronius International GmbH
价 格:
起价 ¥5.50 / Wp *
类型: 并网
功率范围: 1.5~3.1 kW
地区: 奥地利 奥地利
注意: 您的询盘将直接发送至Fronius International GmbH

替代产品

SPO-M Series (...

厦门科华恒盛股份有限公司
  • 类型: 离网
  • 产品质量保证: --
  • 防护等级: --
  • 尺寸: 850x800x1600 mm
  • 重量: 360 kg
  • 最大输入功率: --
  • 最大输入电压: --
  • 最大输入电流: --
  • MPP(T)电压范围: 420~850 V
  • MPPT数量: 1
  • 最大输出功率: 20 kW
  • 频率: 50,60 Hz
  • 最大效率: --
  • 欧洲效率: --
  • 相数: 3

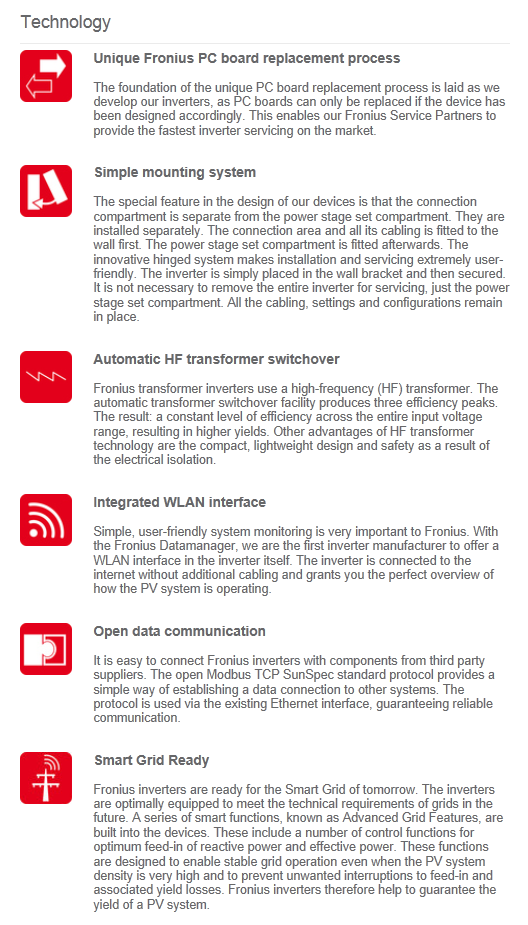

产品特点

产品型号
Fronius Galvo 1.5-1 Fronius Galvo 2.0-1 Fronius Galvo 2.5-1 Fronius Galvo 3.0-1 Fronius Galvo 3.1-1
产品规格
功率
1.5 KW 2 KW 2.5 KW 3 KW 3.1 KW
价格
¥8250 / 台 * ¥11000 / 台 * ¥13800 / 台 * ¥16500 / 台 * ¥17100 / 台 *
质量保证
产品质量保证
5 年 5 年 5 年 5 年 5 年
输入参数(直流)
最大输入功率
1.58 kW 2.14 kW 2.63 kW 3.21 kW 3.32 kW
最大输入电压
420 V 420 V 550 V 550 V 550 V
标称输入电压
260 V 260 V 330 V 330 V 330 V
最小输入电压
120 V 120 V 165 V 165 V 165 V
最大输入电流
13.3 A 17.8 A 16.6 A 19.8 A 20.7 A
MPP(T)电压范围
120~335 V 120~335 V 165~440 V 165~440 V 165~440 V
MPPT数量
1 1 1 1 1
输出参数(交流)
最大输出功率
1.5 kW 2 kW 2.5 kW 3 kW 3.1 kW
标称输出功率
1.5 kW 2 kW 2.5 kW 3 kW 3.1 kW
交流电压范围
180~270 V 180~270 V 180~270 V 180~270 V 180~270 V
标称交流电压
230 V 230 V 230 V 230 V 230 V
最大输出电流
6.5 A 8.7 A 10.9 A 13 A 13.5 A
频率范围
45-65 Hz 45-65 Hz 45-65 Hz 45-65 Hz 45-65 Hz
频率
50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz
总谐波失真 (THDi)
< 4 % < 4 % < 4 % < 4 % < 4 %
相数
1 1 1 1 1
最大效率
95.9 % 96 % 96.1 % 96.1 % 96.1 %
欧洲效率
94.5 % 94.9 % 95.2 % 95.4 % 95.4 %
AC输出连接
Screw Screw Screw Screw Screw
一般参数
尺寸(高/宽/厚)
645x431x204 mm 645x431x204 mm 645x431x204 mm 645x431x204 mm 645x431x204 mm
重量
16.4 kg 16.4 kg 16.8 kg 16.8 kg 16.8 kg
夜间损耗
< 1 W < 1 W < 1 W < 1 W < 1 W
环境温度范围 -25 ~ +50 ℃
变压器 High Frequency-Transformer
防护等级 IP65
相对湿度 0-100 %
散热方式 自然冷却
最高运行海拔 3500 m
通讯接口 RS 485, Ethernet, USB, WLAN
认证
PDF
下载公司产品详情

Fronius International GmbH

Wartberger Straße 11, A-4643 Pettenbach
员工数: 2400
给该供应商发送信息
Fronius has been engaged in solar electronics since 1992, in particular in the development and production of photovoltaic inverters for both grid-connected and independent power supplies. Meanwhile we have a large number of renowned manufacturers and wholesalers of solar modules amongst our satisfied customers. Thanks to solar electronics Fronius has advanced to the ranks of the worldwide leading manufacturers and continues to develop its position through ongoing product innovations. State-of-the-art technology in high-performance electronics, a higher level of integration through the use of high-capacity processors and the interconnection of stand-alone devices by using modern means of communication are the key to our success. Fronius is optimally prepared in each of these fields.
Our rapidly growing team in solar electronics is well aware of the importance of our involvement in re-designing the energy supply for the future. This job makes sense - which is what we experience day by day in the working climate and the high level of commitment of our staff.
Fronius Solar Electronics stands for quality and high-tech to generate, convert and harness energy in a regenerative way.
