NESE 310-330-60M/MV PERC

NESE 310-330-60M/MV PERC

New East Solar Energy (Cambodia) Co., Ltd.
类型: 背钝化
功率范围: 310 ~ 330 Wp
地区: 柬埔寨 柬埔寨
注意: 您的询盘将直接发送至New East Solar Energy (Cambodia) Co., Ltd.

描述:

● High efficiency PERC
● 0-5W tolerance
● Excellent performance with weak light
● Wind/Snow load
● Pid Free
● Resistance of extreme environment conditions

产品特点

产品型号
NESE 310-60M/MV NESE 315-60M/MV NESE 320-60M/MV NESE325-60M/MV NESE330-60M/MV
质量保证
产品质量保证 12 年
功率输出保证 10年期92.5%输出功率保证,25年期84.3%输出功率保证
电性能参数(STC)
峰值功率 (Pmax)
310 Wp 315 Wp 320 Wp 325 Wp 330 Wp
峰值工作电压(Vmpp)
32.9 V 33.1 V 33.3 V 33.5 V 33.7 V
峰值工作电流(Impp)
9.43 A 9.52 A 9.61 A 9.71 A 9.8 A
开路电压(Voc)
40.1 V 40.3 V 40.5 V 40.7 V 40.9 V
短路电流(Isc)
9.95 A 10.05 A 10.15 A 10.25 A 10.35 A
组件效率
18.58 % 18.88 % 19.18 % 19.48 % 19.78 %
功率偏差(正)
+ 3 % + 3 % + 3 % + 3 % + 3 %
  标准测试条件(STC):太阳能辐射通量1000W/m2,大气参数1.5,组件温度25℃。
电性能参数(NOCT)
峰值功率 (Pmax)
229 Wp 233 Wp 237 Wp 240 Wp 244 Wp
峰值工作电压(Vmpp)
30.4 V 30.6 V 30.7 V 30.9 V 31.1 V
峰值工作电流(Impp)
7.55 A 7.62 A 7.7 A 7.78 A 7.86 A
开路电压(Voc)
37.1 V 37.3 V 37.5 V 37.6 V 37.8 V
短路电流(Isc)
8.04 A 8.12 A 8.2 A 8.28 A 8.366 A
最大耐久温度
45±2 °C 45±2 °C 45±2 °C 45±2 °C 45±2 °C
  电池片标称工作温度(NOCT):太阳能辐射通量800W/m2,大气参数1.5,环境温度20℃,风速1 m/s。
温度特性
工作温度 -40~85 °C
温度系数(Pmax) -0.36 %/°C
温度系数(Voc) -0.27 %/°C
温度系数(Isc) 0.04 %/°C
系统集成参数
最大系统电压 1500 V
保险丝额定电流 20 A
物理参数

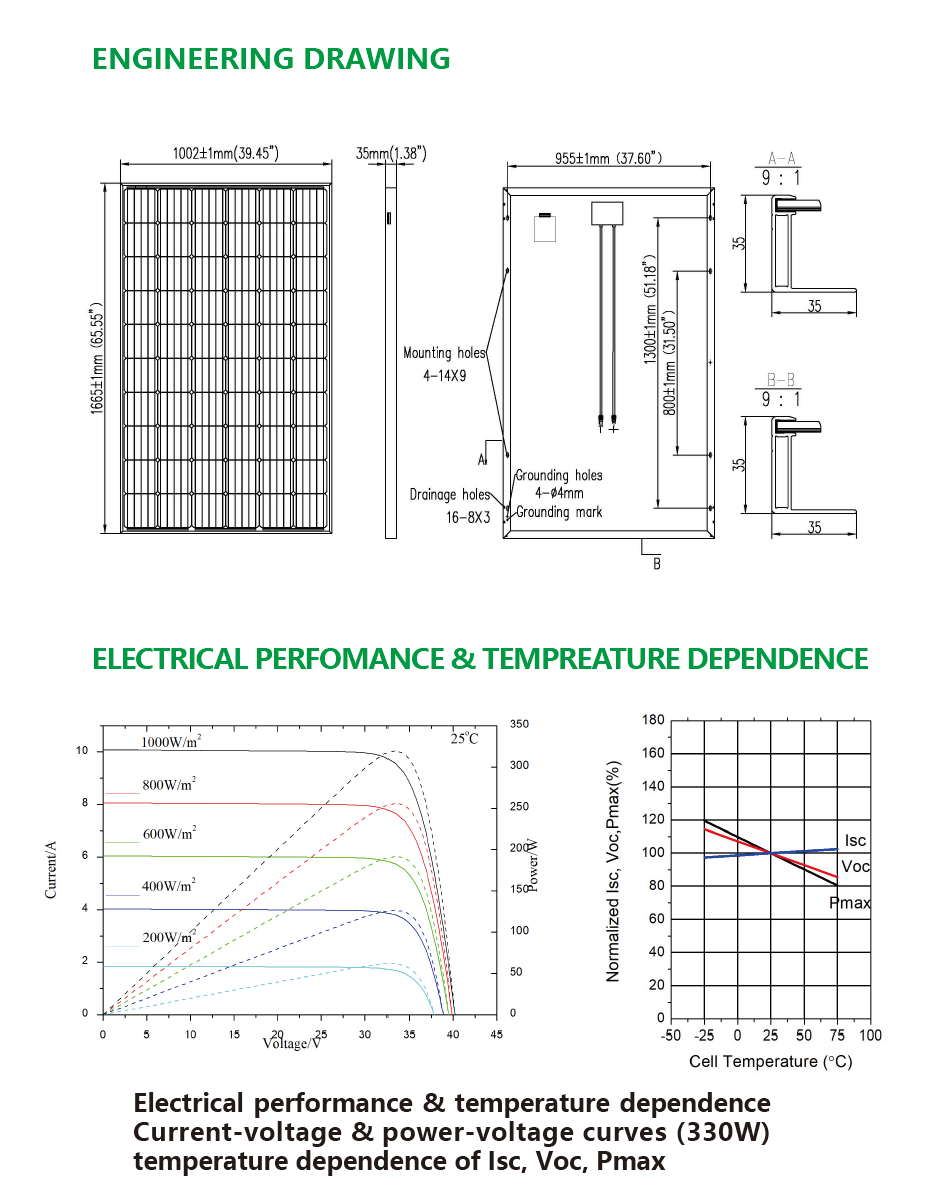

组件尺寸(高/宽/厚) 1665x1002x35 mm
重量 18.5 kg
电池片类型 背钝化
电池片规格 158.75×158.75 mm
电池片数量 60
玻璃类型 钢化,防反射镀膜,高透明,低铁
玻璃厚度 3.2 mm
边框类型 阳极氧化铝合金
接线盒防护等级 IP 67
电缆长度 1200 mm
PDF
下载公司产品详情

Company Profile

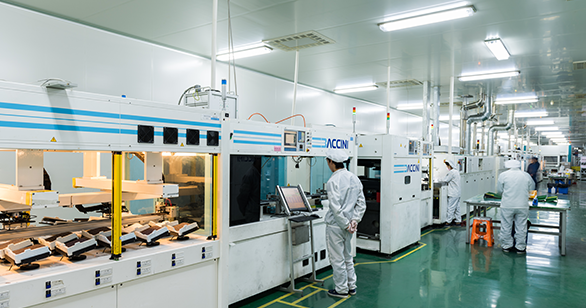

The New East Solar Cambodia (NE Solar), a Cambodian solar cell and solar module manufacturer, specializing in Mono/Poly PERC solar cell and solar module, the factory and headquarter is located in Phnom Penh, Cambodia, and the other 2 offices are in Los Angeles, U.S. and Shanghai CN. Based on North America as the main market, Mono/Poly PERC solar cell and solar module are our mainstream products regarding to match the market trend.



Product Features


● High efficiency PERC
A high efficiency PERC solar cell with 5 busbar technology to ensure the efficiency of the solar module up to 19.78% and stable operation.

● 0-5W tolerance
0- 5W positive power tolerance.

● Excellent performance with weak light
More power output with a weak light condition-through advanced glass and solar cells.

● Wind/Snow load
Wind load 2400 pa, snow load 5400 pa.

● Pid Free
Excellent Anti-PID performance, minimized the degradation of power.

● Resistance of extreme environment conditions
High Salt Mist and Ammonia resistance certified by TUV.


● Management System Certifications

Iso 9001:2015/quality Management System Iso 14001:2015/standards For Environmental Management System


● Product Certifications

IEC 61215/IEC 61730:VDE/CE/CEC AU

UL 61730:CSA
