RS6I-M 390-410W

瑞兴源光伏科技有限公司

每件价格
最低订购量	2000-9999 件	10000+ 件
交货时间	28 days	28 days
MY-M12/120-575W	¥402	¥394
MY-M12/120-580W	¥402	¥394
MY-M12/120-585W	¥402	¥394

注意： 您的询盘将直接发送至无锡茂耀光伏科技有限公司。

背钝化 (PERC)

555-575 Wp

19.61 % - 20.32 %

2172x1303x35 mm

3.2 mm

22.5 kg

产品质量保证

功率输出保证

84.8 % 30年年限质保

19.38 % - 20.38 %

2008x1002x40 mm

3.2 mm

温度系数（Pmax）

-0.39 %/°C

电池片数量

联系生产商

该产品不再生产。

1. 通过CE，TUV IEC61215和IEC61730，VDE，CEC认证和PID-free认可。
2. 品质稳定可靠，性价比高，由美国丘博保险集团提供保险。
3. 正公差为0-+6W。
4. 快速交付。

产品信息
公司档案页

产品特点

类型

单晶硅

产品型号

390W

395W

400W

405W

410W

产品质量保证

12 年

功率输出保证

84.8 % 30年年限质保

0.51 %

功率偏差

0 ~ +1.3 %

电性能参数（STC）

峰值功率（Pmax）

390 Wp

395 Wp

400 Wp

405 Wp

410 Wp

峰值工作电压（Vmpp）

41.1 V

41.4 V

41.7 V

42 V

42.3 V

峰值工作电流（Impp）

9.49 A

9.55 A

9.6 A

9.65 A

9.69 A

开路电压（Voc）

49.3 V

49.5 V

49.8 V

50.1 V

50.4 V

短路电流（Isc）

10.12 A

10.23 A

10.36 A

10.48 A

10.6 A

组件效率

19.38 %

19.63 %

19.88 %

20.13 %

20.38 %

电性能参数（NOCT）

峰值功率（Pmax）

294 Wp

298 Wp

303 Wp

307 Wp

310 Wp

峰值工作电压（Vmpp）

39.1 V

39.3 V

39.6 V

39.8 V

40 V

峰值工作电流（Impp）

7.54 A

7.6 A

7.66 A

7.72 A

7.76 A

开路电压（Voc）

48 V

48.2 V

48.5 V

48.7 V

48.9 V

短路电流（Isc）

8.02 A

8.09 A

8.16 A

8.22 A

8.26 A

最大耐久温度

45±2 °C

工作温度

-40 - 85 °C

温度系数（Pmax）

-0.39 %/°C

温度系数（Voc）

-0.32 %/°C

温度系数（Isc）

0.05 %/°C

最大系统电压

1500 V

保险丝额定电流

20 A

组件尺寸（高/宽/厚）

2008x1002x40 mm

重量

22.5 kg

电池片规格

158.75×158.75 mm

电池片数量

144

玻璃类型

钢化

玻璃厚度

3.2 mm

边框类型

阳极氧化铝

旁路二极管数

接线盒防护等级

IP 68

连接器类型

MC4

电缆截面

4 mm²

下载公司产品详情

数据表

RS6I SERIES-SOLAR MODULE-158.75MM

RS6I series are composed of standard 158.75mm half cells cut by laser. Splitting cells into halves generates a lower current, thereby Reducing”Cells To Module” loss. The result is higher output, less mismatch, power loss, shadow effect, etc.
That’s why the market is adopting this simple upgrade as quickly as possible on the market.
Which with power up to 410 Wp, will maximize your PV system capacity, generate more energy over 30 years and maximize the customer’s economic returns.

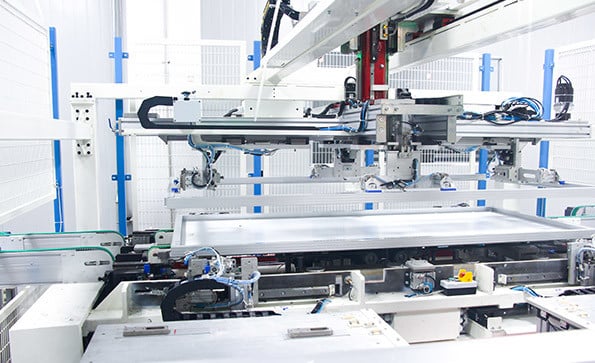

GERMANY STANDARD FACTORY

Our manufacturing factory is accredited by ISO9001&ISO14001. Equipped with advanced automatic production lines, now our capacity already reach 800MW/year. Full ranges of Restar solar panels are produced in accordance with international standards of IEC 61730 and IEC 61215.

Certification

Global Logistics Advantage

Global warehouse : To expand quick logistic, Resun built warehouse and shop in Euro- Poland, Netherland, Middle East- Dubai, Africa- Nigeria, Uganda, Latin America- Brazil, Chile, Colombia, the local team offer 7/24 service and technical backup for your solar projects.
