UL-465~475M-108CHVN N-Type Monofacial Module

宁波尤利卡太阳能股份有限公司
价 格:
起价 ¥0.755 / Wp *
电 池 技 术: TOPCon
功率范围: 465 ~ 475 Wp
地区: 中国大陆 中国大陆
联系生产商
注意: 您的询盘将直接发送至宁波尤利卡太阳能股份有限公司

描述:

- Tier1 brand

- CE, IEC61215 & IEC61730/TüV, UL, ISO9001, CEC, and etc.

- Can bear snow loads up to 5400Pa and wind loads up to 3800 Pa.

- Guaranteed power output (0~+3)

- Passed PID Test, Fire Test, Salt Mist Corrosion Test and Ammonia Corrosion Test

产品特点

类型 单晶硅
产品型号
UL-465M-108CHVN UL-470M-108CHVN UL-475M-108HVN
质量保证
产品质量保证 15 年
功率输出保证 15年期90%输出功率保证,30年期87.4%输出功率保证
电性能参数(STC)
峰值功率 (Pmax)
465 Wp 470 Wp 475 Wp
峰值工作电压(Vmpp)
33.42 V 33.62 V 33.82 V
峰值工作电流(Impp)
13.91 A 13.98 A 14.04 A
开路电压(Voc)
39.98 V 40.18 V 40.38 V
短路电流(Isc)
14.64 A 14.71 A 14.89 A
组件效率
22.78 % 23.03 % 23.27 %
功率偏差(正)
+ 1 % + 1 % + 1 %
  标准测试条件(STC):太阳能辐射通量1000W/m2,大气参数1.5,组件温度25℃。
电性能参数(NOCT)
峰值功率 (Pmax)
352 Wp 356 Wp 360 Wp
峰值工作电压(Vmpp)
30.75 V 30.93 V 31.11 V
峰值工作电流(Impp)
11.46 A 11.52 A 11.57 A
开路电压(Voc)
36.38 V 36.56 V 36.75 V
短路电流(Isc)
11.81 A 11.87 A 12.01 A
最大耐久温度 43±2 °C
  电池片标称工作温度(NOCT):太阳能辐射通量800W/m2,大气参数1.5,环境温度20℃,风速1 m/s。
温度特性
工作温度 -40~85 °C
温度系数(Pmax) -0.29 %/°C
温度系数(Voc) -0.25 %/°C
温度系数(Isc) 0.046 %/°C
系统集成参数
最大系统电压 1500 V
保险丝额定电流 25 A
物理参数
组件尺寸(高/宽/厚) 1800x1134x30 mm
重量 21.5 kg
电池片规格 182.2×95.8 mm
电池片数量 108
玻璃类型 防反射镀膜,钢化
玻璃厚度 3.2 mm
边框类型 阳极氧化铝
旁路二极管数 3
接线盒防护等级 IP 68
连接器类型 MC4
电缆截面 4 mm2
电缆长度 1100 mm
PDF
下载公司产品详情

Quality & Certificates

We attach much importance to the quality of our products, With the quality policy of clients satisfaction, quality first, technological innovation and pursuit of better, we make quality assurance and improvements throughout the whole production process, and have won wide praise among our clients. Generally, there are two items, namely quality prevention and quality inspection, for quality control. To assure quality, the quality control procedure is composed of Incoming Quality Control, In-process Quality Control, Quality control for Semi-products, Final Quality Control, Outgoing Quality Control, and Quality Audit.

We have obtained many important international certificates, such as CE, IEC61215&61730/TüV, UL, ISO9001, etc. Our quality concept is that good quality is the only way out of business survival and development. With continuous quality improvements and the participation from all the staff, we do our utmost to make our quality among the best in this industry. About Solar module certifications, please click to download.

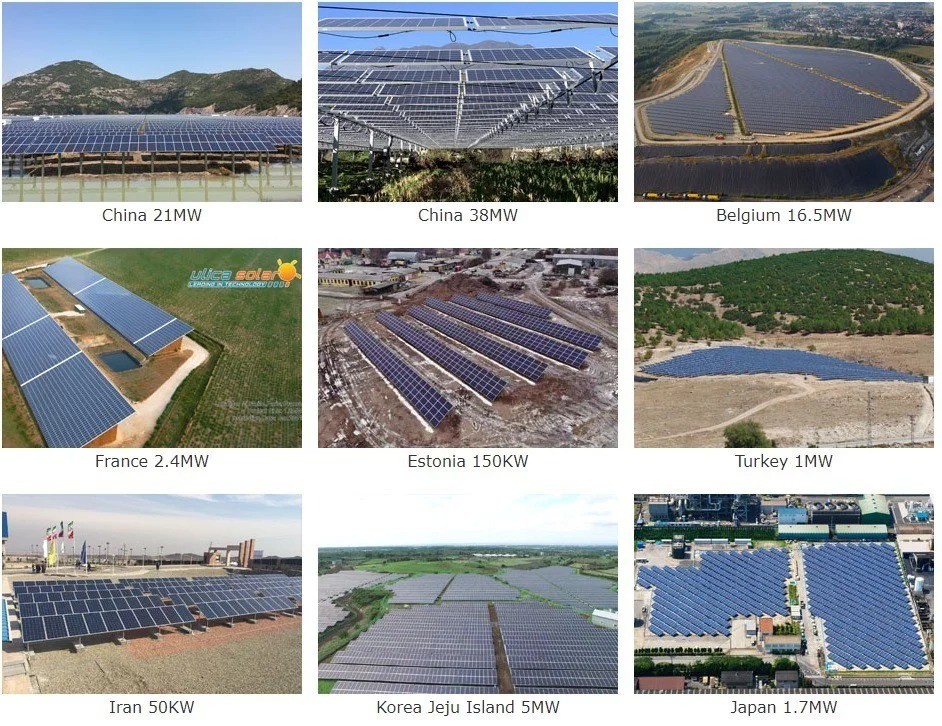

Reference Projects

Ulica's modules have been applied in a wide range of applications including large-scale ground-based systems, roof systems, BIPV systems and others, both on-grid and off-grid.

Ulica's modules have been applied in a wide range of applications including large-scale ground-based systems, roof systems, BIPV systems and others, both on-grid and off-grid.


宁波尤利卡太阳能股份有限公司

Click to show company phone
www.ulicasolar.com
中国大陆
浙江省宁波市鄞州区望春工业园区杉杉路181号
员工数: 500
母公司: Shanshan Group Co., Ltd.
注意: 您的询盘将直接发送至宁波尤利卡太阳能股份有限公司

晶体硅

产量 (MW)/: MWp
单晶硅,多晶硅
功 率 范 围(Wp): 50-715
产品视频
产品

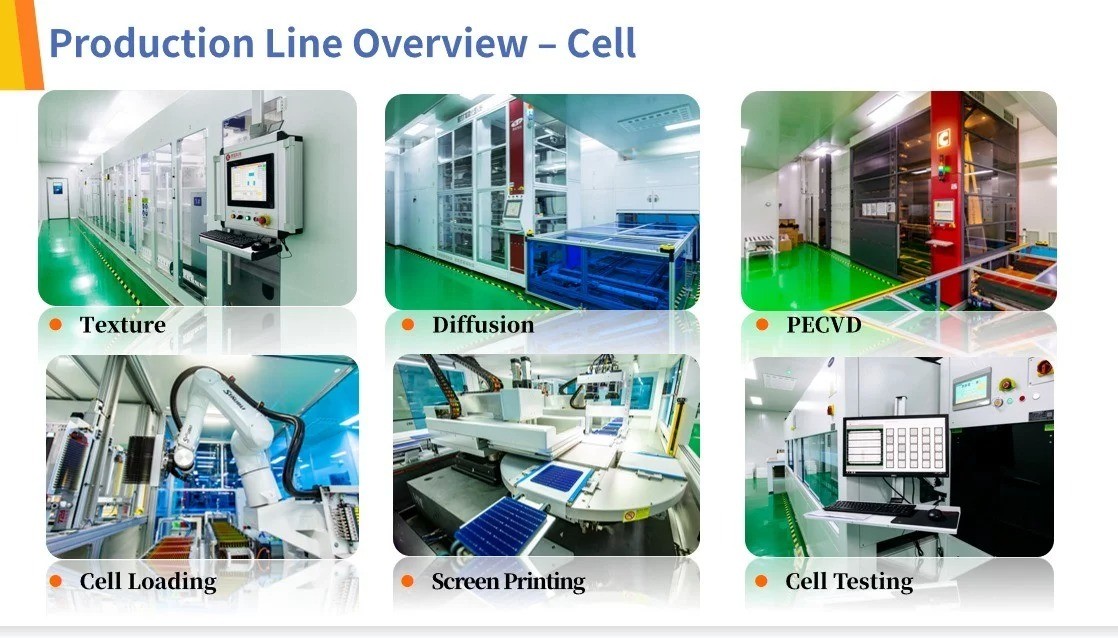

Technology & Equipment

We are cooperating with some of the world-famous equipment suppliers, such as Centrotherm, Baccini and Gorosabel, which are all the top-ranking global suppliers of PV equipment. We have brought in the most advanced and brand-new equipment from them.

The business partnership with these famous suppliers is the prerequisite for us to provide high-quality products.

As the leaders in PV equipment, our suppliers have many years of experience in this industry and enjoy a very high global reputation. Their websites are as follows:

Quality & Certificates

We attach much importance to the quality of our products. With the quality policy of client satisfaction, quality first, technological innovation and pursuit of better, we make quality assurance and improvements throughout the whole production process and have won wide praise among our clients. Generally, there are two items, namely quality prevention and quality inspection, for quality control. To assure quality, the quality control procedure is composed of Incoming Quality Control, In-process Quality Control, Quality control for Semi-products, Final Quality Control, Outgoing Quality Control, and Quality Audit.

We have obtained many important international certificates, such as CE, IEC61215 & 61730/TüV, UL, ISO9001, etc. Our quality concept is that good quality is the only way out of business survival and development. With continuous quality improvements and the participation of all the staff, we do our utmost to make our quality among the best in this industry. About Solar module certifications, please click to download.

Reference Projects

Ulica's modules have been applied in a wide range of applications including large-scale ground-based systems, roof systems, BIPV systems and others, both on-grid and off-grid.

Ulica's modules have been applied in a wide range of applications including large-scale ground-based systems, roof systems, BIPV systems and others, both on-grid and off-grid.
