MHI Series

MHI Series

Autarco BV
类型: 背钝化 (PERC)
功率范围: Wp
地区: 荷兰 荷兰
联系生产商
该产品不再生产。

替代产品

起价 ¥1.01 / Wp *
  • 电池片类型: TOPCon
  • 组件尺寸: 1722x1134x30 mm
  • 重量: 21.5 kg
  • 电池片规格: --
  • 玻璃厚度: --

产品特点

产品型号
S1.MHI355 S1.MHI360 S1.MHI365 S1.MHI370 S1.MHI375 S1.MHI380
质量保证
产品质量保证 12 年
功率输出保证 25年期83.1%输出功率保证
电性能参数(STC)
峰值功率 (Pmax)
355 Wp 360 Wp 365 Wp 370 Wp 375 Wp 380 Wp
峰值工作电压(Vmpp)
33.36 V 33.61 V 33.86 V 33.98 V 34.28 V 34.51 V
峰值工作电流(Impp)
10.64 A 10.71 A 10.78 A 10.86 A 10.94 A 11.01 A
开路电压(Voc)
39.8 V 40.1 V 40.38 V 40.75 V 41.05 V 41.34 V
短路电流(Isc)
11.13 A 11.2 A 11.26 A 11.35 A 11.42 A 11.49 A
组件效率
19.2 % 19.5 % 19.7 % 20.3 % 20.6 % 20.9 %
功率偏差(正)
+ 1 % + 1 % + 1 % + 1 % + 1 % + 1 %
  标准测试条件(STC):太阳能辐射通量1000W/m2,大气参数1.5,组件温度25℃。
电性能参数(NOCT)
最大耐久温度 44±2 °C
  电池片标称工作温度(NOCT):太阳能辐射通量800W/m2,大气参数1.5,环境温度20℃,风速1 m/s。
温度特性
工作温度 -40~85 °C
温度系数(Pmax) -0.3438 %/°C
温度系数(Voc) -0.2722 %/°C
温度系数(Isc) 0.0353 %/°C
系统集成参数
最大系统电压 1500 V
保险丝额定电流 20 A
物理参数
组件尺寸(高/宽/厚) 1755x1038x35 mm
重量 20 kg
电池片类型 背钝化 (PERC)
电池片规格 166×166 mm
电池片数量 120
玻璃厚度 3.2 mm
密封材料类型 EVA
背板类型 PET
边框类型 阳极氧化铝
旁路二极管数 3
接线盒防护等级 IP 67
电缆长度 1200 mm
PDF
下载公司产品详情

Autarco BV

Click to show company phone
www.autarco.com
荷兰
Torenallee 20, 5617 BC, Eindhoven
该产品不再生产。

晶体硅

产量 (MW)/: MWp
单晶硅,多晶硅
功 率 范 围(Wp): 360-450
公司描述

Autarco is the leading solar total solution company that helps installers and EPC companies reach their full potential. By manufacturing all components and combining it with smart and free-to-use PV lifecycle management software we enable our dealers to increase their profitability and lower their inefficiencies while providing end customers exactly what they need: safe and high performing solar PV systems.

If you are looking to build a portfolio of revenue generating assets with each PV system sold while differentiating yourself from the standard component brand offering that everybody else is selling, then contact us today!

产品视频

其他办事处

国家:
英国
地址:
1st Floor 30 Clarendon Road London N8 0DJ United Kingdom
国家:
澳大利亚
地址:
Suite 203 11 Spring Street Chatswood, NSW 2067 Australia

评价

Fantastic company to deal with. Great staff and product range. Unique product offering and highly customer focused.

-- Steven, Alternative Energy Ireland

产品
Ready For The Future Of Solar?

Guaranteed Performance

Your investment is as sure as the sun will shine.

Autarco is the only manufacturer in the world with an insured kWh guarantee for your solar system. If our system yields less than estimated beforehand, you get a cashback for every missed kWh. So you will get what you paid for, as sure as the sun will shine.

Increased Performance

Autarco systems perform 5% better.

Our dealers use intelligent software that not only covers design and offer but asset management as well. No one does this. It is our way of helping customers reach their full potential.

How? Creating a digital twin in our software: a detailed digital copy of every individual Autarco solar system worldwide. Appropriate action is needed when the digital twin does not match the performance. You have to know what the full potential is at all times to be able to reach it.

Safety

The world's safest solar solutions.

Autarco’s total solar solutions mitigate the three main causes of unsafe situations.

  1. Product safety: Our quality control process ensures that all our hardware is designed and built to provide safe and reliable performance.

  2. Design safety: Autarco’s software automatically prevents poor design, eliminating the possibility of a poor design on your roof.

  3. Install safety: We are committed to leading best practices within the industry. Autarco verifies all solar installations that need to pass due diligence.

Meet your Moneymakers

Solar Panels

Autarco offers a complete range of Tier 1 quality solar panels. Our extensive quality control and in-house testing facilities guarantee that Autarco panels meet the highest quality standards. That is why we offer premium warranties, including our industry-unique insured kWh guarantee.

Inverters

We offer a complete range of high-efficiency, robust solar inverters that will silently and reliably work for you every day. From small 700W for residential applications up to 110kW units designed for the commercial rooftop and utility-scale segment, each inverter is designed to deliver the highest efficiency and reliability.

Battery Inverters

Our smart hybrid and retrofit inverters are the brains of your home's energy requirements. Make every kWh count by storing excess solar power and using it when needed most, and provide backup against blackouts.

Mounting Systems

We offer a complete range of robust and easy-to-install solar mounting systems at the best price-quality ratio available. All components are made of high-grade aluminum or stainless / magnelis steel, and their high resistance to corrosion guarantees maximum service life and full recyclability.

Monitoring Solutions

We have a full range of monitoring solutions that are fundamental to helping your systems reach their full potential. Check your kWh production wherever you are, on any device, or at any time.

Software

Are you a PV installer and looking for ways to outperform the market? Our software offers a full suite of tools that make design and O&M as easy as possible while guaranteeing optimal performance.

Projects

Agro-Entrepreneur Invests In Sustainability With Help Of SDE+

This 294 kWp solar PV system comprises 878 MHE series 335 Wp solar panels. The yield is inverted by 5 Autarco inverters of up to 60 kW. The MHE series are highly innovative solar panels made from 120 half-cut cells with multi-wire technology. These panels no longer have busbars, resulting in superior reliability and high performance.

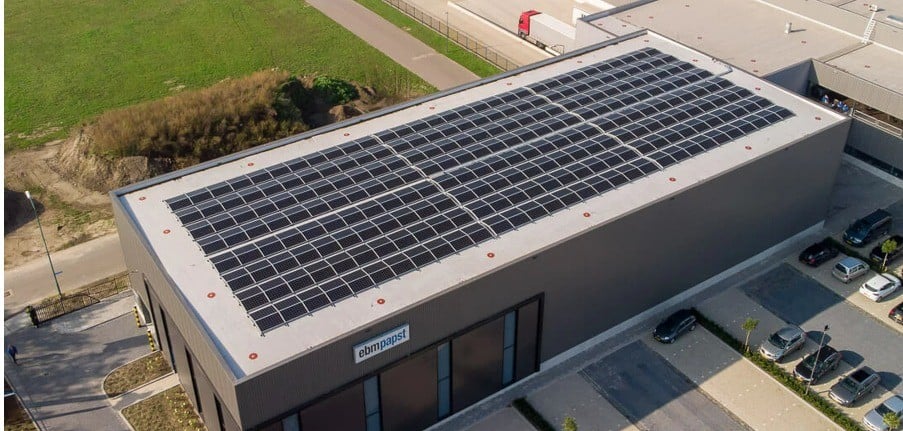

Solar Solution Of 161 kWp At ebm-papst
