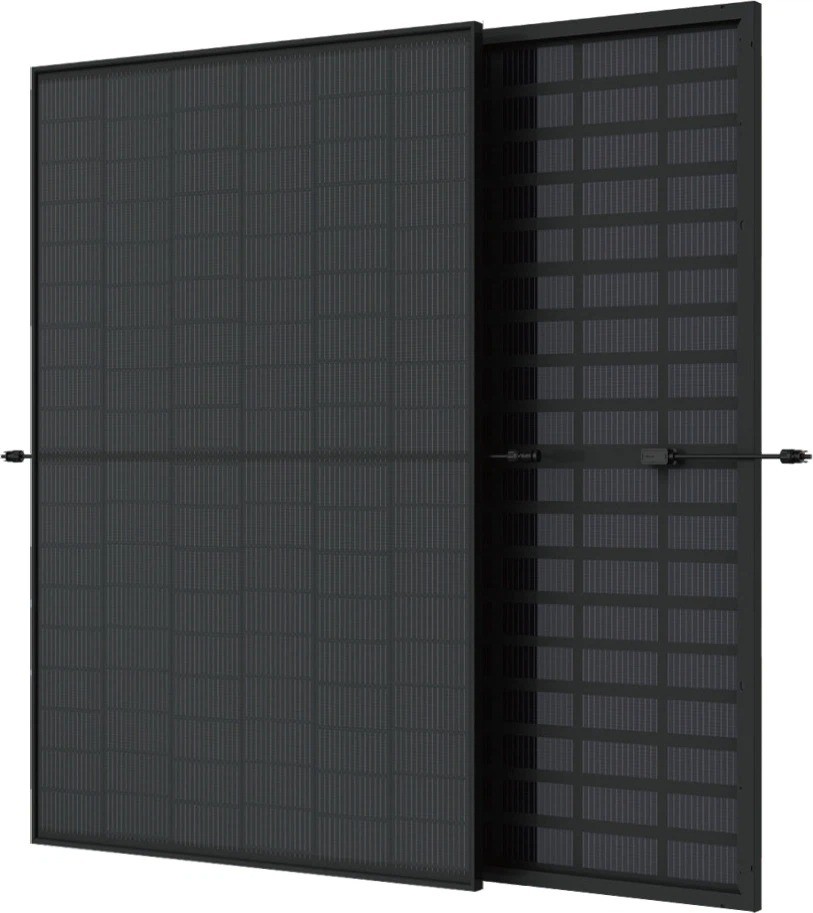

HW-M12/80H 385-405

Hiwatt Solar Limited

类型：	单晶硅
功率范围：	385 ~ 405 Wp
地区：	中国大陆

注意： 您的询盘将直接发送至Hiwatt Solar Limited。

替代产品

FLEX-03NL 260-...

山东西科国际贸易有限公司

电池片类型：薄膜
组件尺寸： 5910x348x2.5 mm
重量： 4.3 kg
电池片规格： --
玻璃厚度： --

峰值功率： 260 Wp
峰值电压： 67.3 V
峰值电流： 3.88 A
开路电压： 86.2 V
短路电流： 4.7 A
效率： 14.4 %

产品质量保证： 5 年
功率输出保证： 10年期90%输出功率保证，25年期80%输出功率保证

产品信息
公司档案页

产品特点

产品型号

385

390

395

400

405

质量保证

产品质量保证

12 年

功率输出保证

25年期84.8%输出功率保证

电性能参数（STC）

峰值功率（Pmax）

385 Wp

390 Wp

395 Wp

400 Wp

405 Wp

峰值工作电压（Vmpp）

33.6 V

33.8 V

34 V

34.2 V

34.4 V

峰值工作电流（Impp）

11.46 A

11.54 A

11.62 A

11.7 A

11.77 A

开路电压（Voc）

40.6 V

40.8 V

41 V

41.2 V

41.4 V

短路电流（Isc）

12.07 A

12.14 A

12.21 A

12.28 A

12.34 A

组件效率

20.1 %

20.3 %

20.5 %

20.8 %

21.1 %

功率偏差（正）

+ 1.5 %

+ 1 %

标准测试条件（STC）：太阳能辐射通量1000W/m²，大气参数1.5，组件温度25℃。

电性能参数（NOCT）

峰值功率（Pmax）

291 Wp

295 Wp

298 Wp

302 Wp

306 Wp

峰值工作电压（Vmpp）

31.6 V

31.8 V

32 V

32.2 V

32.5 V

峰值工作电流（Impp）

9.22 A

9.26 A

9.32 A

9.38 A

9.41 A

开路电压（Voc）

38.2 V

38.4 V

38.6 V

38.8 V

38.9 V

短路电流（Isc）

9.72 A

9.78 A

9.84 A

9.9 A

9.95 A

最大耐久温度

43±2 °C

电池片标称工作温度（NOCT）：太阳能辐射通量800W/m²，大气参数1.5，环境温度20℃，风速1 m/s。

温度特性

工作温度

-40~85 °C

温度系数（Pmax）

-0.34 %/°C

温度系数（Voc）

-0.25 %/°C

温度系数（Isc）

0.04 %/°C

系统集成参数

最大系统电压

1500 V

保险丝额定电流

30 A

物理参数

组件尺寸（高/宽/厚）

1754x1096x30 mm

重量

21 kg

电池片类型

单晶硅

电池片数量

120

旁路二极管数

接线盒防护等级

IP 68

电缆截面

4 mm²

PDF

下载公司产品详情

Hiwatt Solar Limited

: Click to show company phone
: www.hiwattsolar.com
: 中国大陆
: No.6, Fazhan Road, Dongtai, Jiangsu

员工数： 200

注意： 您的询盘将直接发送至Hiwatt Solar Limited。

晶体硅

产量 (MW)/： MWp

单晶硅，多晶硅

功率范围(Wp)： 275-670

有用联系人

Mr.liam

公司描述

Hiwatt Solar is a technology company specializing in the research , development, production and sales of solar photovoltaic modules. Hiwatt Solar is a world leading solar module manufacturer and comprehensive solar solution provider.Our solar modules production capacity reaches 2.2GW . We have our own fully automated production line which ensures the quality is strict and stable.we can produce market mainstream solar modules ,including large size 210mm cell solar module power up to 670W plus, MBB, high efficient single glass and double glass bifacial modules, both mono and poly, full cells and half cut cells solar modules.

We are committed to the development and application of new photovoltaic modules, dedicated to provide customers with high quality photovoltaic products, also provide fast and efficient quality service.Hiwatt Solar has a variety of products, and our PV products have been tested and recognized by many international authorities.

Hiwatt Solar is always focusing on the quality as the pillar of growth of the company. We have established a comprehensive range of tests and controls before, during and after the production, following the guidelines of IEC 61215 & IEC 61730 requirements. From the selection of raw materials to the assembly of finished products and systems, the company implements strict management and quality system to ensure the high-quality performance of each module and system.

Hiwatt Solar PV products have highly recognized by clients from Japan, Vietnam, Turkey, Myanmar, Sri Lanka, Saudi Arabia, Germany, Italy, Switzerland, Spain, Bulgaria, Greece, Norway ,Denmark,Estonia,Latvia, Lithuania,Russia,Czech,Slovakia,Austria,Netherlands,Ukraine, Sweden, Finland, Poland, Portugal, Macedonia,Slovenia,Australia, Kenya, Uganda, Tunisia, Morocco, Brazil, Chile, Argentina and many other counties and regions.

Our vision is to provide the most compelling value to our customers through sustainable and innovative solutions. Continuously invest in research and development and expand our PV products portfolio to meet the evolving needs of the world.
