M6 120CELLS 360-380W Mono
无锡施莱德新能源有限公司
Ad
注意： 您的询盘将直接发送至无锡施莱德新能源有限公司。
|
每件价格
|
|
| 最低订购量 | 720+ 件 |
| LNVU-530M | ¥308 |
| LNVU-535M | ¥308 |
| LNVU-540M | ¥308 |
530-550 Wp
28.5 kg
15 年
84.8 % 30年年限质保
20.51 % -
21.28 %
2278x1134x35 mm
3.2 mm
0.36 %/°C
144
功率范围
360 - 380 Wp
地区
中国大陆
重量
19.5 kg
功率输出保证
84.8 % 25年年限质保
组件效率
19.73 % -
20.83 %
尺寸
1756x1039x35 mm
玻璃厚度
3.2 mm
温度系数（Pmax）
-0.36 %/°C
电池片数量
120
价 格：
起价
¥0.636 / Wp*
*
|
每件价格
每件价格
|
|
| 最低订购量 | 806+ 件 |
| LNSK-360M | ¥229 |
| LNSK-365M | ¥232 |
| LNSK-370M | ¥235 |
| LNSK-375M | ¥239 |
| LNSK-380M | ¥242 |
注意： 您的询盘将直接发送至无锡施莱德新能源有限公司。
产品特点
| 类型 | 单晶硅 | |||||
|---|---|---|---|---|---|---|
| 产品型号 |
|
|||||
| 功率输出保证 | 84.8 % 25年年限质保 | |||||
| 0.61 % | ||||||
| 功率偏差 | 0 ~ +1.5 % | |||||
| 电性能参数（STC） | ||||||
| 峰值功率 （Pmax） |
|
|||||
| 峰值工作电压（Vmpp） |
|
|||||
| 峰值工作电流（Impp） |
|
|||||
| 开路电压（Voc） |
|
|||||
| 短路电流（Isc） |
|
|||||
| 组件效率 |
|
|||||
| 电性能参数（NOCT） | ||||||
| 峰值功率 （Pmax） |
|
|||||
| 峰值工作电压（Vmpp） |
|
|||||
| 峰值工作电流（Impp） |
|
|||||
| 开路电压（Voc） |
|
|||||
| 短路电流（Isc） |
|
|||||
| 最大耐久温度 | 45±2 °C | |||||
| 工作温度 | -40 - +85 °C | |||||
| 温度系数（Pmax） | -0.36 %/°C | |||||
| 温度系数（Voc） | -0.28 %/°C | |||||
| 温度系数（Isc） | +0.05 %/°C | |||||
| 最大系统电压 | 1500 V | |||||
| 保险丝额定电流 | 20 A | |||||
| 组件尺寸（高/宽/厚） | 1756x1039x35 mm | |||||
| 重量 | 19.5 kg | |||||
| 电池片数量 | 120 | |||||
| 玻璃类型 | 钢化 | |||||
| 玻璃厚度 | 3.2 mm | |||||
| 边框类型 | 阳极氧化铝 | |||||
| 旁路二极管数 | 3 | |||||
| 接线盒防护等级 | IP 68 | |||||
| 连接器类型 | MC4 | |||||
| 电缆截面 | 4 mm2 | |||||
| 电缆长度 | 300 mm | |||||
| 下载公司产品详情 | ||||||
About Us
Sunlike Solar Co., Ltd established at 2010, which is specialized in researching, developing, designing and producing new energy products,With the advanced technology and equipments, we can supply various high efficiency monocrystalline and polycrystalline solar cells (156.75mm,158.75mm,166mm,182mm), solar modules from 10W to 600W.
Due to standard clean production workshops, precise design, strict quality control system and perfect manufacturing technology, product quality completely meets international standards. Our production capacity has expanded to 2000MW for solar cell and modules per year. We were exported to Europe, Southeast of Asia, Africa, and America and so on, which are widely applied to power generation and lighting system, favored by customers.

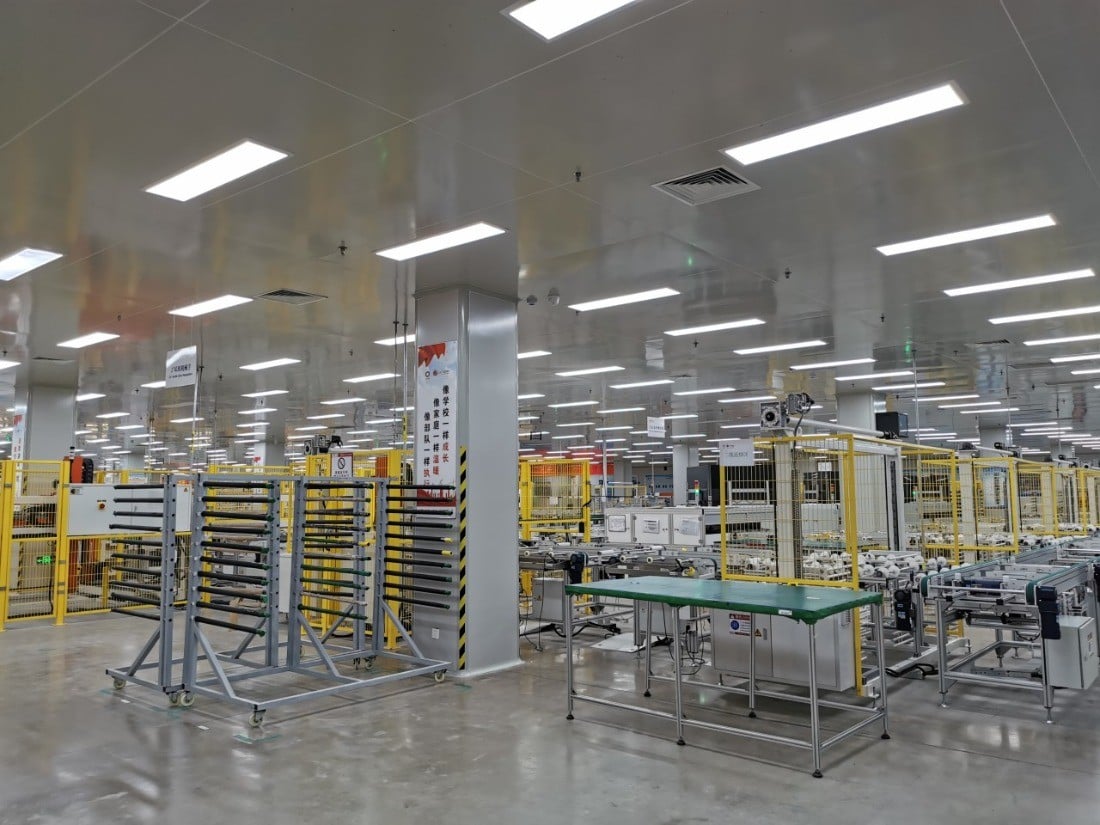

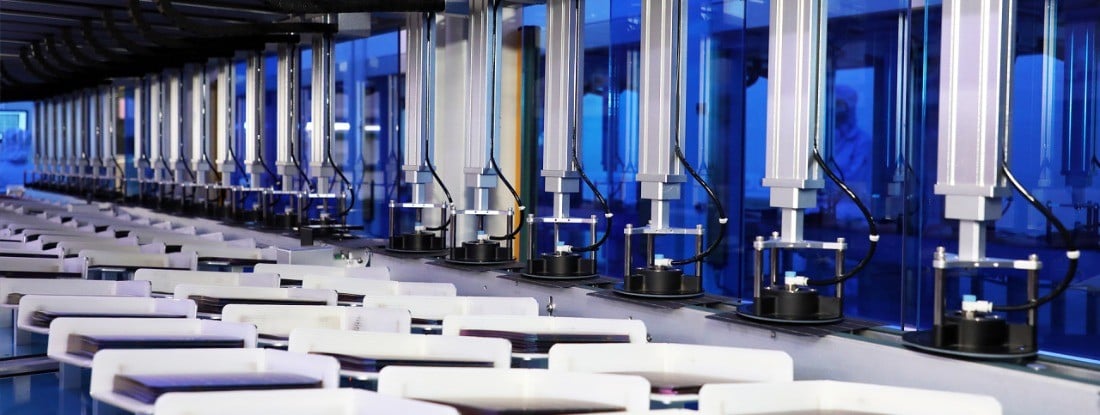

Our Factory
Projects
公司描述
˃ Precision Cell Efficiency Sorting Procedures
˃ Stringent Criteria For Color Uniformity And Appearance
˃ Reverse Current And Shunt Resistance Screening
˃ ISO9001, ISO14001 And OHSAS 18001 Certificated
˃ Calibrated Against Fraunhofer ISE
