RS8V-M 400-415W

瑞兴源光伏科技有限公司

每件价格
最低订购量	1+ 件
AE480ICMD-108BDE	¥626

注意： 您的询盘将直接发送至AE Alternative Energy GmbH。

470-485 Wp

23.5 kg

88.85 % 30年年限质保

23 % - 23.8 %

1800x1134x30 mm

0.26 %/°C

22 kg

产品质量保证

20.48 % - 21.25 %

1722x1134x35 mm

3.2 mm

温度系数（Pmax）

-0.35 %/°C

电池片数量

联系生产商

该产品不再生产。

产品信息
公司档案页

产品特点

类型

单晶硅

产品型号

400

405

410

415

产品质量保证

12 年

功率偏差

0 ~ +1 %

电性能参数（STC）

峰值功率（Pmax）

400 Wp

405 Wp

410 Wp

415 Wp

峰值工作电压（Vmpp）

31.01 V

31.21 V

31.45 V

31.61 V

峰值工作电流（Impp）

12.9 A

12.98 A

13.04 A

13.13 A

开路电压（Voc）

37.07 V

37.23 V

37.32 V

37.45 V

短路电流（Isc）

13.79 A

13.87 A

13.95 A

14.02 A

组件效率

20.48 %

20.74 %

21 %

21.25 %

电性能参数（NOCT）

峰值功率（Pmax）

302 Wp

306 Wp

310 Wp

314 Wp

峰值工作电压（Vmpp）

29.26 V

29.47 V

29.72 V

29.89 V

峰值工作电流（Impp）

10.32 A

10.38 A

10.43 A

10.5 A

开路电压（Voc）

34.88 V

35.12 V

35.23 V

35.37 V

短路电流（Isc）

11.03 A

11.1 A

11.16 A

11.22 A

最大耐久温度

45±2 °C

工作温度

-40 - 85 °C

温度系数（Pmax）

-0.35 %/°C

温度系数（Voc）

-0.32 %/°C

温度系数（Isc）

0.05 %/°C

最大系统电压

1500 V

保险丝额定电流

25 A

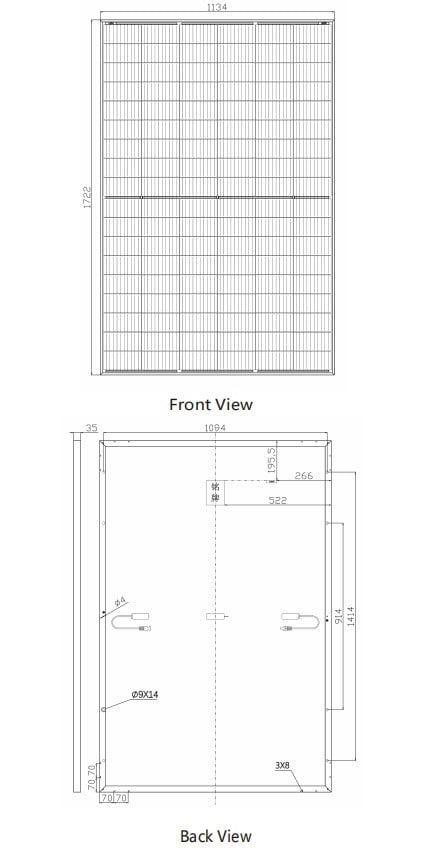

组件尺寸（高/宽/厚）

1722x1134x35 mm

重量

22 kg

电池片数量

108

玻璃类型

钢化

玻璃厚度

3.2 mm

边框类型

阳极氧化铝

旁路二极管数

接线盒防护等级

IP 68

连接器类型

MC4

电缆截面

4 mm²

下载公司产品详情

数据表

RS8V-M

RS8V-M HALF-CELL series is produced with high efficiency multi-busbar cells, which can

reduce the module internal power loss to improve its conversion efficiency, as well as lower

the failure risk caused by cracks and broken busbar to enhance the module reliability.

Combined with half-cell technology, the module is highly resistant to hot-spot crisis caused

by shadow effect.

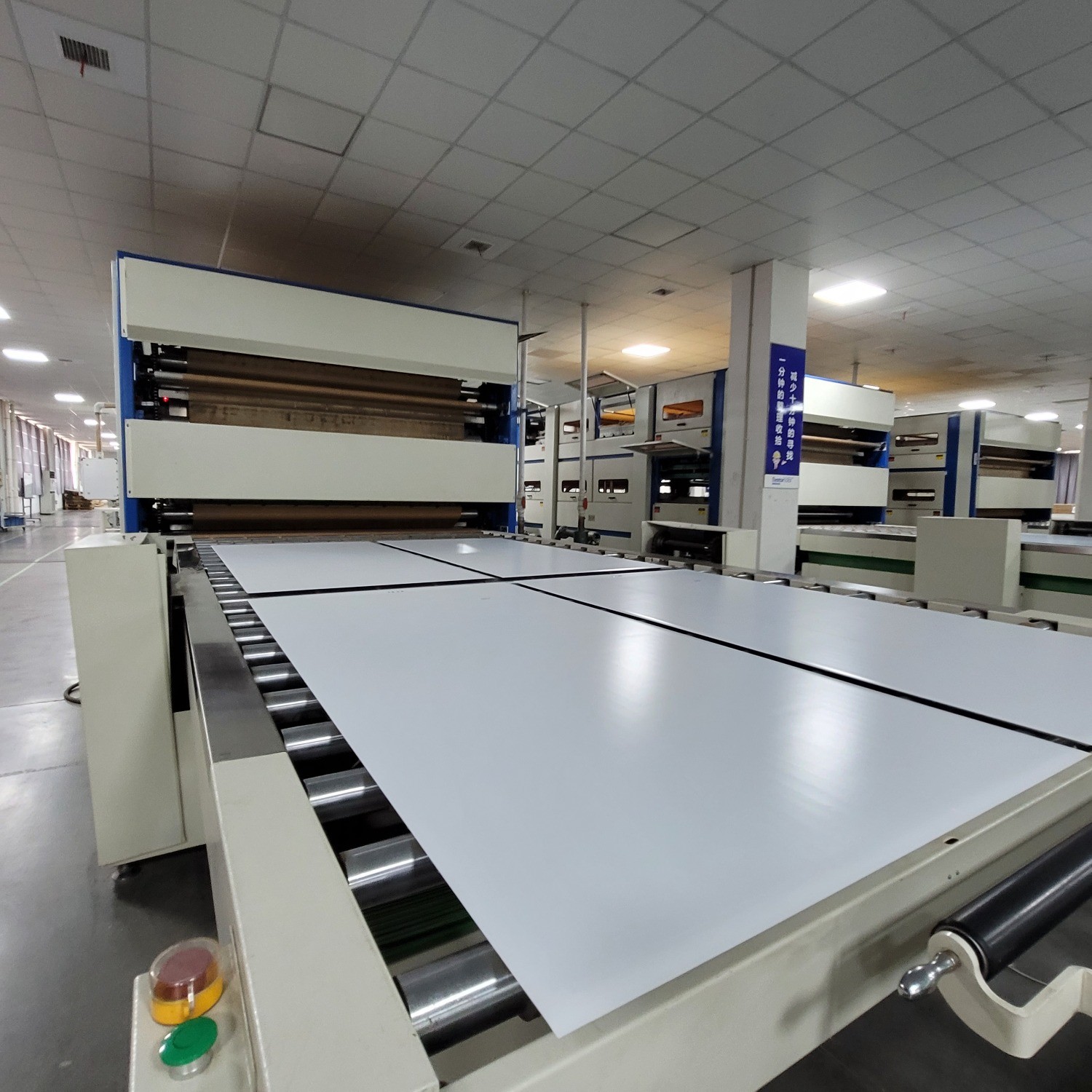

RESUN STANDARD FACTORY

Our manufacturing factory is accredited by ISO9001&ISO14001. Equipped with advanced automatic production lines, now our capacity already reach 1GW/year. Full ranges of Restar solar panels are produced in accordance with international standards of IEC 61730 and IEC 61215.

Certification

All the panels are certificated with TUV,UL,CE. To meet different markets requirements, RESUN team finished DEWA – Dubai, SABER- Saudi Arabia, SONCAP-Nigeria, INMETRO-Brazil,SEC- Chile,RETIE- Colombia,FIDE- Mexico, the list keeps going on.

Global Logistics Advantage

Global warehouse : To expand quick logistic, Resun built warehouse and shop in Euro- Poland, Netherland, Middle East- Dubai, Africa- Nigeria, Uganda, Latin America- Brazil, Chile, Colombia, the local team offer 7/24 service and technical backup for your solar projects.
