  2. GSD7G72M 530-550W
GSD7G72M 530-550W
GSD7G72M 530-550W

GSD7G72M 530-550W

G-STAR Pte. Ltd.
电 池 技 术： 背钝化 (PERC)
功率范围： Wp
地区： 新加坡 新加坡
联系生产商
该产品不再生产。

描述：

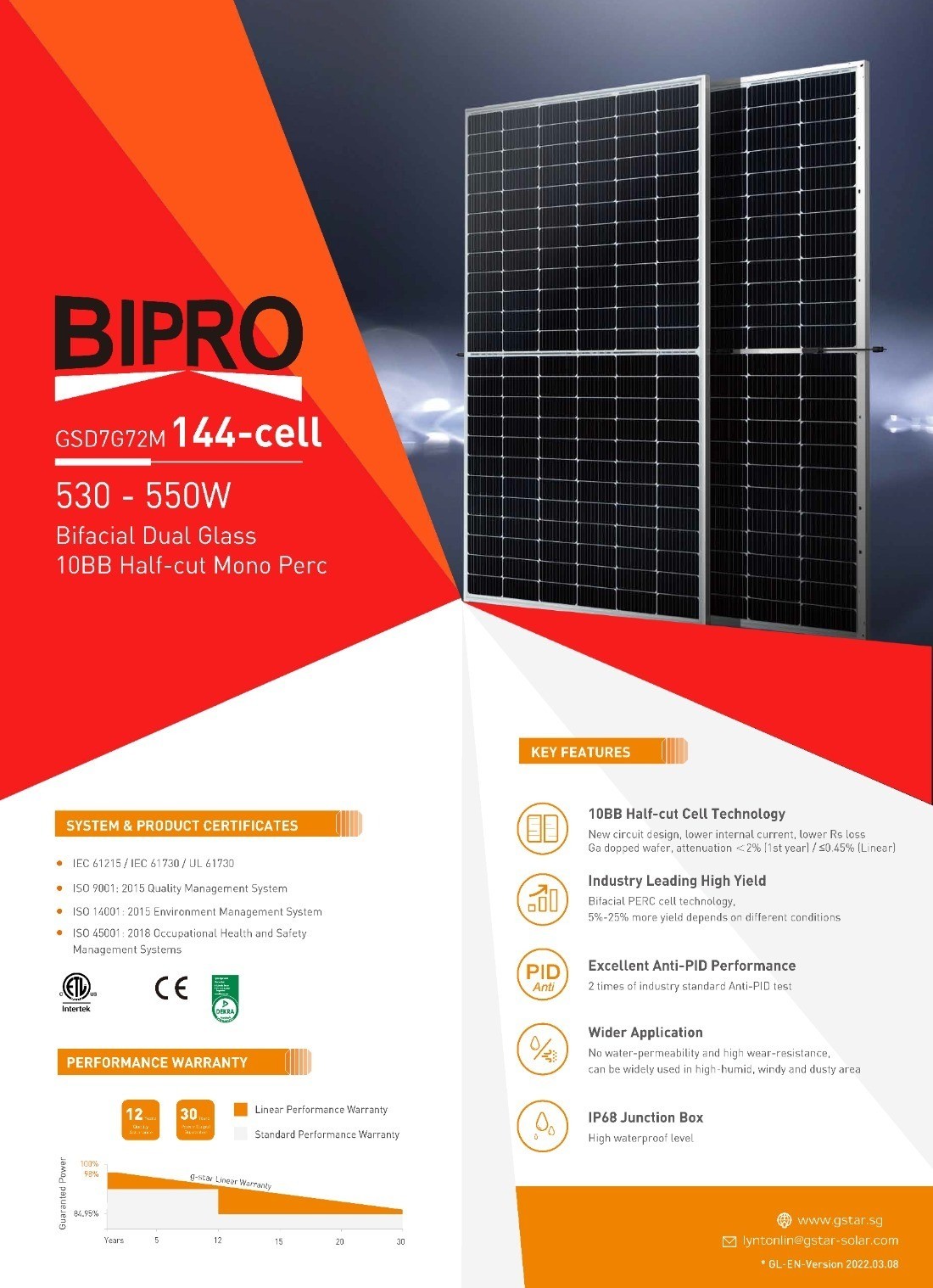

  • Peak efficiency of up to 21.3%

  • Power output ranging from 530 to 550 watts

  • Advanced 10BB half-cut PERC cell technology

  • Bifacial design with dual glass construction instead of a traditional polymer backsheet

  • Robust anodized aluminum frame

  • Waterproof IP68-rated junction box

产品特点

产品型号
530 535 540 545 550
质量保证
产品质量保证 12 年
功率输出保证 30年期84.95%输出功率保证
电性能参数（STC）
峰值功率 （Pmax）
530 Wp 535 Wp 540 Wp 545 Wp 550 Wp
峰值工作电压（Vmpp）
41.32 V 41.48 V 41.64 V 41.8 V 41.96 V
峰值工作电流（Impp）
12.83 A 12.9 A 12.97 A 13.04 A 13.11 A
开路电压（Voc）
49.32 V 49.46 V 49.6 V 49.76 V 49.92 V
短路电流（Isc）
13.72 A 13.79 A 13.86 A 13.93 A 14 A
组件效率
20.5 % 20.7 % 20.9 % 21.1 % 21.3 %
  标准测试条件（STC）：太阳能辐射通量1000W/m2，大气参数1.5，组件温度25℃。
电性能参数（NOCT）
峰值功率 （Pmax）
395 Wp 398 Wp 402 Wp 406 Wp 410 Wp
峰值工作电压（Vmpp）
38.6 V 38.7 V 38.8 V 39 V 39.1 V
峰值工作电流（Impp）
10.24 A 10.3 A 10.36 A 10.41 A 10.47 A
开路电压（Voc）
46.4 V 46.5 V 46.7 V 46.8 V 47 V
短路电流（Isc）
11.06 A 11.12 A 11.17 A 11.23 A 11.28 A
最大耐久温度 43±2 °C
  电池片标称工作温度（NOCT）：太阳能辐射通量800W/m2，大气参数1.5，环境温度20℃，风速1 m/s。
温度特性
工作温度 -40~85 °C
温度系数（Pmax） -0.35 %/°C
温度系数（Voc） -0.26 %/°C
温度系数（Isc） 0.048 %/°C
系统集成参数
最大系统电压 1500 V
保险丝额定电流 30 A
物理参数
组件尺寸（高/宽/厚） 2278x1134x30 mm
重量 31.8 kg
电池片数量 144
玻璃类型 防反射镀膜，钢化
玻璃厚度 2 mm
边框类型 阳极氧化铝
旁路二极管数 3
接线盒防护等级 IP 68
连接器类型 MC4
电缆截面 4 mm2
电缆长度 300 mm

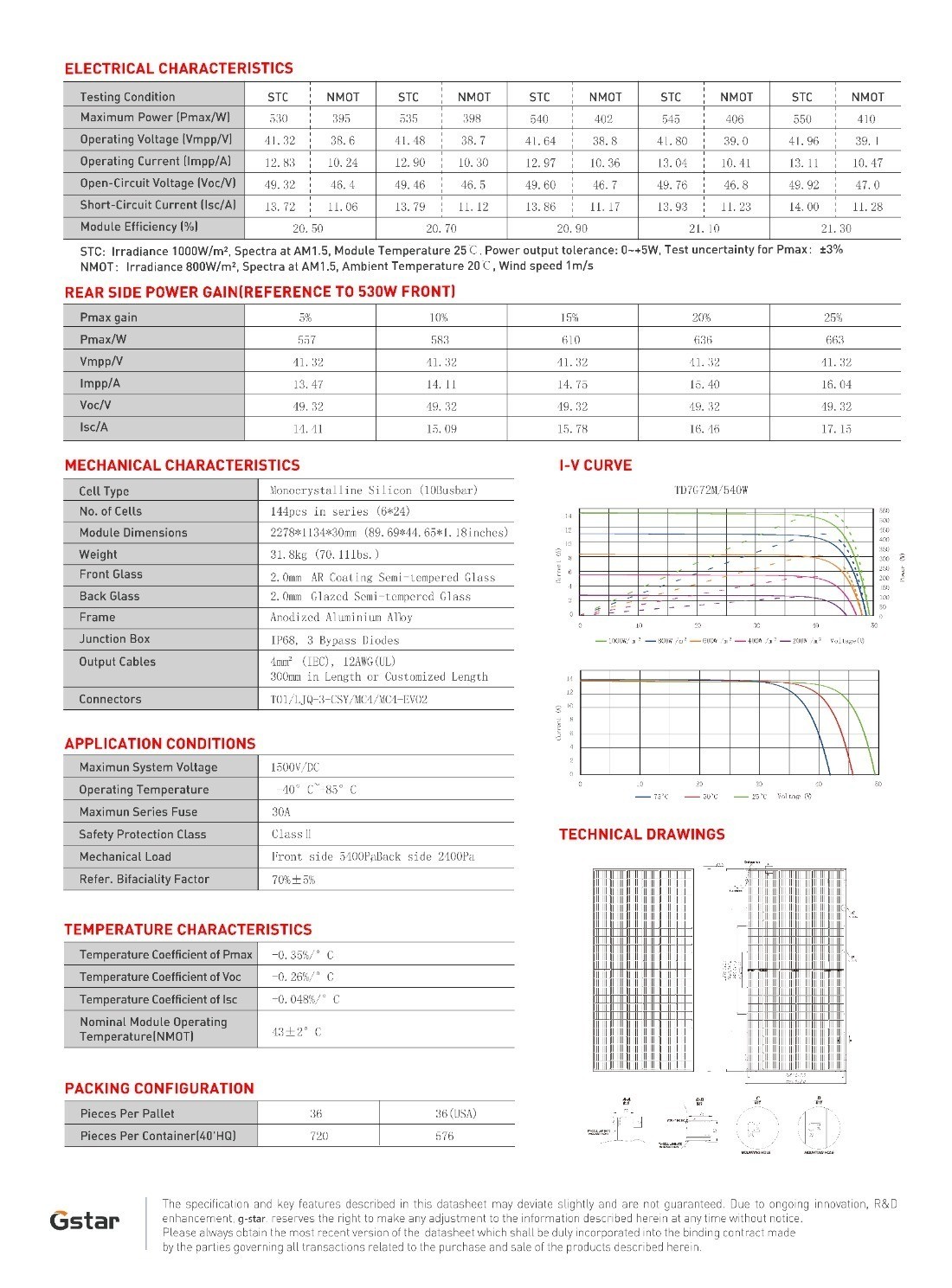

PDF
下载公司产品详情

Product Details

GSD7G72M-550W based on 210mm large size silicon chip and PERC single crystal battery, the innovative density version design is adopted, with power exceeding 550W and efficiency up to 21.0%.

The excellent temperature coefficient and low irradiation performance improve the power generation of the module and the module efficiency reach to a higher level.

About Us

G-STAR Pte. Ltd. is a cutting-edge high-tech enterprise that operates across the entire value chain of the solar panel industry, from producing silicon ingots and wafers to manufacturing solar cells, frames, and modules. Our expertise spans research, production, sales, and engineering technical services. Since our inception, we have adhered to a steadfast commitment to pursuing excellent quality, building a reliable brand in the photovoltaic (PV) industry. Our products undergo rigorous inspections by authoritative bodies and have garnered international recognition from entities such as ETL, TUV, and the California CEC.

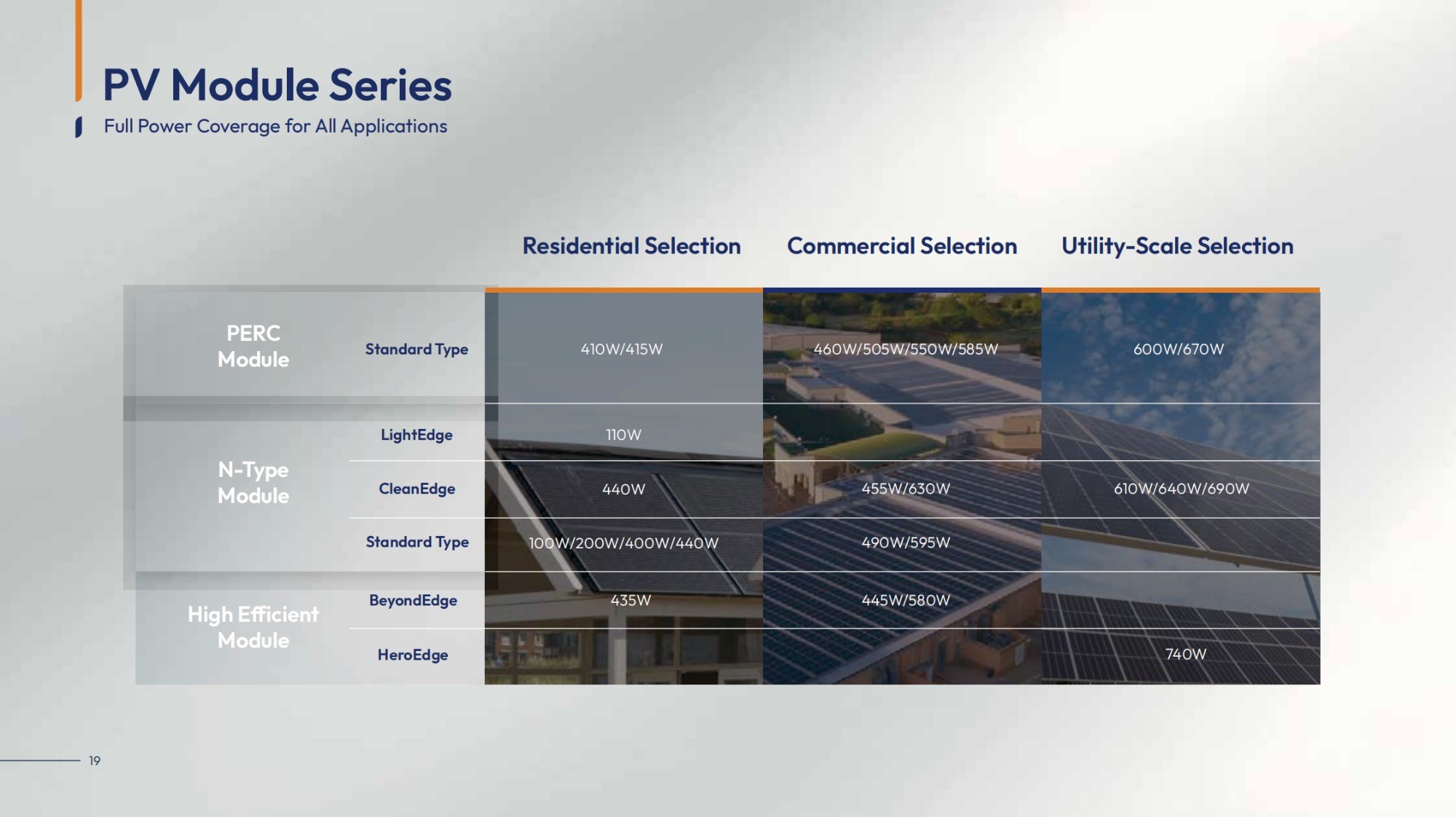

At the forefront of the industry, G-STAR has implemented state-of-the-art, fully automatic component production lines and equipment. Our production technology and equipment conditions set industry standards. Our product module range encompasses varieties from 360W to 740W, including PERC, TOPCon, HJT, monofacial, bifacial, and full-black options. Widely applicable, our solar modules find use in diverse settings such as household roofs, commercial roofs, large ground power stations, and government projects. G-STAR is progressively gaining increased brand awareness in the solar photovoltaic industry.

G-STAR attaches importance to the talent development strategy, always adheres to the market orientation, and provides customers with a comprehensive service system integrating planning, design and technical guidance for undertaking large-scale power stations. With strict management measures, reliable product quality, excellent service system and low-cost control means. It has won the praise and trust of customers at home and abroad in the PV industry.

In order to jointly open up the PV market with unlimited business opportunities in the future, G-STAR will become your first choice with the best quality, the most favorable price and the best after-sales service. G-STAR always adheres to the values of "integrity, responsibility and win-win", and sincerely expects new and old customers at home and abroad to come to our company for field investigation, visit, guidance and cooperation.

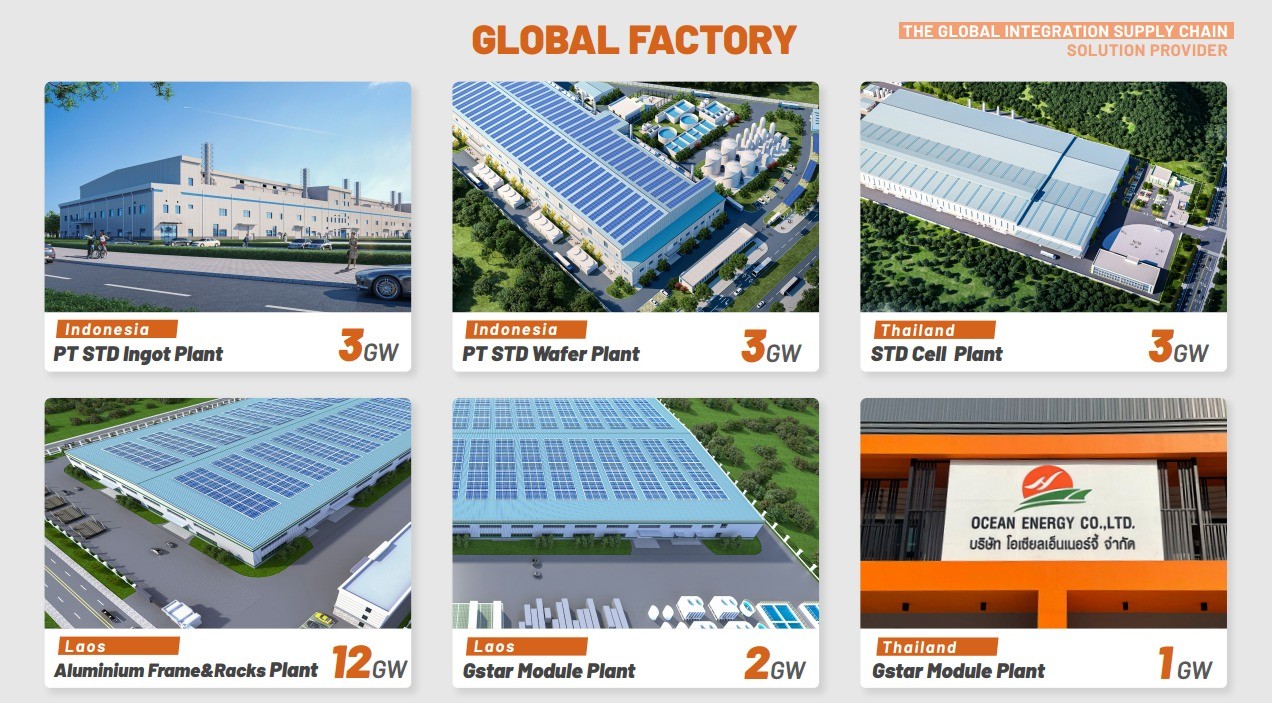

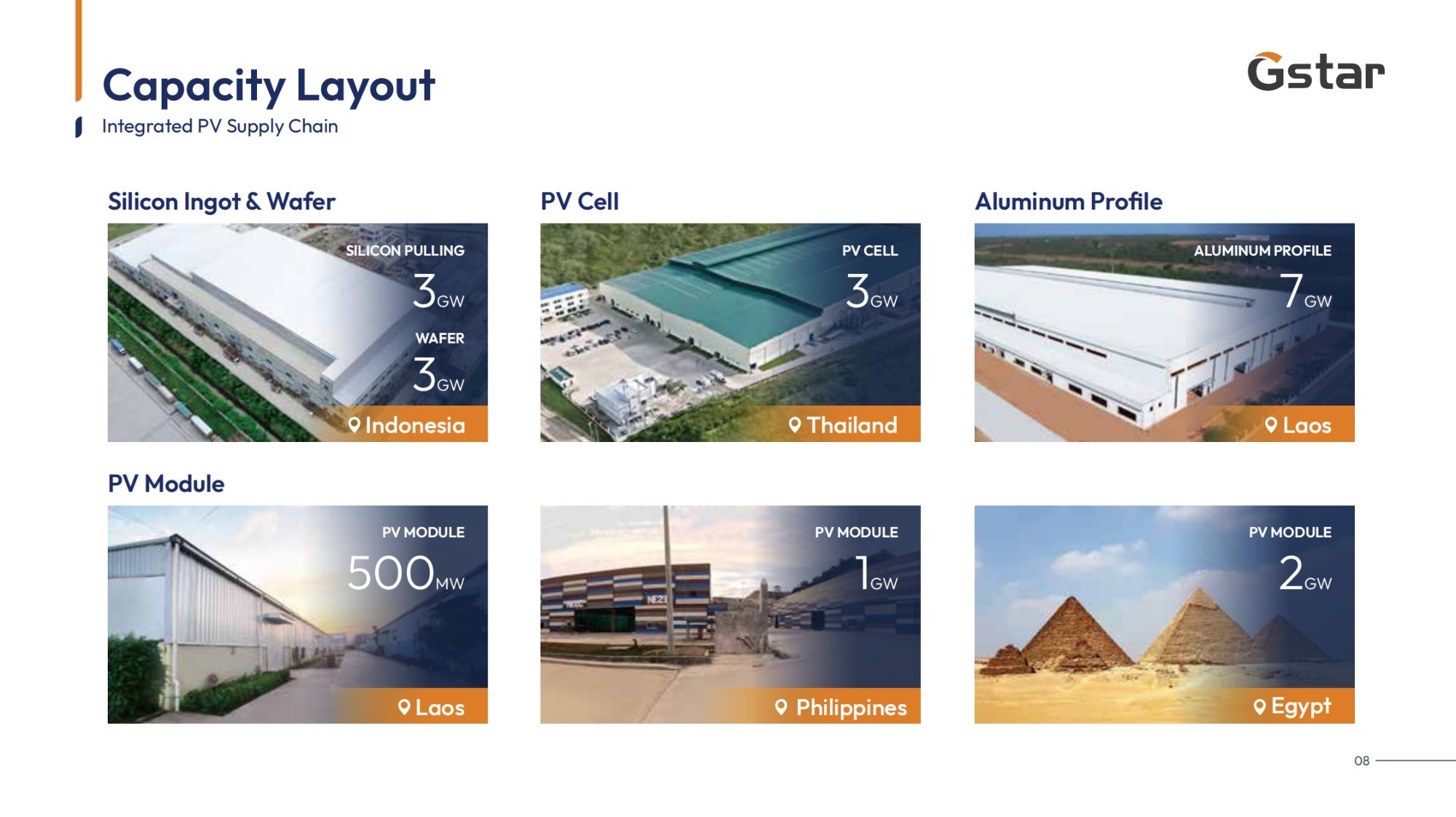

Our Factory
Our Products

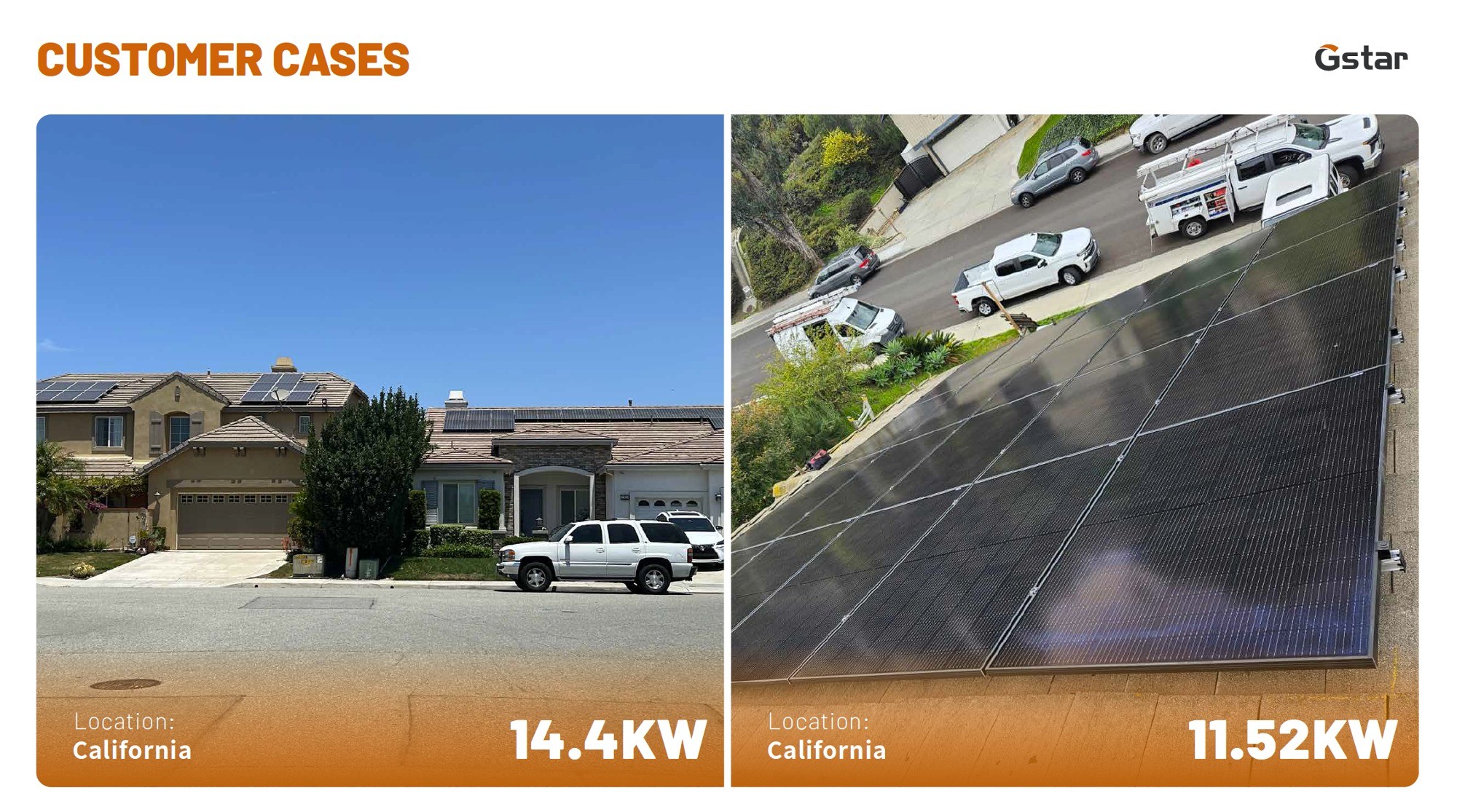

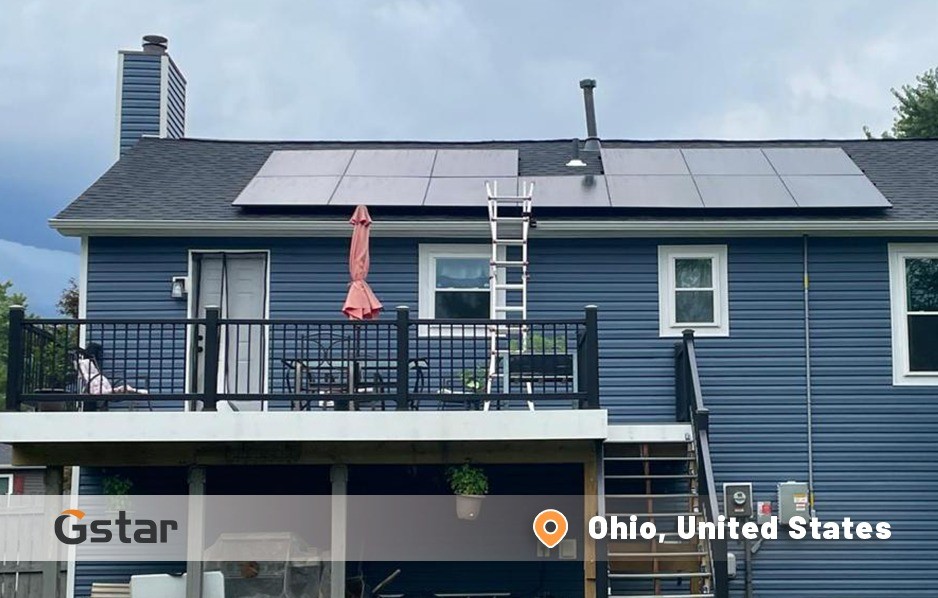

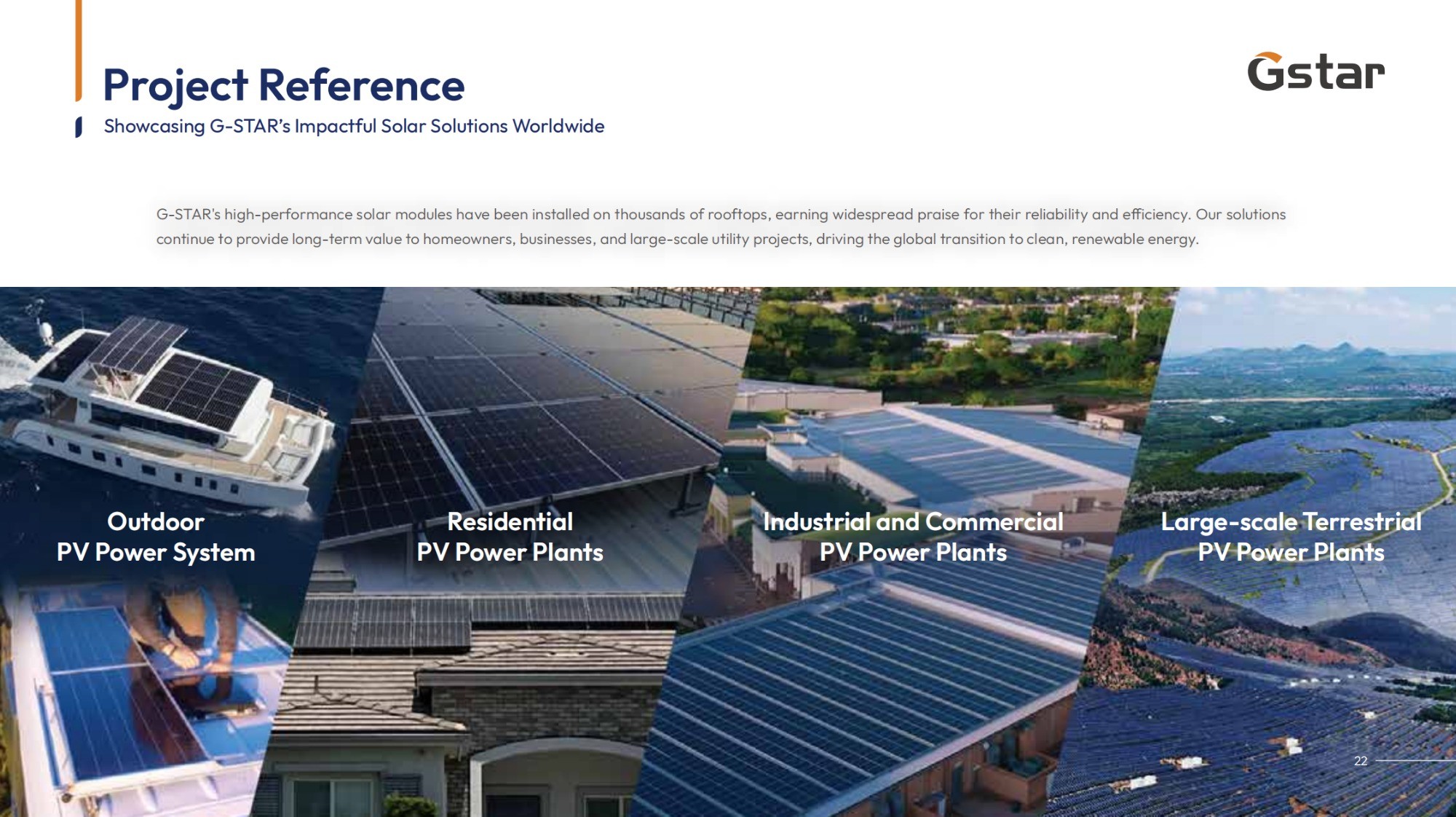

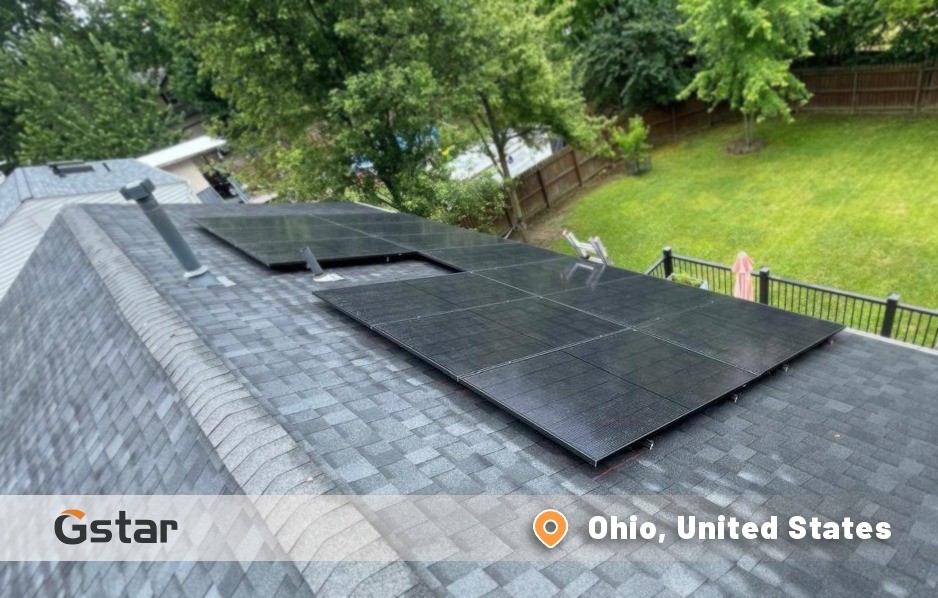

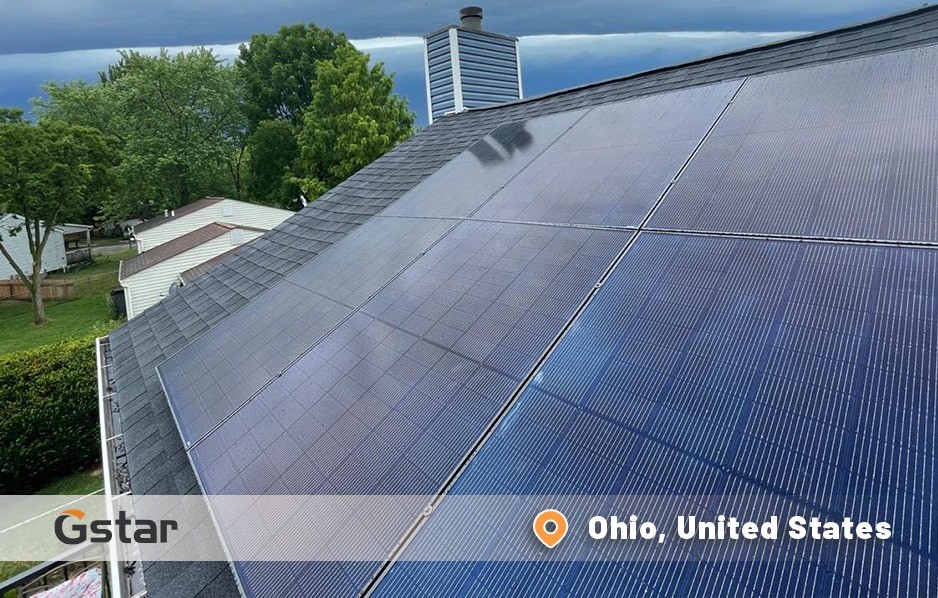

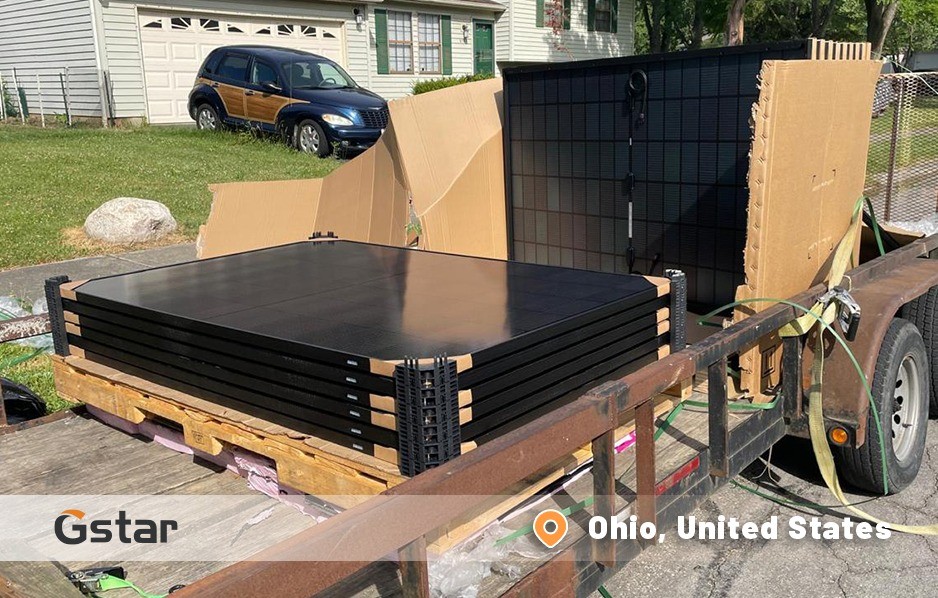

Projects

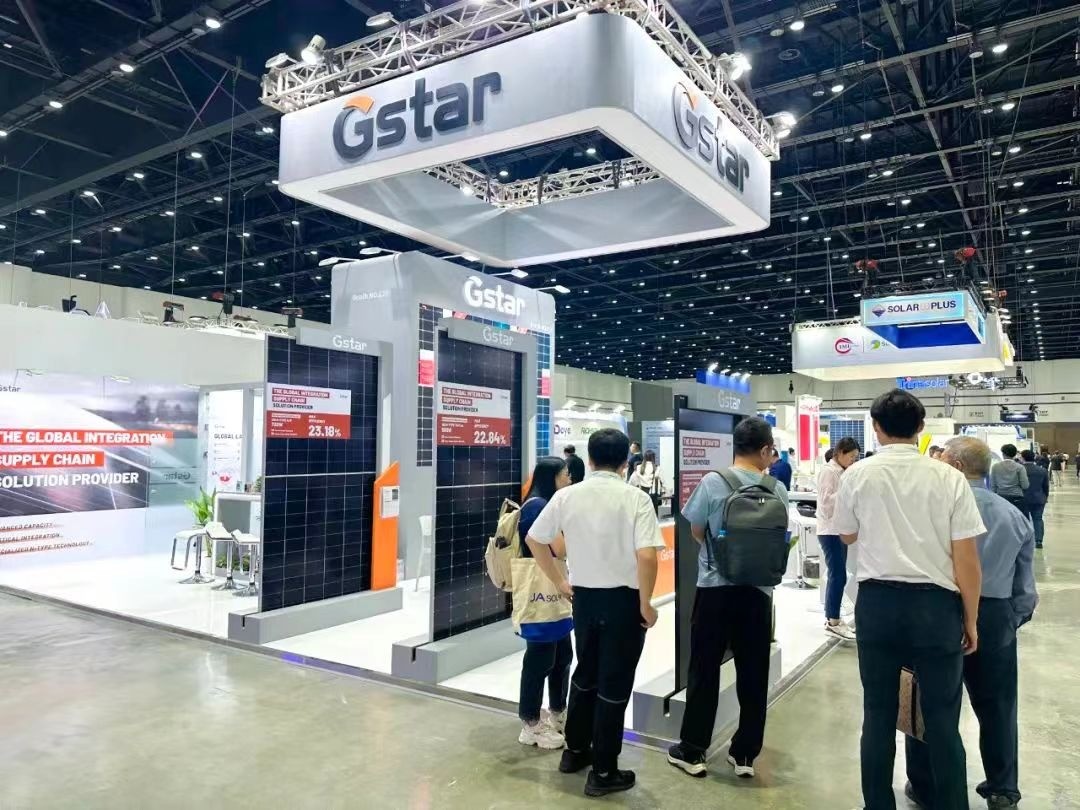

Exhibition

G-STAR Pte. Ltd.

Click to show company phone
https://www.gstarsolar.com
新加坡
60 Paya Lebar Road #06-12 Paya Lebar Square Singapore 409051
联系生产商
该产品不再生产。

晶体硅

产量 (MW)/： MWp
单晶硅
功 率 范 围(Wp)： 360-740

有用联系人

公司描述

G-STAR, founded in 2019 and headquartered in Singapore, is committed to being a trusted global provider in clean energy solutions. With a focus on both PV material manufacturing and PV system services, G-STAR aims to develop sustainable clean energy ecosystems worldwide.

G-STAR maintains a global strategy with a "1+N" model, one headquarters in Singapore, with N bases covering the United States, China, India, Mexico, Thailand, indonesia, Laos, the Philippines, and Egypt. By 2025, G-STAR's integrated production capacity in Southeast Asia is expected to reach 3GW, the total capacity is 17.5GW.

G-STAR's PV material manufacturing business primarily focuses on the production and processing of silicon materials, including silicon pulling and N-type silicon wafers, as well as metal materials production, including frames and mounting systems. The PV system services encompass the manufacturing of solar modules using N-type technology, providing a comprehensive range of PV products, from R&D to production and sales, catering to global markets including North America, Europe, the Asia-Pacific region, and Africa.

By integrating the PV supply chain to shape an integrated solar future, G-STAR is dedicated to pioneering a sustainable energy landscape that harnesses the full potential of solar power, fostering a brighter, cleaner, and more interconnected world.
