TSM144-9-535M-555M

浙江双宇电子科技有限公司

每件价格
最低订购量	1+ 件
交货时间	10 days
600W	¥339
605W	¥342
610W	¥345

注意： 您的询盘将直接发送至江苏绿鼎光伏科技有限公司。

双面, TOPCon, N型

600-620 Wp

32.5 kg

87.4 % 30年年限质保

22.21 % - 22.95 %

2382x1134x30 mm

2.0 mm

0.30 %/°C

背钝化 (PERC)

535 - 555 Wp

27.8 kg

产品质量保证

功率输出保证

90 % 12年年限质保，80 % 25年年限质保

20.7 % - 21.5 %

2279x1134x35 mm

温度系数（Pmax）

-0.35 %/°C

电池片数量

联系生产商

注意： 您的询盘将直接发送至浙江双宇电子科技有限公司。

产品信息
公司档案页

产品特点

产品型号

TSM144-9-535M

TSM144-9-540M

TSM144-9-545M

TSM144-9-550M

TSM144-9-555M

产品质量保证

12 年

功率输出保证

90 % 12年年限质保，80 % 25年年限质保

0.8 %

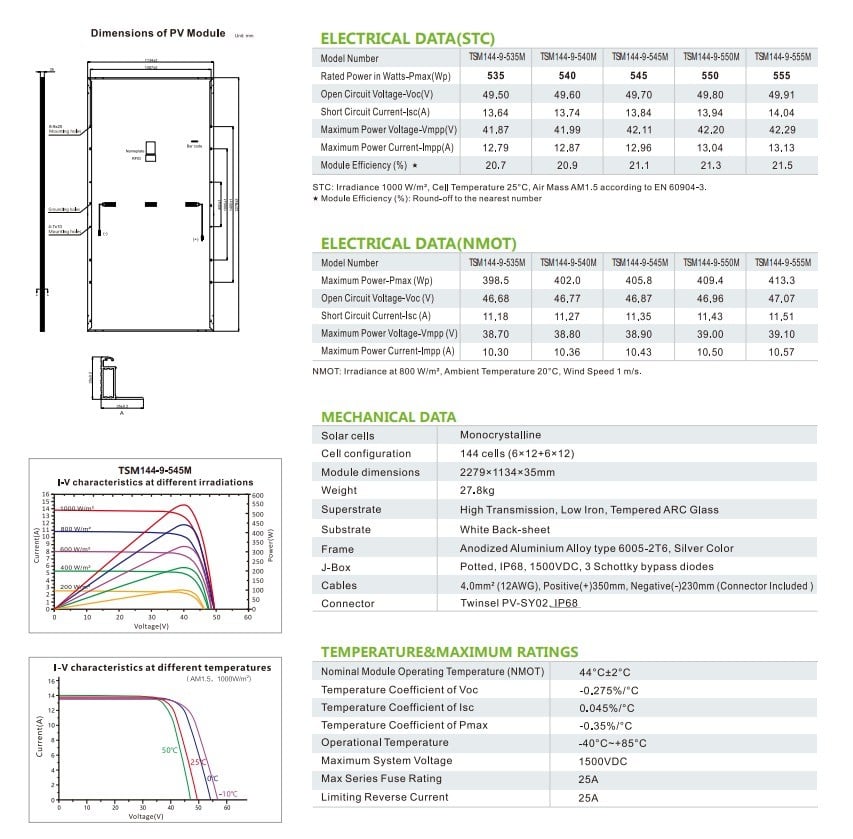

电性能参数（STC）

峰值功率（Pmax）

535 Wp

540 Wp

545 Wp

550 Wp

555 Wp

峰值工作电压（Vmpp）

41.87 V

41.99 V

42.11 V

42.2 V

42.29 V

峰值工作电流（Impp）

12.79 A

12.87 A

12.96 A

13.04 A

13.13 A

开路电压（Voc）

49.5 V

49.6 V

49.7 V

49.8 V

49.91 V

短路电流（Isc）

13.64 A

13.74 A

13.84 A

13.94 A

14.04 A

组件效率

20.7 %

20.9 %

21.1 %

21.3 %

21.5 %

电性能参数（NOCT）

峰值功率（Pmax）

398.5 Wp

402 Wp

405.8 Wp

409.4 Wp

413.3 Wp

峰值工作电压（Vmpp）

38.7 V

38.8 V

38.9 V

39 V

39.1 V

峰值工作电流（Impp）

10.3 A

10.36 A

10.43 A

10.5 A

10.57 A

开路电压（Voc）

46.68 V

46.77 V

46.87 V

46.96 V

47.07 V

短路电流（Isc）

11.18 A

11.27 A

11.35 A

11.43 A

11.51 A

最大耐久温度

44±2 °C

工作温度

-40 - 85 °C

温度系数（Pmax）

-0.35 %/°C

温度系数（Voc）

-0.275 %/°C

温度系数（Isc）

0.045 %/°C

最大系统电压

1500 V

保险丝额定电流

25 A

组件尺寸（高/宽/厚）

2279x1134x35 mm

重量

27.8 kg

电池片数量

144

玻璃类型

防反射镀膜，钢化

边框类型

阳极氧化铝

接线盒防护等级

IP 68

电缆截面

4 mm²

电缆长度

350 mm

下载公司产品详情

数据表

About Us

Zhejiang Twinsel Electronic Technology Co.Ltd. was founded in 2011, headquartered in Ninghai county, Zhejiang Province, which is located on the coast of the East China Sea. It is a high-tech, end-use enterprise that integrates research, development, production and sales.

The company's main businesses include solar lamps and lanterns, LED indoor and outdoor lighting, LED lighting engineering, smart+, photovoltaic modules, portable solar chargers, engineering installations, etc. The products have obtained CCC, CQC, CE, SAA, UL, GS, ROHS, REACH, PAHS, TUV, CSA, Golden Sun and other domestic and international authoritative quality certificates. The company has ISO9001 quality system certification, ISO14000 environmental system certification and ISO18000 occupational safety and health management system certification, and has passed the THD, TESCO, AUCHAN and other major international customers' factory inspection certification.

Certifications

Exhibition

浙江双宇电子科技有限公司

: Click to show company phone
: www.twinsel.com
: 中国大陆
: 浙江省宁波市宁海县桃园街道夏阳路5号

员工数： 2,000

联系生产商

注意： 您的询盘将直接发送至浙江双宇电子科技有限公司。

晶体硅

产量 (MW)/： MWp

单晶硅，多晶硅，晶体硅

功率范围(Wp)： 100-700

有用联系人

Mitchell Wu

Jason

公司描述

Zhejiang Twinsel Electronic Co., Ltd., operating under the brand name Twinsel, is a global provider of smart energy solutions.

Established in 2011 and headquartered in Ningbo, Zhejiang Province, Twinsel is a national-level high-tech company with comprehensive capabilities in research and development, production, and sales. The company primarily focuses on new energy products, particularly PV modules. Twinsel is dedicated to offering a wide range of services to its customers, including consultation, site scouting, design, construction, financing, and smart transportation solutions. Since its inception, the company has expanded its presence internationally, establishing overseas offices in over 10 countries and regions such as the Netherlands, Germany, the United States, India, Bangladesh, Vietnam, and Pakistan. Its business operations span nearly 50 countries and regions worldwide.

Twinsel is committed to creating value for its clients, providing exceptional services, and contributing to their profitability and overall quality of life.

产品视频

TSM132-8-675-700B...

产品

Product Features:

1. Membrane-adhesive integrated structure (FFC/PET/FFC) with double-sided fluorine coating.

2. Applying plasma chemical modification and fluoro-Silanization surface grafting techniques.

3. White backsheet with high reflectivity.

4. Black backsheet with high heat dissipation.

5. Made-to-order backsheet with a width of up to 1300 mm.

About Us

Zhejiang Twinsel Electronic Technology Co., Ltd. was founded in 2011 and is headquartered in Ninghai County, Zhejiang Province, which is located on the coast of the East China Sea. It is a high-tech, end-use enterprise that integrates research, development, production, and sales.

The company's main businesses include solar lamps and lanterns, LED indoor and outdoor lighting, LED lighting engineering, smart+, photovoltaic modules, portable solar chargers, engineering installations, etc. The products have obtained CCC, CQC, CE, SAA, UL, GS, ROHS, REACH, PAHS, TUV, CSA, Golden Sun, and other domestic and international authoritative quality certificates. The company has ISO9001 quality system certification, ISO14000 environmental system certification, and ISO18000 occupational safety and health management system certification, and has passed the THD, TESCO, AUCHAN, and other major international customers' factory inspection certifications.
