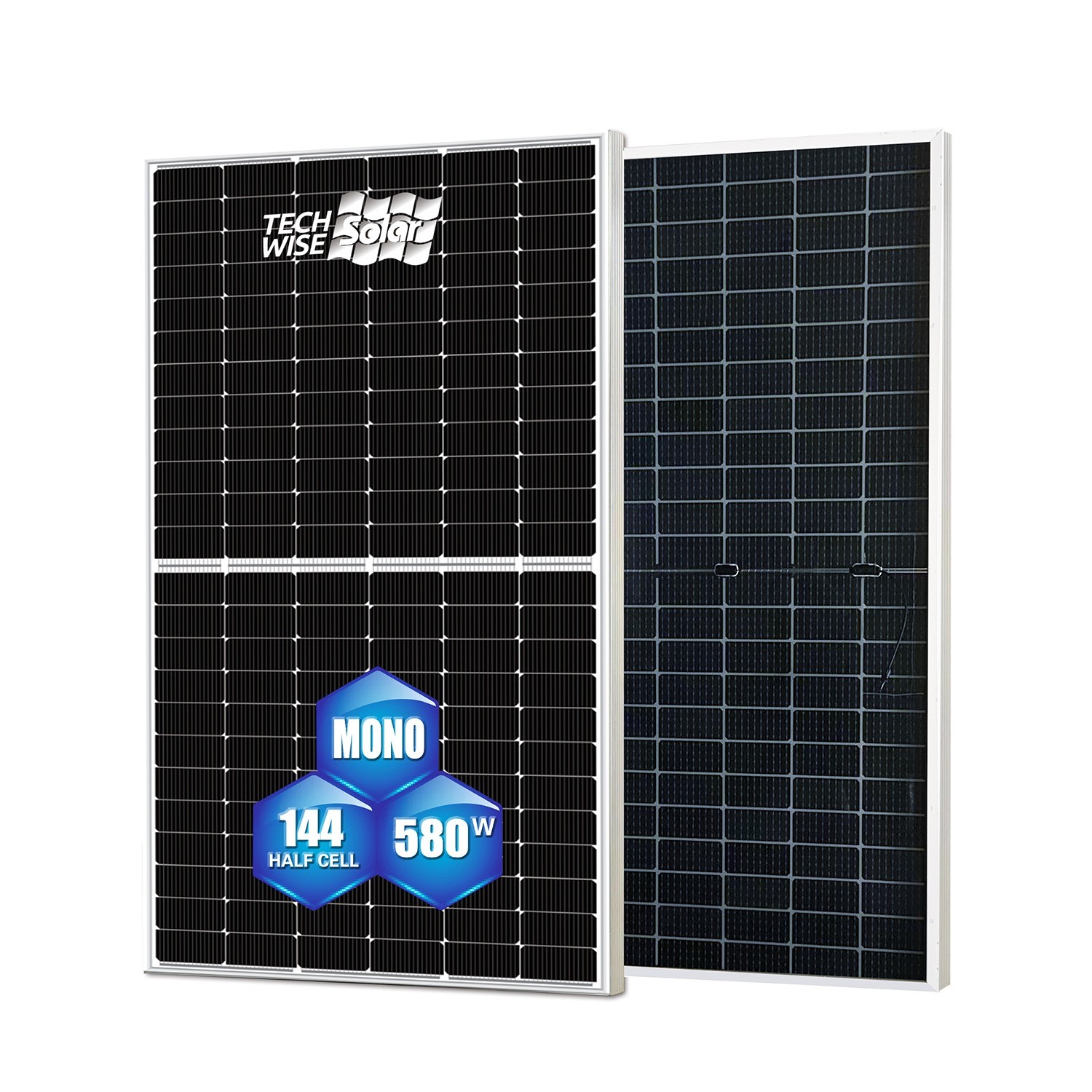

Sun-Pursuit Pro TW-560-580TSD-1

江苏绿鼎光伏科技有限公司
价 格:
起价 ¥0.611 / Wp *
电 池 技 术: 双面, TOPCon
功率范围: 560 ~ 580 Wp
地区: 中国大陆 中国大陆
联系生产商
注意: 您的询盘将直接发送至江苏绿鼎光伏科技有限公司

描述:

• Achieve outstanding efficiency levels

• Minimize the risk of heat spots

• Experience exceptional performance even in low-light conditions

• Enjoy a power tolerance of 0-3%

• Benefit from PID resistance

• Withstand extreme weather conditions

• Generate electricity on both sides for maximum efficiency

产品特点

类型 单晶硅
产品型号
560 565 570 575 580
质量保证
产品质量保证 15 年
功率输出保证 15年期93.40%输出功率保证,30年期87.4%输出功率保证
电性能参数(STC)
峰值功率 (Pmax)
560 Wp 565 Wp 570 Wp 575 Wp 580 Wp
峰值工作电压(Vmpp)
43.28 V 43.58 V 43.87 V 44.17 V 44.46 V
峰值工作电流(Impp)
12.96 A 12.99 A 13.02 A 13.05 A 13.08 A
开路电压(Voc)
51.52 V 51.63 V 51.75 V 51.86 V 51.98 V
短路电流(Isc)
13.56 A 13.58 A 13.59 A 13.61 A 13.63 A
组件效率
21.67 % 21.86 % 22.06 % 22.25 % 22.44 %
功率偏差(正)
+ 3 % + 3 % + 3 % + 3 % + 3 %
功率偏差(负)
- 3 % - 3 % - 3 % - 3 % - 3 %
  标准测试条件(STC):太阳能辐射通量1000W/m2,大气参数1.5,组件温度25℃。
电性能参数(NOCT)
峰值功率 (Pmax)
422 Wp 426 Wp 430 Wp 433 Wp 437 Wp
峰值工作电压(Vmpp)
39.43 V 39.63 V 39.83 V 40.03 V 40.23 V
峰值工作电流(Impp)
10.71 A 10.75 A 10.8 A 10.82 A 10.87 A
开路电压(Voc)
48.15 V 48.34 V 48.53 V 48.72 V 48.91 V
短路电流(Isc)
11.41 A 11.46 A 11.51 A 11.56 A 11.61 A
最大耐久温度 44±2 °C
  电池片标称工作温度(NOCT):太阳能辐射通量800W/m2,大气参数1.5,环境温度20℃,风速1 m/s。
温度特性
工作温度 -40~85 °C
温度系数(Pmax) -0.34 %/°C
温度系数(Voc) -0.25 %/°C
温度系数(Isc) 0.04 %/°C
系统集成参数
最大系统电压 1500 V
保险丝额定电流 30 A
物理参数
组件尺寸(高/宽/厚) 2278x1134x30 mm
重量 32 kg
电池片数量 144
玻璃厚度 2 mm
边框类型 阳极氧化铝
接线盒防护等级 IP 68
连接器类型 MC4
电缆截面 4 mm2
电缆长度 300 mm
PDF
下载公司产品详情

High Efficiency

PERC technology improves efficiency, increases power generation, and contributes to lower LCOE.

Lower Heat Spot Risk

Innovative circuit design and“Half Cell” structure decrease the temperature of heat spots and effectively reduce power loss.

Excellent Low-light Performance

Reliable performance in low-light conditions such as in the morning, at dusk, or during rainy days.

PID Resistant

High-quality solar cells and advanced processing technology contribute to excellent PID resistance performance.

Resilient to Extreme Weather

Carefully selected materials ensure the module still works well under the condition of 2400Pa wind load and 5400Pa snow load.

Double-sided Electricity Generation

Power can be generated on both sides to support additional output gains of up to 25%. The multi-busbar half-cut technology can boost energy density to deliver higher output.

Techwise Solar — Building the Solar World with Technology & Wisdom

Core Advantage

  • Advanced Technology

  • Cost-effective

  • Quality Assurance

  • Fully Automated Production Line

  • Professional ODM/OEM

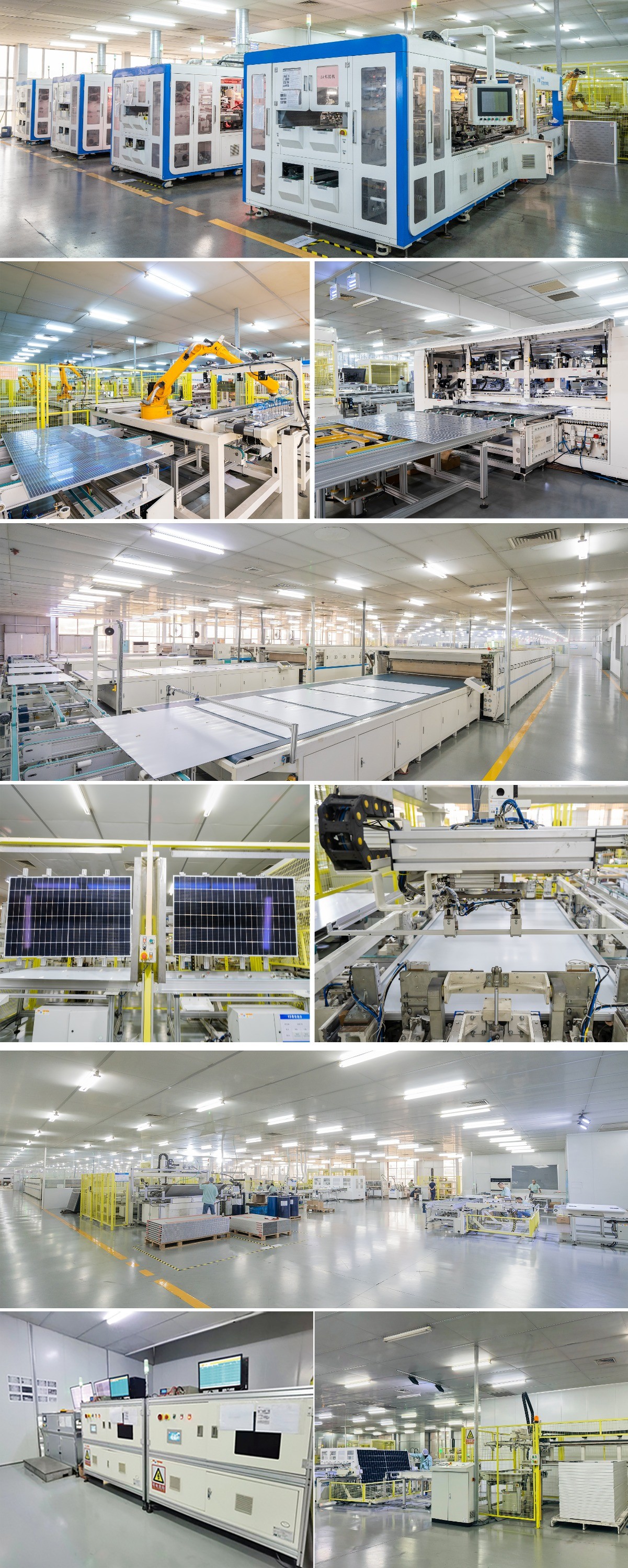

Automatic Production Line

Quality Assurance, Constant Innovation, and Professional Service have always been our top three core values at Techwise Solar. From day one, we have embraced and integrated these values into the very fabric of our company.

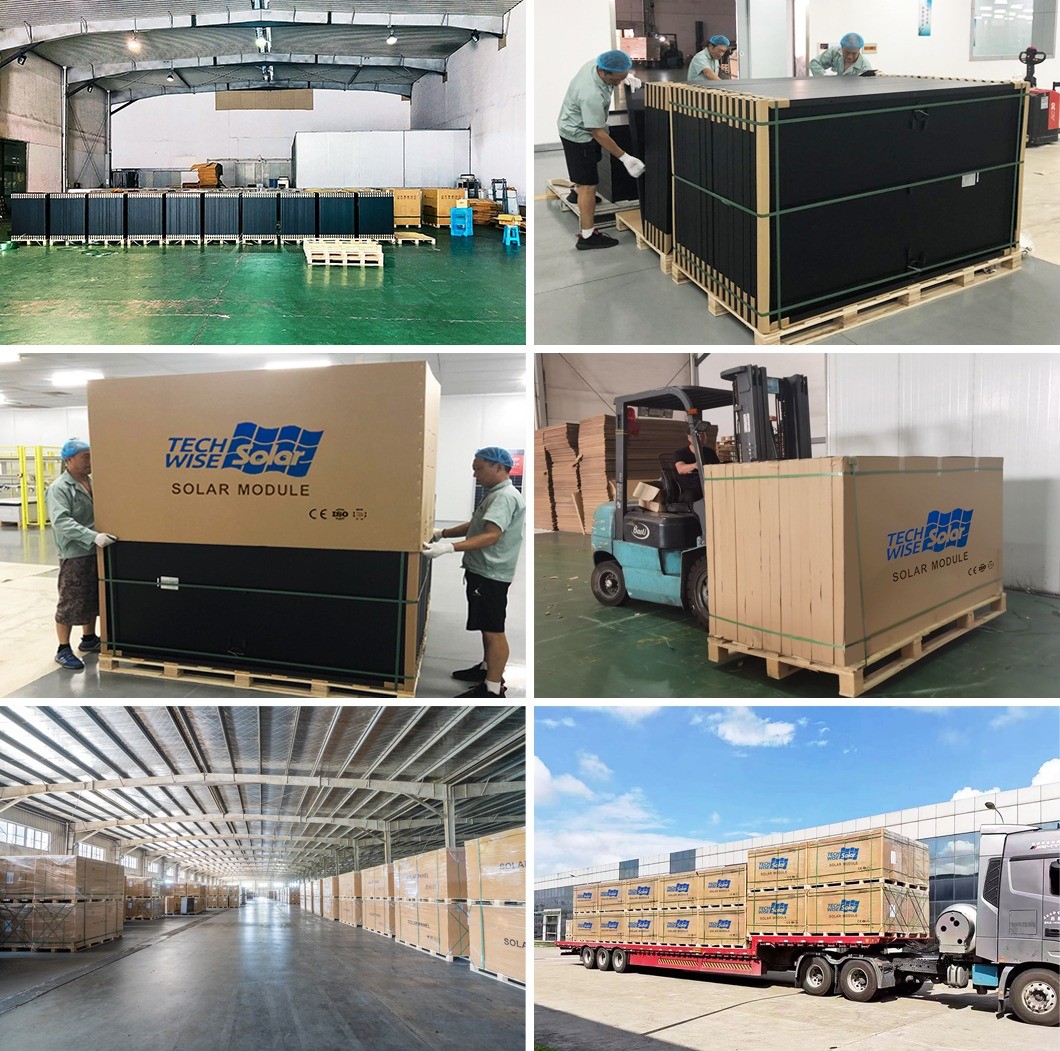

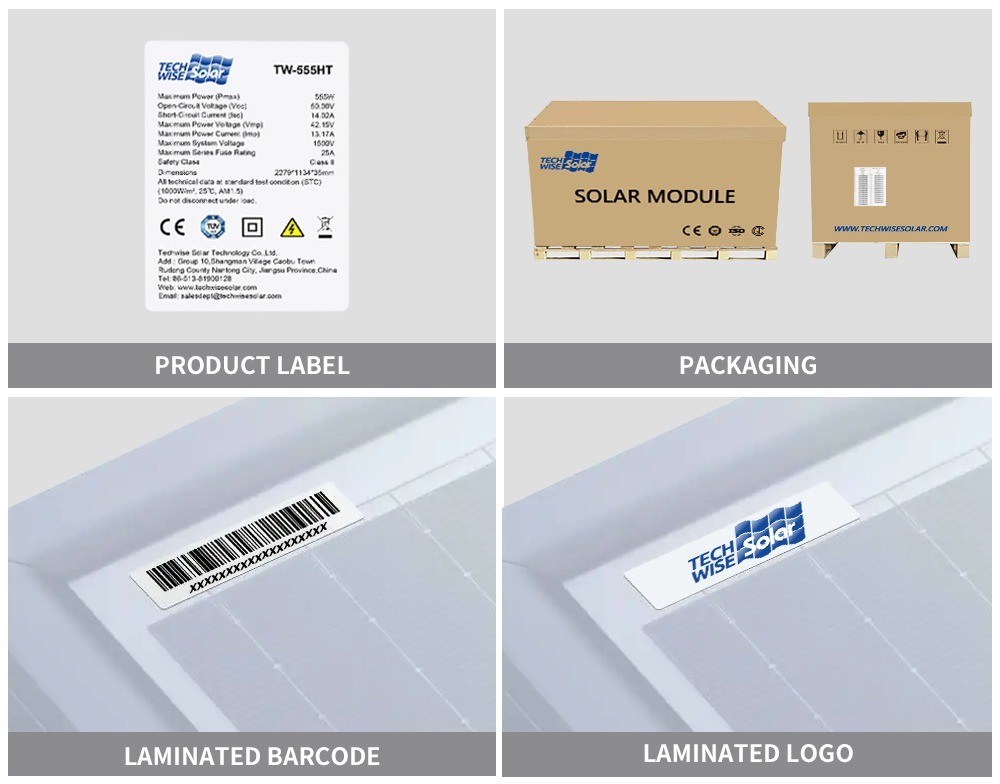

Packing & Delivery

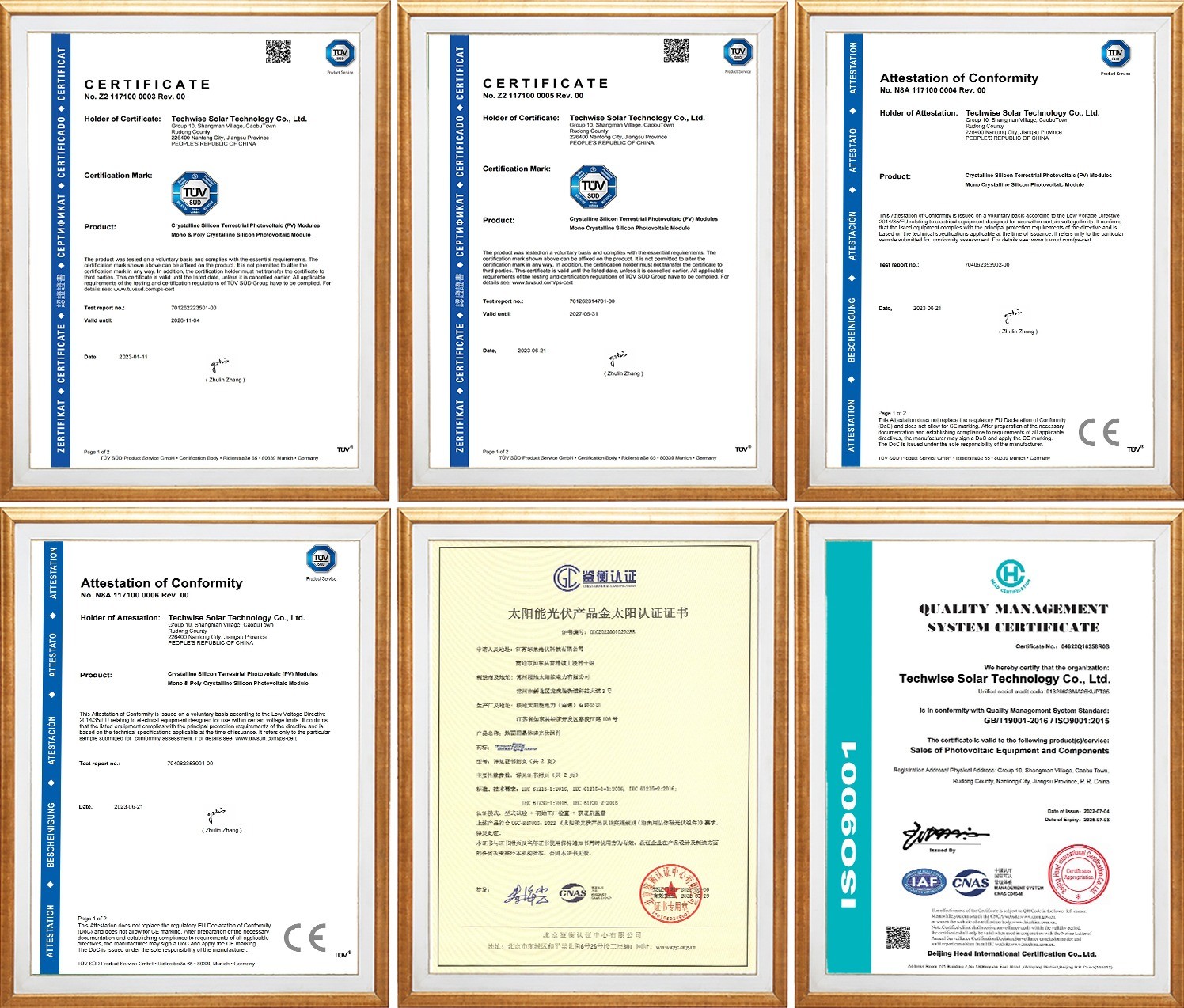

Product Certification
Exhibitions

江苏绿鼎光伏科技有限公司

Click to show company phone
www.techwisesolar.com
中国大陆
226400 江苏南通市如东县曹埠镇上漫工业园区
员工数: 87
注意: 您的询盘将直接发送至江苏绿鼎光伏科技有限公司

晶体硅

产量 (MW)/: MWp
单晶硅
功 率 范 围(Wp): 100-670
公司描述

江苏绿鼎光伏科技有限公司是一家专业致力于高效利用太阳能提供光伏发电解决方案的企业,也是集光伏产品研发、生产、销售、施工、运维为一体的新能源解决方案提供商。

公司拥有多条新型智慧生产线,能实现激光无损切片、毫米级定位焊接、自动化排版、智能设备检测等全自动生产。现有生产线年产能1GW,覆盖晶硅157、158、166、182、210全尺寸的组件生产,实现PERC、TOPCon、双玻等组件生产,并能按照客户需求提供定制服务。我们已经通过了TUV, CE, ISO, CGC等认证。

我们精心挑选原材料和供应商,严格执行产品质量标准。凭借卓越的产品质量、不断的技术创新和专业的服务,绿鼎光伏得到了国内外客户的认可。我们与全球一线品牌保持长期合作,提供专业的ODM/ OEM服务,在太阳能行业赢得了良好的声誉。

产品视频

评价

Techwise Solar is a very good solar panel manufacturer. Fast delivery and packed well,solar panels with good quality and generates power efficiently,very suit for our projects.Everything is going well based on their professional and excellent service, the panels are installed and running well. It is a trustworthy partner.

-- Mike, 南通瑞奥电子技术有限公司

产品

Techwise Solar — Building the Solar World with Technology & Wisdom

Core Advantage

  • Advanced Technology

  • Cost-effective

  • Quality Assurance

  • Fully Automated Production Line

  • Professional ODM/OEM

Automatic Production Line

Quality Assurance, Constant Innovation, and Professional Service have always been our top three core values at Techwise Solar. From day one, we have embraced and integrated these values into the very fabric of our company.

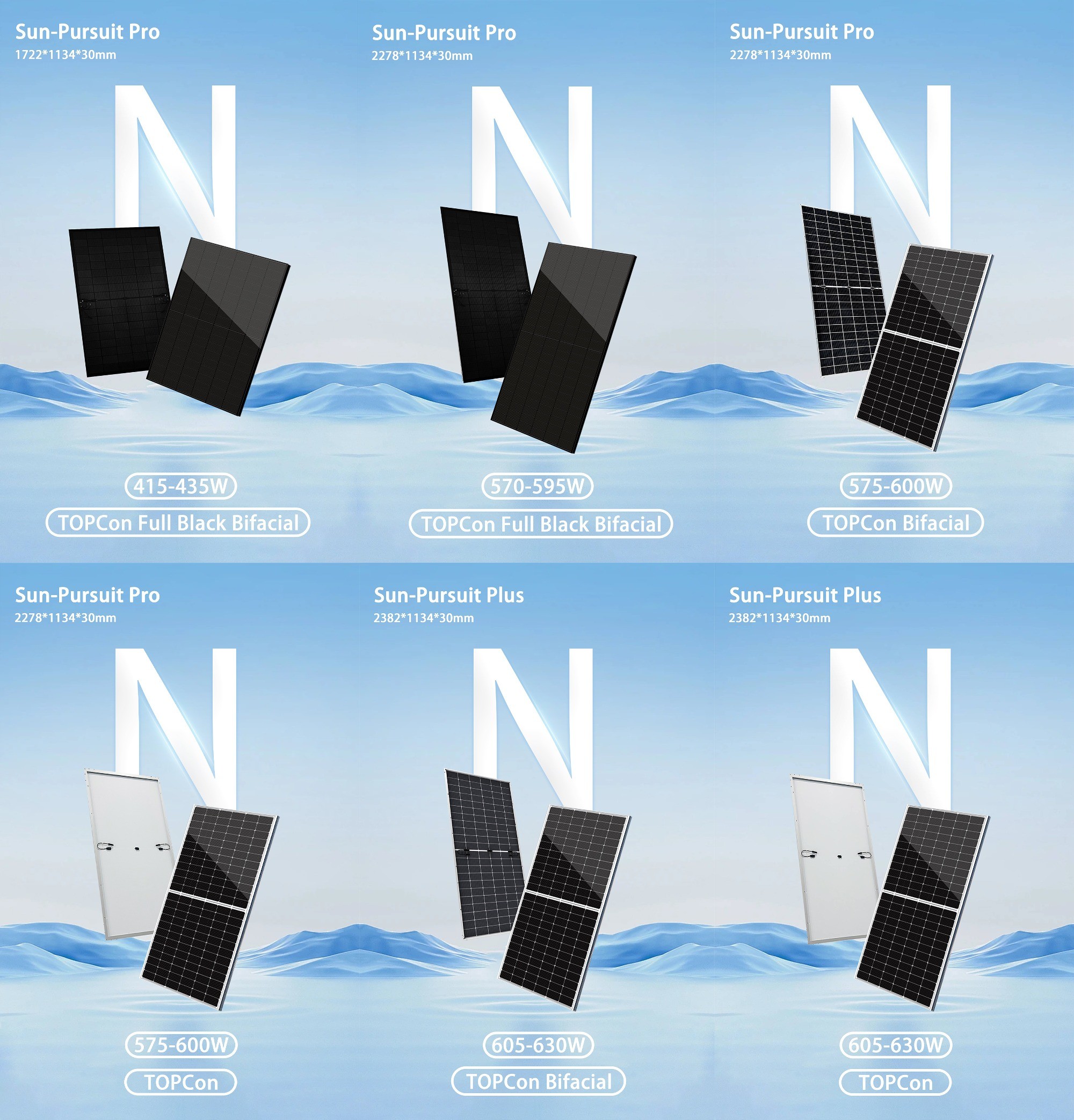

Product Presentation

High Power Efficiency

High Output

Lower Heat Spot Risk

Excellent Low-light Performance

Resilient to Extreme Weather

PID Resistant

12 Years Product Warranty

25 Years Linear Power Warranty

TUV, CE, CGC, ISO Certificate

0-3% Power Tolerance

Packing & Delivery
Product Certification
Product Certification
Exhibitions
