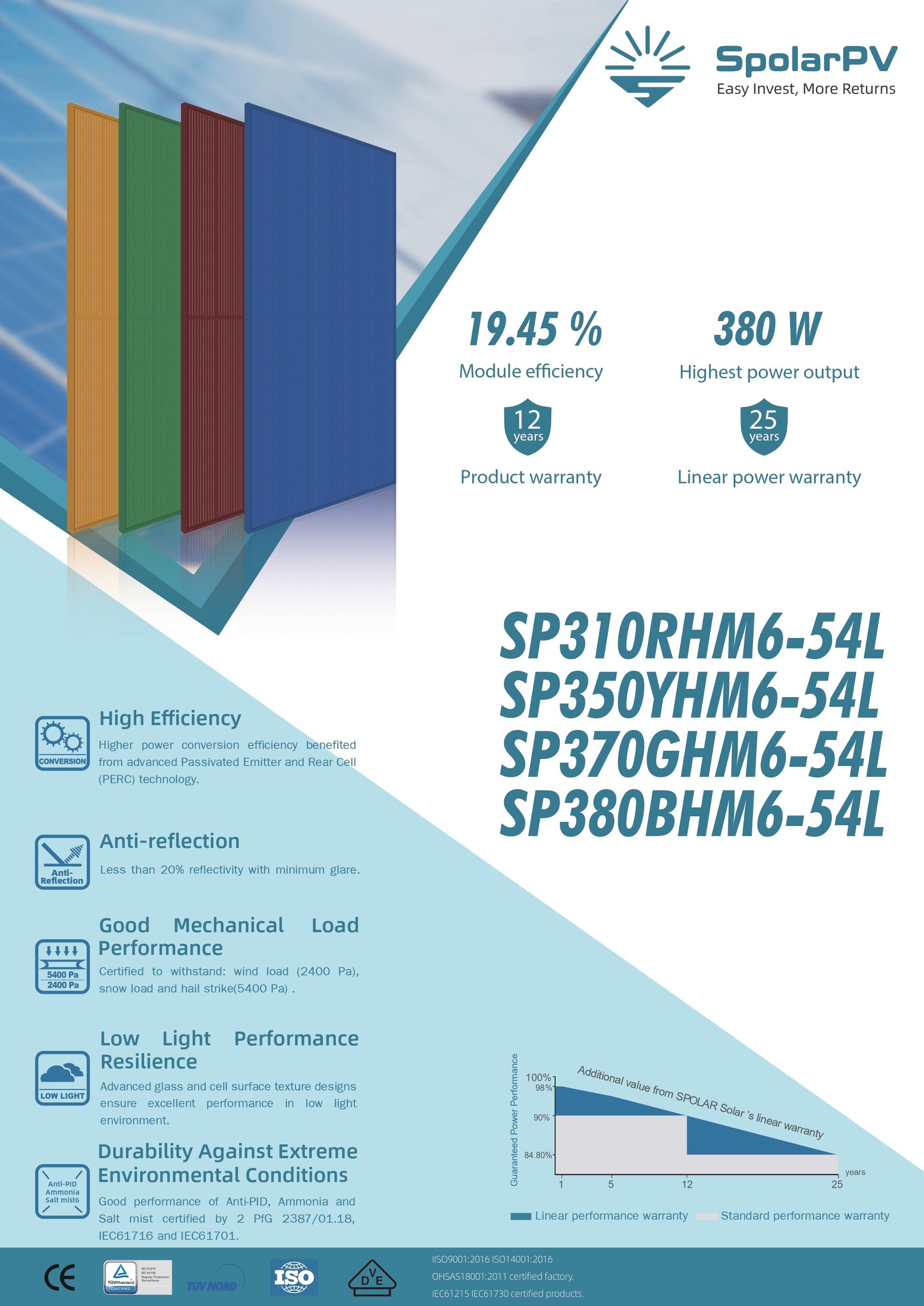

Colorful BIPV SPV-RYGB SP-310-380RHM6-54L

Colorful BIPV SPV-RYGB SP-310-380RHM6-54L

SpolarPV Technology Co., Ltd.
类型: 背钝化 (PERC),单晶硅
功率范围: 310 ~ 380 Wp
地区: 中国大陆 中国大陆
联系生产商
注意: 您的询盘将直接发送至SpolarPV Technology Co., Ltd.

描述:

Step into the future of renewable energy with our red BIPV solar panels, a groundbreaking innovation in the building integrated photovoltaic solar panel sector. Our BIPV solar module, coupled with the MBB solar module technology, promises not only a vibrant aesthetic but also high efficiency and sustainability, making it a prime choice for modern architectural needs.

产品特点

产品型号
SP310RHM6-54L SP350YHM6-54L SP370GHM6-54L SP380BHM6-54L
质量保证
产品质量保证 12 年
功率输出保证 12年期90%输出功率保证,25年期84.8%输出功率保证

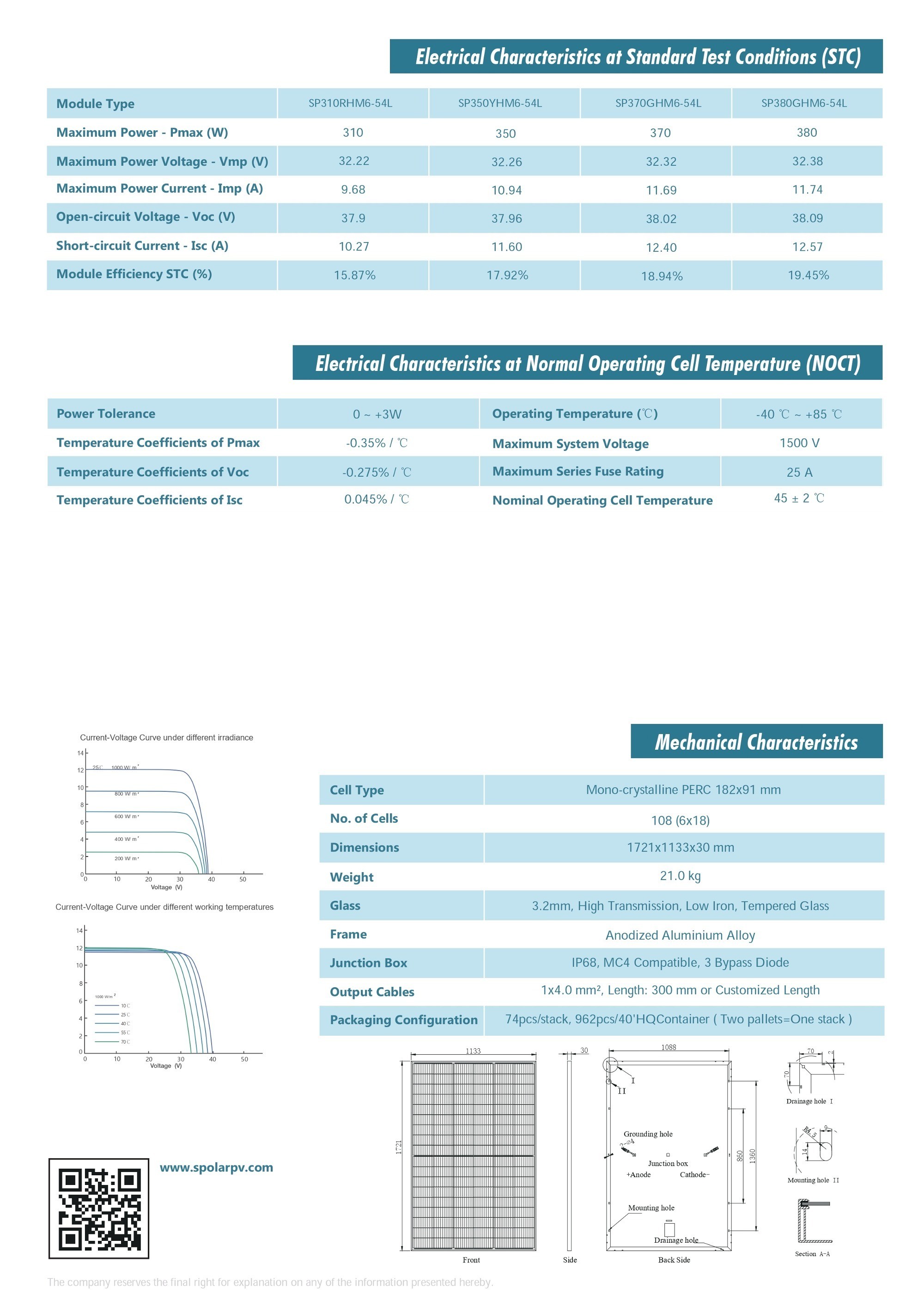

电性能参数(STC)
峰值功率 (Pmax)
310 Wp 350 Wp 370 Wp 380 Wp
峰值工作电压(Vmpp)
32.22 V 32.26 V 32.32 V 32.38 V
峰值工作电流(Impp)
9.68 A 10.94 A 11.69 A 11.74 A
开路电压(Voc)
37.9 V 37.96 V 38.02 V 38.09 V
短路电流(Isc)
10.27 A 11.6 A 12.4 A 12.57 A
组件效率
15.87 % 17.92 % 18.94 % 19.45 %
功率偏差(正)
+ 1 % + 1 % + 1 % + 1 %
  标准测试条件(STC):太阳能辐射通量1000W/m2,大气参数1.5,组件温度25℃。
电性能参数(NOCT)
最大耐久温度 45±2 °C
  电池片标称工作温度(NOCT):太阳能辐射通量800W/m2,大气参数1.5,环境温度20℃,风速1 m/s。
温度特性
工作温度 -40~85 °C
温度系数(Pmax) -0.35 %/°C
温度系数(Voc) -0.275 %/°C
温度系数(Isc) 0.045 %/°C
系统集成参数
最大系统电压 1500 V
保险丝额定电流 25 A
物理参数
组件尺寸(高/宽/厚) 1721x1133x30 mm
重量 21 kg
电池片类型 背钝化 (PERC),单晶硅
电池片数量 108
玻璃类型 钢化
玻璃厚度 3.2 mm
边框类型 阳极氧化铝
旁路二极管数 3
接线盒防护等级 IP 68
连接器类型 MC4
电缆截面 4 mm2
电缆长度 300 mm
PDF
下载公司产品详情

SpolarPV Technology Co., Ltd.

Click to show company phone
https://www.spolarpv.com
中国大陆
Greenland Building 502, Jiangnan Road 2, Yuhuatai District, Nanjing City, Jiangsu
员工数: 200
注意: 您的询盘将直接发送至SpolarPV Technology Co., Ltd.

晶体硅

产量 (MW)/: MWp
单晶硅,多晶硅
功 率 范 围(Wp):
公司描述

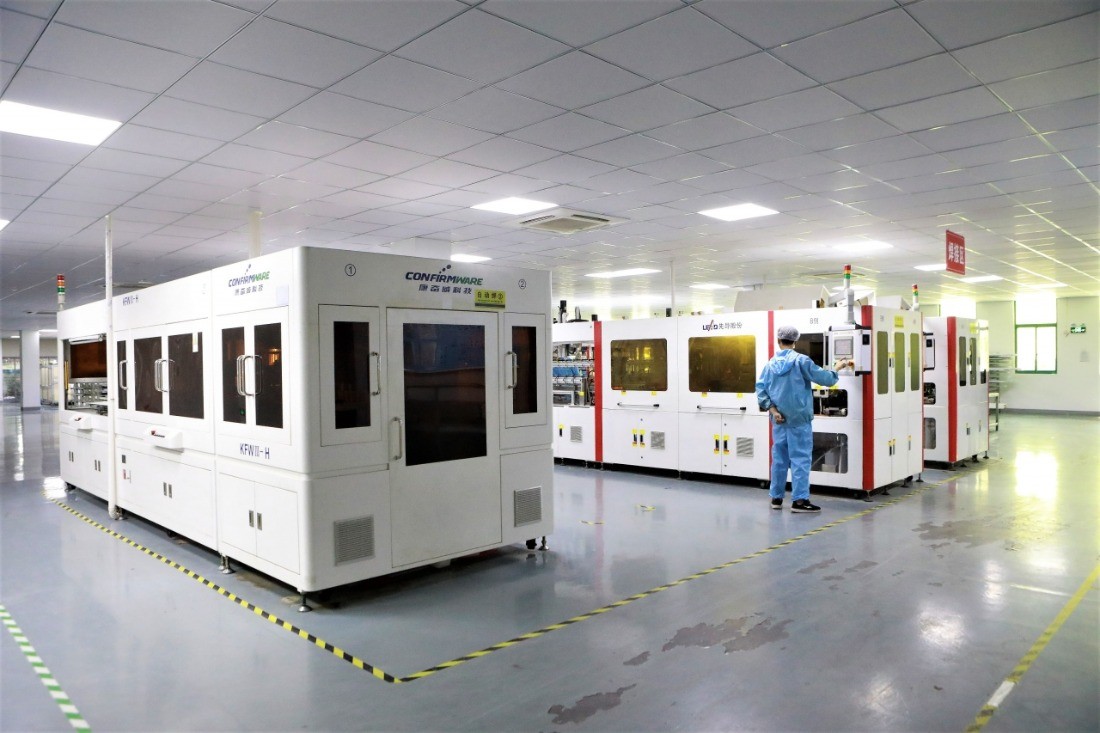

Established in 2010 and headquartered in Nanjing, the capital of Jiangsu Province, SpolarPV Technology Co., Ltd stands as a leading force in the solar industry. Our expansive 6,000 m² facility is equipped with state-of-the-art automatic production lines, stringer machines, laminators, and a comprehensive range of manufacturing equipment. Complemented by our imported product testing apparatus, we proudly uphold an annual production capacity of 800MW.Recognizing the diverse needs of the global market, we have pioneered several innovations in China. We were the first to introduce Building-Integrated Photovoltaic (BIPV) modules and have since expanded our product range to include 182 mm cell modules, 166 mm cell solar modules, bifacial dual glass modules, 158.75 polycrystalline and monocrystalline panel modules, among others.Our dedication to excellence is evident in our commitment to research, development, and the production of high-efficiency solar modules. We've forged strong partnerships with renowned institutions both locally and internationally, including research institutes in Switzerland and Shanghai Jiaotong University in China. Our credentials are further solidified with certifications like ISO9001, TUV, VDE, IEC 61215, IEC 61730, and CE.Guided by our belief in delivering only the "Premium and Superior", SpolarPV has consistently prioritized the enhancement of top-tier solar products since its inception. We're not just focused on product quality; we're also dedicated to offering the most cost-effective solutions to our global clientele. Our global footprint includes a technological center and a European market distribution hub in Switzerland. Additionally, we have established branches in countries like Germany, Sweden, Poland, the Netherlands, Spain, Brazil, Vietnam, Afghanistan, and more, covering over 30 countries and regions. We also take pride in offering tailored services to meet the unique needs of our customers.

其他办事处

国家:
中国大陆
地址:
Greenland Building A-505, Jiangnan Road 2, Yuhuatai District, Nanjing City, Jiangsu Province, China

评价

SpolarPV is a rapidly developing company with high reactivity and productivity to both its business partners and customers. I recommend.

-- Baratov, AE Alternative Energy GmbH (AE Solar)

产品

SpolarPV Technology Co., Ltd.

Esay Invest, More Return!

WorldWide Sale

At SpolarPV, our commitment to green energy knows no boundaries. Our solar solutions have illuminated countless homes, businesses, and communities across the globe. While our footprint spans continents, Europe stands as a testament to our most significant market presence. From the bustling cities of Western Europe to the serene landscapes of the East, our solar panels harness the power of the sun, driving sustainability and innovation. As we continue to grow, our dedication remains unwavering: to provide efficient, reliable, and environmentally-friendly solar solutions to every corner of the world.

Solar Product Quality Assurance

At SpolarPV, we take immense pride in our unwavering commitment to ensuring the highest standards of quality in the production of photovoltaic components. With years of experience and a dedicated team of experts, we have established ourselves as leaders in the solar industry. Our comprehensive approach to quality assurance covers every aspect of the manufacturing process, from the initial design phase to the final product delivery.

Quality Craftsmanship

'Quality Craftsmanship' is not just a slogan but a guiding principle that underscores our unwavering commitment to producing top-tier photovoltaic components. Our approach to solar panel manufacturing is characterized by meticulous attention to detail, precision engineering, and a dedication to excellence that sets us apart in the solar industry. We take great pride in our use of cutting-edge technology, premium materials, and a team of skilled professionals who employ their craftsmanship to create solar panels of the highest quality. Every step of the manufacturing process, from the initial design to the final assembly, is executed with precision and care, ensuring that our solar panels not only meet but exceed industry standards. When you choose SpolarPV, you're investing in solar products that are a testament to 'Quality Craftsmanship,' a promise of durability, efficiency, and reliability that endures throughout their lifespan.

After Sales Service

our commitment to excellence doesn't end with the installation of solar solutions. We understand that providing high-quality products and services is just the first step in our journey with our valued customers. Our after-sales service is a testament to our dedication to ensuring the long-term performance and satisfaction of our clients.We offer a comprehensive after-sales service package that includes routine maintenance, system monitoring, and quick response support. Our team of skilled technicians and engineers is always on standby to address any concerns, perform necessary maintenance, and troubleshoot issues to maximize the efficiency and lifespan of your solar installations.Additionally, our post-installation support extends to helping our customers navigate warranty claims and system optimization. We believe in transparent and open communication, ensuring that you have a trusted partner by your side, even after the initial installation is complete.SpolarPV is not just a provider of solar solutions; we are your long-term energy partner, committed to delivering the highest quality after-sales service to meet your evolving needs and ensure the ongoing success of your solar systems.

Our Certifications

Featured Projects

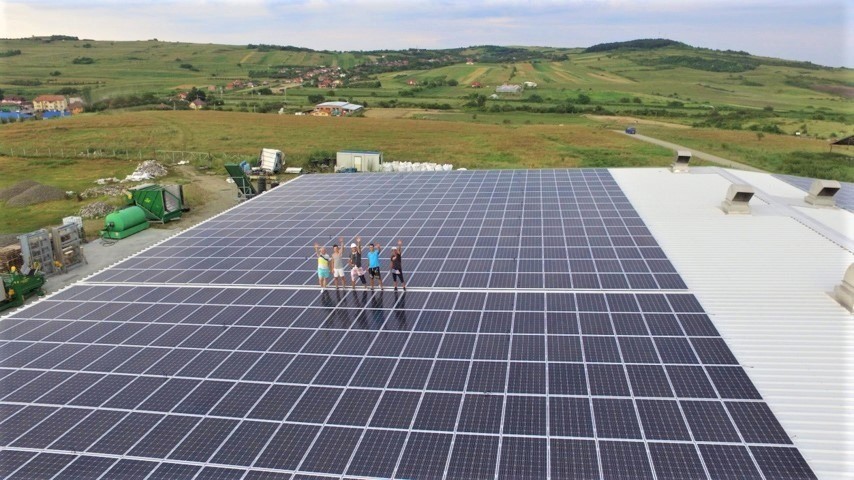

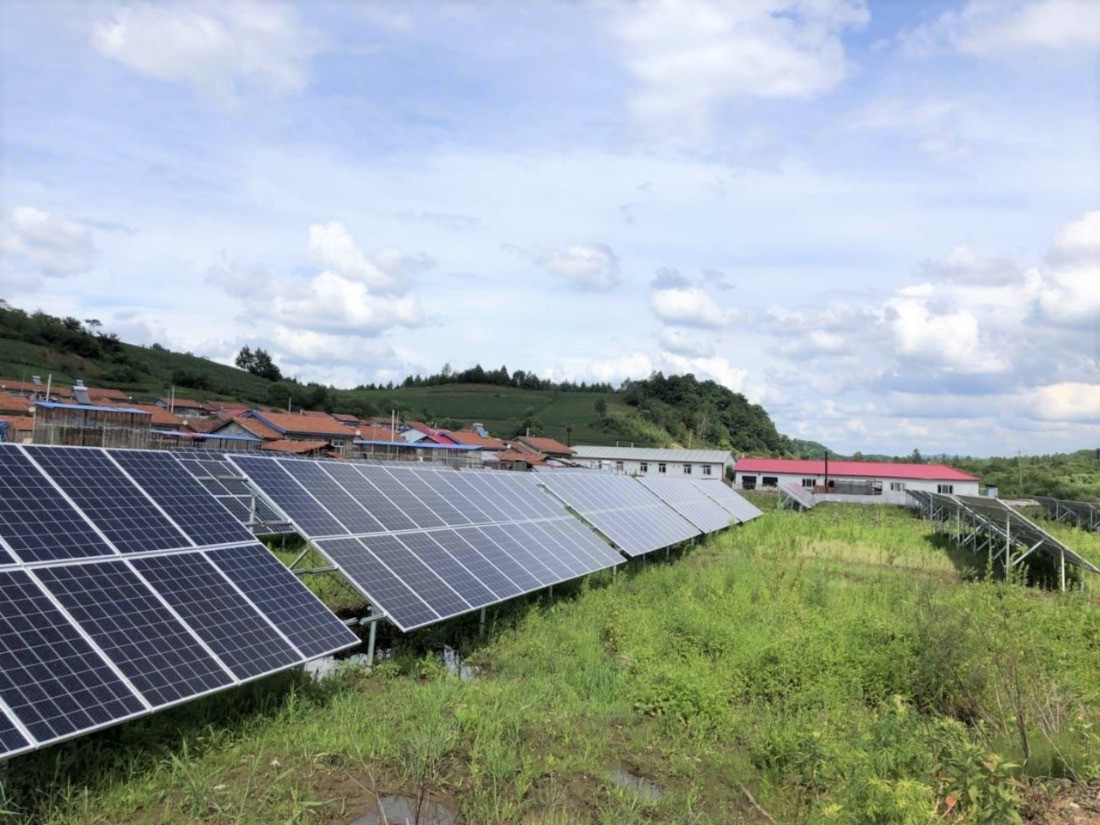

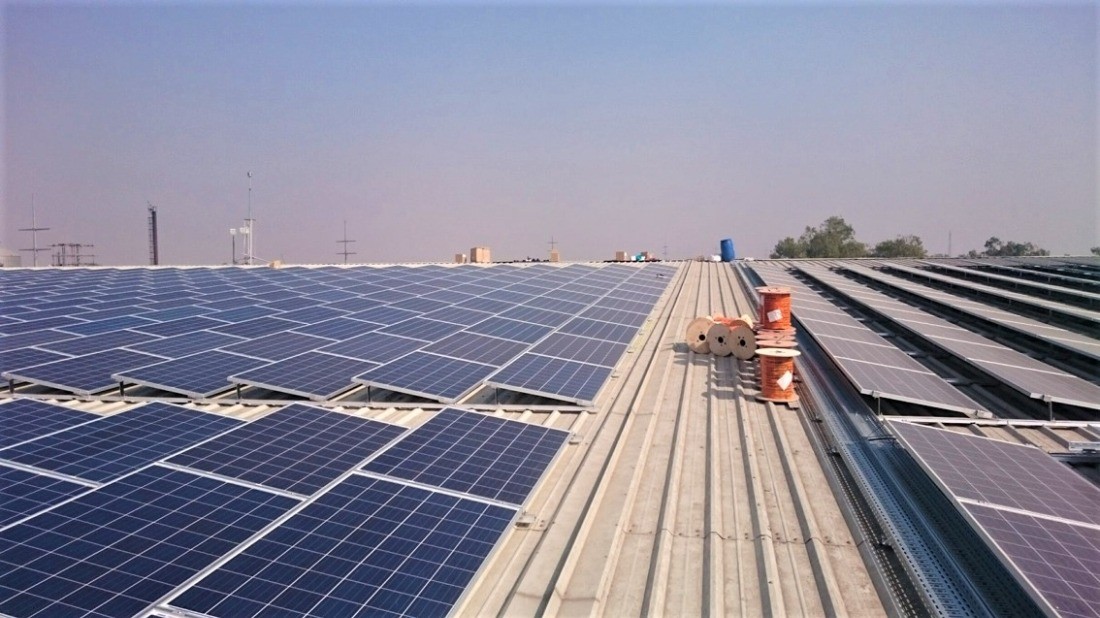

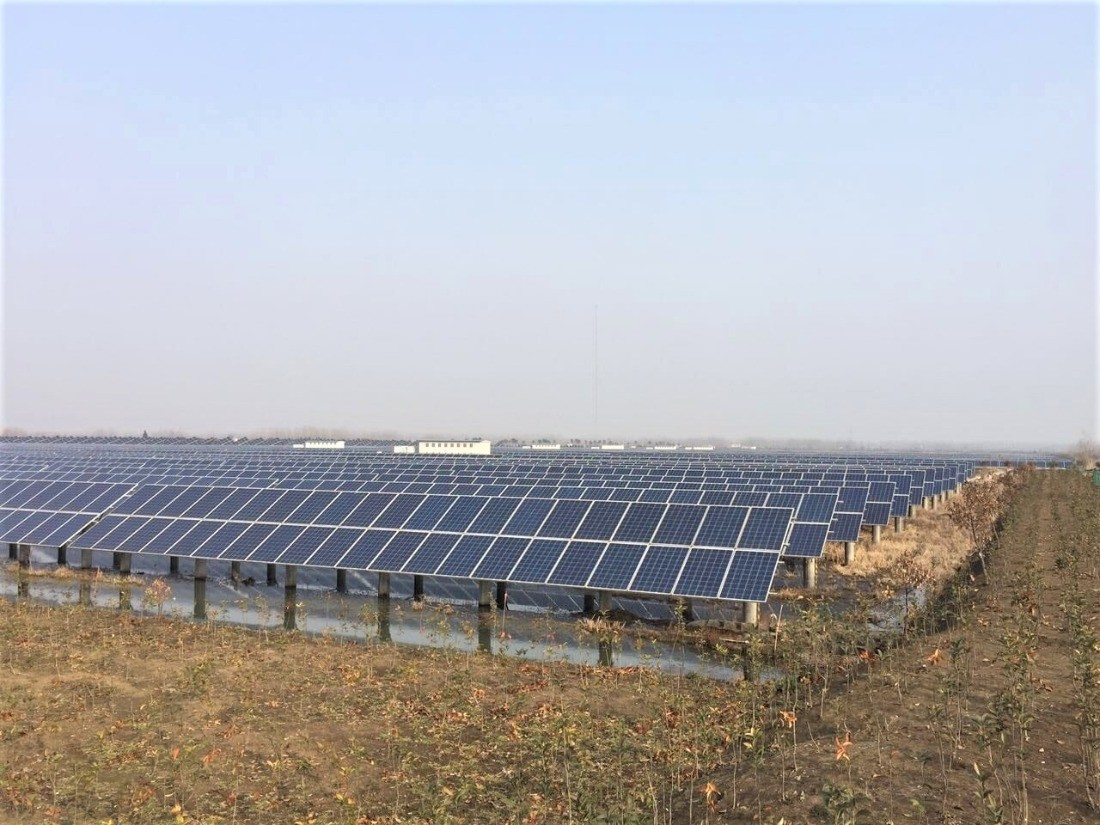

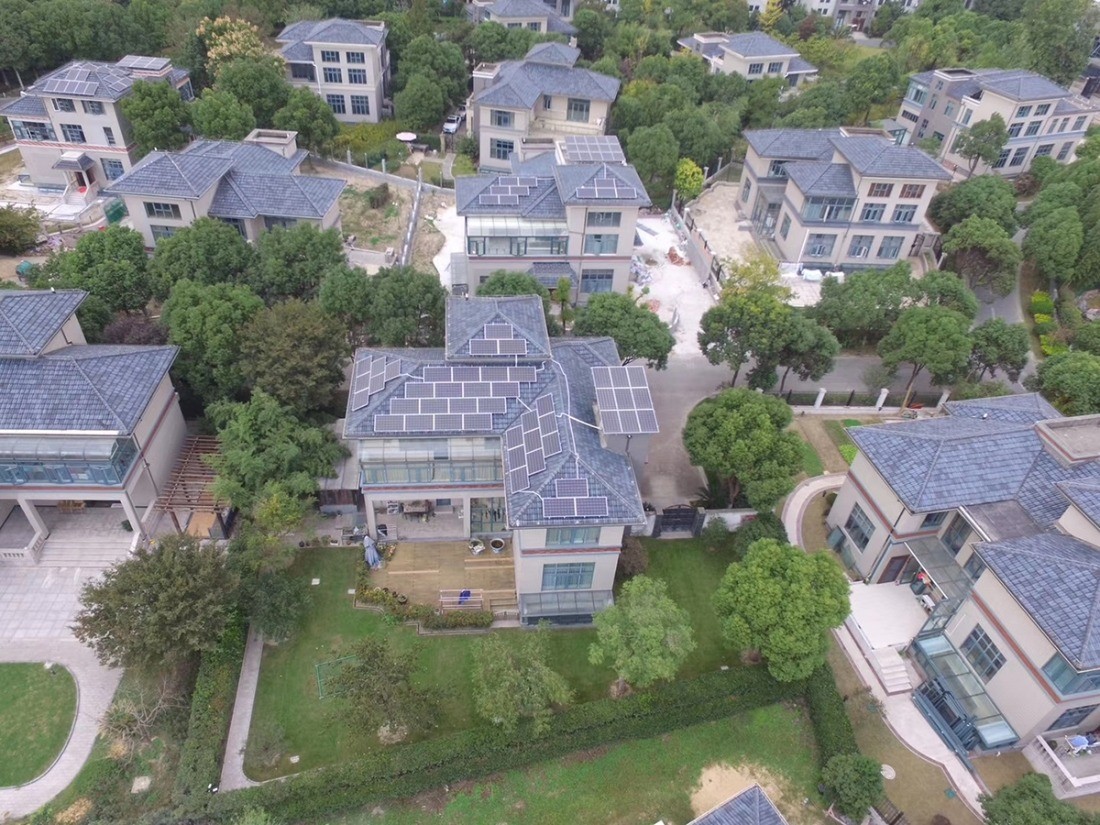

At SpolarPV, we are immensely proud to share our diverse portfolio of featured projects, showcasing our expertise in solar solutions across the globe. In 2020, we undertook a substantial endeavor in Dongnai, Vietnam, where we successfully installed a 1.5 MW solar photovoltaic system, contributing to the region's sustainable energy goals. Moving to Europe, in Žehňa, Slovakia, our team executed a 120 kW photovoltaic system in 2022, exemplifying our commitment to solar energy in the heart of Europe. In Periș, Romania, the same year witnessed another milestone, with the installation of a 170 kW solar photovoltaic system, demonstrating our reach and impact. Additionally, in the picturesque village of Menzingen, Switzerland, we introduced a unique touch to solar integration with the installation of 120 square meters of solar panels on balconies in 2021, combining aesthetics and energy efficiency. These are just a few examples of our extensive global presence, reflecting our dedication to harnessing the power of the sun to create a sustainable and environmentally responsible future.
