天合光能股份有限公司 Vertex S+ TSM-NEG9RC.27 415-445W

Epax Solar GmbH
技术
技术
双面
功率范围
功率范围
435 - 440 Wp
地区
地区
德国 德国
重量
重量
21 kg
产品质量保证
产品质量保证
15 年
功率输出保证
功率输出保证
87.4 % 30年年限质保
组件效率
组件效率
21.8 % - 22 %
组件尺寸
尺寸
1762x1134x30 mm
玻璃厚度
玻璃厚度
1.6 mm
温度系数(Pmax)
温度系数(Pmax)
-0.29 %/°C
电池片数量
电池片数量
144
价 格:
起价
¥1.31 / Wp*
*
联系销售商
注意: 您的询盘将直接发送至Epax Solar GmbH
  • Bifacial Transparent Cells With Efficiency Of Up To 22.3%

  • Excellent Resistance To Salt Spray, Sand Dust, Ammonia

  • Great Solution On Low Load Capacity Rooftops

  • Reduced Installation Costs

  • 25-Year Product Warranty And 30-Year Performance Warranty

产品特点

类型 单晶硅
产品型号
435W 440W

产品质量保证 15 年
功率输出保证 87.4 % 30年年限质保
0.42 %
功率偏差 0 ~ +1 %
电性能参数(STC)
峰值功率 (Pmax)
435 Wp 440 Wp
峰值工作电压(Vmpp)
43.6 V 44 V
峰值工作电流(Impp)
9.99 A 10.01 A
开路电压(Voc)
51.8 V 52.2 V
短路电流(Isc)
10.64 A 10.67 A
组件效率
21.8 % 22 %
电性能参数(NOCT)
峰值功率 (Pmax)
332 Wp 335 Wp
峰值工作电压(Vmpp)
40.7 V 41 V
峰值工作电流(Impp)
8.15 A 8.17 A
开路电压(Voc)
49.1 V 49.4 V
短路电流(Isc)
8.57 A 8.6 A
最大耐久温度 43±2 °C

工作温度 -40 - 85 °C
温度系数(Pmax) -0.29 %/°C
温度系数(Voc) -0.24 %/°C
温度系数(Isc) 0.04 %/°C

最大系统电压 1500 V
保险丝额定电流 25 A

组件尺寸(高/宽/厚) 1762x1134x30 mm
重量 21 kg
电池片数量 144
玻璃类型 防反射镀膜
玻璃厚度 1.6 mm
密封材料类型 EVA
边框类型 阳极氧化铝
接线盒防护等级 IP 68
连接器类型 MC4
电缆截面 4 mm2

下载公司产品详情

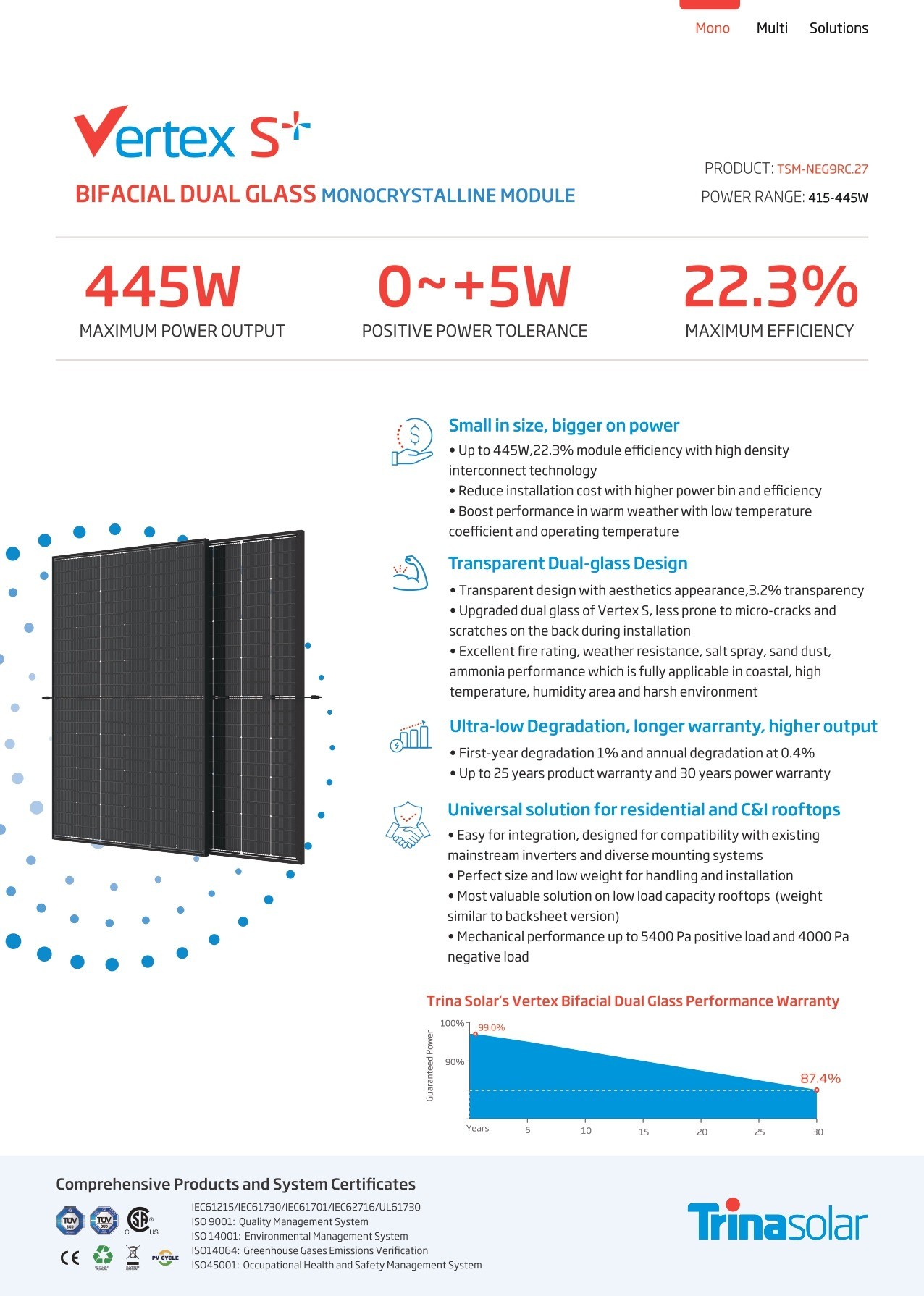

Datasheet
