CE-100M36

江苏煜华新能源有限公司
功率范围
功率范围
100 Wp
地区
地区
中国大陆 中国大陆
重量
重量
5.8 kg
产品质量保证
产品质量保证
10 年
功率输出保证
功率输出保证
90 % 12年年限质保,80 % 25年年限质保
组件效率
组件效率
19.57 % - 19.57 %
组件尺寸
尺寸
758x674x25 mm
玻璃厚度
玻璃厚度
3.2 mm
温度系数(Pmax)
温度系数(Pmax)
-0.5 %/°C
电池片数量
电池片数量
32
价 格:
起价
¥1.00 / Wp*
*
每件价格
每件价格
最低订购量 100+
CE-100M36 ¥100
联系生产商
注意: 您的询盘将直接发送至江苏煜华新能源有限公司
  • High conversion efficiency through advanced manufacturing technology

  • 10 years product warranty, 25 years linear performance warranty

  • Anti-PID modules effectively reduce the loss in solar panel power output

  • Anti salt mist corrosion & anti-ammonia corrosion test

产品特点

类型 单晶硅
产品型号
CE-100M36

产品质量保证 10 年
功率输出保证 90 % 12年年限质保,80 % 25年年限质保
0.8 %
功率偏差 0 ~ +3 %
电性能参数(STC)
峰值功率 (Pmax)
100 Wp
峰值工作电压(Vmpp)
18.1 V
峰值工作电流(Impp)
5.53 A
开路电压(Voc)
21.6 V
短路电流(Isc)
5.91 A
组件效率
19.57 %
电性能参数(NOCT)
最大耐久温度 47±2 °C

工作温度 -40 - 85 °C
温度系数(Pmax) -0.5 %/°C
温度系数(Voc) -0.4 %/°C
温度系数(Isc) 0.065 %/°C

最大系统电压 1000 V
保险丝额定电流 15 A

组件尺寸(高/宽/厚) 758x674x25 mm
重量 5.8 kg
电池片规格 182×182 mm
电池片数量 32
玻璃类型 钢化
玻璃厚度 3.2 mm

下载公司产品详情
What we do

Production

In all aspects of solar cells and module manufacturing, Centro Energy implements more than 30 in-plant test standards covering visual inspection, testing heat, El test, etc. It's much more stringent than the industrial standards.

Centro provides various types to meet customers' requirements, such as the Topcon series, Deep Black series, BIPV series, etc. OEM, ODM service, and system integration services are also available for customers.

Projects

江苏煜华新能源有限公司

Click to show company phone
www.centro-energy.com
中国大陆
江苏省常州市金坛区直溪镇振兴南路268号
员工数: 800
注意: 您的询盘将直接发送至江苏煜华新能源有限公司

晶体硅

产量 (MW)/: MWp
单晶硅,多晶硅
功 率 范 围(Wp): 5-400
公司描述

Centro Energy is a cell-to-module manufacturing facility employing state-of-the-art robotic equipment located in China and Vietnam, as well as an international photovoltaic system integrator.

For Manufacturing, we have 800MW solar cells and 1GW solar modules in China. Our professional team has over 10 years industry experience in manufacturing, quality controlling, and logistics services. Full rangers of Centro Energy’s solar modules are produced in accordance with international standard of IEC61215 and IEC61730.

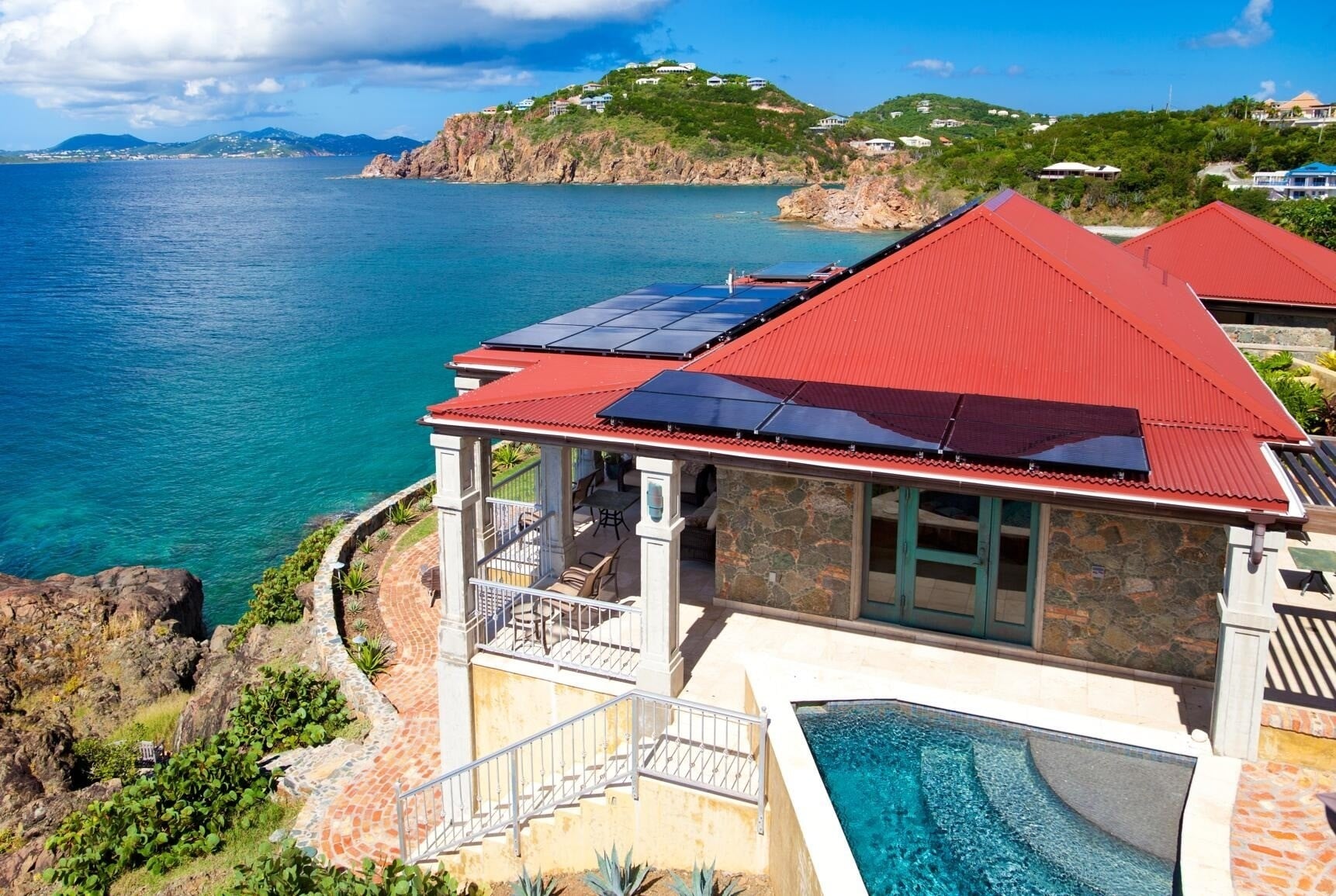

Centro Energy continuously delivers high quality solar cells and modules to customers worldwide, and products are widely used for homes, factories and public facilities in more than 40 countries such as Germany, Netherland, Japan, Thailand, Australia, Chile, Russia, etc.

Currently Centro Energy could provide customers with mono and poly crystalline solar cells, standard solar modules, black solar modules, smart modules as well as customized products like OEM and ODM. Meanwhile, we invest more in R&D advancing our technology to rapidly increase our energy efficiency and provide stable quality.

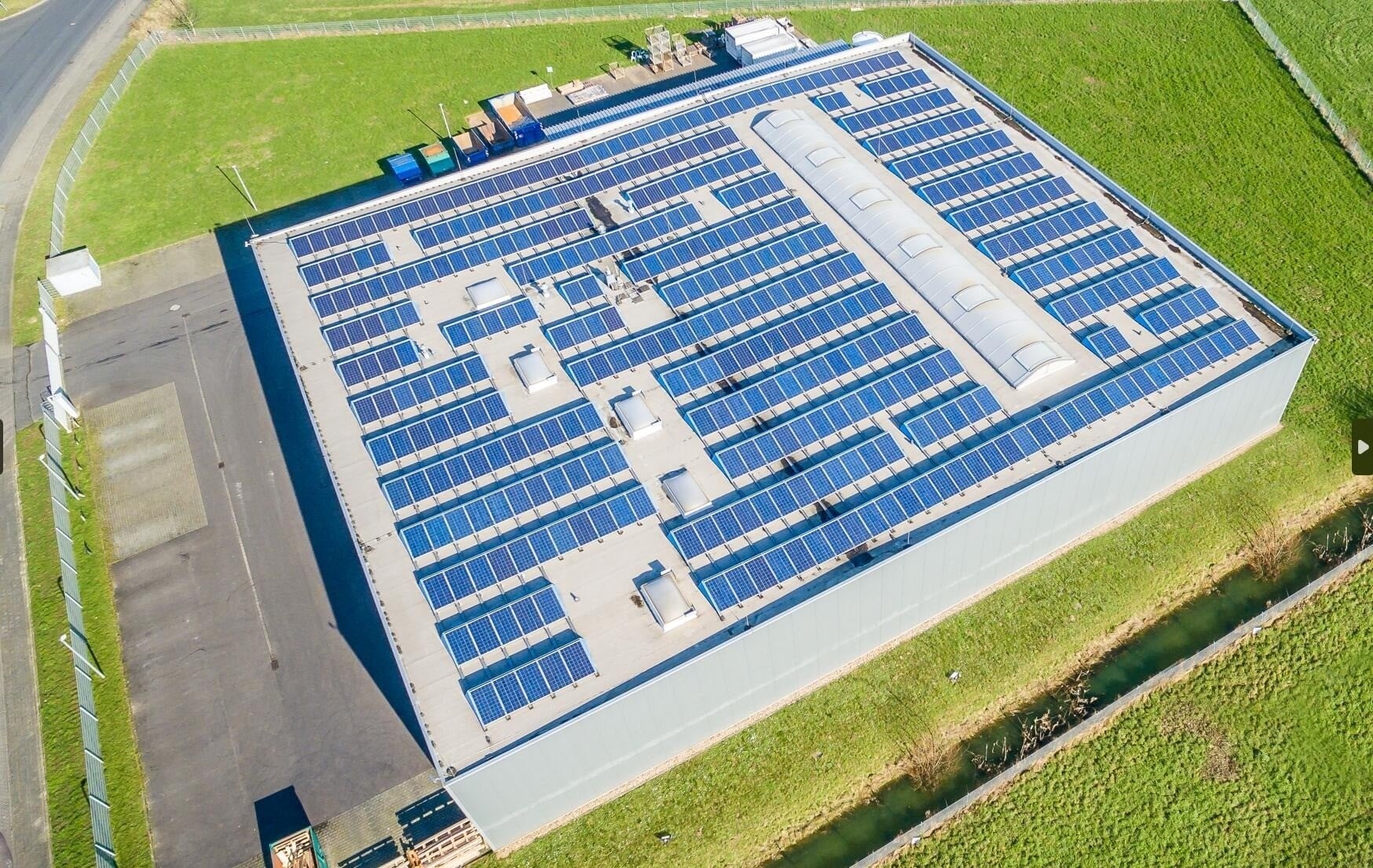

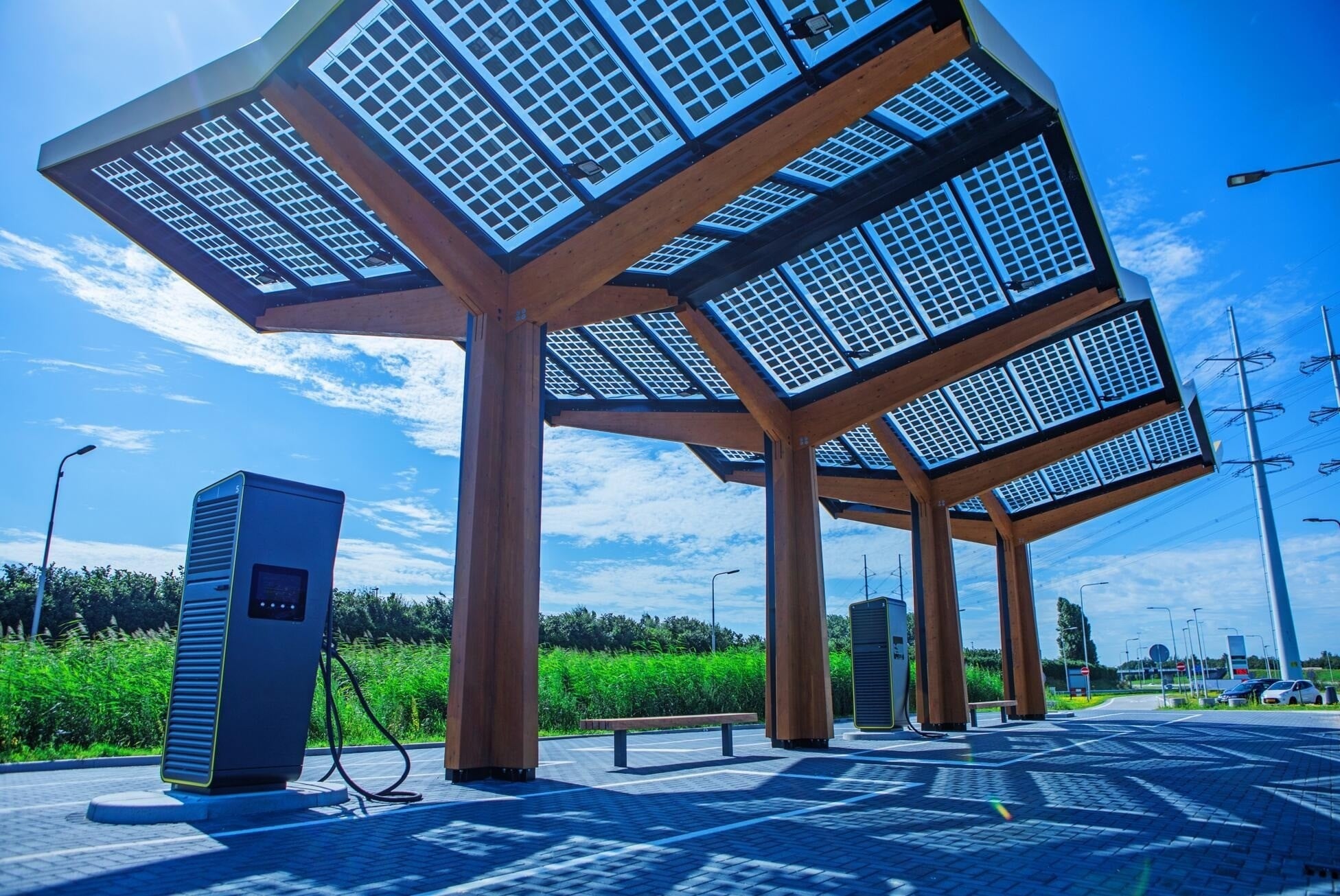

For projects, we have developed, financed, engineered, constructed and currently operates many grid-connected PV power plants. Our experience across the solar value chain reduces risk while delivering more reliable, dependable and cost-effective products and solutions for our customers.
