Faers Max 635-775w
Faers
|
每件价格
|
|
| 最低订购量 | 544+ 件 |
| 420 | ¥356 |
|
每件价格
每件价格
|
|
| 最低订购量 | 594+ 件 |
| 交货时间 | 14 days |
| FAERS-60H-635 | ¥433 |
| FAERS-60H-640 | ¥440 |
| FAERS-60H-645 | ¥440 |
| FAERS-60H-650 | ¥447 |
| FAERS-60H-655 | ¥447 |
| FAERS-60H-660 | ¥454 |
| FAERS-60H-665 | ¥454 |
| FAERS-60H-670 | ¥461 |
| FAERS-60H-675 | ¥461 |
产品特点
| 类型 | 单晶硅 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 产品型号 |
|
|||||||||
| 产品质量保证 | 15 年 | |||||||||
| 功率输出保证 | 99 % 1年年限质保，87.4 % 30年年限质保 | |||||||||
| 0.42 % | ||||||||||
| 功率偏差 | 0 ~ +0.76 % | |||||||||
| 电性能参数（STC） | ||||||||||
| 峰值功率 （Pmax） |
|
|||||||||
| 峰值工作电压（Vmpp） |
|
|||||||||
| 峰值工作电流（Impp） |
|
|||||||||
| 开路电压（Voc） |
|
|||||||||
| 短路电流（Isc） |
|
|||||||||
| 组件效率 |
|
|||||||||
| 温度系数（Pmax） | -0.35 %/°C | |||||||||
| 温度系数（Voc） | -0.28 %/°C | |||||||||
| 温度系数（Isc） | 0.048 %/°C | |||||||||
| 最大系统电压 | 1500 V | |||||||||
| 保险丝额定电流 | 30 A | |||||||||
| 组件尺寸（高/宽/厚） | 2165x1303x35 mm | |||||||||
| 重量 | 35.8 kg | |||||||||
| 电池片数量 | 120 | |||||||||
| 玻璃类型 | 防反射镀膜 | |||||||||
| 玻璃厚度 | 2 mm | |||||||||
| 密封材料类型 | EVA | |||||||||
| 边框类型 | 阳极氧化铝 | |||||||||
| 旁路二极管数 | 3 | |||||||||
| 接线盒防护等级 | IP 68 | |||||||||
| 连接器类型 | MC4 | |||||||||
| 电缆截面 | 4 mm2 | |||||||||
| 电缆长度 | 400 mm | |||||||||
| 下载公司产品详情 | ||||||||||
Faers

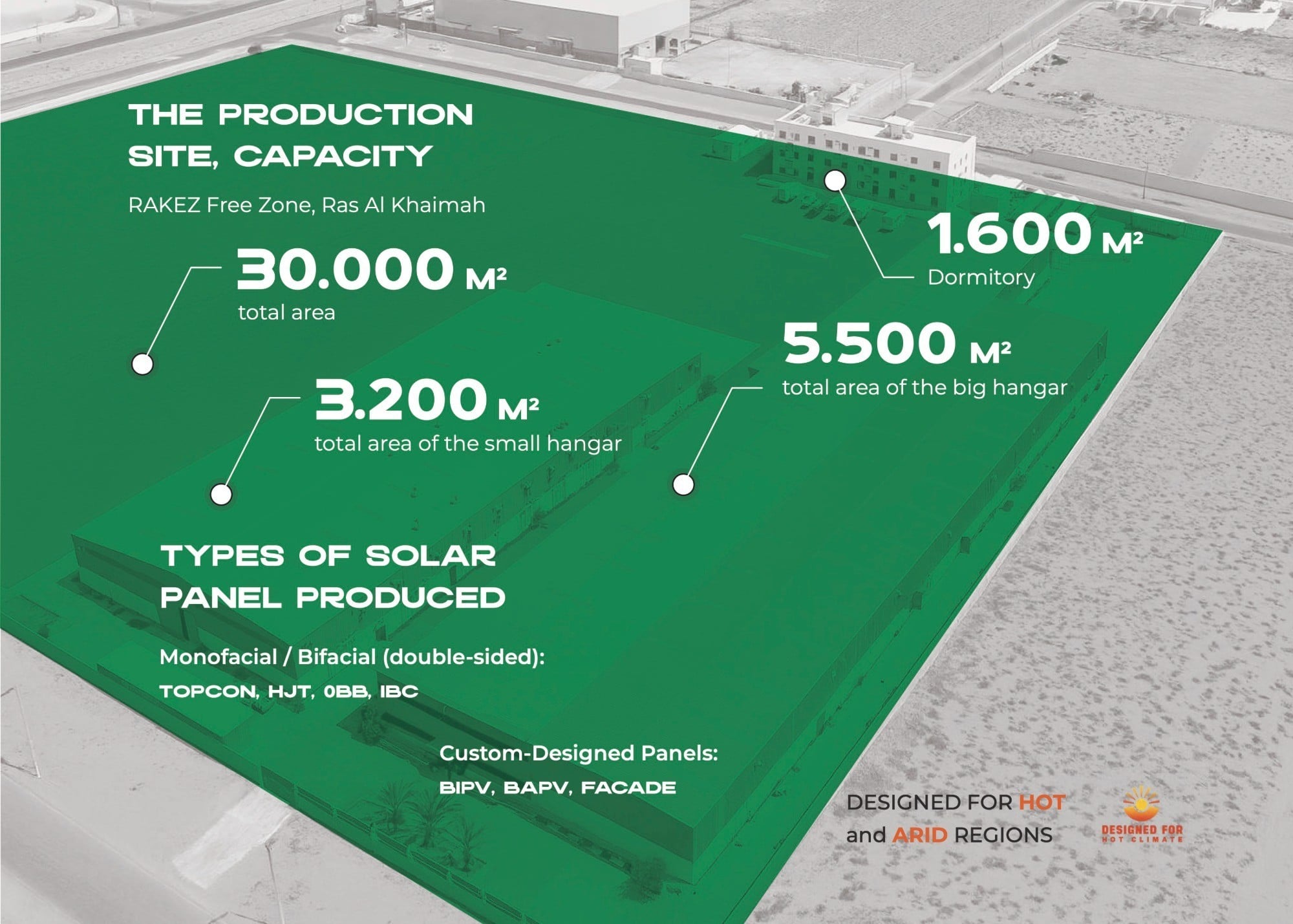

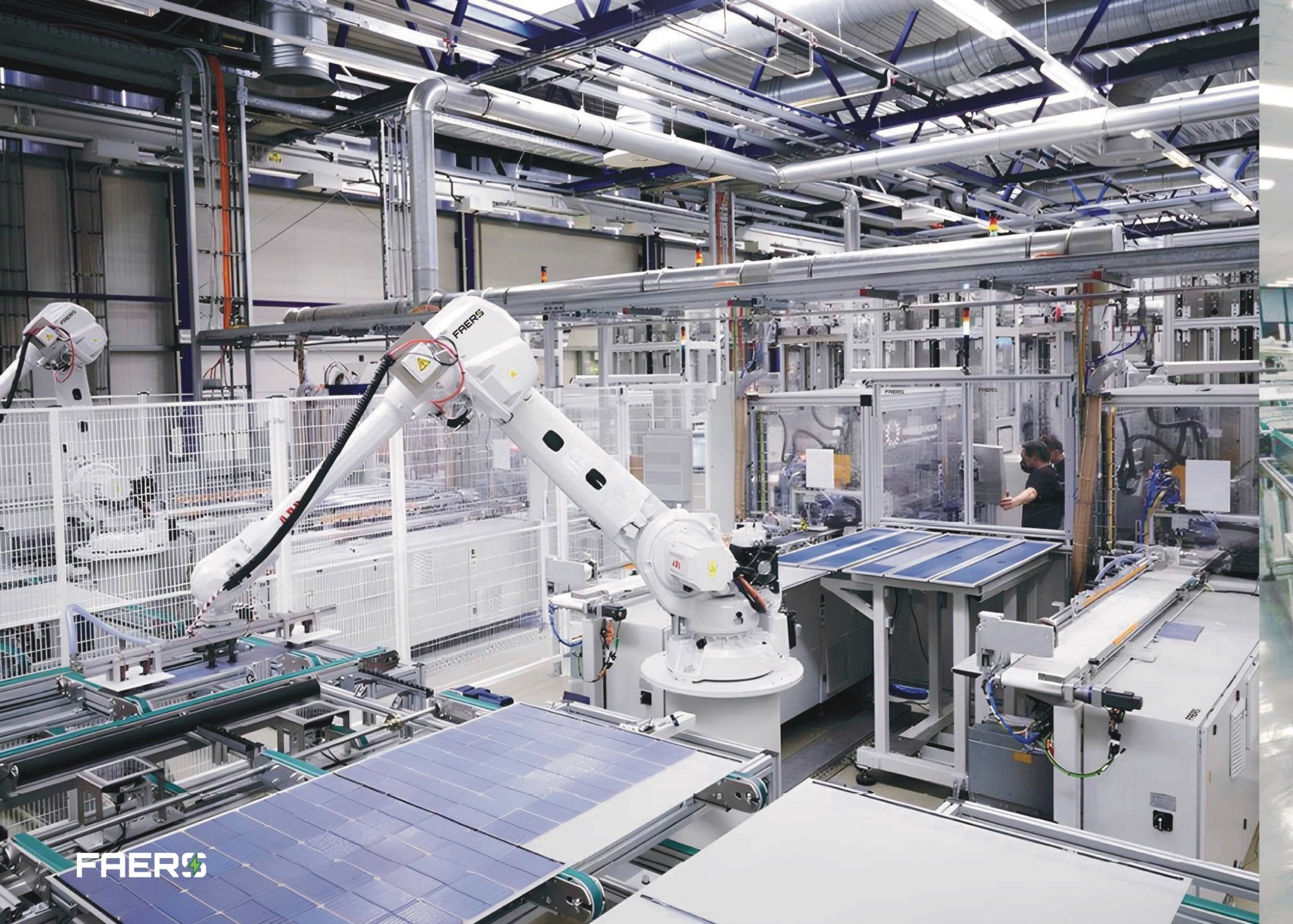

In 2023, the company transitioned from pure R&D to full-scale manufacturing, establishing a production facility in the Ras Al Khaimah Economic Zone (RAKEZ), United Arab Emirates. In 2024, ZAKH launched production of solar panels specifically designed for hot climates — optimised for high temperatures and sand resistance.
Simultaneously, the company developed a BIPV series with specialised multilayer insulation designed to prevent heat penetration into buildings. These systems include advanced facade panels that reduce indoor heat gain while maintaining natural light transmission, delivered as a modular gradient system for flexible architectural applications.
Future Scaling
In Q2 2026, Zakh
Will Launch:
1.2 GW production line for standard solar panels.
1,000,000 m² BIPV facade line.
An additional 400 MW line for unique panels with a 45-year performance warranty.
Production Portfolio
Ultra Series
Up To 740W Power Output
N-Type TOPCon Technology
Bifacial Power Generation
0~+5W Power Tolerance
15 Years Product Warranty
30 Years Linear Output Warranty

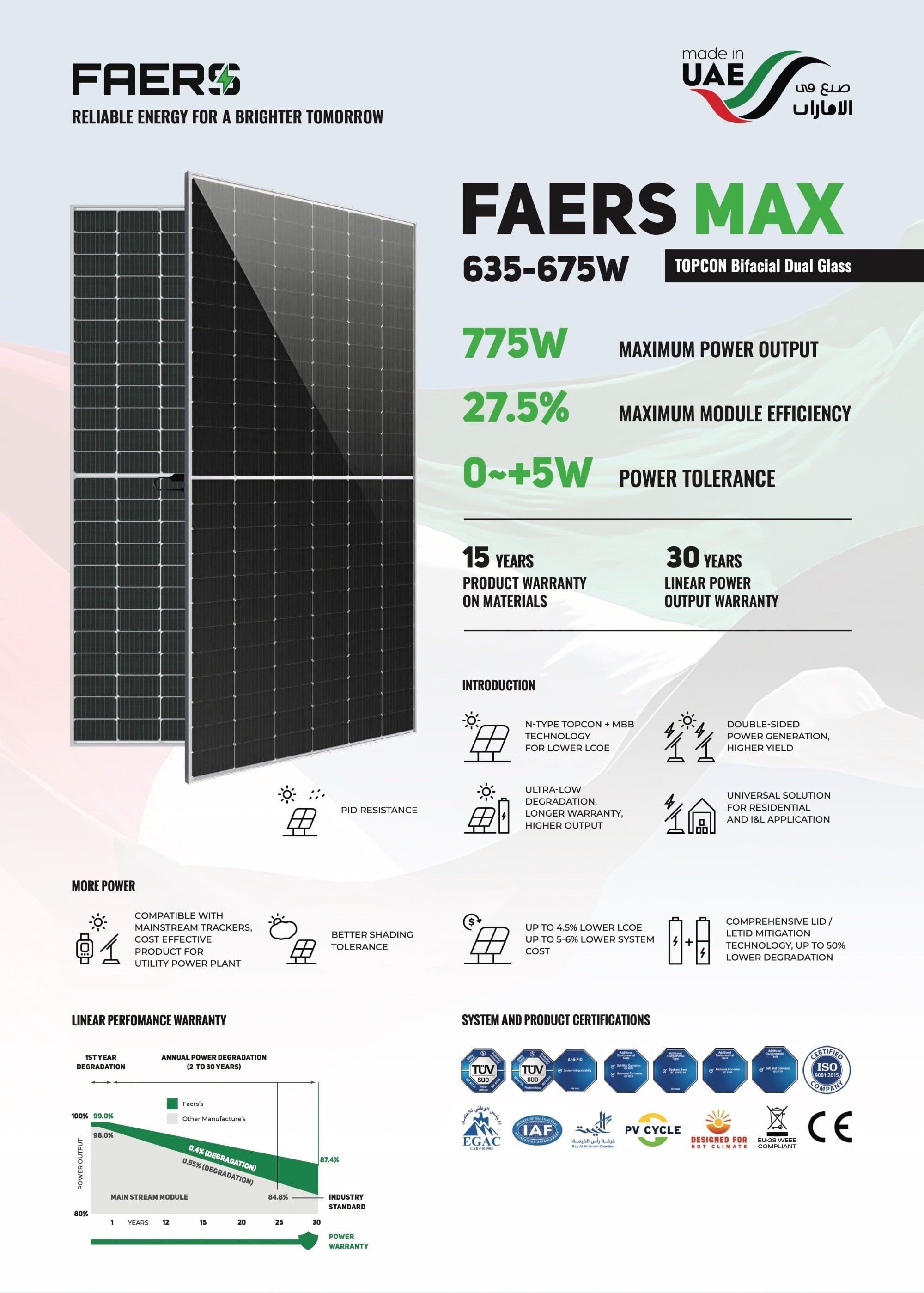

Max Series
Up To 675W Power Output
N-Type TOPCon Technology
Bifacial Power Generation
0~+5W Power Tolerance
15 Years Product Warranty
30 Years Linear Output Warranty
Pro Series
Up To 605W Power Output
N-Type TOPCon Technology
Bifacial Power Generation
0~+5W Power Tolerance
15 Years Product Warranty
30 Years Linear Output Warranty
Air Series (Tiles)
Up To 400W Power Output
N-Type TOPCon Technology
Bifacial Power Generation
0~+5W Power Tolerance
15 Years Product Warranty
30 Years Linear Output Warranty

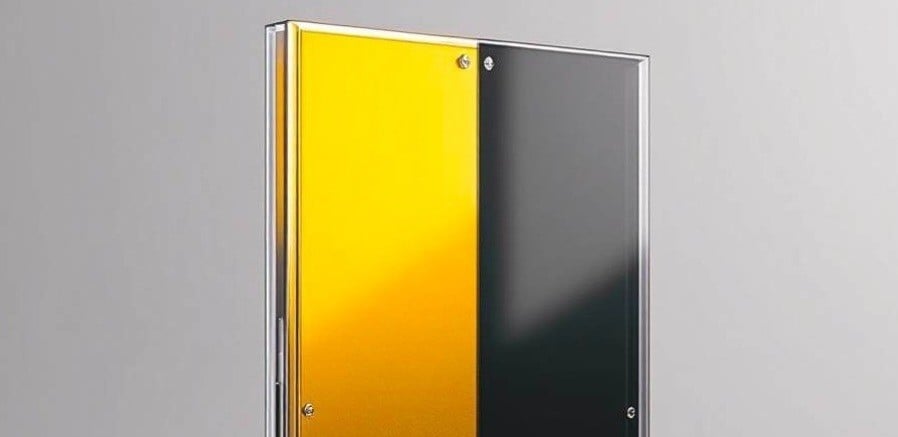

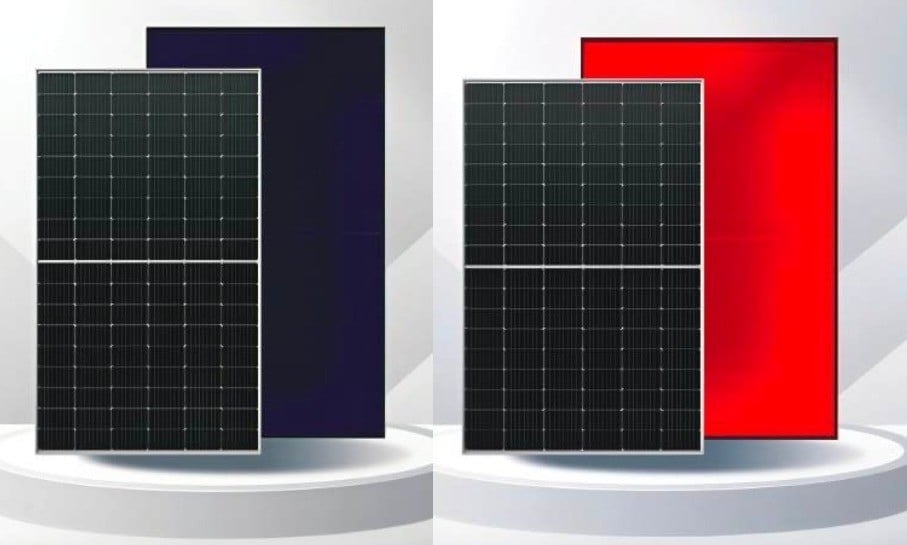

Solar Facade Solutions - BAPV OR BIPV
Full Flexibility In Design, Color, And Material
Custom Shapes And Textures For Architectural Harmony
Tailored Technical Parameters — Thickness, Efficiency, Transparency
Suitable For Any Climate And Construction Type
ZAKH Renewable Energy is a leading manufacturer of advanced photovoltaics and Building-Integrated Photovoltaics (BIPV), dedicated to accelerating the global transition to clean energy. Founded in 2017 as an R&D laboratory in Azerbaijan, the company brought together scientists and engineers from across the CIS and international markets to develop next-generation solar technologies. From 2020 onwards, it expanded into applied technologies, including high-efficiency PV modules and innovative BIPV solutions that seamlessly integrate energy generation with architectural design.

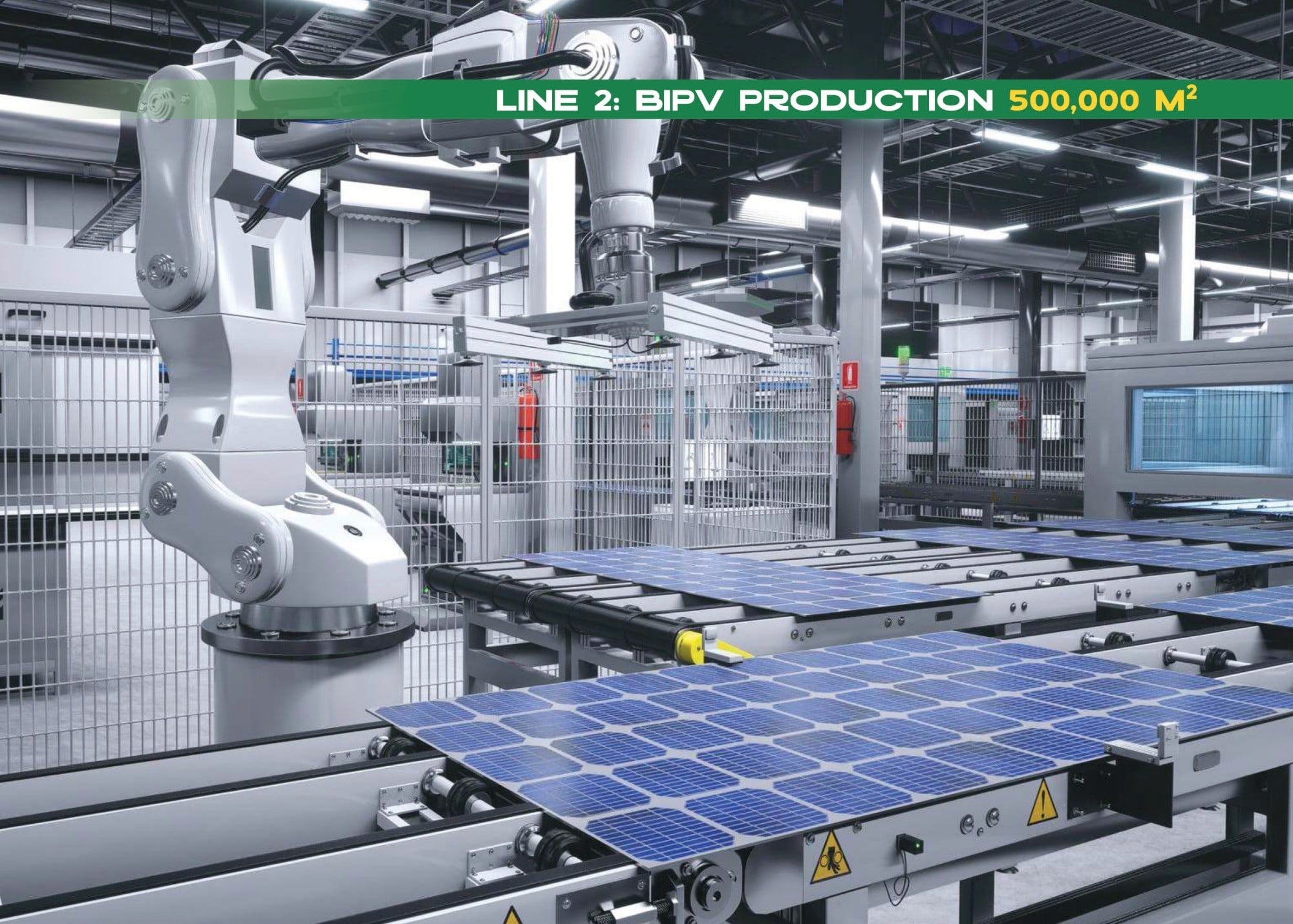

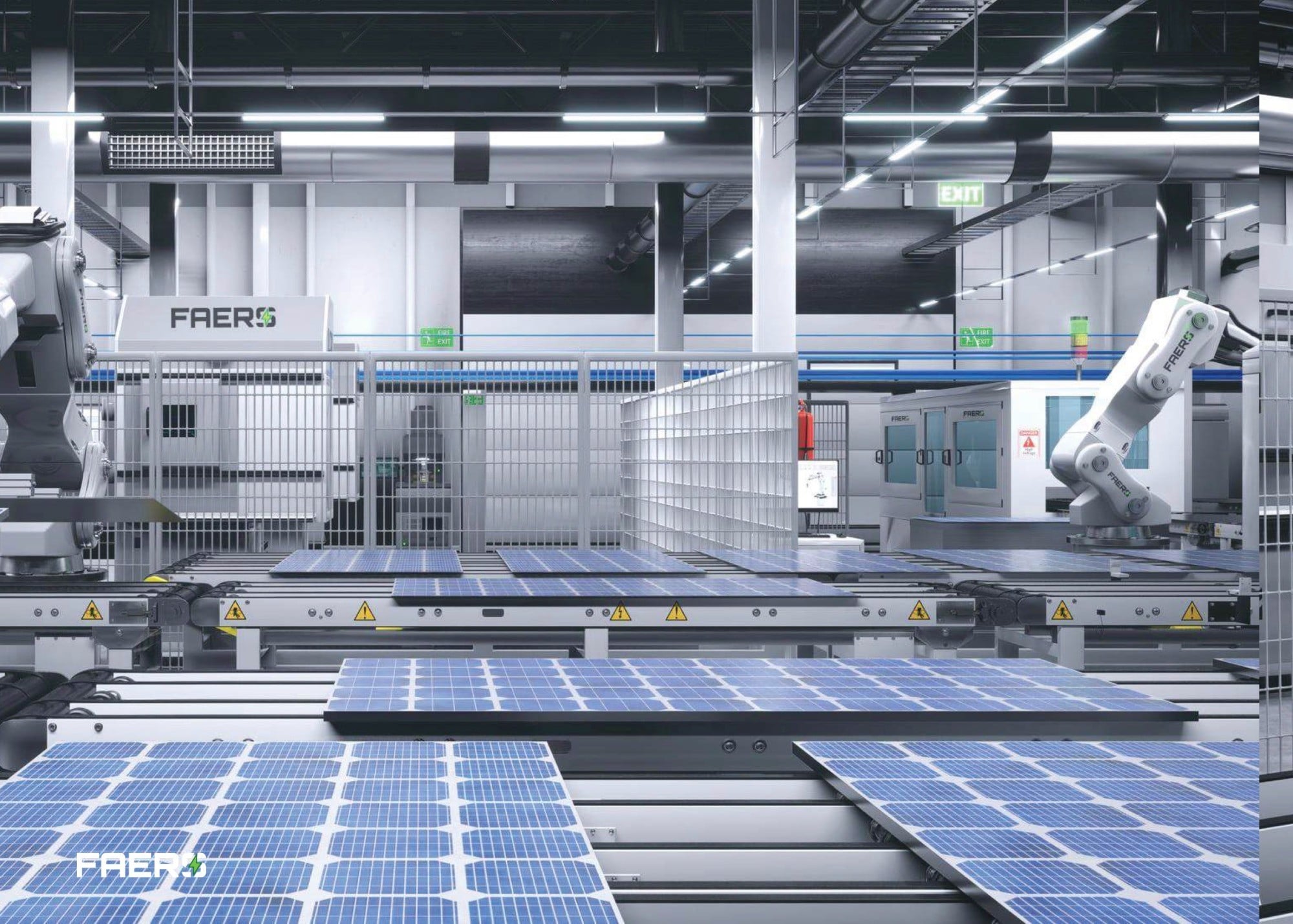

In 2023, ZAKH transitioned to full-scale manufacturing, establishing a state-of-the-art production facility in the RAKEZ Free Zone, UAE. Today, the company operates two independent production lines: a 600 MW solar panel line and a BIPV façade line with an annual capacity of approximately 500,000 m². ZAKH’s products are engineered for hot, arid climates, offering high thermal resistance, sand durability, and long-term performance.
With a strong focus on innovation, quality, and sustainability, ZAKH Renewable Energy aims to become a global leader in PV and BIPV solutions while supporting the UAE’s Net Zero 2050 vision.
Faers
In 2023, the company transitioned from pure R&D to full-scale manufacturing, establishing a production facility in the Ras Al Khaimah Economic Zone (RAKEZ), United Arab Emirates. In 2024, ZAKH launched production of solar panels specifically designed for hot climates — optimised for high temperatures and sand resistance.
Simultaneously, the company developed a BIPV series with specialised multilayer insulation designed to prevent heat penetration into buildings. These systems include advanced facade panels that reduce indoor heat gain while maintaining natural light transmission, delivered as a modular gradient system for flexible architectural applications.
Future Scaling
In Q2 2026, Zakh
Will Launch:
1.2 GW production line for standard solar panels.
1,000,000 m² BIPV facade line.
An additional 400 MW line for unique panels with a 45-year performance warranty.
Production Portfolio
Ultra Series
Up To 740W Power Output
N-Type TOPCon Technology
Bifacial Power Generation
0~+5W Power Tolerance
15 Years Product Warranty
30 Years Linear Output Warranty
Max Series
Up To 675W Power Output
N-Type TOPCon Technology
Bifacial Power Generation
0~+5W Power Tolerance
15 Years Product Warranty
30 Years Linear Output Warranty
Pro Series
Up To 605W Power Output
N-Type TOPCon Technology
Bifacial Power Generation
0~+5W Power Tolerance
15 Years Product Warranty
30 Years Linear Output Warranty
Air Series (Tiles)
Up To 400W Power Output
N-Type TOPCon Technology
Bifacial Power Generation
0~+5W Power Tolerance
15 Years Product Warranty
30 Years Linear Output Warranty
Solar Facade Solutions - BAPV OR BIPV
Full Flexibility In Design, Color, And Material
Custom Shapes And Textures For Architectural Harmony
Tailored Technical Parameters — Thickness, Efficiency, Transparency
Suitable For Any Climate And Construction Type
