GRES Series

GRES Series

先控捷联电气股份有限公司
价 格：
起价 ¥1,420 / kWh *
储能系统技术： LFP（磷酸锂铁）
标称容量： --
地区： 中国大陆 中国大陆
联系生产商
注意： 您的询盘将直接发送至先控捷联电气股份有限公司。

描述：

  • The battery module adopts a PC bracket and steel structure reinforcement design to ensure the highest safety of the system during transportation, installation, and operation.

  • It can be switched on and off with one button, which is more convenient for operation.

  • It is compact and lightweight, saving floor space and installation costs.

产品特点

产品型号

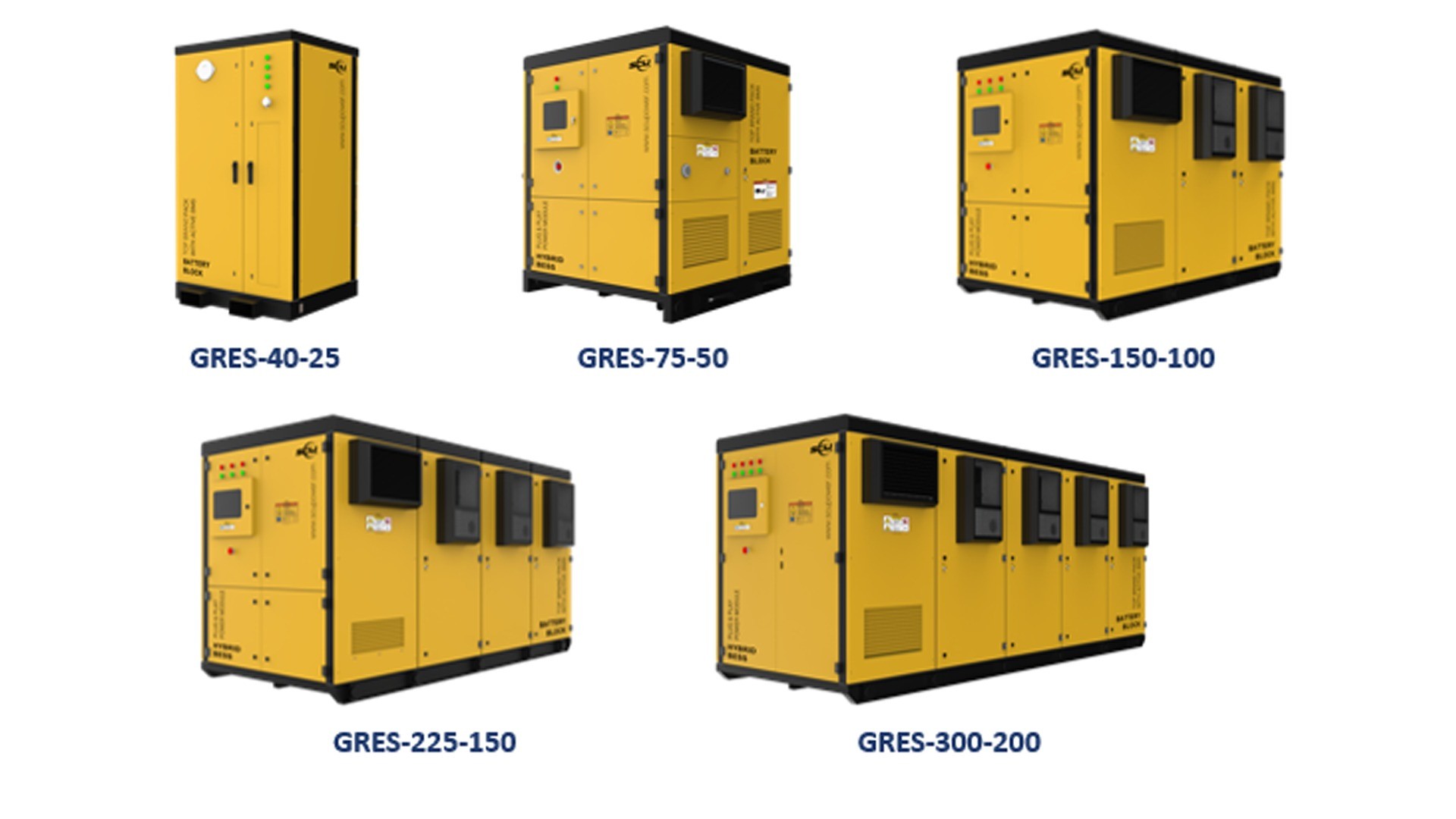

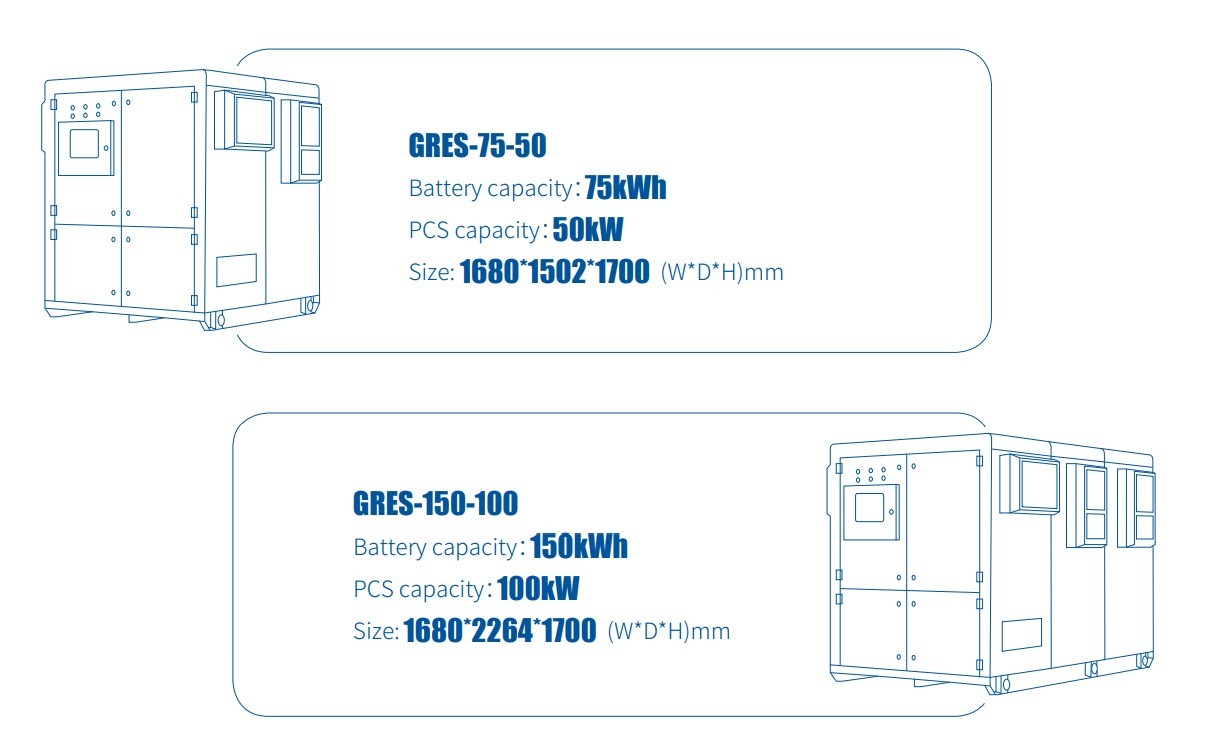

GRES-40-25 GRES-75-50 GRES-150-100 GRES-225-150 GRES-300-200
产品规格
价格（ kWh）
¥3,560 / kWh * ¥2,850 / kWh * ¥1,900 / kWh * ¥1,580 / kWh * ¥1,420 / kWh *
价格（ 台）
¥146,000 / 台 * ¥219,000 / 台 * ¥291,000 / 台 * ¥364,000 / 台 * ¥437,000 / 台 *
产品质量保证 （最低） 3 年
配置 一体机
储能系统技术 LFP（磷酸锂铁）
部件 inverter
安装方式 地板
最大并行单元数 4
蓄电池产品参数表
电性能参数
标称能量
40.96 kWh 76.8 kWh 153.6 kWh 230.4 kWh 307.2 kWh
循环寿命 5000@100%DOD, 5000@100%DOD, 5000@100%DOD, 5000@100%DOD, 5000@100%DOD
循环效率 95 %
温度参数
工作温度范围 -20 ~ +55 ℃
一般参数
尺寸（长*宽*高）
1000x1070x1800 mm 1680x1500x1700 mm 1680x2270x1700 mm 1680x3050x1700 mm 1680x3830x1700 mm
重量
1000 Kg 1400 Kg 2470 Kg 3600 Kg 4620 Kg
IP 等级 IP54
最高运行海拔 4000 m
冷却方式 风扇冷却
通信 CAN
监控 屏幕
光伏逆变器产品参数表
输入参数（直流）
最大输入功率
27.5 kW 55 kW 110 kW 165 kW 220 kW
最大输入电压
1000 V 700 V 700 V 700 V 700 V
最大输入电流
270 A 270 A 270 A 270 A 270 A
MPP(T)电压范围
180~1000 V 200~700 V 200~700 V 200~700 V 200~700 V
MPPT数量
1 2 2 2 2
直流输入连接端数
1 2 2 2 2
逆变器输出参数（交流）
最大输出功率
27.5 kW 55 kW 110 kW 165 kW 220 kW
标称输出功率
25 kW 50 kW 100 kW 150 kW 200 kW
频率范围
48-62 Hz 48-62 Hz 48-62 Hz 48-62 Hz 48-62 Hz
频率
50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz
总谐波失真 （THDi）
< 3 % < 3 % < 3 % < 3 %
相数
3 3 3 3 3
最大效率
95 % 95 % 95 % 95 % 95 %
欧洲效率
94 % 94 % 94 % 94 % 94 %
AC输出连接
螺丝 螺丝 螺丝 螺丝 螺丝
逆变器一般参数
PDF
下载公司产品详情
SCU — Global Specialist in Energy Storage, UPS and E-Mobility

설립 연도: 2003년

핵심 강점:

강력한 기술 연구개발 역량

다양한 제품 라인업

광범위한 고객 기반

유망한 산업 성장 가능성

전문 경영팀

종합적인 생산 능력

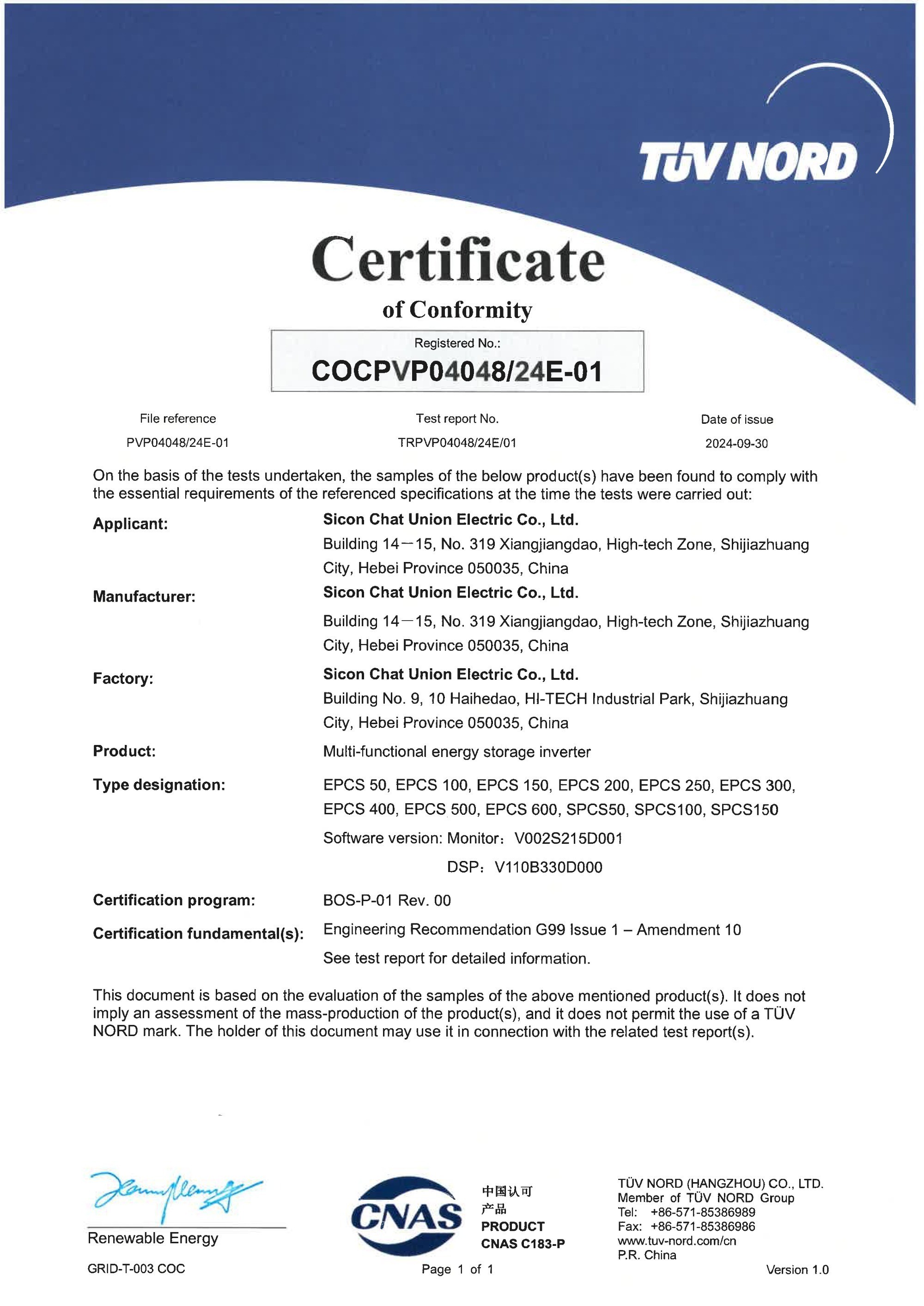

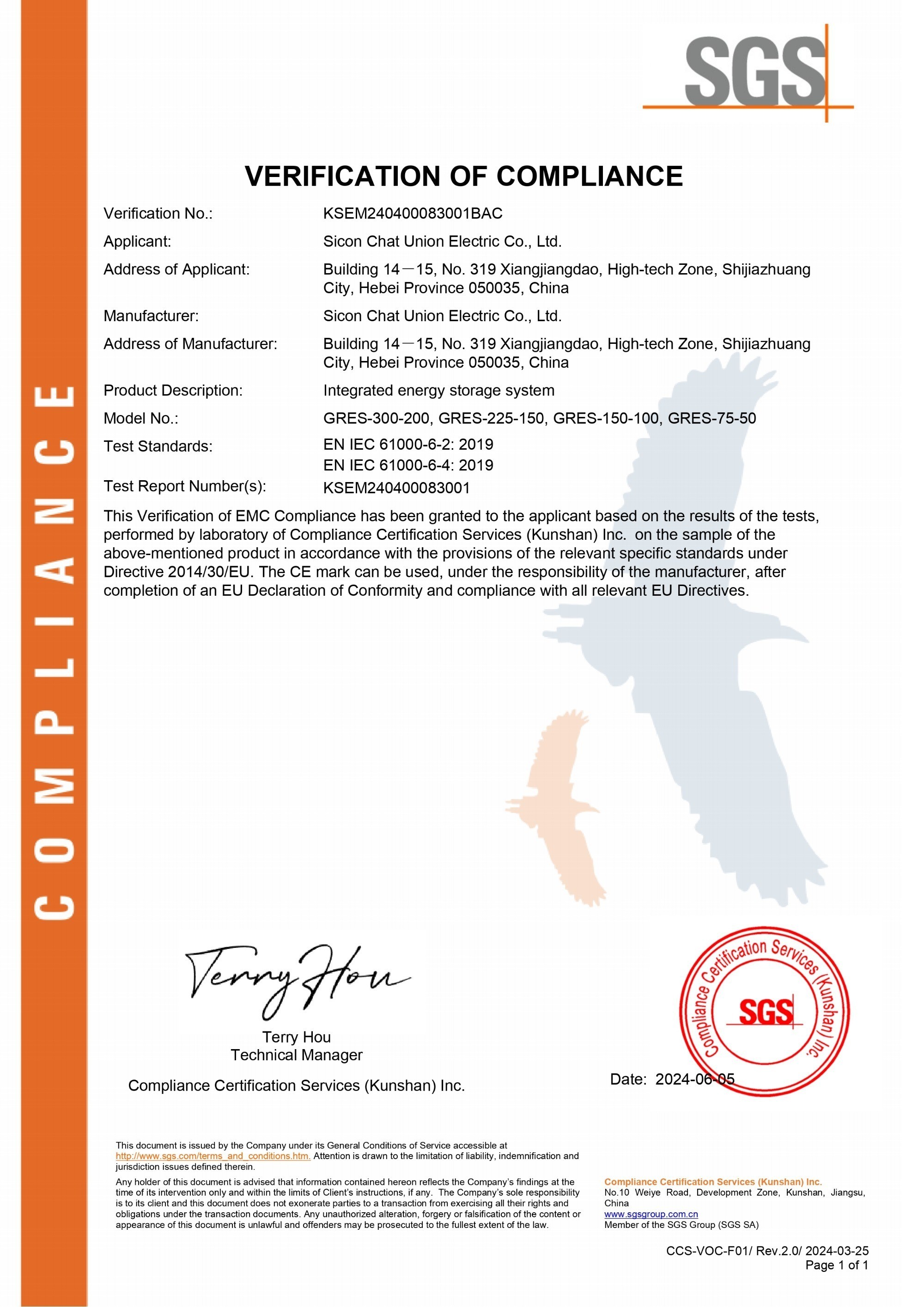

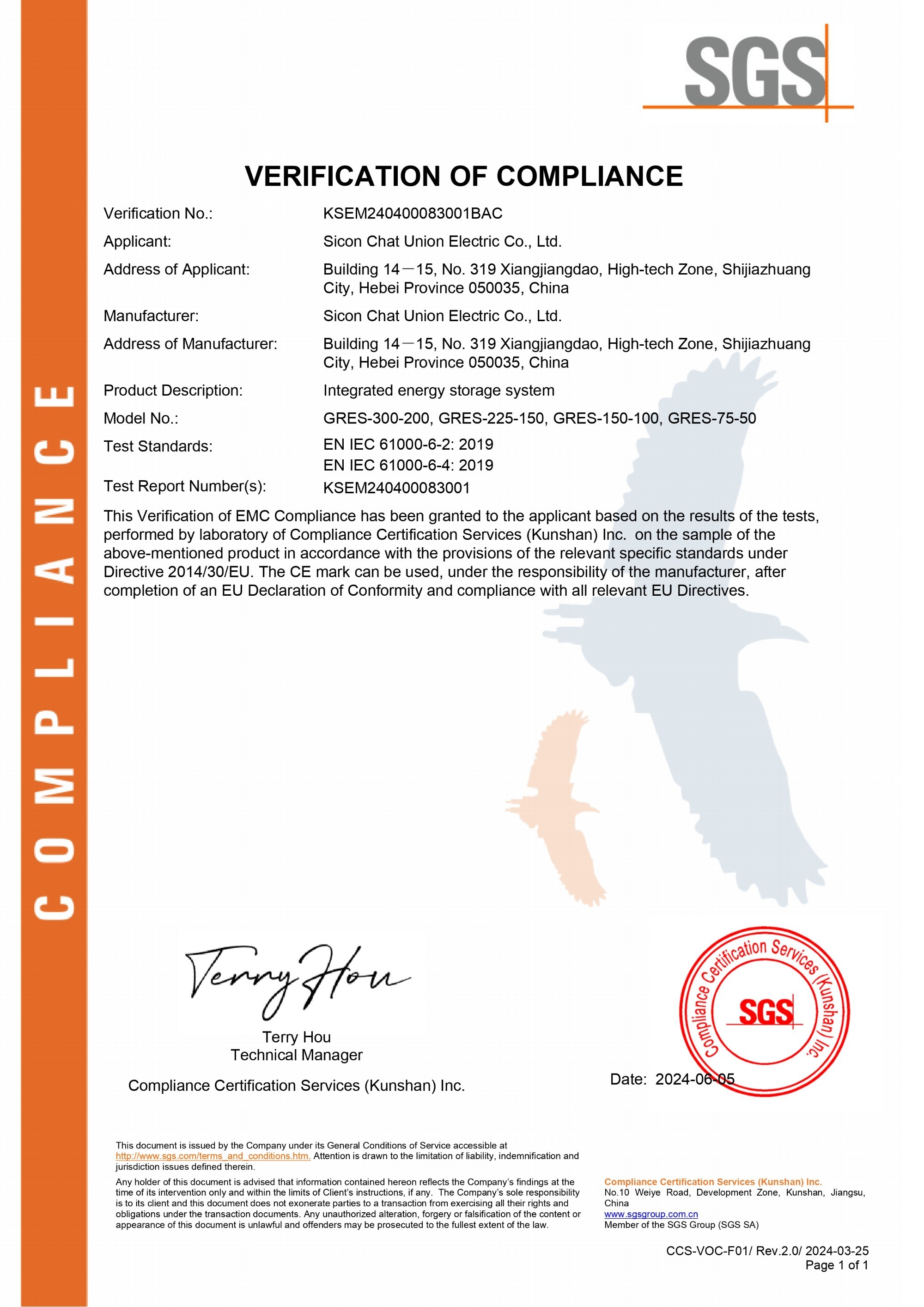

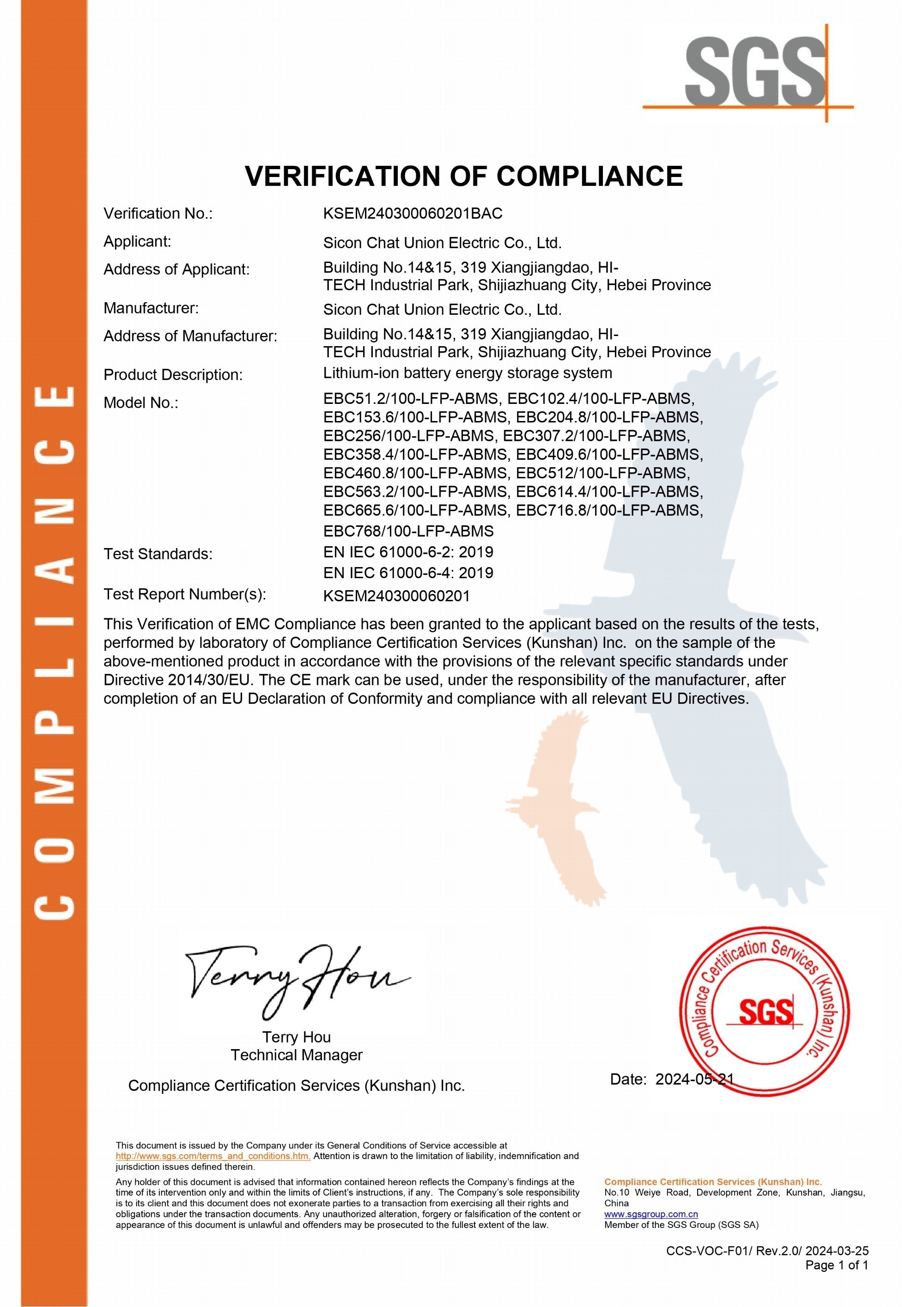

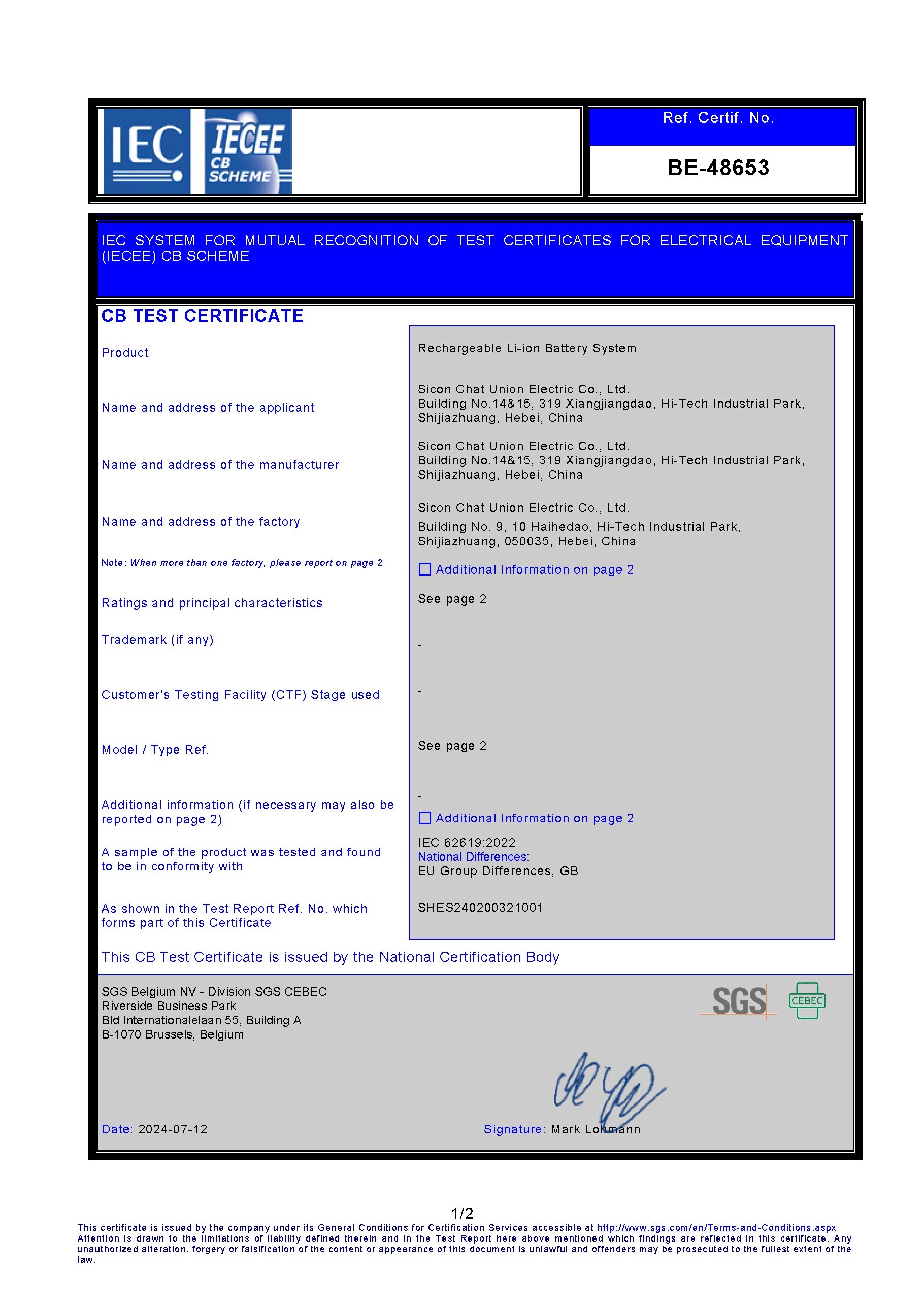

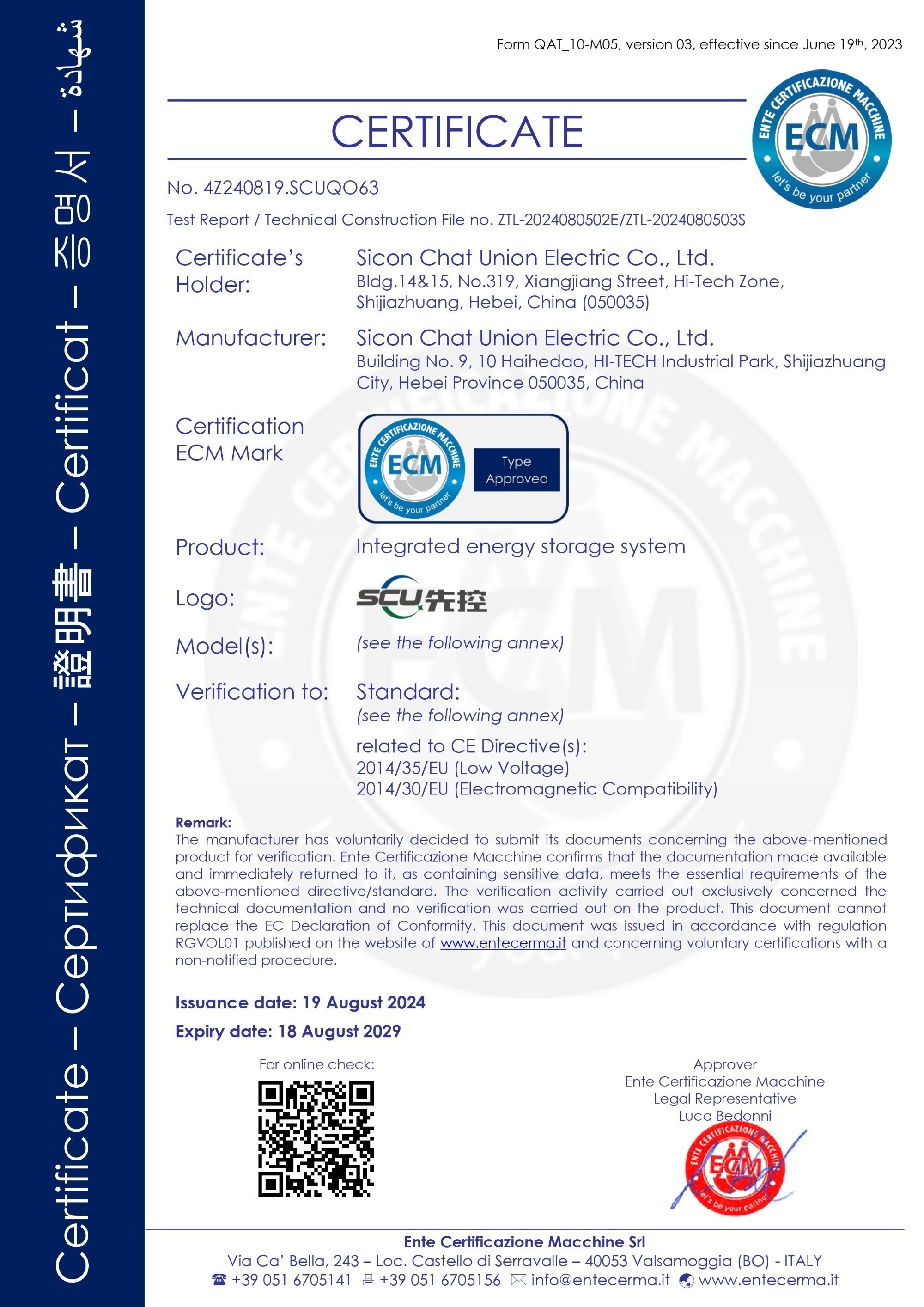

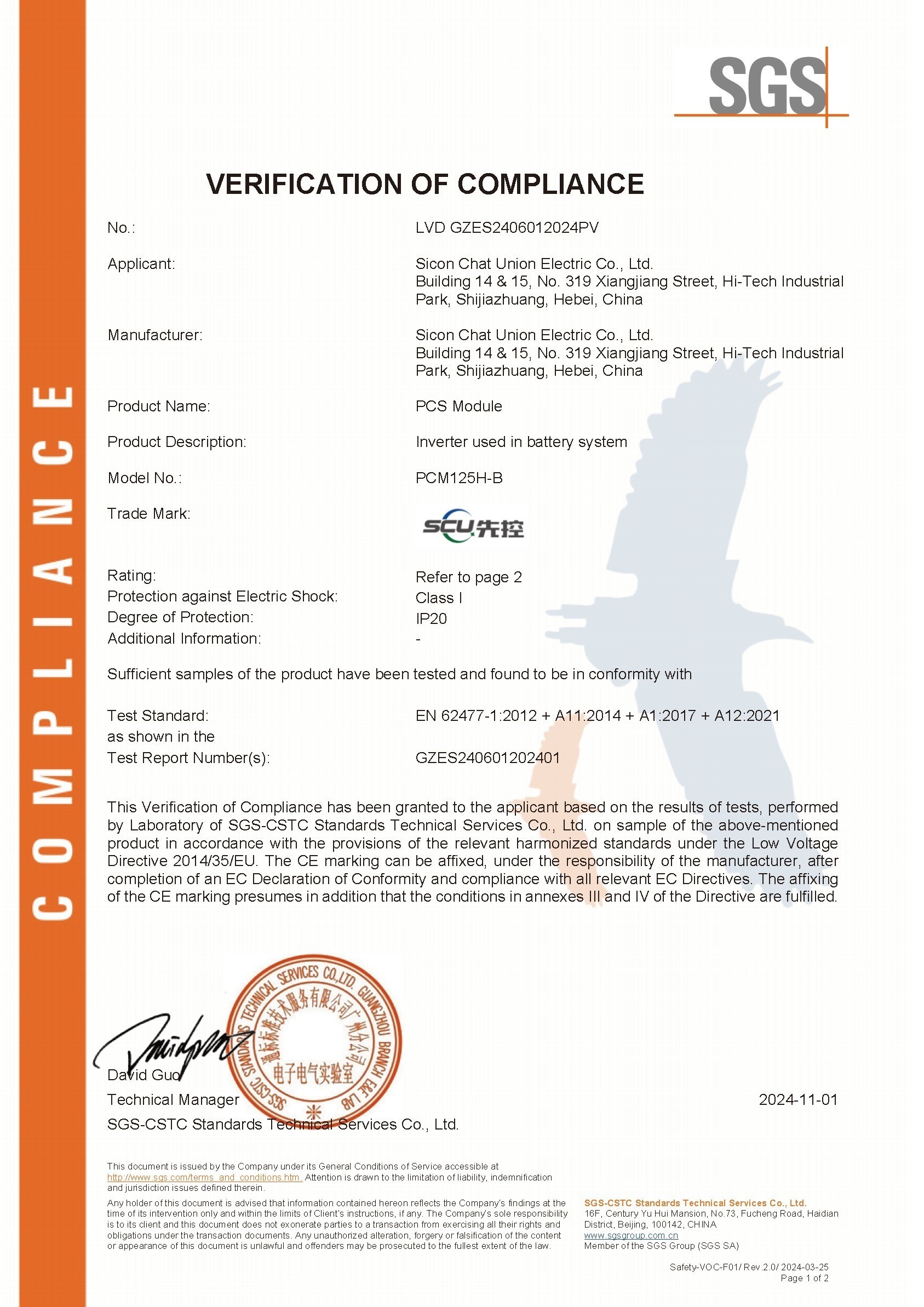

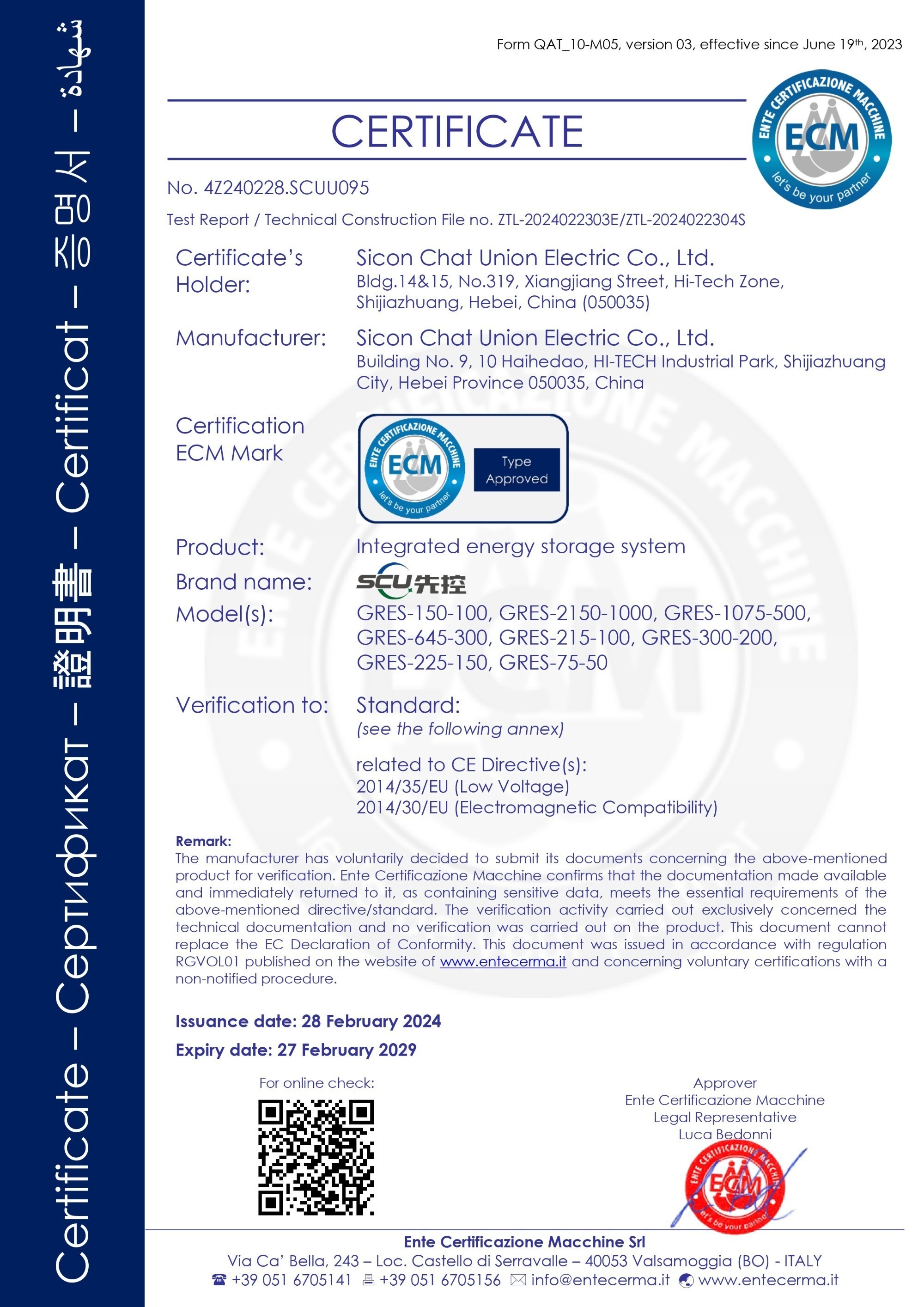

Certifications

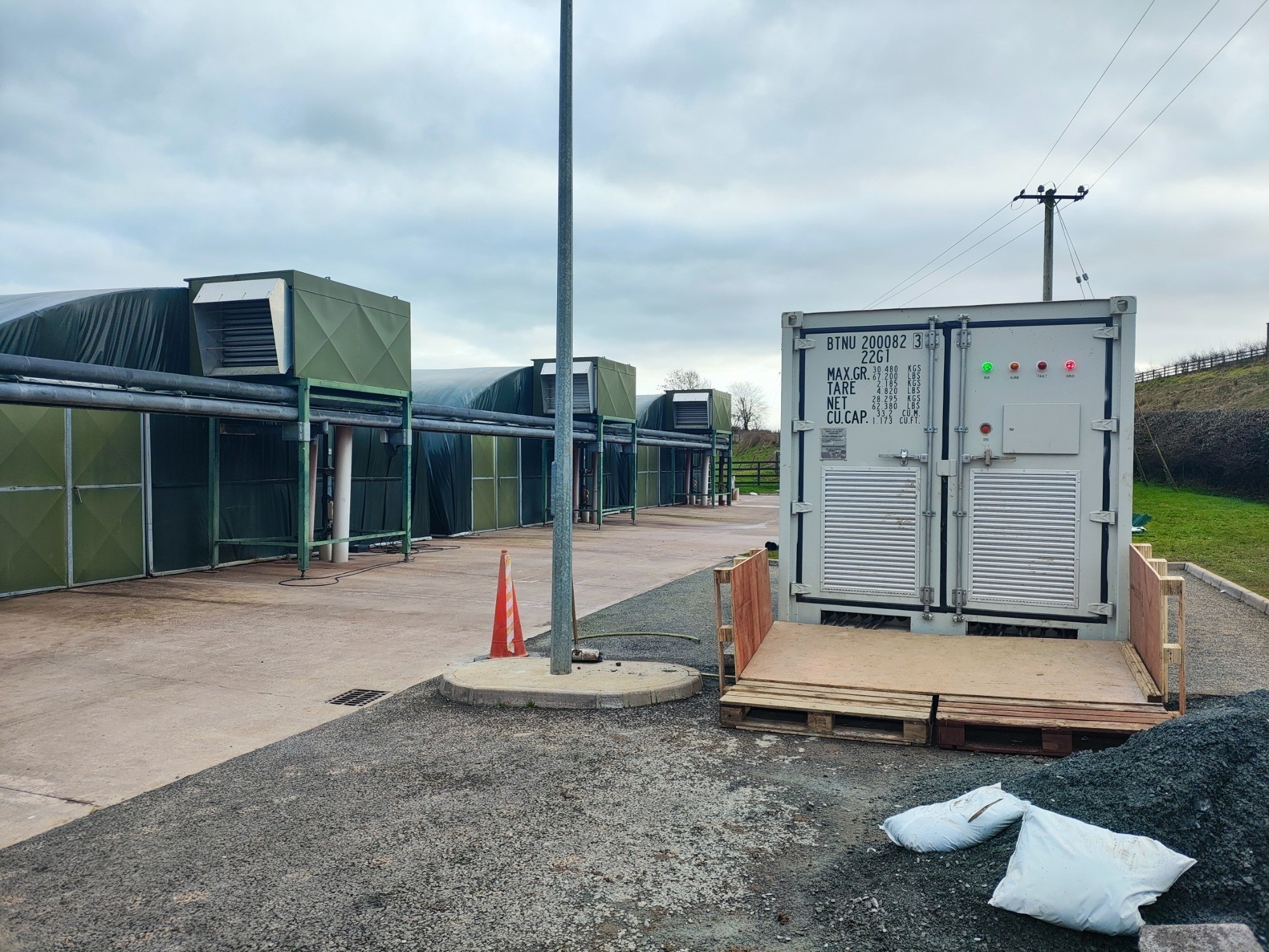

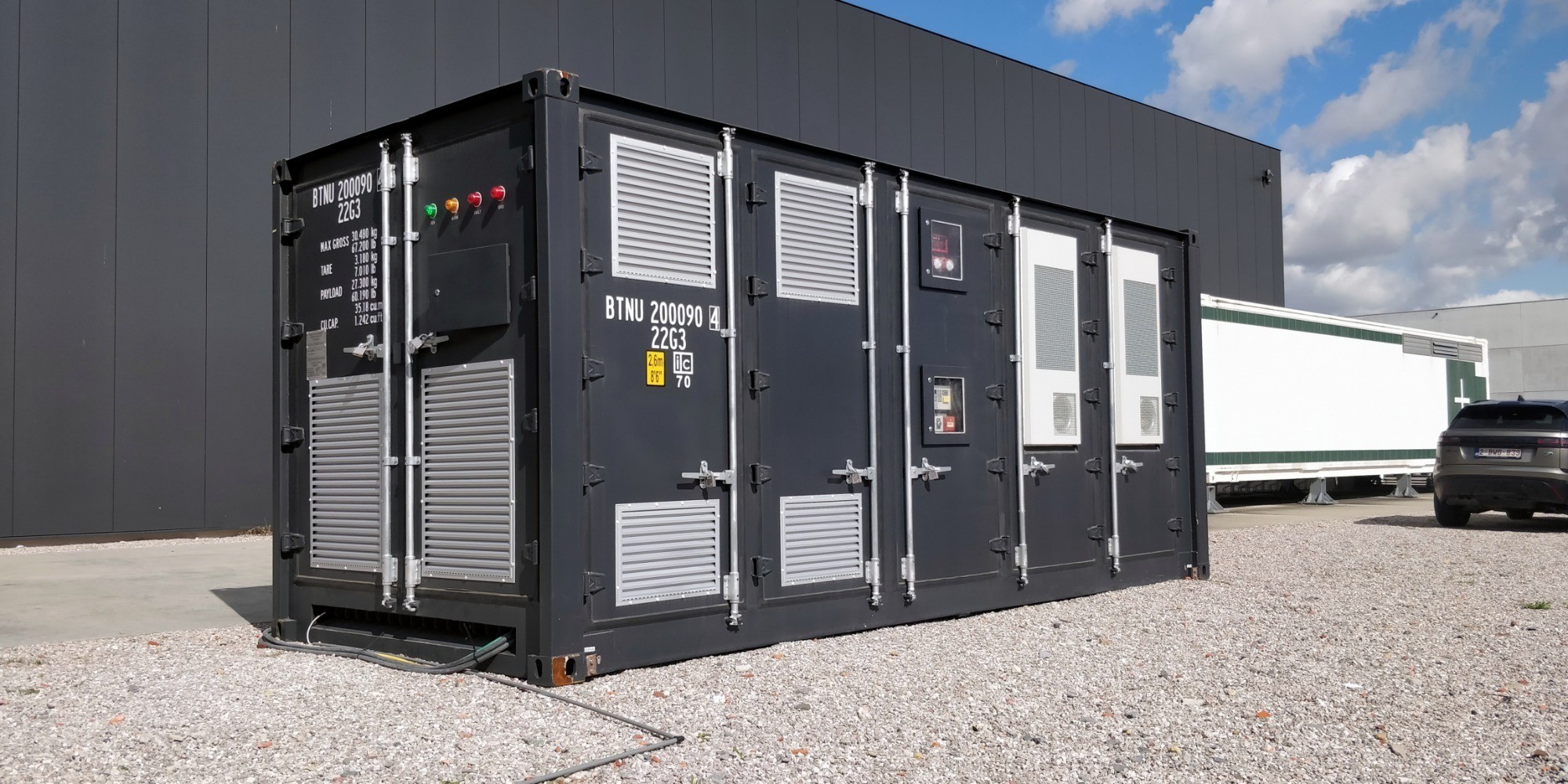

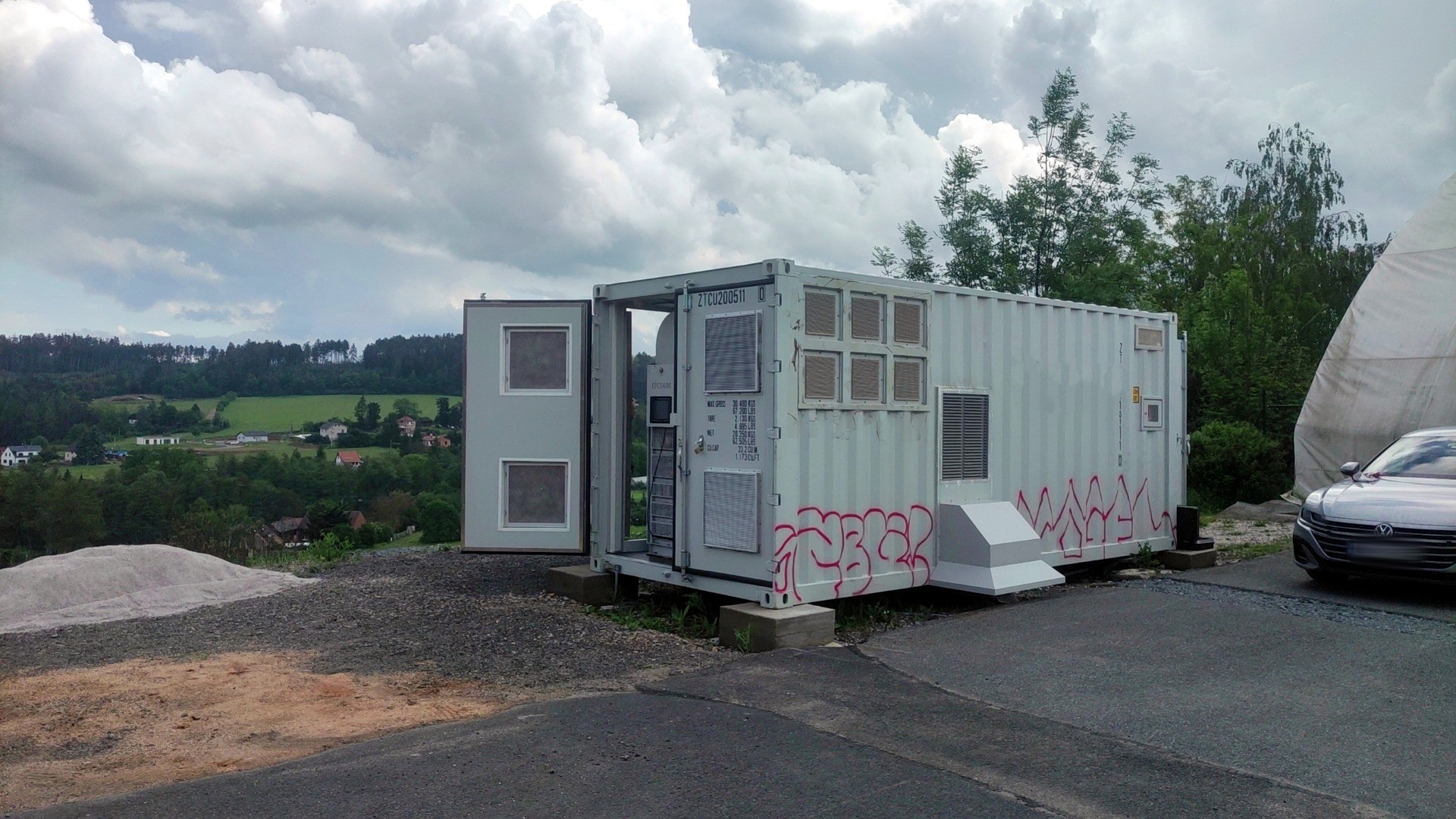

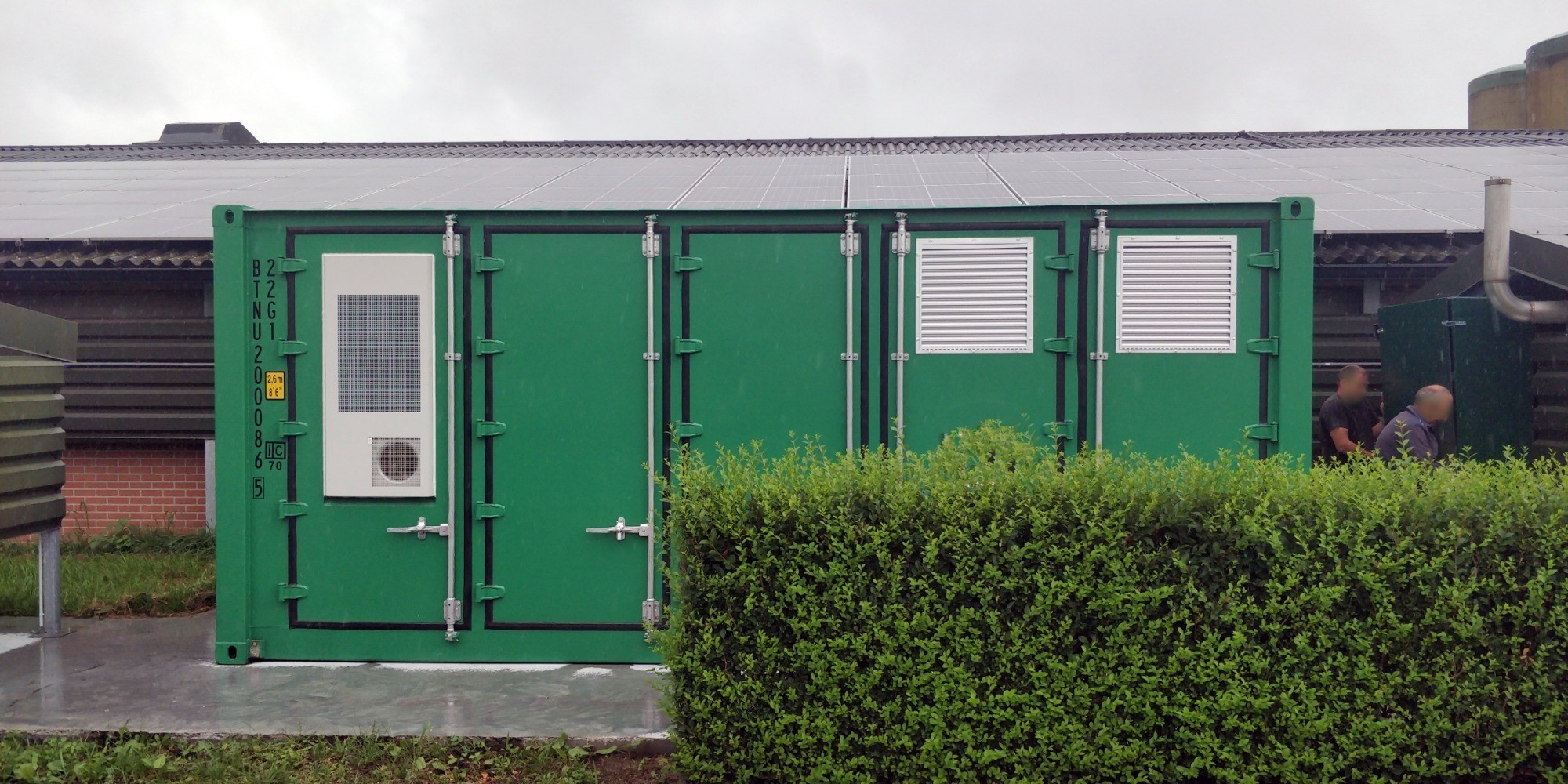

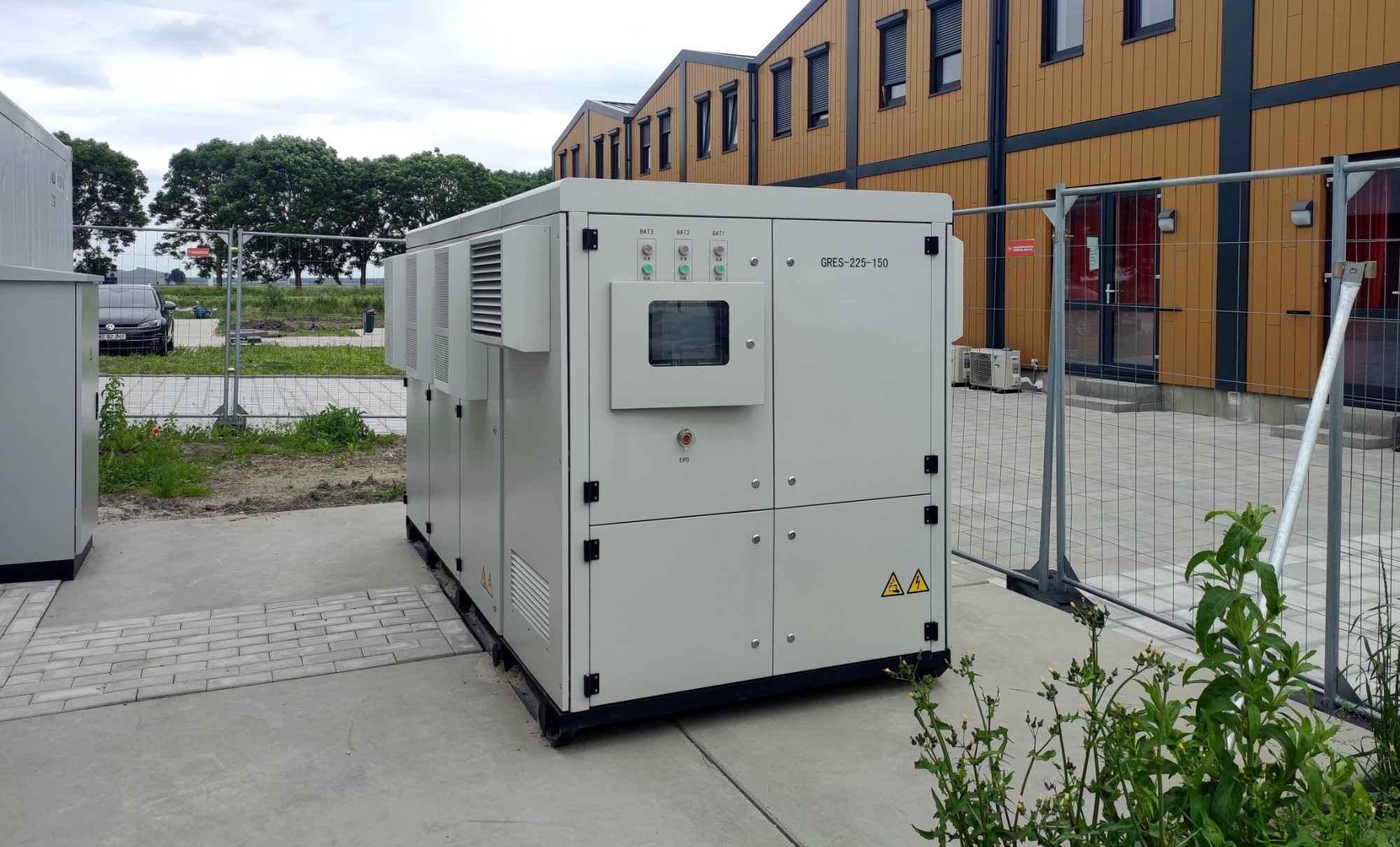

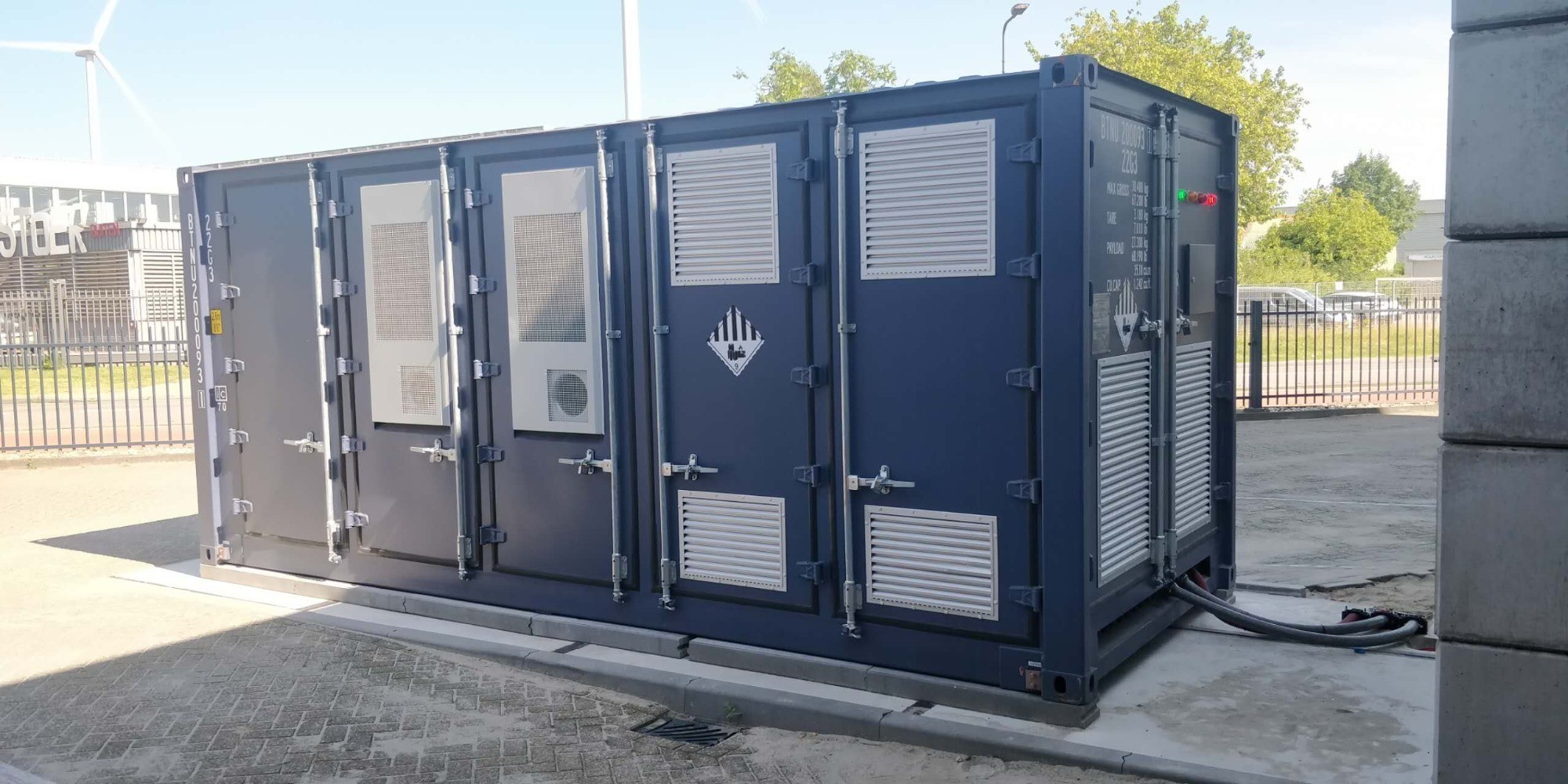

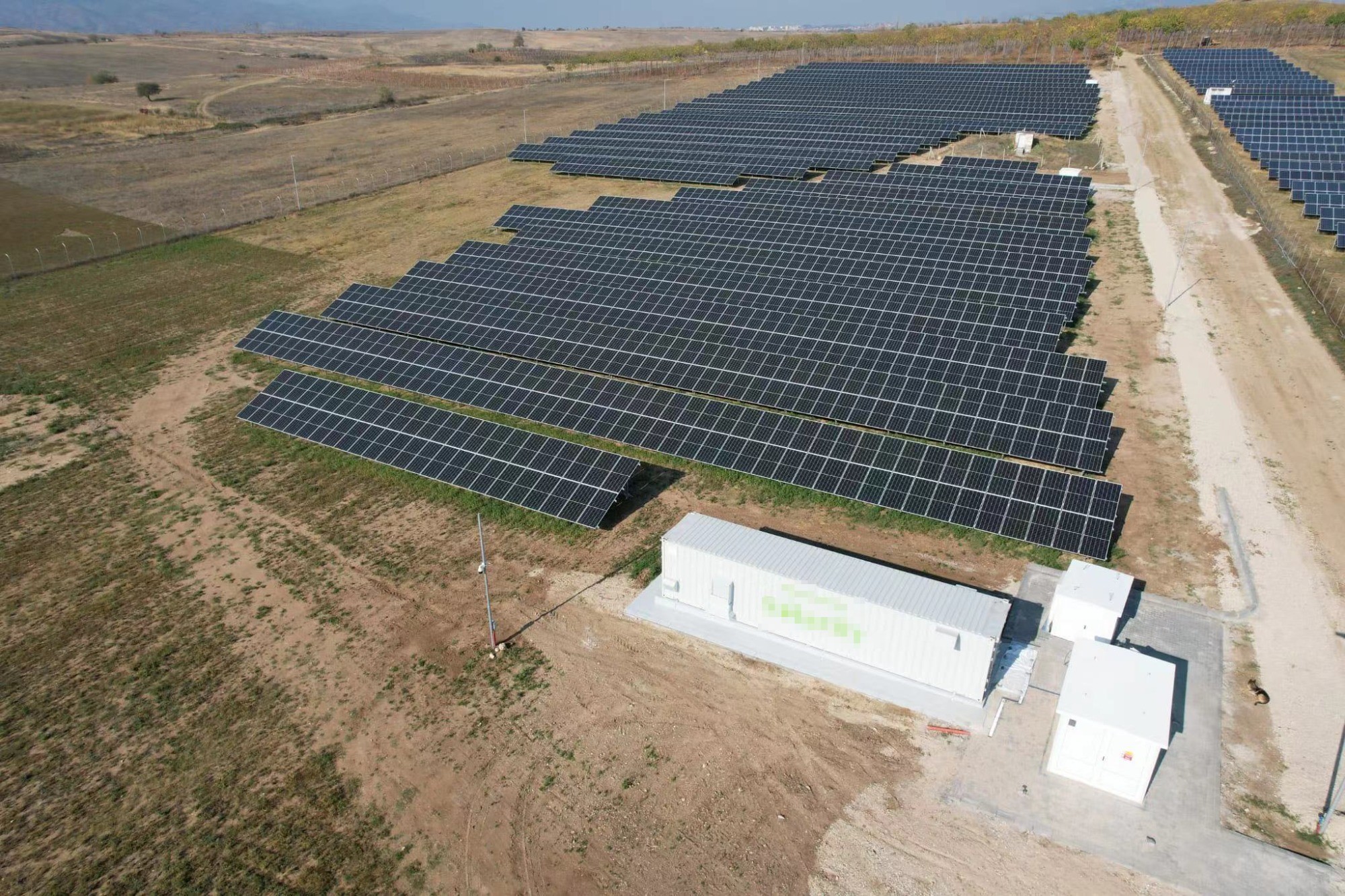

Project Case
Exhibitions

先控捷联电气股份有限公司

Click to show company phone
https://www.scupower.com
中国大陆
中国石家庄市高新区湘江道319号第14，15幢
员工数： 530
联系生产商
注意： 您的询盘将直接发送至先控捷联电气股份有限公司。

有用联系人

公司描述

先控捷联电气股份有限公司（股票代码：833426，简称：先控电气）始终致力于功率转换自动控制核心技术在数据中心和新能源领域的应用，持续赋能绿色发展，为数据中心基础设施、新能源汽车充电和绿色储能这三大业务领域提供完整的解决方案。

公司专注于能源、电力电子及控制技术，自主研发、智造全系列模块化PCS储能变流器，单模块容量覆盖10-250kW（适配950V、1500V)，PCS系统容量单台可高达2500kW。

先控电气聚焦储能市场应用，推出多场景应用方案：一体化光储系统、储能集装箱、产储充一体化解决方案等，为全球客户提供可持续性的能源与动力管理系统，聚焦储能市场应用，共赴零碳出行，以科技推动世界从工业文明向生态文明的转型。

产品
SCU — Global Specialist in Energy Storage, UPS and E-Mobility

Established time: 2003

Core advantages:

  • Strong technical R&D strength

  • Diversified product line

  • Wide customer base

  • Considerable industry development space

  • Professional management team

  • A comprehensive set of production capacity

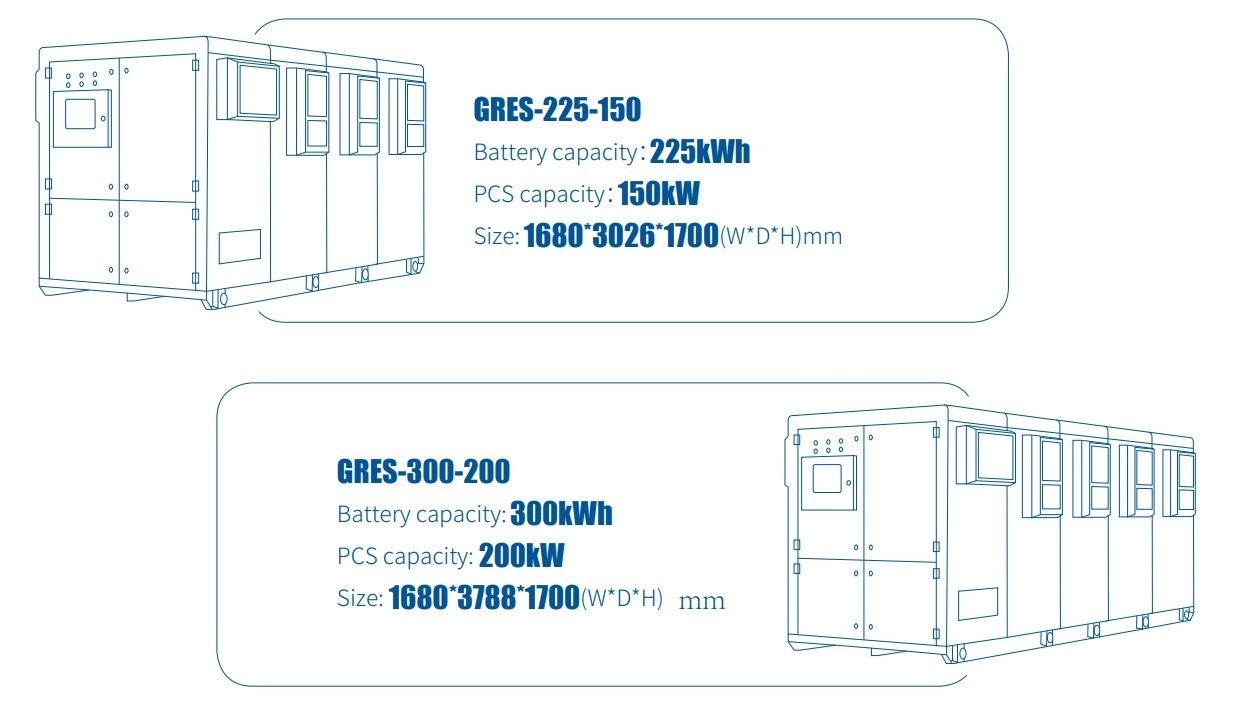

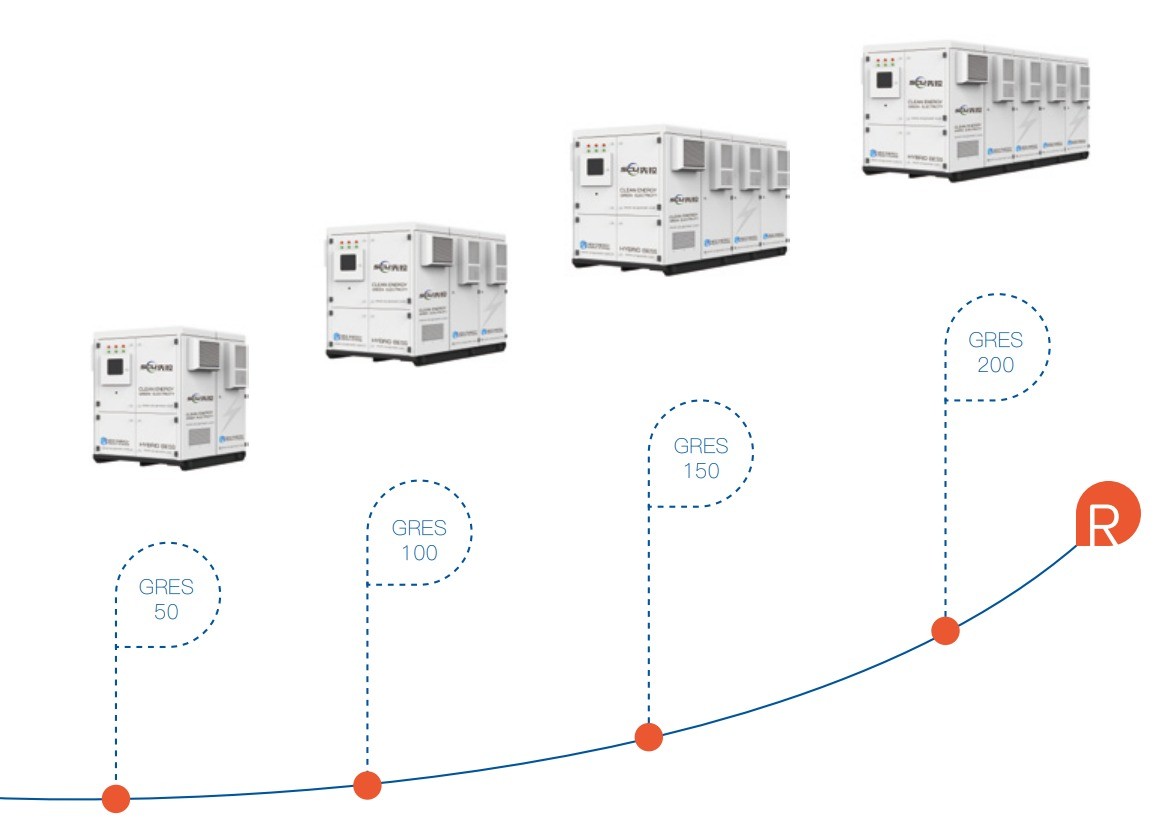

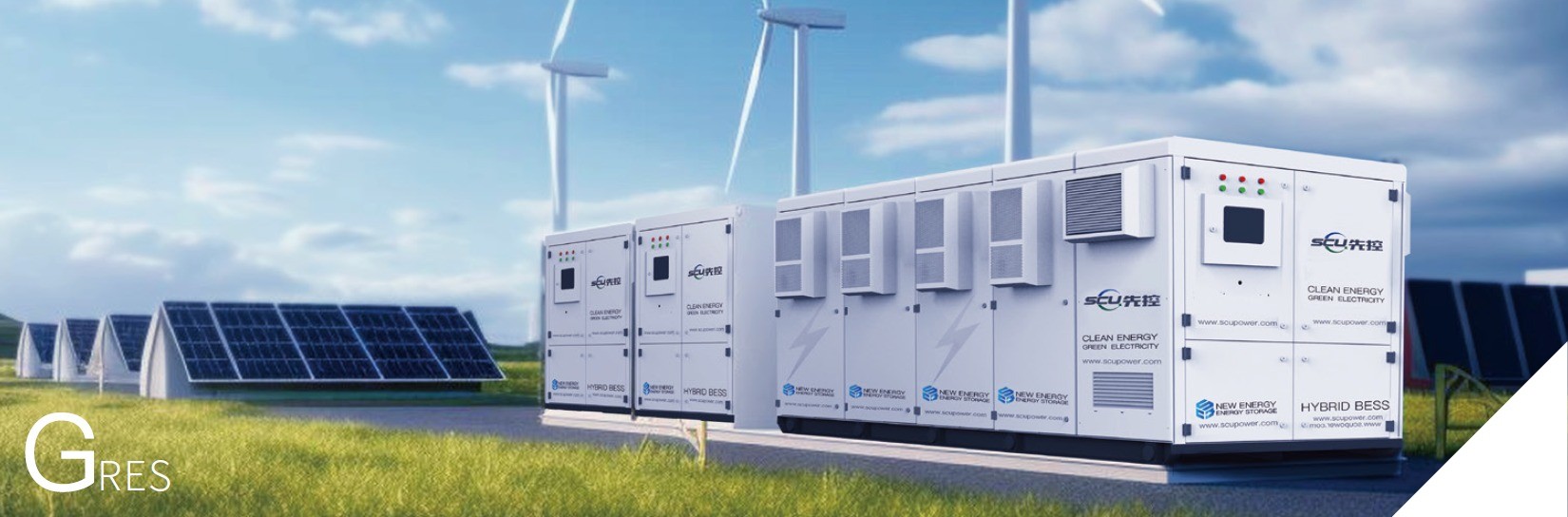

GRES Series

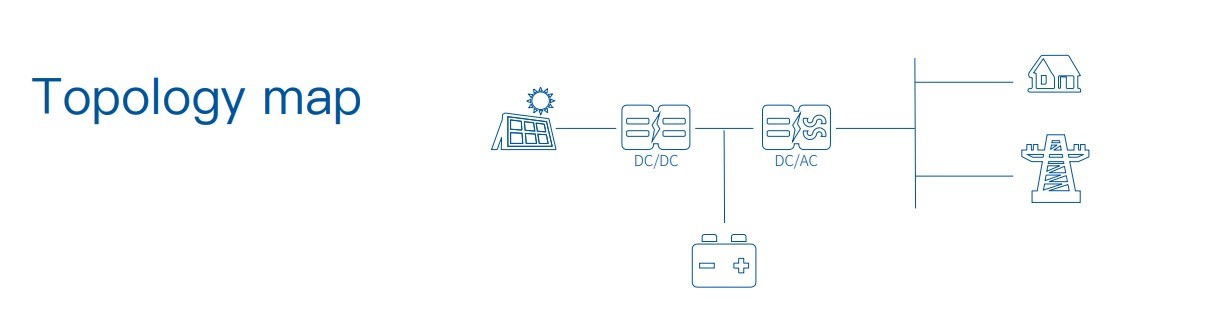

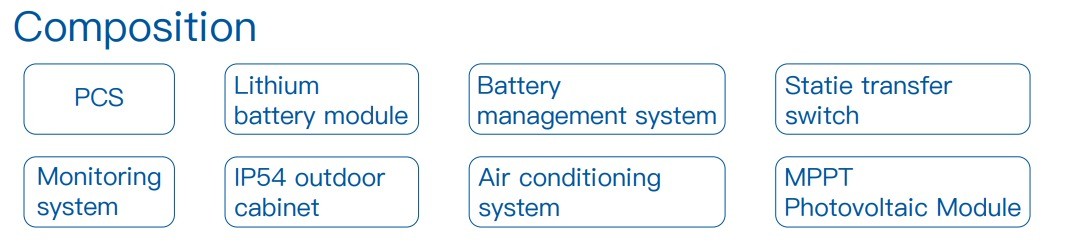

GRES (Grid Renewable Energy Storage Power Supply) static generator is an intelligent and modular power supply equipment integrating Li-ion battery, PV controller and multi-functional bi-directional energy storage converter (PCS), not only for energy storage, but also for different application scenarios by combining Li-ion battery, bi-directional DC/AC converter, PV, MPPT, STS and monitoring unit PMS and other unit modules. MPPT, static transfer switch STS and monitoring unit PMS and other unit modules in any combination, can achieve grid-connected power supply, off-grid power supply, uninterruptible power supply, static reactive power compensation, harmonic suppression, etc., but also new energy, grid, lithium-ion power, loads, etc., combined together, reasonable configuration, scientific use, to provide users with green, environmentally friendly, noiseless, high-reliability and high-security power services.

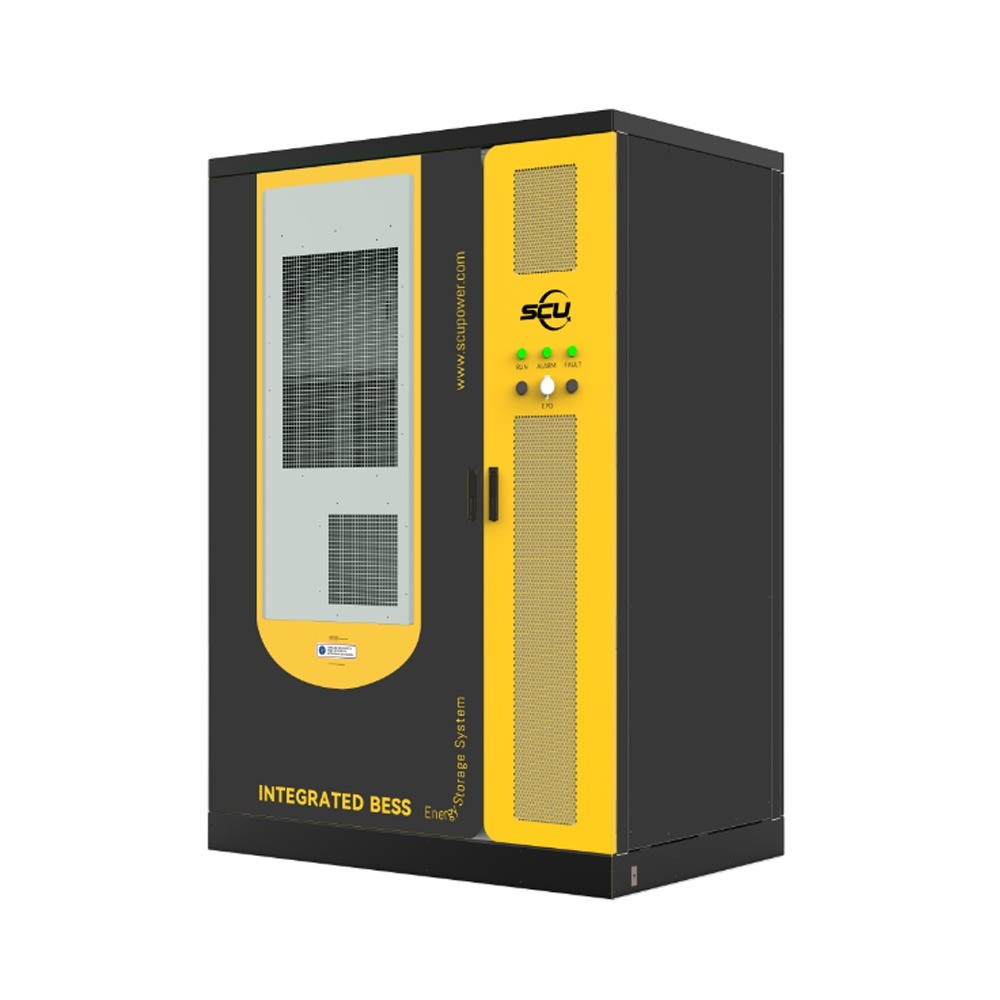

BRES-240-125

BRES (Energy Storage Integrated Power System) is an integrated power supply system that combines long-life lithium batteries, battery management system BMS, high-performance bi-directional energy storage converter module (PCM125), active safety system, thermal management system and energy management system into a single standardised outdoor cabinet, forming an integrated plug-and-play Intelligent, modular power supply equipment. Each cabinet is an independent unit with energy storage and AC/DC power change capability, and is equipped with air-conditioning temperature control system and fire protection system, which can be operated safely, stably and reliably for a long period of time, and can be flexibly expanded through parallel connection on the AC side to realise the flexible expansion of the capacity of the energy storage power station.

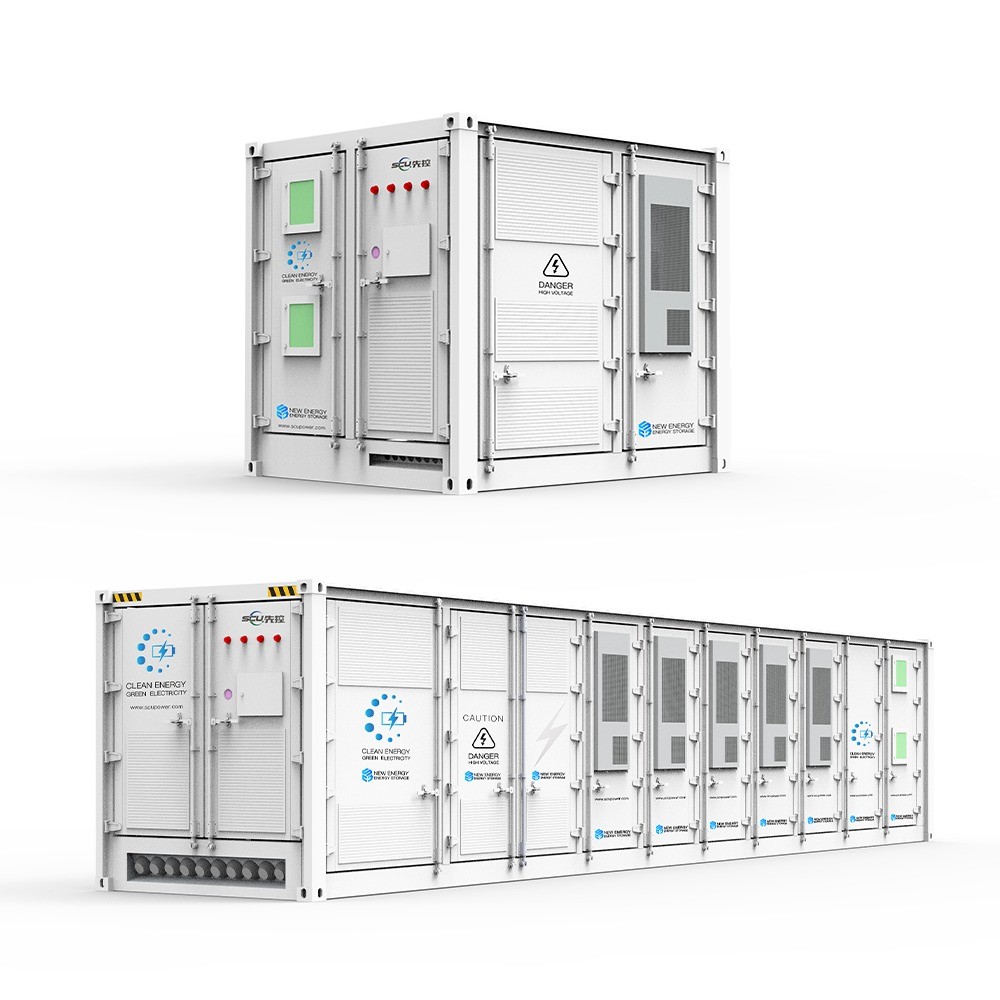

BRES Series - Energy Storage Container

10ft, 20ft, 40ft BESS Container

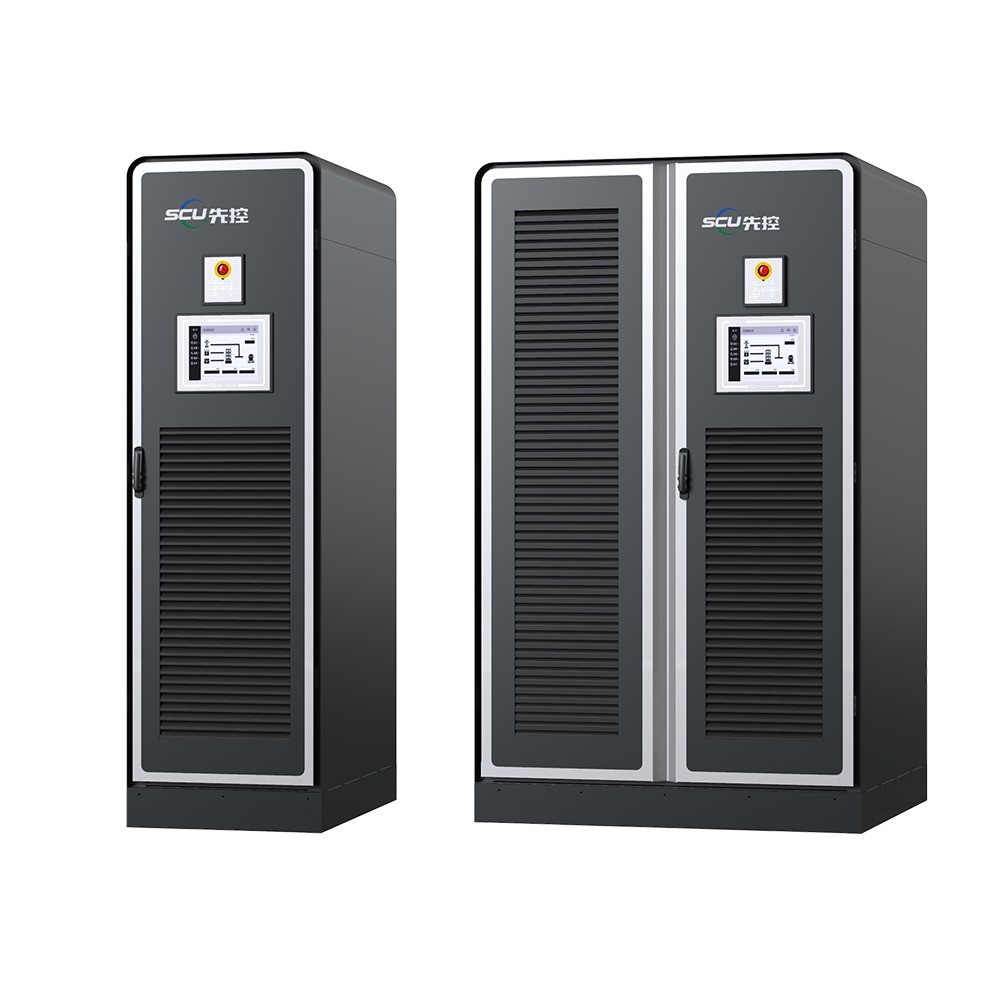

PCS

  • Multiple working modes.

  • Seamless switching between on-grid and off grid modes,<10ms.

  • 3P3W and 3P4W optional.

  • RS485, CAN, Ethernet communication modes.

  • Functions of low voltage ride through and reactive power compensation.

  • 100% unbalanced load capacity in off grid operation.

  • Continuous 105% rated output power.

  • AC and DC dual input redundant power supply. ØModular design and flexible product.

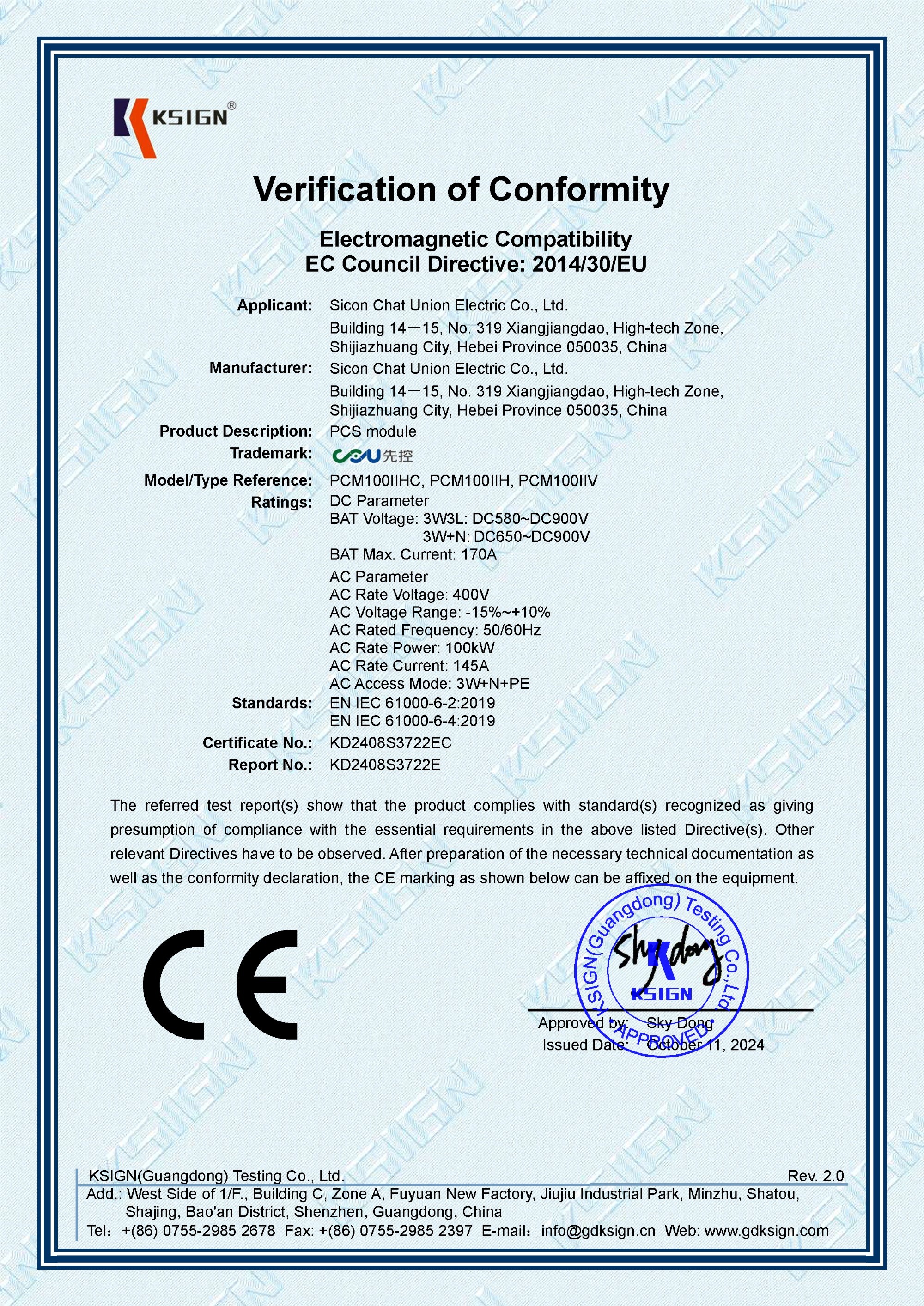

Certifications
