● High Conversion Efficiencies Resulting in Superior Power Output Performance
● Outstanding Power Output Even in Low Light or High Temperature Conditions
● Optimized Design for Ease of Soldering and Lamination
● Long-term Stability, Reliability and Performance
● Low Breakage Rate
● Uniform Color
产品型号 |
|
||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
产品特点 | |||||||||||
电池片技术 | 单晶硅 | ||||||||||
尺寸 | 156.75×156.75 mm | ||||||||||
对角线 | 210±0.5 mm | ||||||||||
电池片厚度 | 180/200 ± 20 µm | ||||||||||
正面 (-) | |||||||||||
栅线数 | 4 | ||||||||||
栅线宽度 | 1.0 mm | ||||||||||
栅线材料 | 银 | ||||||||||
减反射膜 | 氮化硅 | ||||||||||
背面 (+) | |||||||||||
焊垫数 | 4 | ||||||||||
焊垫宽 | 2 mm | ||||||||||
焊垫材料 | 银,铝 | ||||||||||
背面电场 (BSF) | 铝 | ||||||||||
电性能参数(STC) | |||||||||||
峰值功率 (Pmax) |
|
||||||||||
峰值工作电压 (Vmpp) |
|
||||||||||
峰值工作电流 (Impp) |
|
||||||||||
开路电压 (Voc) |
|
||||||||||
短路电流 (Isc) |
|
||||||||||
电池片效率 |
|
||||||||||
填充因子 (FF) |
|
||||||||||
温度特性 | |||||||||||
温度系数(Pmax) | -0.43 %/˚C | ||||||||||
温度系数(Voc) | -0.32 %/˚C | ||||||||||
温度系数(Isc) | 0.02 %/˚C |
About Us

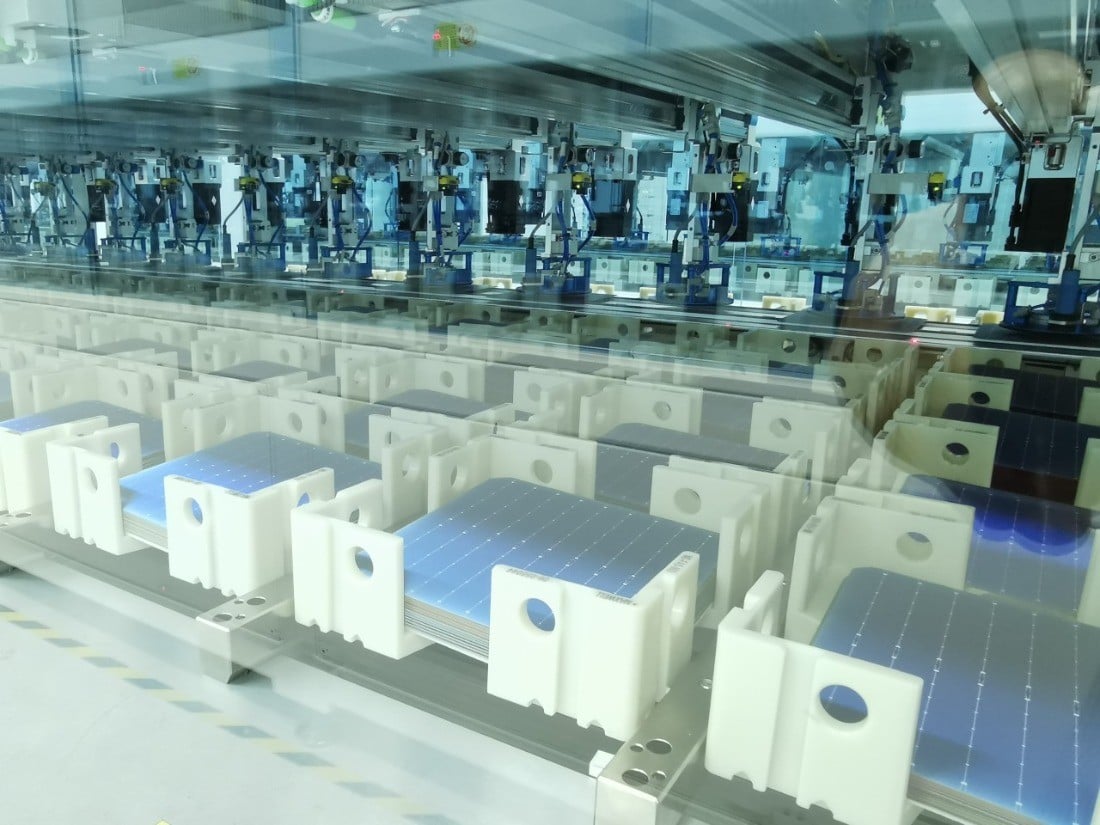

Due to standard clean production workshops, precise design, strict quality control system and perfect manufacturing technology, product quality completely meets international standards. Our production capacity has expanded to 2000MW for solar cells and modules per year. We export to Europe, Southeast Asia, Africa, America and so on, where our products are widely applied to power generation and lighting systems, favoured by customers.
