PCS100/250/500/630

Name: PCS100/250/500/630
Brand: 深圳时代能创能源科技有限公司
SKU: 13136
Price: 0.03752 USD
Availability: InStock

深圳时代能创能源科技有限公司

OX Series

Autarco B.V.

每件价格
最低订购量	1-9 件	10-19 件
S2.OX80000S	¥18,900	¥18,100

联系生产商

注意： 您的询盘将直接发送至Autarco B.V.。

并网

82 kg

5 年

88 ~ 121 kW

98.7 ~ 99 %

IP66

无变压器

三相

180~1000 V

类型

混合

工作温度范围

-25 ~ +55 ℃

地区

中国大陆

重量

820 ~ 1,465 kg

产品质量保证

5 年

功率范围

110 ~ 693 kW

频率

50Hz, 60Hz

效率

97.1 ~ 98.5 %

防护等级

IP20

每件价格每件价格
最低订购量	1+ 件
ATESS PCS100	¥99,000
ATESS PCS250	¥177,000
ATESS PCS500	¥156,000
ATESS PCS630	¥184,000

联系生产商

注意： 您的询盘将直接发送至深圳时代能创能源科技有限公司。

产品信息
公司档案页

产品特点

产品型号

ATESS PCS100

ATESS PCS250

ATESS PCS500

ATESS PCS630

功率

110 kW

275 kW

550 kW

693 kW

产品质量保证（最低）

5 年

最大输出功率

110 kW

275 kW

550 kW

693 kW

标称输出功率

100 kW

250 kW

500 kW

630 kW

交流电压范围

360~440 V

额定交流电压

400 V

额定交流电流

144 A

361 A

722 A

909 A

频率范围

45-65 Hz

频率

50, 60 Hz

功率因数 (cosθ)

0.8

总谐波失真（THDi）

< 3 %

最大效率

97.1 %

97.3 %

98.5 %

尺寸（高/宽/厚）

1890x1100x850 mm

2080x1600x850 mm

1900x1200x800 mm

重量

820 kg

1465 kg

870 kg

900 kg

噪音干扰级别

< 65 dB(A)

工作温度范围

-25 ~ +55 ℃

防护等级

IP20

相对湿度

0-95 %

散热方式

风扇冷却

最高运行海拔

6000 m

通讯接口

RS 485

显示屏

LCD

下载公司产品详情

数据表

ATESS PCS50/100/250/500/630

Flexible Configuration
Configurable with solar charge controller, bypass cabinet, or stand-alone
Programmable working mode
Peak-shaving, backup, use the system however you want it
Scalable
Applicable in MW-level systems by paralleling multiple units
Touchscreen LCD
More convenient for parameter settings and maintenance
Dry contact output
Supports remote control of DG

About ATESS Power Technology

Shenzhen ATESS Power Technology Co., Ltd is a leading renewable energy company that focuses on the development and manufacturing of storage, inverters, and EV chargers. Since 2017, we have delivered clean energy to more than 35 countries in the world.

ATESS provides integrated energy storage solutions including hybrid all-in-one solutions and battery inverters from 10 kW up to 630kW, which are applicable for both rooftop applications to utility-grade ground mount projects. Its EV charger product line on the other hand provides 3kW up to 300kW AC, DC, and combo chargers covering home and public charging stations, compatible with all regular EVs available in the market, and also buses for public transportation. Customization service is also available to meet up various scenario demands.

With an R&D team consisting of more than 50 experienced engineers, ATESS produces products with leading-edge technology and excellent quality. Over 15% of its total revenue is invested in R&D each year to maintain the core competitiveness up-to-date.

From ATESS, you will be able to enjoy 24/7, 365days professional pre-sales and after-sales service. As an added benefit, our online monitoring system enables clients to monitor, manage and debug their systems remotely, which significantly improves the operation and maintenance efficiency, so as to ensure the system stability and lifespan.

ATESS has established sales network in Thailand and Europe. Our warehouse in Holland offers prompt delivery to the local clients. Warehouses in South Africa and South America are also in the pipeline.

Dedicated to energizing the future with clean energy, ATESS keeps on exploring new technology, and continuously strengthen its team worldwide.

Projects

Certifications

Exhibitions

深圳时代能创能源科技有限公司

: Click to show company phone
: https://www.atesspower.com
: 中国大陆
: 广东省深圳市宝安区石岩水田恒隆工业园9栋三层，B区3栋一层

员工数： 350

母公司： Growatt group

联系生产商

注意： 您的询盘将直接发送至深圳时代能创能源科技有限公司。

有用联系人

Atess Power

公司描述

Founded in 2017, Shenzhen ATESS Power Technology Co., Ltd. is a global supplier of solar energy storage and electric vehicle (EV) charging solutions. We are dedicated to developing and delivering affordable clean energy to every corner of the world, providing our customers with the opportunity for energy independence.

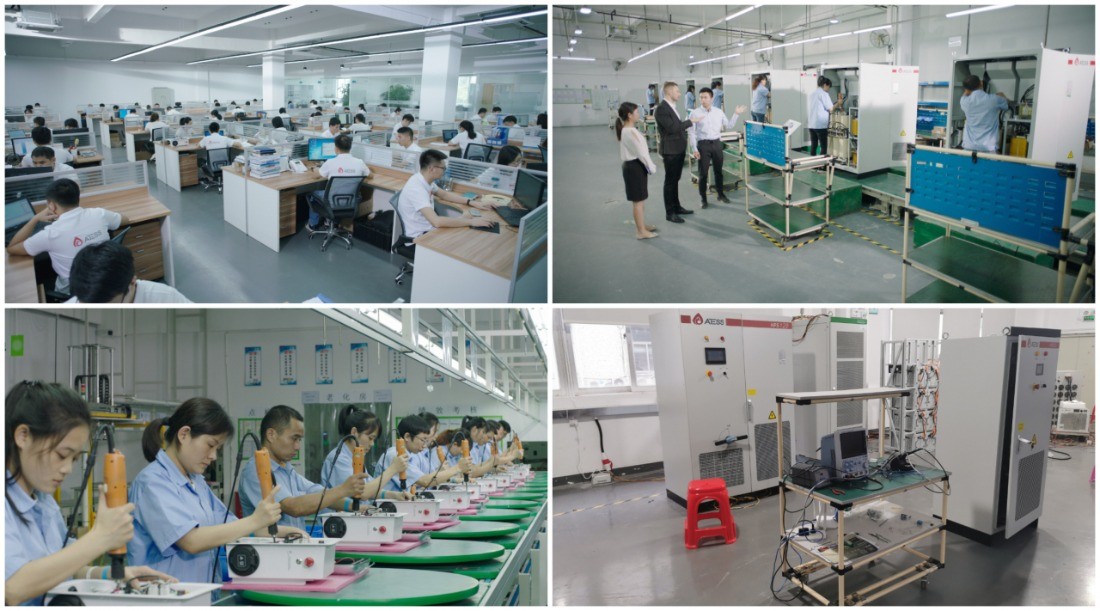

ATESS has an R&D team of over 100 highly experienced engineers. Our laboratory is fully equipped with advanced testing instruments to ensure top-notch product performance and quality, while also meeting our customers' needs. Each year, we dedicate approximately 15% of our annual revenue to research and development to keep our products competitive.

Over the years, ATESS has enabled thousands of users and companies to produce and consume green energy independently, tailored to their individual needs, resulting in millions of tonnes of CO₂ emissions saved. This drive motivates us to continuously innovate and strive toward the universal goal of carbon neutrality, as well as a greener future powered by renewable energy technology.

产品视频

PCS100/250/500/63...

HPS30/50/100/120/...

BR114/129/143/15...

评价

Great service, very professional, excellent communication. Our customers are very pleased with their products.

-- Eric James, eric james

The inverters seem to be of high quality. atesspower's staff kept me informed at every step of the process.

-- William Petsén, Sunavia AB, Sunavia AB

产品

One-stop Energy Storage Solutions

ATESS's solar energy storage product portfolio encompasses integrated solutions ranging from 15kW to 1500kW, including hybrid/off-grid inverters, solar charge controllers, bypass cabinets, lithium battery systems, and intelligent monitoring platforms. These high-efficiency, bankable, and flexible systems are engineered to excel across residential, commercial & industrial (C&I), and utility-scale applications.

We also offer tailored solutions to address unique client requirements. Rigorously validated through laboratory testing and real-world deployments, our energy storage systems demonstrate exceptional durability in extreme environments—from remote islands and arid deserts to coastal regions.

Since 2017, ATESS has delivered over 490MW (875MWh+) of energy storage capacity and 207,000+ EV chargers across more than 90 countries, ensuring users access reliable, clean energy 24/7.
