SGPE series

浙江尚高新能源有限公司
价 格:
建议零售起价 ¥0.305 / Wp *
建议零售起价 ¥199 / 台 *
类型: 离网
功率范围: 0.31~2.75 kW
地区: 中国大陆 中国大陆
July Deng
注意: 您的询盘将直接发送至浙江尚高新能源有限公司

描述:

SGPE pure sine wave inverter with E-display

It is pure sine wave output with 2 years warranty

It is with sufficient power.

We own FCC,ETL,PSE,CE,ROHS certificates

Original IGBT,MOSFET,CHIP

-40℃-60℃ working temp

产品特点

产品型号
SGPE 300W SGPE 500W SGPE 1000W SGPE 1500W SGPE 2000W SGPE 2500W
产品规格
功率
0.31 KW 0.55 KW 1.1 KW 1.65 KW 2.2 KW 2.75 KW
价格 (建议零售价)
¥199 / 台 * ¥320 / 台 * ¥441 / 台 * ¥655 / 台 * ¥740 / 台 * ¥840 / 台 *
质量保证
产品质量保证
2 年 2 年 2 年 2 年 2 年 2.5 年
输入参数(直流)
最大输入功率
0.3 kW 0.5 kW 1 kW 1.5 kW 2 kW 2.5 kW
标称输入电压
12 V 12 V 12 V 12 V 12 V 12 V
输出参数(交流)
最大输出功率
0.31 kW 0.55 kW 1.1 kW 1.65 kW 2.2 kW 2.75 kW
标称输出功率
0.3 kW 0.5 kW 1 kW 1.5 kW 2 kW 2.5 kW
交流电压范围
100~230 V 100~230 V 100~230 V 100~230 V 100~230 V 100~230 V
频率
50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz
功率因数 (cosθ)
1 1 1 1 1 1
总谐波失真 (THDi)
< 3 % < 3 % < 3 % < 3 % < 3 % < 3 %
相数
1 1 1 1 1 1
最大效率
94 % 94 % 94 % 94 % 94 % 94 %
一般参数
尺寸(高/宽/厚)
200x112x60 mm 215x150x78 mm 278x170x105 mm 381x170x105 mm 381x170x105 mm 555x470x315 mm
重量
0.82 kg 1.7 kg 2.8 kg 4 kg 4 kg 5.7 kg
环境温度范围 -40 ~ +60 ℃
变压器 High Frequency-Transformer
散热方式 风扇冷却
通讯接口 RS 485
显示屏 LED
防护性能
防护性能 短路保护,过载保护,过压保护,过流保护,过热保护,极性反接保护
PDF
下载公司产品详情

About US

SUG(shanggao) in Chinese means Gracious & Exploration, which is the spirit we are following since our establish. For years we have been concentrating on offering the integrated power solution to our worldwide customers, and has gained various of certificate worldwide, such as FCC& ETL for North America, CE & ROHS for Europe, PSE for Japan.

SUG New Energy Co.,Ltd specialize in manufacturing high performance power inverter like Pure Sine Wave inverter, Modified Sine Wave Inverter, PV On-grid Inverter, Solar Controller, Solar System, UPS, Battery Charger, DC Power Supply, Lithium Battery and related accessories. To improve our research and high technology ability, we cooperated with China Electronics Technology Group which was located in Beijing in 2013,now we have established PCB & electronic research center and advanced testing lab.

SUG is growing fast through years' great effort. now we have become one of the leading inverter manufacturer in China. We are working with reliable distributors with online & offline network throughout China. We look forward to expanding our business with new agent and customer for our mutual benefit with each other.

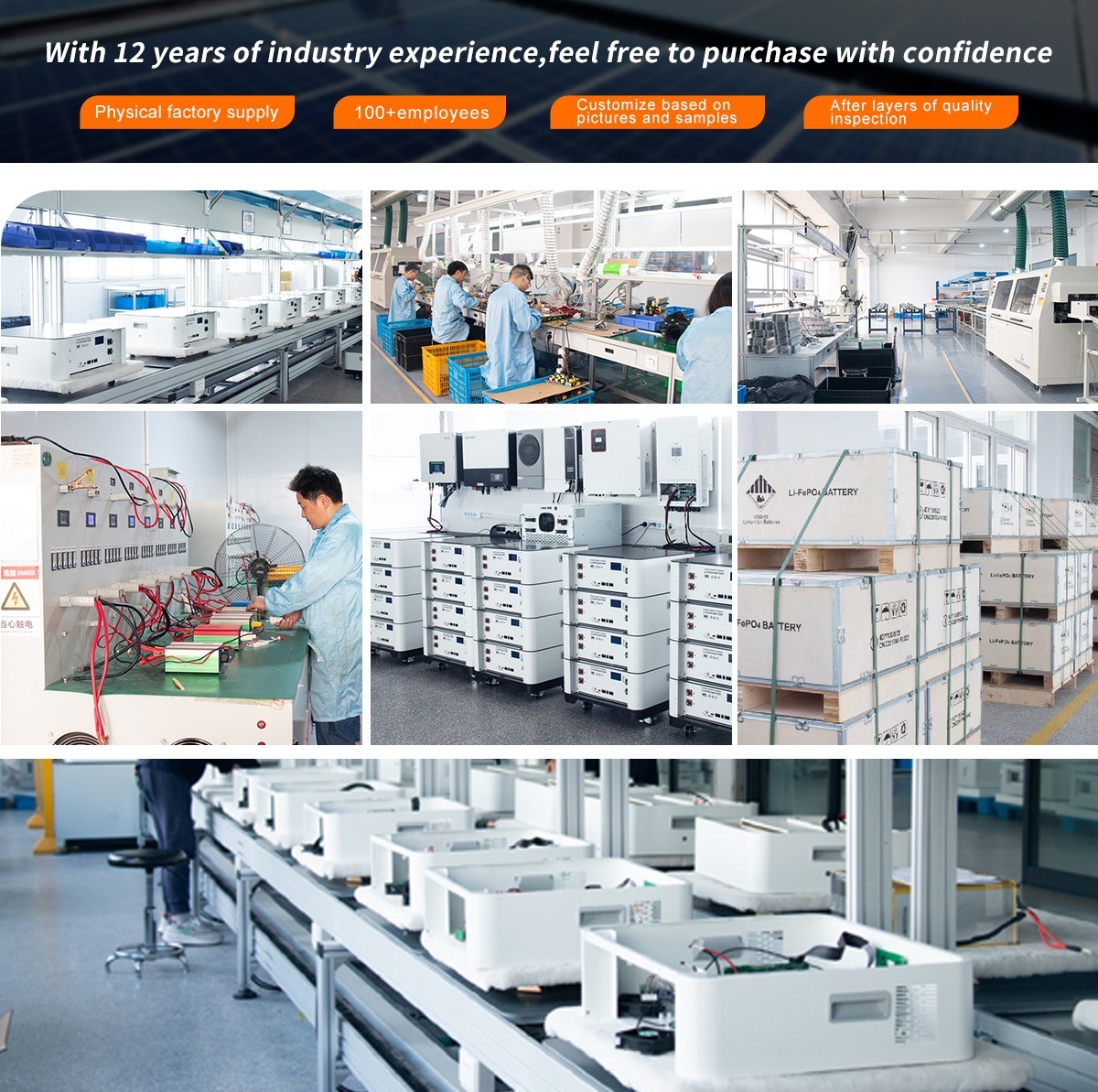

Production Line

We are manufacturer for 10 years.

We own professional technical team,sales team and after-service team.

We accpet OEM/ODM.

Product Specification

Certificates

浙江尚高新能源有限公司

Click to show company phone
www.sugpower.com
中国大陆
浙江省乐清市经济开发区纬十一路298号
注意: 您的询盘将直接发送至浙江尚高新能源有限公司

有用联系人

Contact Face
July Deng
公司描述

SUG New Energy Co.,Ltd is a manufacturer for more than 10 years.We can supply power inverter,lifepo4 battery,energy storage system,solar controller and portable power station.We own FCC&ETL for USA,PSE for Japan,CE&ROHS for EU.We own professional research&production&sales team and perfect after-sales service team.Our customer are all around the world.

产品视频
产品

About US

SUG(shanggao) in Chinese means Gracious & Exploration, which is the spirit we are following since our establish. For years we have been concentrating on offering the integrated power solution to our worldwide customers, and has gained various of certificate worldwide, such as FCC& ETL for North America, CE & ROHS for Europe, PSE for Japan.

SUG New Energy Co.,Ltd specialize in manufacturing high performance power inverter like Pure Sine Wave inverter, Modified Sine Wave Inverter, PV On-grid Inverter, Solar Controller, Solar System, UPS, Battery Charger, DC Power Supply, Lithium Battery and related accessories. To improve our research and high technology ability, we cooperated with China Electronics Technology Group which was located in Beijing in 2013,now we have established PCB & electronic research center and advanced testing lab.

SUG is growing fast through years' great effort. now we have become one of the leading inverter manufacturer in China. We are working with reliable distributors with online & offline network throughout China. We look forward to expanding our business with new agent and customer for our mutual benefit with each other.

Production Line

Our Products

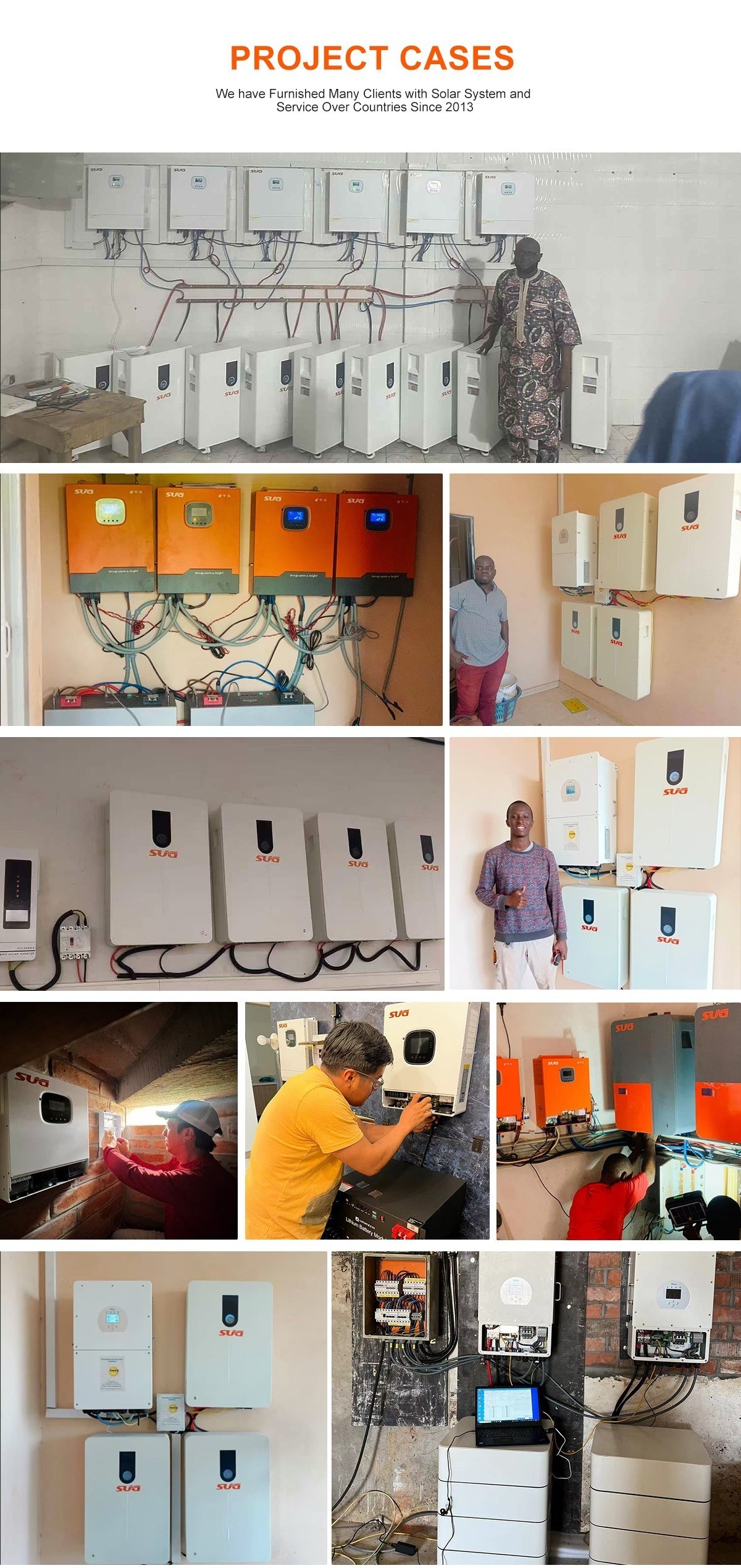

Projects
