Selfnergy Series

Allis Electric Co., Ltd.
  1. 光伏逆变器产品名录
  2. Selfnergy Series
Ad
SGPF-Pure Sine Wave Inverter
浙江尚高新能源有限公司
每件价格
最低订购量 1-199 件 200+ 件
交货时间 3 days 25 days
SGPF-1000w ¥396 ¥388
SGPF-1500w ¥474 ¥464
SGPF-2000w ¥608 ¥596
SGPF-Pure Sine Wave Inverter
联系生产商
注意： 您的询盘将直接发送至浙江尚高新能源有限公司。
技术
离网
重量
2 ~ 4.25 kg
产品质量保证
1 年
功率范围
2 ~ 6 kW
频率
50 Hz, 60 Hz
效率
93 %
protection_class
IP21
transformer
High Frequency-Transformer
no_of_feedin_phases
单相
技术
类型
混合
工作温度范围
工作温度范围
-25 ~ +60 ℃
地区
地区
中国台湾 中国台湾
重量
重量
25.8 kg
产品质量保证
产品质量保证
5 年
功率范围
功率范围
3.3 ~ 5 kW
频率
频率
50Hz, 60Hz
效率
效率
96.5 ~ 96.9 %
protection_class
防护等级
IP65
transformer
变压器
无变压器
no_of_feedin_phases
相数
单相
mpp_voltage_range
MPP(T)电压范围
150~500 V
联系生产商
注意： 您的询盘将直接发送至Allis Electric Co., Ltd.。

  • Enables self-consumption of solar energy

  • High battery discharge power (5.3kW) with >95% efficiency

  • User-friendly interface for monitoring energy flow

  • Intelligent load management with smart meter + split-core CT

  • IP65 fan-less cooling; Operates up to 50°C without derating

  • Compatible with generators

产品特点

产品型号
Selfnergy-3300 Selfnergy-5000

产品质量保证 （最低）
5 年 5 年

最大输入功率
3.6 kW 5.3 kW
最大输入电压
650 V 650 V
最大输入电流
18 A 26.5 A
MPP(T)电压范围
150~500 V 150~500 V
MPPT数量
1 1
连接器
MC4 MC4

最大输出功率
3.3 kW 5 kW
标称交流电压
220, 240 V 220, 240 V
最大输出电流
16.5 A 24.5 A
频率
50, 60 Hz 50, 60 Hz
功率因数 (cosθ)
0.99 0.99
总谐波失真 （THDi）
< 3 % < 3 %
相数
1 1
最大效率
96.5 % 96.9 %
欧洲效率
96.1 % 96.6 %

尺寸（高/宽/厚）
442x405x165 mm 442x405x165 mm
重量
25.8 kg 25.8 kg
夜间损耗
< 0.5 W < 0.5 W
噪音干扰级别
< 35 dB(A) < 35 dB(A)
工作温度范围 -25 ~ +60 ℃
变压器 无变压器
防护等级 IP65
相对湿度 0-95 %
散热方式 自然冷却
通讯接口 RS 485, Bluetooth
显示屏 LCD

下载公司产品详情
数据表

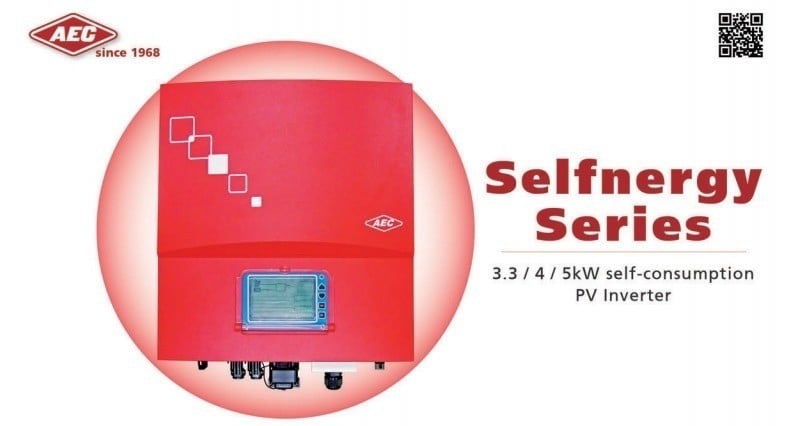

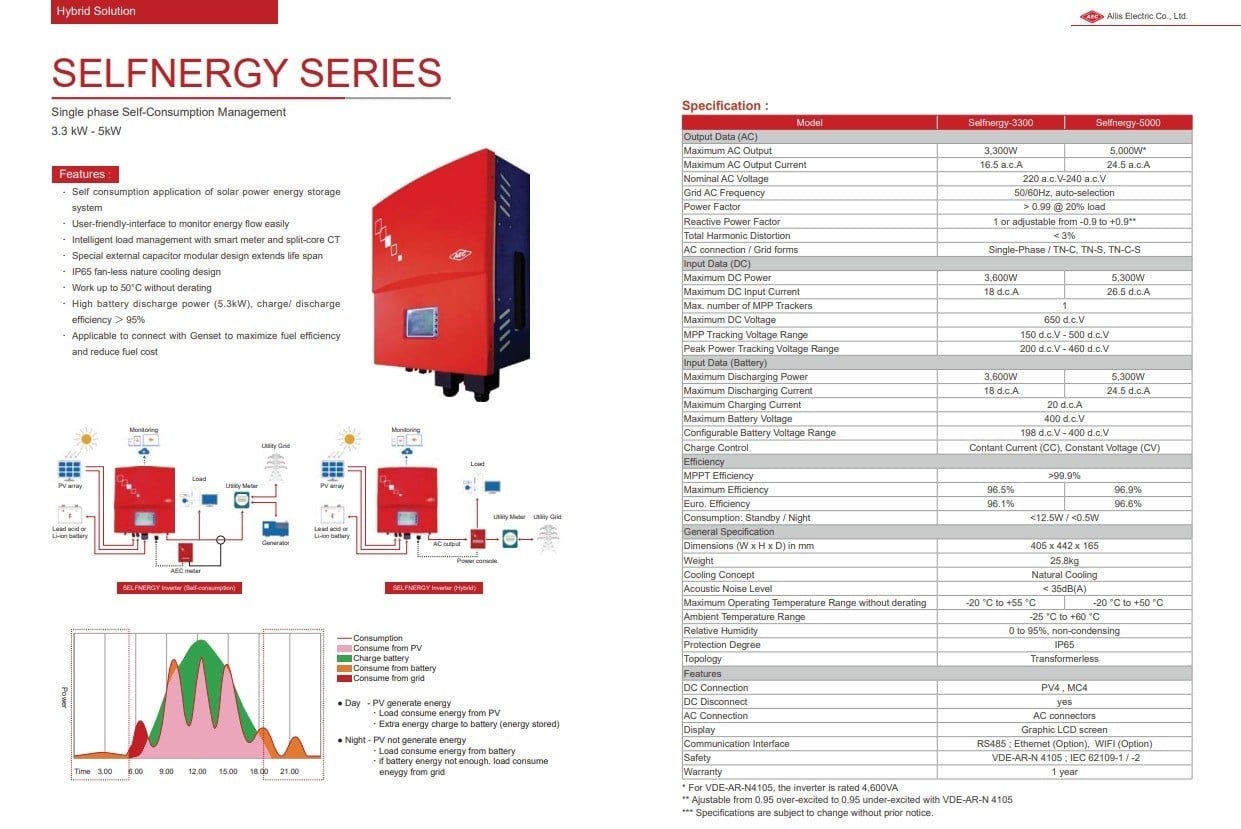

Selfnergy Series

Description

  • Hybrid Solution

  • Single-phase Self-Consumption

  • Maximum Power - 3.3K / 5K

Key Features

  • Supports self-consumption applications for solar power energy storage systems

  • Offers a user-friendly interface for monitoring energy flow

  • Features intelligent load management with a smart meter and split-core current transformer (CT)

  • Utilizes a special external capacitor modular design to extend lifespan

  • Designed with an IP65 fanless natural cooling system

  • Operates at up to 50°C without performance derating

  • Provides high battery discharge power (5.3 kW) with a charge/discharge efficiency greater than 95%

  • Compatible with generators (Genset) to enhance fuel efficiency and reduce fuel costs

  • Includes selectable scenarios for advanced energy applications

  • Optimizes charge/discharge control to extend the lifespan of lithium-ion batteries (optional)

  • Offers an extendable lithium-ion battery pack design ranging from 4 kWh to 20 kWh (optional).

About Us

Allis Electric Co., Ltd. is a leading manufacturer of switchgear, specializing in Transmission & Distribution Apparatus, UPS, and Switching Mode Rectifiers for the past 50 years.

Our products are sold in many countries around the world. Besides the production of Uninterruptible Power Supply, Switchgear, and Transformer, we also offer customization services according to the customer specifications, as we prioritize customer satisfaction.

Please feel free to contact us if you are interested in UPS, SCADA, Phase UPS, and 48V Rectifier.

Main Products

● Uninterruptible Power Supply (UPS)

● Switching Mode Rectifier

● Switchgear

● Transformer

● Battery Charger

Allis Electric Co., Ltd.

Click to show company phone
www.allis.com.tw
中国台湾
115 台北市南港區三重路19-11號12樓
联系生产商
注意： 您的询盘将直接发送至Allis Electric Co., Ltd.。

有用联系人

公司描述

Founded on September 25, 1968, Allis Electric Co., Ltd. began with the production of low-voltage switchgear, motor control centres, high- and low-voltage integrated start-up panels, AC/DC industrial control equipment, and transmission and distribution systems. Its stable growth led to the creation of independent divisions dedicated to producing transformers, switching devices, and electronic products.

Our products meet the rigorous standards of globally recognised organisations, including the Los Angeles Department of Water and Power, Toshiba, and Taiwan Semiconductor Manufacturing Company. Following a successful public offering in 1994, Allis Electric expanded into telecommunications and high-tech industries.

Today, our solutions cover a wide range of sectors, including IT, telecommunications, industrial applications, wireless systems, utilities, and SCADA (Supervisory Control and Data Acquisition). Allis Electric is not limited to Taiwan—we compete globally through strategic investments, joint ventures, and overseas offices in Europe, the USA, and China.

With over 36 years of proven expertise and a strong commitment to customer-focused innovation, Allis Electric continues to strengthen its core competencies, drive value for stakeholders, and excel as a leading multinational enterprise.

产品

About Us

Allis Electric Co., Ltd. is a leading manufacturer of switchgear, specializing in Transmission & Distribution Apparatus, UPS, and Switching Mode Rectifiers for the past 50 years.

Our products are sold in many countries around the world. Besides the production of Uninterruptible Power Supply, Switchgear, and Transformer, we also offer customization services according to the customer specifications, as we prioritize customer satisfaction.

Please feel free to contact us if you are interested in UPS, SCADA, Phase UPS, and 48V Rectifier.

Main Products

● Uninterruptible Power Supply (UPS)

● Switching Mode Rectifier

● Switchgear

● Transformer

● Battery Charger

来自Allis Electric Co., Ltd.的其他3个系列产品‎

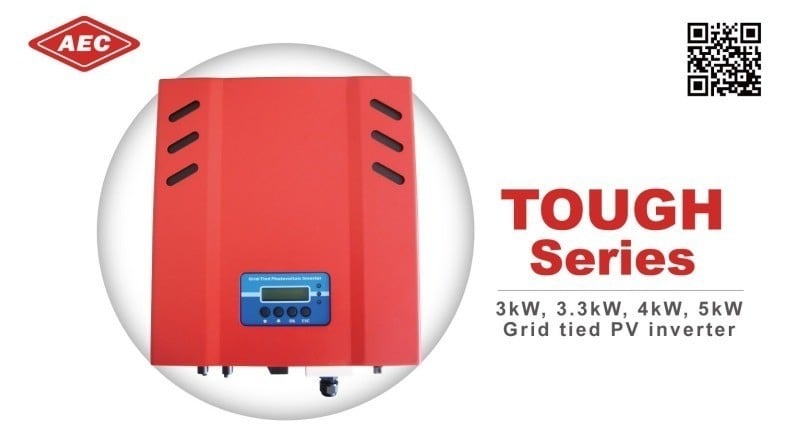

  • Tough Series
