Solar Zn-Al-Mg Steel Ground Mounting

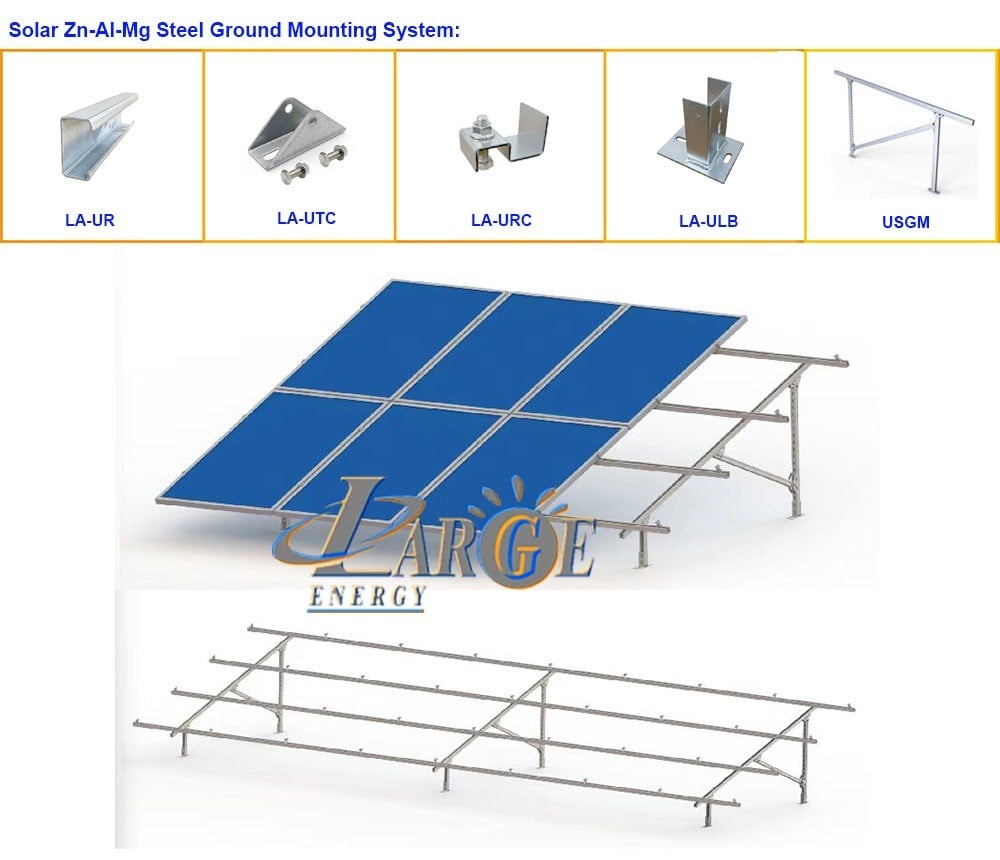

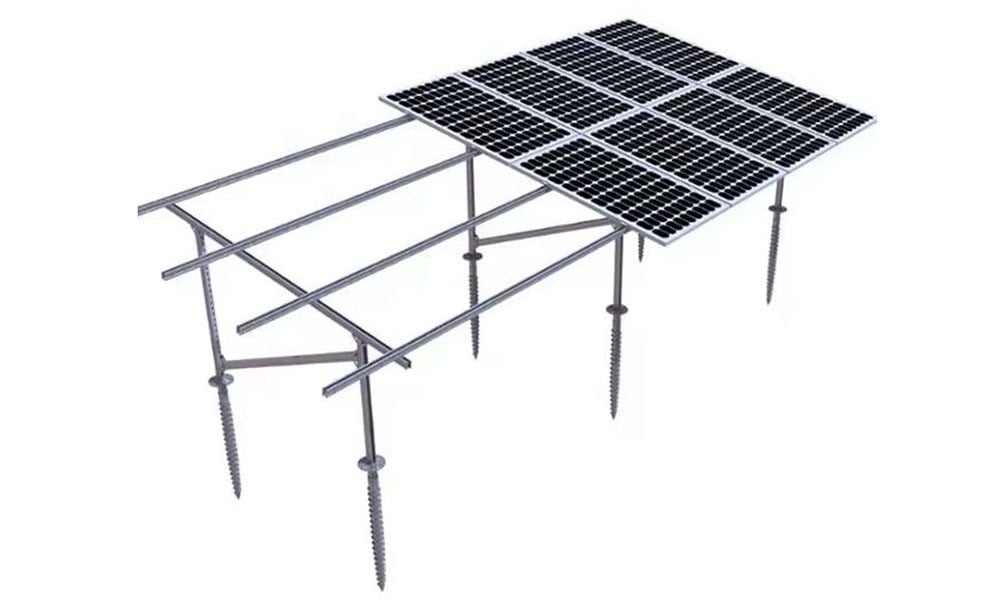

The LARGE ZAM Steel Ground mounting system has been developed as a universal PV module, mounting system for open space ground installations. The system is composed of Zn-Al-Mg coated U steel support pipe, U steel rails, and the special modules with U rails, U rail connecter, triangle fitting, ground screws, and a high degree of pre-assembly, easy and quick to save your labor cost and time. The customized length can eliminate the weld and cut onsite to keep the high anticorrosive performance, the structural strength, and the appearance.

LARGE Energy ZAM Steel Ground mounting rails adopt ZAM coated steel, with a surface coated thickness of more than 275g/m2.

The coated thickness applied complies with GB/T 2518-2019.product to be anti-corrosive, anti-rust. Every bolt and nut.

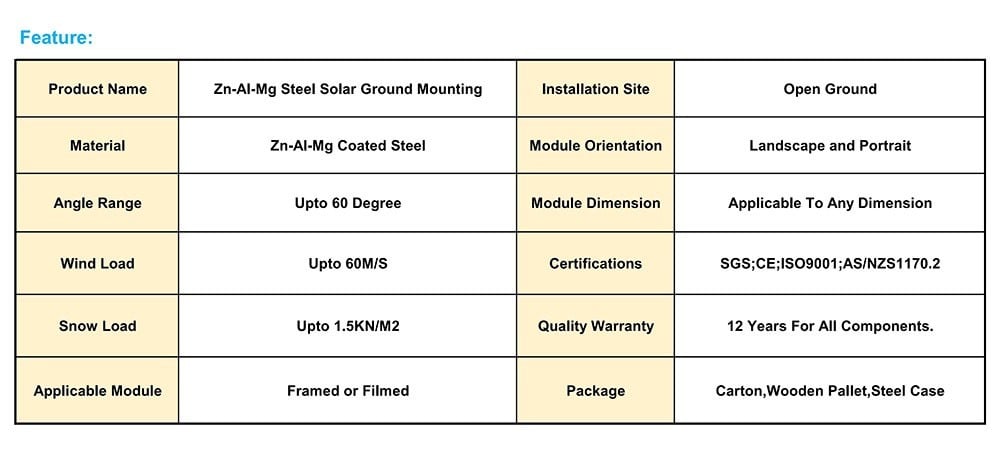

Technical Parameters :

Installation Site: Solar Steel Ground Mounting System

Installation Angle: 10~60 degrees

Building Height: Up to 20m

Wind Load: Up to 60m/s

Snow Load: Up to 1.5KN/m2

Applicable Module: Framed or Frameless

Module Orientation: Landscape and Portrait

Module Dimension: Applicable to any dimension

Standard Compliance: CE, AS/NZS1170.2; SGS and other international standards

Material: Zn-Al-Mg coated steel, Aluminum alloy, Stainless steel 304

Color: Natural or customized.

Warranty: 12 years of quality warranty and 20 years of service life

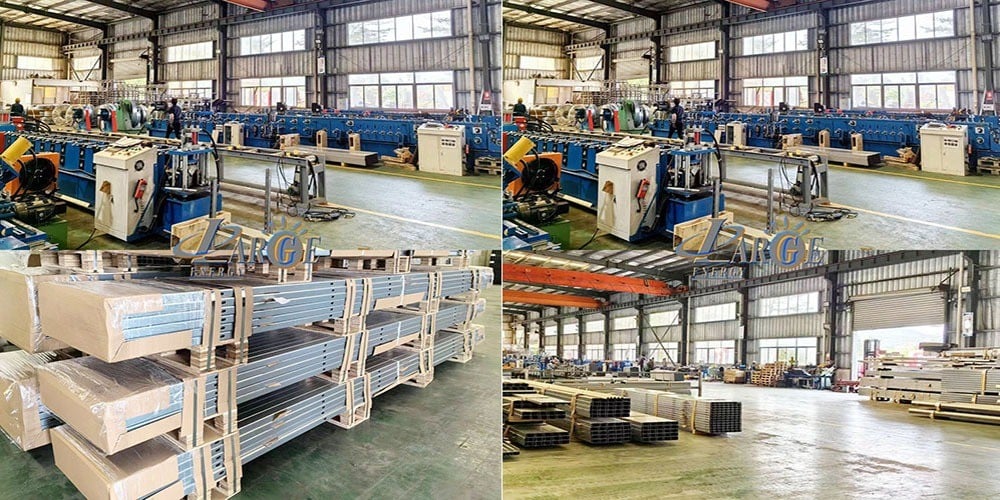

Xiamen Large Energy Tech Co., Ltd, is located in the Xiamen China, is a collection of renewable energy investment and PV mounting system production, solar power station service, we are a high-tech enterprise specialized in solar mounting products, Large Energy insists on “professional and innovation” on product R&D and manufacture so that we can provide customers with high quality, trustable and cost-efficient solar PV mounting system solutions, Large Energy have been taking the leading in the global PV market.

“Profession” and “innovate” are our guiding services and pursuits. Always adhere to the business philosophy: Professionalism, Sincerity, Win-win situation, to provide professional and quality service. Our corporate culture: Green Life, Continuation of development. Installation is Simple, Flexible, and Low-cost, Leading solar mounting systems.

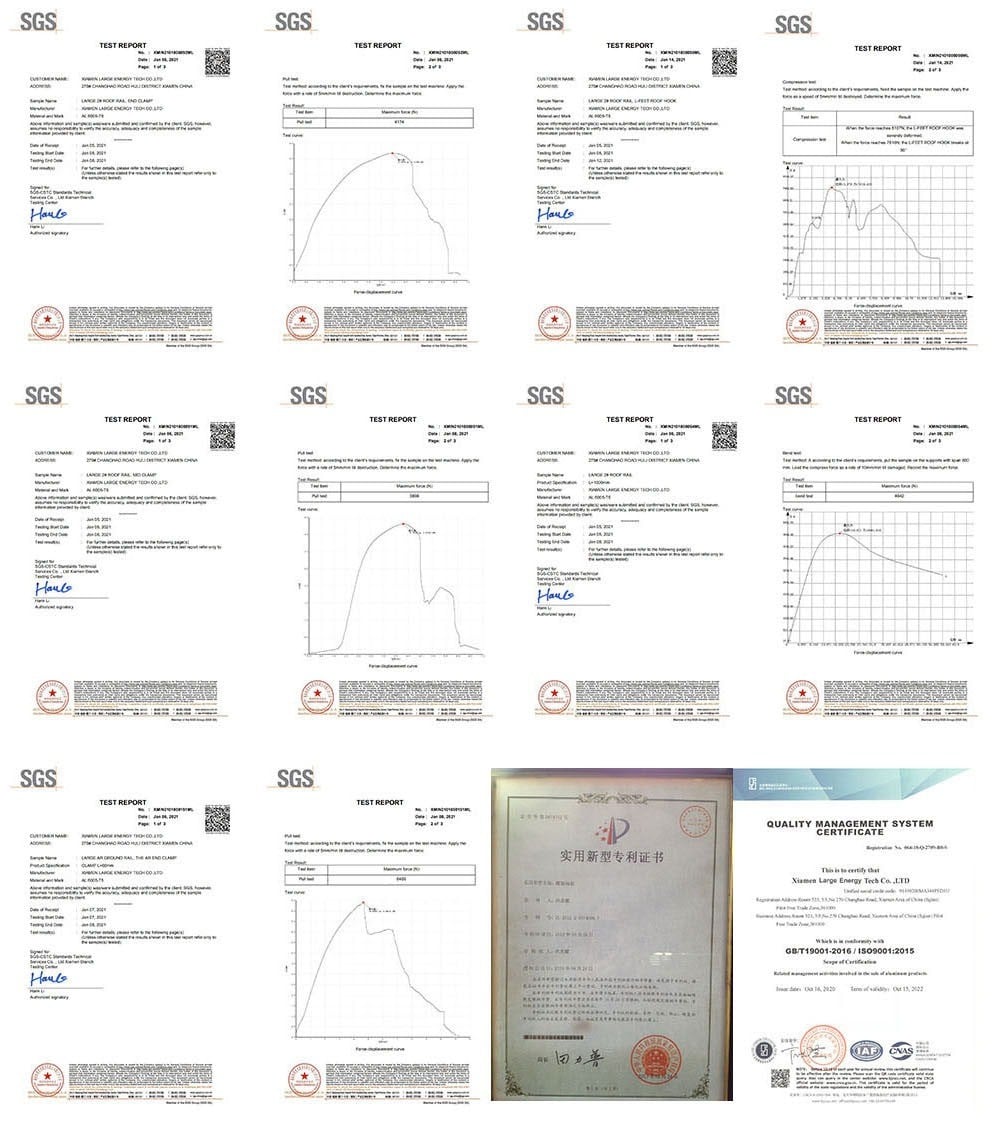

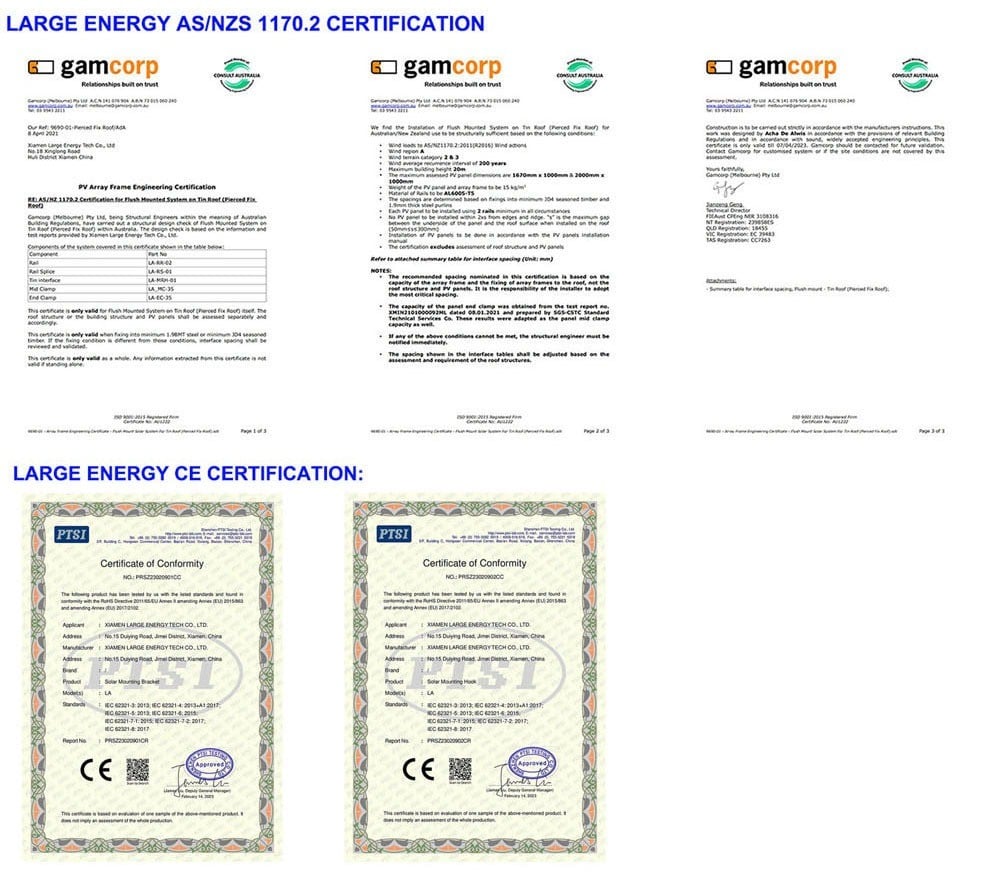

LARGE Energy has developed a series of mounting systems, including roman tile roof mounting systems, tin roof mounting systems, flat concrete roof mounting systems, ground all-aluminum mounting systems, ground steel mounting systems, solar farm mounting systems, and various mounting components. LARGE Energy solar mounting systems have passed certifications in many countries, including AS/NZS1170.2, SGS, ISO9001, etc. We also own several patents for our mounting system and components.
