Hot Dip Galvanized Steel Solar Mounting System

厦门友巨新能源股份有限公司
价 格:
起价 ¥0.19 / Wp
起价 ¥304 / 4 块组件
地区: 中国大陆 中国大陆
联系生产商
注意: 您的询盘将直接发送至厦门友巨新能源股份有限公司

描述:

• Superior structural strength and economical pricing.

• Coatings customized to withstand various site conditions.

• Innovative modular end clamps for exceptional versatility.

• Increased C-rail strength.

产品特点

产品型号
Hot dip galvanized Zinc Steel Solar Mounting System
产品质量保证 15 年
系统概述
类型 地面型
支架系统排列方式 按行排
组件边框 有边框,无边框
组件排列方向 纵向,横向
倾斜角度
0-60 °
风荷载
216 km/h
雪荷载
2.4 kN/m2
一般参数
系统尺寸(长*宽*高)
1956x992x35 mm
组件宽度
235-992 mm
重量
23 kg/m2
轨道材质 镀锌钢
零部件材质 铝,不锈钢

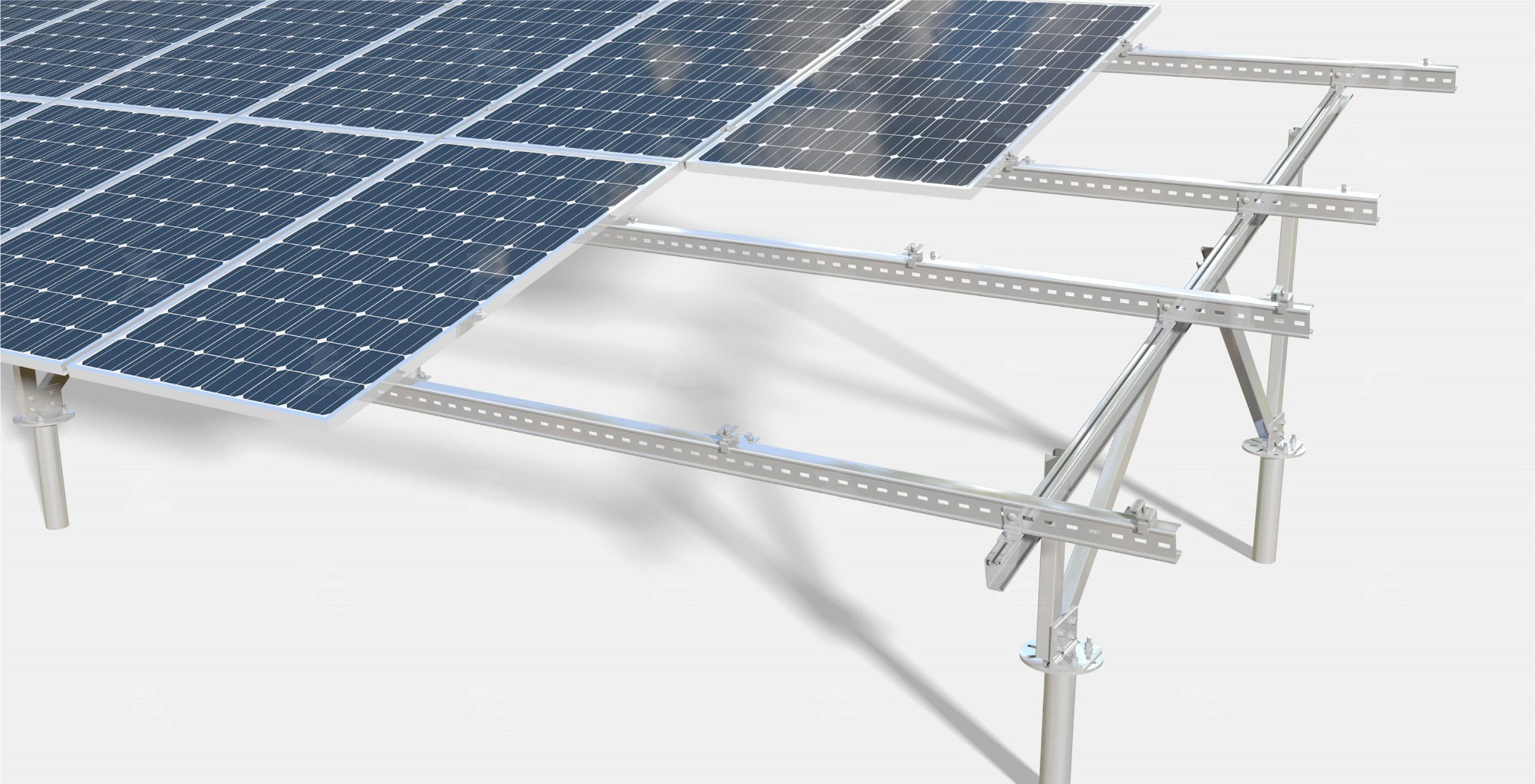

Steel Ground Solar Mounting System

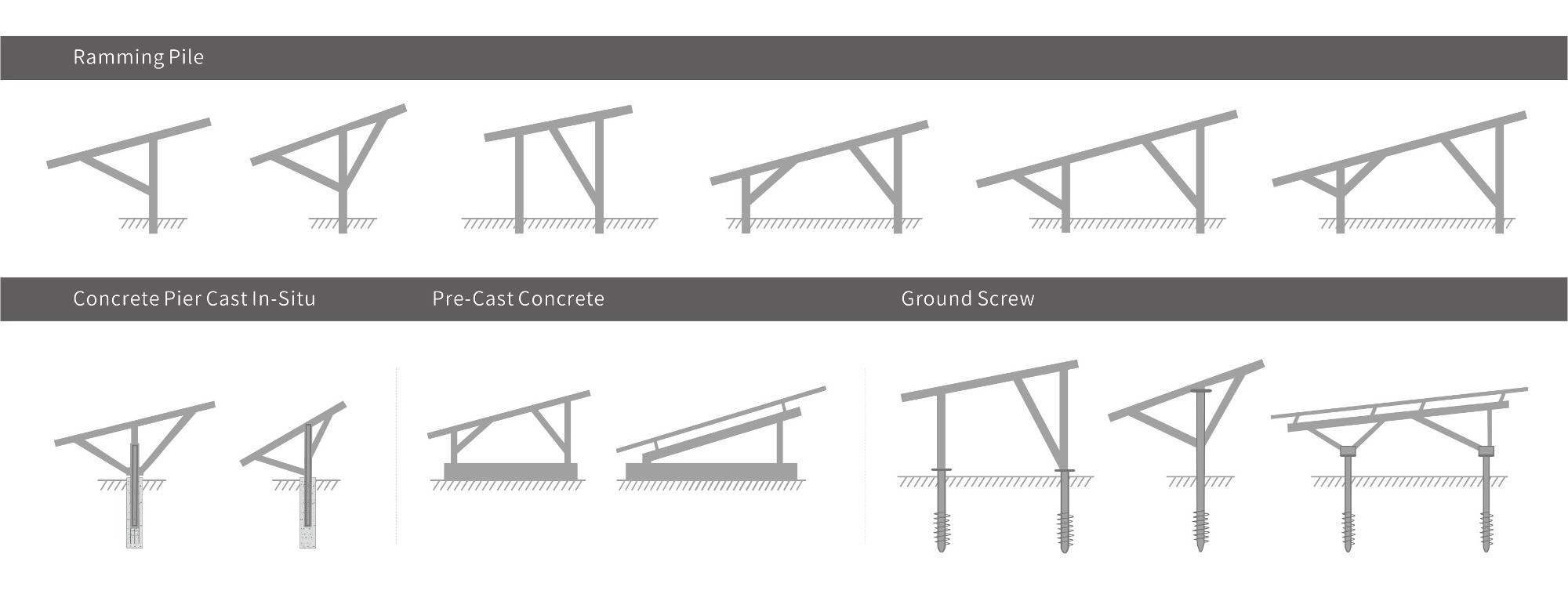

Steel ground solar mounting system is a reliable and cost-effective solution for installing solar panels on the ground. It consists of sturdy steel structures that securely support the solar panels while withstanding extreme weather such as wind and snow. The piles are varied, allowing for customized installation on various types of terrain. With excellent durability and structural stability, steel ground mounting systems are widely used in both commercial and utility-scale solar projects.

Material: Carbon Steel Q235 / Q355 / Q420

Surface Treatment: Hot Dip Galvanized / Zn-Al-Mg Coated

Warranty: 15 Years

Feature

  • Superb Structural Stability

high-strength carbon steel provides robust structure to ensure durability and wind and snow resistance.

  • Excellent Surface Treatment

two treatment methods are available for anti-corrosion performance for the structure's long-term use.

  • Great Economical

carbon steel structures boast lower costs, making them more profitable for large-scale solar power stations.

  • High Flexibility

tailored design and installation solutions are available based on varying project conditions and customer needs.

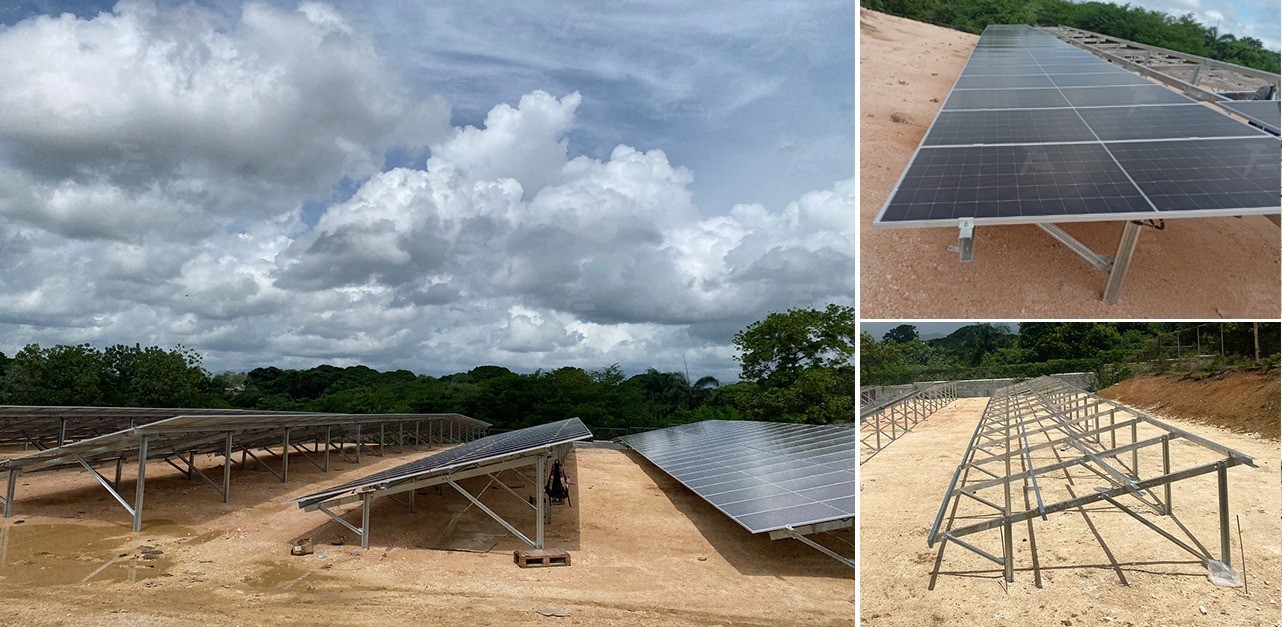

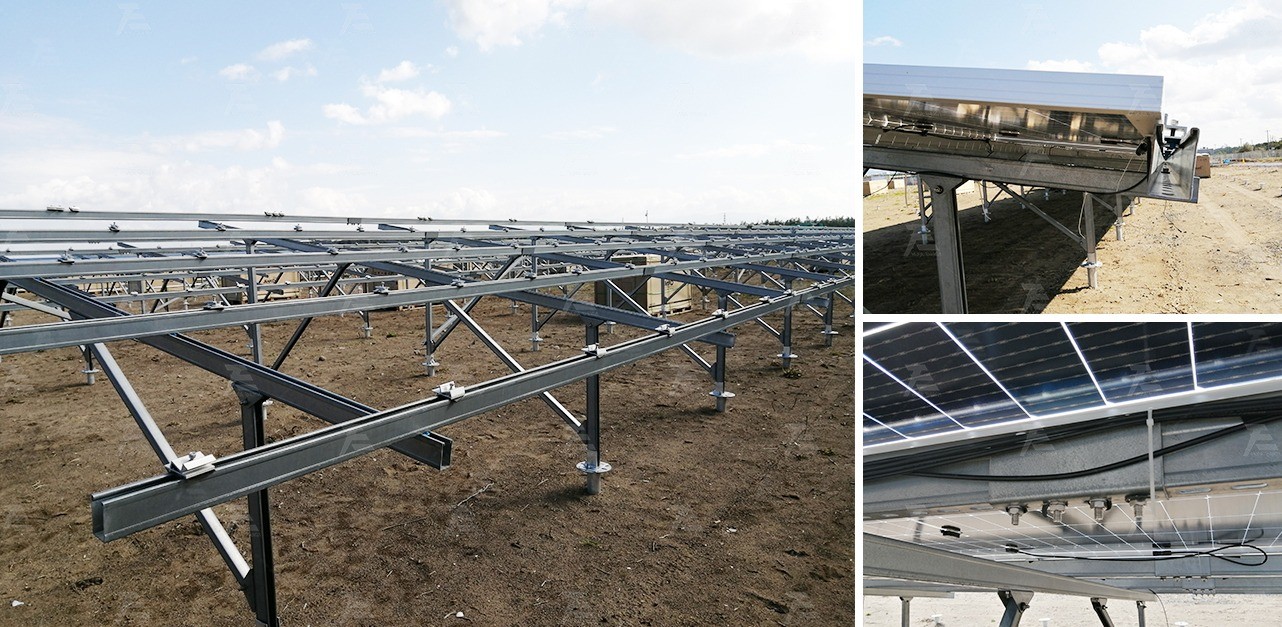

Project Case

厦门友巨新能源股份有限公司

Click to show company phone
www.hugergy.com
中国大陆
福建省厦门市集美区灌口镇松林路6号
员工数: 500
注意: 您的询盘将直接发送至厦门友巨新能源股份有限公司
公司描述

Huge Energy is a manufacturer of solar mounting systems and a provider of solar energy solutions with 8 production facilities in China.

In the pursuit of excellence and technology innovation, and with over 100 R&D engineers' expertise, Huge Energy has obtained 80+ patents and our products have attained UL, TUV, JIS, AS/NZS, IEC, CE certifications, Wind Tunnel Tests, etc. Meanwhile, we have passed ISO9001, ISO45001, ISO14001, and other quality management system certifications.

Huge Energy has set up branches worldwide and has installed tens of thousands of photovoltaic projects worldwide with 15.4GW accumulative installed capacity by 2023.
