Solar Mounting System with Lock Clamp for Metal...

A cost-optimized photovoltaic mounting system designed specifically for klip-lok metal roofs. The system uses roof clamps tailored to the shape of metal roof sheets to lock onto roof ridges, ensuring secure fixation without damaging the roof structure. All core components are made of high-quality aluminum alloy, combining lightweight design with strong corrosion resistance and easy installation.

• Non-penetrating Installation: No roof surface penetration, effectively preventing water leakage.

• Dual Orientation Support: Compatible with both landscape and portrait solar panel layouts.

• Optimized Profile Design: Minimizes the number of profiles required through optimal alignment, reducing installation costs.

• Durable Material: Constructed with Aluminum Alloy 6005-T5, offering excellent anti-corrosive performance for long-term use.

• Certification: CE, SGS

• Compliance Standards: AS/NZS 1170, JIS C8955:2017, GB5009-2012

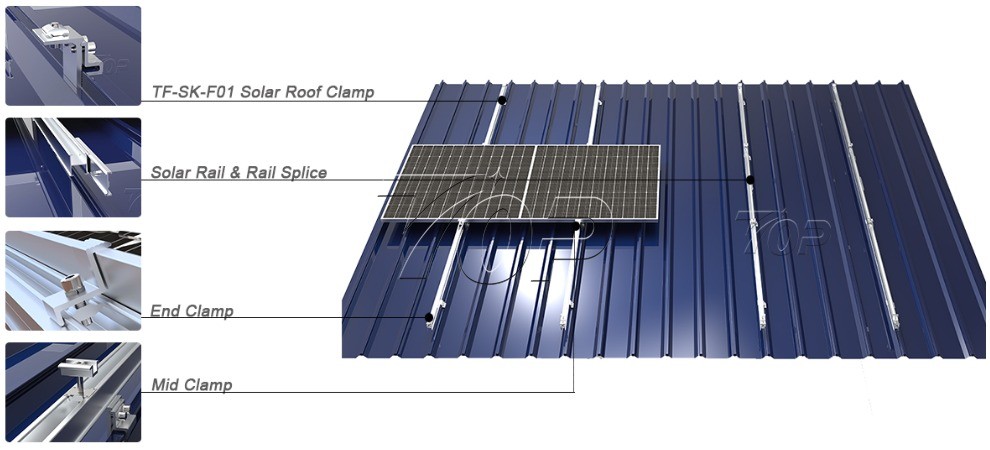

• TF-SK-F01 Standing Seam Roof Clamp

• Solar Rail (with rail splice)

• Module Mid Clamp

• Module End Clamp

• Fixture Blocks

• Cost-effective solution with reduced material and installation costs.

• Corrosion-resistant components ensure adaptability to various environmental conditions.

• Tool-free and quick installation process, improving construction efficiency.

• Secure clamping structure designed for klip-lok roofs, ensuring stability under extreme wind and snow loads.
