YH100W-115W-18M

浙江盈辉新能源有限公司
价 格:
起价 ¥0.854 / Wp *
电 池 技 术: 背钝化 (PERC)
功率范围: 100 ~ 115 Wp
地区: 中国大陆 中国大陆
联系生产商
注意: 您的询盘将直接发送至浙江盈辉新能源有限公司

描述:

Equipped with 72 monocrystalline cells

Generating power of up to 370 watts with 21.24% maximum efficiency

Created with robust materials - an anodized aluminium frame and high-strength tempered glass

Very light for installation-with just 18kg weight for 370 watts model, installations are easy and quick

12-year of workmanship and 25-year of linear output power warranty

产品特点

类型 单晶硅
产品型号
YH100W-18M YH105W-18M YH110W-18M YH115W-18M
质量保证
产品质量保证 12 年
功率输出保证 25年期80%输出功率保证
电性能参数(STC)
峰值功率 (Pmax)
100 Wp 105 Wp 110 Wp 115 Wp
峰值工作电压(Vmpp)
18.56 V 19.48 V 20.12 V 20.72 V
峰值工作电流(Impp)
5.39 A 5.4 A 5.47 A 5.56 A
开路电压(Voc)
21.92 V 23.01 V 23.52 V 24.01 V
短路电流(Isc)
5.7 A 5.71 A 5.78 A 5.84 A
组件效率
17.3 % 18.26 % 19.03 % 19.89 %
功率偏差(正)
+ 3 % + 3 % + 3 % + 3 %
  标准测试条件(STC):太阳能辐射通量1000W/m2,大气参数1.5,组件温度25℃。
电性能参数(NOCT)
最大耐久温度 45±2 °C
  电池片标称工作温度(NOCT):太阳能辐射通量800W/m2,大气参数1.5,环境温度20℃,风速1 m/s。
温度特性
工作温度 -40~85 °C
温度系数(Pmax) -0.35 %/°C
温度系数(Voc) -0.27 %/°C
温度系数(Isc) 0.048 %/°C
系统集成参数
最大系统电压 1500 V
保险丝额定电流 20 A
物理参数
组件尺寸(高/宽/厚) 840x668x30 mm
重量 18.3 kg
电池片数量 72
玻璃类型 钢化
玻璃厚度 3.2 mm
边框类型 阳极氧化铝
接线盒防护等级 IP 67
连接器类型 MC4
电缆截面 4 mm2
电缆长度 900 mm
PDF
下载公司产品详情

Production line video

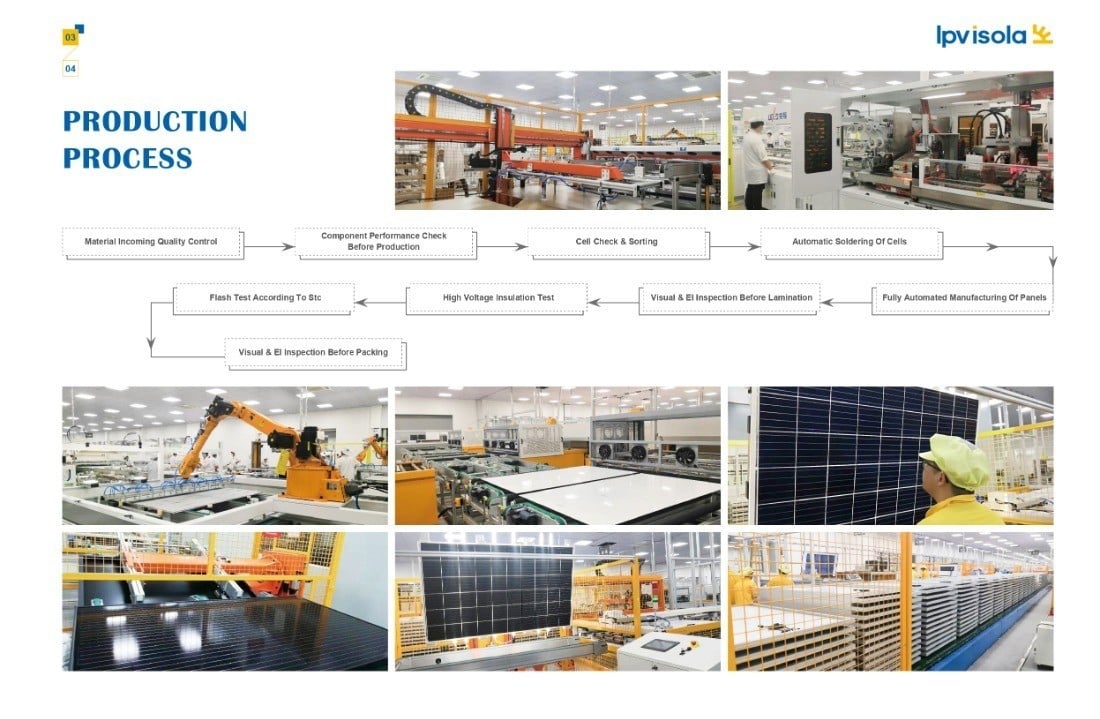

Production step:

Automatic feeding,Soldering,Laying out,First EL Testing,Lamination,Trimming,Visual Inspection,Framing,Installation Junction Box,Curing,Cleaning,Flash testing,Second EL Testing,Packing.

About US

MORE THAN 15 YEARS SOLAR PRODUCER

ZHEJIANG ISOLA NEW ENERGY CO., LTD is a tech-oriented enterprise, engaged in R&D, production and installation of solar products, including solar cells, solar panels, solar street lighting, on/off-grid solar system, etc.

Isola has a strong and reliable supplier line and 3 factories based in Ningbo and Shandong city. Annual production capacity reaches 400MW for solar cells, 500MW for solar panels. Our subordinate branches and representative offices are located in more than 10 countries, like Germany, Denmark, Netherlands, Bangladesh, Burma, etc.

Isola insists quality as principle core and keeps improving technique to feedback our customers. Our mission is to help create a better environment, bluer sky and cleaner water.

Our Team
Production Line
Material Partners
Global Market
Projects

浙江盈辉新能源有限公司

Click to show company phone
www.zjisola.com
中国大陆
浙江省台州市三门县健跳镇临港工业区
员工数: 200
注意: 您的询盘将直接发送至浙江盈辉新能源有限公司

晶体硅

产量 (MW)/: MWp
单晶硅,多晶硅
功 率 范 围(Wp): 5-700

集成型

产量 (MW): --
透明太阳能电池
功 率 范 围(Wp): 5-700
公司描述

Zhejiang Isola New Energy Co.,Ltd is a professional manufacturer, engaged in high-tech products of solar modules. It has the abundant technical force and a large number of professional and technical person for many years experienced in the photovoltaic industry, and use full-automatic machine for cell cutting, welding, packaging, testing and so on.
Products included solar cells, solar panels,solar home system, solar streetlight, etc.
Two production bases:
Full automatic production line: 1.5GW / year, power range: 450W-540W
Semi-automtic production line: 400MW / year, power range: 5W-400W
We are the domestic manufacturer with the most comprehensive power coverage and the most customized enterprise.
