上海爱旭新能源股份有限公司 Neostar 3S+54 A-MCE54Db 480-490W

Name: Neostar 3S+54 A-MCE54Db 480-490W
Brand: Varus Energy
SKU: 70844
Price: 0.15108 EUR
Availability: InStock

Varus Energy GmbH

AOX-132G12RHC 620-650W

江苏奥轩光电科技有限公司

每件价格
最低订购量	740-2999 件	3000-6999 件
交货时间	21 days	21 days
AOX-132G12RHC630W	¥366	¥362

联系生产商

注意： 您的询盘将直接发送至江苏奥轩光电科技有限公司。

TOPCon, N型

620-650 Wp

29 kg

12 年

99 % 1年年限质保，87.4 % 30年年限质保

22.9 % - 24.1 %

2382x1134x30 mm

3.2 mm

0.30 %/°C

132

技术

背接触式, N型

功率范围

480 - 490 Wp

地区

德国

重量

24.2 kg

产品质量保证

30 年

功率输出保证

99 % 1年年限质保，88.85 % 30年年限质保

组件效率

24 % - 24.5 %

尺寸

1762x1134x30 mm

玻璃厚度

2 mm

温度系数（Pmax）

-0.26 %/°C

电池片数量

108

每件价格每件价格
最低订购量	37+ 件
AIKO-A480-MCE54Db	¥581

联系销售商

注意： 您的询盘将直接发送至Varus Energy GmbH。

产品信息
公司档案页

产品特点

类型

单晶硅

产品型号

AIKO-A480-MCE54Db

AIKO-A485-MCE54Db

AIKO-A490-MCE54Db

产品质量保证

30 年

功率输出保证

99 % 1年年限质保，88.85 % 30年年限质保

0.37 %

电性能参数（STC）

峰值功率（Pmax）

480 Wp

485 Wp

490 Wp

峰值工作电压（Vmpp）

34.5 V

34.6 V

34.7 V

峰值工作电流（Impp）

13.92 A

14.02 A

14.13 A

开路电压（Voc）

40.9 V

41 V

41.1 V

短路电流（Isc）

14.8 A

14.84 A

14.88 A

组件效率

24 %

24.3 %

24.5 %

电性能参数（NOCT）

峰值功率（Pmax）

364 Wp

367 Wp

371 Wp

峰值工作电压（Vmpp）

32.73 V

32.83 V

32.92 V

峰值工作电流（Impp）

11.13 A

11.21 A

11.29 A

开路电压（Voc）

38.8 V

38.9 V

38.99 V

短路电流（Isc）

11.96 A

11.99 A

12.02 A

工作温度

-40 - 85 °C

温度系数（Pmax）

-0.26 %/°C

温度系数（Voc）

-0.22 %/°C

温度系数（Isc）

0.05 %/°C

最大系统电压

1500 V

保险丝额定电流

30 A

组件尺寸（高/宽/厚）

1762x1134x30 mm

重量

24.2 kg

电池片数量

108

玻璃类型

防反射镀膜

玻璃厚度

2 mm

边框类型

阳极氧化铝，黑色

旁路二极管数

接线盒防护等级

IP 68

连接器类型

MC4

电缆截面

4 mm²

电缆长度

1200 mm

下载公司产品详情

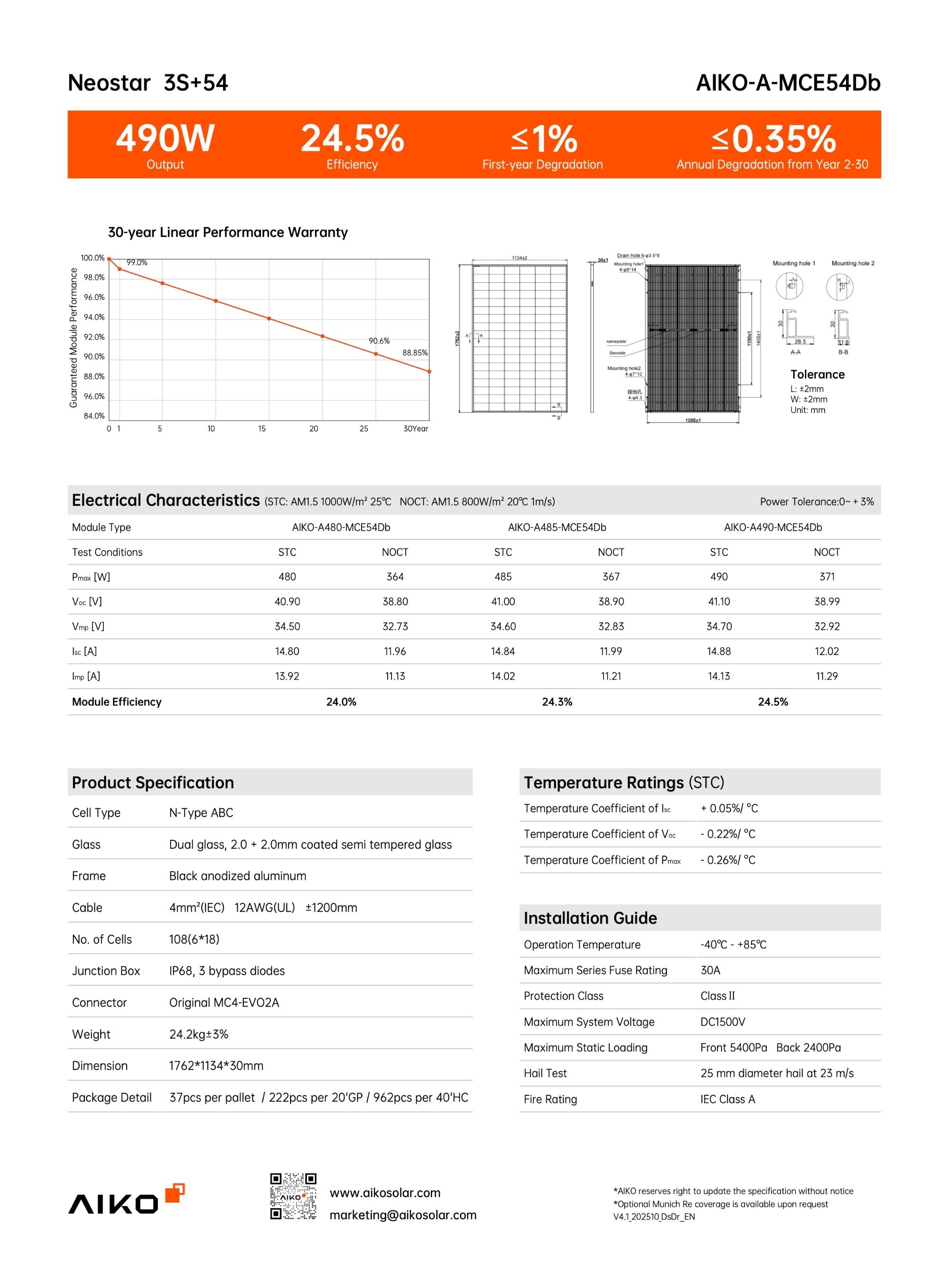

数据表

Datasheet

Our Warehouse

Our Brands

Our Products

PV Modules

As an experienced photovoltaic wholesaler, we offer you access to a wide range of module manufacturers. We stock our main partners, such as TRINA Solar, Hyundai, Hanersun, and Sunrise Energy. Our product range is geared towards the current performance classes and the needs of our partners and customers.

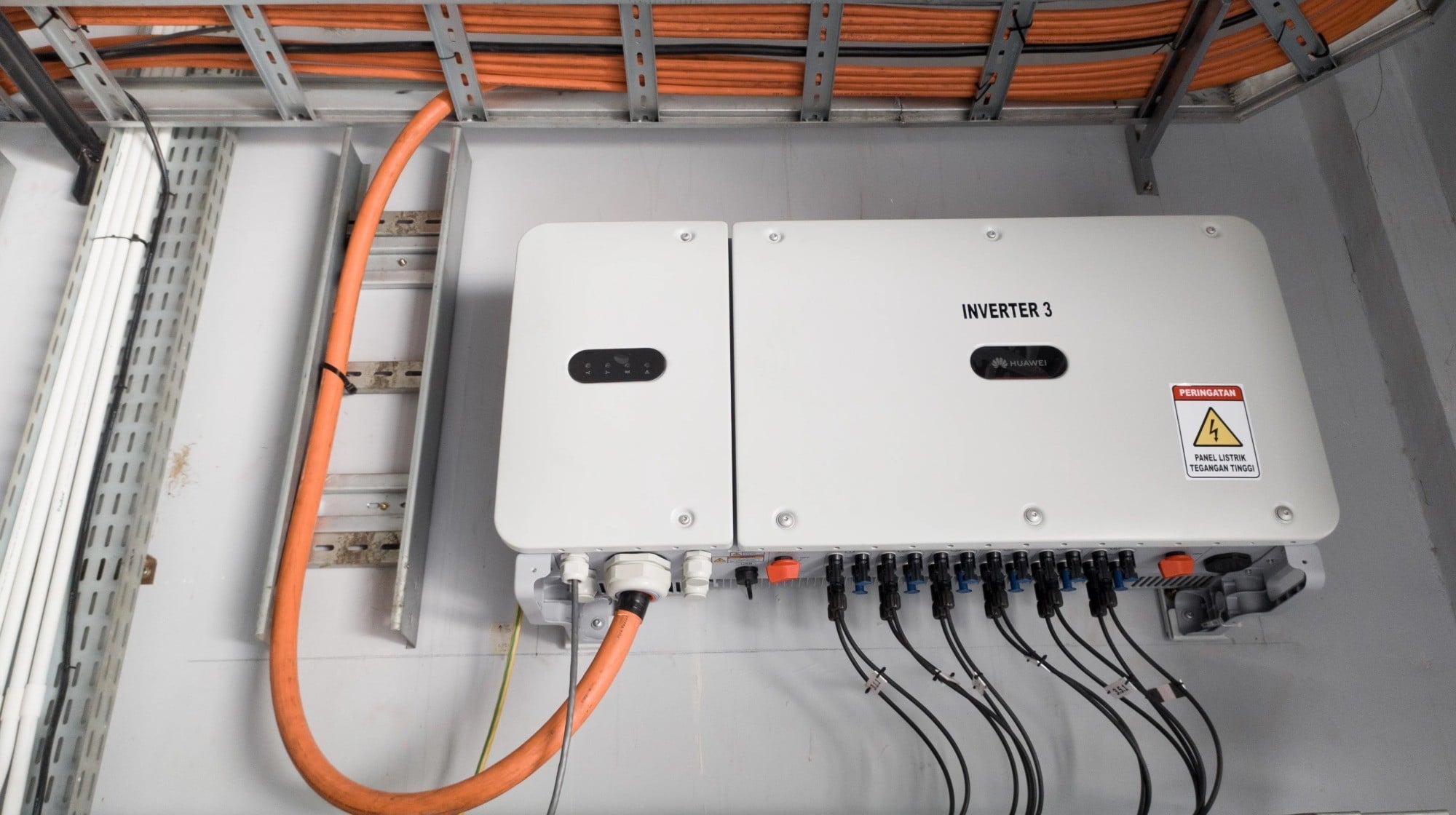

Inverters

We work specifically with manufacturers that offer hybrid inverters as a standard solution, giving you the option to retrofit an existing system with energy storage at a later stage without the need to replace components. Additional manufacturers can be supplied upon request.

Storage Systems

Our wide range of storage solutions is carefully tailored to our customers' needs. We offer both high-quality storage systems from Huawei and Growatt to ensure you always receive the best solutions for your requirements.

Charging Stations

Excess charging to optimize self-consumption. To ensure flawless operation, we also work with Growatt and Huawei for our wallboxes. This guarantees the seamless interaction of all components and provides a single point of contact for service and support for the entire system.

Exhibitions

Varus Energy GmbH

: Click to show company phone
: https://varusenergy.com
: 德国
: Herdekamp 9, 46509 Xanten

员工数： 22

联系销售商

注意： 您的询盘将直接发送至Varus Energy GmbH。

有用联系人

Janin Heymink-Bouwman

Svenja Woge

Silvia Cabeza

Robin Trosiner

Fabian Gulich

公司描述

Since 2014, Varus Energy GmbH has been a reliable photovoltaic wholesaler, supporting partners and customers with high-quality solar solutions. We specialize in supplying premium photovoltaic products through flexible delivery options, including container deliveries at competitive market prices, fully assembled systems delivered directly to construction sites, and convenient warehouse pick-up services that allow immediate project execution.

We offer a carefully selected portfolio of state-of-the-art photovoltaic products that meet the highest industry standards for performance, efficiency, and durability. Recognizing that every project is unique, our experienced team works closely with partners to develop tailored solutions aligned with specific technical and budgetary requirements.

With strong industry expertise and efficient ordering processes, Varus Energy is a dependable partner for long-term success in photovoltaics.
