Morningstar Corporation
8 Pheasant Run Newtown, PA 18940
美国 the_United_States.png

员工信息

有用联系人

Contact Face
公司描述
晨星公司是太阳能充电控制器和逆变器的全球领先供应商,与安装在超过112个国家的超过250万台。在国际太阳能市场晨星公司的产品已被公认的最先进,最优质的产品提供。

我们的许多客户告诉我们,晨星是他们的最佳供应商。在过去的21年里,晨星一直是一致的,可靠的合作伙伴:相同的所有权,同样的管理和相同的策略。我们专注于我们的核心竞争力100%:太阳能供电的电子产品。

最重要的是,晨星是雇员拥有的公司。我们的人民是热情和专注于长期的成功光伏和我们地球的可持续发展。他们在这里为我们的客户提供长期的。
业务详情
零 部 件 类 型
逆变器,充电控制器
充电控制器
技术类型: MPPT,PWM
逆变器
类型: 离网
功率范围(kWp): 0.3
已知销售商数量 逆变器 96 销售商, 充电控制器 261 销售商
产品


About Morningstar SureSine Inverter

Model No. SI-300

Two separate versions available: 220vaC at 50 Hz or 115vaC at 60 Hz. Other output voltages available upon request. User selectable on both versions.


Electrical Specifications

• Continuous Power Rating 300 Watts @ 25°C
• Peak Power Rating (10 minutes) 600 Watts @ 25°C
• DC Input Voltage 10.0V – 15.5V
• Waveform Pure sine wave
• AC Output Voltage (RMS)* 220V or 115V +/– 10%
• AC Output Frequency* 50 or 60 Hz +/– 0.1%

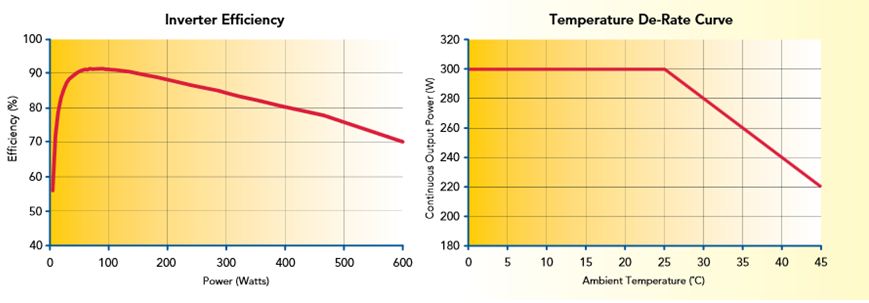

• Peak Efficiency 92%
• Total Harmonic Distortion (THD) < 4%
• Self Consumption
  Inverter On (no load) 450mA
  Inverter Off 25mA
  Stand-by 55mA
• Low Voltage Disconnect (LVD) 11.5 V or 10.5 V**
• Low Voltage Reconnect 12.6 V or 11.6 V**
• LVD Warning Threshold (buzzer) 11.8 V or 10.8 V**
• LVD Delay Period 4 minutes
• High Voltage Disconnect 15.5 V
• High Voltage Reconnect 14.5 V
• Standby On Threshold ~ 8 Watts
• Standby Off Threshold ~ 8 Watts
• High Temperature Disconnect 95°C (heatsink)
• High Temperature Reconnect 80°C (heatsink)


* two separate versions available:

220vaC at 50 Hz or 115vaC at 60 Hz
Other output voltages available upon request.

**user selectable on both versions.


Electronic Protections

• Reverse Polarity (fused)
• AC Short Circuit
• AC Overload


Mechanical Specifications

• Dimensions 213 x 152 x 105 mm; 8.4 x 6.0 x 4.1 in

• Weight 4.5 Kg / 10.0 lbs

• AC Terminals; Max. Wire Size 4 mm2 / 12 AWG

• DC Terminals; Max. Wire Size 2.5 to 35 mm2; 14 to 2 AWG

• Remote On/Off Terminals; Max. Wire Size 0.25 to 1.0 mm2; 24 to 16 AWG

• Enclosure IP20; Cast anodized aluminum



Environmental Specifications

• Ambient Operating Temp –40°C to +45°C

• Storage Temperature –55°C to +85°C

• Humidity 100% (non-condensing)

• Tropicalization Conformal coating on printed circuit boards

• Epoxy encapsulated transformer and inductors


Certifications

• CE Compliant

• UL Listed (UL 458) – 115 V version ONLY

• cUL (CSA C22.2 No. 107.1-01) – 115 V version ONLY



Improved Load Operation

• Pure Sine Wave – Provides quality AC equivalent to grid power. A sine wave will extend the life of the household appliances (lights, TV, fans) and improve load performance.

• Toroidal transformer design – Generates good wave form throughout the range of input voltages.

• Outstanding Surge Capability – Handles a 200% surge during load start-up, to a maximum of 600 watts



More Power Available

• High efficiency – A high peak efficiency will reduce heating and make more solar energy available for powering loads.

• Low Self-Consumption – The SureSine consumes 450mA while powering loads. During no load conditions, solar energy is not wasted because the SureSine automatically powers down to stand-by mode, reducing self-consumption to one tenth of operating consumption.



Extremely High Reliability

• Extensive electronic Protections – The SureSine has extensive electronic protections that will automatically protect against faults and user mistakes such as short circuit, overload, high temperature and low voltage disconnect. Recovery from most faults is automatic.

• No internal Cooling Fan – A key design objective since fans often fail in harsh environments and are noisy, consume power and blow dirt into the electronics.

• Tropicalization – The SureSine uses epoxy encapsulation, conformal coating, stainless steel hardware, and an anodized aluminum enclosure to protect against harsh tropical and marine environments.



Other Features

• More information – The two LEDs provide important information to the user about system status and any fault conditions. An optional digital meter may be connected to the SureSine to display additional system information.

• Remote On/Off – Improves safety by making it easy to install the SureSine in an inaccessible location or enclosure.

• Reduces system cost by avoiding the need to add an AC safety disconnect to the system.

• Adjustability – Four DIP switches provide easy adjustability of several system parameters. Additional adjustability is possible via RJ-11 to RS-232 adapter to a personal computer and using Morningstar’s PC software.



产品

逆变器

  • ¥5.93 / Wp *
    Suresine
    0.3 kW 离网

充电控制器

  • ¥3,190 / 台 *
    TriStar MPPT
    MPPT
  • ¥802 / 台 *
    ProStar
    PWM
  • ¥435 / 台 *
    EcoPulse
    PWM
  • TriStar MPPT 600V
    MPPT
  • SunSaver MPPT
    MPPT
  • ProStar MPPT
    MPPT
  • ¥1,030 / 台 *
    EcoBoost MPPT
    MPPT
  • TriStar
    PWM
  • ¥354 / 台 *
    SunSaver
    PWM
  • SunSaver Duo
    PWM
  • SunKeeper
    PWM
  • SunLight
    PWM
  • SunGuard
    PWM
  • SHS
    PWM
  • Prostar (Gen3)
    PWM
销售商
阿富汗 VISTA Renewable Energy Services
阿根廷 Solartec
阿联酋 BSC Solar POWERnSUN Qi-energy Sunergy Solar
埃及 EastWatt Egyptian German Onera
奥地利 Sunworld
澳大利亚 All Natural Energy Arrid Power (AUST) Battery Traders & Solar RV Choose Solar Ecopia Solarbarn Enerdrive Going Solar iSustain Australia Planetary Power Rainbow Power Company RFI Solar 4 RVs SASA Solar Tasmania Solar Technology Australia Solazone Sundriven The 12Volt Shop The Energy Hub
巴勒斯坦 Megapower PalSolar TechLand
巴拿马 The Sol Patch International, Inc.
巴西 Logik Minha Casa Solar Comercio Sohlen Soluções Energéticas Solar Brazil
玻利维亚 Enersol
丹麦 Danish Solar Energy
德国 Esomatic Heizmann-System-Elektronik Inutec Solarcenter International Knerr Solartechnik ÖKO-Energie Phaesun Prime Solar Sina Solar Solar- und Haustechnik Solar23 Sunload
多哥 P.E.S-TOGO
多米尼加共和国 Retecsa Trace Solar
俄罗斯 AltEnergiya Eltehno Manblan Multi Wood Ra Energo Real Solar Solar Energoimperiya Solar Home Solarcrown SolarElectro UST
厄瓜多尔 AVRESA Codeso
法国 Eklor NRJSolar Serelio Simple et Solaire Solaris
菲律宾 SWEP
哥伦比亚 Enik Meico
哈萨克斯坦 Speed Digital Services
韩国 Eco Power
荷兰 Independent Energy Profsolar
洪都拉斯 Sielsol Soluz Honduras
加拿大 Aztec Off Grid Solutions Bartle & Gibson Battery Electric C4P Canadian Solar Wholesale Covalin Electrical Supply DC Power Dewar Electric Eco-Energy Reserves Evolve Green G2 Solar Home Energy Solutions Logic Control MSM Electric Prairie Battery ProSolaire Raysolar Rematek Energie Rozon Batteries Solacity Solaire Laurentides Solar Energy DC Solar Plus Ontario Solar Store Canada Solar Trader Solar Wholesaler Solar Winds Energy Solarwyse WeGo Solar Westrock
捷克 Ap-Tech
津巴布韦 Solartech System
喀麦隆 Haute Energy Systems
卡塔尔 Al Emadi Solar
克罗地亚 Shine Solar Veneko
肯尼亚 CAT CEL Go Solar Systems Harmonic Systems Solagen Power SolarGen Technologies
立陶宛 BSP
罗马尼亚 EcoAlternativ Construct
马达加斯加 Solarmad
美国 A1 SOLARSTORE ABS Alaskan ACOSolar AEE Solar African Energy Air One Backwoods Solar Beyond Oil Solar Blue Pacific Solar BrightSun Power Connexa Dmsolar e RV ECO Distributing EcoDirect.com Edison Solar Effective Solar Products EAO Ennis Wind and Solar Greenenergy Hurricane Wind Power Inter-Island Solar Supply Inverters R Us J.E.M. Solar Lime Solar Maine Generator & Solar Power Maine Solar MFS Maverick Solar Millville Heating Plumbing Solar Missouri Wind and Solar ML Solar New England Solar Electric Northern Arizona Wind & Sun Online Solar Oso Renewable Energy Power Up Proinso Real Goods Solar Renewable Energy Systems Renvu Schaedler Yesco Smucker's Sales & Service Solar Electric Supply Solar PV Pros Solaris Technology Industry SolarPanelStore.com Soligent Sun Electronics SunFrog Solar SunVolt Energy SunWize Power & Battery Susitna Energy TESSCO Technologies The Energy Store The Solar Store Treepublic Van Meter Web Solar Supplies Webo Solar Wholesale Solar
美属维京群岛 Eco Innovations
秘鲁 AFG NetSat
摩洛哥 Atlas Energy
墨西哥 Acceso Solar Cryplant Energía Alternativa ESPS Industria Solar Plima SYSCOM Soluciones Energeticas
南非 Greenotech i Power Sinetech Solar Corporation Solar Man SESSA
尼泊尔 RNA Suryodaya Urja SEN
尼加拉瓜 Tecnosol
尼日利亚 Ashdam Solar Enerplaz Renewable Energy Pamtronics PSC SOLAR UK Solar Depot Nigeria Wavetra Energy
挪威 Alternativ Energi Solcellespesialisten Sunwind Gylling
日本 Asuden Etech-Japan Ikoro Natural-Sky
瑞士 Go Solar IWS Solar Neogard Sergio Anselmi SolarYours Sumatrix
塞尔维亚 Telefon-Inženjering
塞拉利昂 RCD Solar Company
沙特阿拉伯 Active Energy Egphil
斯里兰卡 Goodmonds Micro Solar Power Centre
中国台湾 聚恒科技股份有限公司 台邦科技股份有限公司 寶球能源股份有限公司
泰国 DDTech
坦桑尼亚 Highedge Solar Photons Energy
突尼斯 Solakta Solar
土耳其 Polat Solar
乌干达 All in Trade
乌克兰 Energo
西班牙 Bureau Baterías Ecosolarspain Merkasol Energias Renovables Sol-Luz-Ion Solarland Supermercado Solar Techno Sun Tienda Solar
希腊 Active Energy Solution Aresti Power SmartCover
新加坡 Kamtex Solar LS Solar YHI Corporation
新西兰 AA Solar & SunPowerPlus Able Solar Independent Power Reid Technology
匈牙利 Solix
也门 Delta Technology
伊朗 Arenco
意大利 FGS Energie Alternative Giovanni Rosamilia UFLEX
印度 Avante Global Services
印度尼西亚 Rekasurya PT. Sunergi Internusa Pratama SSI SSI
英国 Eco Power Shop Navitron Renugen Select Solar Trinity Solar Wind & Sun
赞比亚 Maximum Solar Muhanya Solar
智利 Energia Solar Opitra Heliplast
中国大陆 北京首善信达科技有限公司
使用该品牌安装商实例
阿根廷 Aldar
阿联酋 Hollandia Solar
奥地利 Sunworld
澳大利亚 Alenco Dorky Solar Tasmania Swift Caravan Services Territory Solar Solution
巴西 Ambar Ingeniería Solar evControl Green Power Sol Central SS Solar
多哥 P.E.S-TOGO
多米尼加共和国 Retecsa
俄罗斯 UST
厄瓜多尔 AVRESA
哥伦比亚 Ambiente Solar EPG
加拿大 2B Green Astral Power Solutions Eco-Energy Reserves Empyreal Electric Lakeshore Power Systems Northshore Energy Outfitters NWT Solar Solutions ProSolaire Technoto Viel Solar
津巴布韦 Mika Solar Solar Power Projects Solartech System Thames Power
立陶宛 SW Baltic
美国 Acadiana Solar Advanced Solar Distributing Electric Solar Elite Solar Services GigaWatt Greenenergy Gulf Solar Technologies Maine Generator & Solar Power Northern Arizona Wind & Sun Oso Renewable Energy Power Up PPCSolar Right Fit Solar RV Solar Connection RV Solar Install and Service Solar Direct SolBid
美属维京群岛 Eco Innovations
秘鲁 Energía Innovadora
墨西哥 Acceso Solar Mexsol Soluciones Energeticas
尼泊尔 Lasersun Energy RNA
瑞士 K.W. Weyermann
萨尔瓦多  Ingeniería Solar
塞尔维亚 Solar Team - Senta Telefon-Inženjering
泰国 Esan Solar Renewable Energy
坦桑尼亚 Highedge Solar Power Providers
特立尼达和多巴哥 ASCL
突尼斯 AES Volta PV
土耳其 Polat Solar
瓦努阿图 Greentech Vanuatu PCS
乌干达 ESL New Sun
新加坡 Kamtex Solar Pan Delta
新西兰 DCPower Batteries Reid Technology
印度 AR Morgan Hydrosolar Energy Bhaskar Solar
印度尼西亚 Rekasurya Selsolar
英国 JDM Renewables
赞比亚 Maximum Solar
中国大陆 北京首善信达科技有限公司
斐济 CBS Powerlite (Fiji)
评价
Charge controller for off grid PV systems. Manufacturer with experience. Robust product of good quality and reliability. Good after sales service. Constant renovation in new products.
-- Proenal S.L.
We use these charge controllers for our large installations, they are economical and well made. Epoxy encapsulated for marine environments. Easy to connect. These charge controllers are extremely reliable.
-- Going Solar
最后更新: 2020年9月23日
